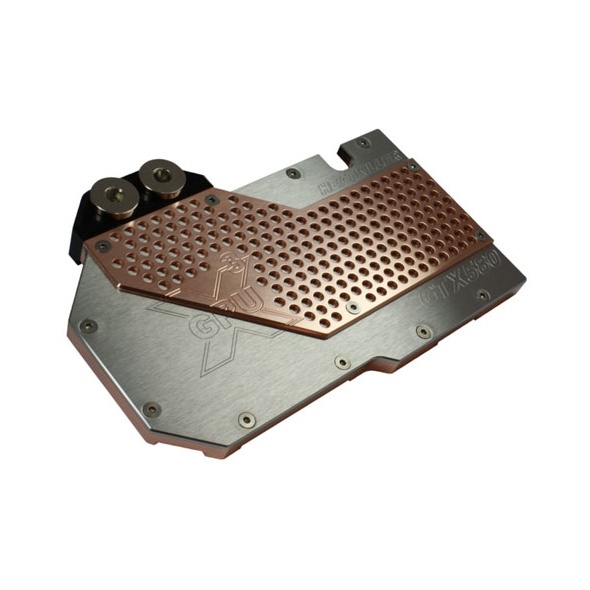

Watercool HEATKILLER GPU-X- GTX 570/580 noIHS Hole Edition

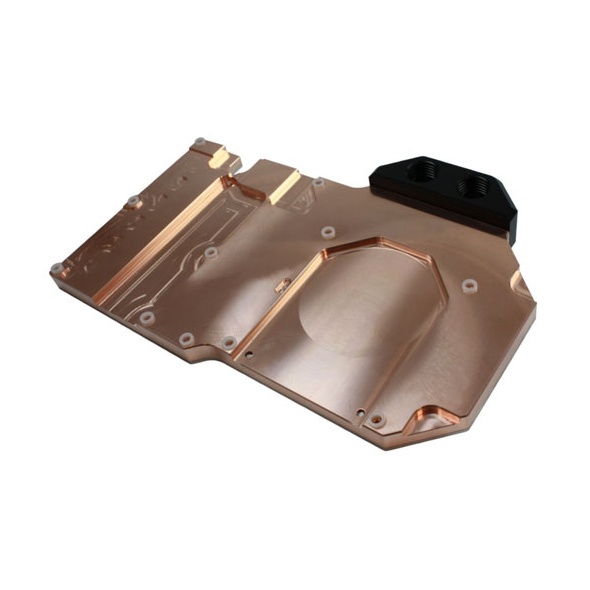

In addition to the graphics processor and the Rambausteine ​​and voltage regulators are cooled. In the area of the GPU, a very fine micro structure was built. Together with a low residual soil strength optimum cooling performance is achieved. In all relevant areas of insulating spacers were inserted. These provide for a smooth installation of the cooler.

To keep the flow resistance, and the total weight low, all channels are running large volume. Both sides by the existing thread of the connector block various ways of integration are given in the cooling circuit.

For use in SLI systems are optimized dual and triple SLI adapter available.
For ease of installation all supplied thermal pads are pre-cut.

Unlike the standard version of the cooler in the Hole Edition the top cover is perforated throughout.

Technical data:
Material: Electrolytic copper, stainless steel, POM
Dimensions: (LxWxH) 172.0 x 117.0 x 11.5 mm
Weight: 850g
Connection: 4x G ¼ Inch (DIN ISO 228-1)
Tested pressure: 5 bar
Compatible with Nvidia GTX 570 / GTX 580 (reference design without Heat Spreader)

Delivery:
1x HEATKILLER GPU-X ³ GTX580 Hole Edition
1x Mounting materials / instructions
