Tecnofront response to the Tube Reservoir: The reservoir Torpedo!
Looking at the basic layout of this reservoir he joins in a variety of tube reservoirs as some manufacturers already produce. But that simple is not! Little important details that stand out from the other container.
Tecnofront response to the Tube Reservoir: The reservoir Torpedo!
Looking at the basic layout of this reservoir he joins in a variety of tube reservoirs as some manufacturers already produce. But that simple is not! Little important details that stand out from the other container.
Tecnofront response to the Tube Reservoir: The reservoir Torpedo!
Looking at the basic layout of this reservoir he joins in a variety of tube reservoirs as some manufacturers already produce. But that simple is not! Little important details that stand out from the other container.
No products found

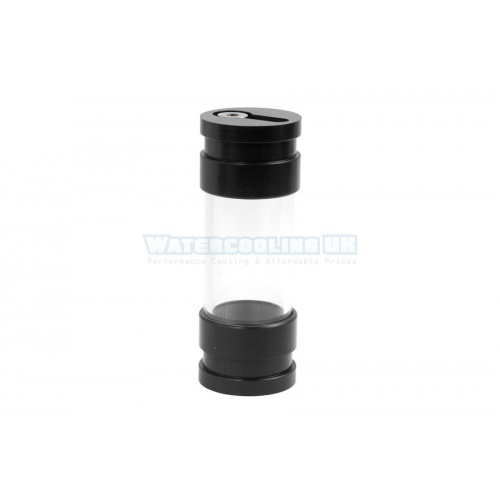

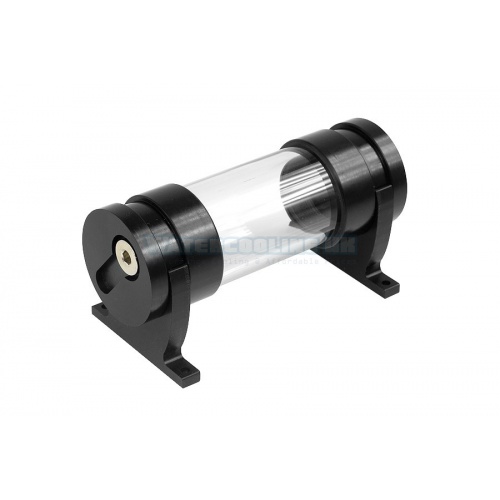

Classically, the actual tube is divided into 3 parts cover, soil acetal, intermediate tube of acrylic glass. The cover is provided with a threaded opening 1/4Zoll, which allows the feeding of a hose connecting to a Fillport or the flat, not just the upright, mounting. The floor is equipped with 2x 1/4Zoll threaded openings. Can be used as inlet and outlet or when the upper thread can be used as an opening be used for an illumination module. Unlike many of the other tube containers are attached to the bottom and top brackets. In practice, since it gets the Plexiröhre no scratches! The tube itself is very neatly worked, no manufacturing residues and no scratches.
Water cooling fans which is the appearance in the foreground of this model would advise the right place!
Technical details:
Material: Acetal, Plexi
Color: black
Height: 150mm
Diameter: 50mm
Thread Size: 1 / 4
Delivery:
1x Torpedo Tecnofront Reservoir
1x plugs
2x mounting brackets
2x plastic connector G1 / 4 for 3 / 8 tubing
Mounting material
