The SX1000 from Silverstone is certified with 80 PLUS Platinum and relies on first-class technology in a simple guise.
The SX1000 from Silverstone is certified with 80 PLUS Platinum and relies on first-class technology in a simple guise.
The SX1000 from Silverstone is certified with 80 PLUS Platinum and relies on first-class technology in a simple guise.
The fully modular power supply has a stylish aluminum housing and flexible cables for a long service life. With its high efficiency of up to 94% at 1,000 watts, the SX1000 works very efficiently. Thanks to the SFX-L form factor, the power supply is ideal for overclockers and gaming enthusiasts who have a compact PC system.
The features of the Silverstone SX1000 at a glance:
– SFX-L form factor for use in small form factor computers
– 1000W continuous power output rated for 24/7 operation
– Class-leading single +12V rail with 83.3A perfect for future high-end component upgrades or overclocking.
– High efficiency with 80 PLUS Platinum certification to reduce wasted heat and save on electricity.
– Silent running 120mm dual ball bearing fan with advanced semi-fanless operation

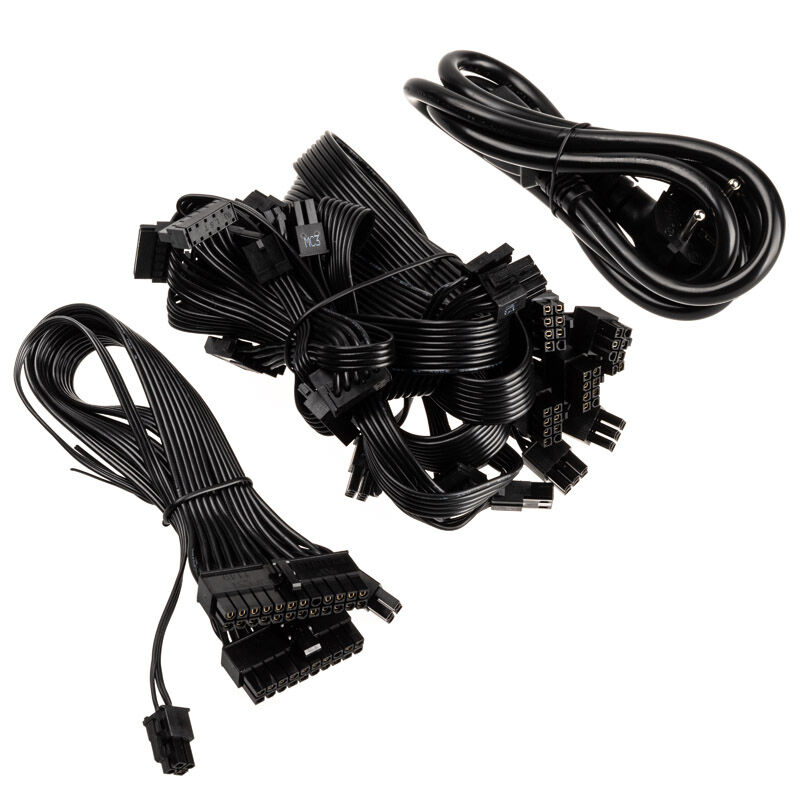

– 100% modular short cables with flexible flat arrays which have much greater flexibility to allow for tighter folding and management of cables.
– Strict ±3% voltage regulation and low ripple & noise
– 24/7 continuous power output with 50℃ operating temperature
– High quality construction with all Japanese capacitors
With the SX1000, Silverstone offers an extremely powerful power supply in the compact SFX-L form factor. This was designed for small PC cases with little storage space. With its enormous nominal power and its small size, the Silverstone SX1000 enables extremely high-performance SFF builds. The subtle aluminium housing and the flat and flexible cables of the SX1000 ensure a minimalist and elegant appearance.

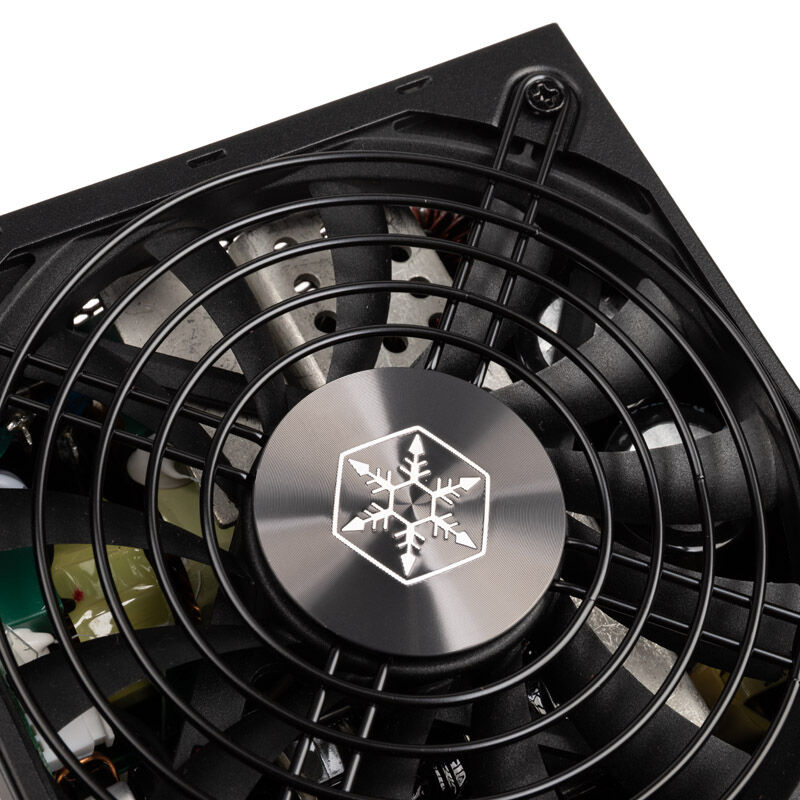

The 120 mm fan works effectively to cool the compact power supply unit at a maximum volume of 36 db (A). Thanks to the semi-passive mode, it only starts turning when performance is required. The wireless internal design also contributes to improved cooling performance and component life expectancy. In addition, the SX1000 has a very powerful + 12 V single rail, which with 83.3 A is ideal for high-end components and overclocking.
Very high efficiency & fully modular cable management
The SX1000 provides a full 1,000 W of continuous power and thus offers sufficient power even for extremely power-hungry systems. Only first-class electronics are used to achieve the high degree of efficiency of 94%. The high-end power supply unit relies exclusively on high-quality Japanese capacitors, which means that very little electrical energy is lost in the form of waste heat.
The connection portfolio also leaves little to be desired. It has a fully modular design, which guarantees maximum flexibility and enables convenient installation in small housings. Even server boards with two CPU sockets and the need for two 8-pin EPS connections are no problem. A total of six PCIe connectors with 6 + 2-pin are available for the graphics cards. The peripherals are just as generous with eight SATA, three 4-pin and one floppy connector.
Technical details:
– Dimensions: 125 x 63.5 x 130 mm (W x H x D)
– Colour: Black (Lead-Free Paint）
– Fan: 120 mm (semi-passive, max. 36 dB (A))
– Efficiency: 89% ~ 92% at 20% ~ 100% loading, incl. 80 PLUS Platinum certificate.
– PFC: Active PFC (PF>0.9 at full load)
– Form factor: SFX-L
– Noise Level: 0 ~ 36 dBA
– Operating temperature: 0 degreesC ~ 50 degreesC
– Input Voltage: 90V ~ 264V
– Input Frequency Range: 47Hz ~ 63Hz
Continuous power: 1,000 W.
– +3.3 V: 25 A
– +5 V: 25 A
– +3.3V + 5V: 125W
– +12 V (combined): 999.6 W / 83.3 A
– -12 V: 0.3 A (3.6 W)
– +5 VSB: 3 A (15 W)

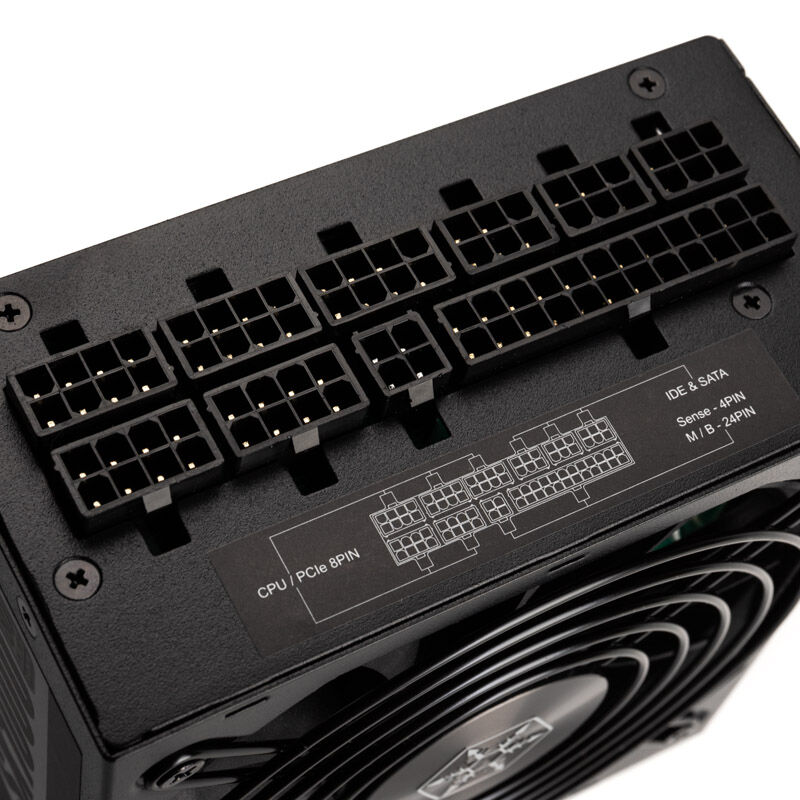

Connections (modular):
– 1 x 24/20 pin motherboard connector (300 mm)
– 2 x 8/4-pin EPS / ATX 12V plugs (400 mm x 2)
– 6 x 8/6-pin PCIe connector (400 mm / 150 mm x3)
– 8 x SATA connector (300 mm / 200 mm / 100 mm / 100 mm x 2)
– 3 x 4-pin peripheral connector (300 mm / 200 mm / 20 mm)
– 1 x 4-pin floppy plug (100 mm)
Protection circuits:
– OVP (protection against overvoltage and under voltage)
– UVP (under voltage protection)
– SCP (short circuit protection)
– OPP (overload protection)
– OTP (overtemperature protection)
– Manufacturers guarantee: 5 years
– MTBF: 100,000 hours
£211.14£175.95 Inc VatEx Vat
