Lian Li EDGE GOLD 1000 80 PLUS Gold power supply, PCIe 5.1, ATX 3.1 - 1,000 Watt, black, incl. USB hub

The Lian Li EDGE GOLD 1000 is a powerful and modular ATX 3.1 power supply that impresses with a flexible USB and PWM fan hub as well as a quiet, semi-passive fan. Perfect for dual-chamber cases, it offers maximum efficiency, easy cleaning and well-thought-out cable management.

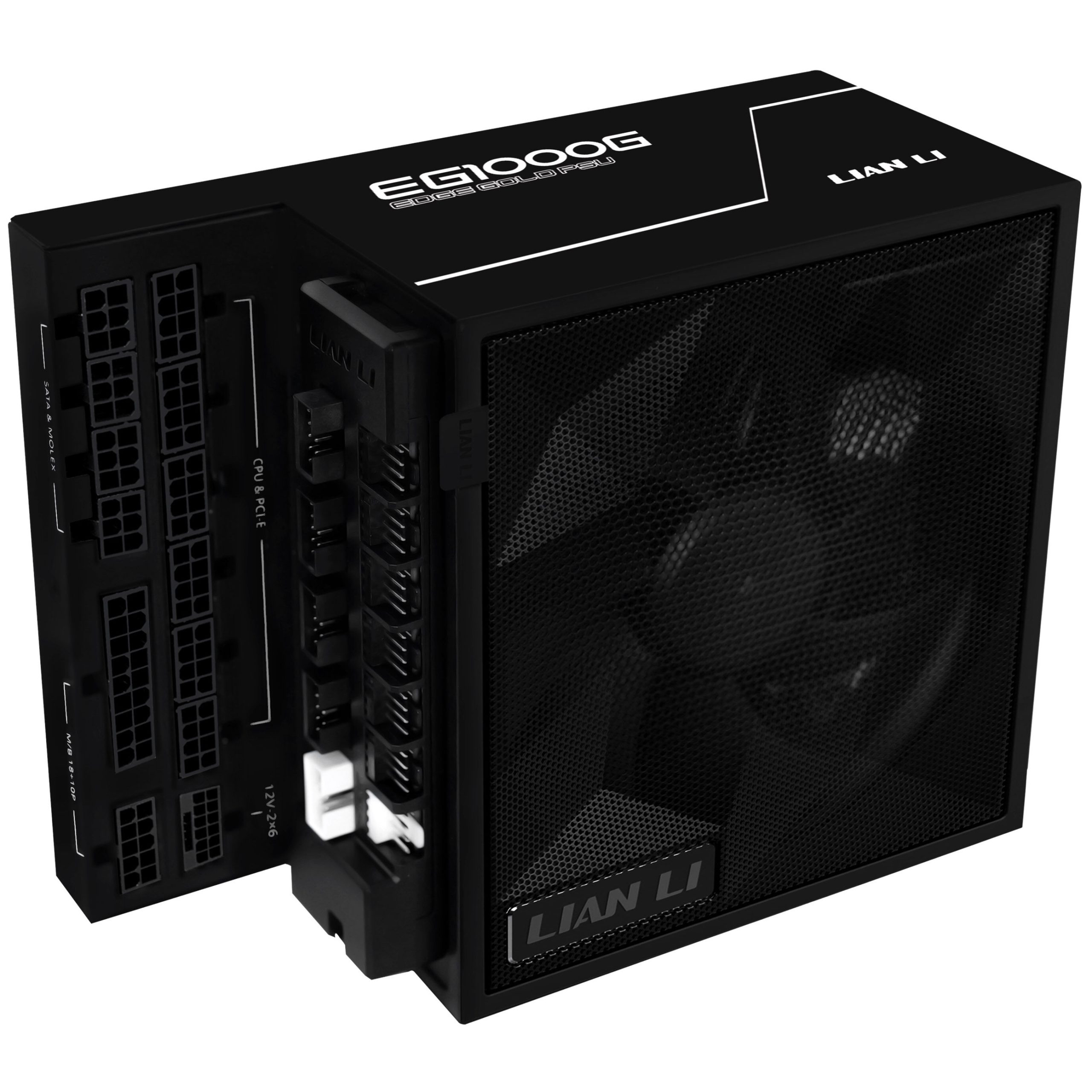

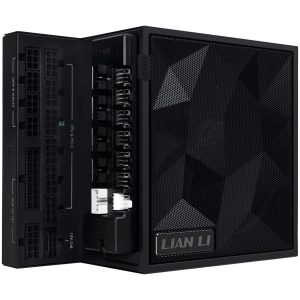

– L-shaped design simplifies cable management for dual-chamber cases
– Removable USB and PWM fan hub for additional flexibility
– Strong energy efficiency with gold certification
– Steel case with mesh panel and removable dust filter for easy cleaning
– 120 mm fan with semi-passive mode for quiet operation
– Safe power supply: PCIe 5.1 standard for GPUs with two-tone 12VHPWR
– Extensive protection circuits: OVP, UVP, SCP, OPP, OTP and OCP
– Fully modular, with individually sleeved connection cables and cable combs

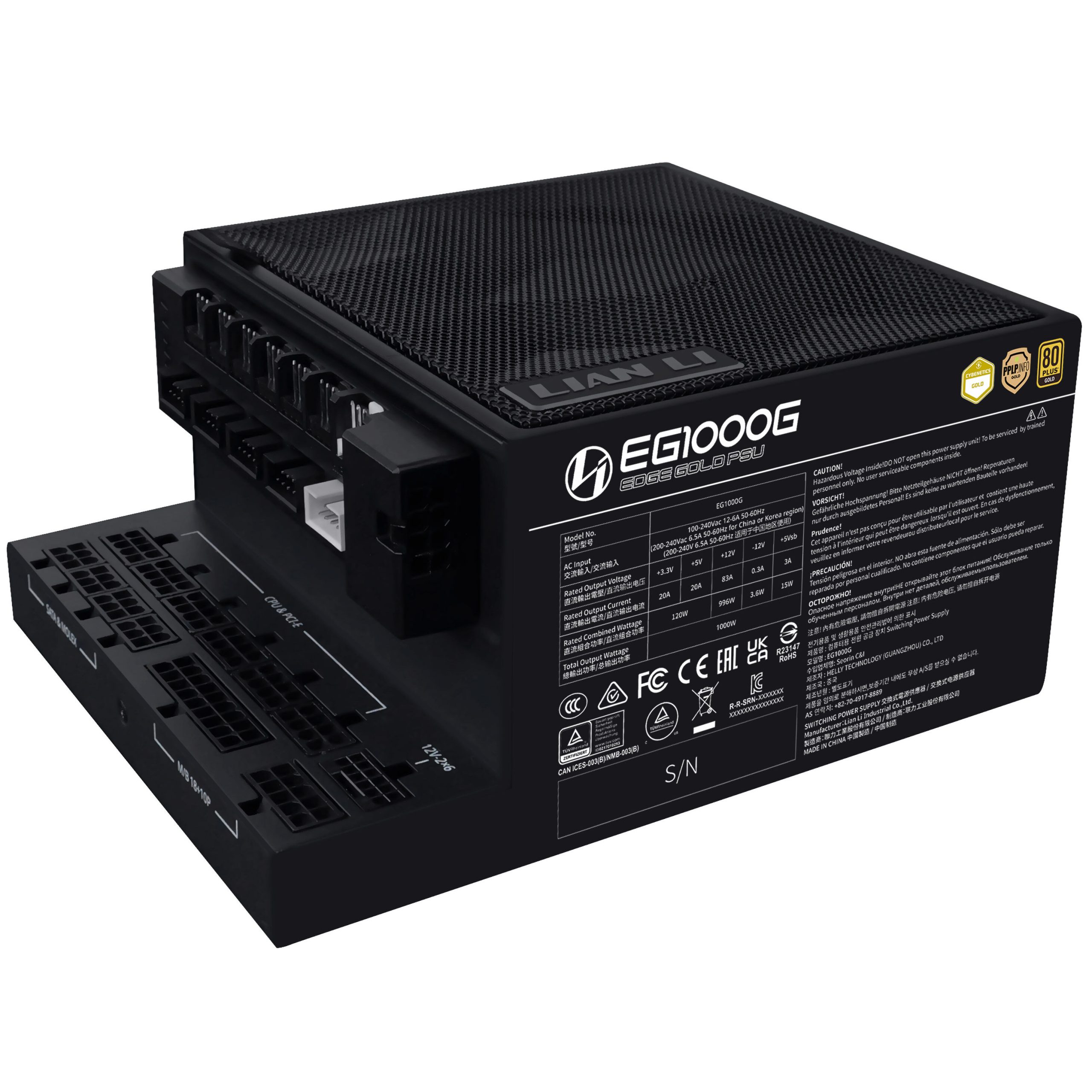

Revolutionary ATX 3.1 power supply: The Lian Li EDGE GOLD 1000 for dual-chamber cases
The EDGE GOLD power supplies from Lian Li follow in the footsteps of the successful EDGE Platinum series. They adopt the tried and tested design and combine high performance with practical handling. The unique L-shaped design and removable USB and PWM fan hub make these power supplies ideal for cases with a dual-chamber design, such as the iconic Lian Li O11 series.

Specifically designed for such PC cases, the EDGE GOLD PSUs are perfect for vertical installation in the second chamber. The design faces the connectors outwards, making cable management easier and ensuring a clean, uncluttered build.

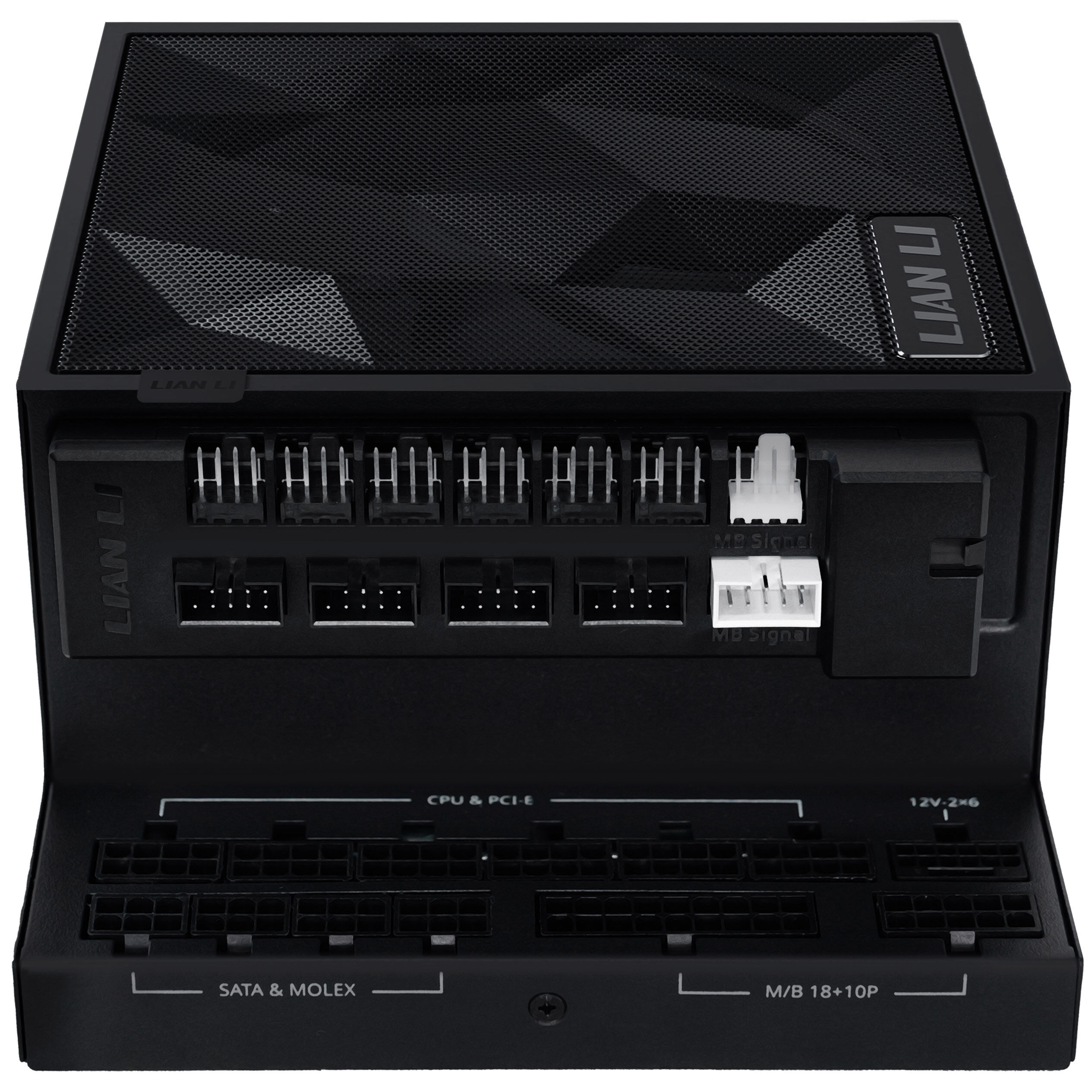

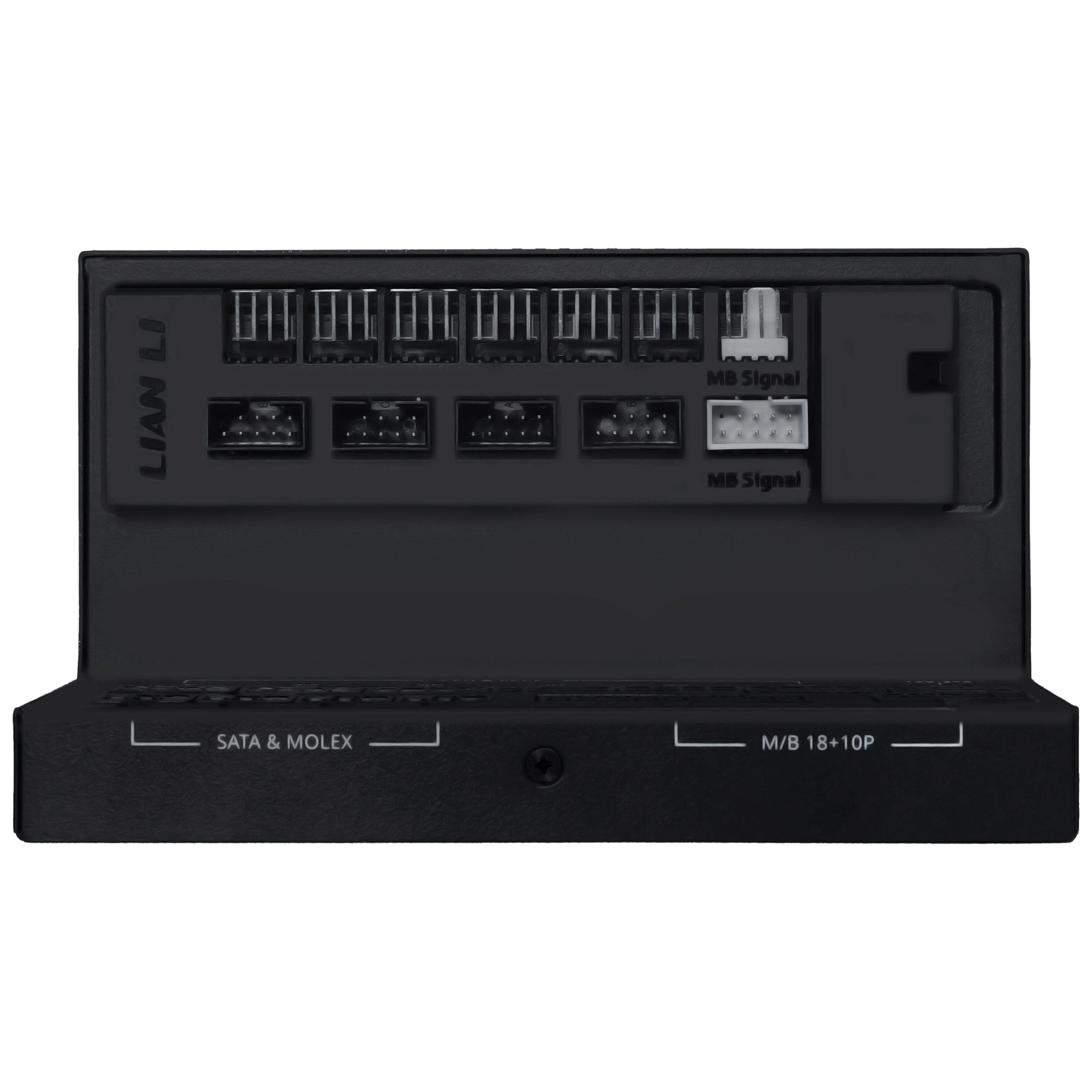

Lian Li EDGE HUB: Flexible, removable USB and PWM fan hub
The Lian Li EDGE Gold power supplies feature a removable USB and PWM fan hub that offers versatile connection options. It can be attached directly to the power supply or powered via a PCIe power interface in the case – depending on your needs. With four internal USB 2.0 headers and six 4-pin PWM connectors, the hub supports a wide range of devices, including RGB controllers and fans. Thanks to the integrated magnets, the hub can be flexibly placed in the case, which makes installation and maintenance easier.

80 PLUS Gold certification and high-quality electrical components
The EDGE series fully complies with the ATX 3.0 / 3.1 standards and is therefore compatible with the latest components. The EDGE GOLD power supplies have been awarded the 80 PLUS Gold certification, which guarantees high energy efficiency. High-quality industrial EPCOS capacitors from Germany ensure a stable and reliable power supply.

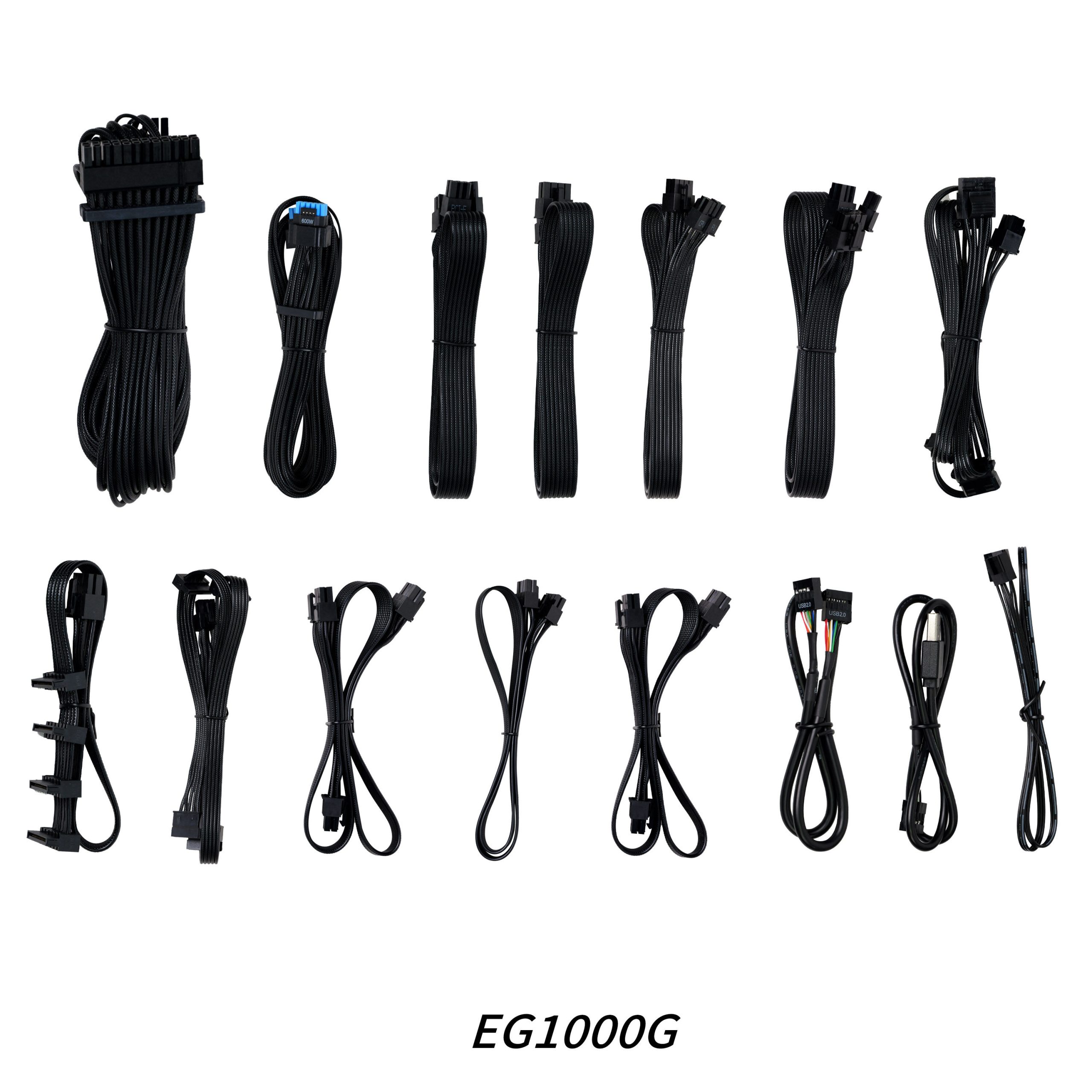

The power supplies are fully modular and equipped with extra-long, braided cables, with pre-installed cable combs – for a neat appearance.

Stable, two-color PCIe 5.1 connector for graphics cards
Lian Li has developed its own 12V 2×6 connectors based on the PCIe 5.1 standard. These offer a safer and more efficient power supply compared to the older 12VHPWR connectors.

The design features soldered connectors for improved current stability and a gold alloy to prevent short circuits. The connectors also have a two-tone housing so you can see that the connector is securely in place. With an increased material thickness of 0.25 mm, they achieve lower contact resistance.

The connectors maintain a contact resistance of less than 1.5 mΩ after 50 mating cycles. This is a significant improvement compared to ordinary connectors, which are between 2 and 3 mΩ. This noticeably improves the performance and long-term reliability of the connectors.

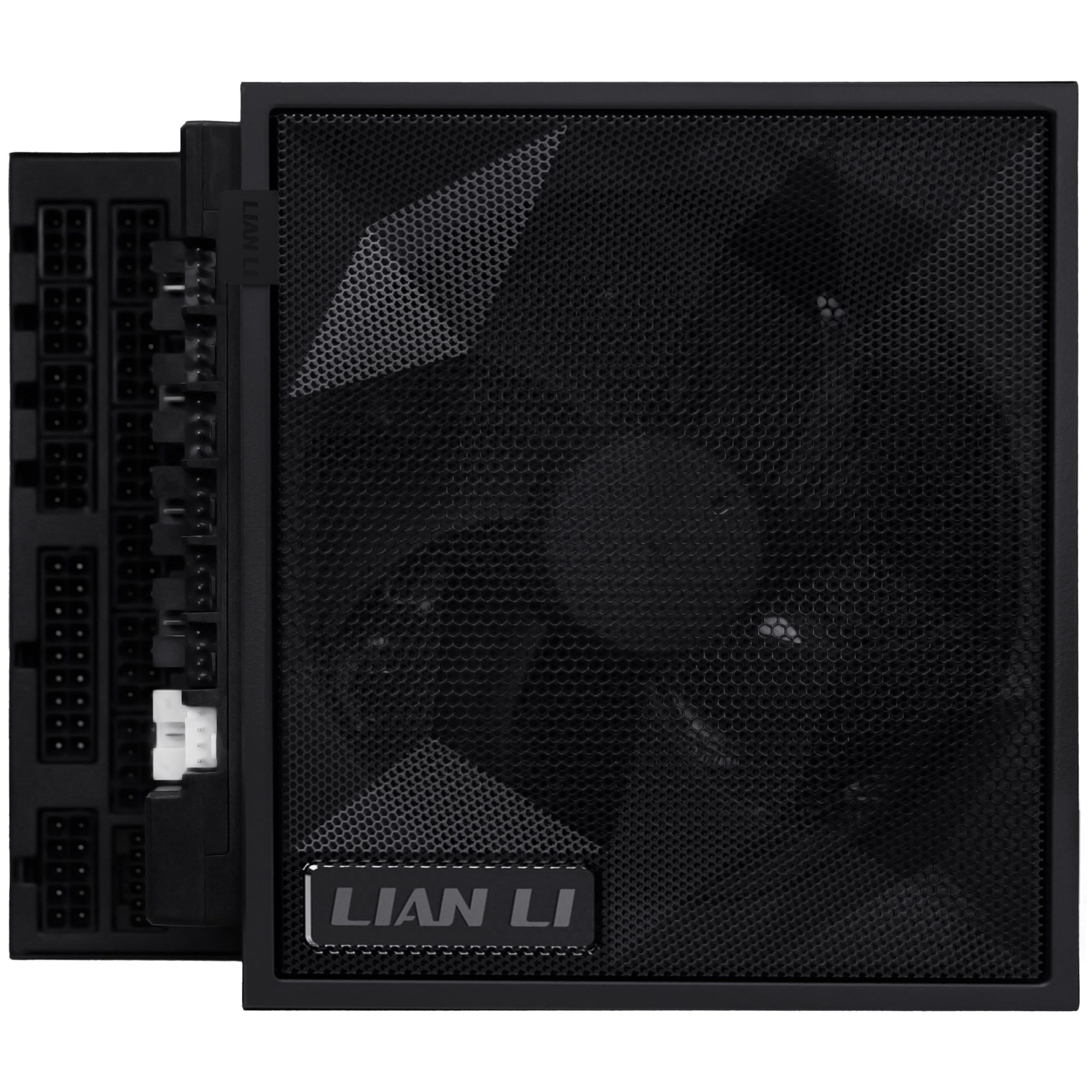

Efficient cooling and whisper-quiet operation with mesh, dust filter and semi-passive fan

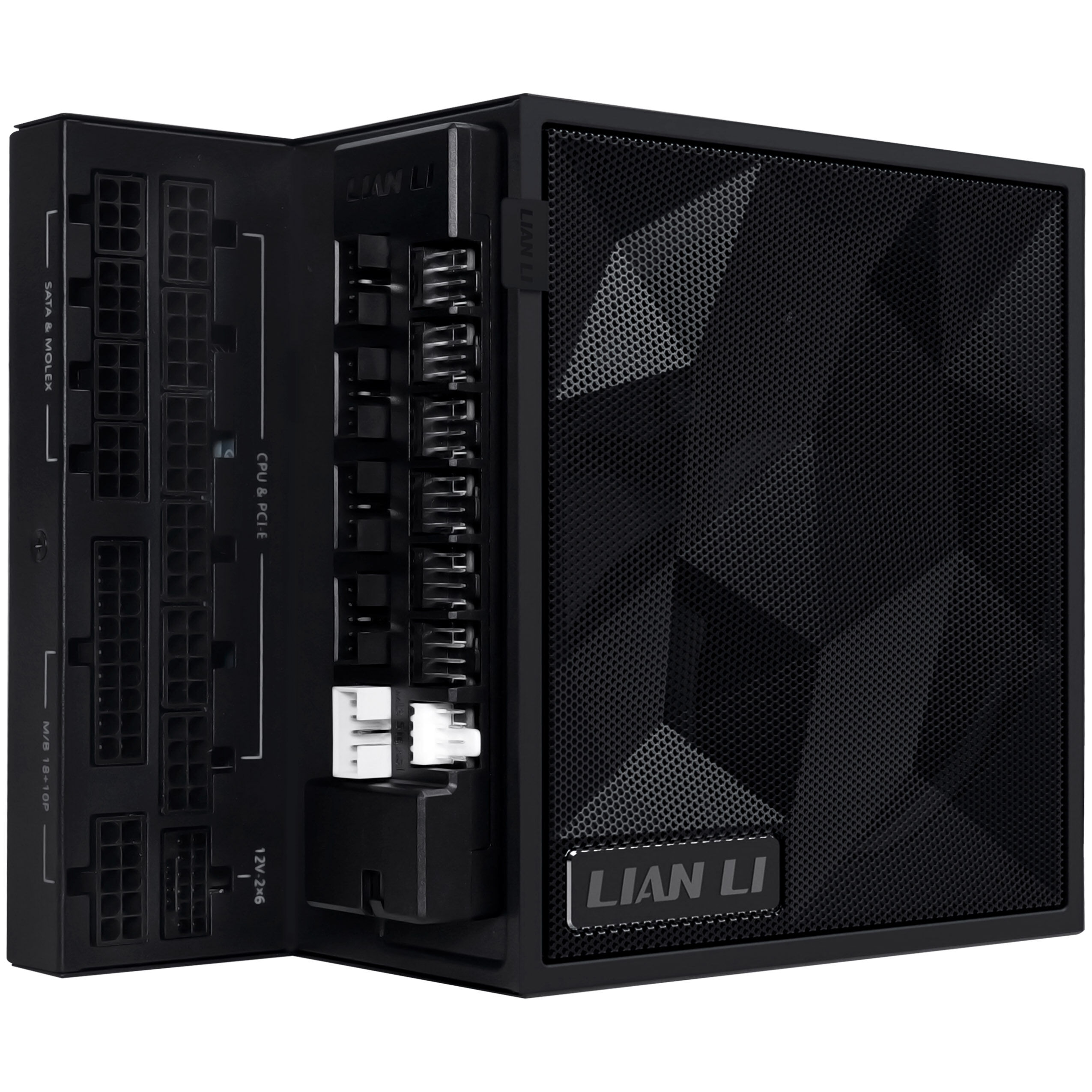

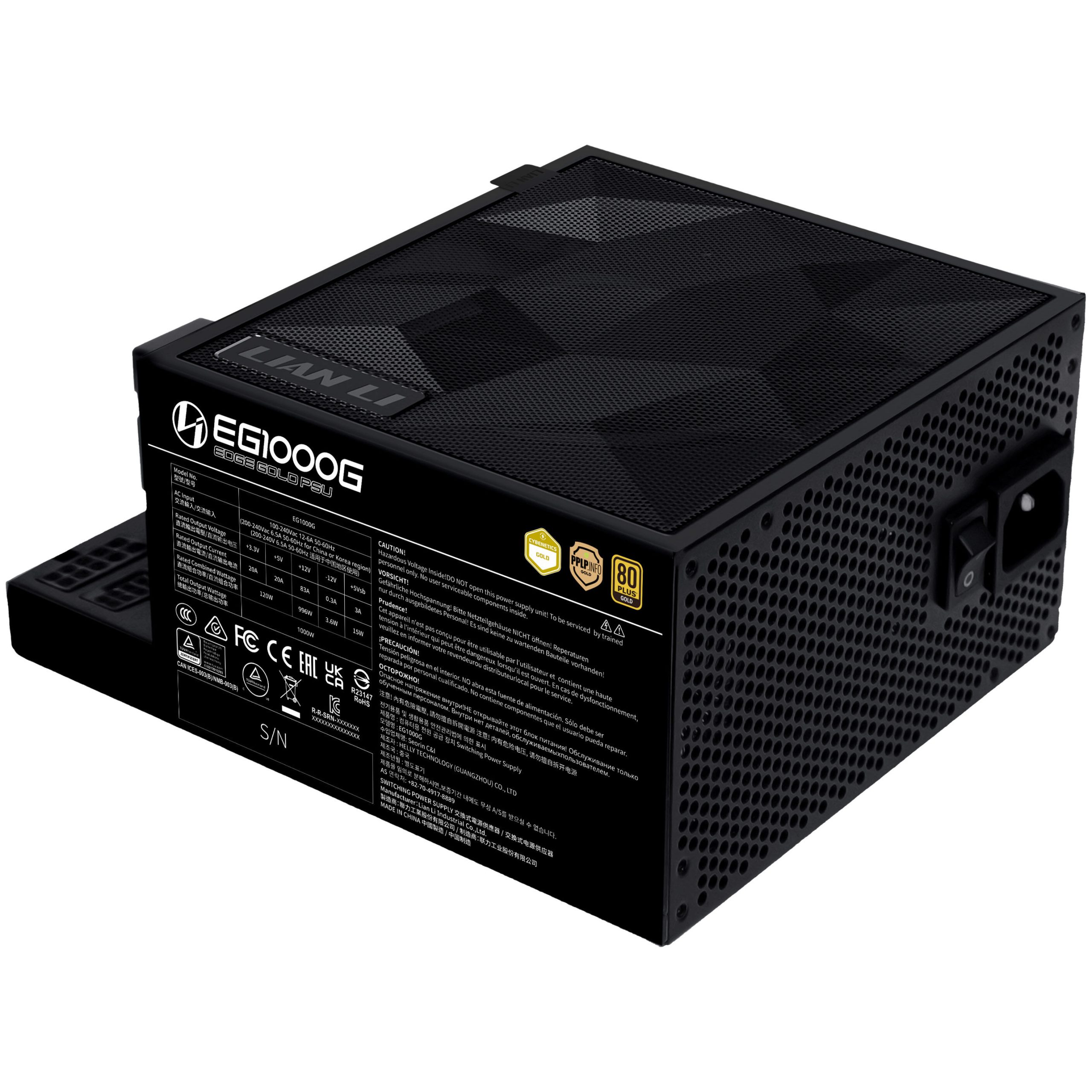

The steel housing of the power supply is equipped with a large-mesh mesh panel on one side. This open design helps to efficiently dissipate heat. A removable dust filter also makes cleaning easier and ensures cleanliness inside. The 120 mm PWM fan is particularly quiet thanks to the semi-passive Zero DB mode and even switches off completely under low load to ensure whisper-quiet operation.

Note: Only use the cables provided. Using other, incompatible internal power supply cables can cause damage that is not covered by the manufacturers warranty.
