be quiet! Dark Power Pro 14 IO 1600W

The be quiet! Dark Power Pro 14 IO 1600W is a high-performance ATX 3.1 power supply unit designed for high-end gaming PCs and workstations. With a total output of 1,600 W and two 12V-2×6 connectors, it offers ample headroom for powerful CPUs and graphics cards. Its 80 PLUS Titanium certification ensures high efficiency of up to 94.9%.

–  1,600 W output for high-performance PC systems
– 80 PLUS Titanium for high energy efficiency
– Two 12V-2×6 connectors for modern graphics cards
– Fully modular design simplifies cable management
– 135 mm fan supports quiet operation
– 1,600 W for powerful hardware

The power supply delivers the full 1,600 W on the 12 V rail, making it suitable for high-performance CPUs and multiple power-hungry components. Two native 12V-2×6 connectors and six 6+2-pin PCIe connectors provide flexible options for modern graphics cards and multi-GPU configurations.

High efficiency with Titanium certification
80 PLUS Titanium and Cybenetics Titanium certifications confirm an efficiency of up to 94.9%. This ensures that a larger share of the input energy is actually delivered to the hardware, while less power is converted into heat. A 135 mm fan handles the unit’s cooling.

Fully modular and controllable via IO Center
The fully modular cable management system allows you to connect only the cables you actually need. This frees up space inside the case and minimizes airflow obstruction. Via the be quiet! The IO Center software also allows for the monitoring and adjustment of cooling, the operating mode, and various power supply parameters.

DARK POWER PRO 14 IO
1600W
CONTROL SILENCE AND PERFORMANCE
Dark Power Pro 14 IO 1600W features a high-performance heat sink design with an integrated fan that can be configured in the be quiet! IO Center software.

–  Active and semi-passive cooling can be selected with the be quiet! IO Center software
– Aluminum heat sink to support the semi-passive cooling concept and improve longevity of the components
– 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 94.9%)
– ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
– Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

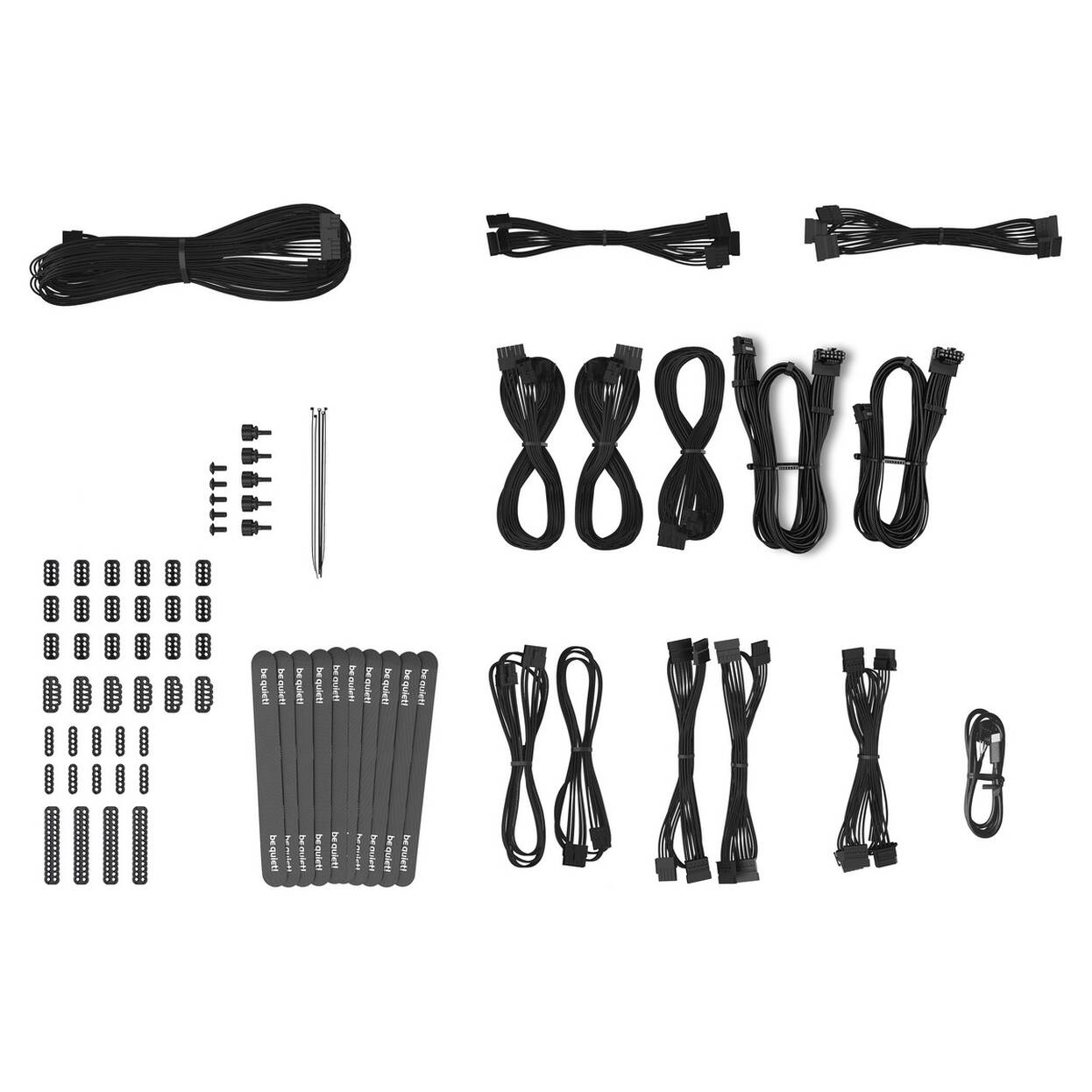

– Modular single sleeved cables for maximum convenience

MONITORING AND FULL CONTROL
With the be quiet! IO Center software
The Dark Power Pro 14 IO 1600W is the first be quiet! PSU with smart software control via the be quiet! IO Center. It lets you switch between Multi Rail and Single Rail modes and choose semi passive or active fan settings. The dashboard shows real-time data for efficiency, fan speed and power usage. A cost calculator estimates your energy expenses over time. With this blend of power and insight, it sets a new standard for intelligent PSU control.

SWITCH IT
Switch effortlessly between active and semi-passive cooling
The Dark Power Pro 14 IO 1600W gives full control over cooling and performance. Choose between a balanced active mode for constant, efficient airflow, or a smart semi-passive mode where the fan stops during light loads. When things heat up, the Silent Wings fan powers on seamlessly to deliver the cooling the system needs.

READY FOR OVERCLOCKING
Maximum strength
Dark Power Pro 14 IO 1600W is particularly suitable for overclocking. With the be quiet! IO Center software, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control, from the default six 12V-rail mode to the alternative massive single-rail operation

THE HIGHEST EFFICIENCY POSSIBLE
Titanium efficiency
Dark Power Pro 14 IO 1600W is certified with 80 PLUS® Titanium and Cybenetics Titanium for a stunning energy efficiency rating of up to 94.9%. This provides lots of benefits for a high-end system, including less power consumption and an overall cooler and quieter operation.

PEAK TECHNOLOGY
Higher efficiency and lower ripple noise
Experience with Dark Power Pro 14 IO 1600W the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

HEAT SINK AND INTEGRATED SILENT WINGS
Simply fan-tastic

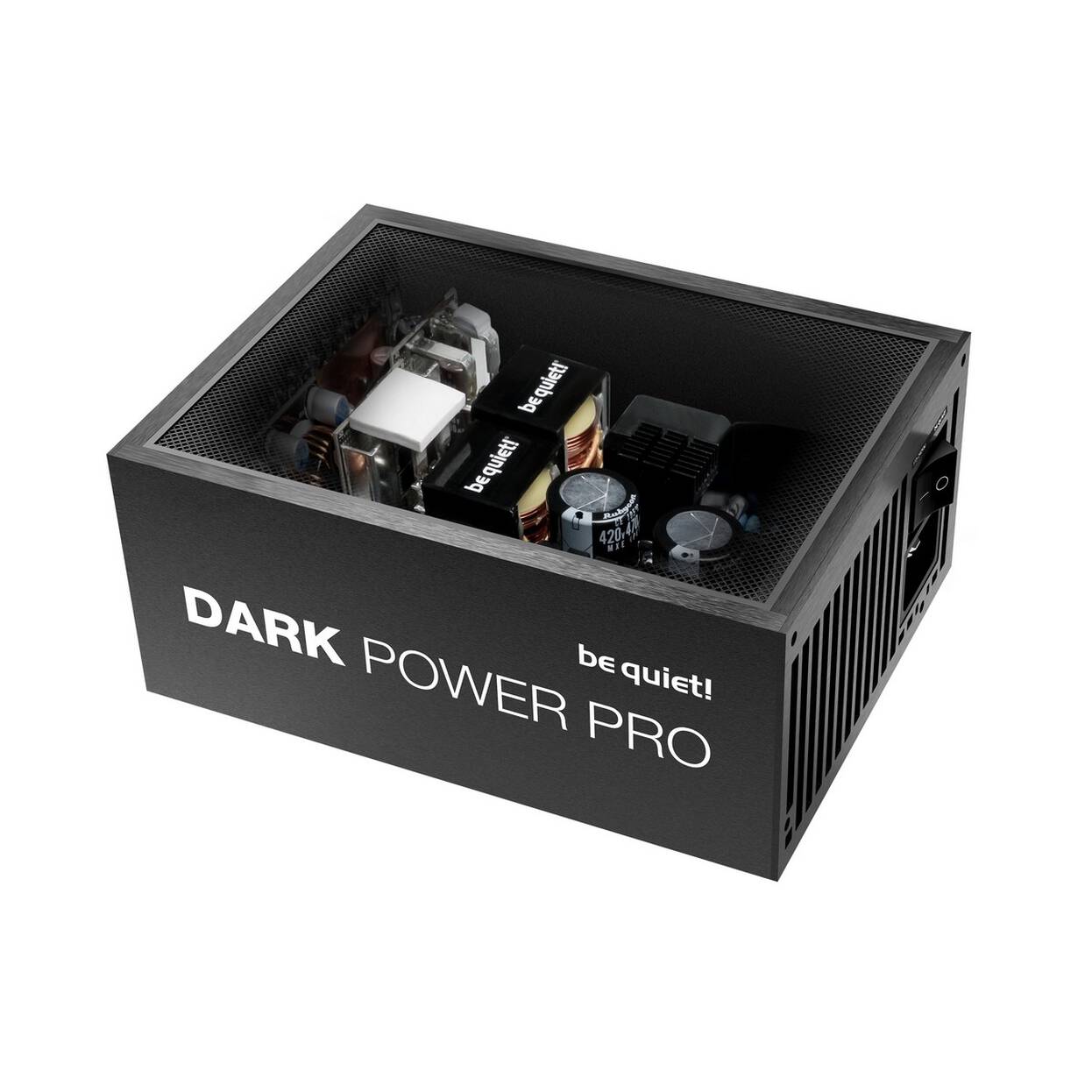

A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power Pro 14 IO 1600W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption.

105°C CAPACITORS FROM JAPAN
Only the best
Each component in Dark Power Pro 14 IO 1600W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life.

NEXT GEN
ATX 3.1 compatibility

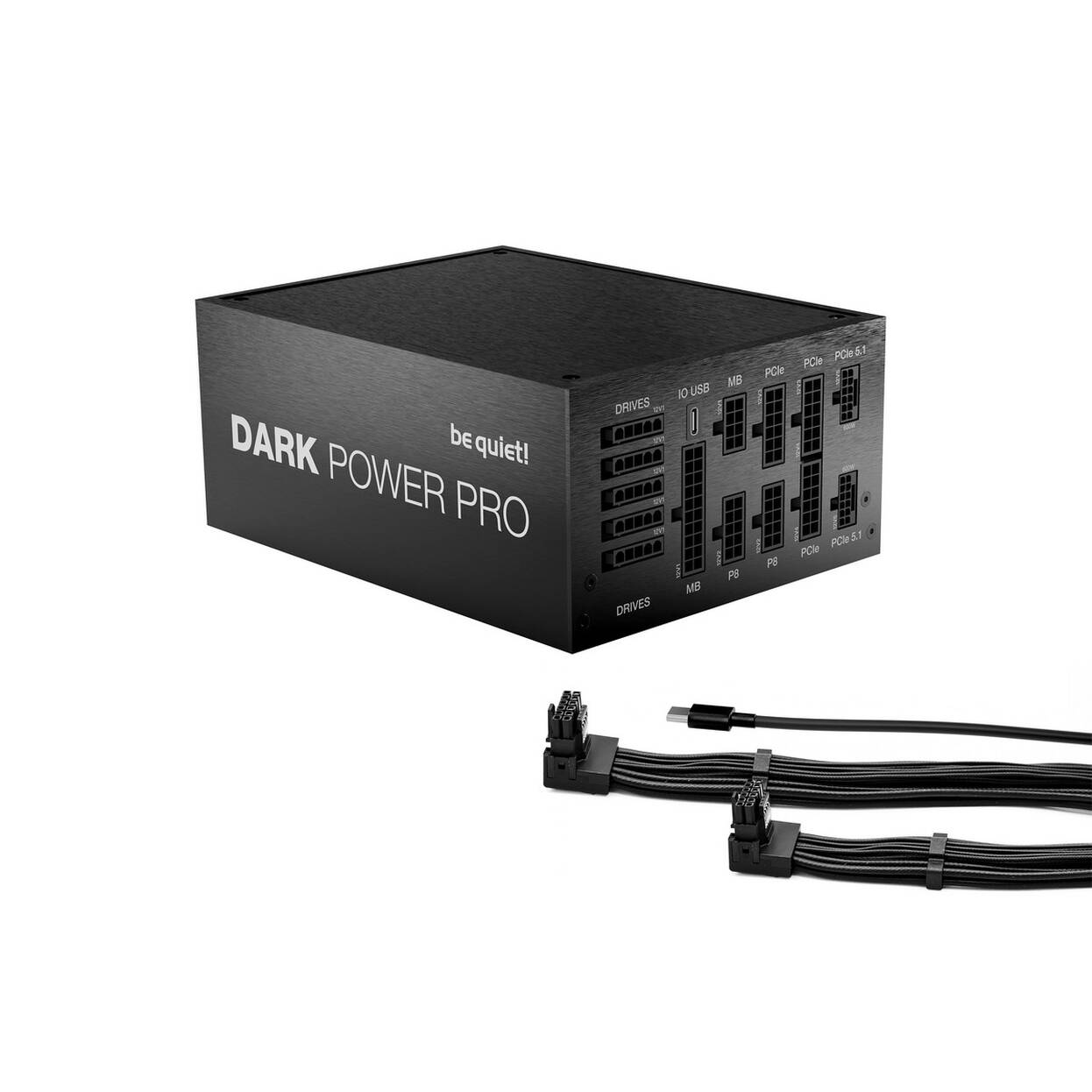

Dark Power Pro 14 IO 1600W is an ATX 3.1 PSU and comes with both native integration of two 12V-2×6 connectors for next-generation PCIe 5.1 graphics cards and PCIe 6+2-pin connectors for support of all current-gen GPUs. This makes the PSU extremely versatile and perfect for current and future high-end systems.
