The compact and modular Mini-ITX housing SUGO 15 from Silverstone with its panels made of aluminum including mesh and dust filter offers numerous configuration options for different requirements.
The compact and modular Mini-ITX housing SUGO 15 from Silverstone with its panels made of aluminum including mesh and dust filter offers numerous configuration options for different requirements.
The compact and modular Mini-ITX housing SUGO 15 from Silverstone with its panels made of aluminum including mesh and dust filter offers numerous configuration options for different requirements.
With space for 3-slot graphics cards up to 330 mm in length, large ATX power supplies and radiators up to 240 mm, it can also accommodate powerful gaming hardware.
The Silverstone SUGO 15 Mini-ITX case at a glance:
Compact mini case from Silverstone
Outer shell with aluminum panels, mesh and magnetic dust filters
For mini-ITX and mini-DTX mainboards
Modular design and numerous configuration options
Can be placed horizontally and vertically
Graphics cards up to 33 cm and CPU coolers up to 18.2 cm
Space for two 3.5-inch and three 2.5-inch data carriers
Space for up to 240 mm radiators
Compact mini-ITX housing with a modular design

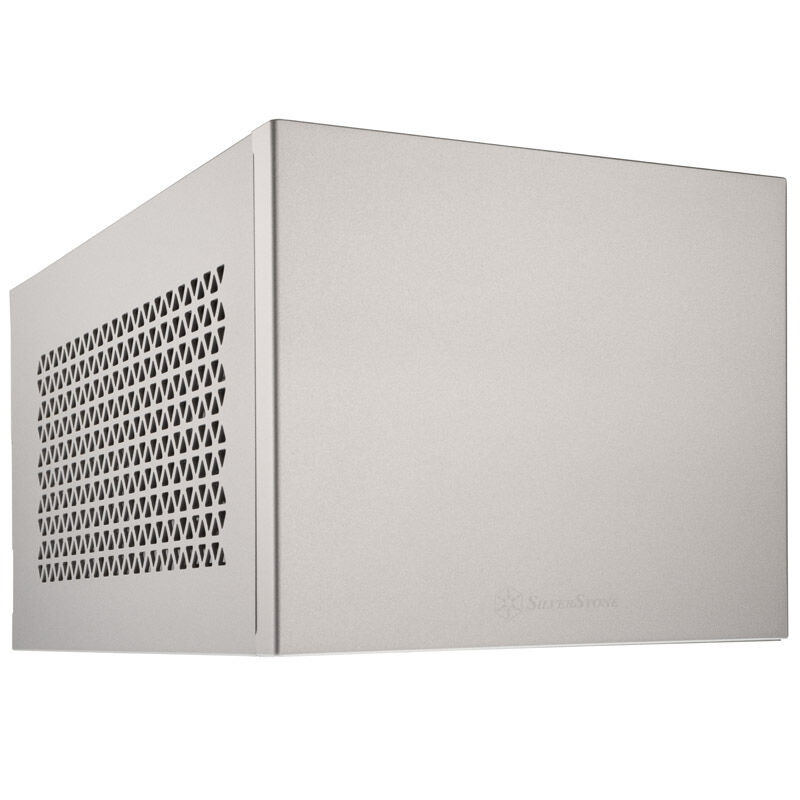

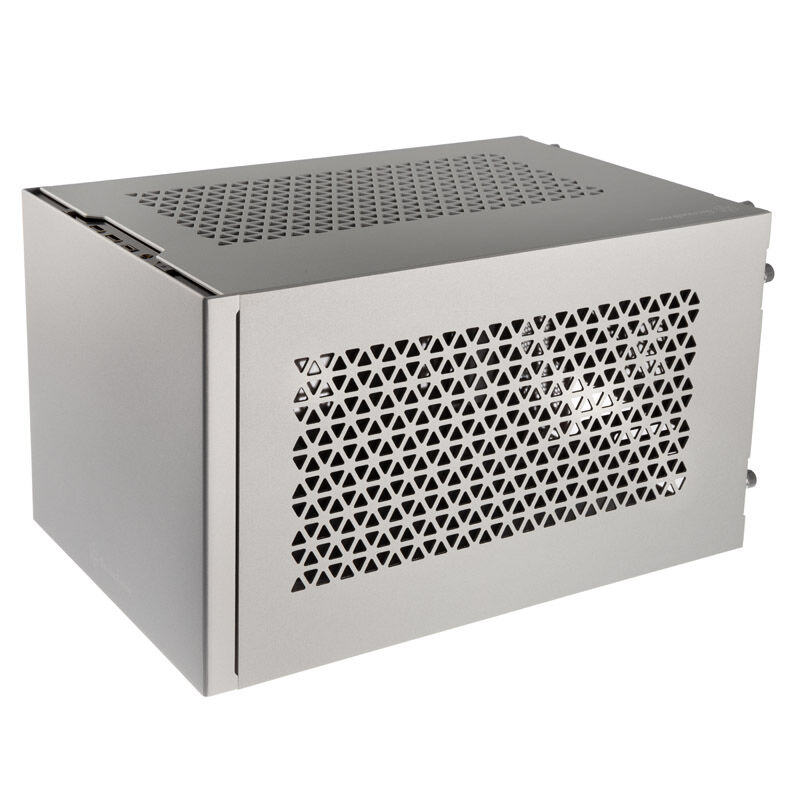

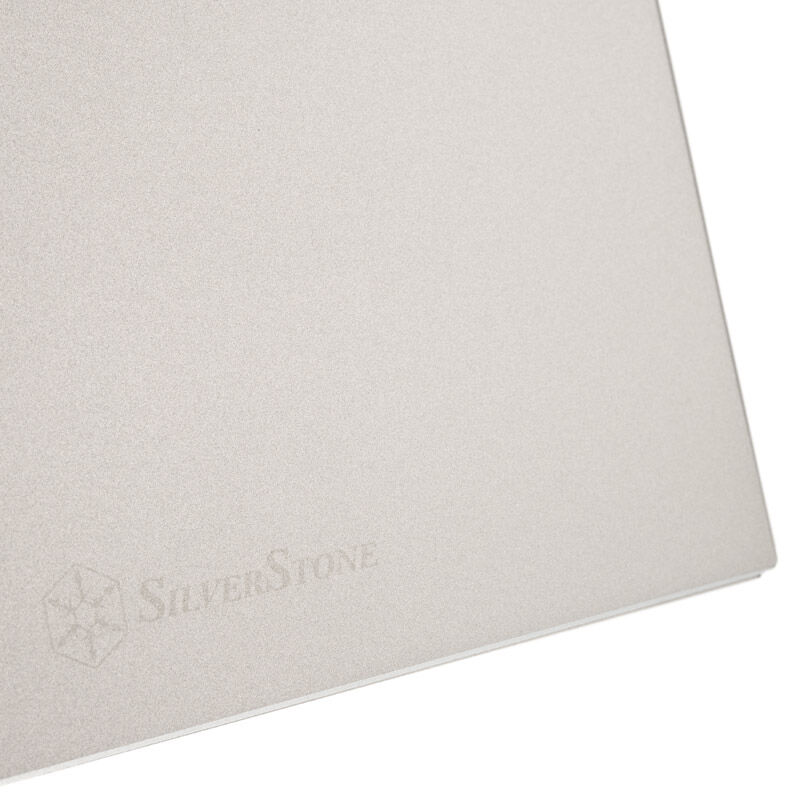

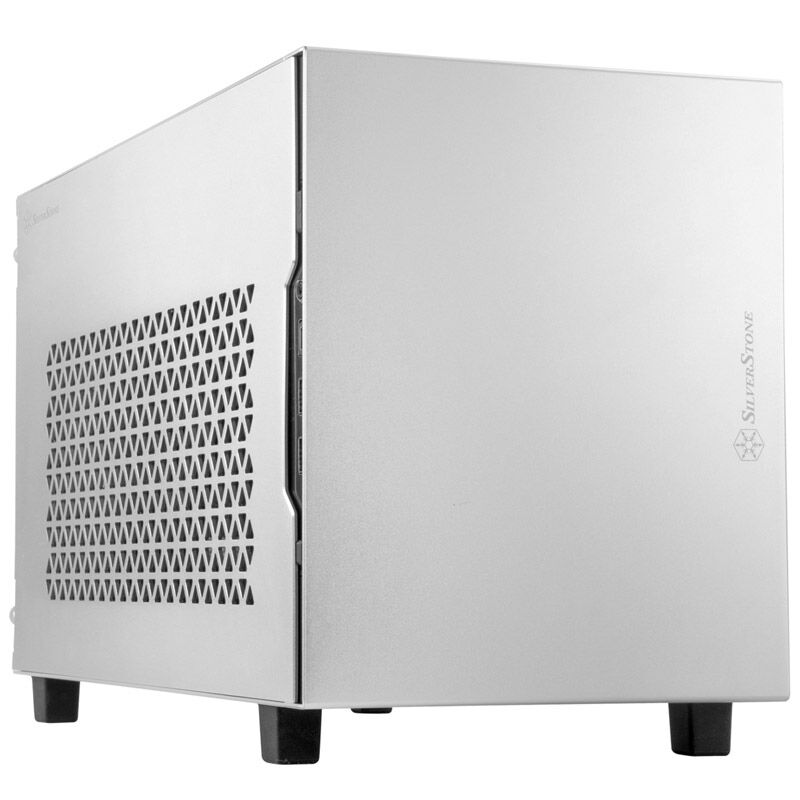

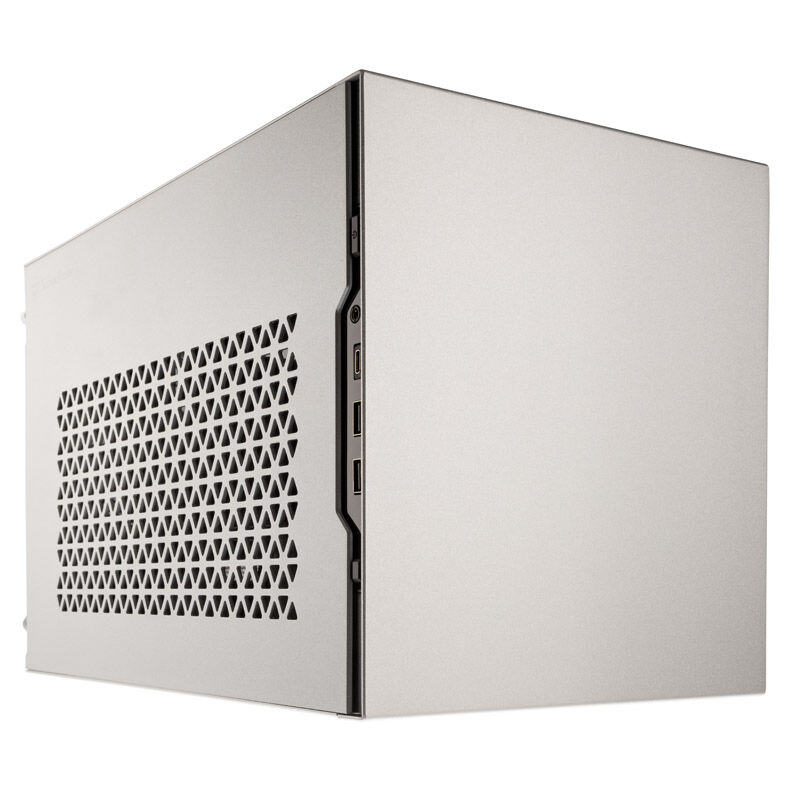

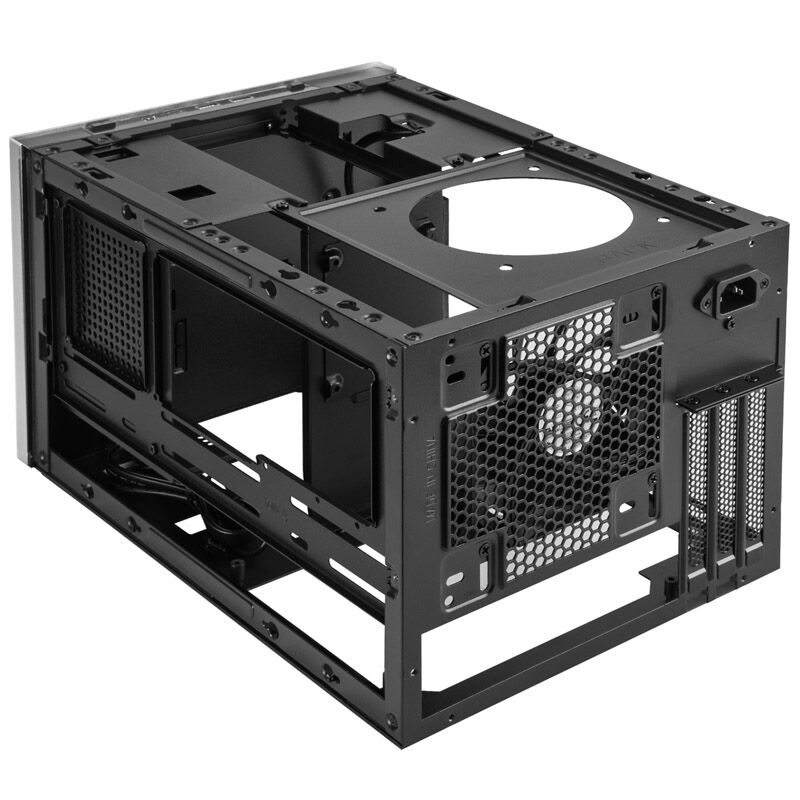

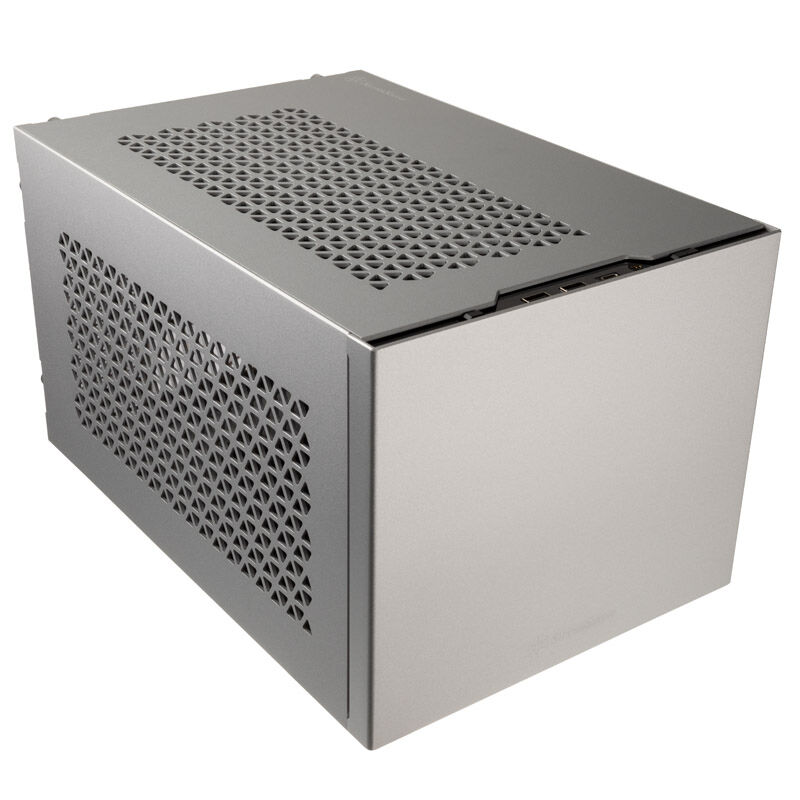

Externally, the SUGO 15 impresses with its elegant design in fine silver, which is only decorated on the front with the Silverstone logo. The frame of the slim cube case for mini-ITX and mini-DTX mainboards is made of sturdy steel. All four housing walls and the front are made of aluminum. The side panels have a mesh grille and magnetic filters to ensure good airflow and at the same time protect the interior from dust. They are also removable, making the installation of hardware and cooling solutions much easier. The housing can be placed both horizontally and vertically.

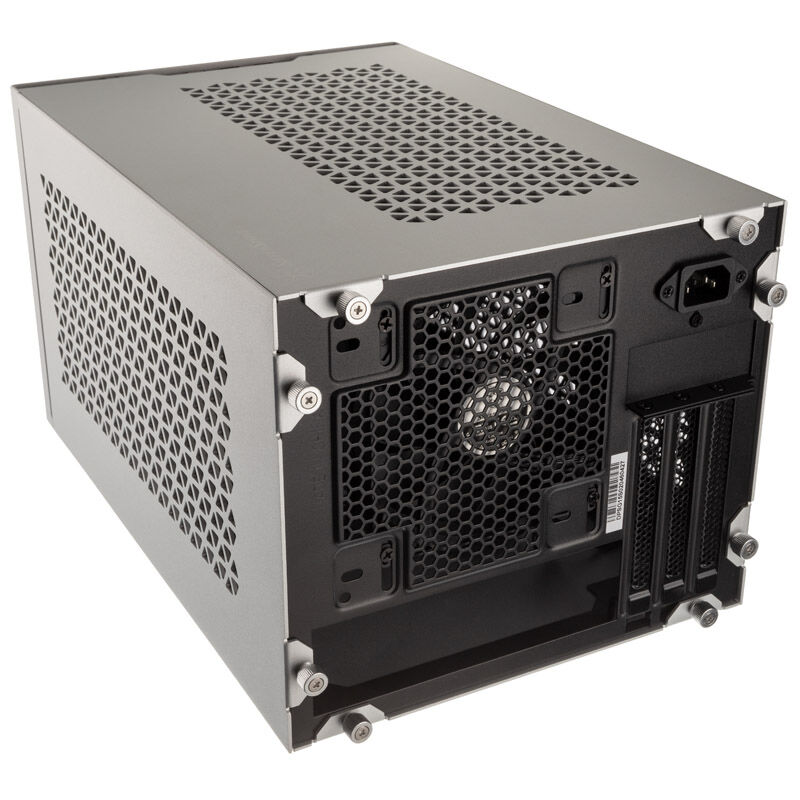

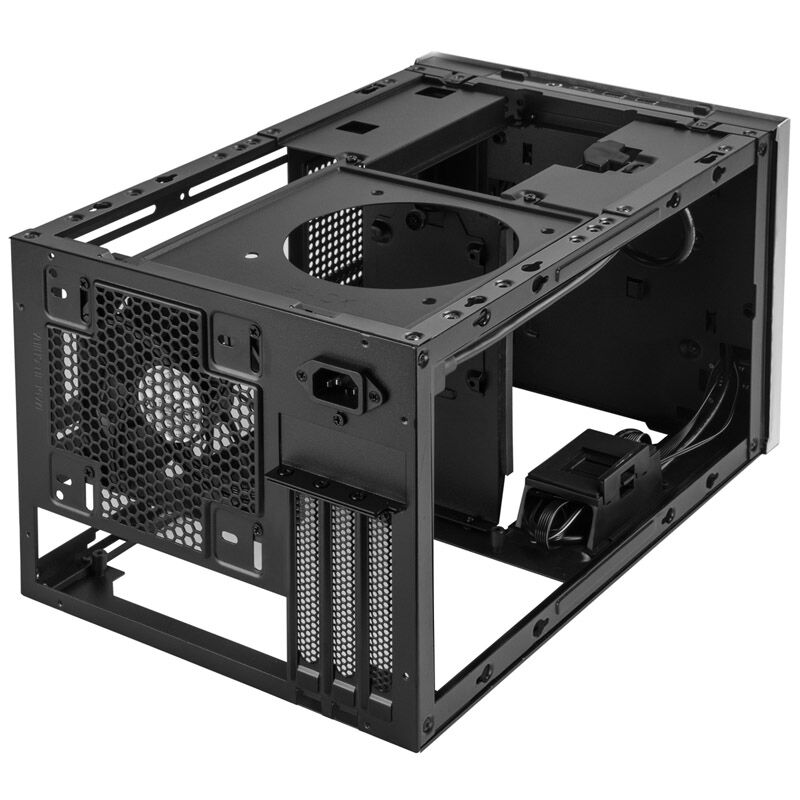

The small space saver can accommodate large ATX power supplies and 3-slot graphics cards up to 33 centimeters in length. This means that even full-blown gaming systems can be easily implemented. The strong hardware is cooled by up to three 120 or 140 mm fans. A 120 fan is already pre-installed in the back. Alternatively, of course, a large 240 mm radiator can be installed in the side and a 120 mm radiator with a depth of 55 mm in the rear wall.

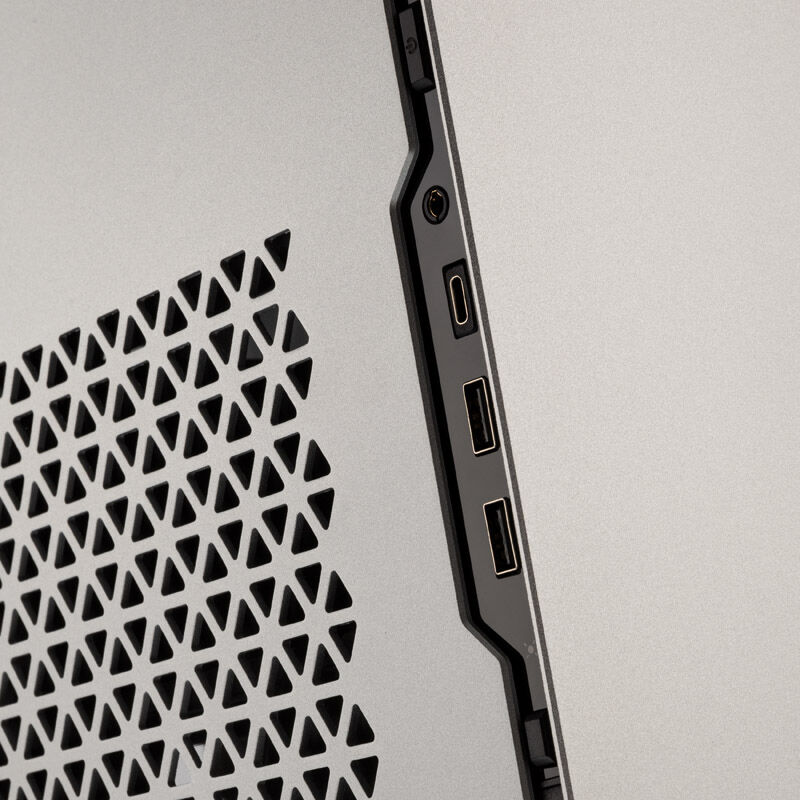

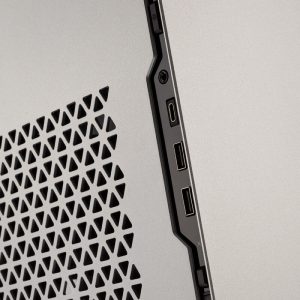

The mounting brackets are particularly well thought out and can therefore be used flexibly. The SUGO 15 offers enough space to mount three 2.5-inch drives and up to two 3.5-inch hard drives. The almost inconspicuous I / O port offers a 3.5 TRRS jack socket, a USB-C port and two USB 3.0 type A sockets.
Technical details:
– Dimensions: 247 x 211 x 366 mm (W x H x D)
– Volume: 19.07 liters
– Material: aluminum, steel, plastic
– Weight: 4.25 kg
– silver
– Form factor: Mini-ITX, Mini-DTX
– Fan:
– 1x 120/140 mm (rear)
– 2x 120/140 mm (side)
– Fan pre-installed:
– 1x 120 mm (rear)
– Radiator support:
– 1x 120 mm (rear)
– 1x 120/240 mm (side, depth up to 55 mm)
– Drive bays:
– 3x 2.5 inches (internal)
– 2x 3.5 inches (internal, without radiator)
– Power supply: 1x standard ATX (optional)
– Expansion slots: 3
– I / O panel:
– 1x USB-C (internal connection)
– 2x USB 3.0 (internal connection)
– 1x combined audio in / out
– Maximum length graphics card: 330 mm
-Maximum width graphics card: 148 mm
– Maximum height of CPU cooler: 182 mm (without 120 fan in the top fan bracket)
– Maximum length of power supply: 150 mm
