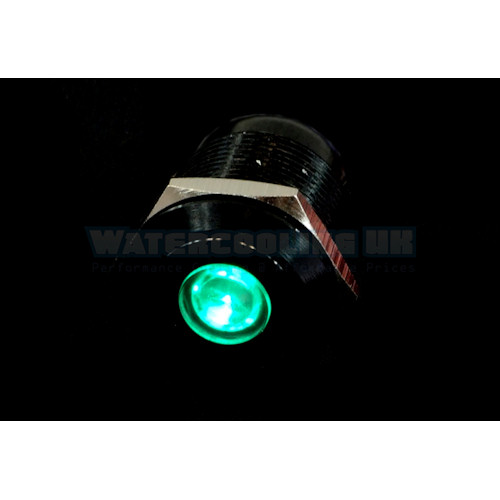

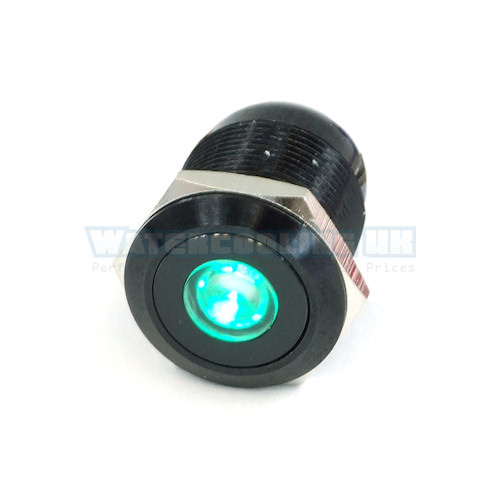

Push-Button 19mm Aluminum Black, Green Dot Lighting 6pin

New in stock! Vandalism-proof push-buttons with an unique look and unbeatable price on!

These push-buttons are available in black or silver, with ring-or dot lighting in red, blue, white, green, yellow & orange: Theres one for everybodys taste!
These push-buttons were designed and manufactured especially for 12V operation, therefore no additional resistor is needed. The push-buttons can be easily connected with crimp-connectors with the desired or flat cables. Of course simple soldering is an option as well. The strong 19mm thread can be perfectly fitted into eg a computer case. The included counter nut secures the push-button exactly in place and thus the included O-ring seal protects the electronic components on the rear end. Therefore the button can then be used outdoors, as it is splash-proof!

The area of ​​applications is wide-spread, not only computer in the area, where the button can be used as a reset or power button or even for switching between different components, but that is in most household applications examined as a garage opener button or doorbell. Other applications include being used as a horn button in the car or as a button on any hi-fi equipment: The applications are almost unlimited!

The technology used and the quality of manufacturing are absolutely outstanding at this price! The moving element seals perfectly with the stationary components. There are no ridges or other remains from the manufacturing process on the button. The life span of the mechanical parts is stated to be at least 1 million contacts! The permitted temperature range is from -20 degrees C to +70 degrees C. op The button can be connected to either AC or DC voltage and, of course, the whole button is completely rust-proof.

Technical details:
Material: Aluminum
Voltage range: 12V AC / DC

Dimensions:
Top side: 23mm
Overlap height: 2mm
Thread diameter: 19mm
Thread length: 17mm
Overall length: 35mm

Life Span of mechanical parts: 1 000 000 contacts
Life Span of electronic components: 50 000 h

Extent of delivery:
1x Vandalism-proof push-button aluminum 19mm black, green dot lighting
Counternut
O-ring seal
