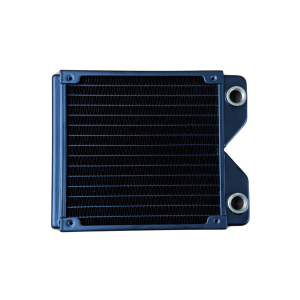

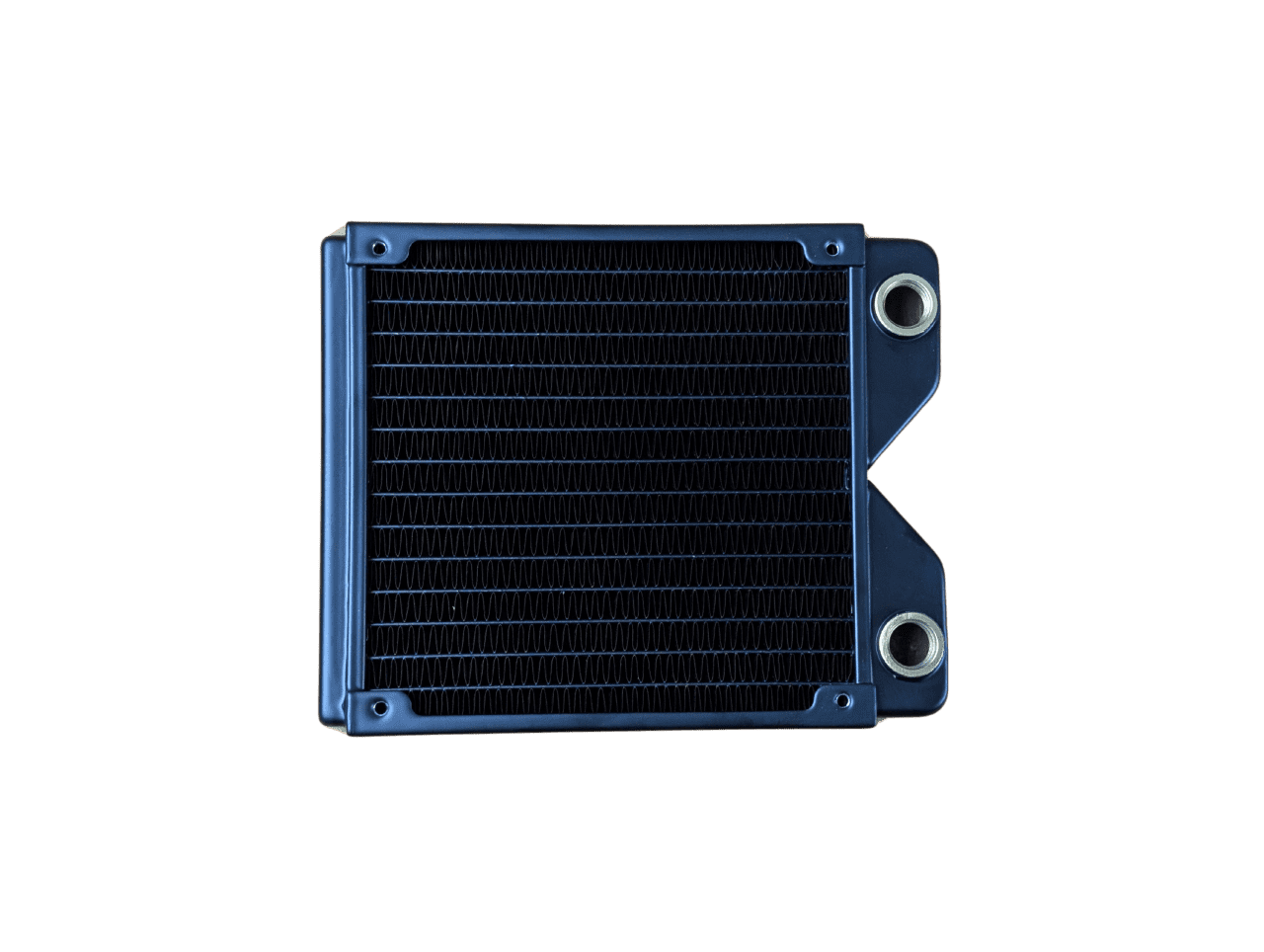

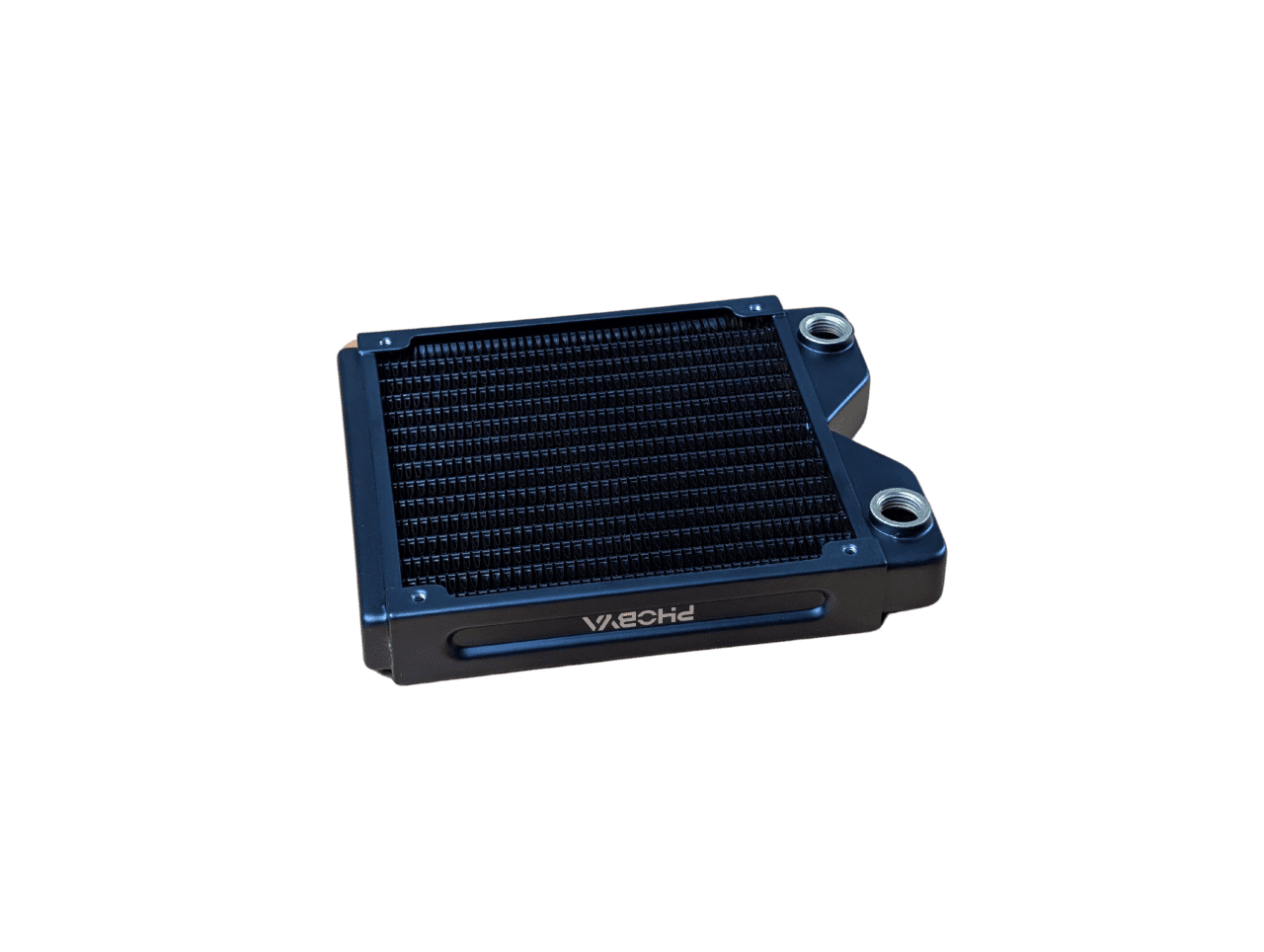

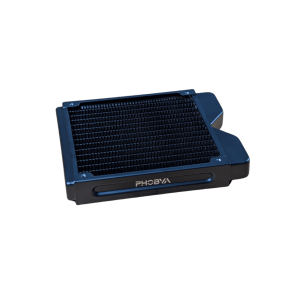

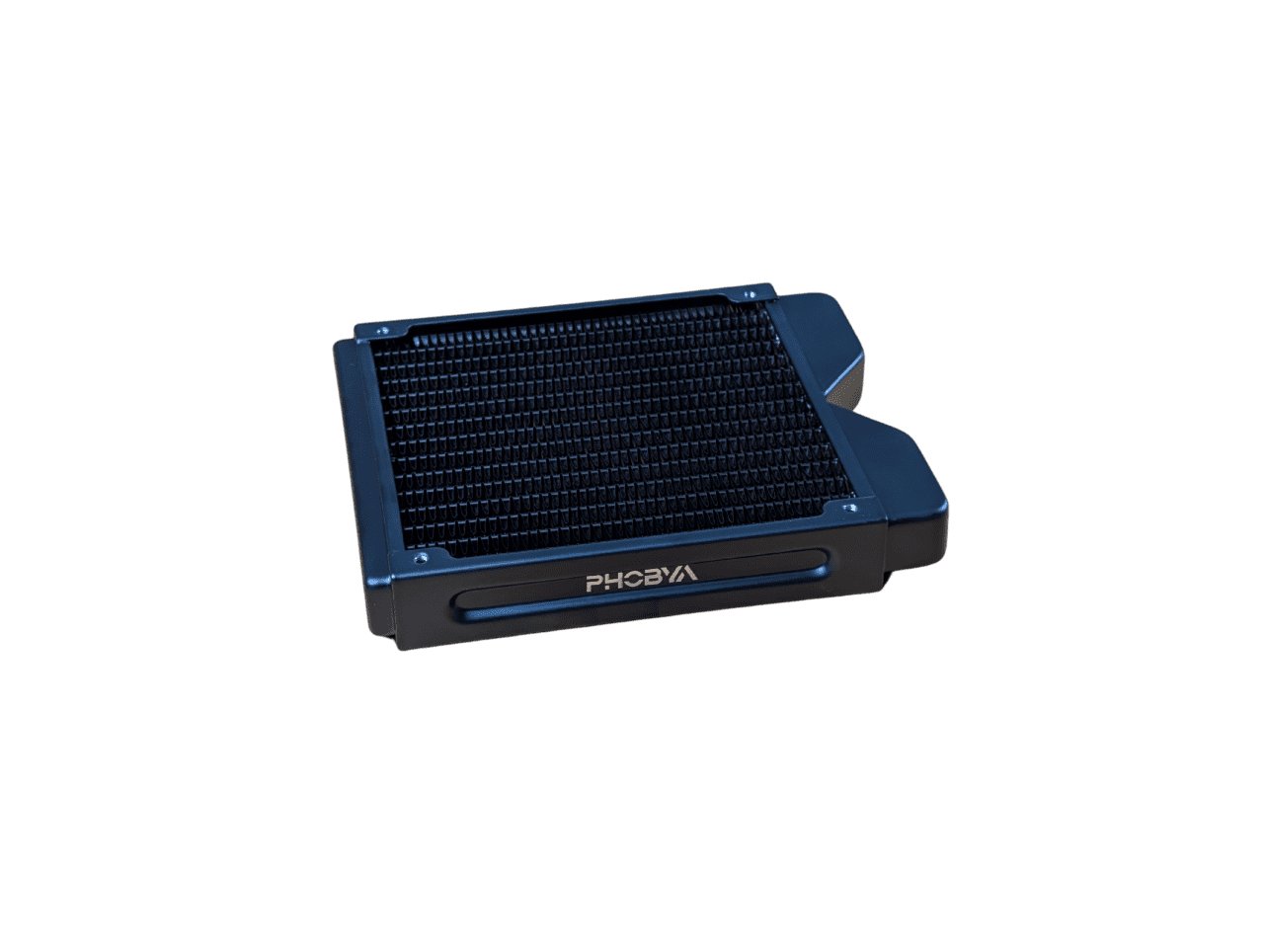

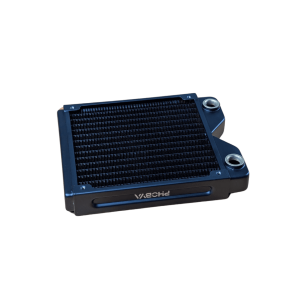

Phobya R27-S140 Black Radiator

Phobya R27-S140 Black Radiator – Efficient cooling with 140mm fan support

The Phobya R27-S140 Black Radiator is the perfect solution for systems that want to benefit from the increased airflow of a 140mm fan while maintaining a compact design. It offers excellent cooling performance for a wide range of applications.

High-quality materials for maximum efficiency:

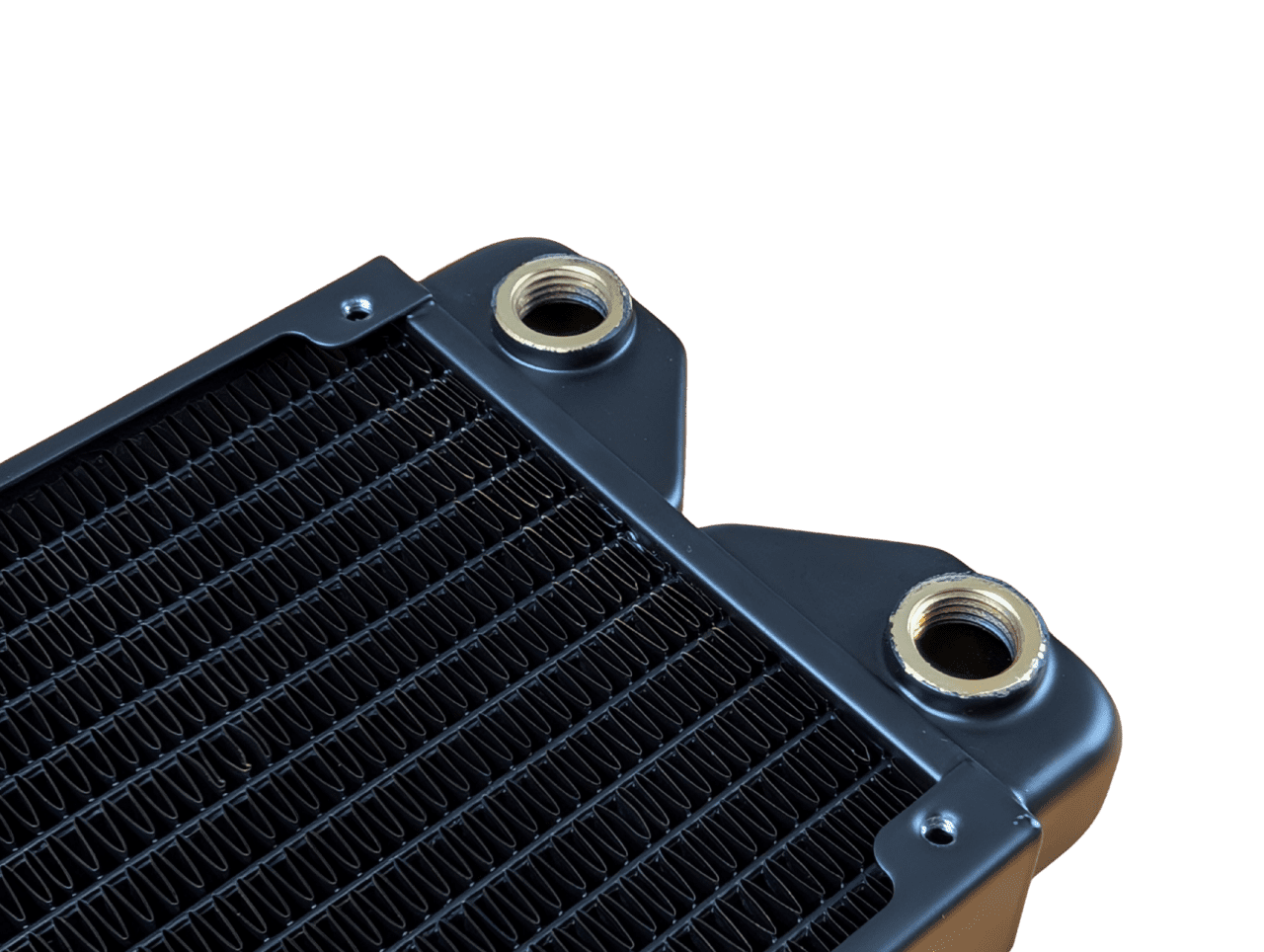

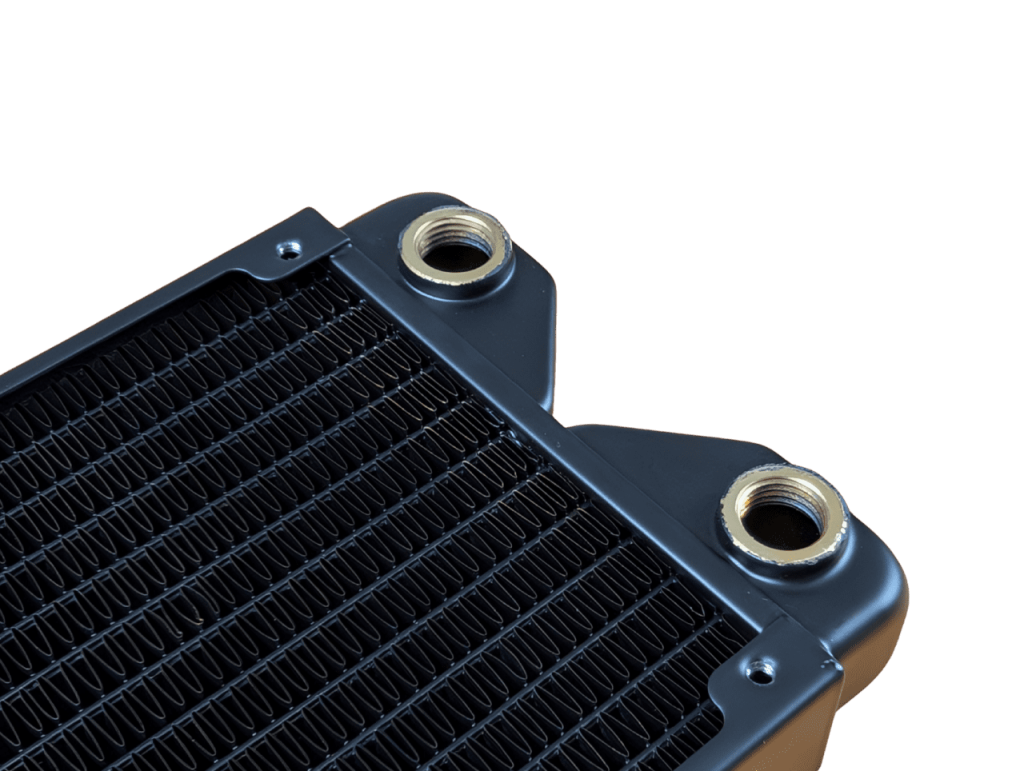

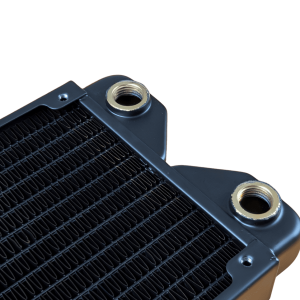

The Phobya R27-S140 consistently relies on proven materials for optimal heat dissipation. The fins are made of high-quality 99.9% copper with a density of 18 FPI (fins per inch), ensuring an effective surface area for heat exchange. The water channels are also made of copper (H65) to ensure excellent thermal conductivity. Durable brass (H62) is used for the pre-chambers and the robust G1/4 inch connections, guaranteeing durability and a secure connection.

Compact design for 140mm fans:

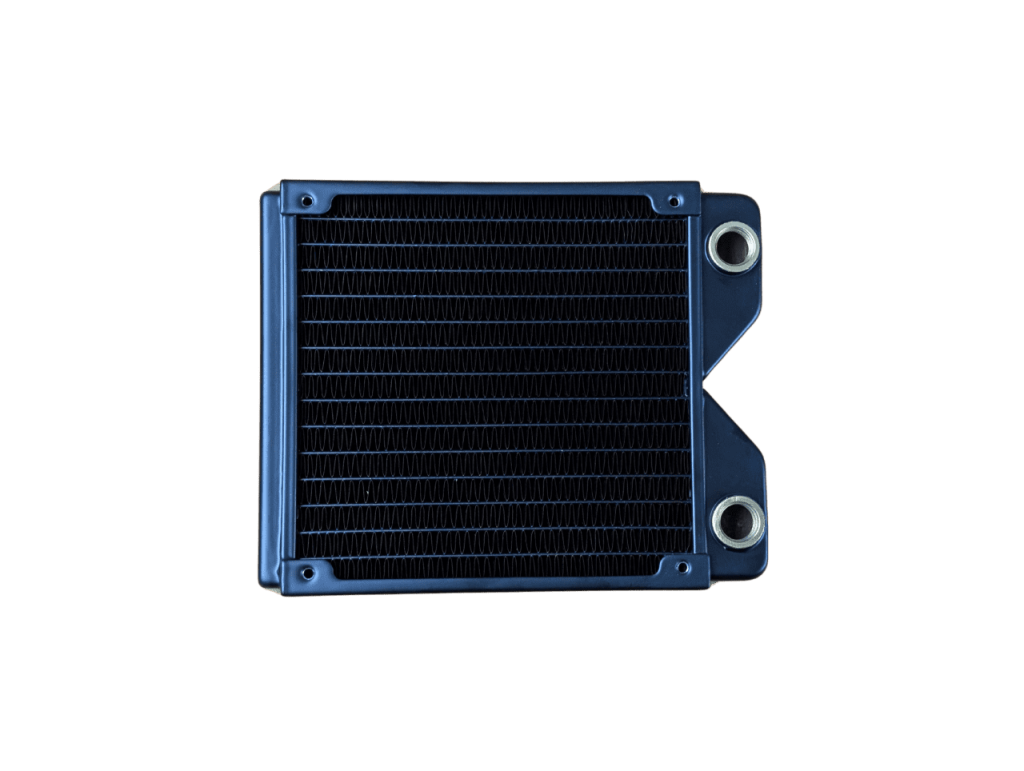

With dimensions of 173.5 x 140 x 27 mm, the R27-S140 is specifically designed to accommodate a 140 mm fan, offering powerful cooling performance in a limited space. Its weight of 429 grams reflects the solid construction and use of high-quality materials.

Optimal fan compatibility and easy installation:

The radiator is designed for use with a 140 x 140 mm fan. M4 screws for 30 mm thick fans and 6 mm mounting screws are included for easy installation.

Tested quality and environmental awareness:

Each Phobya R27-S140 radiator undergoes a 1-bar pressure test to ensure leak-tightness and reliability. Furthermore, the radiator is RoHS compliant and thus complies with current environmental guidelines.

Technical data at a glance:

– Fin material: High-quality copper (99.9%), 18 FPI
– Material channels: copper H65
– Material pre-chambers & threads: Brass H62
– Connections: G1/4 inch
– Dimensions ( L x W x H ): 173.5 x 140 x 27 mm
– Weight: 429 g
– Fan compatibility: 1 x 140 x 140 mm fan
– Supplied screws: M4 for 30 mm fan, 6 mm mounting screws
– Pressure tested: 1 bar
– RoHS compliant
– The Phobya R27-S140 Black R
