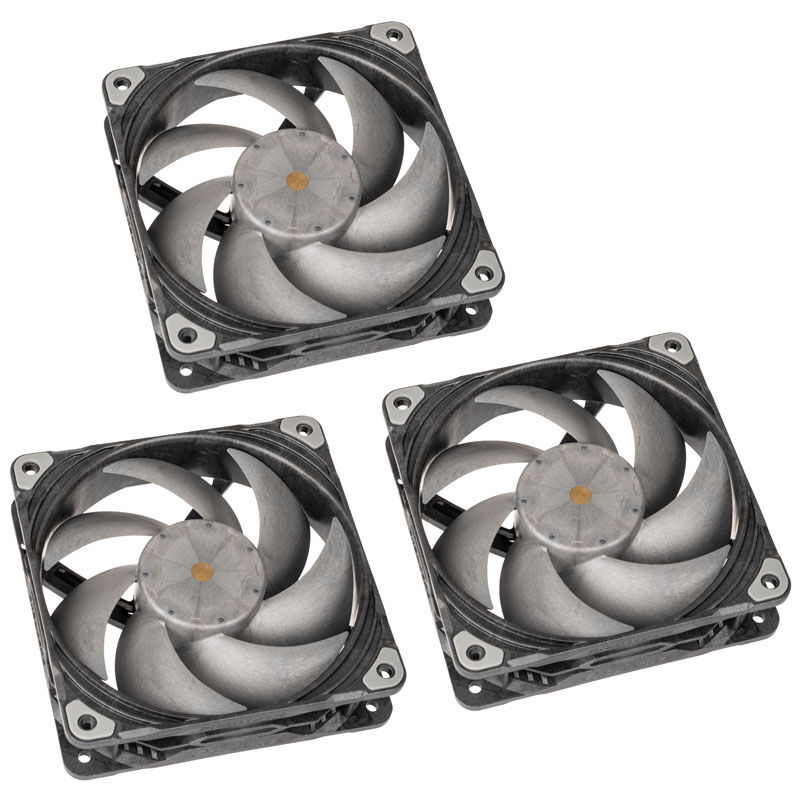

The T30-120 is a 120 mm high-end fan in a pack of 3 in a completely black design. .
With its three operating modes, the fan can be adapted to a wide range of systems and application scenarios. The optimized frame and rotor design, the highly developed motor, the dual vapo bearing and the material quality result in a unique overall package of high performance and quiet operation.
The T30-120 is a 120 mm high-end fan in a pack of 3 in a completely black design. .
With its three operating modes, the fan can be adapted to a wide range of systems and application scenarios. The optimized frame and rotor design, the highly developed motor, the dual vapo bearing and the material quality result in a unique overall package of high performance and quiet operation.
The T30-120 is a 120 mm high-end fan in a pack of 3 in a completely black design. .
With its three operating modes, the fan can be adapted to a wide range of systems and application scenarios. The optimized frame and rotor design, the highly developed motor, the dual vapo bearing and the material quality result in a unique overall package of high performance and quiet operation.
With its three operating modes, the fan can be adapted to a wide range of systems and application scenarios. The optimized frame and rotor design, the highly developed motor, the dual vapo bearing and the material quality result in a unique overall package of high performance and quiet operation.
The features of the PHANTEKS T30-120 fan in a 3-pack at a glance:
– Versatile high-end fan in black
– 120 model with 30 mm depth / only 0.5 mm impeller gap
– Three performance profiles: Advanced, Performance and Hybrid
– 25% higher fan blades for increased performance

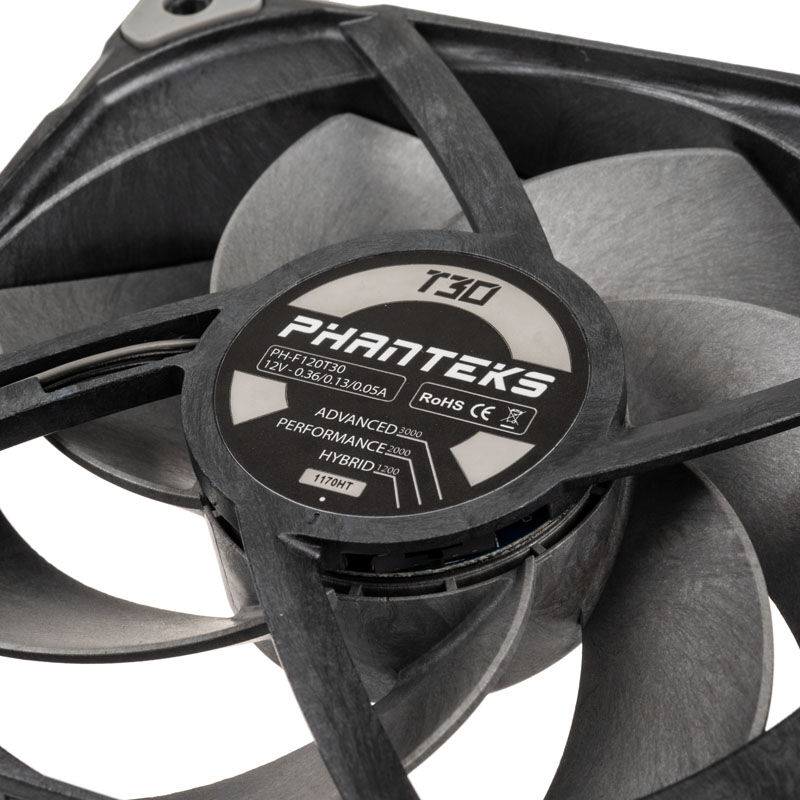

– Three phase Sunon motor and dual vapo bearings
– Frame and rotor made of glass fiber reinforced LCP material
– 4-pin PWM connector with daisy chain support
– Anti-vibration rubber pads
– Six year manufacturers guarantee
The features of the PHANTEKS T30-120 fan in a 3-pack in detail
PHANTEKS developed the T30-120 in close cooperation with Sunon, one of the leading fan manufacturers. Both companies incorporated their many years of experience in the air and water cooling sector. The result is a high-end fan with aerodynamic optimizations and clever features.
Thanks to its high airflow and static pressure, it is ideally suited for use on radiators, but can also convince as a case fan due to its low noise emissions.

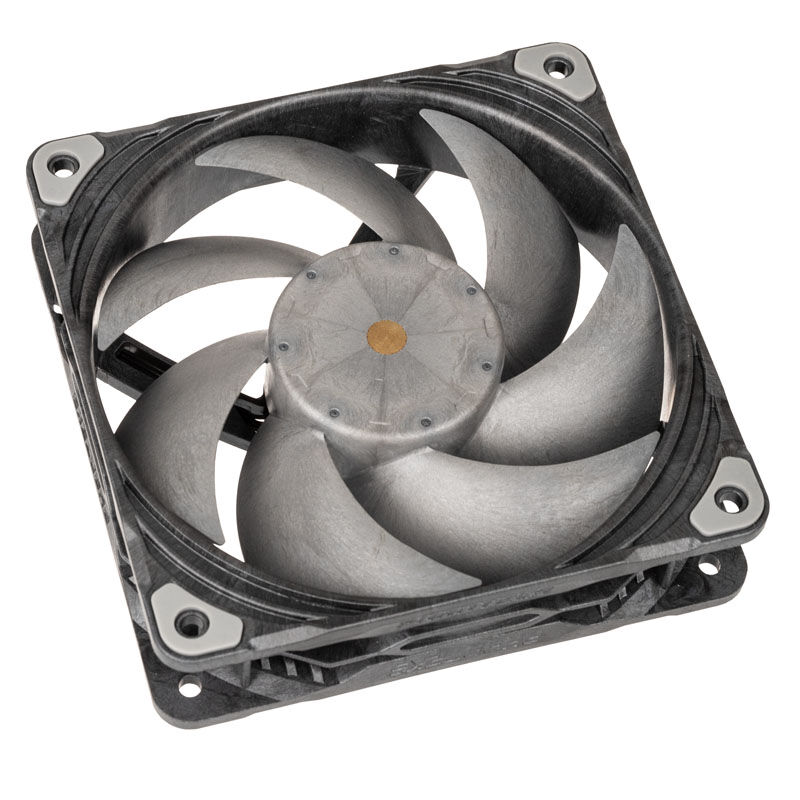

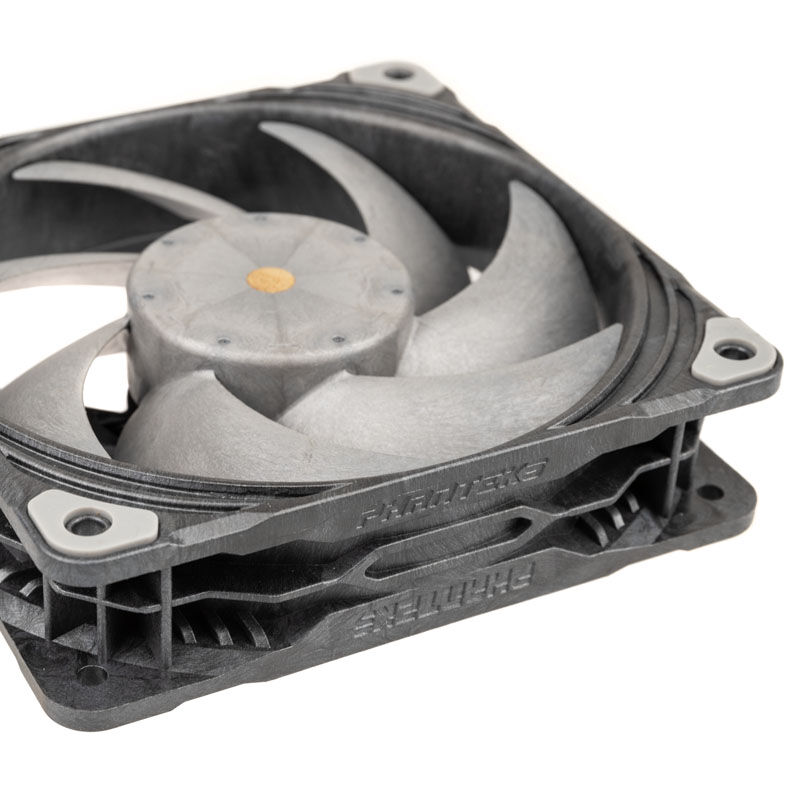

T30-120: Optimized frame design and unique LCP material

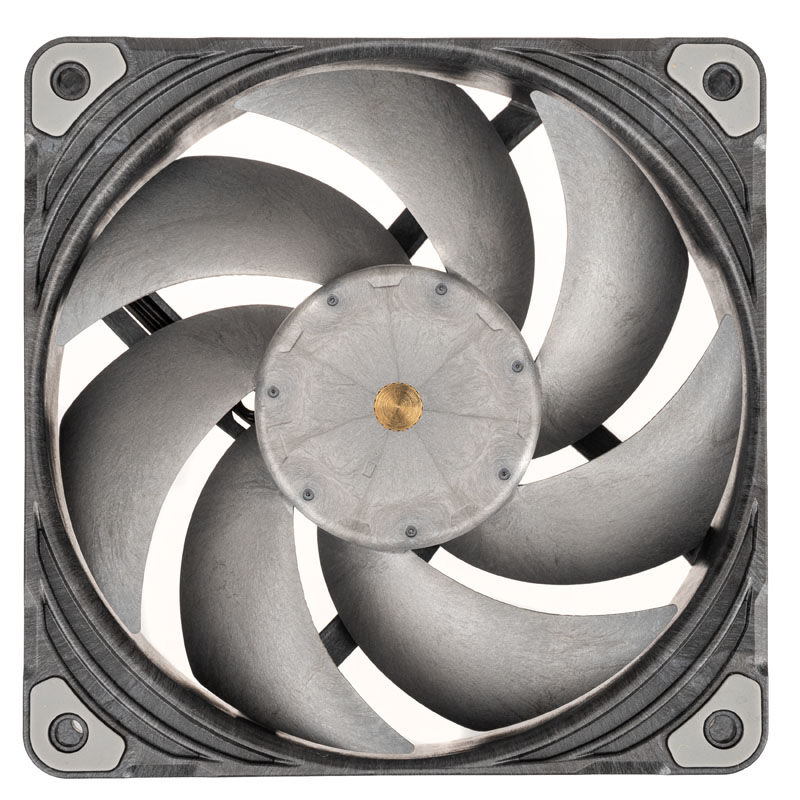

Due to its enlarged frame design with a depth of 30 mm, the T30-120 fan has 25% higher fan blades. This increase in the surface results in a significantly better airflow and an optimized ratio of volume and power. In addition, the small impeller gap of only 0.5 mm reduces air turbulence and turbulence and the associated noise emissions.
Both the frame and the rotor together with the fan blades are made of glass fiber reinforced LCP material (Liquid Crystal Polymer). Liquid crystal polymer has a significantly higher mechanical strength and temperature resistance than normal plastics. These properties ensure a reduction in vibrations, a high level of stability and a long service life.
Three fan profiles: Equipped for every application
With three different fan profiles, the T30-120 can be used in different scenarios or systems. The three modes differ in their maximum speed and make the fan interesting for performance-oriented system builders and overclockers as well as gamers or quiet-loving silent enthusiasts.
The advanced mode tickles the maximum performance out of the T30-120. With up to 3,000 rpm, this mode is ideal for extreme performance requirements such as servers, workstations or the overclocking record hunt.
The performance mode is recommended for most system configurations. Here, the T30-120 rotate at a maximum of 2,000 rpm and offer a balanced ratio of performance and noise, ideal for gaming systems of all types and performance classes.
The hybrid mode with its semi-passive operation is aimed at silent enthusiasts. If the PWM signal is below 50%, the fans stop completely. Only over 50% do they start again and rotate at a maximum of 1,200 rpm. This mode is particularly suitable for low-noise PCs such as office computers, HTPC or multimedia systems.
The high-quality three-phase motor from Sunon and the dual vapo bearing with magnetic bearings ensure smooth and quiet operation at all times. The anti-vibration pads on the frame also reduce vibrations and oscillations.

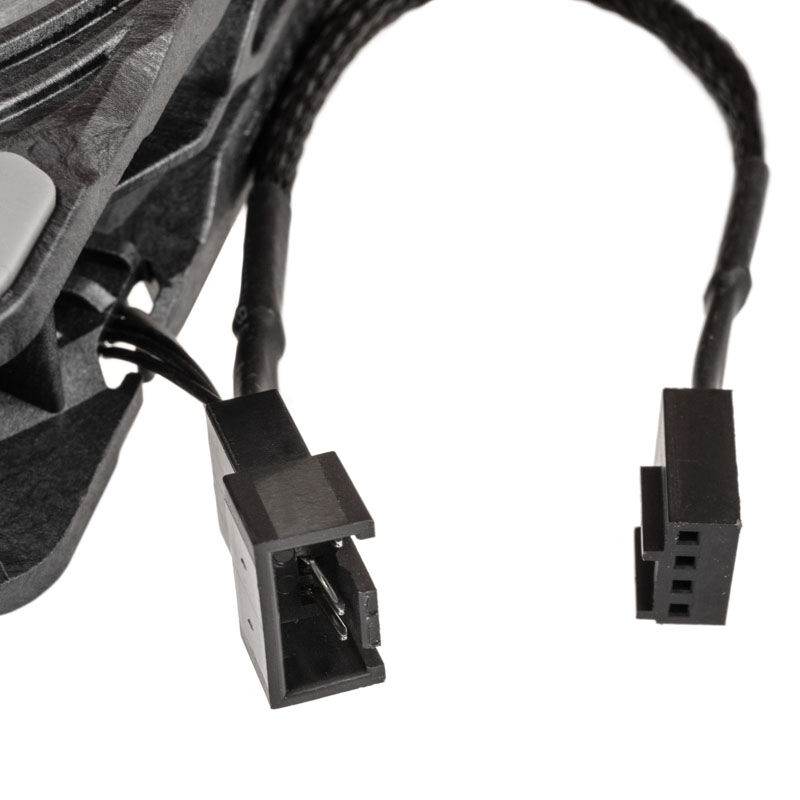

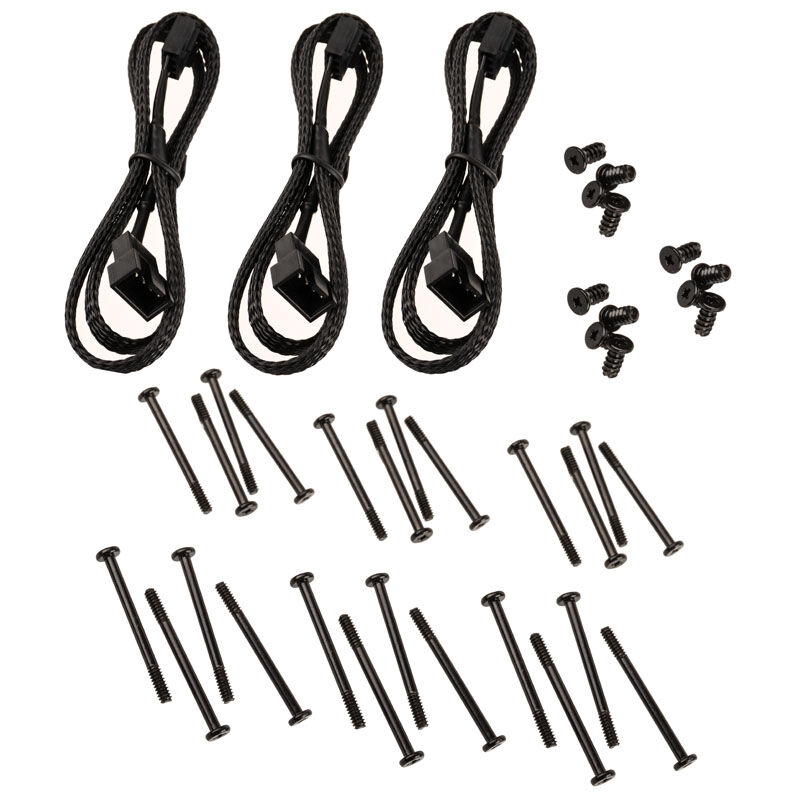

The T30-120 is connected via a 130 mm long cable with a 4-pin PWM connector. The fan cable also has a 4-pin PWM socket, which enables operation in a daisy chain. To connect several T30-120 fans, only one cable has to be connected to the mainboard. A 50 cm long extension cable is included in the scope of delivery for clean cable management and increased flexibility during installation.
Technical Details
| Quantity | 3 pieces |
|---|---|
| Dimensions | 120 x 120 x 30 mm (W x H x D) |
| Weight | 230 g |
| Color | Black |
| Material | Liquid crystal polymer (frame, rotor), rubber (vibration damper) |
| Storage | Dual Vapo |
| Advanced profile | Speed: 3,000 ± 150 rpm Delivery volume: 171.4 m³/h Static pressure: 7.11 mmH2O Volume: 39.7 dB(A) Amperage: 0.36 A Power consumption: 4.32 W |
| Performance profile | Speed: 2,000 ± 100 rpm Delivery volume: 113.6 m³/h Static pressure: 3.3 mmH2O Volume: 27.3 dB(A) Amperage: 0.13 A Power consumption: 1.58 W |
| Hybrid profile | Speed: 1,200 ± 75 rpm Delivery volume: 66.4 m³/h Static pressure: 1.27 mmH2O Volume: 11.1 dB(A) Amperage: 0.05 A Power consumption: 0.55 W |
| Operating voltage | 10.2 – 13.2 V |
| Connection | 4-pin PWM (daisy chain) |
| Cable length | 130 mm + 500 mm extension cable |
| MTTF | 150,000 h |
| Manufacturer’s guarantee | 6 years |
| Scope of delivery |
|
£79.91£66.59 Inc VatEx Vat
