Noctua belongs to the well-known sizes in the silent and high-end cooling range, whereby the CPU coolers of the Austrian manufacturer enjoy an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise. The self-developed fans from Noctua are also responsible for this, which are also available separately in order to serve as a housing, CPU or radiator fan.
Noctua belongs to the well-known sizes in the silent and high-end cooling range, whereby the CPU coolers of the Austrian manufacturer enjoy an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise. The self-developed fans from Noctua are also responsible for this, which are also available separately in order to serve as a housing, CPU or r...
Noctua belongs to the well-known sizes in the silent and high-end cooling range, whereby the CPU coolers of the Austrian manufacturer enjoy an excellent reputation. These combine excellent processing quality with high cooling performance and minimal noise. The self-developed fans from Noctua are also responsible for this, which are also available separately in order to serve as a housing, CPU or r...
The Noctua NH-U12S TR4-SP3 CPU cooler at a glance:
– Single-tower CPU cooler
– Noctua NF-F12 premium fan
– PWM support and low-noise adapter
– Extremely simple SecuFirm2 mounting system
– Tailor-made for AMD plinths TR4 & SP3
– Six years manufacturing guarantee
– Efficient and reliable CPU cooler for TR4 & SP3

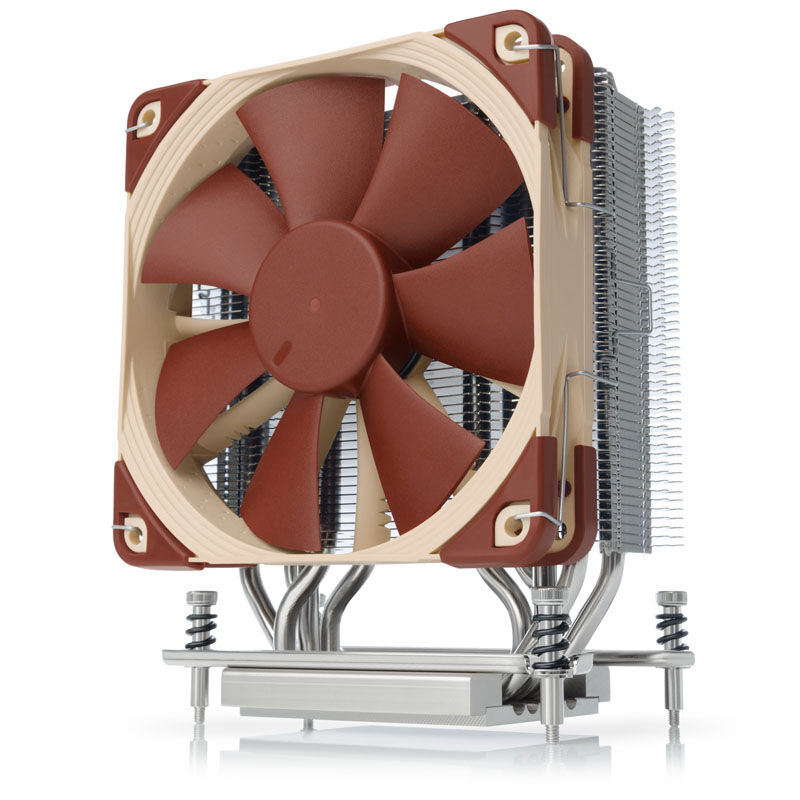

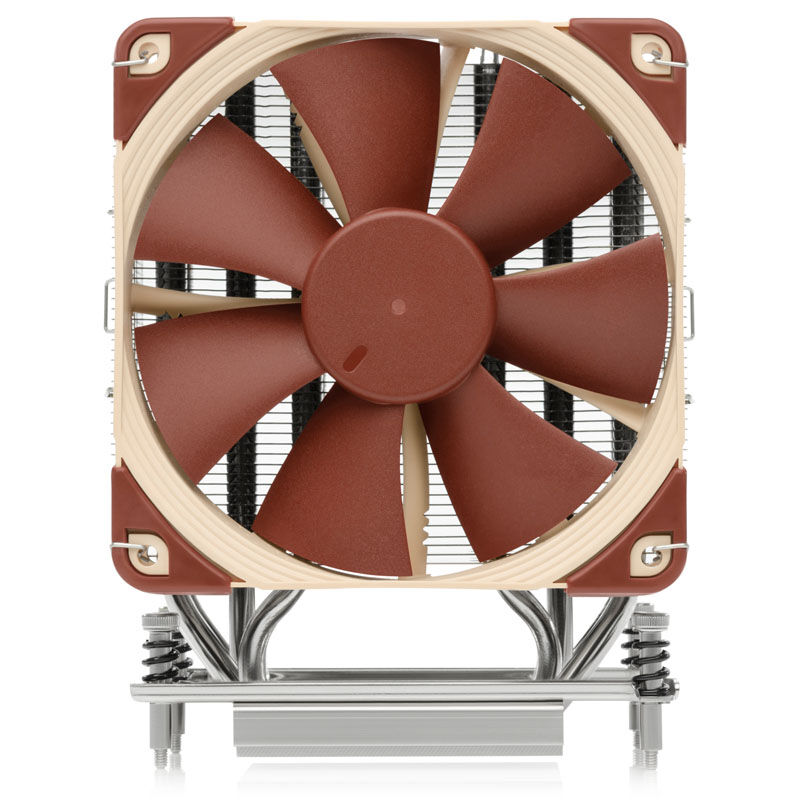

The NH-U12S TR4-SP3 is a 12 cm single-tower CPU cooler from Noctuas classic U series, which has received more than 400 awards and recommendations from international specialist publications. The 45mm slim design of the S-version not only guarantees 100% compatibility with high RAM modules, but also allows a further optimized design in conjunction with the fully automatic PWM-controllable NF-F12 FocusedFlow fan at the same time a further improved Silent cooling performance compared to the previous version.
The all-round high-quality complete package is completed by the tried and tested SecuFirm2 mounting system, Nocturs renowned NT-H1 thermal compound and 6 years manufacturing guarantee. Its excellent cooling performance, excellent running stability and excellent compatibility make the NH-U12S TR4-SP3 a premium solution for the highest demands.
With an overall height of 158 mm, the NH-U12S TR4-SP3 is compact enough to easily fit into most modern tower housings. Due to the width of 125 mm (including fans and fan clamps), the cooler does not stick over the uppermost PCIe slot on normal ATX or Micro-ATX motherboards, so the best compatibility with SLI and CrossFire systems is guaranteed.
Known for over 150 hardware publications and thousands of enthusiasts, the NF-F12 FocusedFlow fan is known for its combination of excellent static pressure, excellent cooler performance and amazing running stability. It supports PWM for convenient, fully automatic speed control via the mainboard. Furthermore, the low-noise adapter can be used to reduce the maximum speed from 1,500 rpm to 1,200 rpm to allow even quieter operation.
The L.N.A. (Low-Noise Adapter) reduces the speed to 1,200 RPM, reducing the volume to 18.6 dB (A). The NH-U12S TR4-SP3 is delivered with special fan clamps and an additional set of anti-vibration pads for users who wish to achieve even better performance with a second NF-F12 fan in push / pull mode. These allow the rear fan to be lowered by 5mm and thus achieve better acoustics in double fan operation.

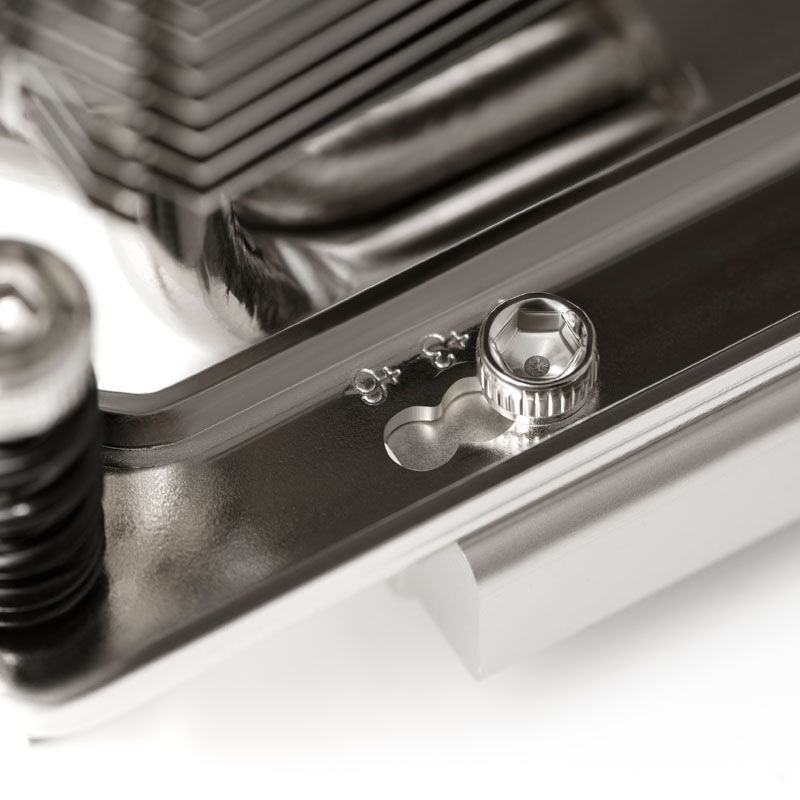

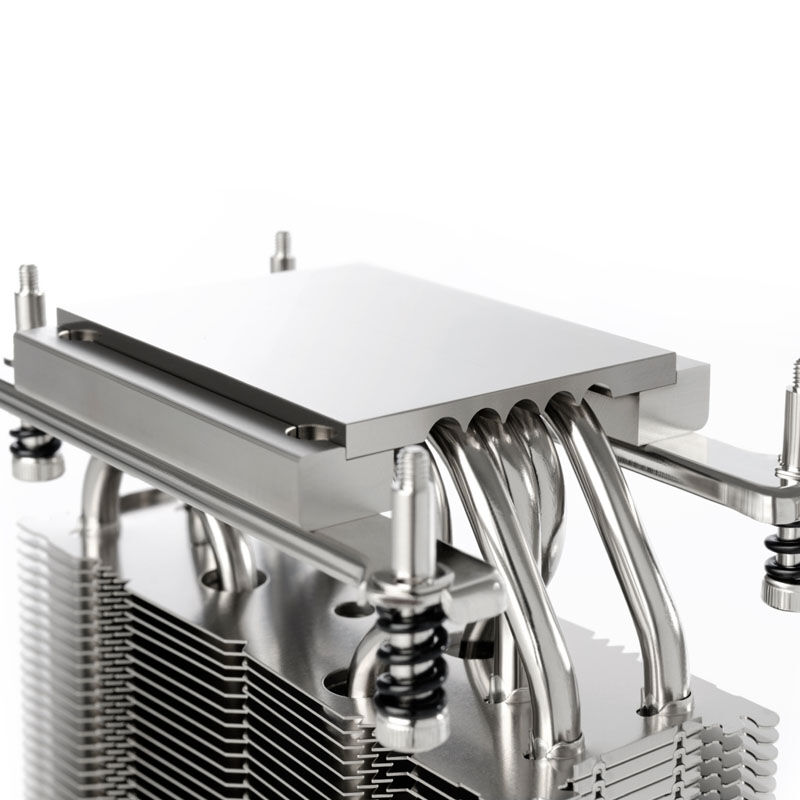

Noctuas SecuFirm2 Montagesysteme has become synonymous with quality, reliability and ease of use. The NH-U12S TR4-SP3 is a dedicated version for the AMD socket TR4 and SP3, which is particularly easy to install. Just install the radiator, tighten the four spring bolts and youre done! Due to an enlarged and tailor-made contact area, this cooler can not be used on other sockets and is not compatible with Noctuas standard mounting system.
| Heatsink Specifications | |
|---|---|
| Dimensions (Without Fan) | 125 x 158 x 45 mm (W x H x D) |
| Dimensions (With Fan) | 125 x 158 x 71 mm (W x H x D) |
| Weight (Without / With Fan) | 695 g / 870 g |
| Material | Nickel-Plated Copper (Base & Heatpipes), Nickel-Plated Aluminum Fins |
| Compatibility | AMD TR4 / SP3 |
| Fan Specifications | |
| Fan Model | 1x 120 mm NF-F12 PWM |
| Speed (Normal) | 1,500 RPM |
| Noise Level (Normal) | 22.4 dB(A) |
| Airflow (Normal) | 93.4 m³/h |
| Speed (With L.N.A.) | 1,200 RPM |
| Noise Level (With L.N.A.) | 18.6 dB(A) |
| Airflow (With L.N.A.) | 74.3 m³/h |
| Electrical & Durability | |
| Operating Voltage | 12 V |
| Power Consumption | 0.6 W |
| Life Expectancy | > 150,000 hours |
| Manufacturer’s Warranty | 6 Years |
| Included in Delivery | |
| NF-F12 PWM Premium Fan Low-Noise Adapter (L.N.A.) NT-H1 High-End Thermal Grease SecuFirm2 Mounting Kit for TR4 / SP3 Anti-Vibration Pads & Fan Clamps (Dual-Fan Support) Noctua Metal Case Badge | |
