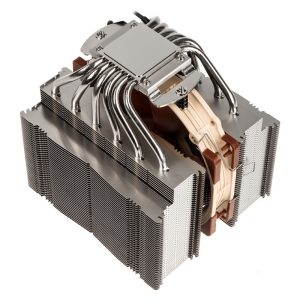

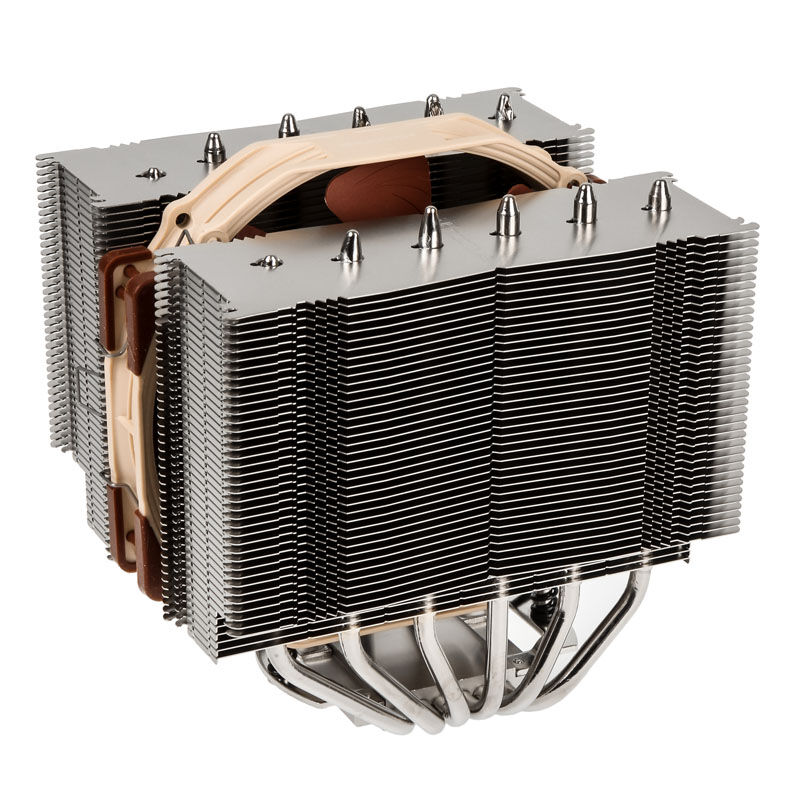

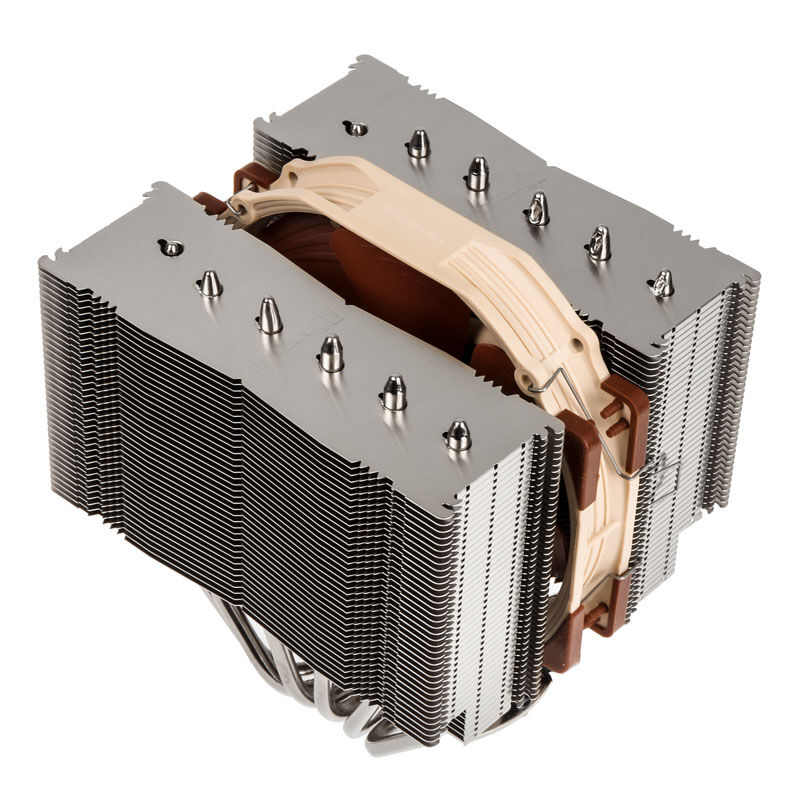

Noctua NH-D15S CPU cooler 140mm

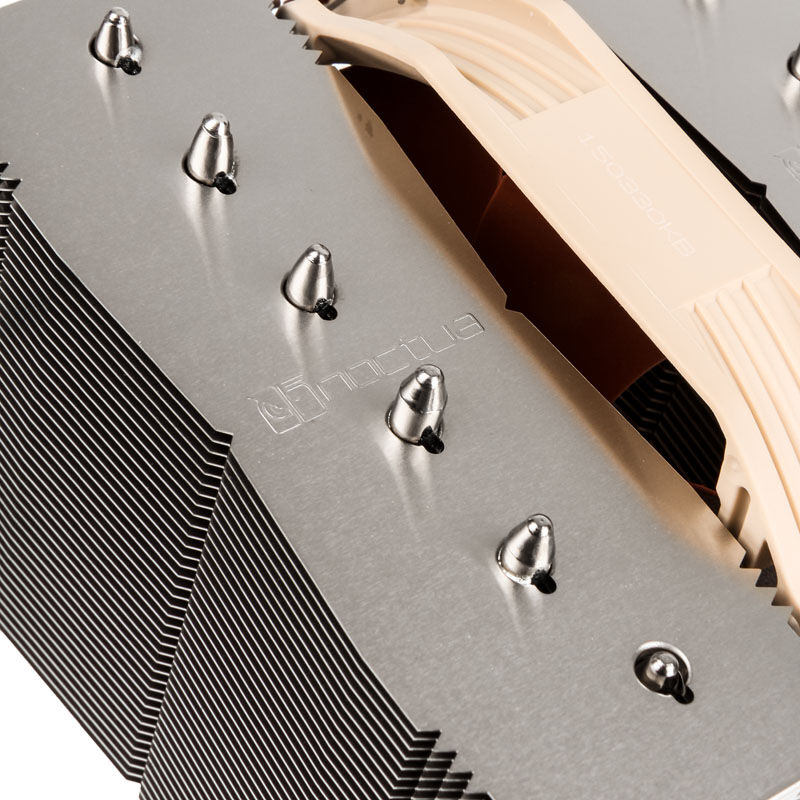

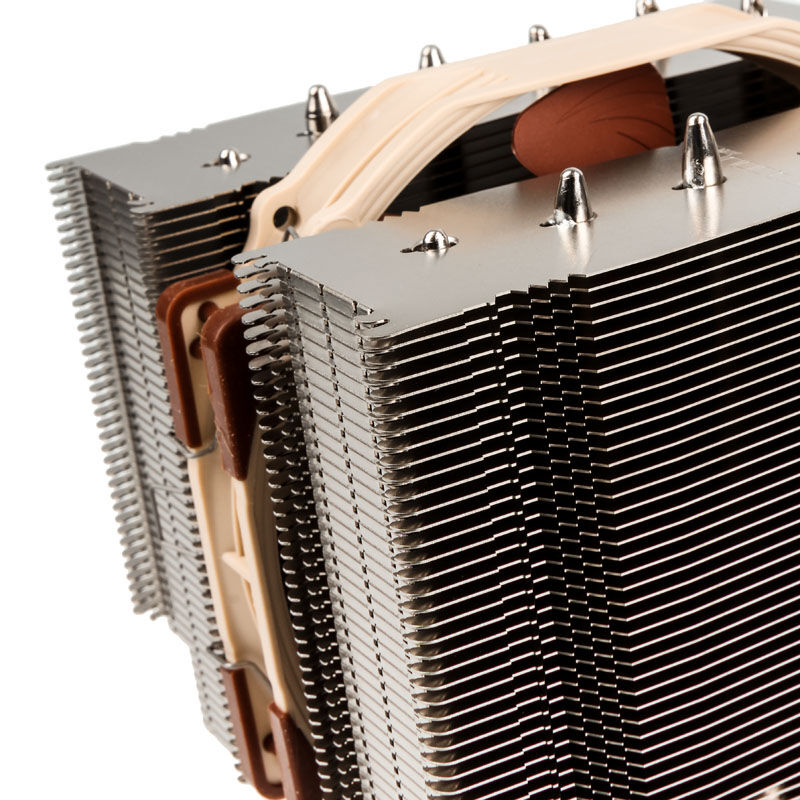

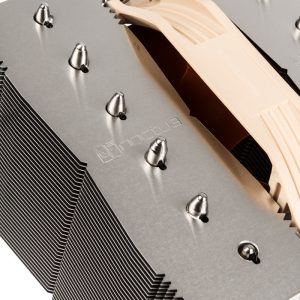

The processing of the new variant NH-D15S seamless continuation of the excellent quality of its predecessor. The connections of heat pipes and fins are soldered and the plates on the edges strutted addition. Due to its wider heatpipe layout and the NF-A15 140mm premium fan with PWM support for fully automatic speed control of the NH-D15S can improve the efficiency of the award-winning NH-D14 again. With these tricks Noctua achieved a particularly good stability and durability.

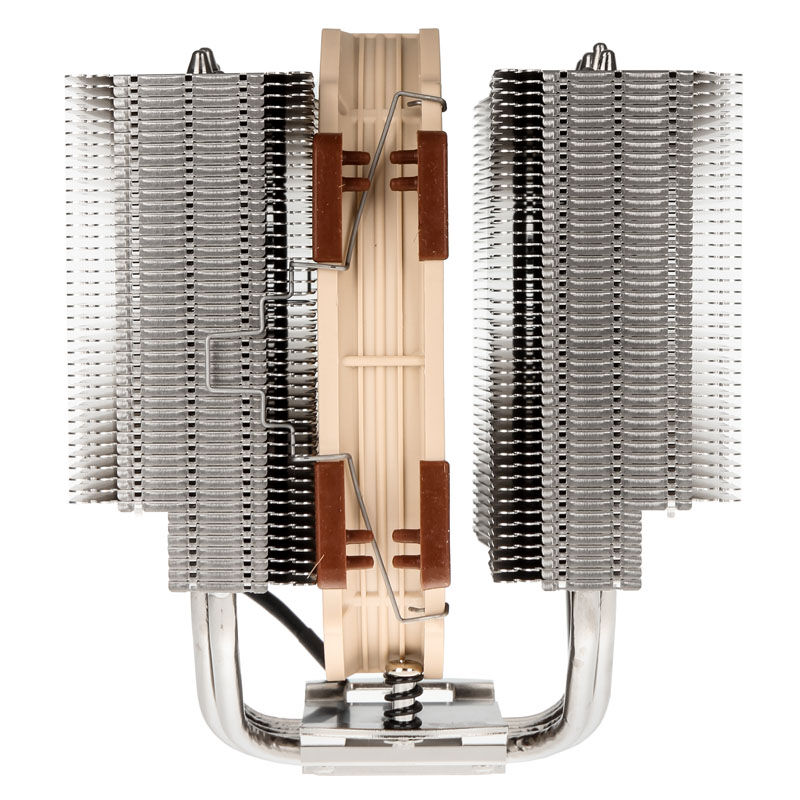

By nature of the NH-D15 is home to a 140-mm fan, which can be supplemented if necessary by an additional 140 millimeter fan. In combination with the two cooling towers of the NH-D15 achieved in this way, a brutal and hardly be surpassed cooling capacity. In addition, for the fan is at a voltage adapter, which significantly reduces the speed from 1,500 to 1,200 r / min, and thus also the volume. The fans are connected via 4-pin PWM.

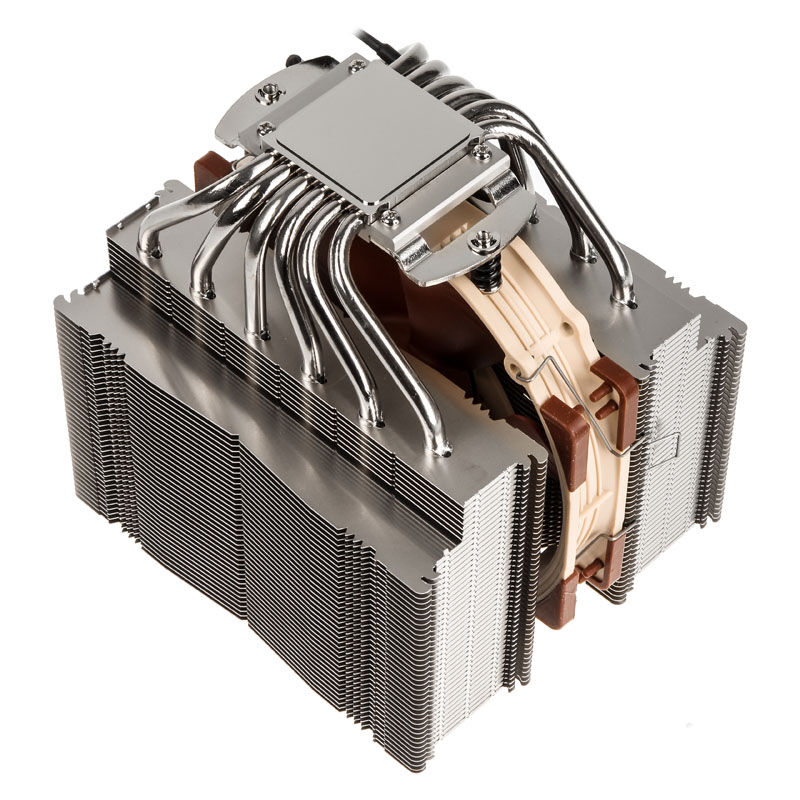

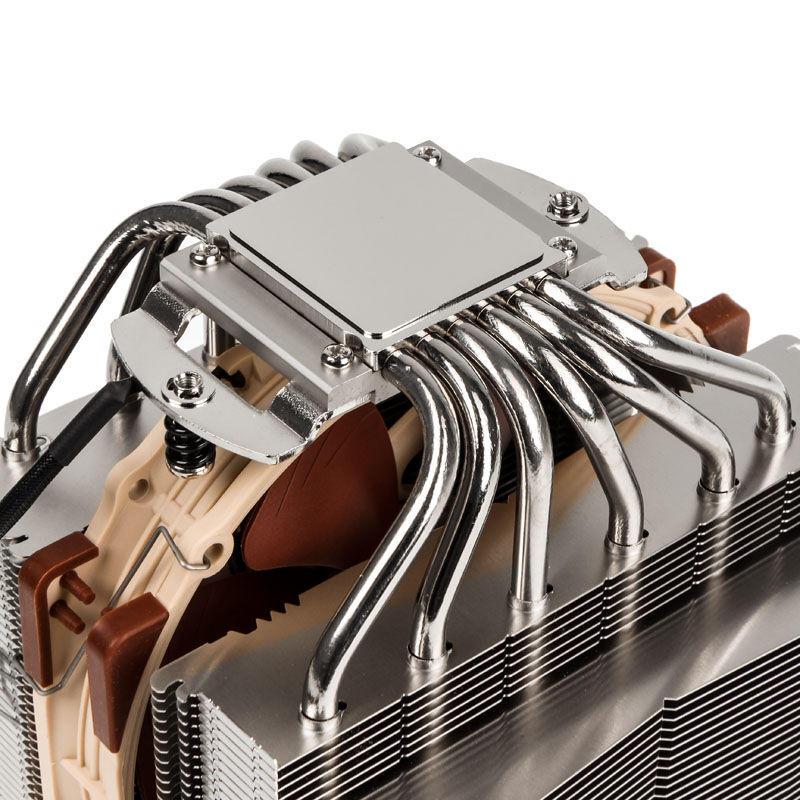

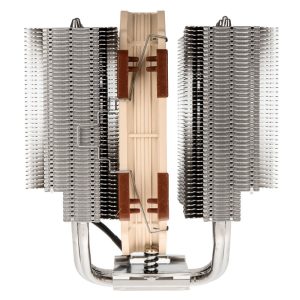

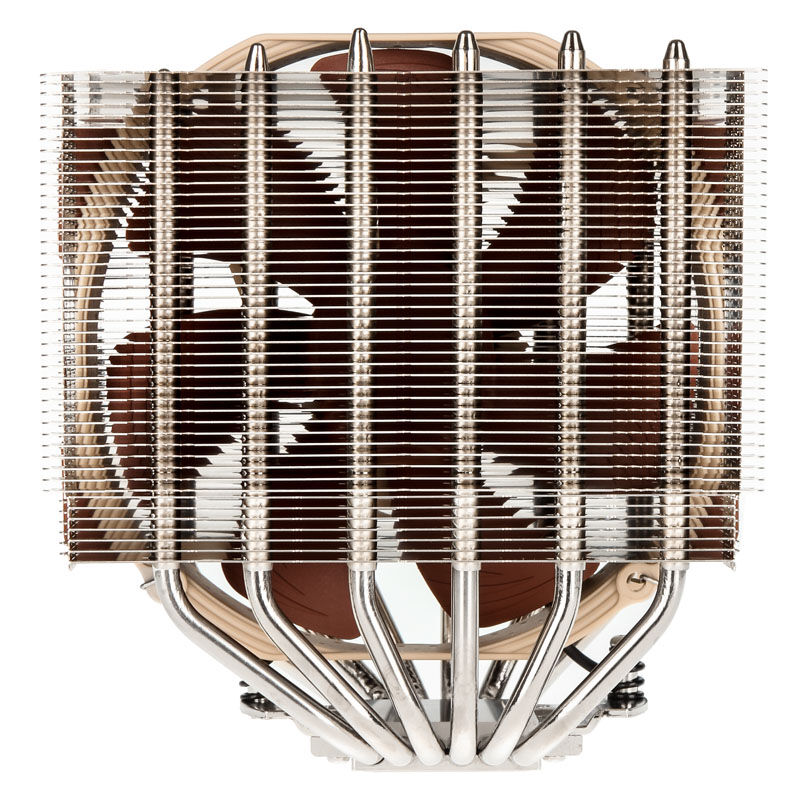

To supply the two cooling towers adequately with the waste heat from the processor, the manufacturer Noctua has installed no fewer than six heatpipes, which quickly dissipate the dissipation of the heat source. In addition, the cooling fins have been extended from 140 to 150 mm and increases the distance between the heat pipes. Compared to the standard D15 RAM compatibility is much better with 65 mm clearance. Through the asymmetrical design of the cooler usually does not project despite its dimensions over the top slot for expansion cards. Therefore, the D15S unit combines high performance and low noise level with significantly improved memory and motherboard compatibility.

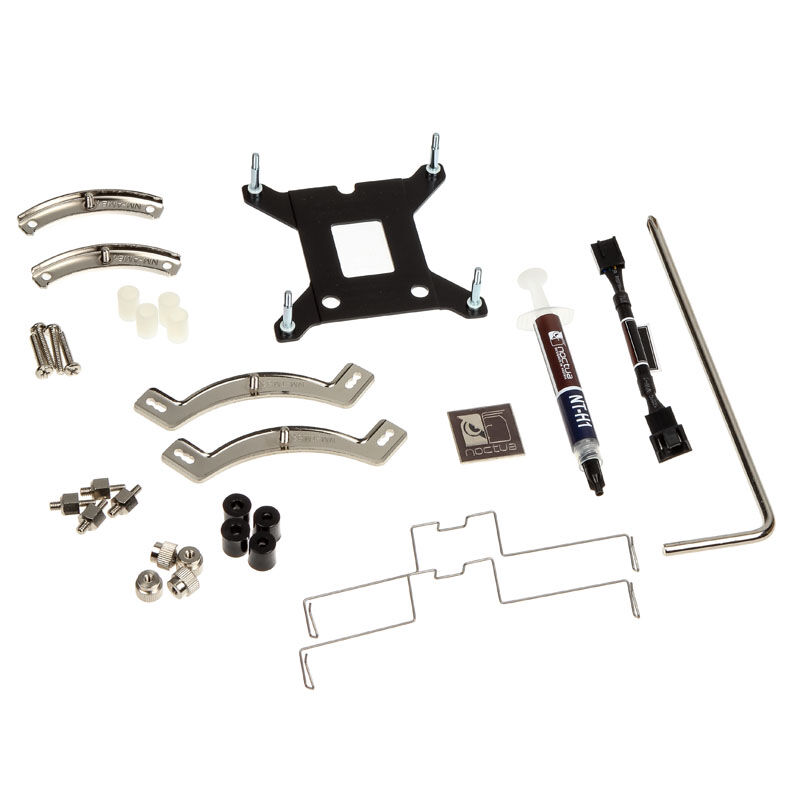

The proven SecuFirm2 mounting system guarantees the reliable fitting of the radiator with the mounting plate on the motherboard back an optimal contact pressure and maximum security on the Intel sockets 1150, 1155, 1156, 2011 (V3) and the AMD sockets AM3 ( +), AM2 (+), FM1, FM2 and FM2 +. Is also included, the NT-H1 thermal compound.
