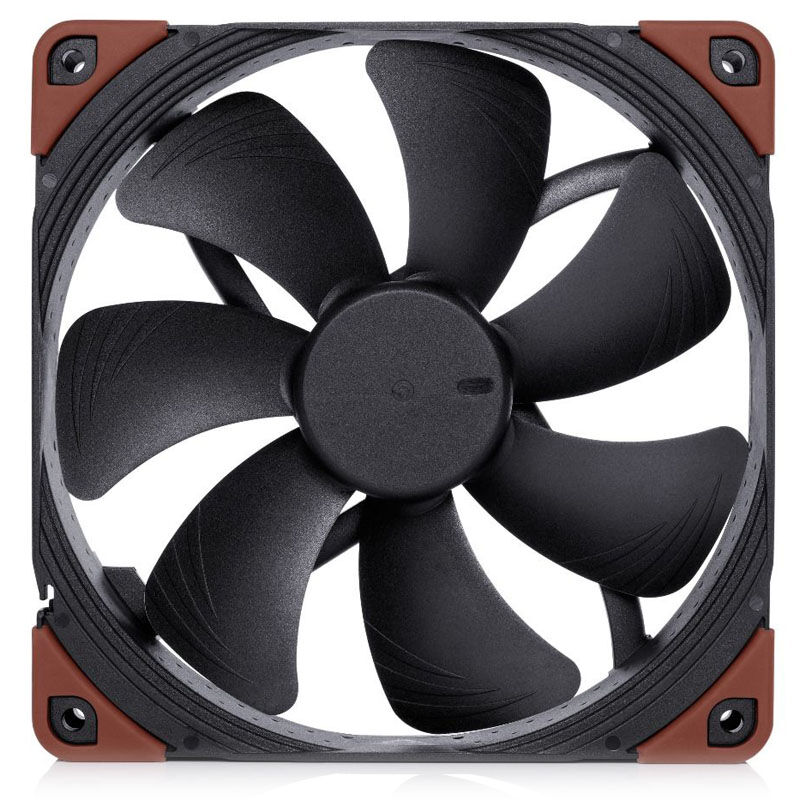

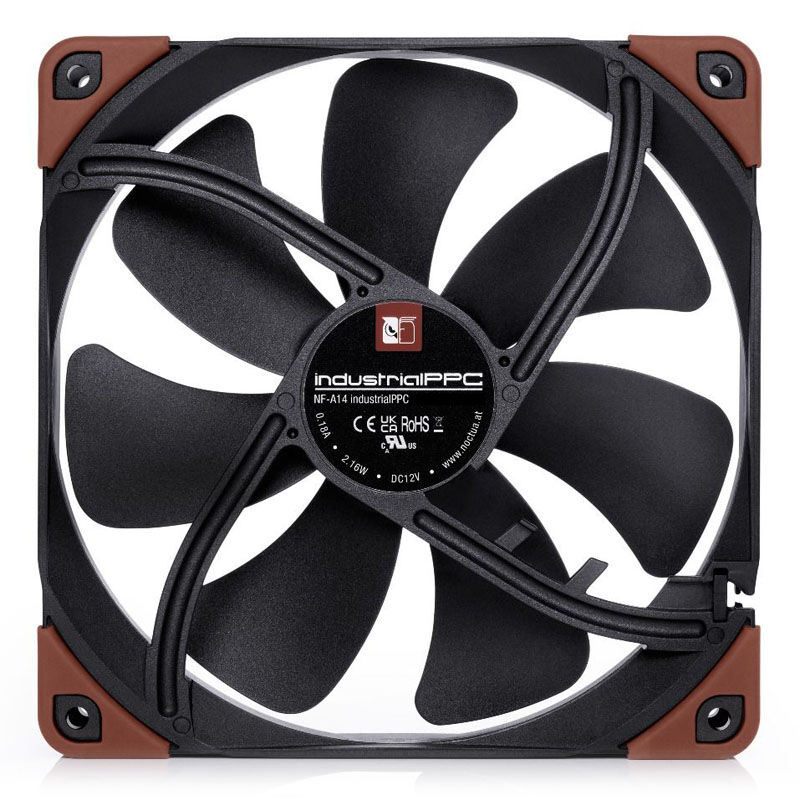

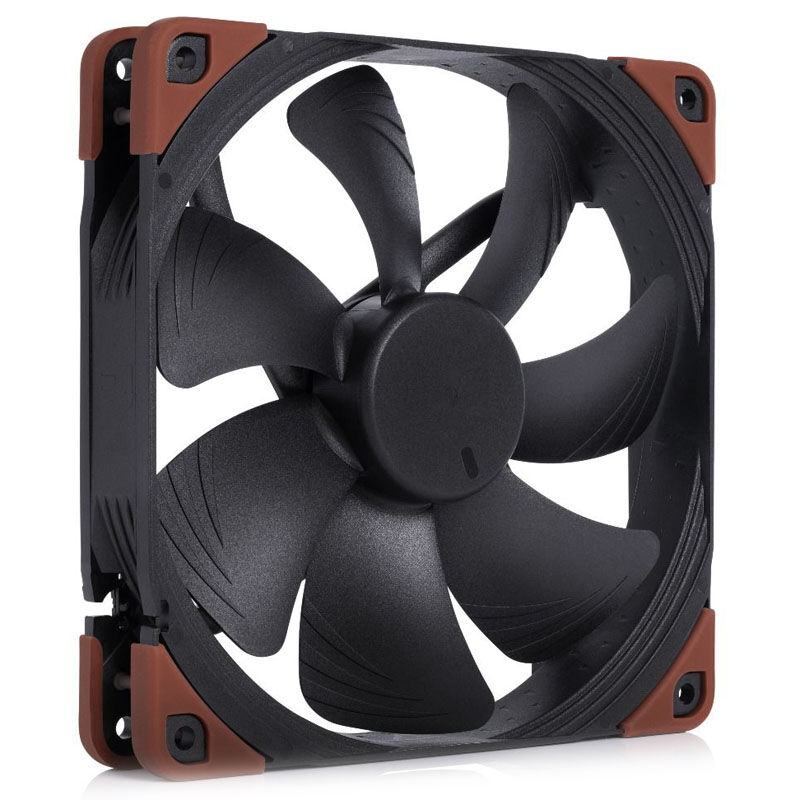

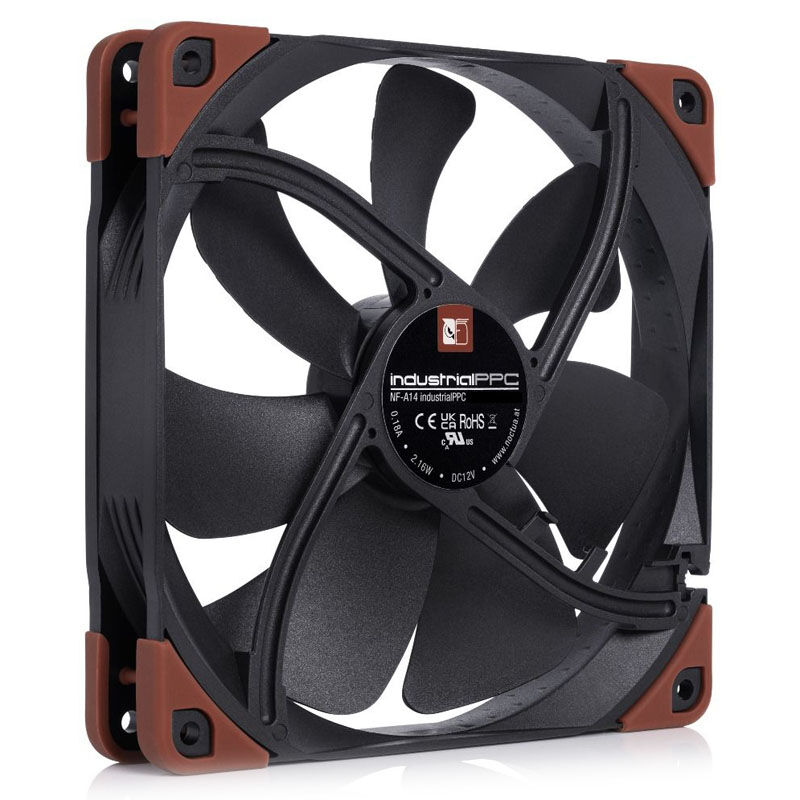

Designed for industrial applications, built to withstand rigorous use and operation in difficult conditions, the NF-A14 industrialPPC (PPC stands for Protected Performance Cooling) is a more robust, faster-spinning version of the multi-award-winning retail model.
Designed for industrial applications, built to withstand rigorous use and operation in difficult conditions, the NF-A14 industrialPPC (PPC stands for Protected Performance Cooling) is a more robust, faster-spinning version of the multi-award-winning retail model.
Designed for industrial applications, built to withstand rigorous use and operation in difficult conditions, the NF-A14 industrialPPC (PPC stands for Protected Performance Cooling) is a more robust, faster-spinning version of the multi-award-winning retail model.
Features:
– Black 140mm fan for industrial applications
– 24 V operating voltage
– 40 cm long PWM connection cable
– 800 to 3,000 rpm at max. 41.3 dB(A)
– Extremely high static pressure of 6.58 mmH2O
Designed for industrial applications, built to withstand rigorous use and operation in difficult conditions, the NF-A14 industrialPPC (PPC stands for Protected Performance Cooling) is a more robust, faster-spinning version of the multi-award-winning retail model.
The 24V variant uses a special wide-range input version of Noctuas NE-FD2 motor control IC to support 24V-based industrial applications. Thanks to the excellent aerodynamic efficiency of the NF-A14 design and a three-phase motor, the industrialPPC version offers real high-performance cooling with its higher speed, but has moderate noise and power consumption compared to fans that rotate at comparable speeds.

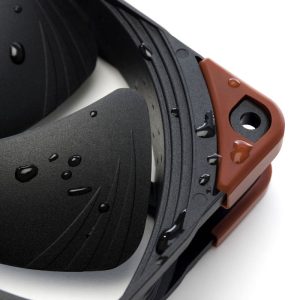

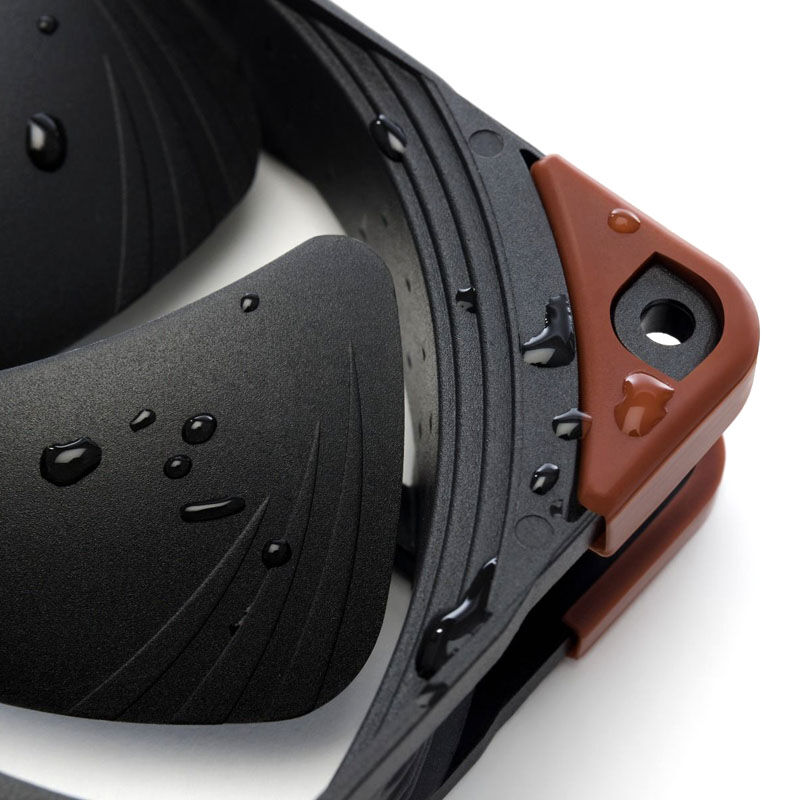

With its fiberglass-reinforced polyamide construction and enhanced water and dust protection, the NF-A14 industrialPPC is also suitable for use in demanding environments. At the same time, the high-quality SSO2 bearing guarantees an MTBF of over 150,000 hours.
| General Specifications | |
|---|---|
| Dimensions (W x H x D) | 140 x 140 x 25 mm |
| Material | Plastic |
| Color | Black, Brown |
| Performance | |
| Speed | 800 – 3,000 rpm |
| Air Throughput | Up to 269.3 m³/h |
| Static Pressure | Up to 6.58 mmH₂O |
| Noise Level | Up to 41.3 dB(A) |
| Electrical Specifications | |
| Operating Voltage | 24V |
| Power Consumption | Up to 7.92 W |
| Connector | 4-pin PWM |
| Durability & Protection | |
| Service Life (MTBF) | 150,000 hours |
| Water & Dust Protection | IP67 |
| Manufacturer Warranty | 6 years |
| Scope of Delivery | |

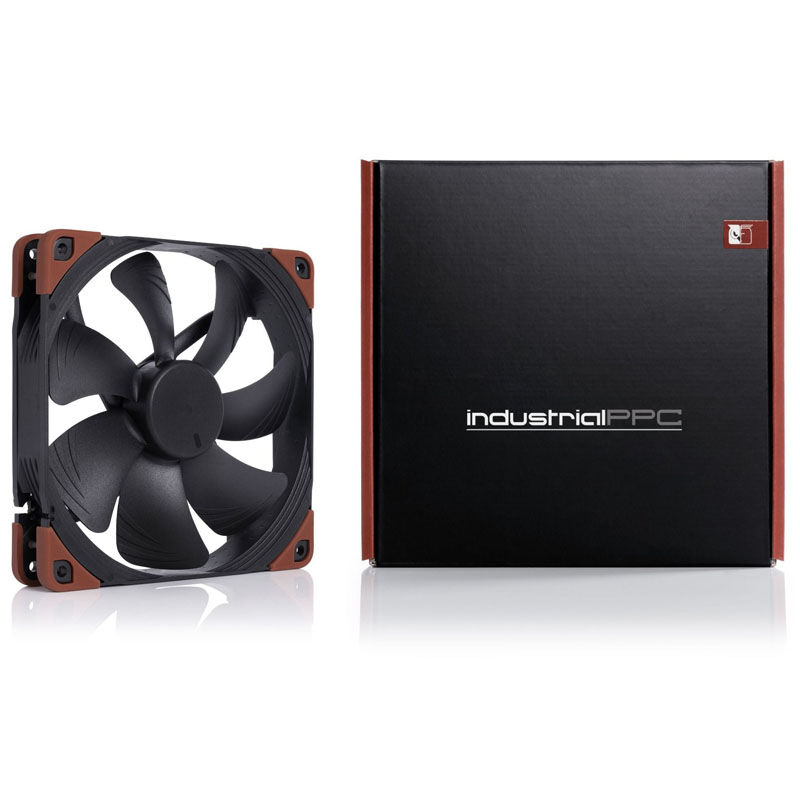

| Included Items | 1x 140 mm fan 4x fan mounting screws |
£43.80£36.50 Inc VatEx Vat
