Features of the MSI X370 Xpower Gaming Titanium in the ATX format
No products found

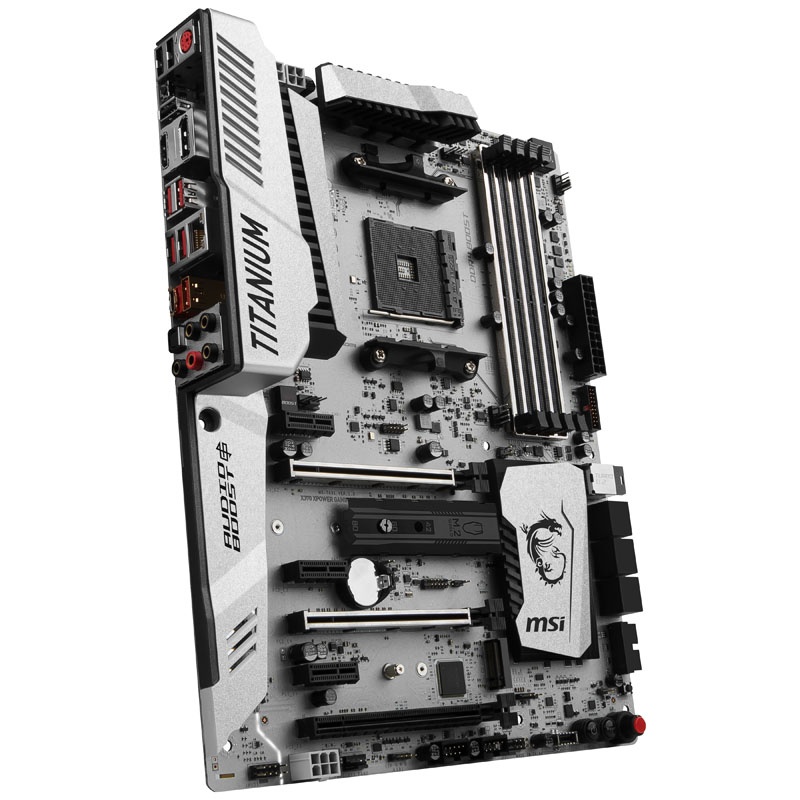

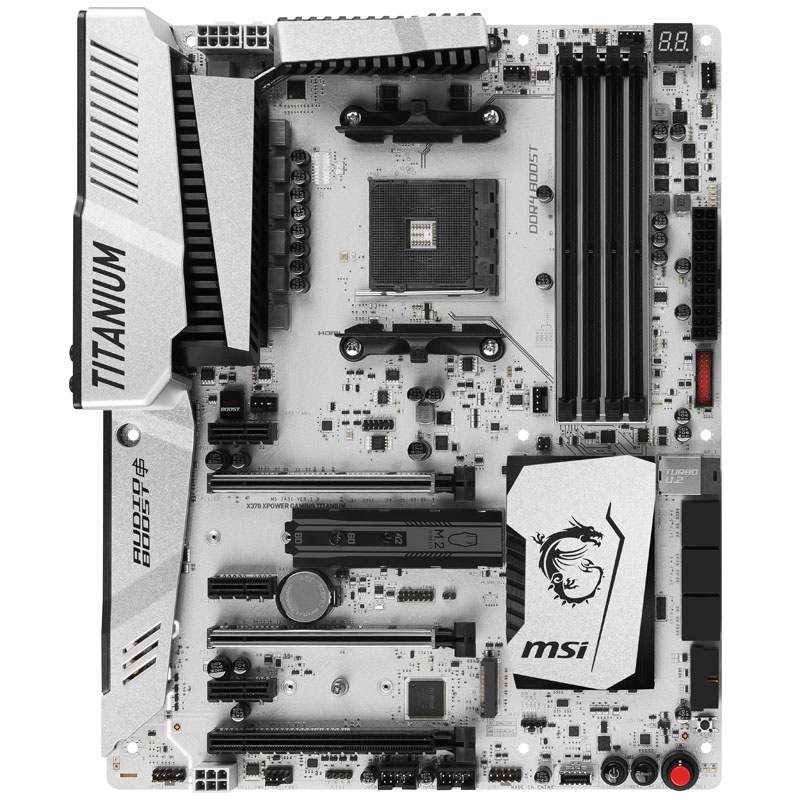

The MSI X370 Xpower Gaming Titanium is a motherboard in ATX format and has graphics cards with two fast PCI Express 3.0 slots, one of which is connected with full 16 lanes and the other with eight lanes. There is also a PCIe 2.0 slot with x4 connection as well as three PCIe x1 slots for other expansion cards. Up to 64 GB of DDR4 RAM take up the four RAM banks, with corresponding memory running at a maximum of 2.666 megahertz. The internal connection repertoire includes, among other things, two headers for USB 3.0 and USB 2.0 for 4 ports each, and one USB 3.1 header for an additional USB 3.1 port.
Disks like SSDs and hard drives, the board is managed by six SATA 6G connectors (including RAID support) and two horizontal M.2 slots, with four PCI Express 3.0 lanes and four PCI Express 2.0 lanes And can thus reach enormously high speeds of up to 32 Gbit / s. M.2 SSDs of 42 to 110 mm in length can be used, as well as the advanced NVM Express protocol, which has been specially optimized for highly parallelized data carrier accesses to modern PCIe SSDs.
A small highlight on the MSI X370 Xpower Gaming Titanium is the fact that a USB 3.1 port with a Type C socket and a USB 3.1 port with Type A connector are located on the I / O panel on the back of the motherboard, Socket. The new USB type C port is especially thin and can be inserted at both ends. USB 3.1 or USB 3.1 Gen 2 achieves maximum speeds of 10 Gbit / s per port. A special feature is the integrated MSI Mystic Light RGB LED lighting, which allows for individualized lighting effects in all colors of the rainbow and can be controlled via the app.
Special refinements of the MSI X370 Xpower Gaming Titanium are the Audio Boost 4 functionality with Nahimic Sound Enhancer 2, the stabilizing Steel Armor and the Click BIOS 5 for easy fine tuning of the system. Last but not least, five fans with a 4-pin PWM connector and a water cooling pump can be connected directly to the board. On the mainboard rear, additional devices and components can be connected to the MSI X370 Xpower Gaming Titanium via USB 3.1, 3.0 and 2.0, Gigabit LAN, universal PS / 2 or five audio jacks for 7.1 sound via the I / O shield connect. In addition, two monitor outputs are available for display using an integrated APU graphics unit (optional): HDMI and DisplayPort.
Chipsets for socket AM4 at a glance:
X370 Chipset B350 Chipset A320 Chipset Ryzen CPU
PCIe 3.0 / 2.0: x4 / x8 x4 / x6 x4 / x4 x16 + x4 + x4 / –
USB 3.1 / 3.0 / 2.0: 2/6/6 2/2/6 1/2/6 – / 4 / –
RAM: DDR4 DDR4 DDR4 memory controller
SATA 6G: 4 2 2 2
SATA Raid: 0/1/10 0/1/10 0/1/10 –
Overclocking: Yes Yes No Yes (Unlocked CPU & XFR)
Multi-GPU: CrossFire & SLI Partial 2-way CF No –
Caution: The actual I / O configuration may vary depending on the motherboard. The table shows only the basic equipment at interfaces. Other ports are also possible via additional controller chips.
AMD Socket AM4 Compatibility Note:
Because AM4 (+), AM3 (+) or FM2 (+) predecessors AM4 (+), AM4 (+), AM4 (+) AMC connectors are compatible with compatible AM4 mount sets. CPU coolers attached directly to the motherboards retention module are fully compatible.
Technical details:
Format: ATX (304 x 243 mm)
Chipset: AMD X370
Socket: AM4 (for Summit Ridge / Bristol Ridge / Raven Ridge)
R.A.M:
4x DDR4 (2.666 MHz maximum)
Dual-Channel
Max. 64 GB
Slots:
1x PCIe 3.0 x16 *
1x PCIe 3.0 x16 (electrical x8)
1x PCIe 2.0 x16 (electrical x4)
Multi-GPU Configurations: 3-way AMD CrossFireX / 2-way NVIDIA SLI
3x PCIe 2.0 x1
Internal connections:
6x SATA 6G (RAID 0, 1, 10)
1x Turbo M.2 (M-Key, PCIe 3.0 x4 ** with a maximum of 32 Gbit / s, horizontal, sizes 2242 to 22110)
1x M.2 (M-Key, PCIe 2.0 x4, horizontal, sizes 2242 to 2280)
2x USB 3.0 header (4 ports)
2x USB 2.0 header (4 ports)
1x USB 3.1 Header (1 Port)
5x 4-pin fan (PWM)
1x Pump connection
1x front panel audio connector
2x system front panel connector
1x TPM module connector
1x chassis intrusion connector
1x clear CMOS jumper
1x LED connector
1x BIOS Flashback Button
1x Power Button
1x Reset Button
1x OC Genie Button
1x 2-digit debug code LED
External connections:
1x USB 3.1 (Type C, max 10 Gbit / s)
1x USB 3.1 (Type-A, max 10 Gbit / s)
4x USB 3.0 (Type A, max. 5 Gbit / s)
3x USB 2.0
1x Gigabit LAN (Intel 211AT)
5x audio (ALC1220, 7.1 sound, Nahimic 2 audio boost)
1x Optical S / PDIF Out
1x DisplayPort
1x HDMI 2.0
1x Clear CMOS Button
1x PS / 2 combo port (keyboard / mouse)
Power supply:
1x 24 pin ATX12V
1x 8-pin ATX12V
1x 6-pin ATX12V
1x 4-pin ATX12V
Special features: integrated RGB LED illumination (MSI Mystic Light)
* (X8 with APU or Athlon X4)
** (x2 with APU or Athlon X4)
