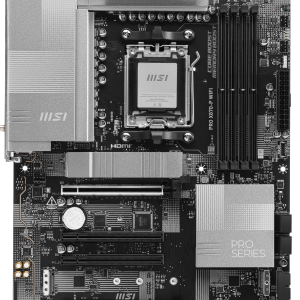

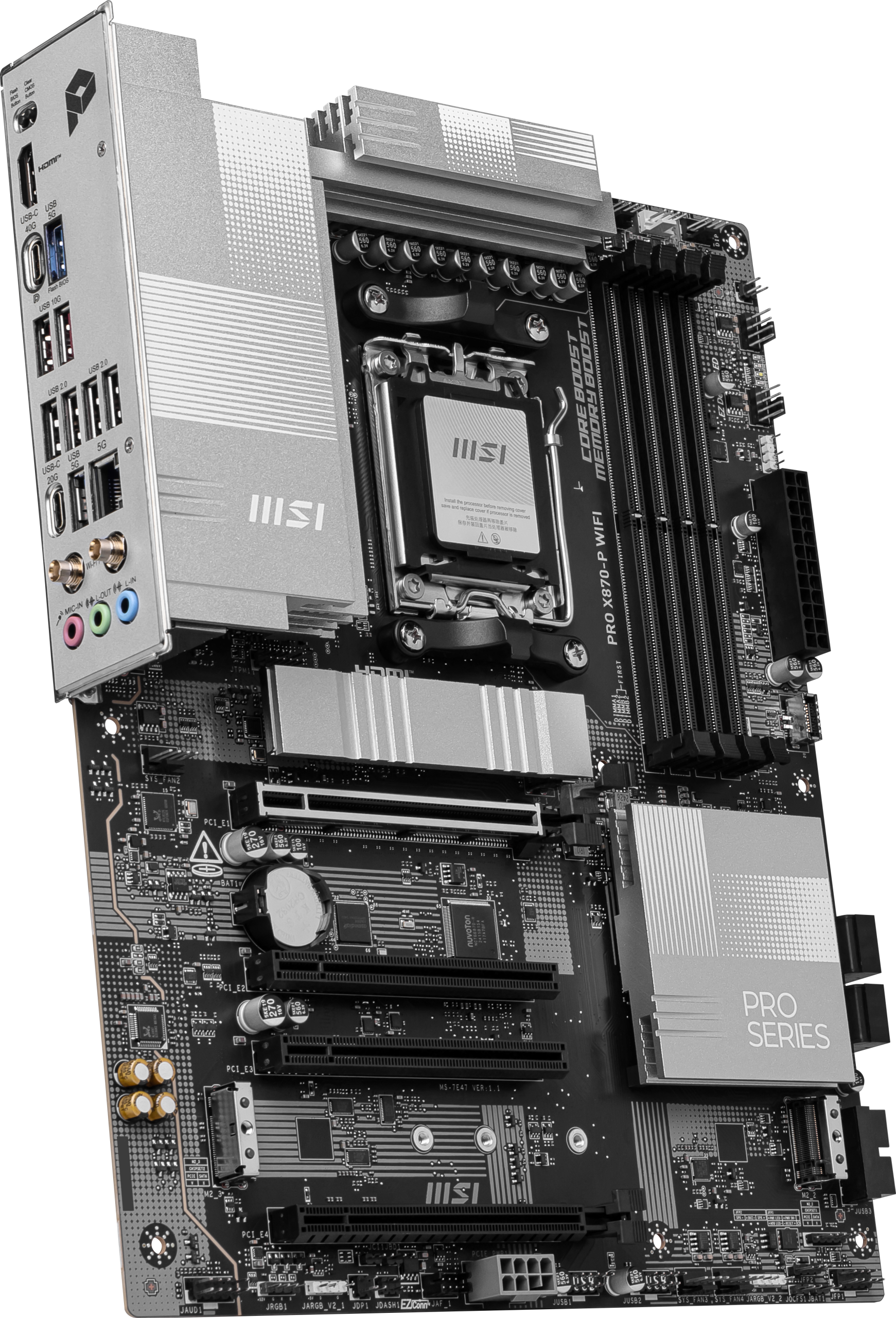

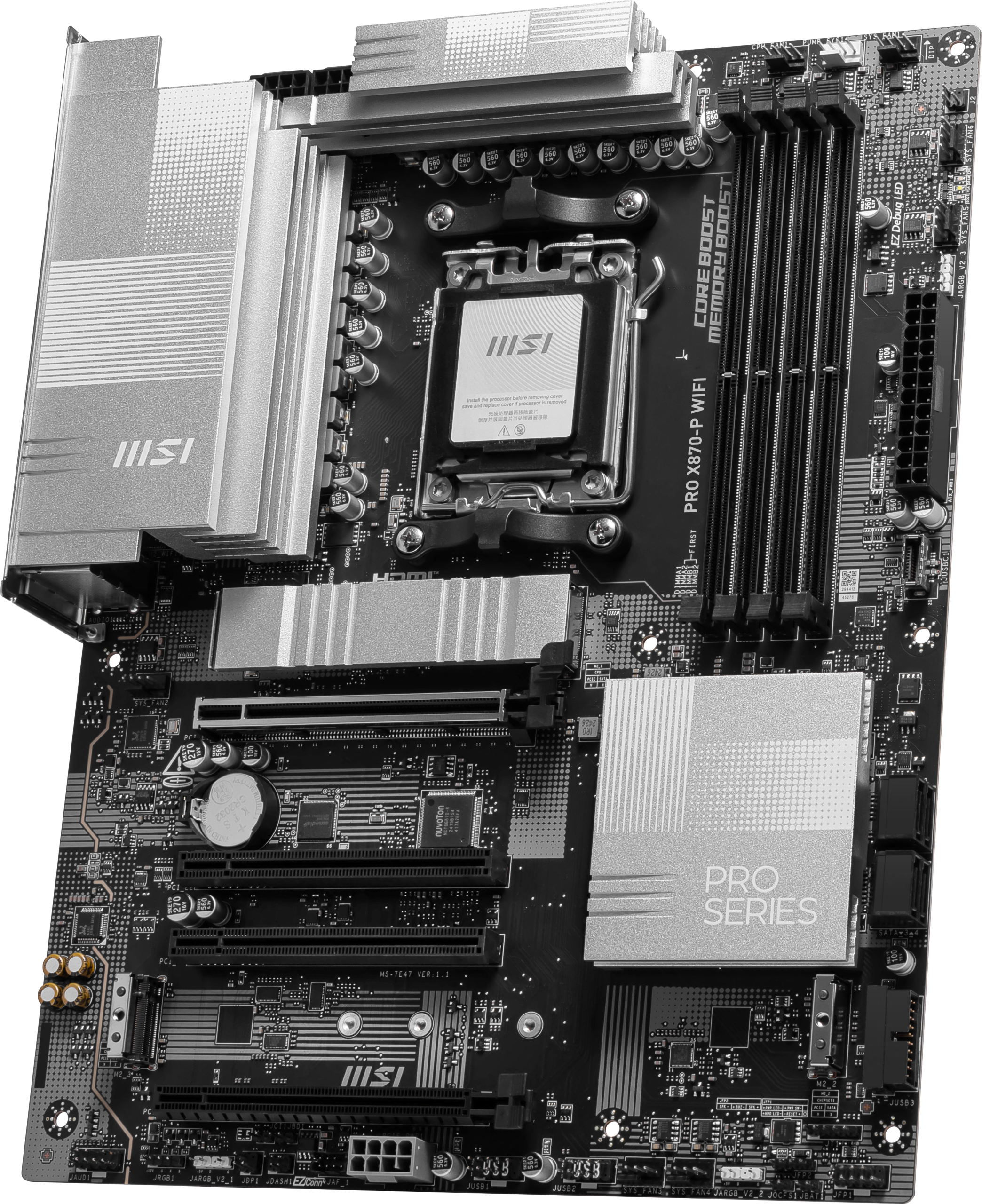

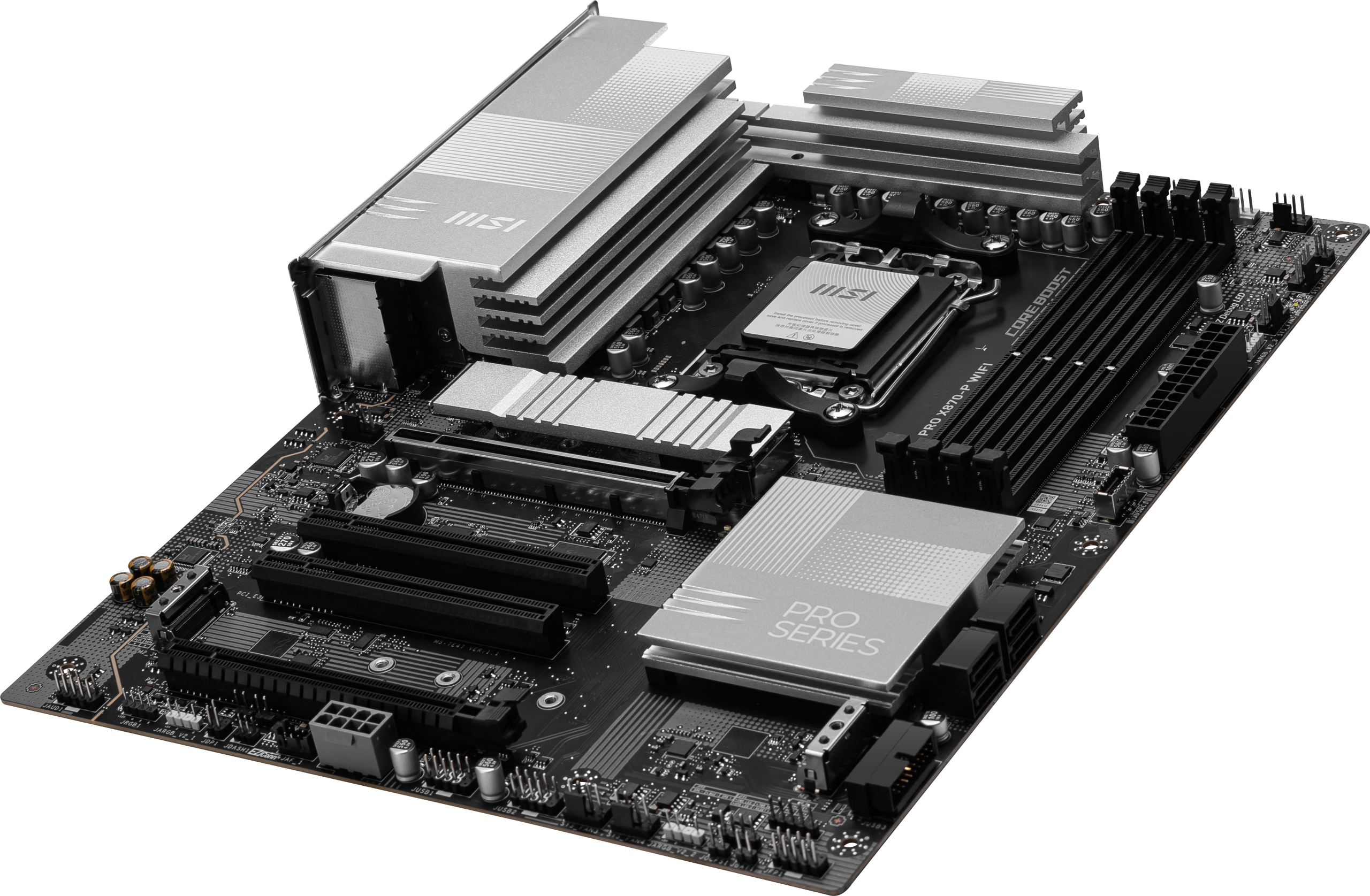

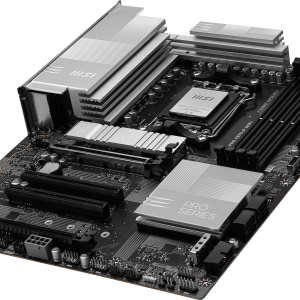

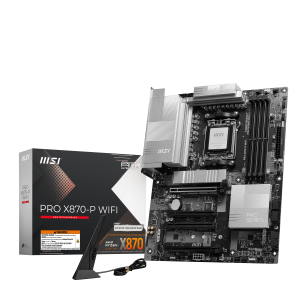

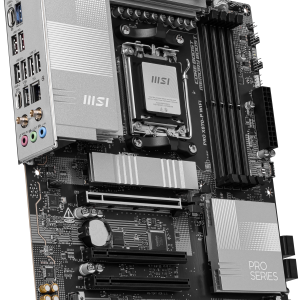

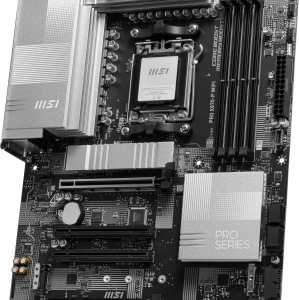

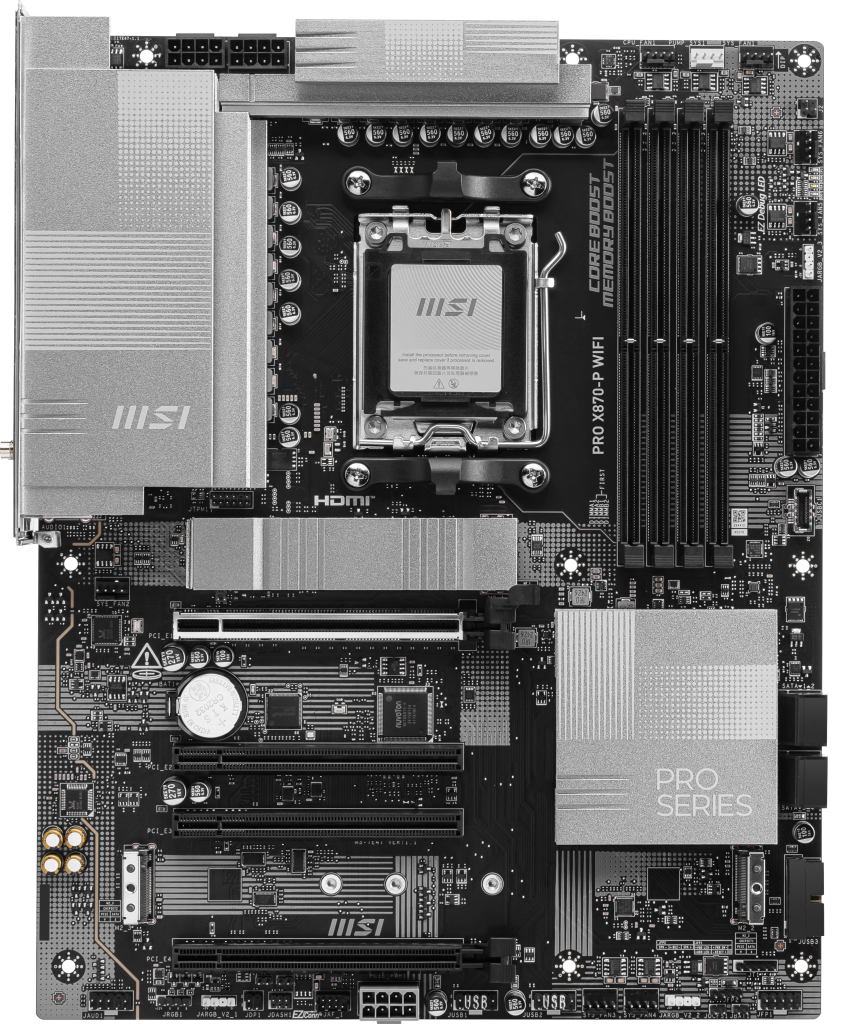

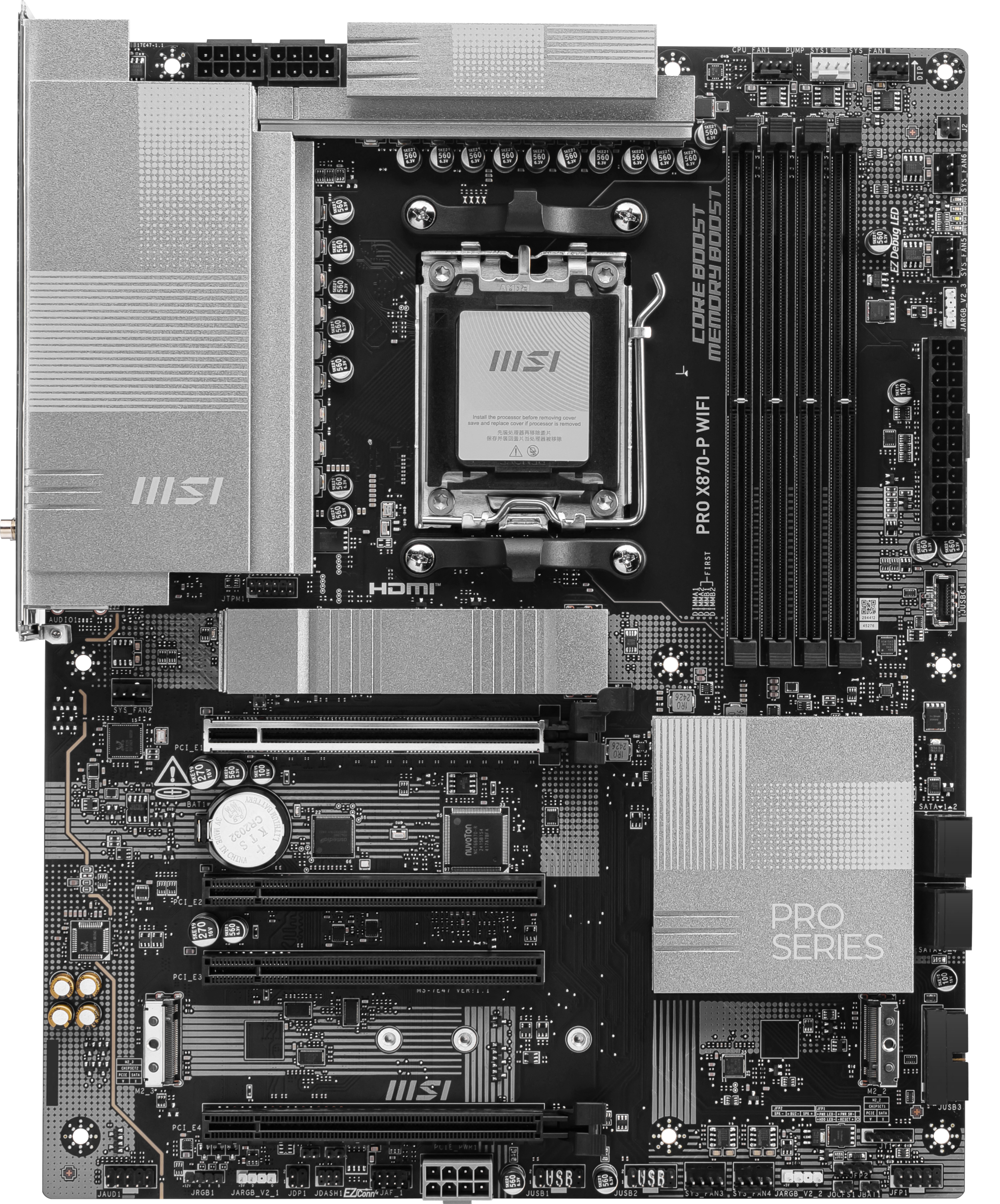

MSI Pro X870-P WiFi motherboard, socket AM5, AMD X870, ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe 3.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8200 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 1x USB 4, 1x USB-C 3.2, 2x USB 3.1, 2x USB 3.0, 4x USB 2.0 on the I/O panel
– OC features: 17-phase VRMs, CMOS reset, BIOS flashback
– A total of 8x 4-pin PWM fans possible

MSI PRO X870-P WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The MSI The PRO X870-P WIFI is equipped with the mid-tier X870 chipset for AMDs Ryzen 9000 series processors and offers numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the MSI PRO X870-P WIFI supports PCIe 5.0, providing twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Equipped for Gaming
The MSI PRO X870-P WIFI is designed for high-end gaming, so you can enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback and Clear CMOS allow you to use the PC again if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
– Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8200 MHz with overclocking)
– Dual-Channel
 -Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x14, chipset)
– 2x PCIe 3.0 x16 (electrical x1, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280 / 22110, chipset)
— 1x M.2 (PCIe 4.0 x2; 2260 / 2280, chipset)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– Fan connections:
– 1x CPU fan header (4-pin)
– 6x fan header (4-pin)
– 1x fan/pump header (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

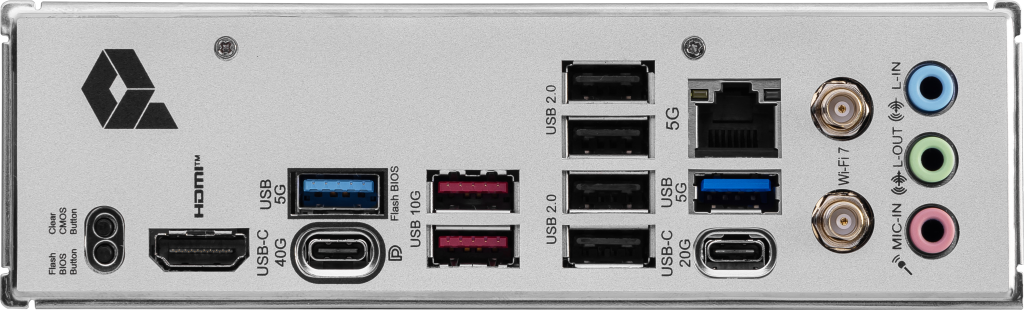

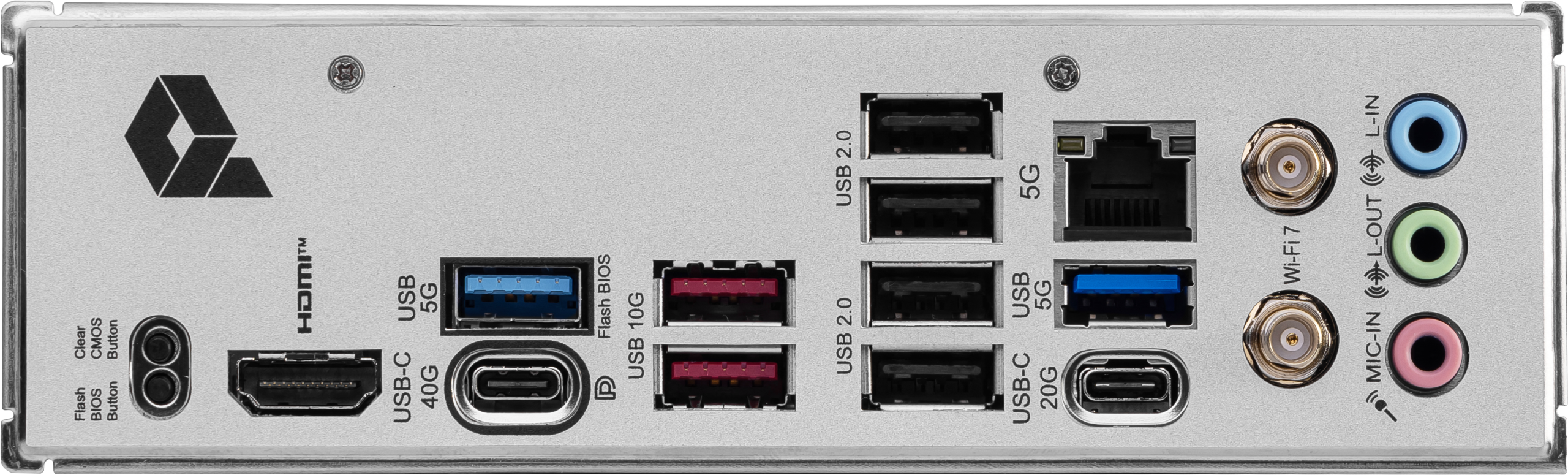

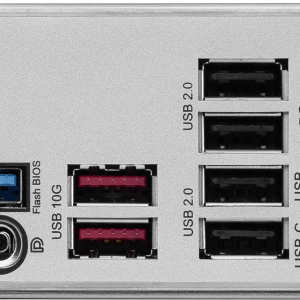

– External connections:
– 1x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 5 Gigabit LAN (Realtek RTL8126CG)
– 1x WiFi/Bluetooth module
– 3x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC897)
– 2x antenna connection RP-SMA 1x Clear CMOS button
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V

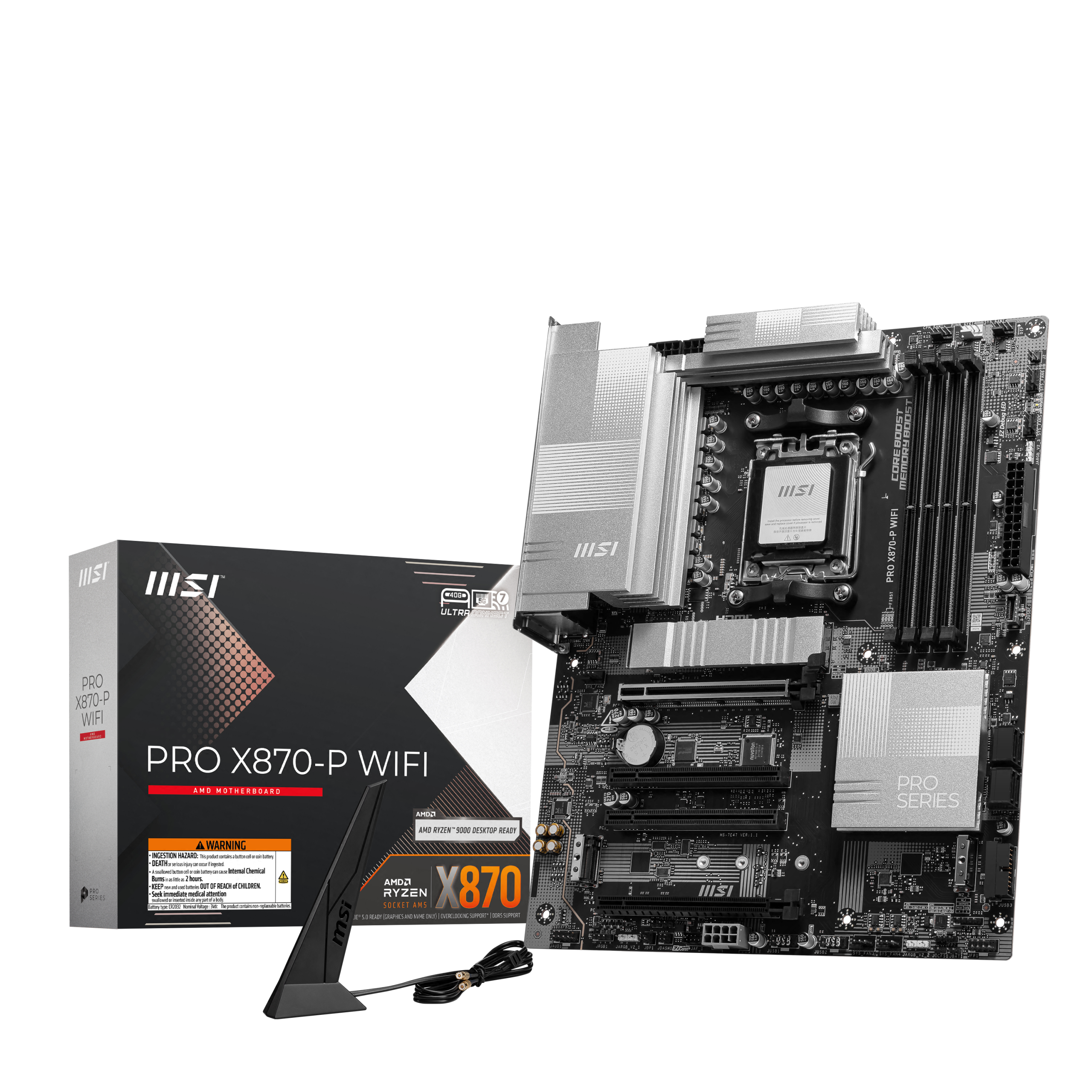

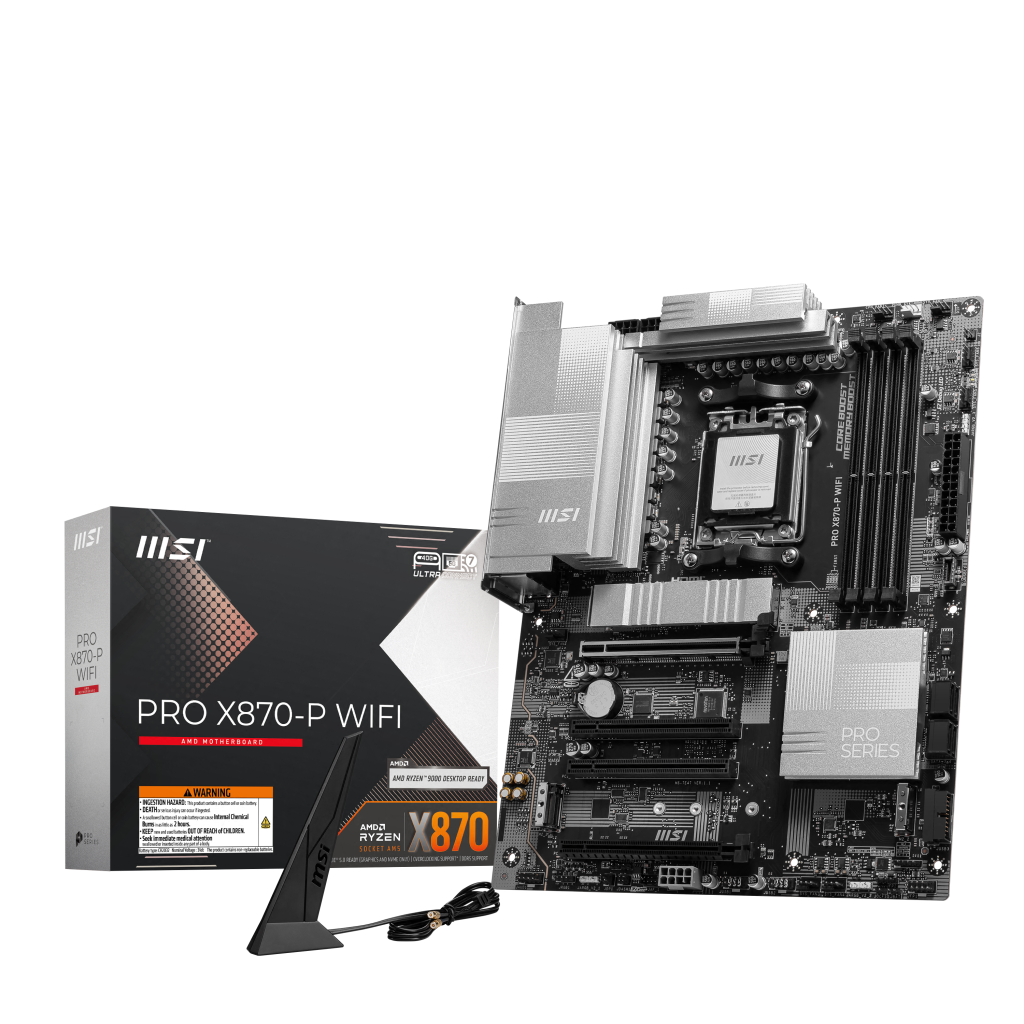

– Accessories:
– EZ M.2 Clip II remover
– 3x EZ M.2 Clip II
– EZ Wi-Fi antenna
– 2x SATA cables
– 1 to 2 EZ Connect cables (V1)
– Quick installation guide
