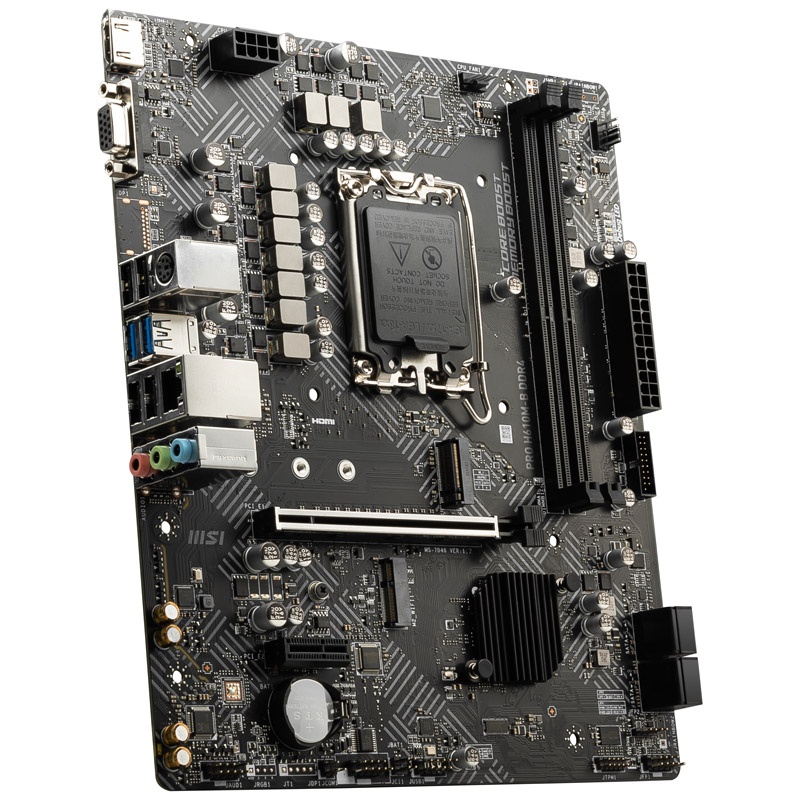

MSI PRO H410M-B, Intel H510 Mainboard - Socket 1200

– DDR4 memory up to 2.933MHz
– 1x M.2 slot with PCIe 3.0 and 4x SATA 6G
– USB on the I/O panel: 4x USB 2.0 and 2x USB 3.0 Type A
– A total of 2 connections for fans and pumps

The Micro-ATX motherboard MSI PRO H410M-B with Intel H510 chipset in detail
The MSI PRO H410M-B is a Micro-ATX motherboard with the Intel H510 chipset and socket LGA 1200. The motherboard is suitable for 10th generation Intel Core CPUs desktop processors, Comet Lake. It supports DDR4 memory up to 2,933MHz.

Specifications:
shape factor:
– Micro ATX (236 x 202mm)
chipset:
– Intel H510
sockets:
– 1200 (for Intel CPUs of the 10th core generation)
R.A.M:
– 2x DDR4 (2.933MHz)
– dual channel
– Max 64GB
Slots (physical):
– 1x PCIe 3.0 x16
– 1x PCIe 3.0 x1
Internal connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 3.0 x4, 2242-2280, CPU)
– – 2x USB 3.0 (one header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (one header, max. 480 Mbit/s)
– – 1x Front Panel Audio Connector
– 2x System Panel connectors
– 1x serial port header
– 1x clear cmos jumper
– 1x TPM module connector
– 1x chassis intrusion connector
fan header:
– 1x CPU fan (4-pin)
– 1x case fan (4-pin)
RGB headers:
– none
External connectors:
– 1x PS/2 for keyboard or mouse
– 2x USB 3.0 (USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (max. 480 Mbit/s)
– 1 x HDMI 1.4
– 1x VGA
– 1x RJ45 (Realtek RTL8111, max. 1 Gbit/s)
– 3x 3.5 mm jack (Realtek ALC897/ ALC892)
Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
Manufacturers warranty: 2 years
