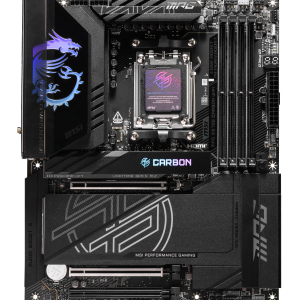

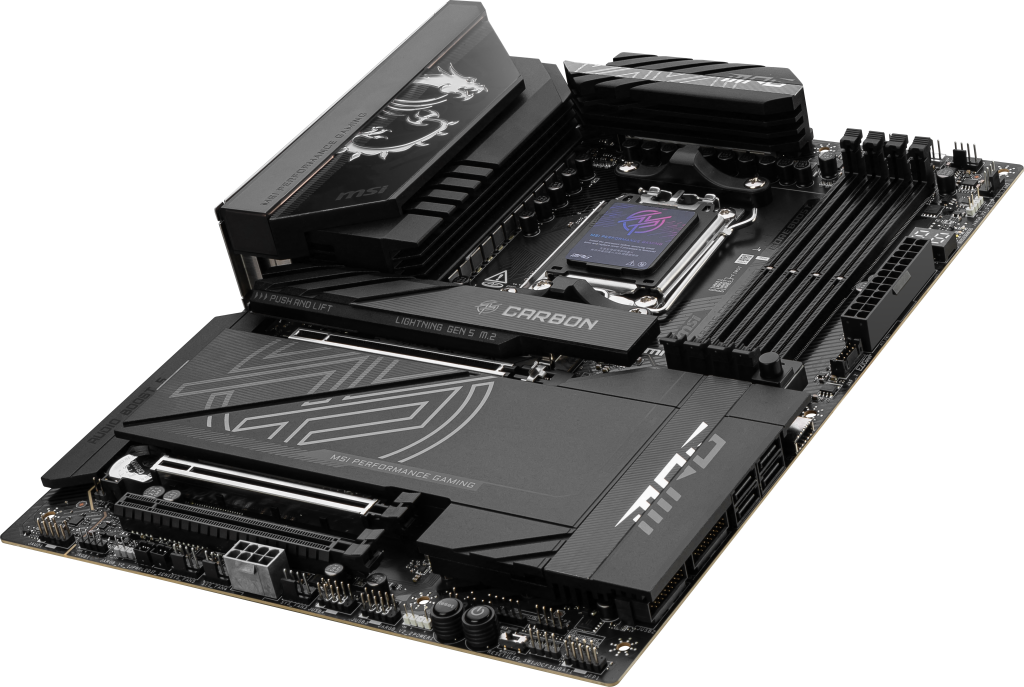

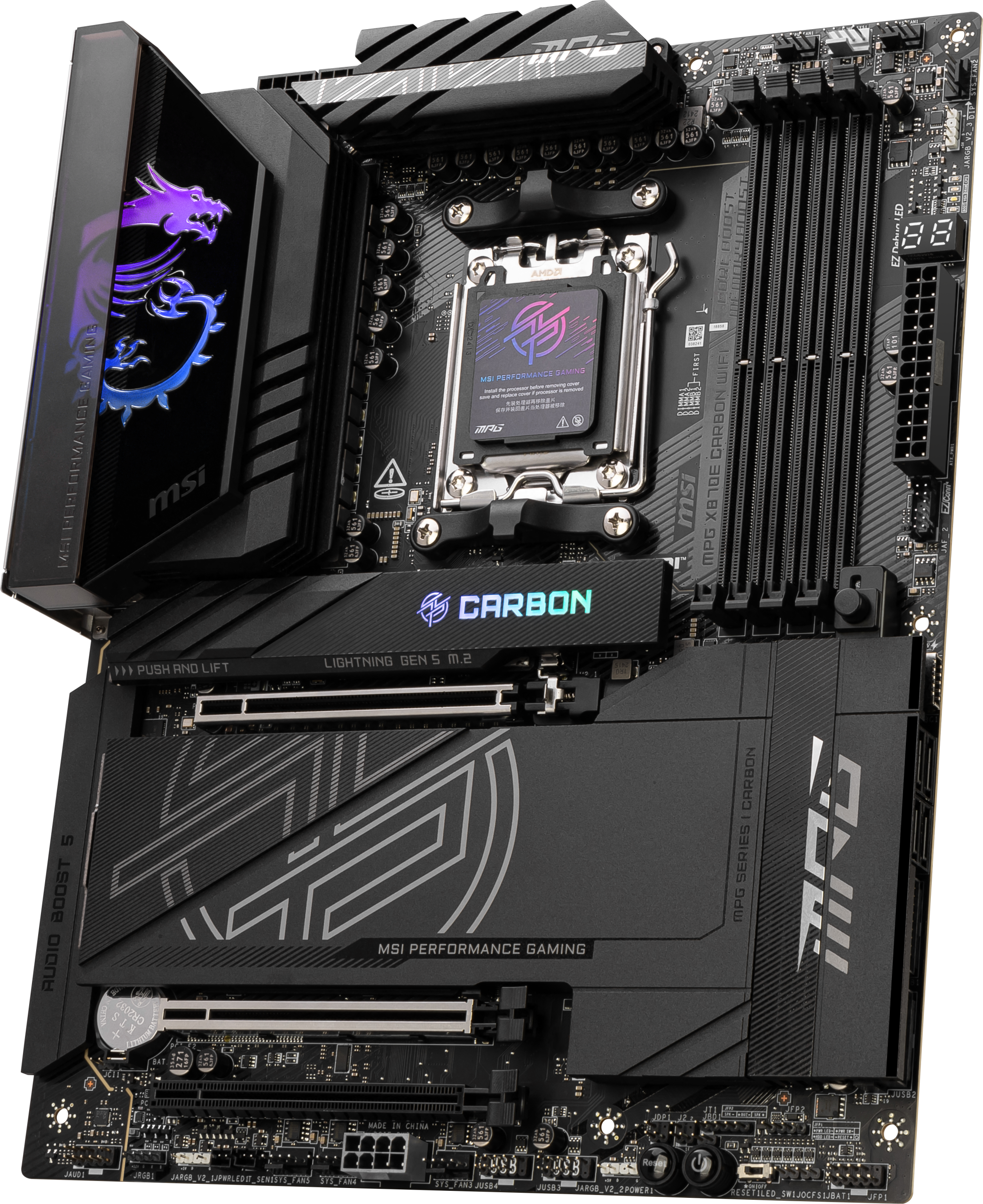

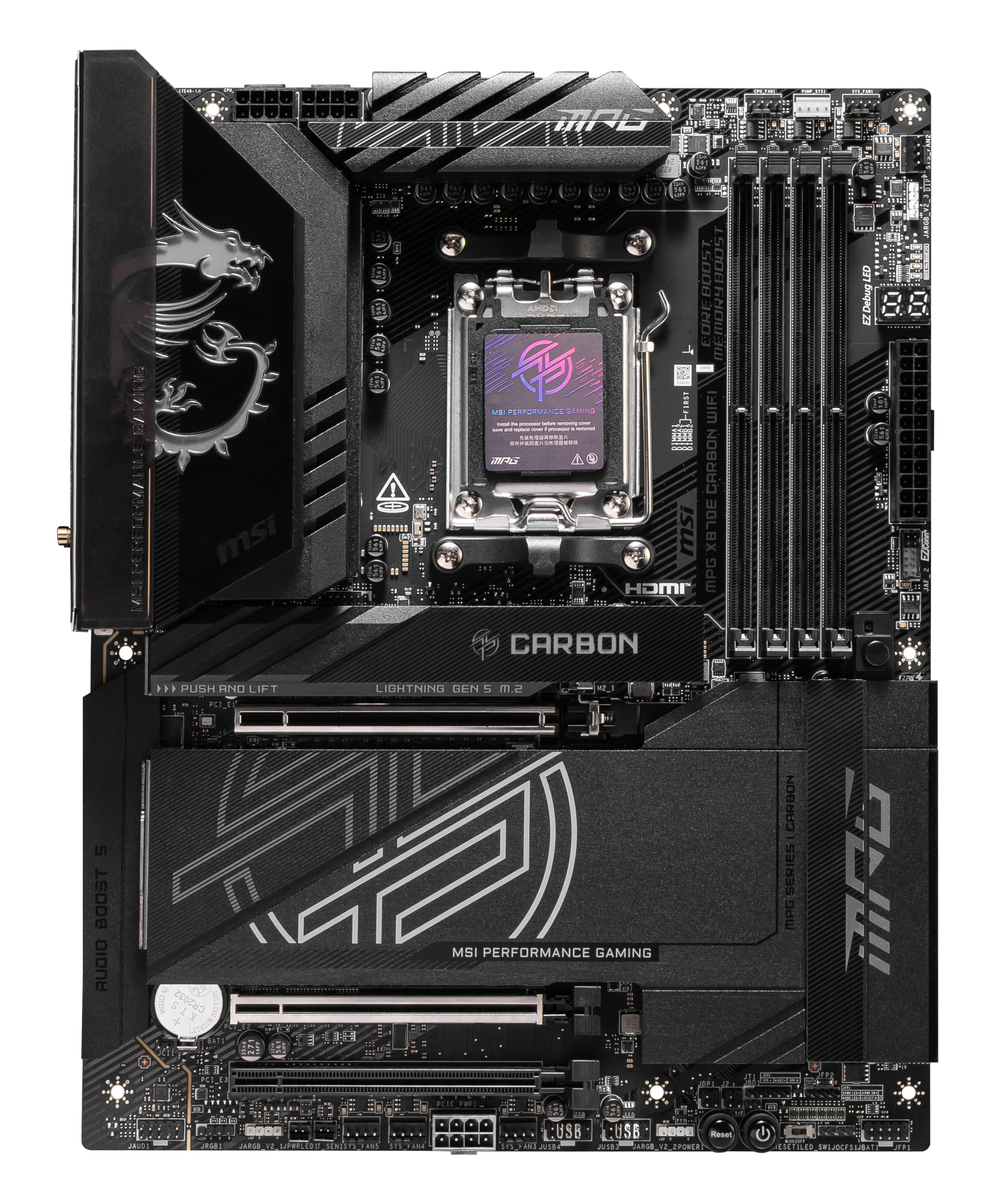

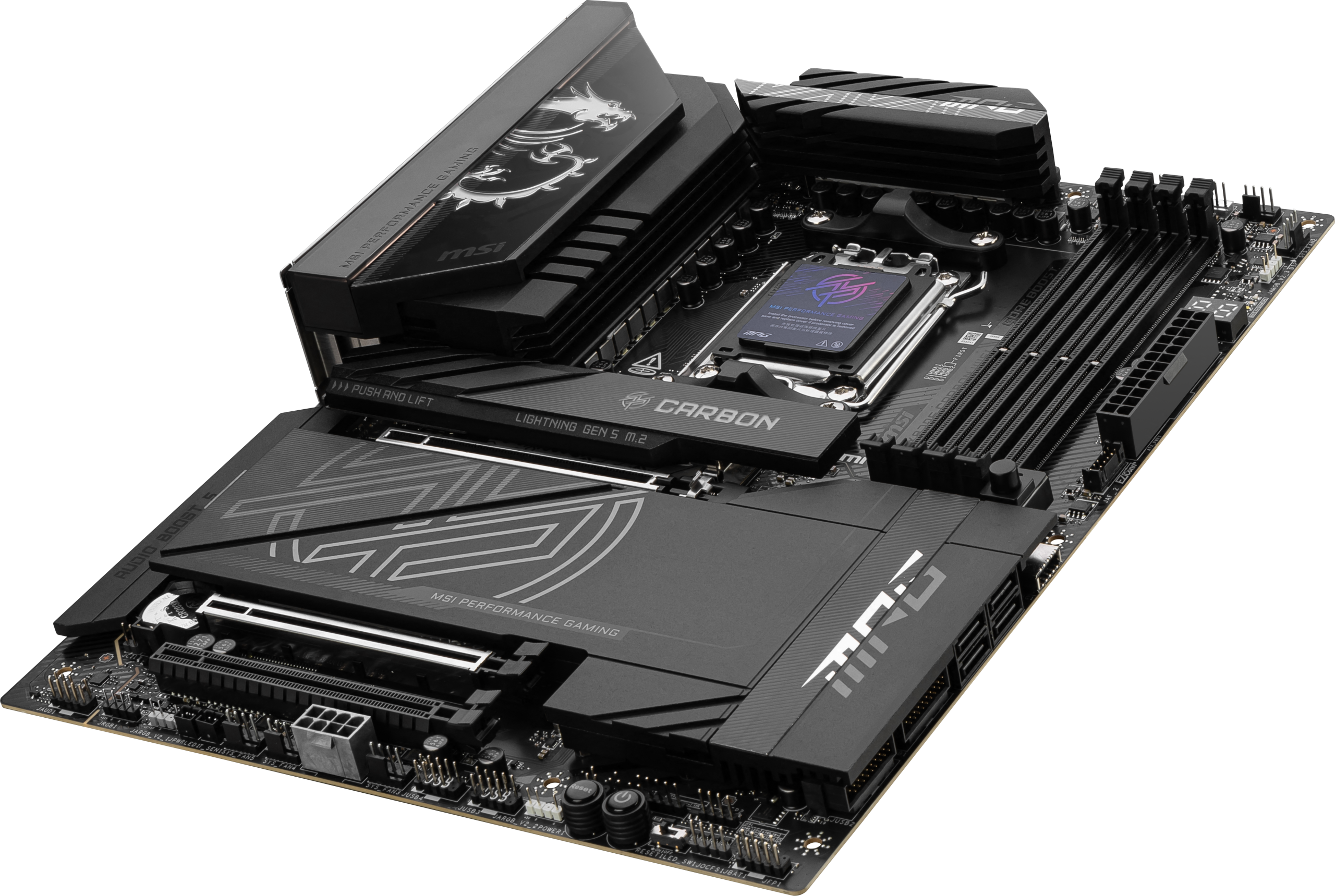

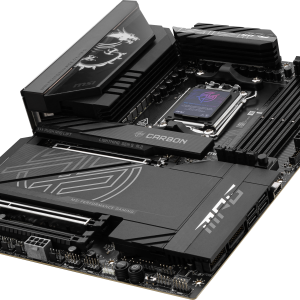

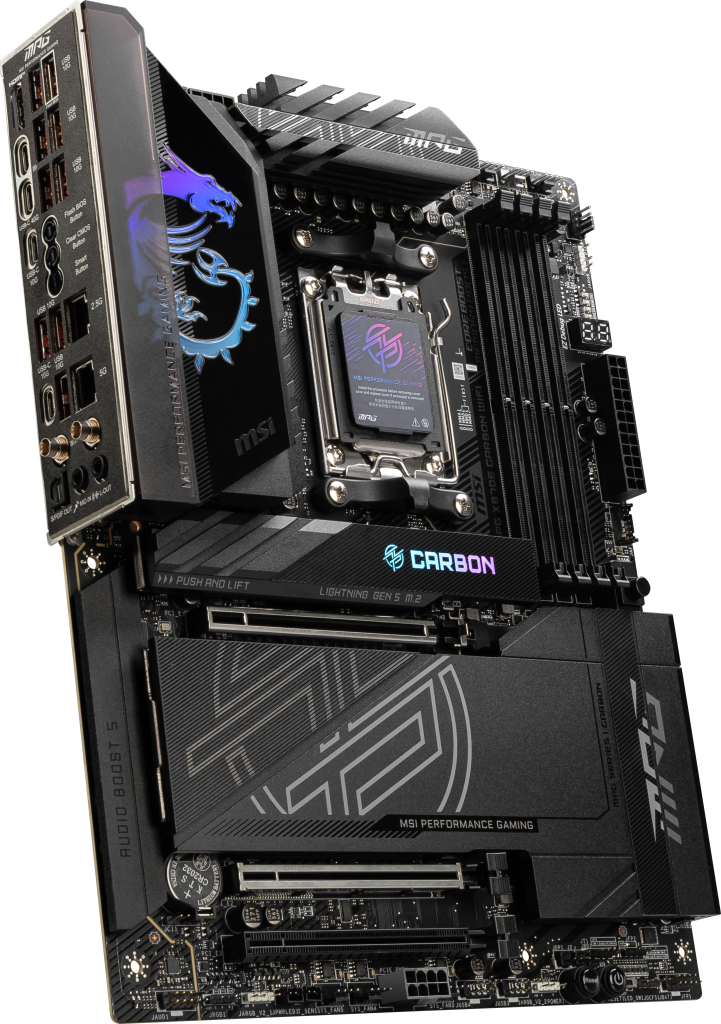

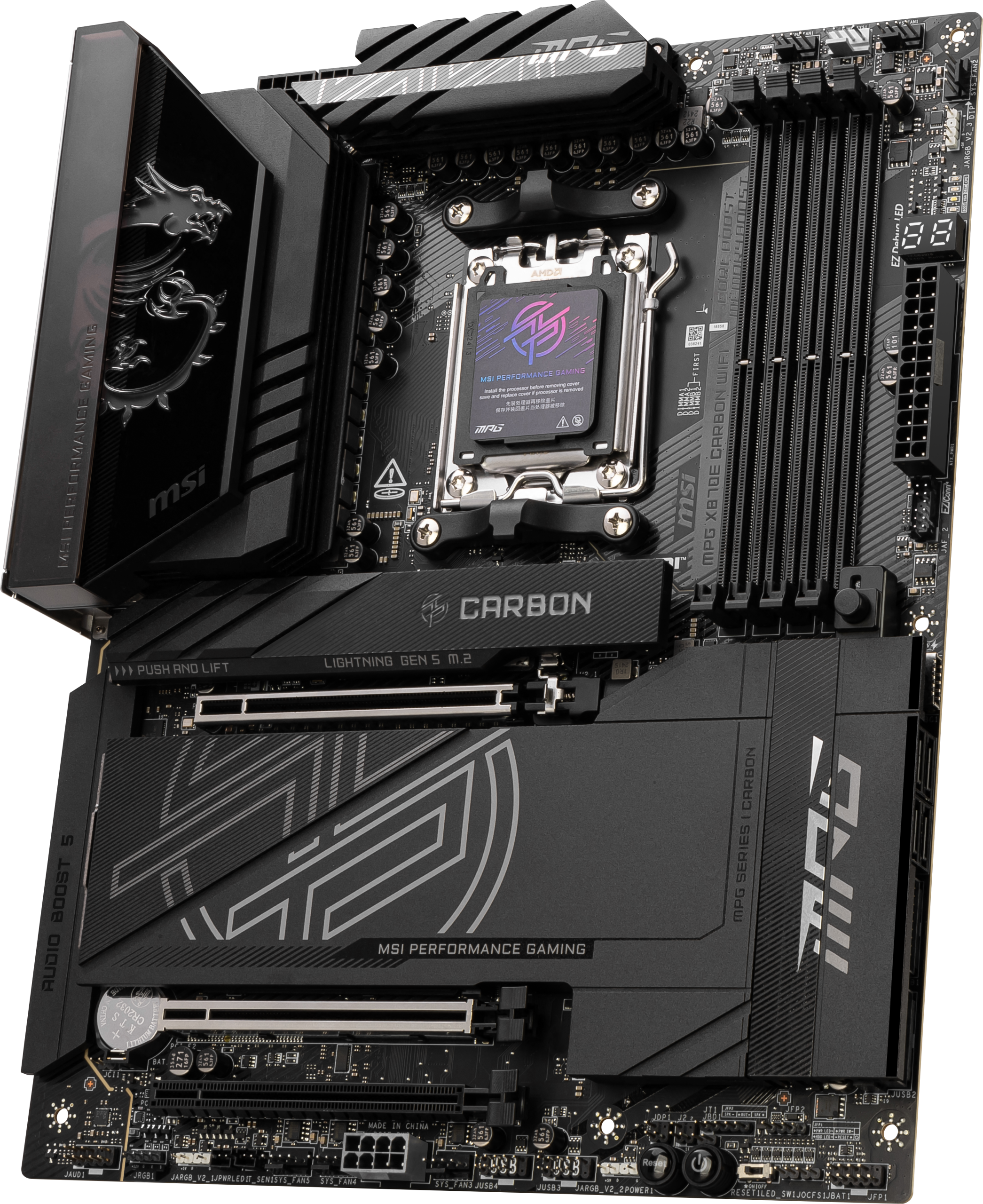

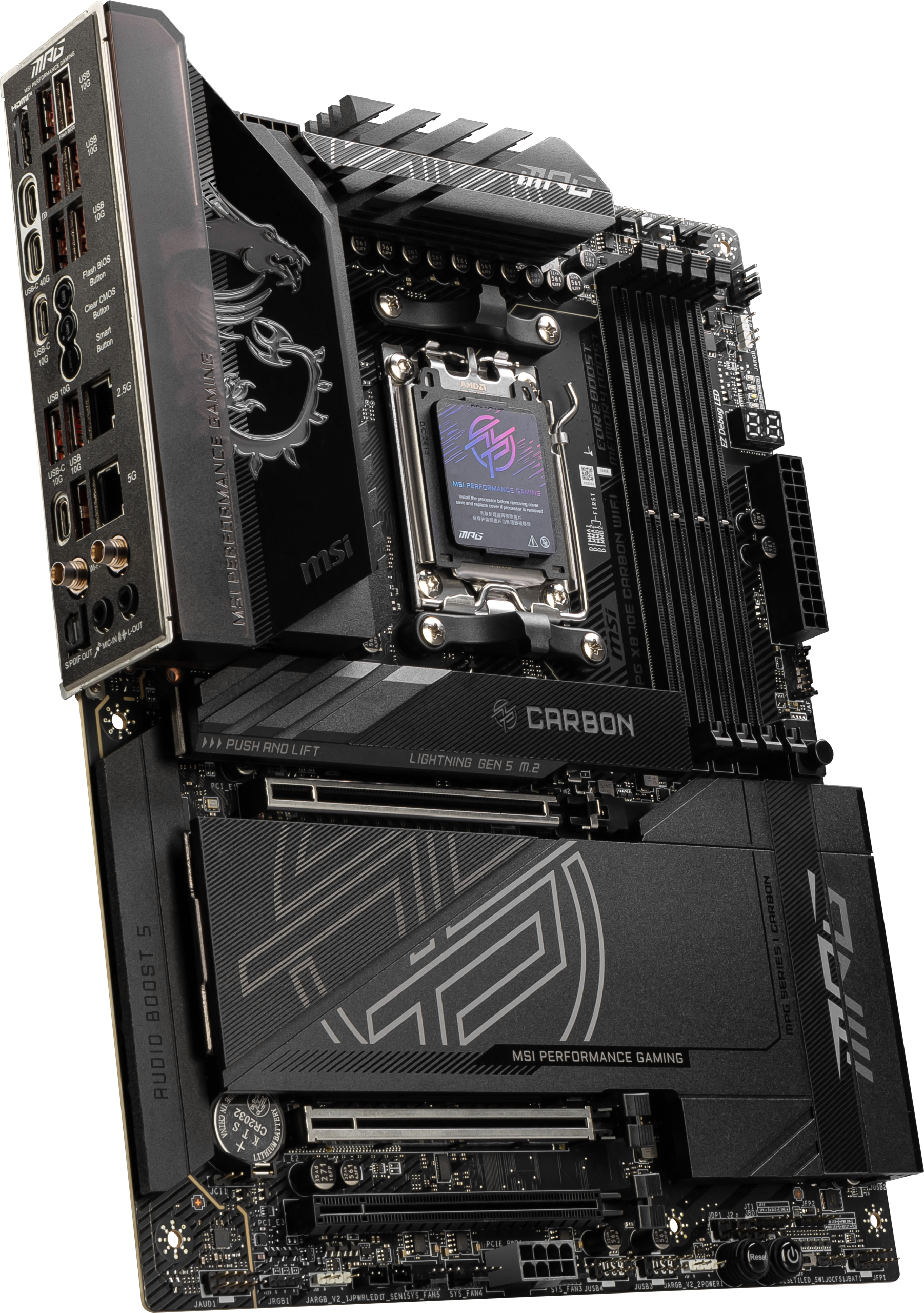

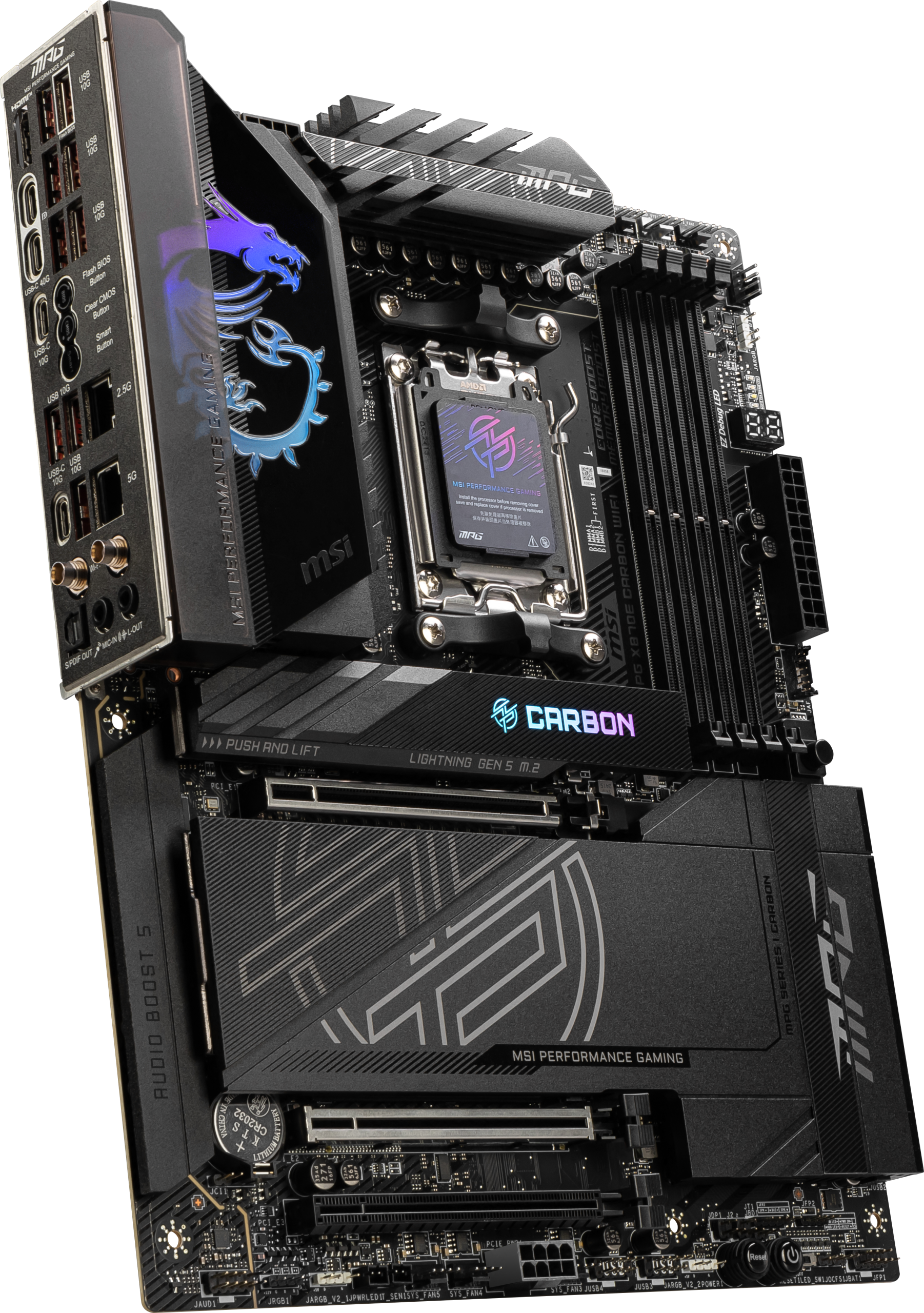

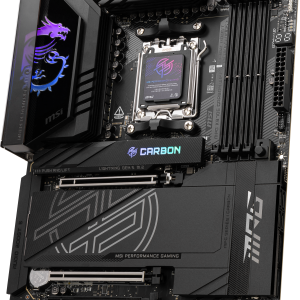

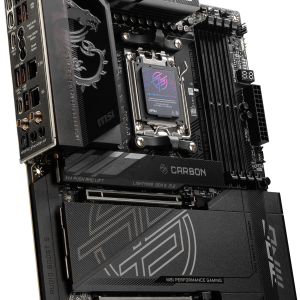

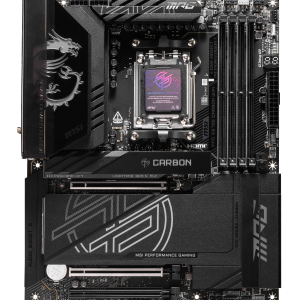

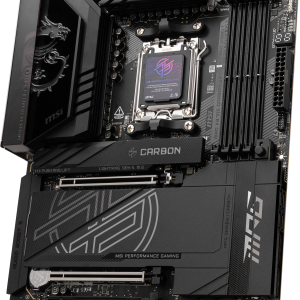

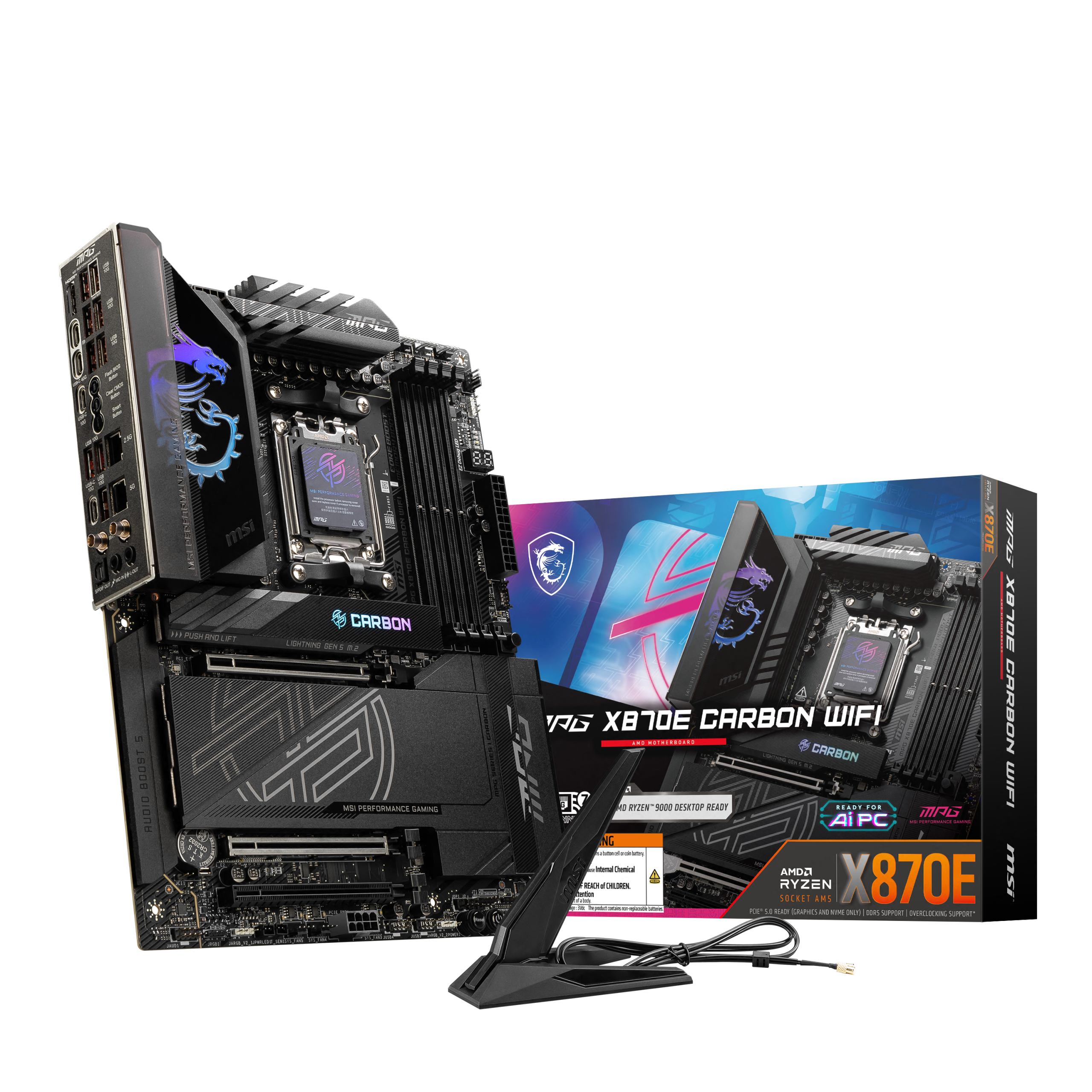

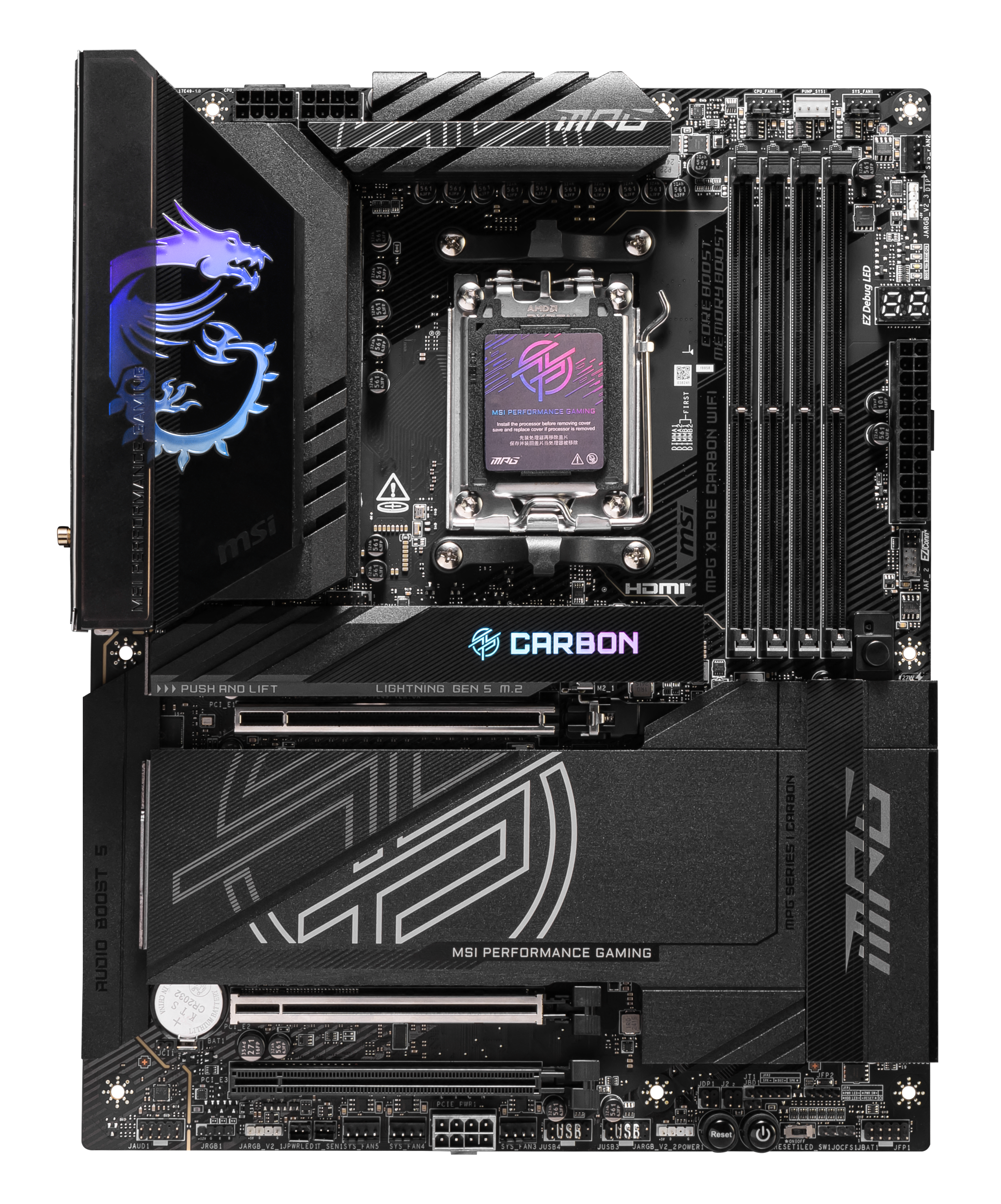

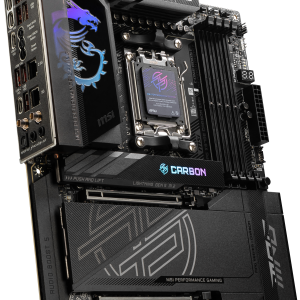

MSI MPG X870E Carbon WiFi motherboard, socket AM5, AMD X870E, ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 5.0 x16 (x4), and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,400 MHz (OC)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 11x USB 3.1 on the I/O panel
– OC features: 20-phase VRMs, CMOS reset
– A total of 7x 4-pin PWM fans possible

MSI MPG 870E CARBON WIFI: ATX motherboard with AMD AM5 socket and X870E chipset
The MSI MPG 870E CARBON WIFI is equipped with the high-end X870E chipset for Equipped with AMDs Ryzen 9000 series processors, it offers numerous features for overclockers and gaming enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the MSI MPG 870E CARBON WIFI supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly equipped for gaming
The motherboard is designed for overclocking so you can enjoy even the most demanding games. The voltage converters with 18 native and two virtual phases provide 110 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. Clear CMOS makes it easy to reset these settings if something goes wrong. And, as usual, DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
– Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870E (Dual Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (5600 MHz, validated up to 8400 MHz with overclocking)
 -Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 5.0 x16 (electrical x4, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 44
– 4x SATA 6G (max.)
– 2x M.2 (PCIe 5.0 x4; 2280 / 2260, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280 / 22110, chipset)
– 1x M.2 (PCIe 4.0 x4; 2280 / 2260, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbps)
– 4x USB 3.1 (2 headers, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Front Panel Header
– 1x Front Audio
– Fan Connectors:
– 1x CPU Fan Header (4-pin)
– 5x Fan Header (4-pin)
– 1x Pump Header (4-pin)
– RGB Header:
– 1x 3-pin ARGB Gen2 Header (5 V)

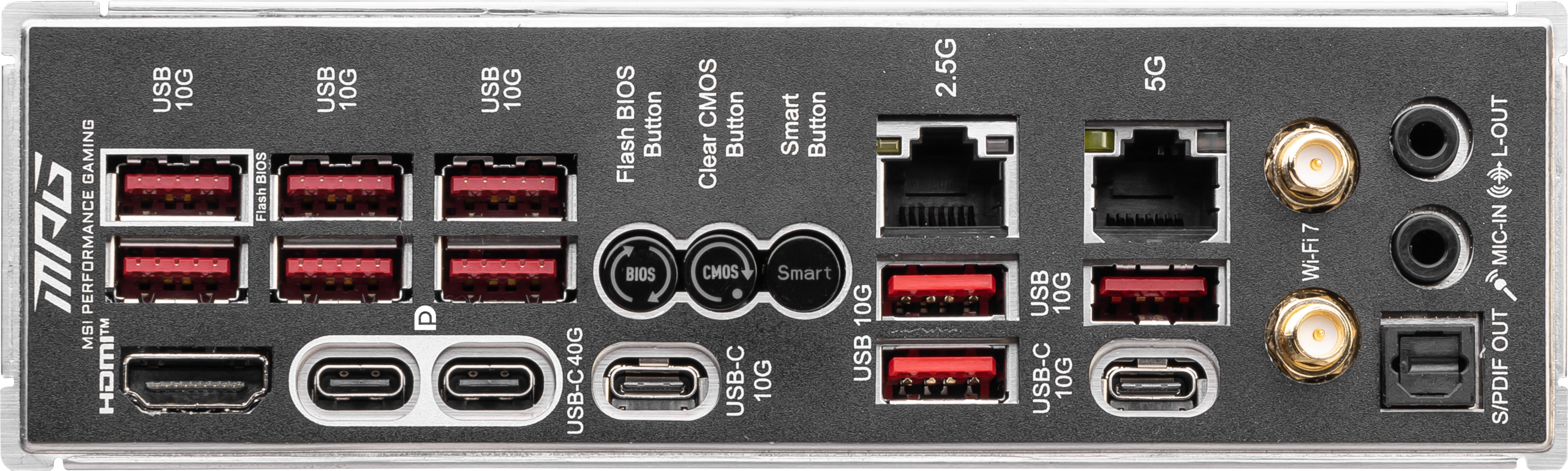

– External Connectors:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 2x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s with DisplayPort)
– 9x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
 -1x HDMI 2.1
– 1x 5 Gigabit LAN
– 1x 2.5 Gigabit LAN
– 2x antennas (Wi-Fi 7, Bluetooth 5.3)
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC 4080)

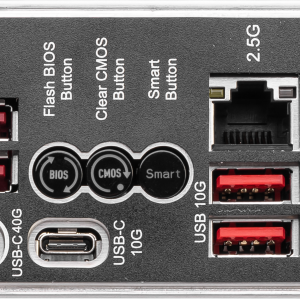

– 1x Clear CMOS button
– 1x reset
– 1x Flash BIOS button
– 1x Smart Button
– Power supply:
– 1x 24-pin ATX
– 3x 8-pin 12V
