With the B3 stepping of the Bay Trail - D processors based on the Silver Mont architecture , already known from the series of Atom CPUs , Intel has launched a new edition on the market, which can offer a number of technical improvements. The new edition provides a higher base clock and gets on top of a turbo mode, as well as an increase in GPU clock compared to previous models. Thanks to the specially optimized for low -power chips 22nm manufacturing process , the energy efficiency could be increased considerably , so that passively cooled motherboards have become feasible in miniature .
On the passively cooled MSI MSI J1900I comes with the Celeron J1900 the second fastest model of the Bay Trail suite of desktop PCs for use . The Intel Celeron J1900 is a fuel-efficient quad-core SoC ( System-on -a-Chip ) with 2 MB L2 cache, which combines all the processor cores , a graphics unit and the motherboard chipset and therefore allows particularly low motherboard prices . Despite the exceptionally low TDP of only 10 watts , the SoC offers sufficient power reserves for most office and multimedia applications. The basic clock of the Celeron J1900 is 2,000 MHz , and can be increased by means of Turbo ( burst) to up to 2420 MHz as required.

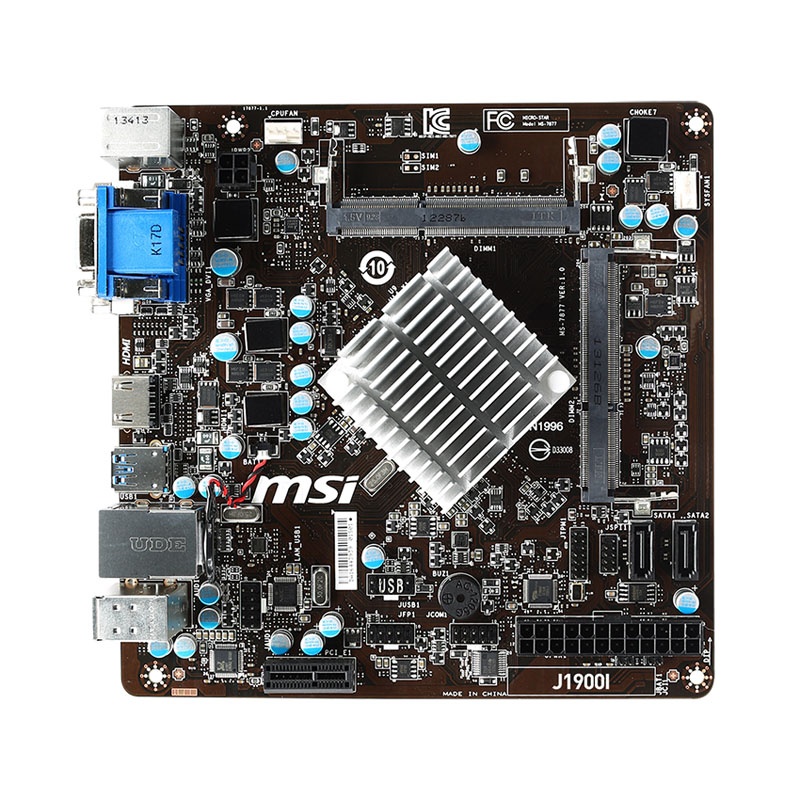

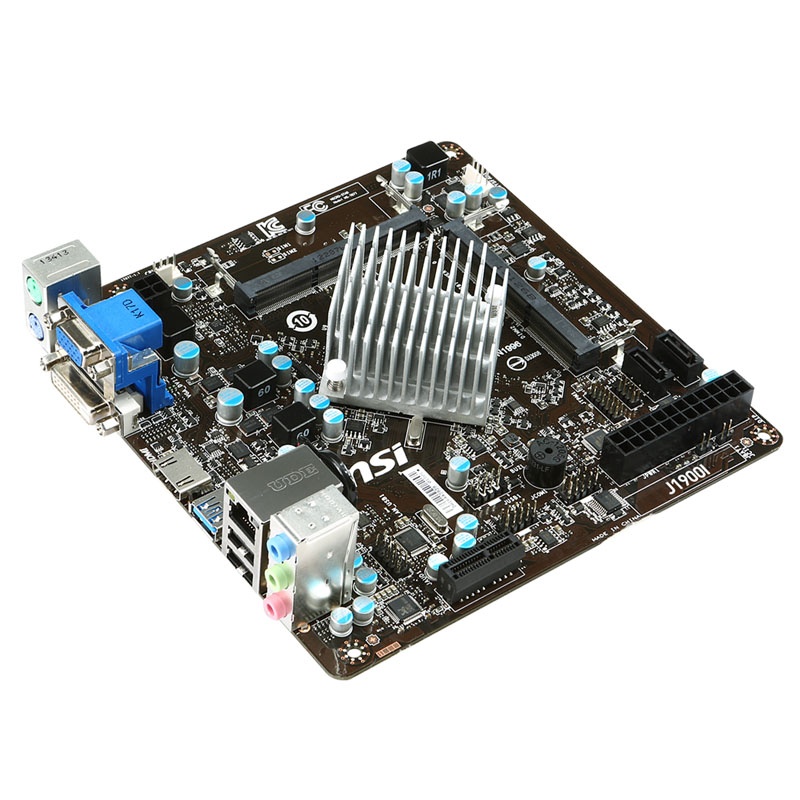

MSI J1900I, Intel SoC Motherboard - Intel Celeron J1900
With the B3 stepping of the Bay Trail - D processors based on the Silver Mont architecture , already known from the series of Atom CPUs , Intel has launched a new edition on the market, which can offer a number of technical improvements. The new edition provides a higher base clock and gets on top of a turbo mode, as well as an increase in GPU clock compared to previous models. Thanks to the spec...
- SKU: MBMC-093
- MPN: 7877-002R
- EAN: 4719072336165
- Warranty: 12 Months
With the B3 stepping of the Bay Trail - D processors based on the Silver Mont architecture , already known from the series of Atom CPUs , Intel has launched a new edition on the market, which can offer a number of technical improvements. The new edition provides a higher base clock and gets on top of a turbo mode, as well as an increase in GPU clock compared to previous models. Thanks to the spec...
Featured products
No products found
Details
Must also tastefully decorated and the MSI MSI J1900I motherboard in the mini -ITX format not be waived. Two memory slots ( dual channel ) in a version for Laptop memory (SO – DIMM format ) support DDR3 modules or energy-saving DDR3L RAM with a native clock speed of 1,333 MHz and can with a total capacity of up to 8GB for use come . In addition, there is a PCIe x1 slot for expansion cards , such as a wireless card on board.
In addition, there are numerous internal interfaces: a header (within 2 ports) for USB 2.0, two 4 -pin fan connectors and a serial port . Two SATA 3G ports for volumes to be provided by the Intel chipset. On the mainboards underside can be controlled via the I / O Shield connect devices and components through USB 3.0 and 2.0, Gigabit LAN, two PS/2-Anschlüssen or three audio jacks with the MSI MSI J1900I . In addition, stand for the picture display with integrated Intel HD Graphics graphics unit (supports DirectX 11) three commonly used monitor outputs available: VGA, HDMI and DVI-D.
Technical details :
Format: Mini -ITX
Color: Brown, Black
Chipset: Intel Bay Trail -D
Processor: Intel Celeron J1900 Quad – Core
SoC Graphics: Intel HD Graphics ( 688-854 MHz clock , DirectX 11)
RAM: 2x DDR3 (L ) SO- DIMM (up to 8 GB, 1333 MHz)
Dual – Channel
Slots ( physically ) :
1x PCI Express x1
Internal connections:
2x SATA 3G
2x USB 2.0 ( 1x header)
2x fan ( 2x 4- Pin)
1x TPM
1x Serial port ( COM)
Power / reset / LED / front audio
External connections :
2x PS / 2 keyboard / mouse
1x USB 3.0
2x USB 2.0
1x Gigabit LAN
3x audio (7.1, ALC 887 )
1x DVI -D
1x HDMI
1x VGA (D -Sub)
Power supply:
1x 24-pin ATX
1x 4- pin ATX 12V
Compatibility: Windows 7, 8, 8.1 (32 bit and 64 bit )
Related Products
£195.44£162.87 Inc VatEx Vat
Available
- 1x PCIe 5.0 x16 (x16), 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1- DDR5 memory up to 4800 MHz, with RAM overclocking up to 7800+ MHz- - 3x M.2 slots, including 3x PCIe 4.0- USB on the I/O...
- SKU: MBAS-709
- MPN: 90MB1EP0-M1EAY0
- EAN: 4711387114063
£244.98£204.15 Inc VatEx Vat
Available
- Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)- RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8800 MT/s- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x...
- SKU: MBAS-817
- MPN: 90MB1JV0-M0EAY0
- EAN: 4711387783092
£223.22£186.02 Inc VatEx Vat
Available

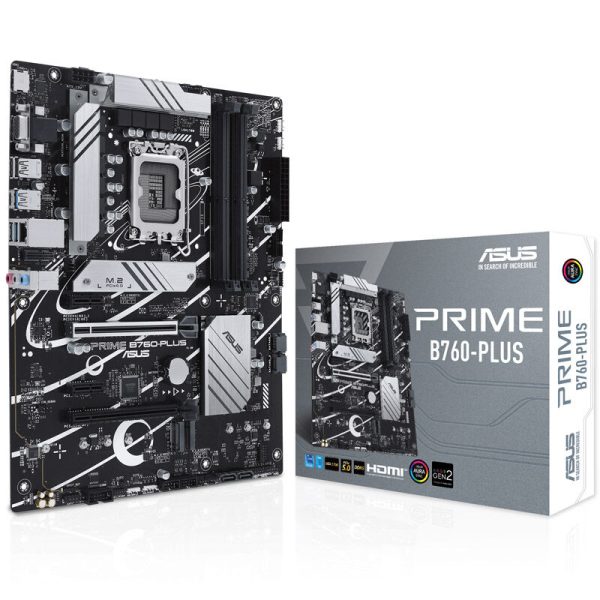

- 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1- DDR5 memory up to 3200 MHz, with RAM overclocking up to 5333 MHz- 3x M.2 slots, including 2x PCIe 4.0- USB on the I/O panel: 1x...
