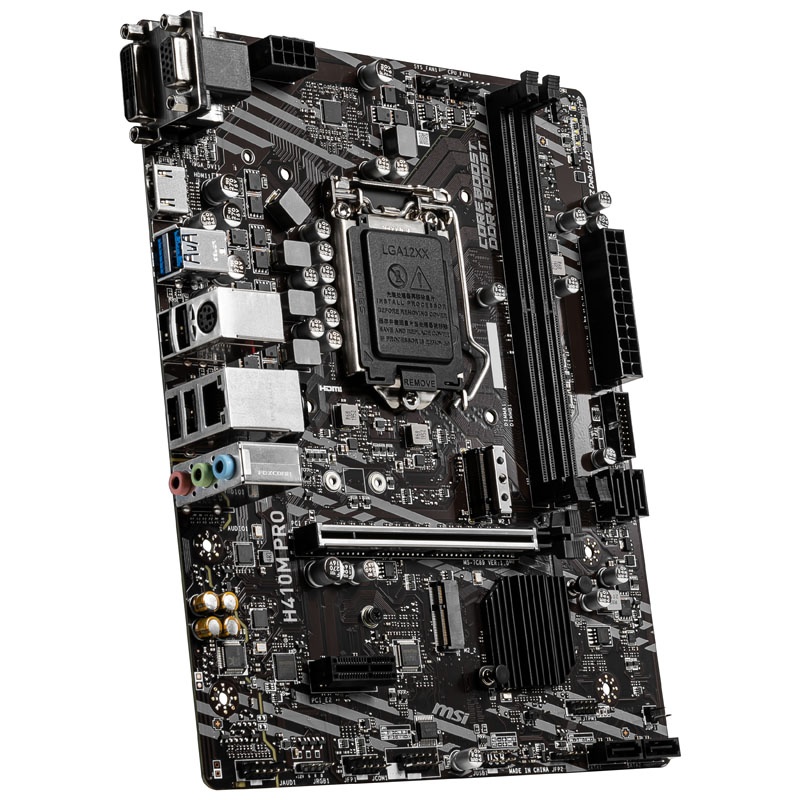

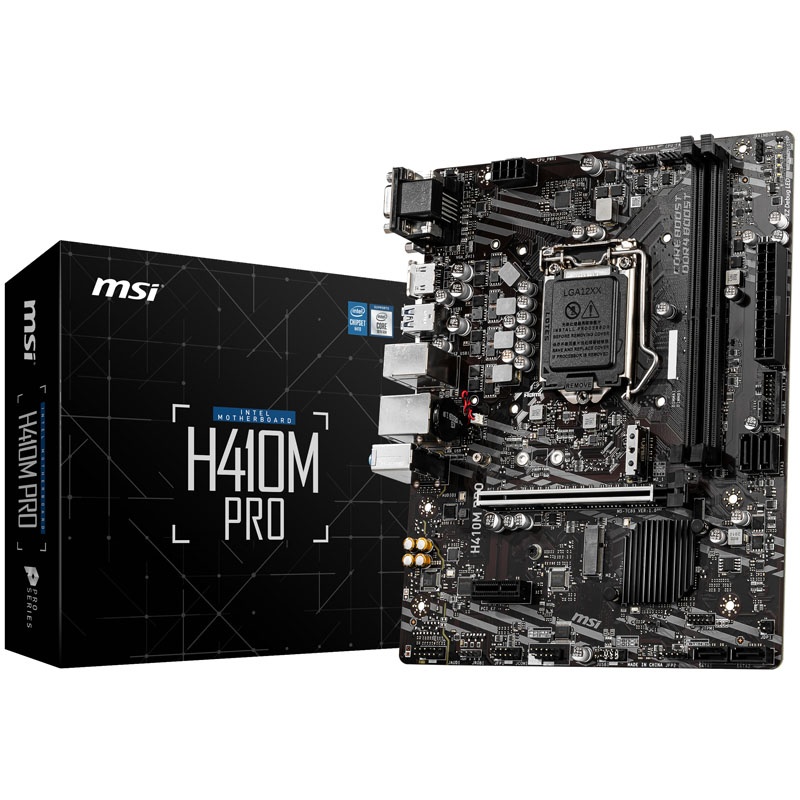

MSI H410M Pro, Intel H410 motherboard - socket 1200

The chipset thus supports, for example, M.2 slots connected via PCIe for the particularly fast NVMe SSDs. Socket 1200 mainboards with H410 chipsets form a good basis, especially for budget gaming PCs and compact computers for the home office.

The features of the MSI H410M Pro at a glance:

1x PCIe (3.0) x16 (x16), 1x PCIe (3.0) x1
1x M.2 (1x PCIe 3.0 x4 / SATA) / 4x SATA 6G
A total of 4x USB 3.0 and 6x USB 2.0 (internal & external)
Supports max. 64 GB DDR4 RAM up to 2,933 MHz

The MSI H410M Pro in detail
The MSI H410M Pro Micro-ATX mainboard has a PCIe-x16 slot that is connected to the chipset with a full 16 lanes. The board also has a PCIe 3.0 x1 slot for plug-in and expansion cards.

The M.2 slot connected via four PCIe 3.0 lanes supports the NVMe protocol and, in combination with corresponding M.2 SSDs, enables a data transfer rate of just under 4 GB / s. This is about eight times faster than an SSD connected via SATA 6G! Additional drives such as SSDs, HDDs and optical drives can be connected via four SATA 3.0 ports. A maximum of 64 GB of RAM with a clock rate of up to 2,933 MHz can be accommodated in two DDR4 DIMM slots.

The MSI H410M Pro provides two USB 3.0 ports on the I / O panel. Additional peripheral devices can be connected via four USB 2.0 sockets. A DVI-D and VGA connection for image display via the processors integrated graphics unit are also located on the I / O panel. The mainboard has three 3.5 mm jack outputs for outputting the on-board sound. The internal connections include two RGB headers, one TPM header, two fan connections, one USB 2.0 and one USB 3.0 header.

Technical details:

– Format: mATX (236 x 190 mm)
– Chipset: Intel H410
– Socket: 1200 (for Intel CPUs of the 10th core generation (Comet Lake))
– RAM: 2x DDR4 (max .: 2,933 MHz; max. 64 GB)
– Dual channel
– Slots (physical):
– 1x PCIe 3.0 x16 (x16)
– 1x PCIe 3.0 x1
– 1x M.2 Key E (for optional WLAN module)
– Internal connections:
– 4x SATA 6G
– 1x M.2 (PCIe 3.0 x4 / SATA, 2242/2260/2280)
– 2x USB 3.0 (USB 3.2 Gen1, one header)
– 2x USB 2.0 (one header)
– 1x TPM header
– 1x chassis intrusion header
– 1x Clear CMOS jumper
– 4x EZ-Debug-LED
– 1x front panel audio connector
– 1x front panel header
– Fan header:
– 1x CPU fan (4-pin)
– 1x chassis fan (4-pin)
– RGB header:
– 1x 3-pin RGB header (5VDG)
– 1x 4-pin RGB header (12VGRB)
– External connections:
– 1x PS / 2 mouse / keyboard
– 2x USB 3.0 (USB 3.2 Gen1, Type A)
– 4x USB 2.0
– – 1x RJ45 (Intel I219V 1 Gigabit LAN)
– 1x DVI-D
– 1x VGA
– 3x HD audio (Realtek ALC892 codec)
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX 12V
– Accessories included:
– 2x SATA cables
– 1x I / O shield
– Quick Installation Guide
– Manual
– Driver DVD
