Lian Li EDGE EG1000 80 PLUS Platinum power supply, PCIe 5.1, ATX 3.1 - 1000 Watt, black

– L-shaped design simplifies cable management for dual-chamber cases
– Integrated USB hub with four headers for additional USB devices
– Outstanding efficiency with platinum certification
– Steel case with mesh panel and 120 mm fan for quiet and cool operation
– Secure power supply thanks to PCIe 5.1 standard for graphics cards with 12VHPWR
– Extensive protection circuits: OVP, UVP, SCP, OPP, OTP and OCP
– Fully modular, with individually sleeved connection cables and cable combs

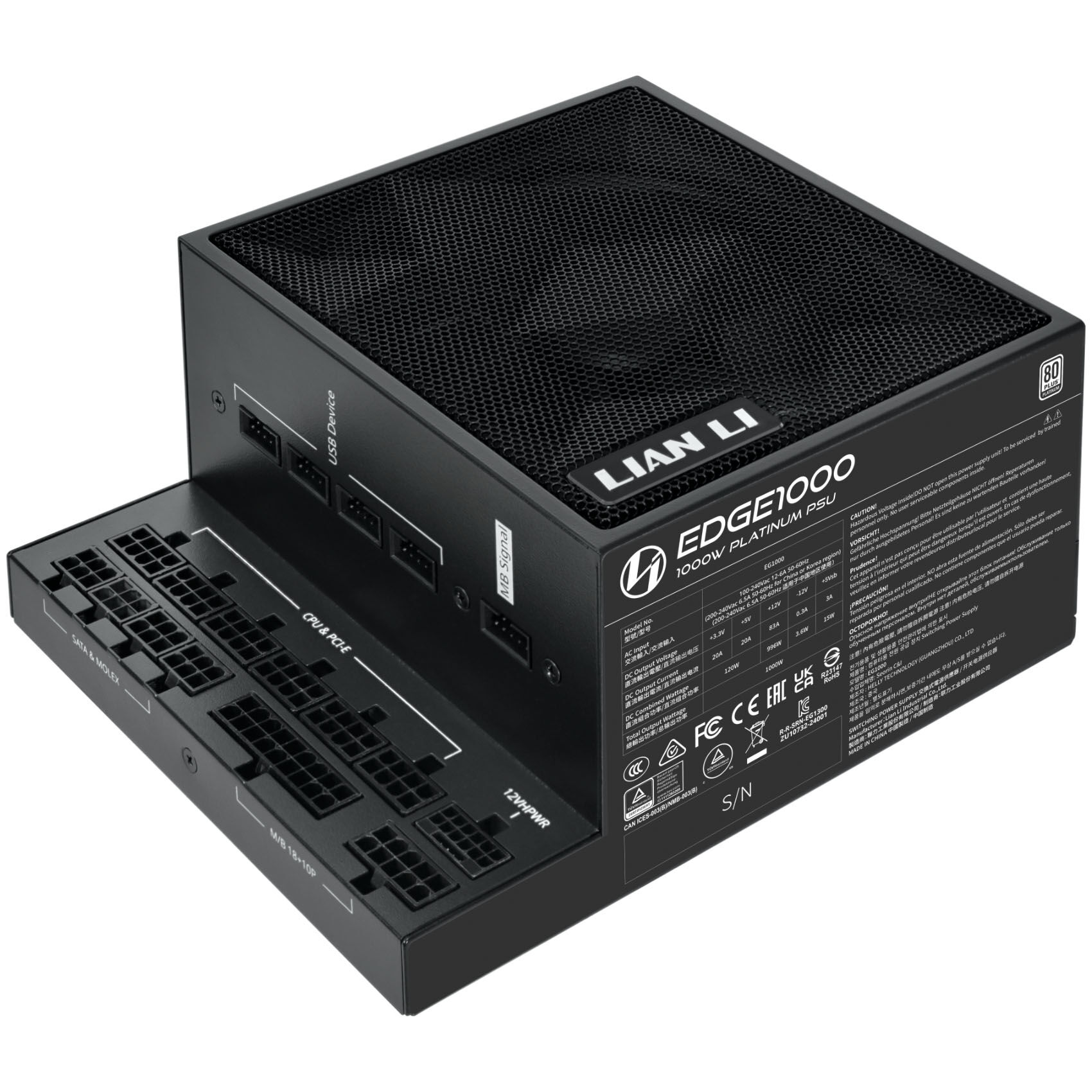

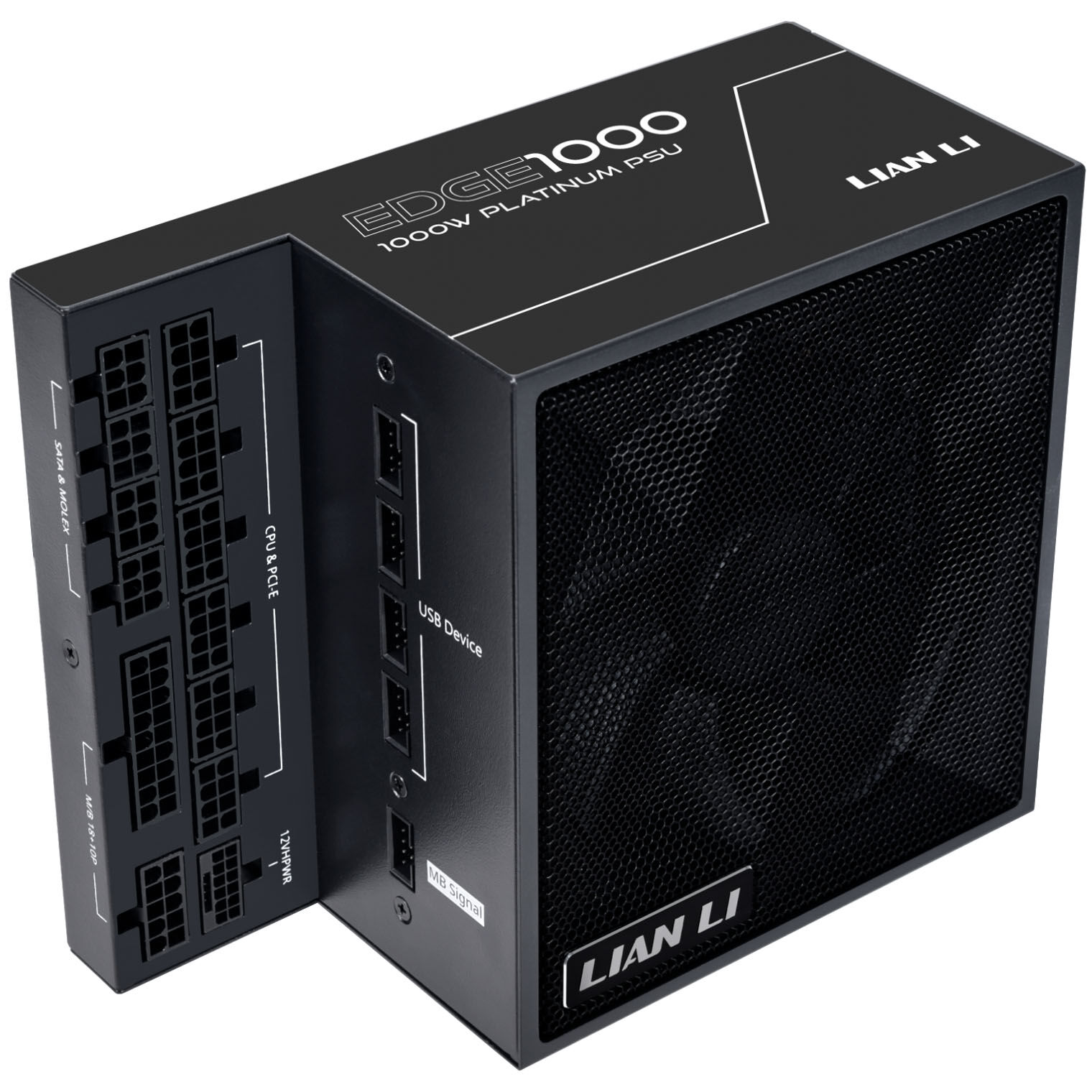

Revolutionary ATX 3.1 power supply: The Lian Li EDGE EG1000 for dual-chamber cases

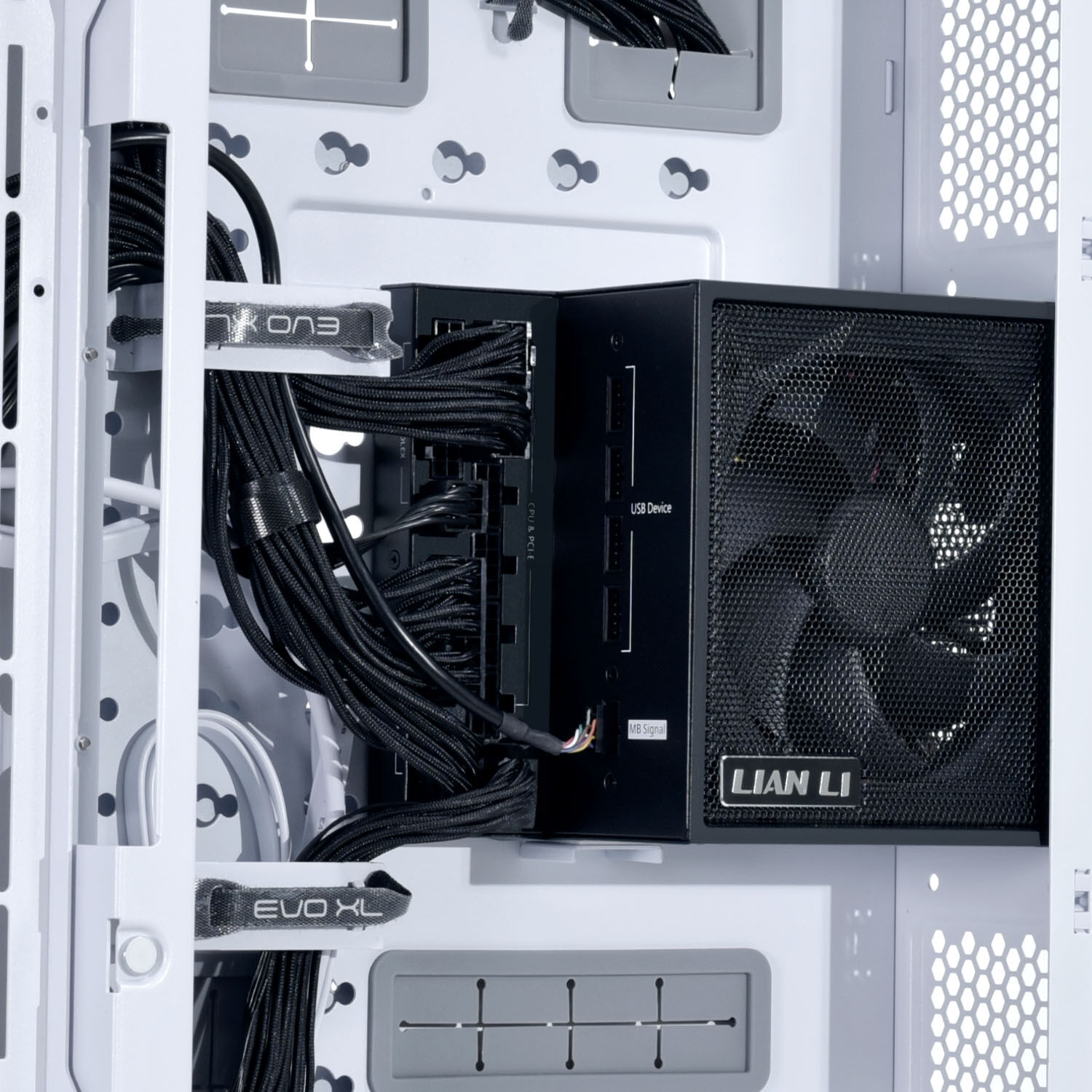

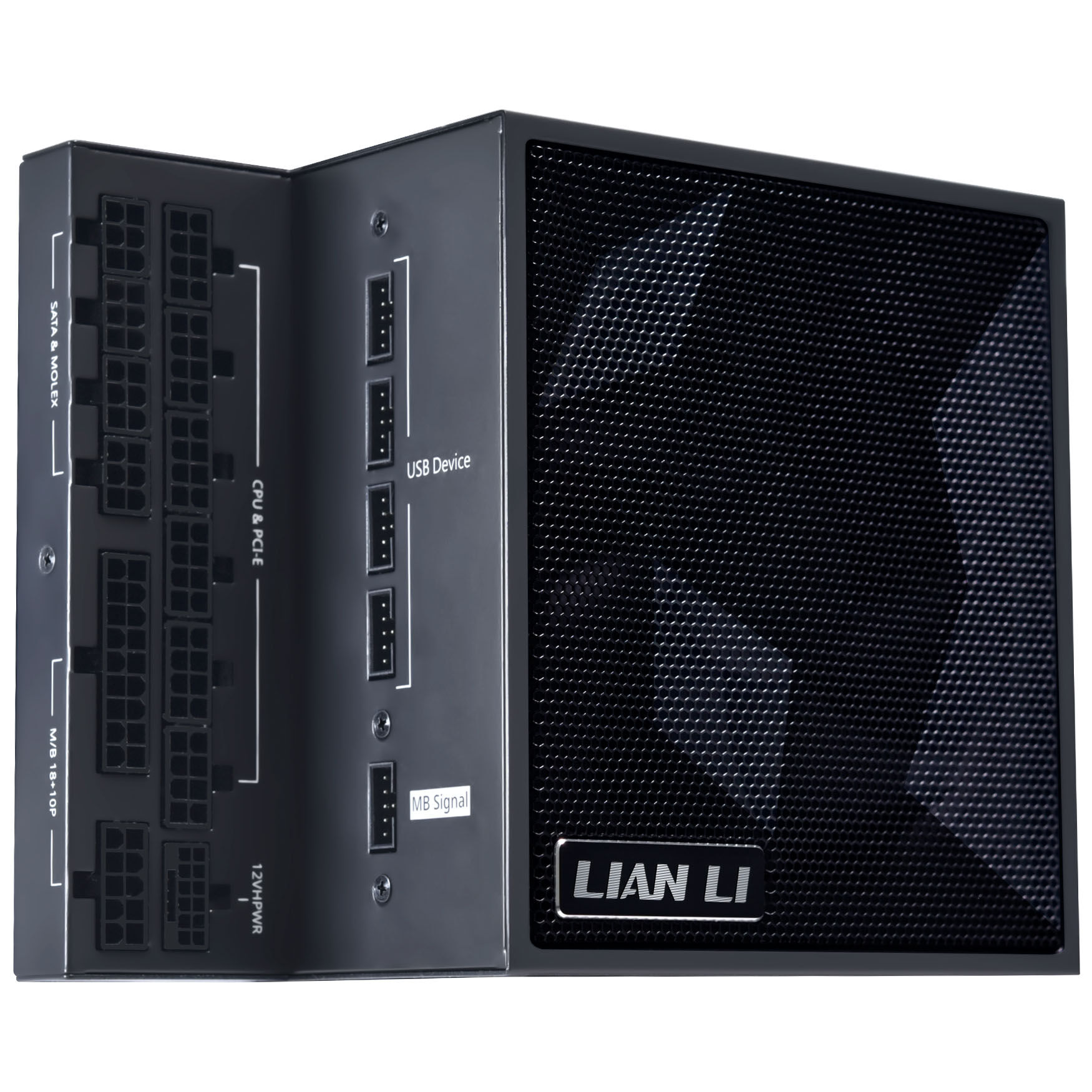

The EDGE power supplies from Lian Li set new standards in power supply design and combine high performance with easy handling. The unique L-shaped design and the integrated USB hub make these power supplies ideal for cases with a two-chamber design, such as the iconic Lian Li O11 series. Specially designed for such PC cases, the EDGE PSUs are perfect for vertical installation in the second chamber. The design directs the connectors outwards, which makes cable management easier and ensures a clean, tidy build.

Two-in-one: Integrated USB hub for UNI fans, Strimer Plus cables and RGB controllers

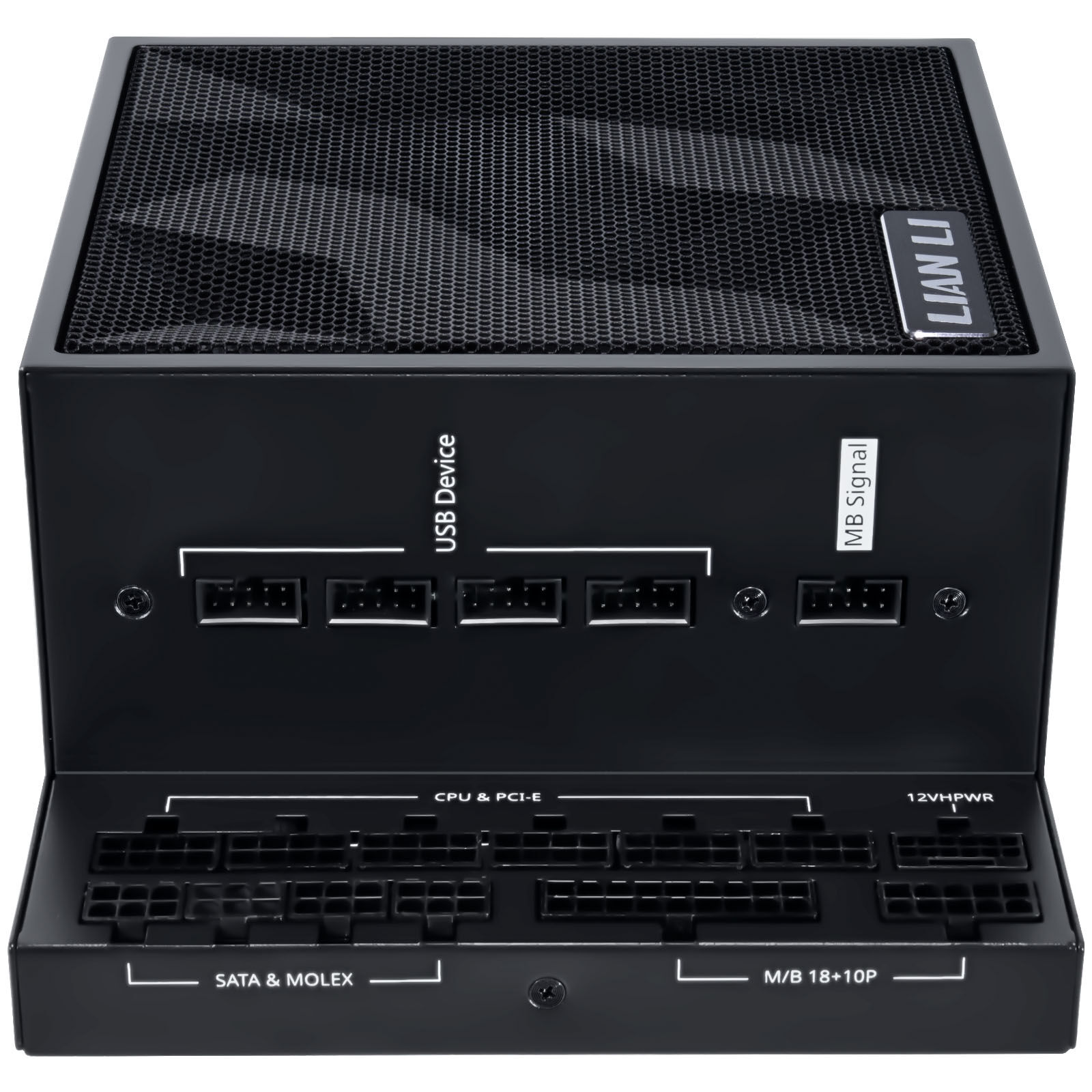

The Lian Li EDGE power supplies integrate four 9-pin internal USB extension ports directly into the power supply. This makes connecting additional USB devices such as UNI fans, Strimer Plus cables and RGB controllers much easier. The hub enables the simultaneous operation of up to four devices. Connected accessories remain functional even when the PC is turned off – provided the power supply is switched on. Each port delivers a nominal current of 500 mA.

There are two ways to connect the USB hub: either via an internal USB header on the mainboard or alternatively with the included USB-A cable to the rear IO panel.

ATX 3.0 and 3.1 compliant and platinum certified
The EDGE series fully complies with the ATX 3.0 / 3.1 standards and is therefore compatible with the latest components. Thanks to the 80 PLUS, Cybenetics and PPLP platinum certifications, the EDGE series offers excellent energy efficiency, reducing power consumption and heat generation while delivering reliable and stable performance.

Stable, two-tone PCIe 5.1 connector for graphics cards
Lian Li has developed its own 12V 2×6 connectors based on the PCIe 5.1 standard. These offer a safer and more efficient power supply compared to the older 12VHPWR connectors.

The design features soldered connector connections for improved power stability and a gold alloy to prevent short circuits. The connectors also have a two-tone housing so you can see that the connector is securely in place. With an increased material thickness of 0.25 mm, they achieve a lower contact resistance. The connectors maintain a contact resistance of less than 1.5 mΩ after 50 mating cycles. This is a significant improvement compared to ordinary connectors, which are between 2 and 3 mΩ. This noticeably improves the performance and long-term reliability of the connectors.

Industrial-grade capacitors
The Lian Li EDGE power supplies use high-quality EPCOS capacitors from Germany. These are compact and particularly robust, which means they are better protected against high temperatures and harsh environments.

Thanks to the LLC topology and active PFC (Power Factor Correction), the EDGE power supply works more efficiently, generates less heat and delivers a cleaner and more reliable power supply. For you, this means less heat, longer life and more stable performance for your hardware!

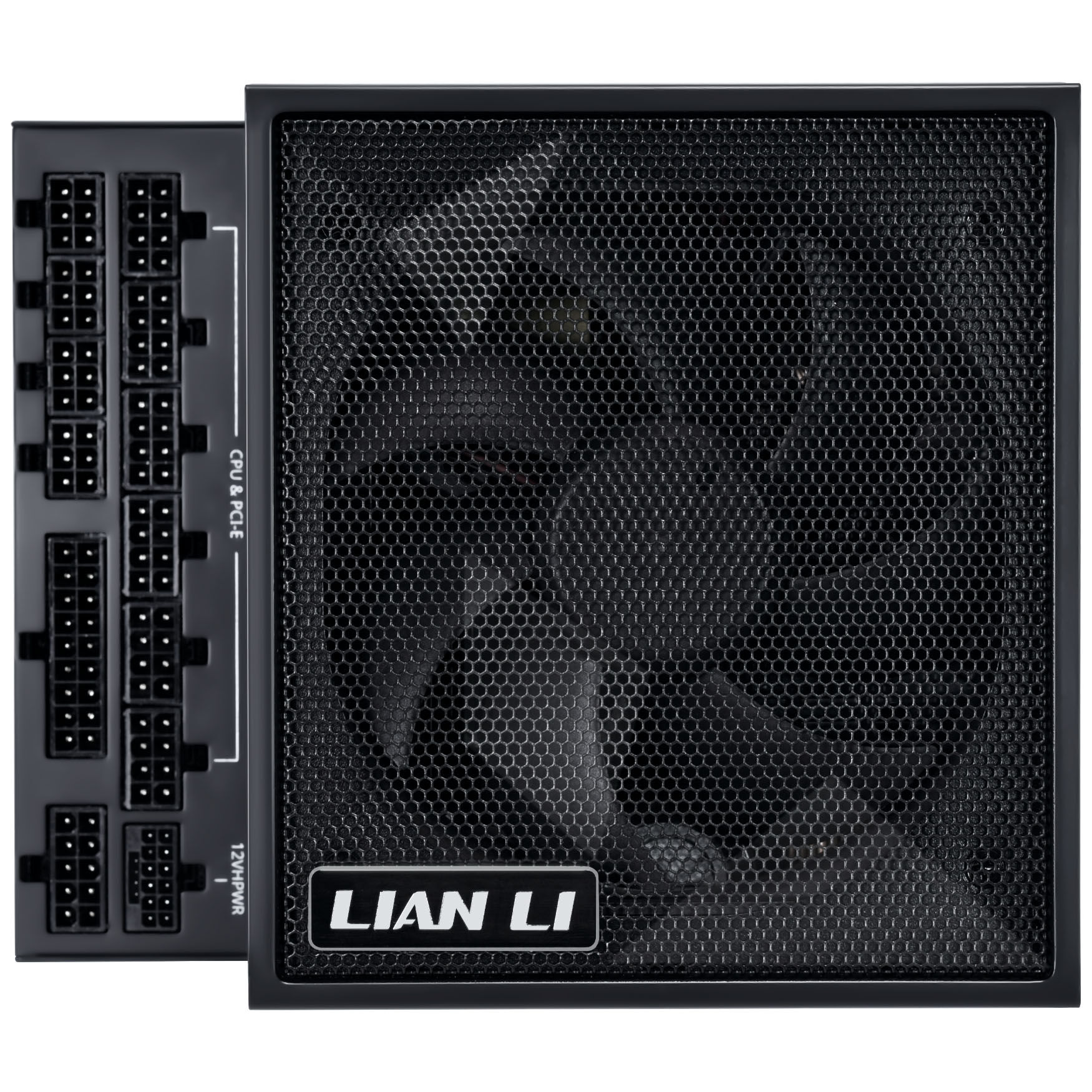

Cool and quiet thanks to the mesh panel and powerful 120 mm fan

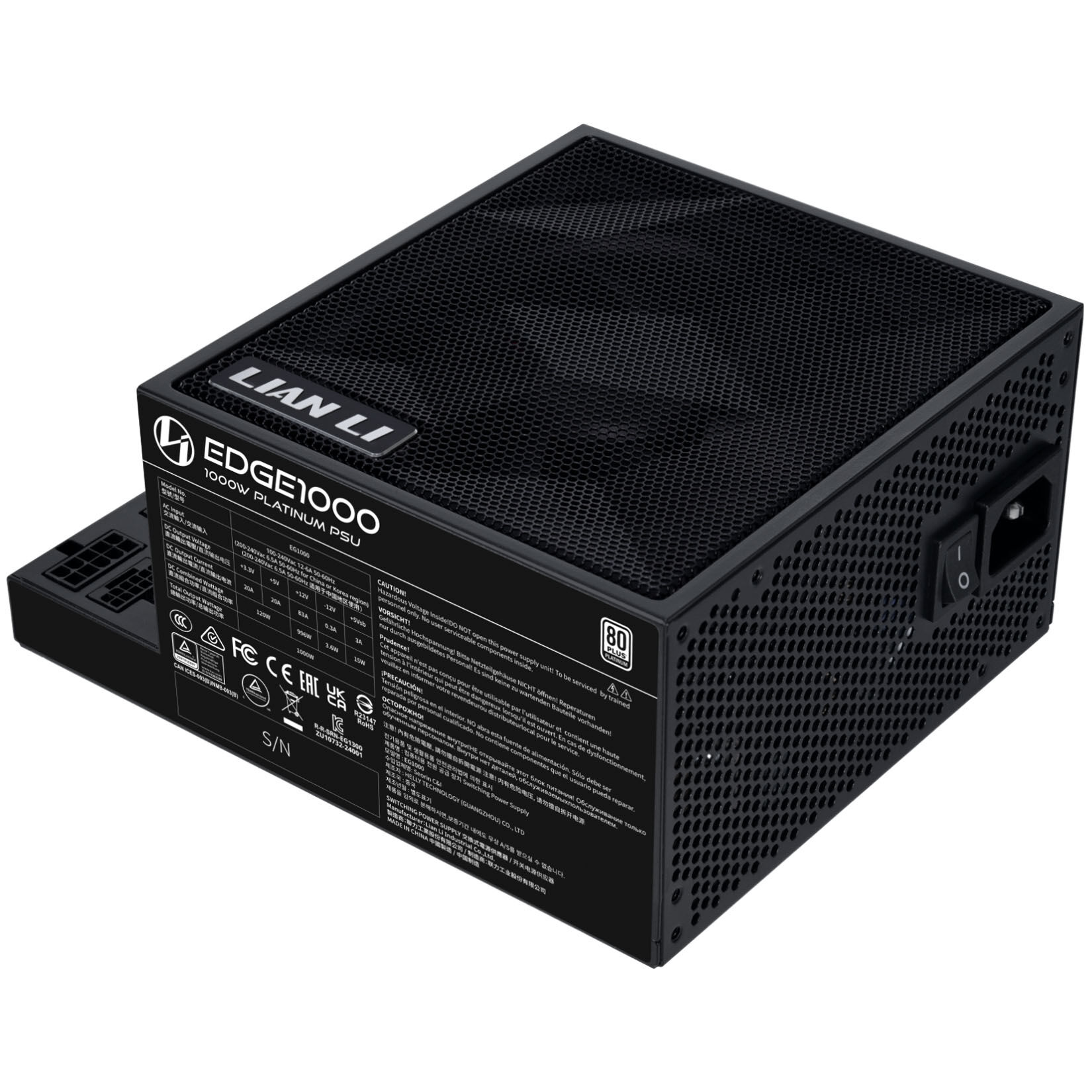

The steel housing of the power supply is equipped with a large-mesh mesh panel on one side. This open design helps to efficiently dissipate any heat that is generated. This allows the integrated 120 mm fan to run at a low speed, ensuring quiet operation while still maintaining cool operating temperatures.

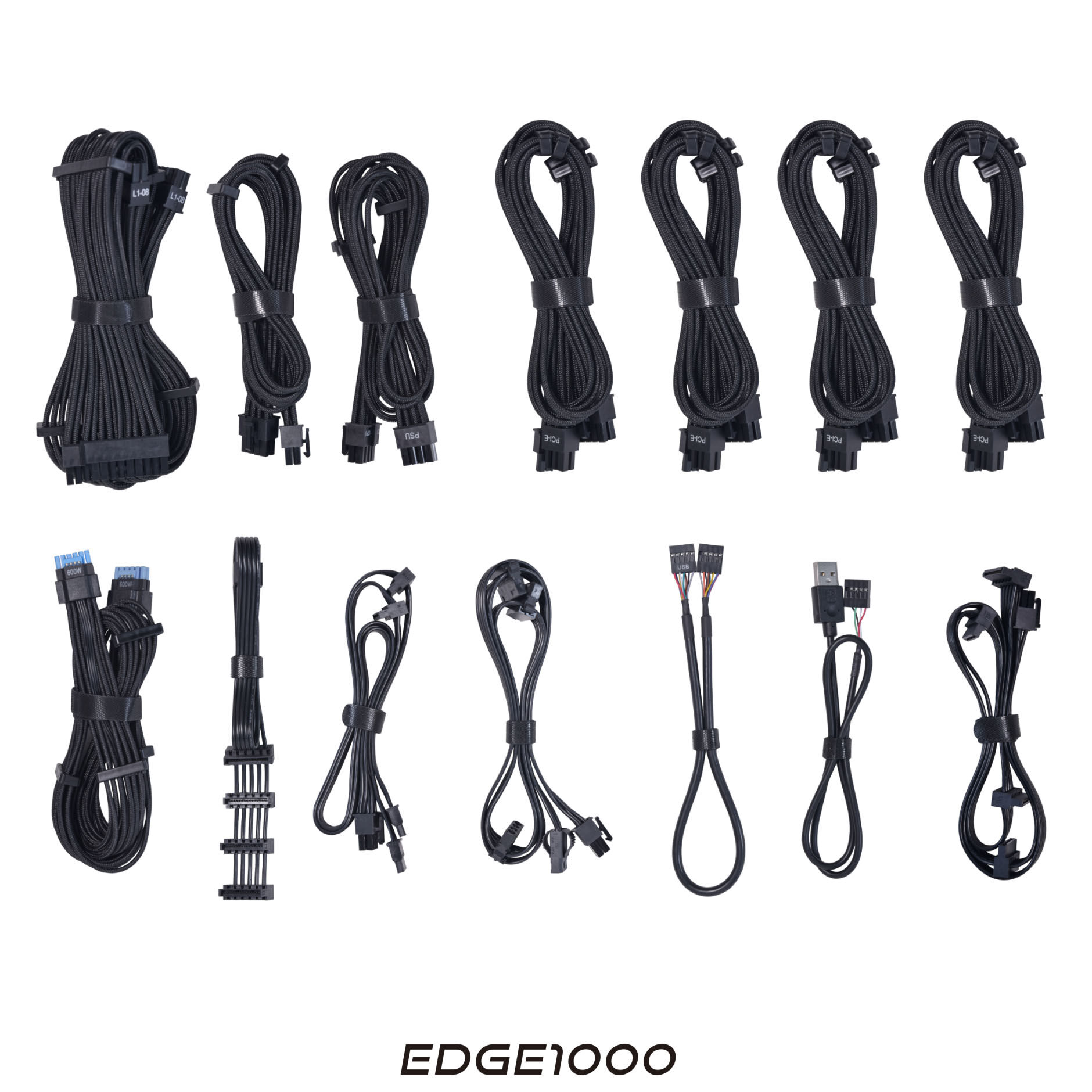

Braided cables for a neat look
The power supply is equipped with high-quality braided cables. The easily adjustable cable combs make cable management much easier, giving your dual-chamber build an aesthetic and organized look. This not only improves the look, but also makes maintenance easier and optimizes airflow for better cooling.

The braided SATA power cables offer you flexible options when building your gaming PC. The Y-splitter cable enables a flexible and neat connection of drives and controllers. A second 300 mm long SATA cable with a 15 mm gap between the connectors allows you to easily connect multiple devices while ensuring clean and clear cabling.

Note: Only use the cables supplied. Using other, incompatible internal power supply cables can cause damage that is not covered by the manufacturers warranty.
