1,000 watt ATX 3.0 power supply with 83 A single rail for high-end hardware
Features:
- High efficiency thanks to 80 PLUS Platinum certification
- Quiet 135mm fan for efficient cooling
- Completely modular
- silent operation possible
- Will be delivered without cable!
1,000 watt ATX 3.0 power supply with 83 A single rail for high-end hardware
Features:
- High efficiency thanks to 80 PLUS Platinum certification
- Quiet 135mm fan for efficient cooling
- Completely modular
- silent operation possible
- Will be delivered without cable!
1,000 watt ATX 3.0 power supply with 83 A single rail for high-end hardware
Features:
- High efficiency thanks to 80 PLUS Platinum certification
- Quiet 135mm fan for efficient cooling
- Completely modular
- silent operation possible
- Will be delivered without cable!
Features:
– High efficiency thanks to 80 PLUS Platinum certification
– Quiet 135mm fan for efficient cooling
– Completely modular
– silent operation possible
– Will be delivered without cable!

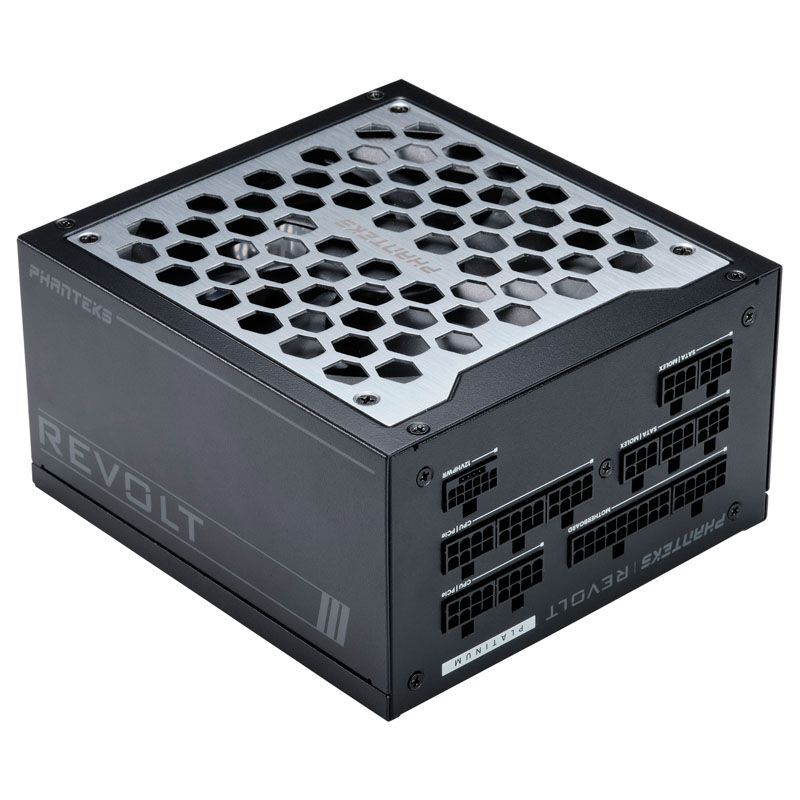

The Phanteks Revolt ATX 3.0 power supply with 1,000 watts
The Phanteks Revolt 1000W Platinum power supply is a superlative powerhouse. In collaboration with Seasonic, Phanteks is releasing a powerful power supply that has an impressive rated output of 1,000 watts and can be installed in most cases thanks to its ATX format.

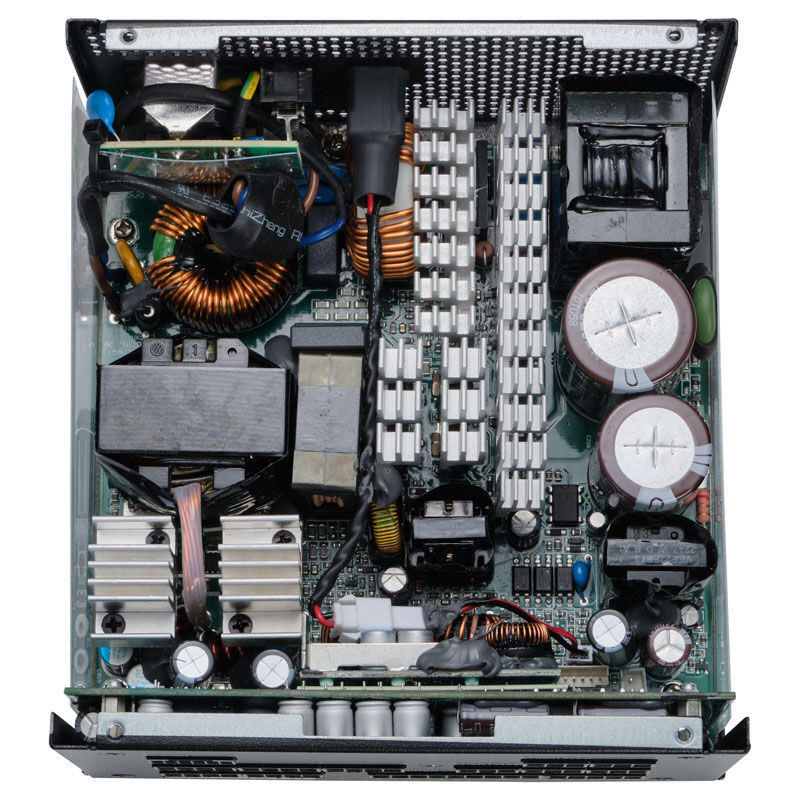

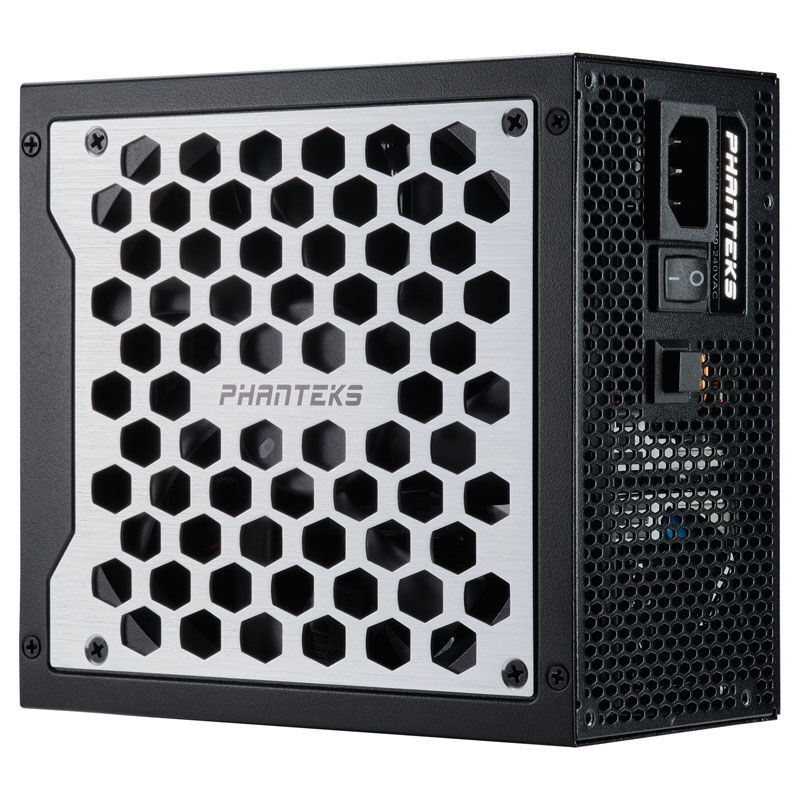

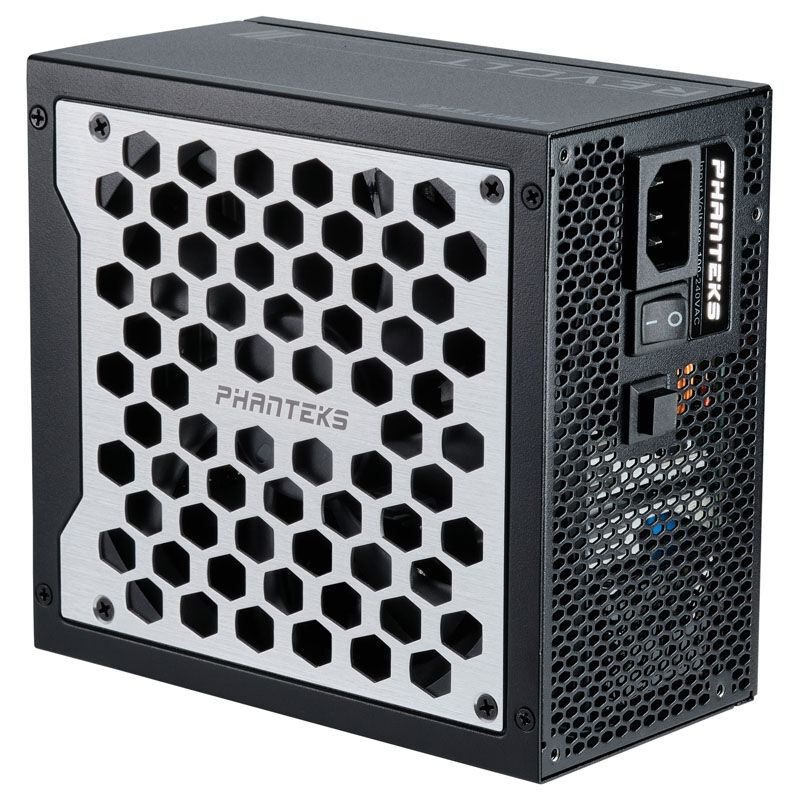

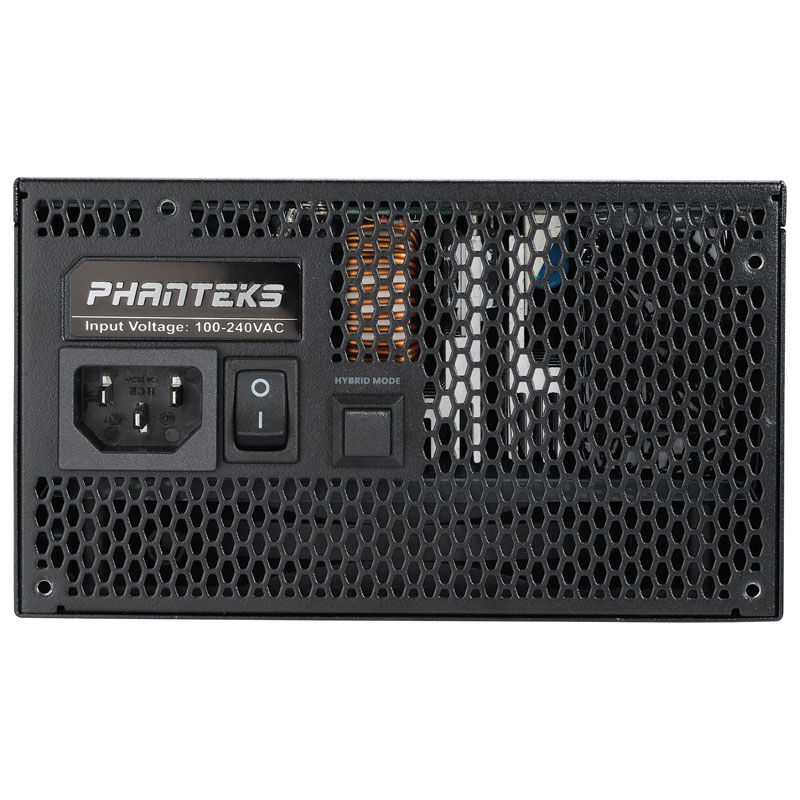

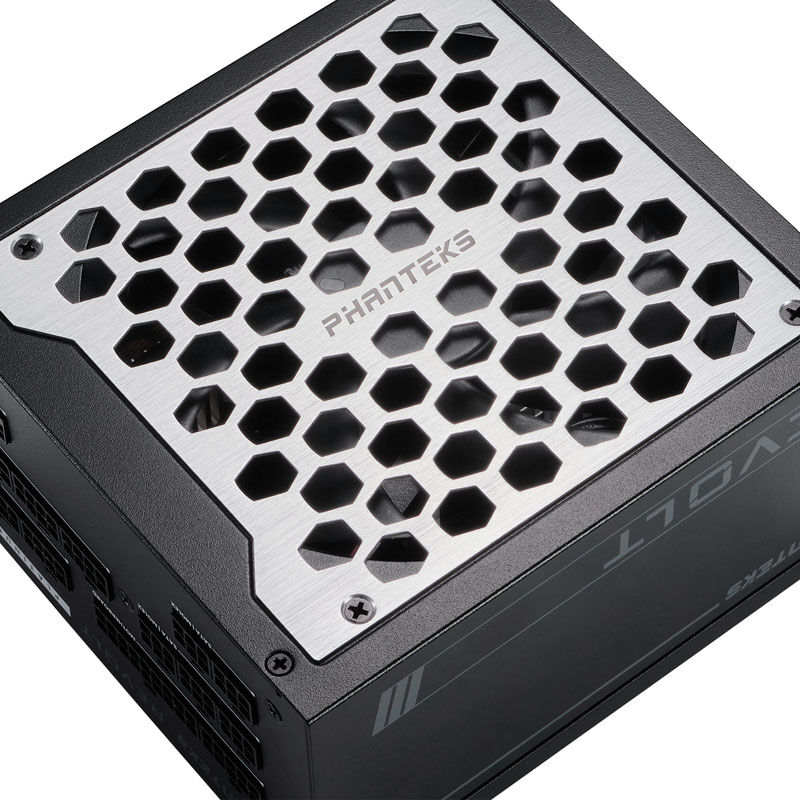

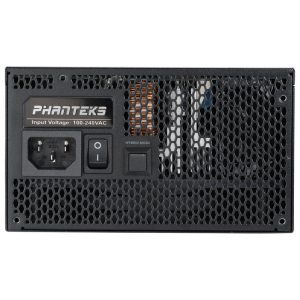

The power supply works very efficiently, which results from the use of high-quality electrical components. The power supply, certified with 80 PLUS Platinum, achieves an average efficiency of up to 94%. The 135 mm fan can be set to semi-passive mode with a switch so that it is only switched on under higher loads.
PHANTEKS LET YOU CHOOSE YOUR CABLES
The current power supplies of the Revolt series from Phanteks are delivered without a cable. In addition to cable sets from Phanteks themselves, all CableMod cables from the RT series can also be used with the Revolt PSUs. This allows you to buy the cables you need for your build and forego the unnecessary ones. CableMod also offers its cables in a wide range of colors so that you can give your gaming PC a special flair.
Sufficient power for power-hungry gaming setups
Following the ATX 3.0 standard, the Phanteks Revolt can handle power peaks of up to 235% above its nominal power. In addition, the 16-pin 12VHPWR connector effortlessly delivers the 600 watts needed for modern high-end graphics cards such as NVIDIAs RTX 4090.

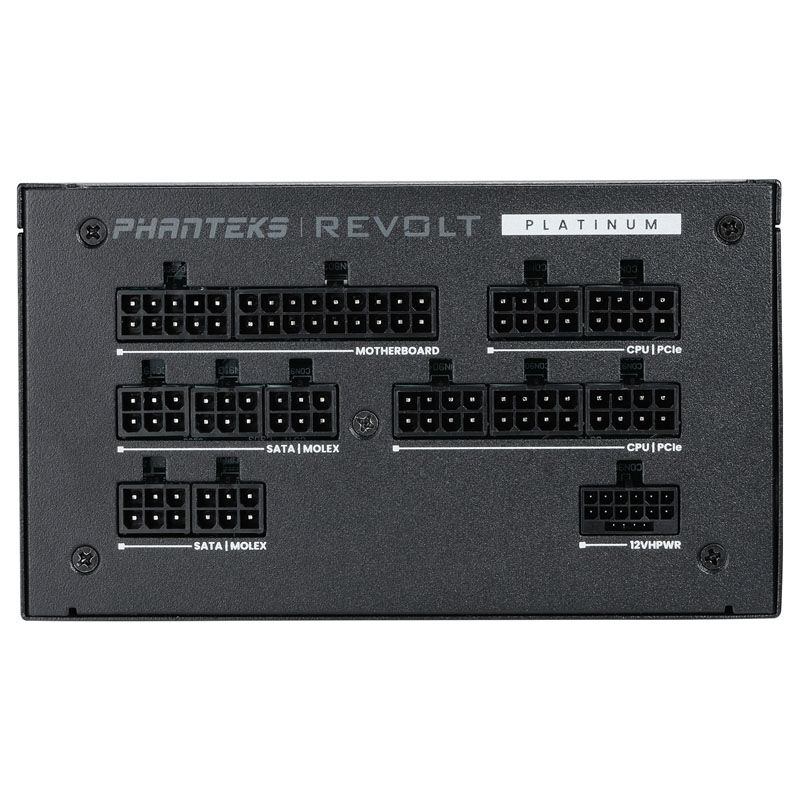

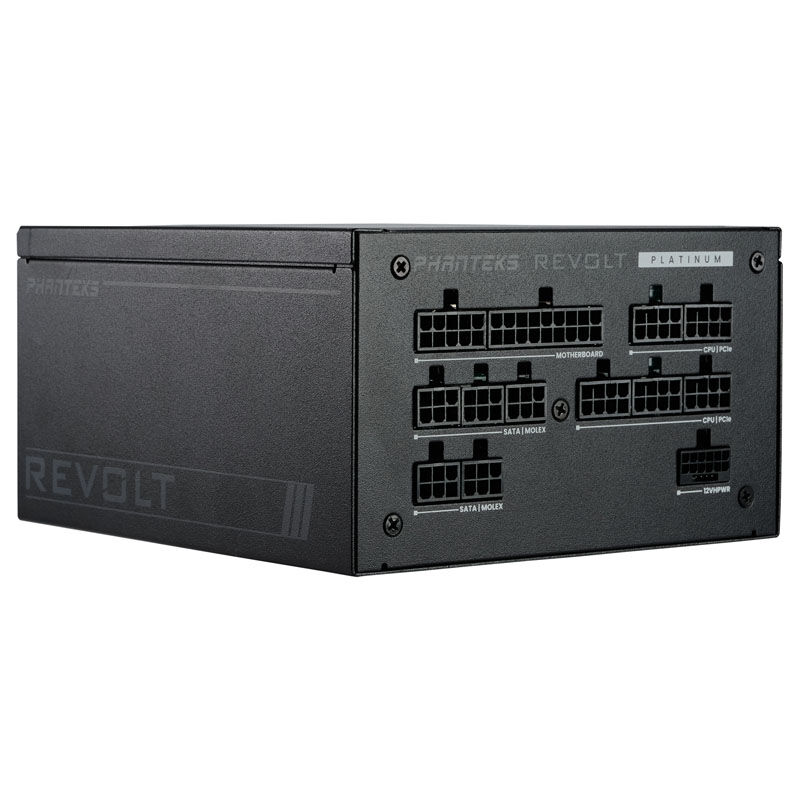

In addition to a 24-pin connector, the PHANTEKS Revolt 1000W has a 16-pin 12VHPWR PCIe 5.0 slot for modern high-end graphics cards. There are also a total of five 8-pin connectors for CPU or PCIe cards and five connectors for SATA or Molex connectors. The fully modular design of the power supply allows you to only use the cables that you really need. The result is a particularly tidy, clean setup with no cable clutter.
Specifications
| Dimensions | 150 x 86 x 160 mm (W x H x D) |
|---|---|

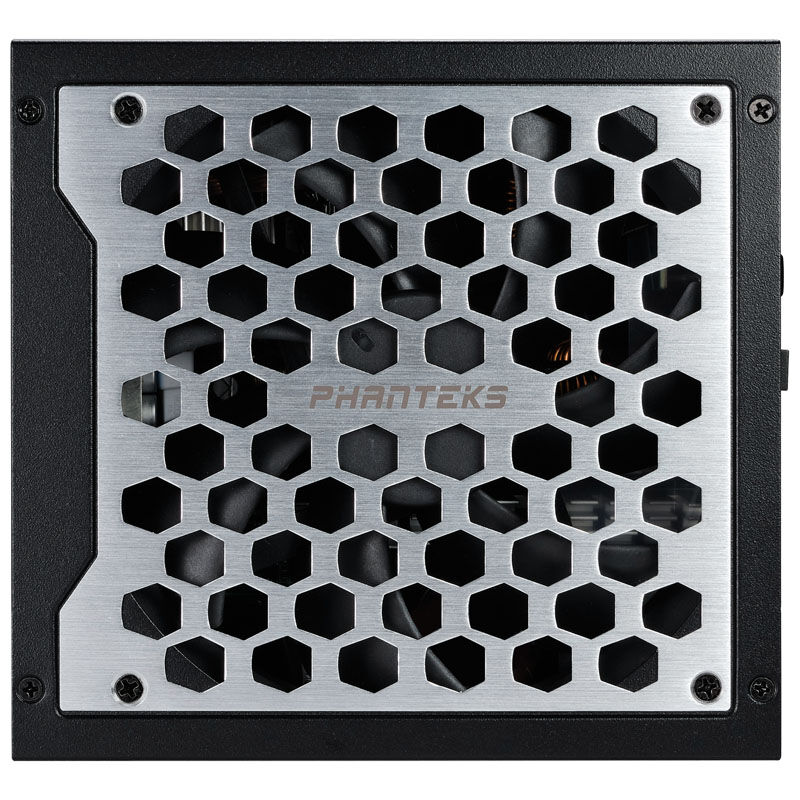

| Fan | 135 mm (automatic control, semi-passive mode) |
| Colour | Black (PSU & Fan) |
| Weight | 2.05 kg |
| Efficiency | ~92 / 94 / 90% @ 20 / 50 / 100% load (80 PLUS Platinum) |
| Active PFC | Yes |
| Standard | ATX 3.0 |
| Power | 1000 W |
| Rail Specifications | |
| +3.3V | 25 A |
| +5V | 25 A |
| +3.3V & +5V (Combined) | 125 W |
| +12V | 83 A / 996 W |
| -12V | 0.3 A / 3.6 W |
| +5VSB | 3 A / 15 W |
| Connections (Rear) | |
| Mainboard | 1× 24-pin |
| PCIe 5.0 | 1× 16-pin 12VHPWR |
| CPU / PCIe | 5× (4+4-pin / 6+2-pin) |
| SATA / Molex | 5× ports |
| Protection Circuits | |
| OPP | Over Power Protection |
| OVP | Over Voltage Protection |
| UVP | Under Voltage Protection |
| SCP | Short Circuit Protection |
| OCP | Over Current Protection |
| OTP | Over Temperature Protection |
| No Load Protection | Yes |
| Reset Protection | Yes |
| Scope of Delivery | |

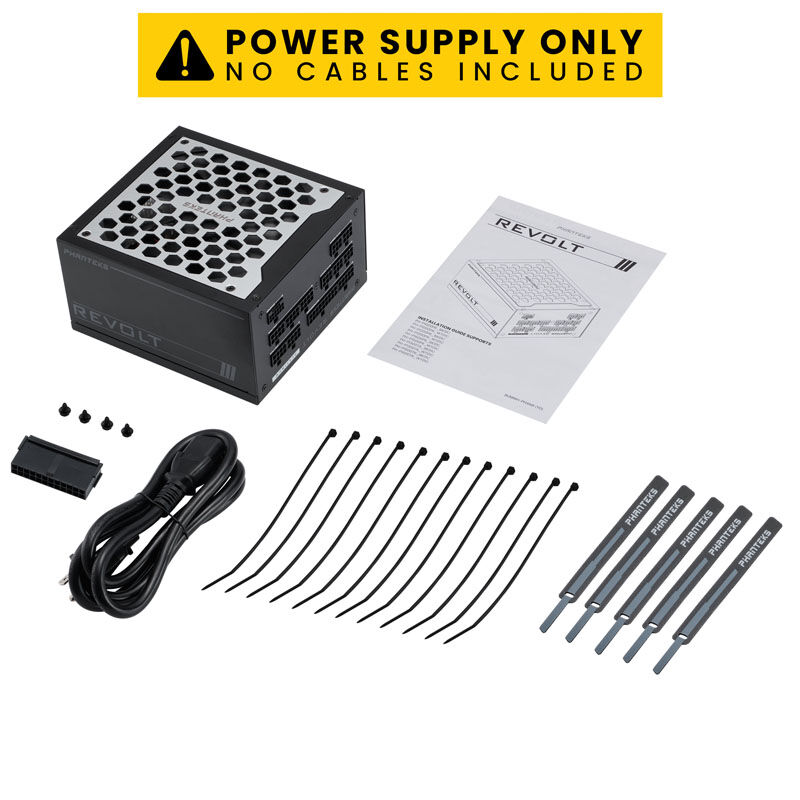

| Included | 1× User manual 1× Cable tie set 1× Screw set 1× Velcro fastener set 1× PSU bag 1× PSU jumper |
| Compatible Cables | |
| Phanteks | Revolt Cable Kit – complete set (black/white) Revolt Cable Kit – starter set (black/white) |
| CableMod | Classic ModMesh RT Cable Kits PRO ModMesh RT Cable Kits PRO ModMesh RT 12VHPWR Dual Cable Kits PRO ModMesh RT 12VHPWR → 3× 8-pin PCIe PRO ModMesh RT 8-pin PCIe |
