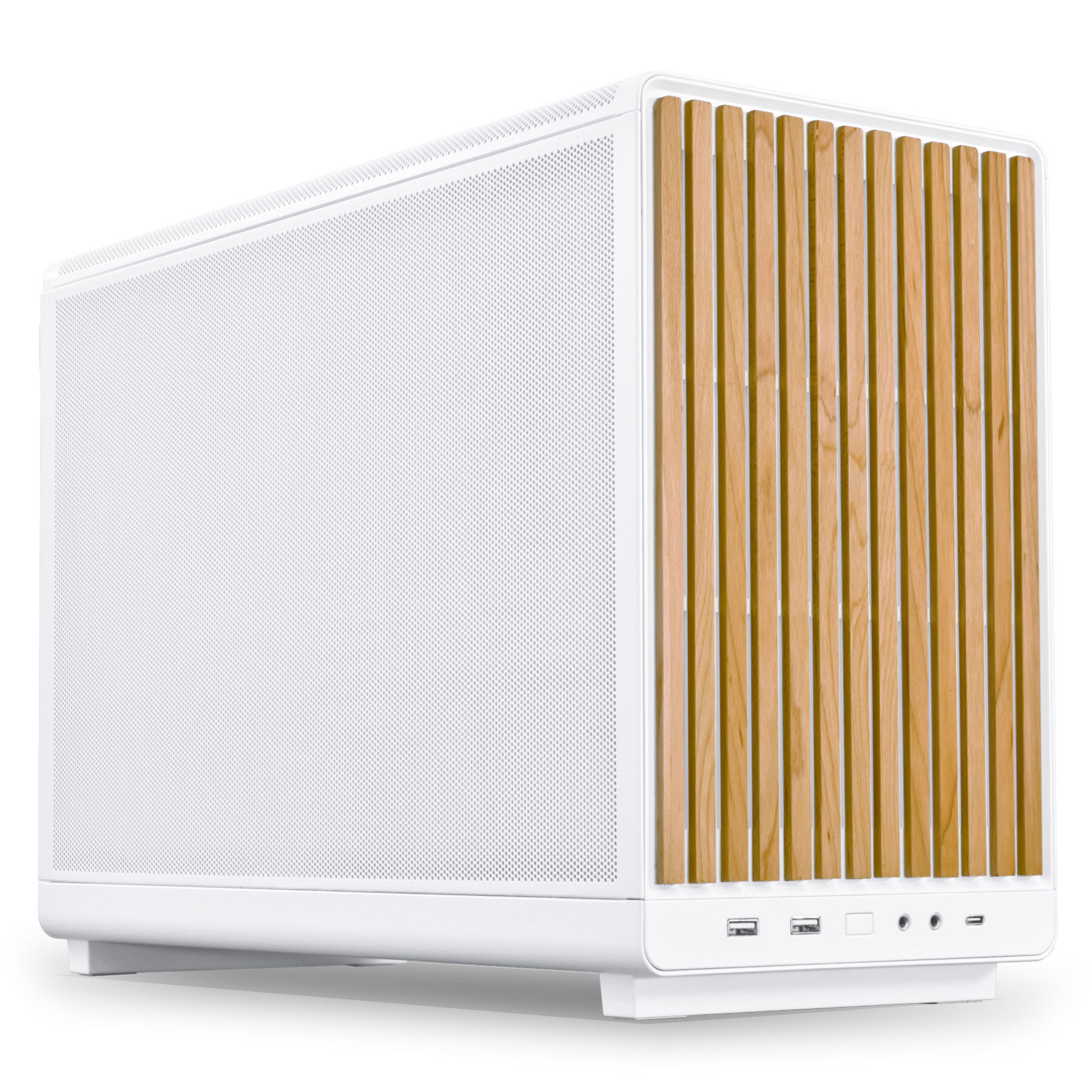

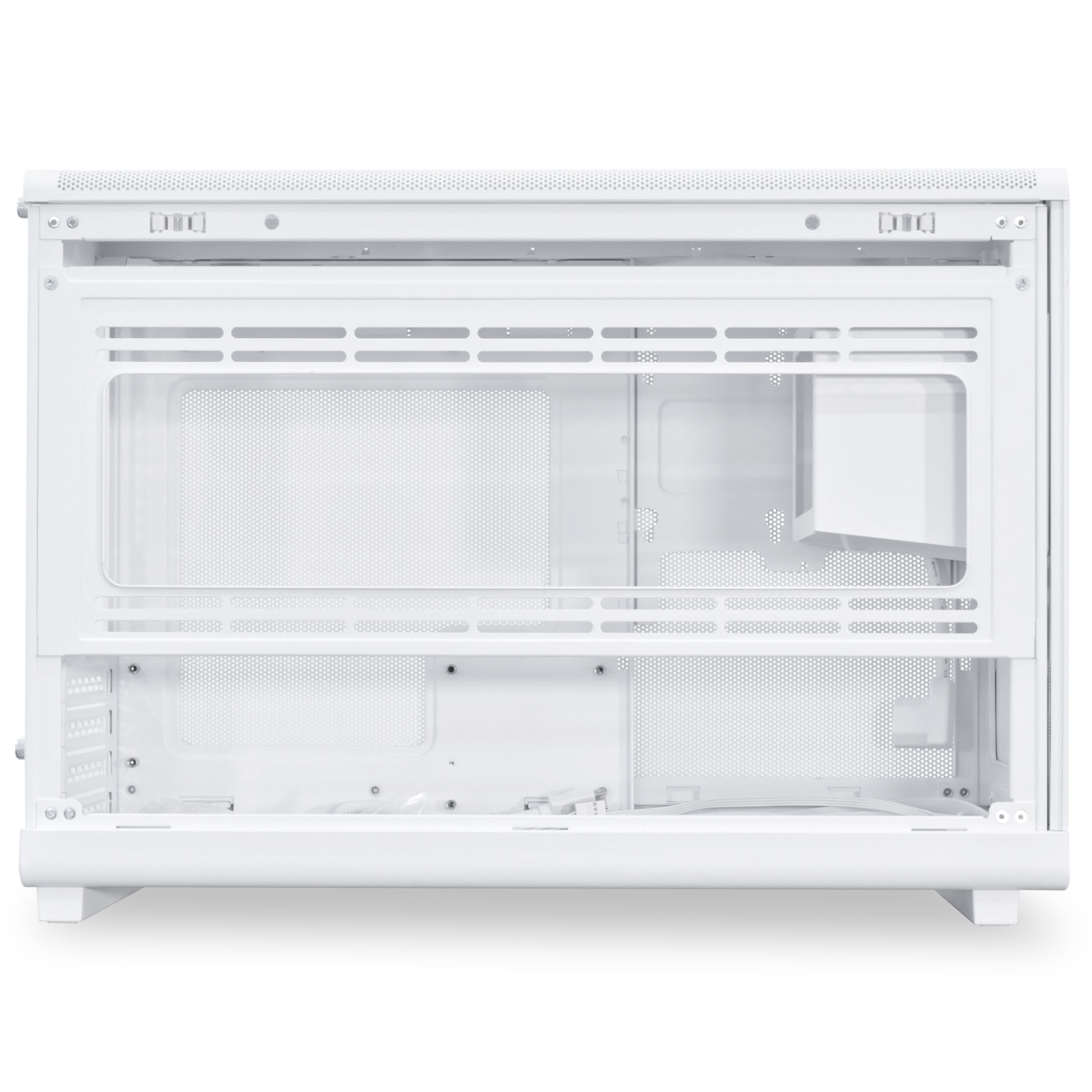

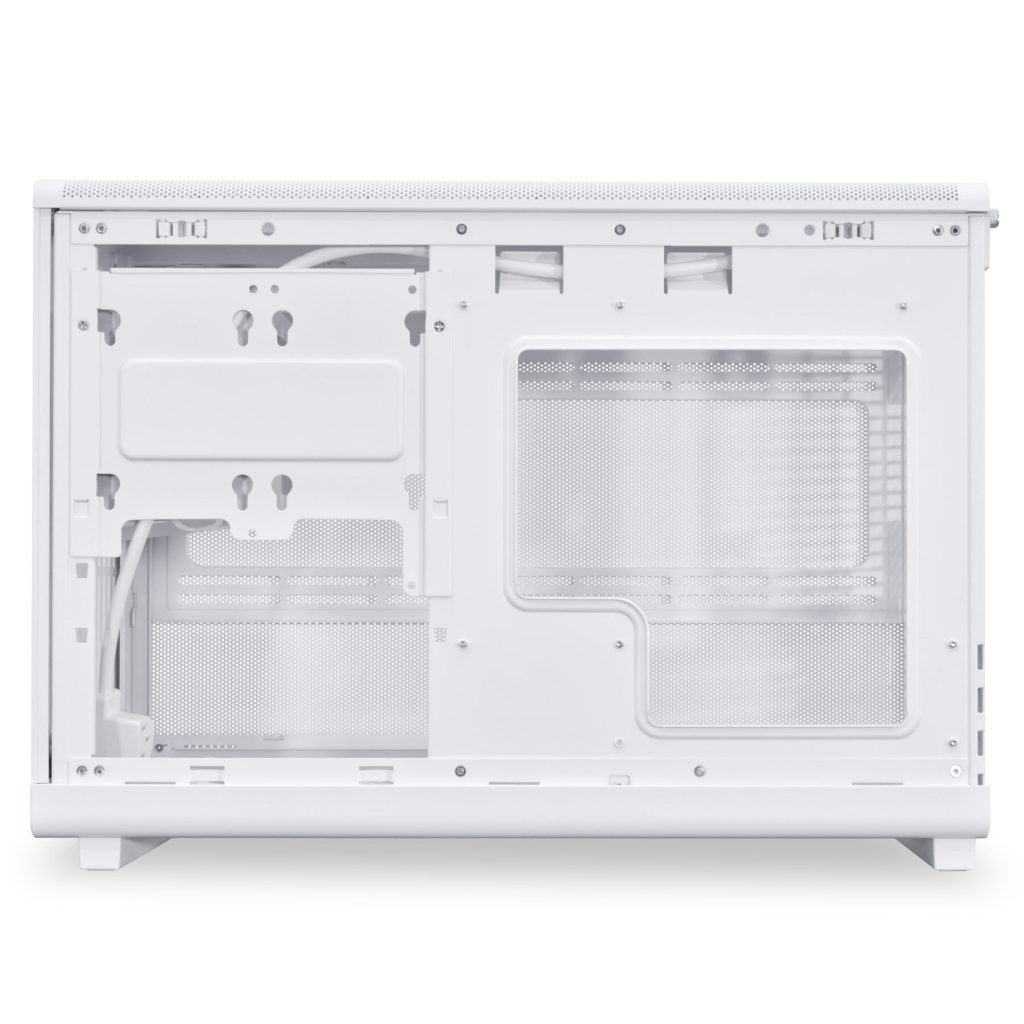

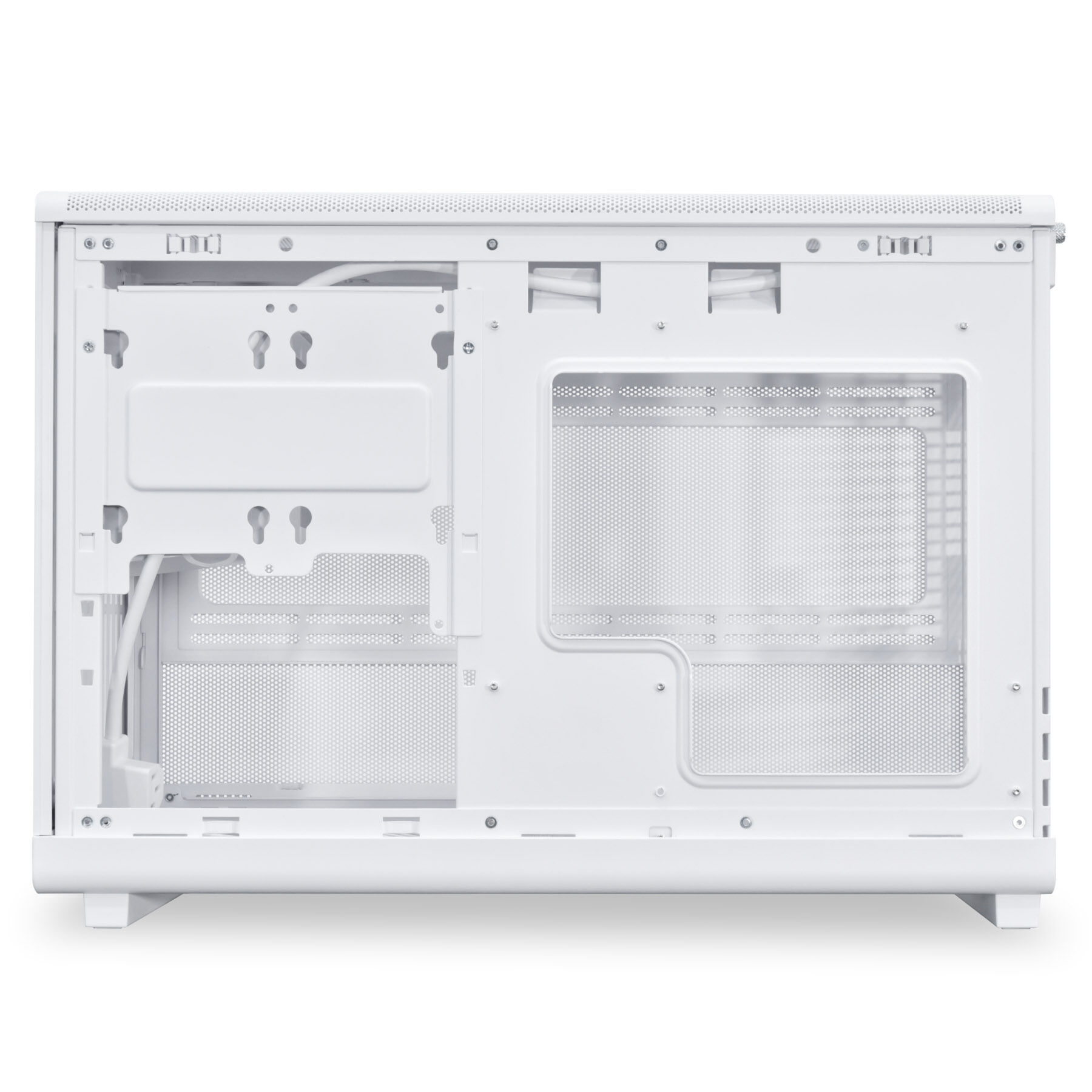

Lian Li DAN Cases A3-mATX Wood Edition – Compact Luxury in White
Key Features:
– Minimalist micro-ATX case with a premium beechwood front.
– Excellent airflow with mesh panels and support for up to 10 fans.
– Flexible configuration for powerful hardware, including 360-mm radiators.
– Compatible with micro-ATX and mini-ITX motherboards.
– Versatile PSU support: ATX, SFX-L, or SFX.
– Compact 26L design with four expansion slots for GPUs up to 415 mm.
– Elegant and Space-Saving Design
– The Lian Li DAN Cases A3-mATX Wood Edition combines minimalist aesthetics with high-end functionality. Its compact, 26L frame is perfect for small form factor builds, featuring a premium beechwood front and efficient airflow for high-performance components.
Cooling and Hardware Support
This case supports up to 10 x 120-mm fans or 4 x 140-mm fans and allows for 360-mm radiators on the top or side. A 240-mm radiator can also be installed at the bottom. It accommodates CPU coolers up to 165 mm tall and GPUs up to 415 mm long (4-slot design).
Flexible Configuration Options
Choose between micro-ATX or mini-ITX motherboards and install up to two 2.5-inch SSDs and one 3.5-inch HDD. The PSU can be mounted at the front or side, freeing up space for other components.

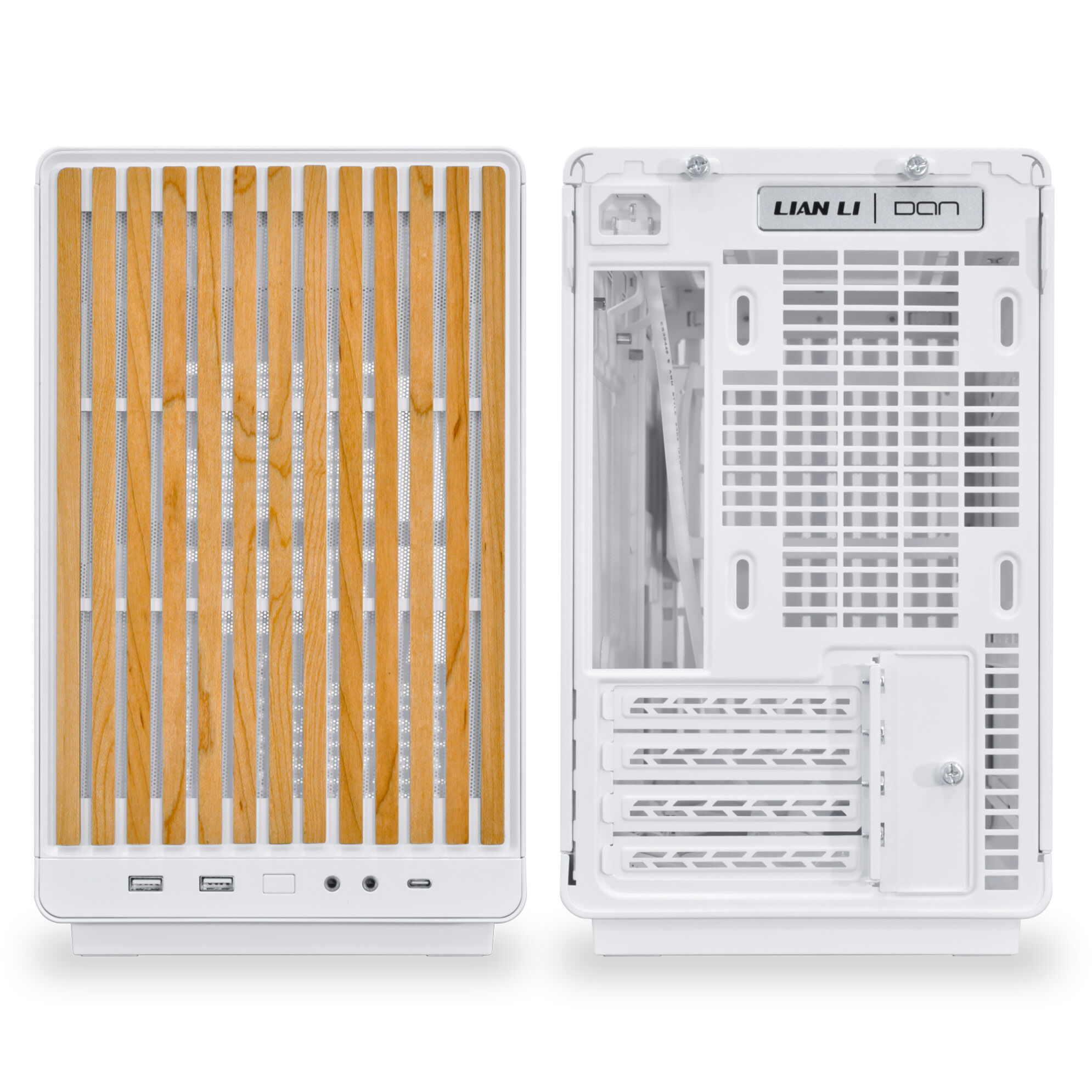

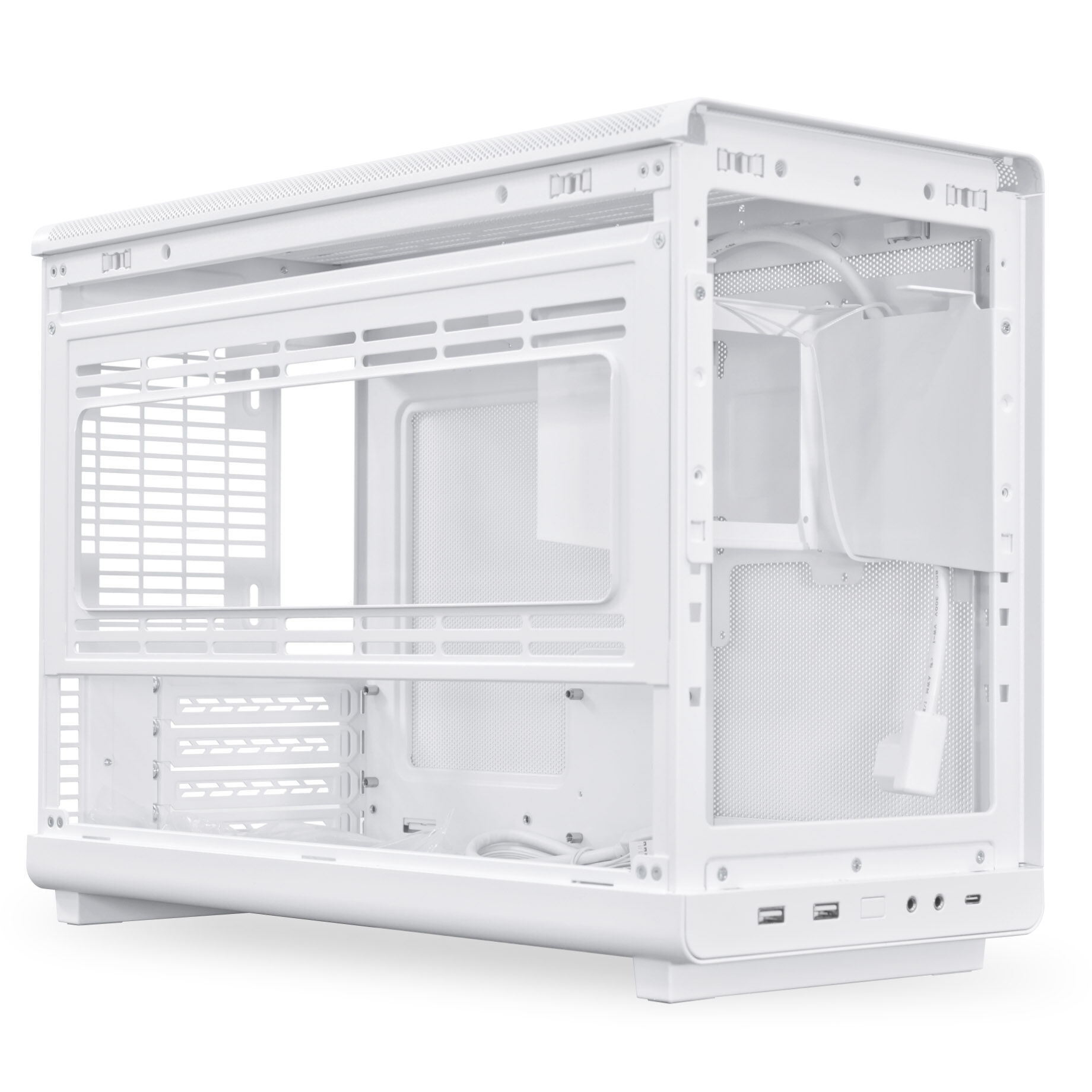

Front I/O Panel
2 x USB 3.0 Type-A
1 x USB 3.1 Type-C
2 x 3.5-mm audio jacks (mic-in/audio-out)
Note: Due to its compact design, careful planning is required when selecting components, especially PSU size and placement. Refer to the manual for optimal assembly.
Specification
| Primary Colour | White |
|---|---|
| Dimensions (L × W × H) | 443 × 194 × 321.5 mm |
| Weight | 5 kg |
| Case Type | Mini Case |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Max. CPU Cooler Height | 165 mm |
| Max. GPU Length | 415 mm |
| Max. PSU Length | 220 mm |
| Internal Volume | 26.3 L |
| Display Included | No |
| PSU Included | No |
| PSU Formats Supported | ATX, SFX, SFX-L |
| PSU Position | Internal |
| 120 mm Fan Support | 10 |
| 140 mm Fan Support | 4 |
| Max. Radiator Compatibility | 2 × Triple (360 mm) |
| 2.5″ Drive Bays | 2 |
| 1× 3.5″ / 1× 2.5″ Combo Bay | 1 |
| Hot Swap Bays | No |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 2 |
| Audio I/O | 1× Output + 1× Input (3.5 mm, TRS) |
| Card Reader | No |
| I/O Position | Front |
| Side Panel | With Mesh |
| Front Door | No |
| Cable Management | Yes |
| Dust Filters | Yes |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | No |
| Back-Connect Support | No |
| Expansion Slots | 4 |
| Housing Feedthrough | No |
| Fan Controller / Hub | No |
| Materials | Plastic, SPCC (Steel), Wood |
| Lighting / RGB | No |
| Included Fans | None |
£63.16£52.63 Inc VatEx Vat
