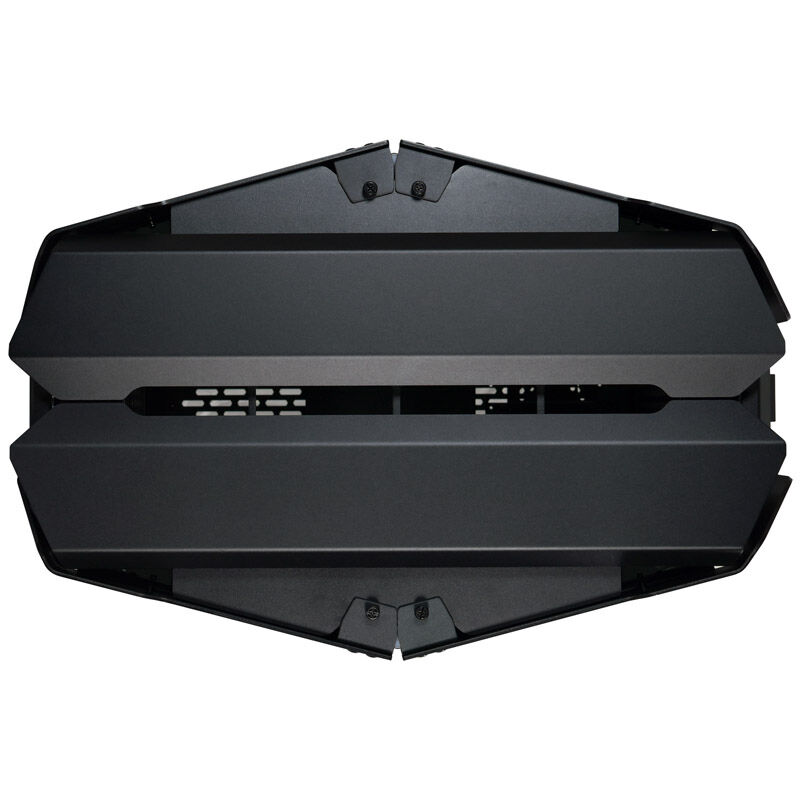

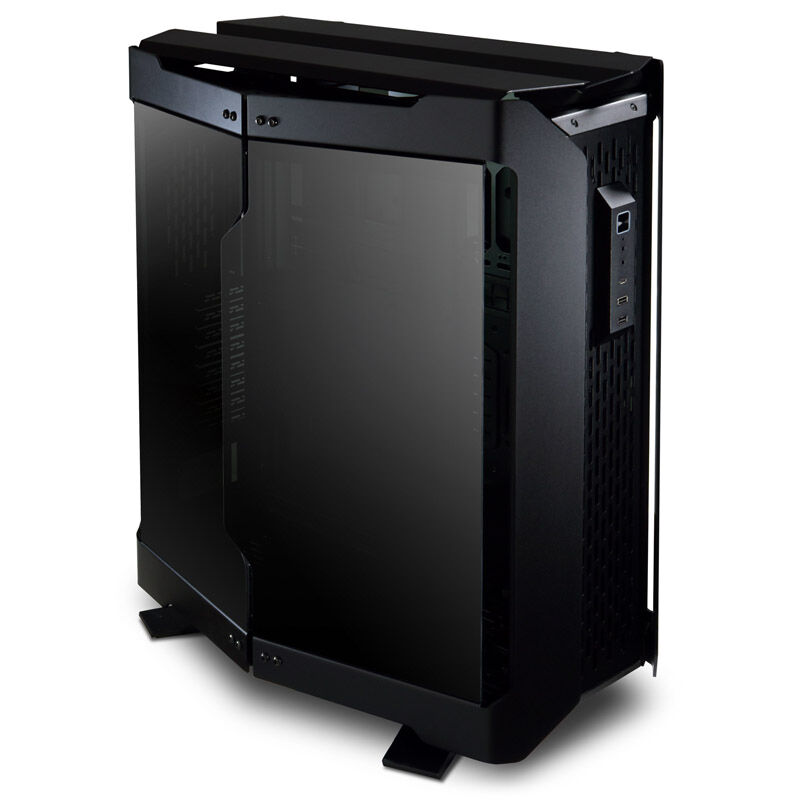

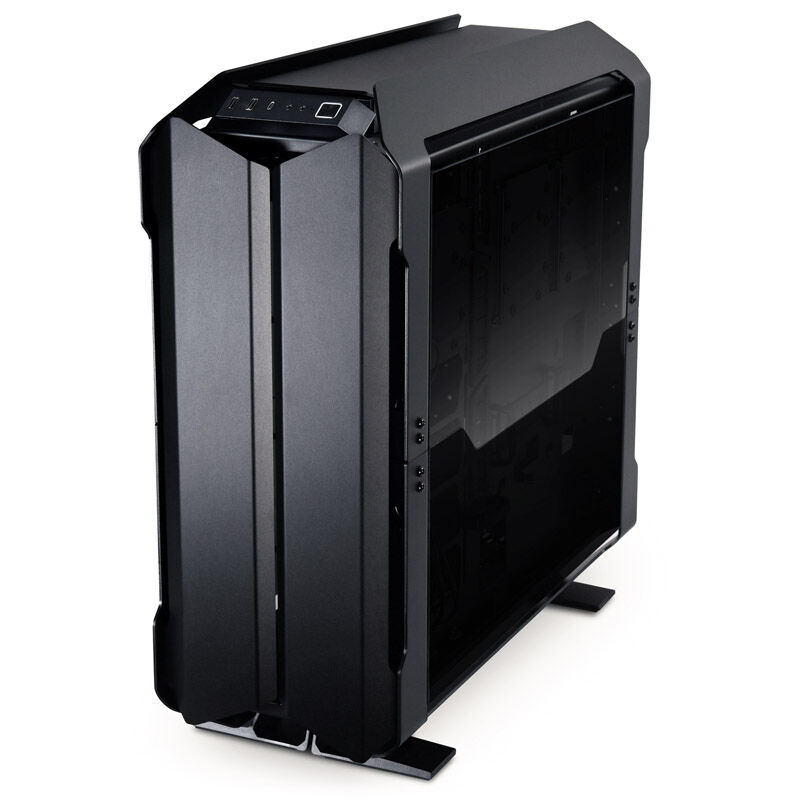

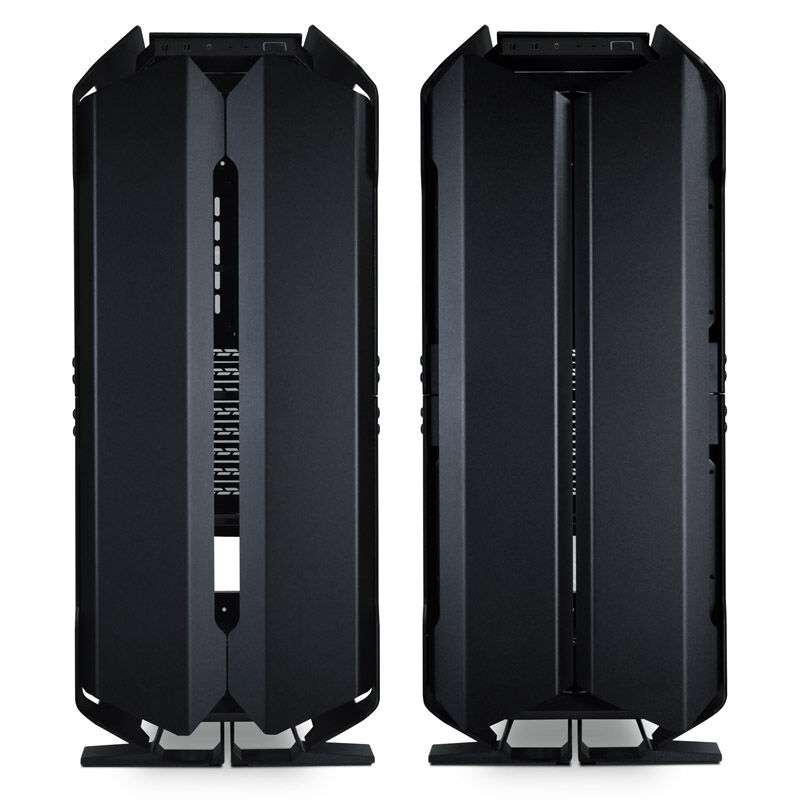

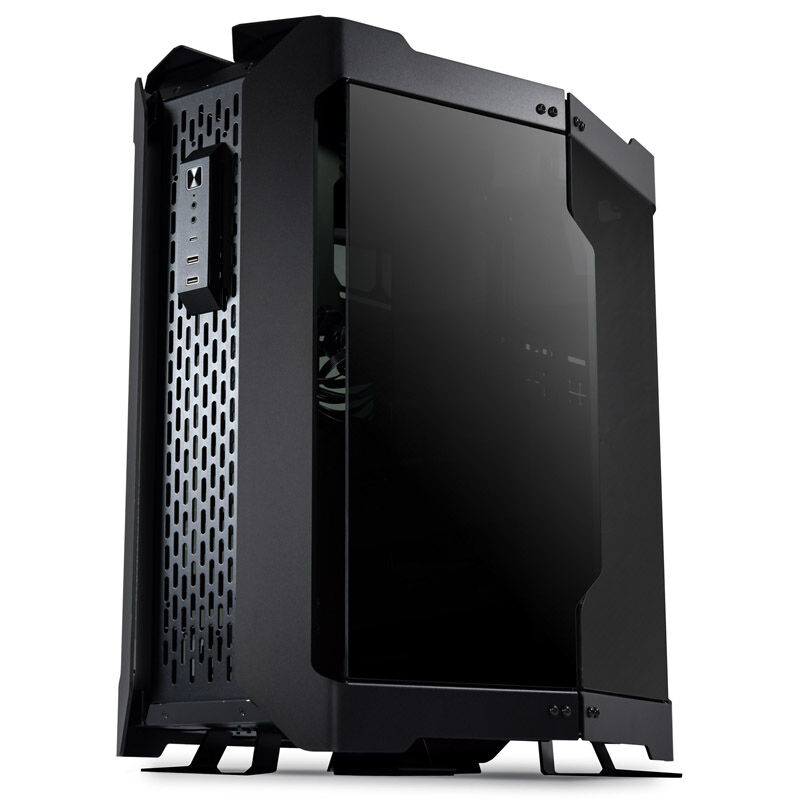

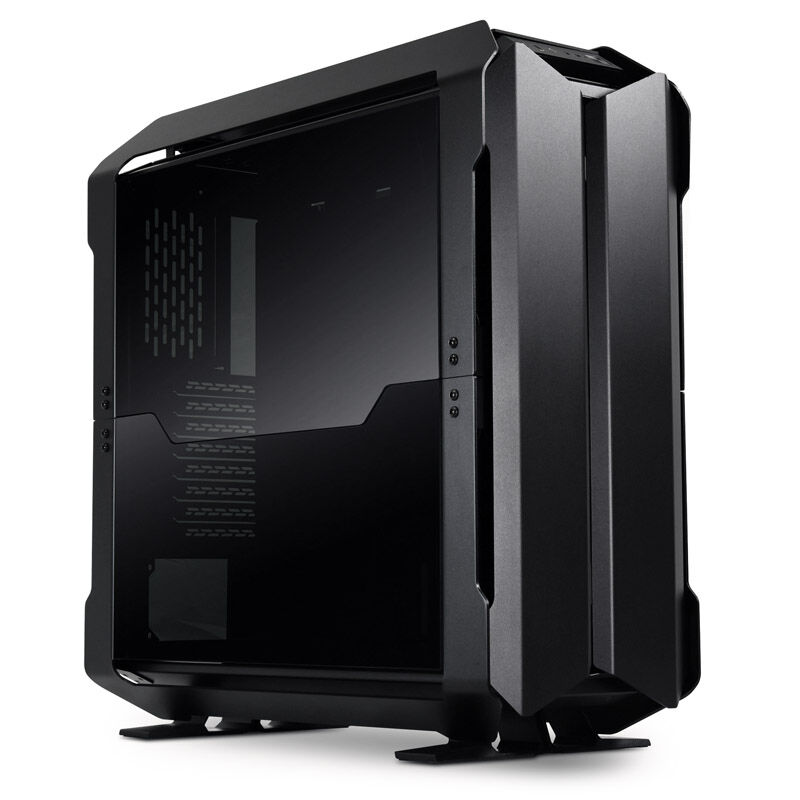

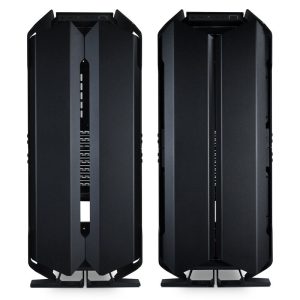

The Lian Li Odyssey X is a large PC case with first-class workmanship, which can be transformed in a unique way into three different configurations: Dynamic, Performance and Dynamic-R (rotated).
Dynamic and Dynamic-R are the basic configuration, with the difference that in the latter, the mainboard tray is rotated to improve the airflow to the graphics card. The third mode, Performance, rotates the entire case 90 degrees to further improve airflow and provide excellent heat dissipation. This flexibility gives users the freedom to design their PC as they wish.
The Lian Li Odyssey X is a large PC case with first-class workmanship, which can be transformed in a unique way into three different configurations: Dynamic, Performance and Dynamic-R (rotated).
Dynamic and Dynamic-R are the basic configuration, with the difference that in the latter, the mainboard tray is rotated to improve the airflow to the graphics card. The third mode, Performance, rotates...
The Lian Li Odyssey X is a large PC case with first-class workmanship, which can be transformed in a unique way into three different configurations: Dynamic, Performance and Dynamic-R (rotated).
Dynamic and Dynamic-R are the basic configuration, with the difference that in the latter, the mainboard tray is rotated to improve the airflow to the graphics card. The third mode, Performance, rotates...
Dynamic and Dynamic-R are the basic configuration, with the difference that in the latter, the mainboard tray is rotated to improve the airflow to the graphics card. The third mode, Performance, rotates the entire case 90 degrees to further improve airflow and provide excellent heat dissipation. This flexibility gives users the freedom to design their PC as they wish.

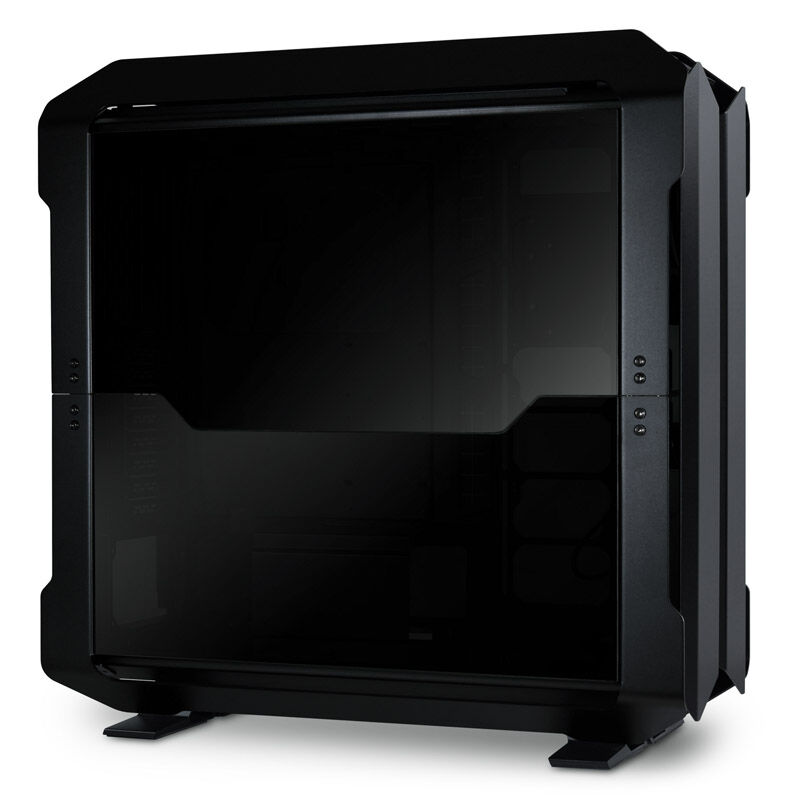

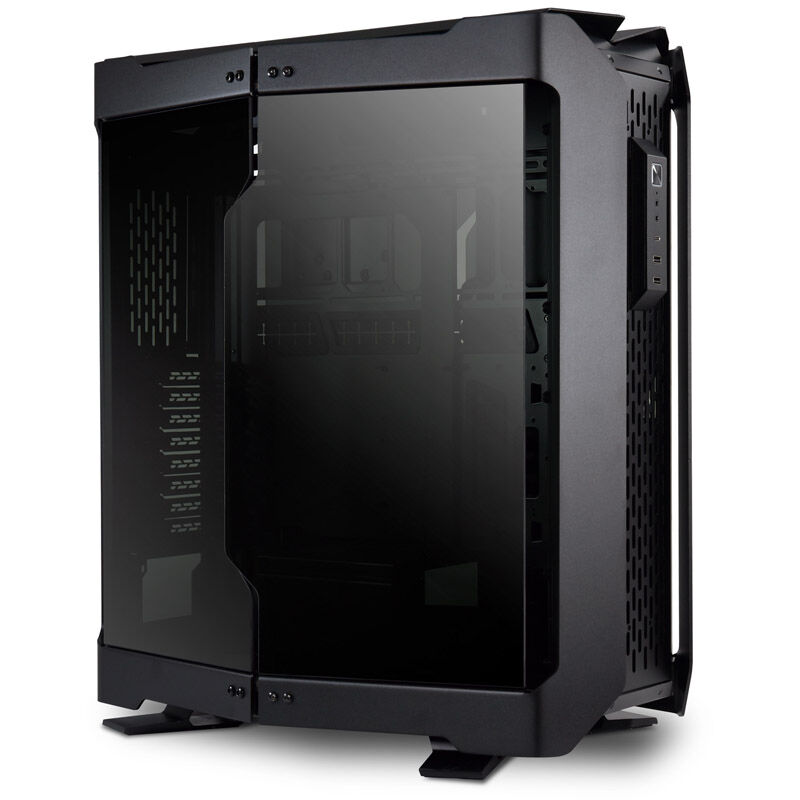

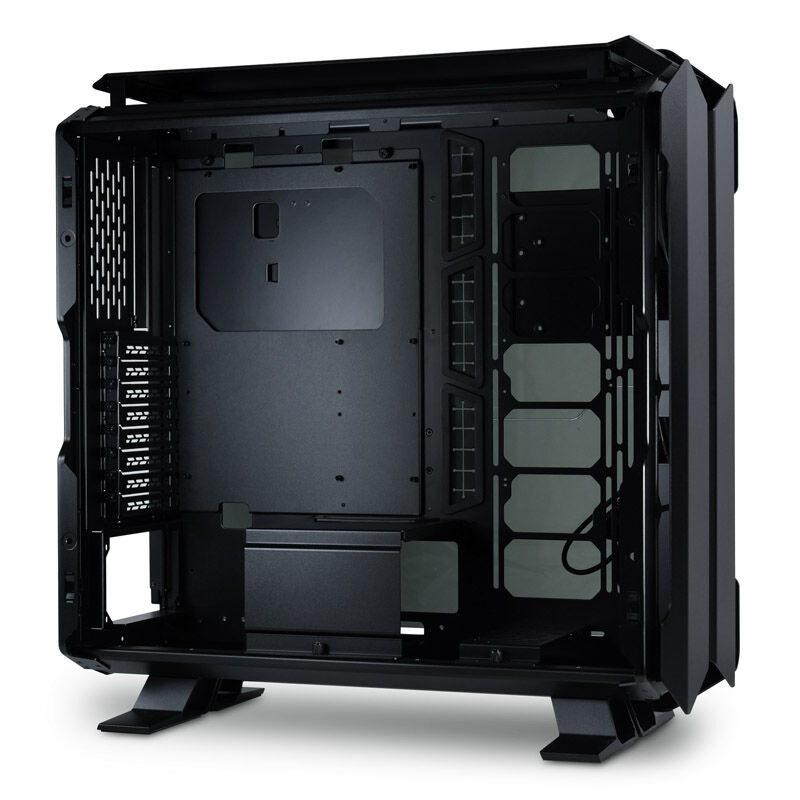

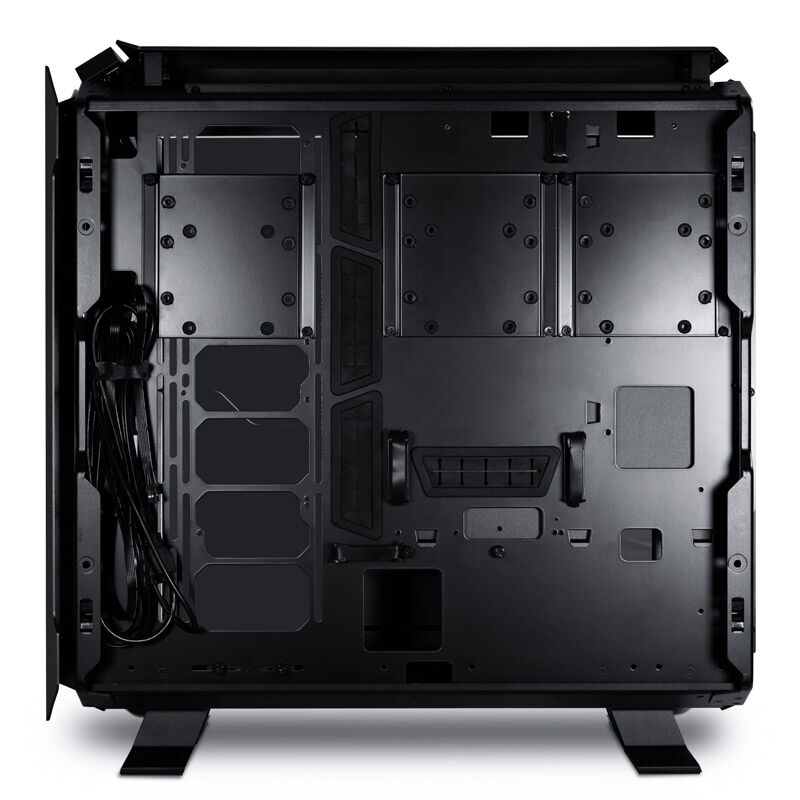

As is characteristic of Lian Lis housing, the Odyssey X is also made exclusively of high-quality materials, for example anodized and sand-blasted aluminum. In addition to the modular structure, the housing offers plenty of space for high-end components, which can be effectively presented thanks to the innovative side panels made of hardened double glass.
Technical Details
| Primary Colour | Black |
|---|---|
| Dimensions (Dynamic / Dynamic-R) | 234 x 558.5 x 575.5 mm (W x H x D) |
| Dimensions (Performance) | 368.6 x 596.7 x 575.5 mm (W x H x D) |
| Weight | 16.58 kg |
| Materials | Steel (Frame), Aluminium (Panels), Tempered Glass (Both Sides) |
| Form Factor | SSI-EEB, E-ATX, ATX, Micro-ATX, Mini-ITX |
| Total Fans Possible | Dynamic: Front: 3×120 / 2×140 mm, Top: 3×120 / 2×140 mm, Side: 3×120 / 2×140 mm Dynamic-R: Front: 3×120 / 2×140 mm, Base: 4×120 / 3×140 mm Performance: Front: 4×120 / 3×140 mm, Top: 3×120 / 2×140 mm |
| Radiator Mountings | Dynamic: Front: 360 / 280 mm, Side: 360 / 280 mm Dynamic-R: Front: 360 / 280 mm, Base: 480 / 420 mm Performance: Front: 480 / 420 mm, Top: 360 / 280 mm |
| Dust Filters | None |
| Drive Bays | 3x 3.5 / 2.5″ (internal) |
| PSU Support | 1x ATX (optional) |
| Expansion Slots | 8 |
| I/O Panel | 1x USB 3.1 Type-C (internal) 2x USB 3.0 Type-A (internal) 1x 3.5 mm Combo Audio Jack (4-Pole, TRRS) Power Button |
| Maximum GPU Length | 423 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 280 mm |
Specifications
| Primary Colour | Black |
|---|---|
| Dimensions | Length / Depth: 575.5 mm Width: 368.6 mm Height: 596.7 mm |
| Weight | 16.58 kg |
| Case Type | Aluminium Case, Full Tower |
| Motherboard Support | Compatible Formats: ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-EEB Max. Motherboard Format: SSI-EEB |
| Internal Dimensions | Max. CPU Cooler Height: 170 mm Max. GPU Length: 423 mm Max. PSU Length / Depth: 280 mm |
| Display Included | No |
| Power Supply | PSU Format: ATX Position: Rear Bottom |
| Fan Support | 120 mm fans: 23 140 mm fans: 16 |
| Radiator Support | 2x Quad (480 mm), 4x Dual (280 mm), 4x Triple (360 mm) |
| Drive Bays | 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined): 3 |
| Hot Swap Drive Bays | No |
| External Ports | USB 3.1 Type C: 1 USB 3.0 Type A: 2 Audio: 1x output + 1x input (3.5 mm jack, 3-pin, TRS) |
| Card Reader | No |
| Case Features | I/O Position: Front Side Panel: With Window Front Door: No Cable Management: No Filters Included: No Noise Dampening: No Mainboard Slide / Tray: No Remote Included: No Transport System: No |
| Expansion Slots | 8 |
| Features | Housing Feedthrough: No |
| Materials | Aluminium, Steel, Tempered Glass |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Included Fans | None |
£192.41£160.34 Inc VatEx Vat
