The male part of the high-end Koolance quick!
The new generation has been developed specifically for high-flow systems. It has the usual good Very good quality in workmanship and function, as one would expect from Koolance. The female and male parts are each provided with a locking bolt which when disconnecting a tilting impossible and thus seals the system 100% safe.
The male part of the high-end Koolance quick!
The new generation has been developed specifically for high-flow systems. It has the usual good Very good quality in workmanship and function, as one would expect from Koolance. The female and male parts are each provided with a locking bolt which when disconnecting a tilting impossible and thus seals the system 100% safe.
The male part of the high-end Koolance quick!
The new generation has been developed specifically for high-flow systems. It has the usual good Very good quality in workmanship and function, as one would expect from Koolance. The female and male parts are each provided with a locking bolt which when disconnecting a tilting impossible and thus seals the system 100% safe.
No products found
When connected additionally a silicone on the inside wall of the female part, which provides for additional leaks. So that during operation the compound does not dissolve, by means of a rotary movement, the two pieces are joined together, which are no longer be separated even with extreme force to be turned back until the connectors!
Please note that only the Koolance of VL3N are compatible with each other. Note: VL3 and VL3N have different locking mechanisms!
Technical details:
Material: Nickel-plated brass
Connection: 1/4
Overall length: 40mm
Max Diameter: 23mm
Width across: 21mm
Schott hole: 18mm
Thread length: 12mm
Inner diameter: 12mm
Delivery:

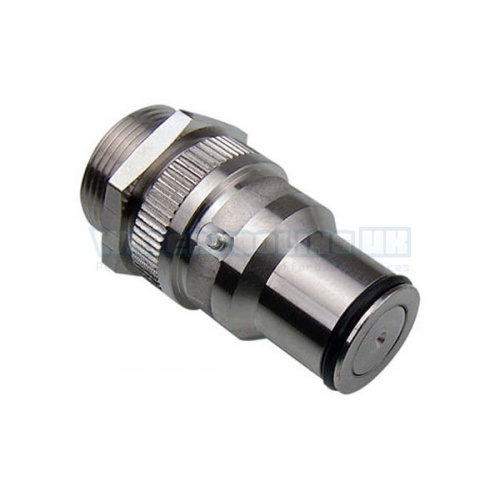

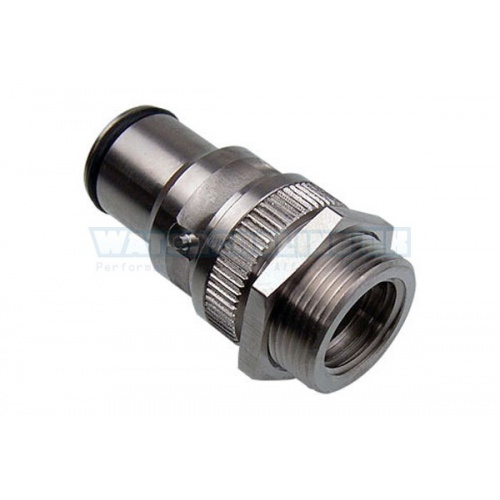

1x Koolance Quick Release Connector bulkhead G1/4 to plug (High Flow) – VL3N
Important note regarding use of the connectors:
To Ensure a tight seal between the plug and coupling units are designed for a very tight fit. When Repeatedly plugging the connectors in and out, this may lead to roughening of the O-ring or even tearing of the gasket. Hence the gaskets should always be kept moist when plugging in or out the connection!
Note: Not leak-free (ie, after separation from another 1-2 drops).
Note: If you use different versions of VL3 to VL2 VL3 or VL3N, it can cause your O-rings to seal damage and thus no longer. Also they should bring together the plug and clutch make it, that they are being used so that the seal does not damage the connector. This is not a complaint!
