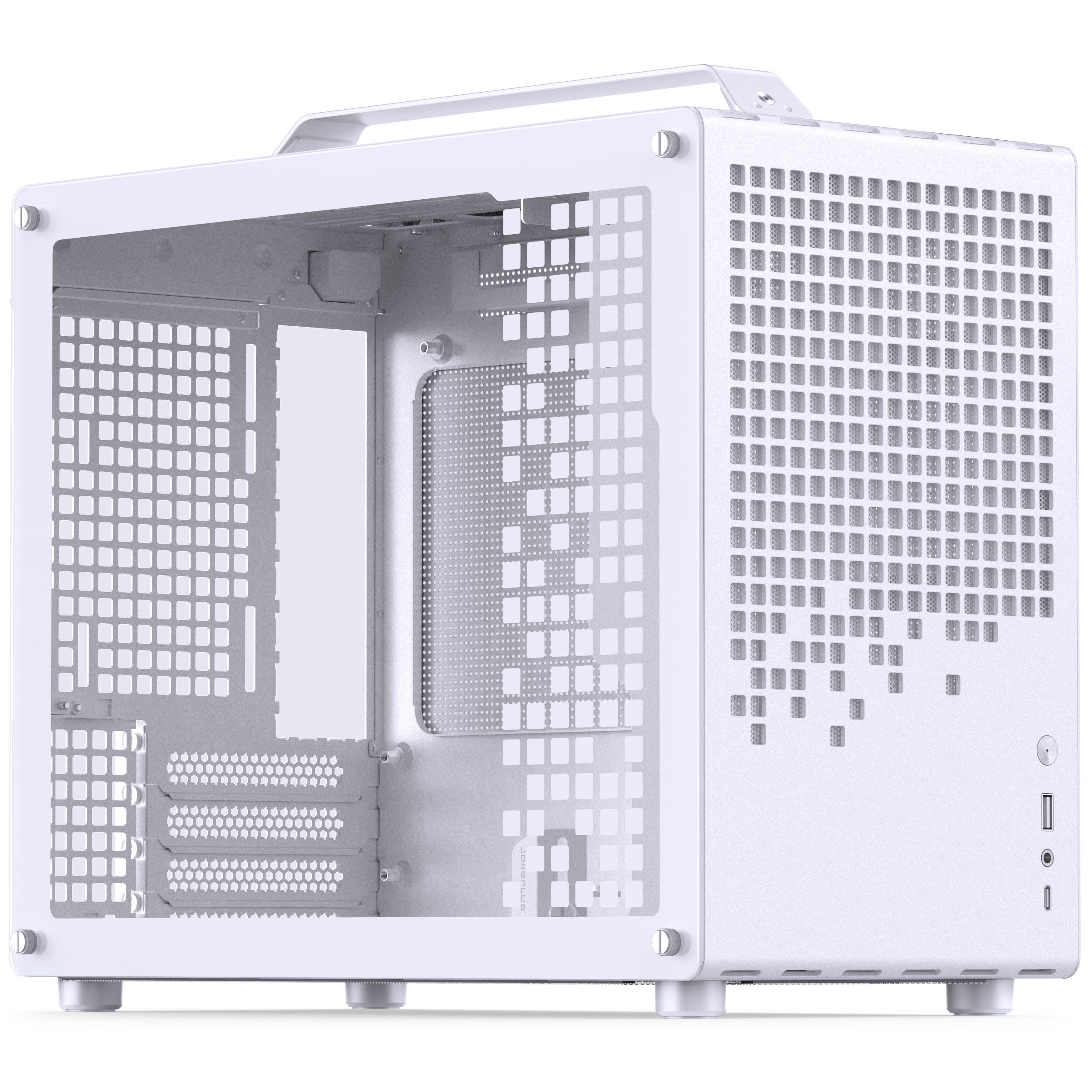

Compact gaming case, made of high-quality steel, for SFX/ATX PSUs and Mini-ITX/Micro-ATX motherboards (Intel and AMD), GPU up to 363 mm and 2x 2.5-inch drives
Features:
- Compact dimensions, including carrying handle - Perfect for taking along
- High-quality steel, front and lid with fine perforations for airflow
- Excellent workmanship
- Space for 240mm radiators
- Supports full-sized gaming graphics cards
- Supports Mini-ITX and Micro-ATX format motherboards
- Space for powerful SFX and ATX power supplies
- Excellent space utilization and consistently well-thought-out concept
Compact gaming case, made of high-quality steel, for SFX/ATX PSUs and Mini-ITX/Micro-ATX motherboards (Intel and AMD), GPU up to 363 mm and 2x 2.5-inch drives
Features:
- Compact dimensions, including carrying handle - Perfect for taking along
- High-quality steel, front and lid with fine perforations for airflow
- Excellent workmanship
- Space for 240mm radiators
- Supports full-sized...
Compact gaming case, made of high-quality steel, for SFX/ATX PSUs and Mini-ITX/Micro-ATX motherboards (Intel and AMD), GPU up to 363 mm and 2x 2.5-inch drives
Features:
- Compact dimensions, including carrying handle - Perfect for taking along
- High-quality steel, front and lid with fine perforations for airflow
- Excellent workmanship
- Space for 240mm radiators
- Supports full-sized...
Features:
– Compact dimensions, including carrying handle – Perfect for taking along
– High-quality steel, front and lid with fine perforations for airflow
– Excellent workmanship
– Space for 240mm radiators
– Supports full-sized gaming graphics cards
– Supports Mini-ITX and Micro-ATX format motherboards
– Space for powerful SFX and ATX power supplies
– Excellent space utilization and consistently well-thought-out concept
Assembling a compact desktop mini-host is not only fun but also presents some challenges. As the case size decreases, conflicts such as compatibility, heat dissipation, and the assembly experience increase.
Compact design with high compatibility

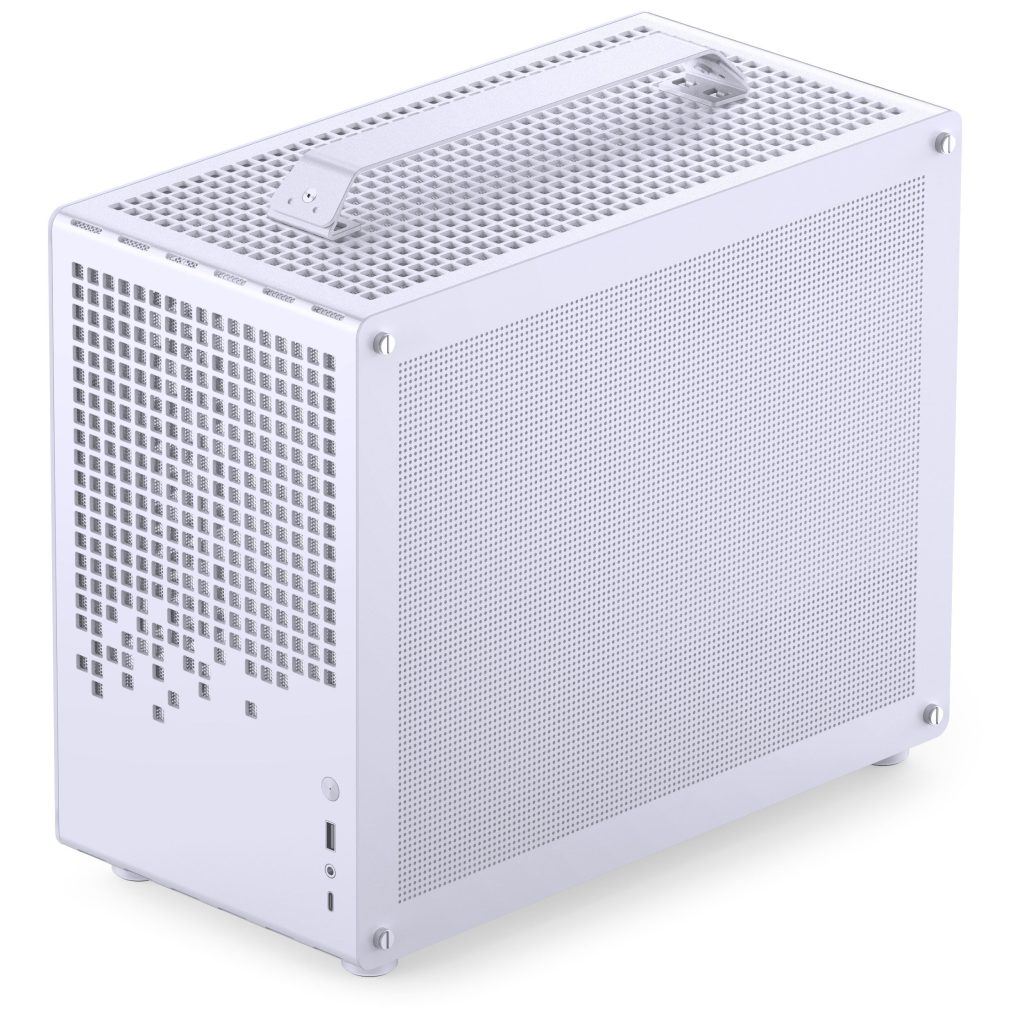

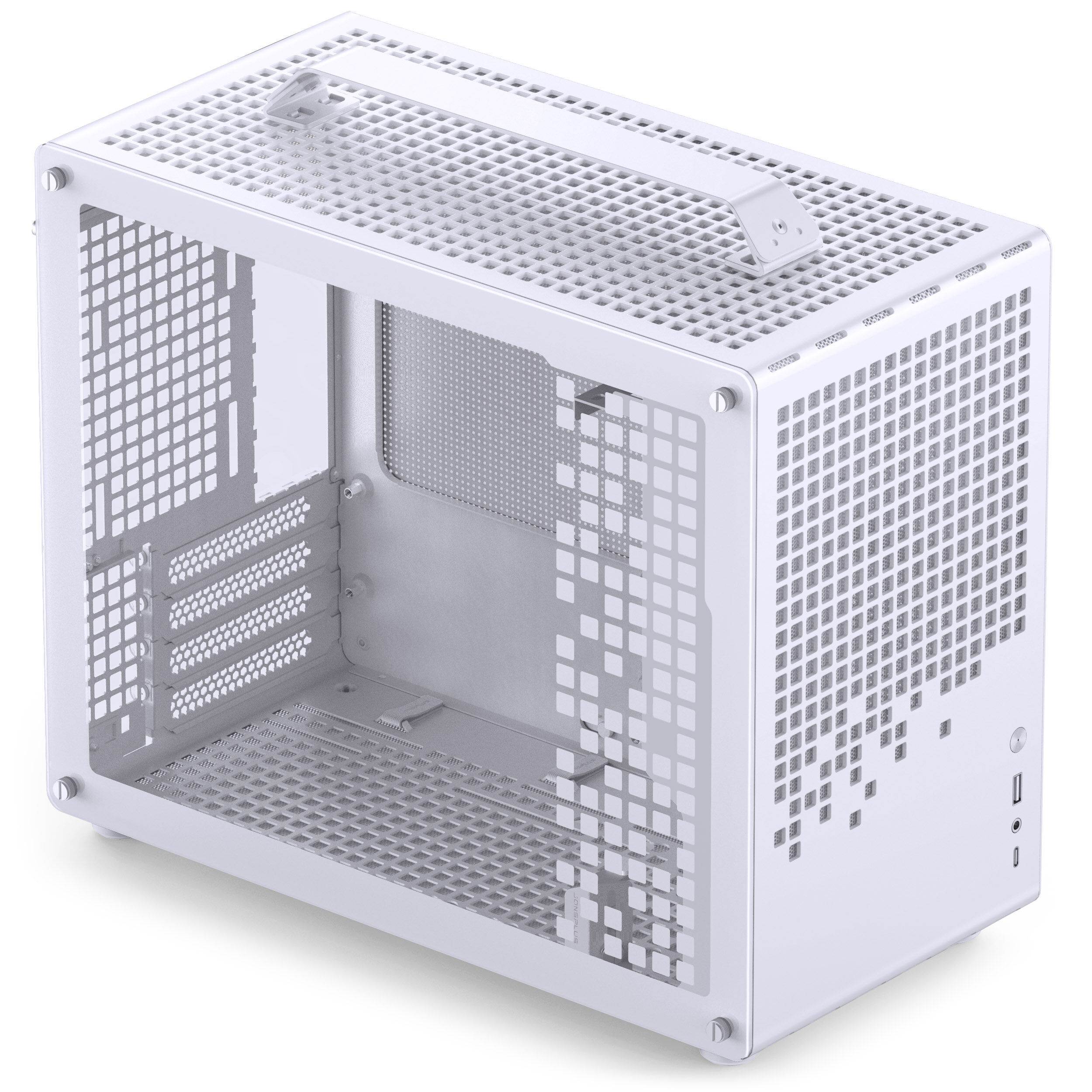

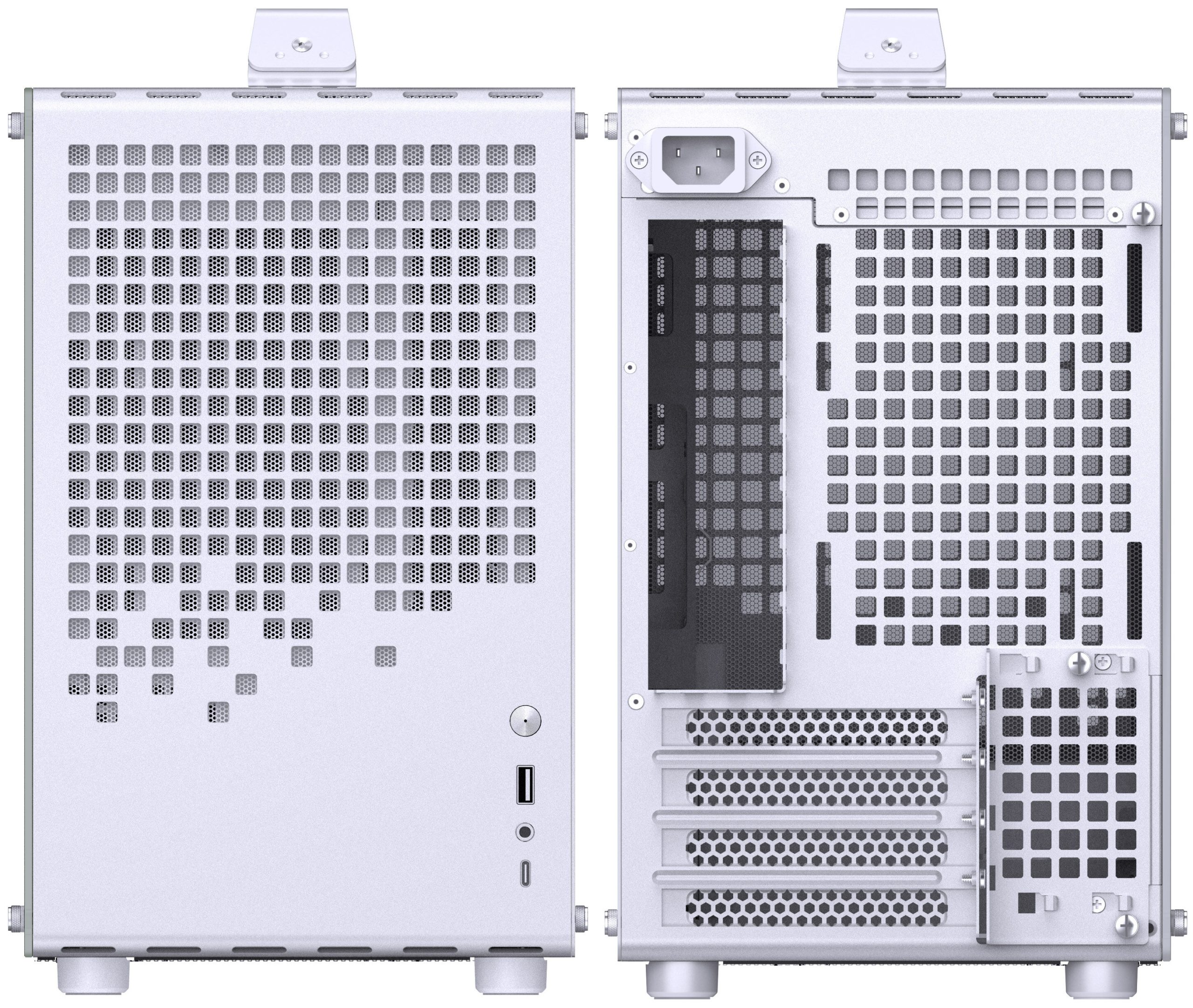

The material of the case is up to 2 mm thick and is equipped with a large number of mesh openings to improve heat dissipation while also providing a visual treat.

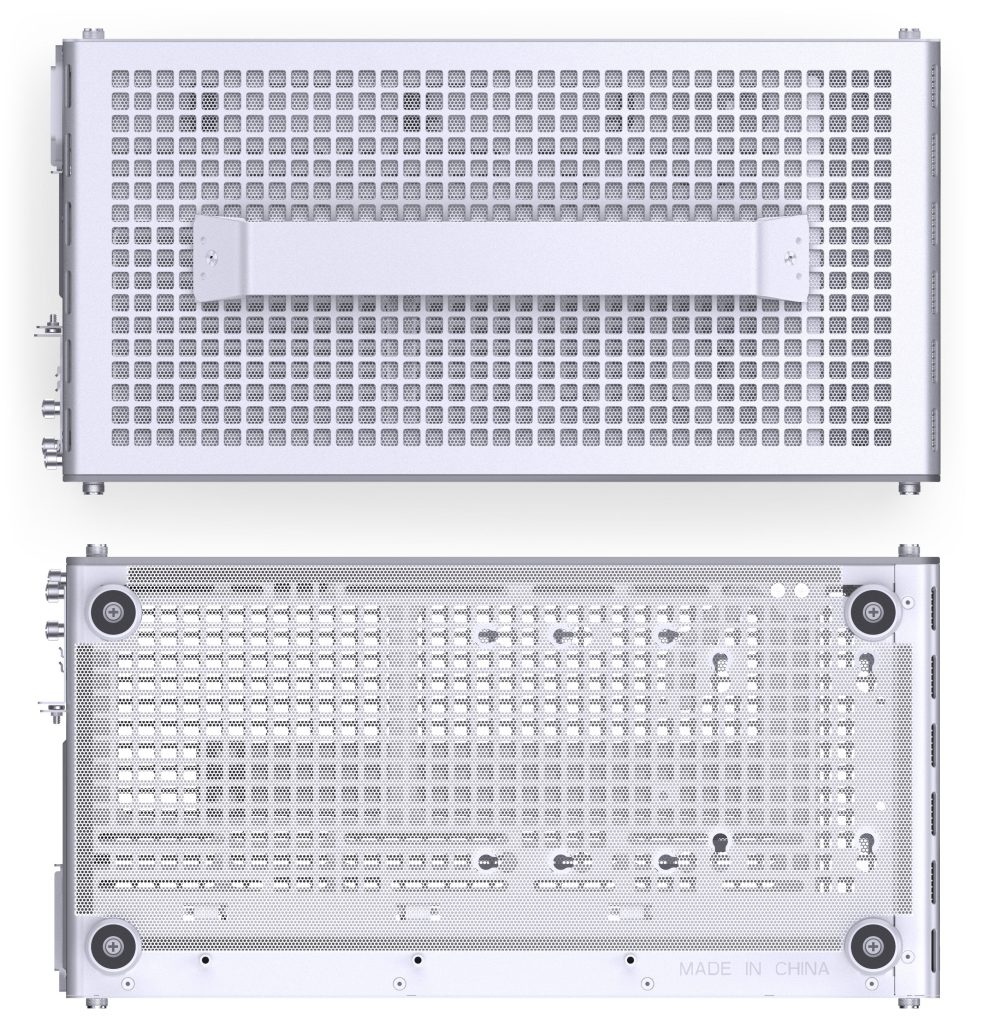

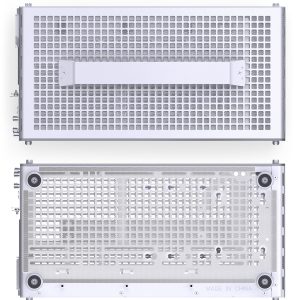

The removable handle, with a thickness of 2 mm, allows for easy mobility and can be mounted and dismounted without affecting the internal hardware installation. It is attached to the case with a tool-free hook connection, ensuring that no screw holes mar the appearance after disassembly.
Space saving yet powerful

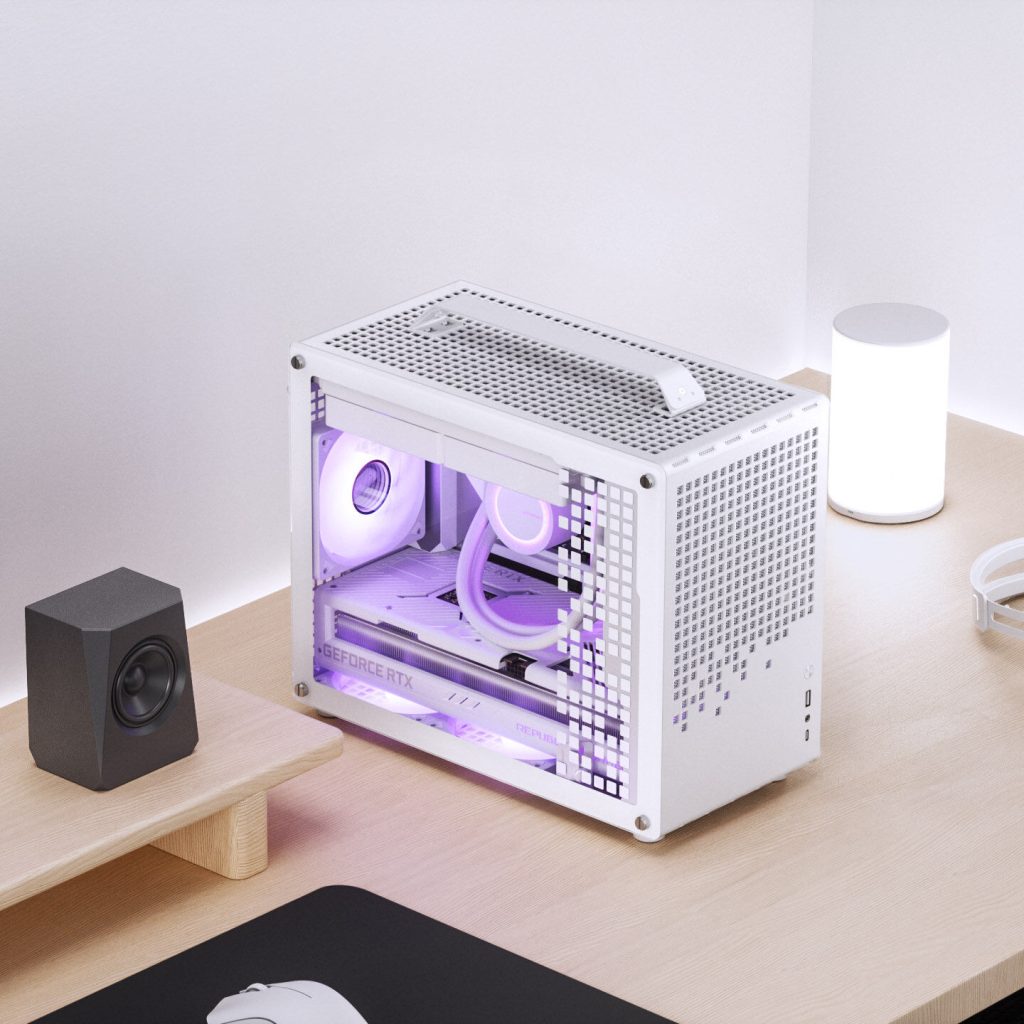

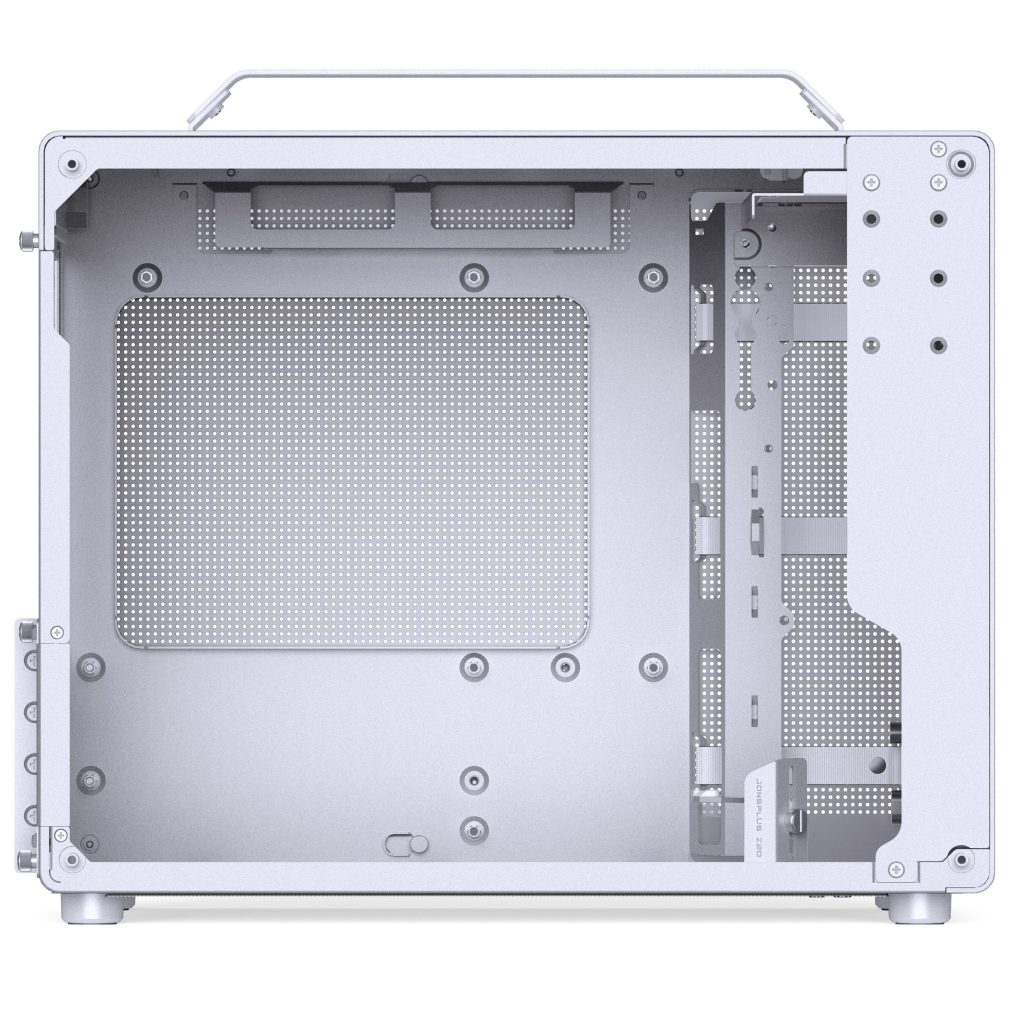

With a volume of only about 20 liters, it fits effortlessly into various desktop environments. The main dimensions are 370 mm * 186 mm * 295 mm (depth/width/height, excluding handles/feet and other protrusions) and allow compatibility with full-sized Micro-ATX motherboards and long graphics cards that are nearly the dimensions of an ITX case.
Maximum performance even in limited space

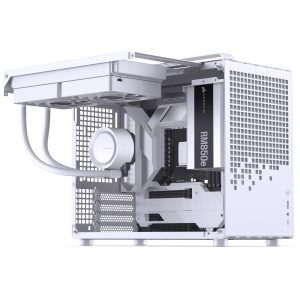

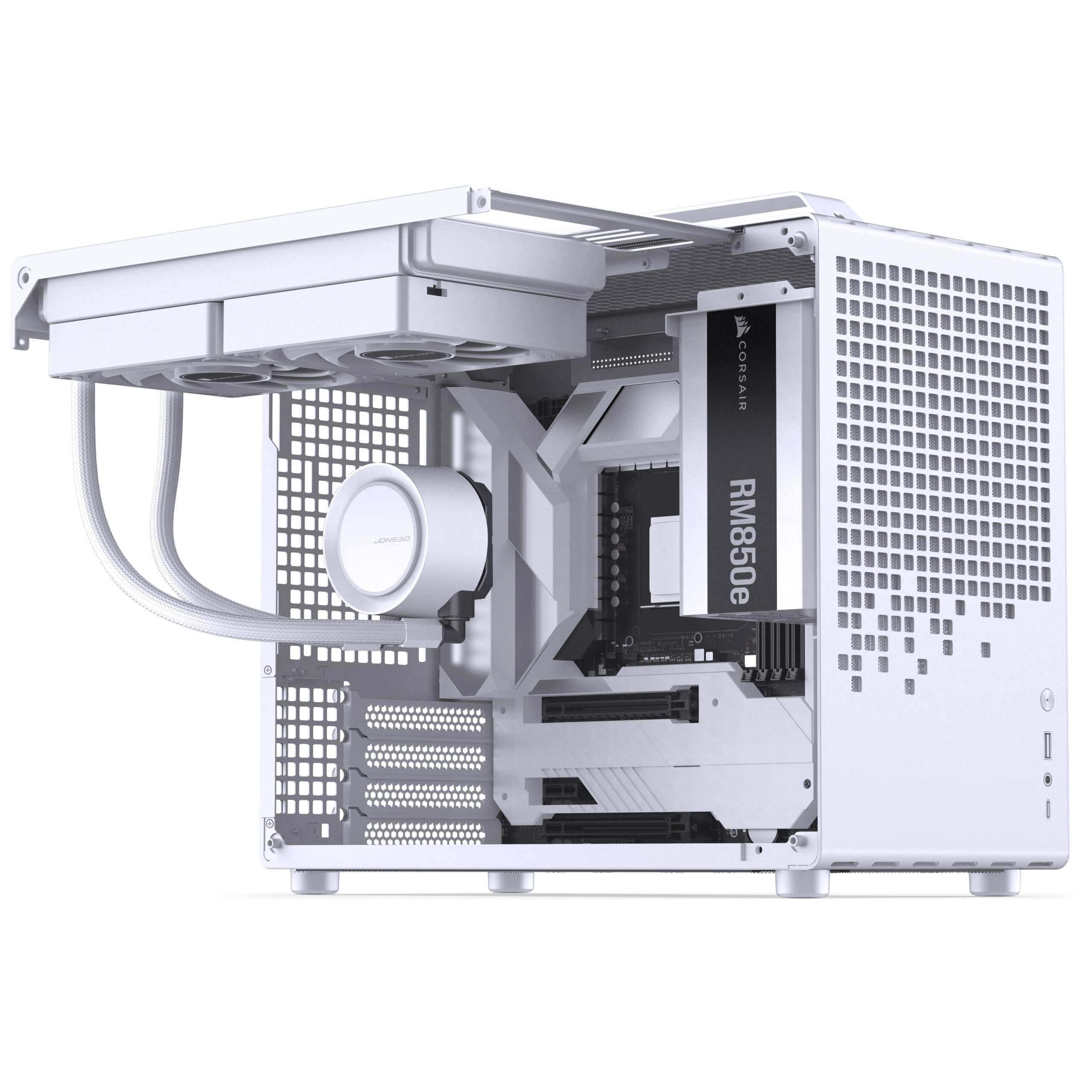

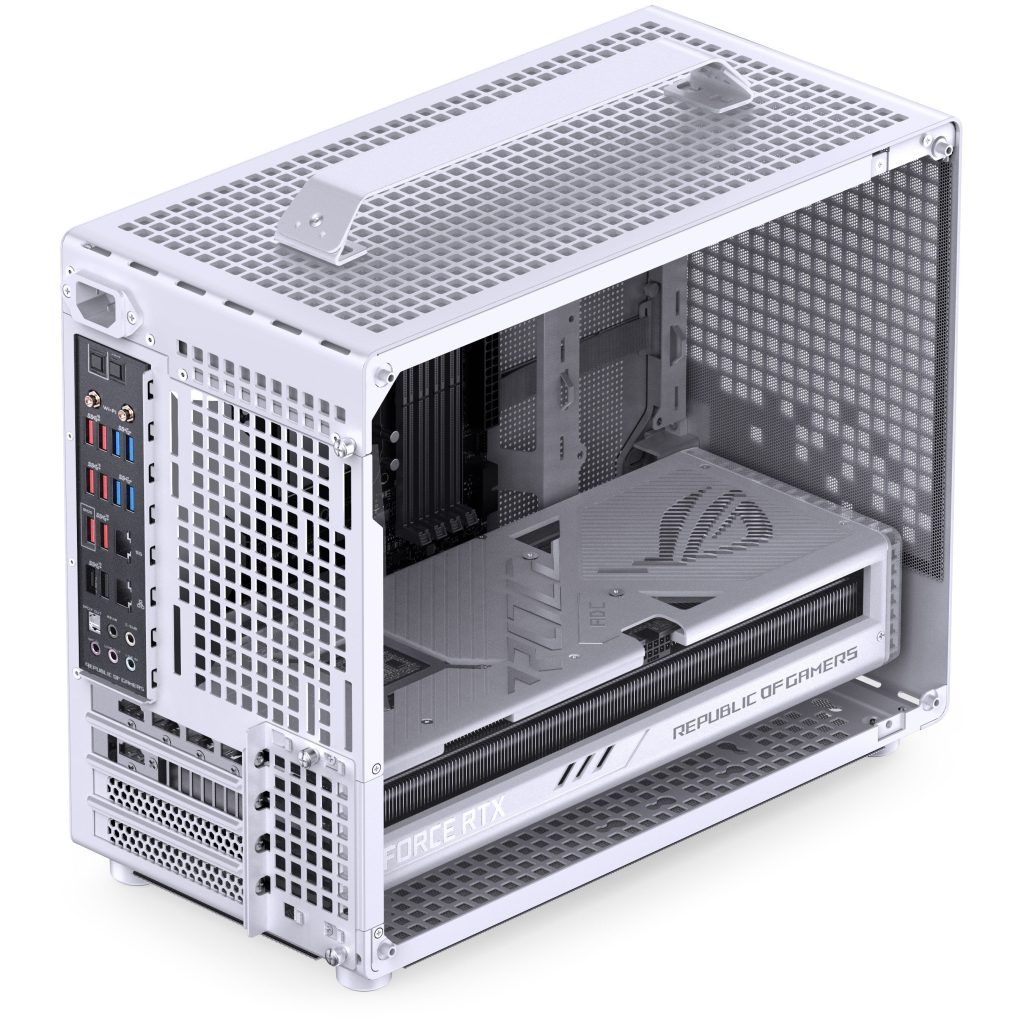

It supports 240mm radiators with a thickness of 30 mm. The pull-out holder facilitates installation and effectively reduces the difficulty of hardware installation in tight spaces.

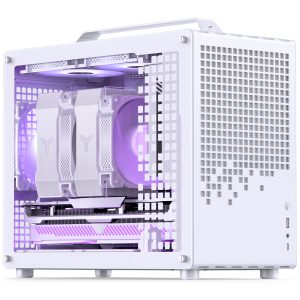

The Z20 case is compatible with CPU coolers up to a height of 164 mm. In combination with top-mounted fans and a rear-mounted fan, CPU heat can be dissipated quickly.
Important: When installing an Intel CPU, the height limit for the cooler is 164 mm, while for AMD CPUs, the height limit is 163 mm.
| Technical Details | |
|---|---|
| Primary Colour | White |
| Dimensions (W × H × D) | 370 × 186 × 295 mm |
| Weight | 3.7 kg |
| Material | 2 mm Steel |
| Motherboard Form Factor | Mini-ITX, Micro-ATX |
| Maximum Radiator Support | 240 mm |
| Drive Bays | Up to 3× 2.5″, Up to 1× 3.5″ |
| Expansion Slots | 4 |
| USB 3.1 Type-C | 1× (USB 3.2 Gen 2, 10 Gbit/s) |
| USB 3.0 Type-A | 1× (USB 3.2 Gen 1, 5 Gbit/s) |
| Max. CPU Cooler Height | 164 mm |
| Max. GPU Length | 363 mm |
| Specification | |
|---|---|
| Primary Colour | White |
| Length / Depth | 295 mm |
| Width | 370 mm |
| Height | 186 mm |
| Weight | 3.7 kg |
| Case Type | Mini Case |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Max. CPU Cooler Height | 164 mm |
| Max. GPU Length | 363 mm |
| Max. PSU Length | 180 mm |
| Display Included | No |
| PSU Included | No |
| PSU Format | ATX, SFX, SFX-L |
| Power Supply Position | Front |
| Riser Cable Included | No |
| Max. Number of Fans | 5 |
| 92 mm Fans | 1 |
| 120 mm Fans | 5 |
| 140 mm Fans | 4 |
| Max. Radiator Compatibility | 1× Dual (240 mm) |
| Max. 2.5″ Drives | 3 |
| Max. 3.5″ Drives | 1 |
| Max. 5.25″ Drives | 0 |
| Hot-swap Drive Bays | No |
| Audio I/O | 1× output/input combo (3.5 mm, 4-pin TRRS) |
| Card Reader | No |
| I/O Position | Front |
| Side Panel | With window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front Door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Transport System | Yes |
| Back Connect Support | No |
| Expansion Slots | 4 |
| Housing Feedthrough | No |
| Fan Controller / Hub | No |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | Aluminium, Plastic, SPCC (Steel), Tempered Glass |
| Lighting / RGB | No |
| Included Fans | None |
£84.20£70.17 Inc VatEx Vat
