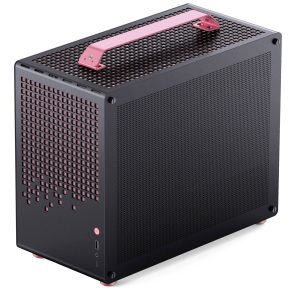

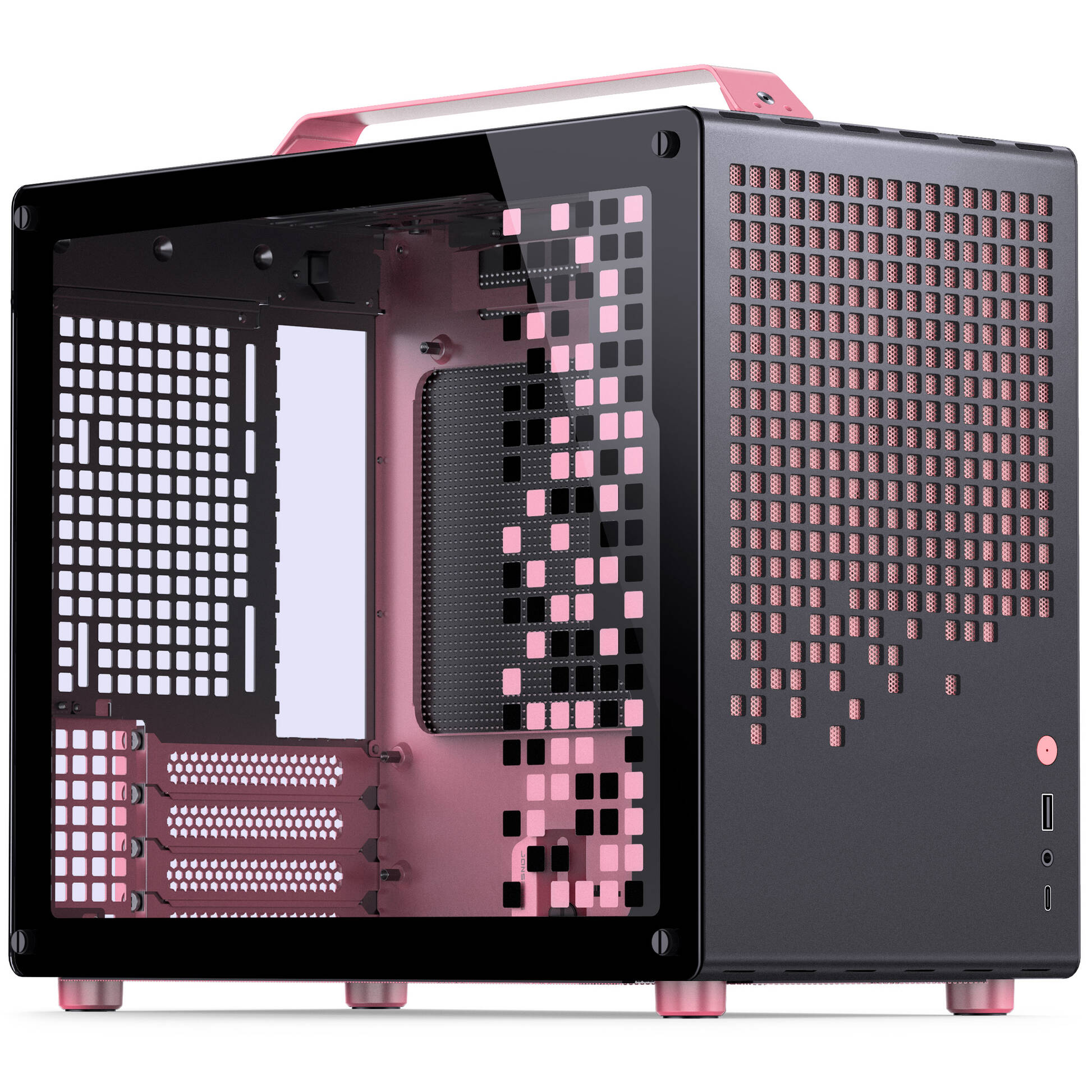

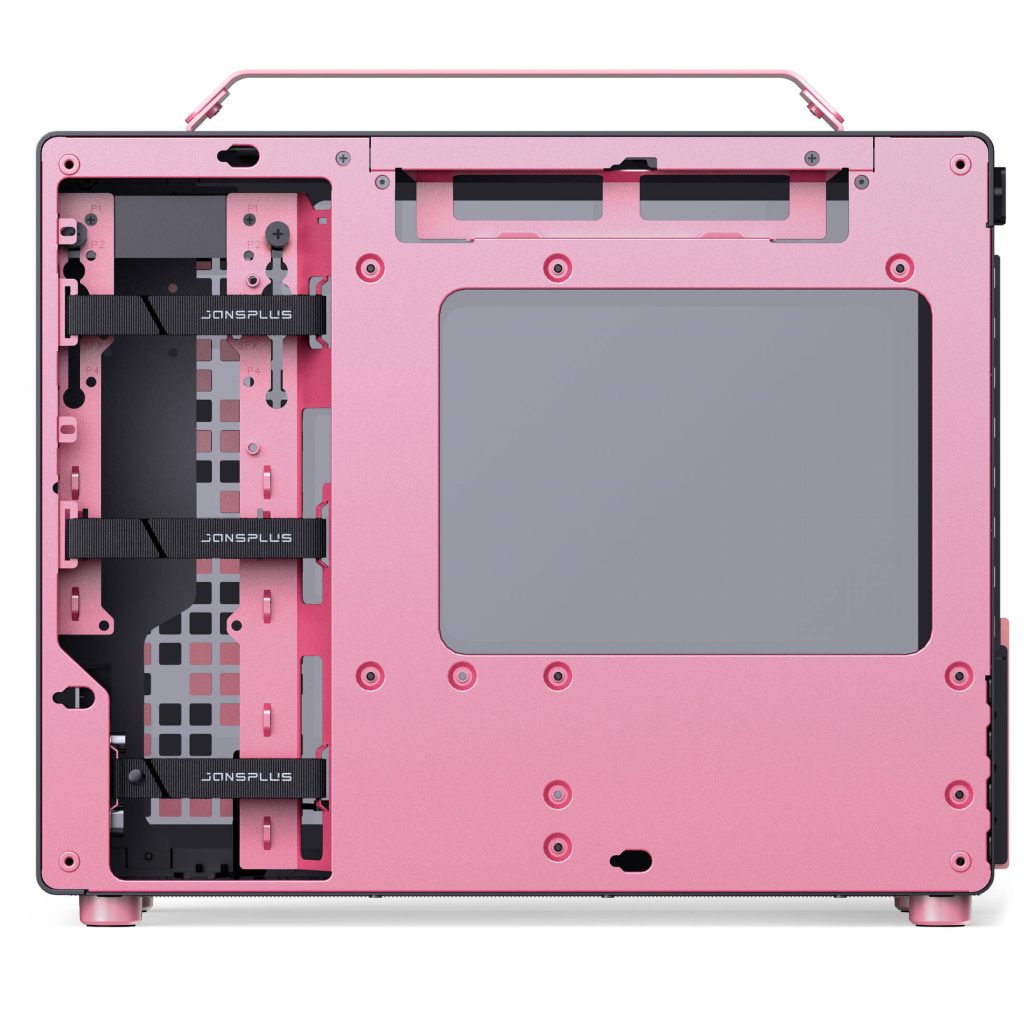

Compact gaming case, made of high-quality steel, for SFX PSUs and Mini-ITX/Micro-ATX motherboards (Intel and AMD), GPU up to 363 mm and 2x 2.5-inch drives
Features:
- Compact dimensions, including carrying handle - Perfect for taking along
- High-quality steel, front and lid with fine perforations for airflow
- Excellent workmanship
- Space for 240mm radiators
- Supports full-size gaming graphics cards
- Supports Mini-ITX and Micro-ATX format motherboards
- Space for powerful SFX power supplies
- Excellent space utilization and consistently well-thought-out concept
Compact gaming case, made of high-quality steel, for SFX PSUs and Mini-ITX/Micro-ATX motherboards (Intel and AMD), GPU up to 363 mm and 2x 2.5-inch drives
Features:
- Compact dimensions, including carrying handle - Perfect for taking along
- High-quality steel, front and lid with fine perforations for airflow
- Excellent workmanship
- Space for 240mm radiators
- Supports full-size gaming...
Compact gaming case, made of high-quality steel, for SFX PSUs and Mini-ITX/Micro-ATX motherboards (Intel and AMD), GPU up to 363 mm and 2x 2.5-inch drives
Features:
- Compact dimensions, including carrying handle - Perfect for taking along
- High-quality steel, front and lid with fine perforations for airflow
- Excellent workmanship
- Space for 240mm radiators
- Supports full-size gaming...
Features:
– Compact dimensions, including carrying handle – Perfect for taking along
– High-quality steel, front and lid with fine perforations for airflow
– Excellent workmanship
– Space for 240mm radiators
– Supports full-size gaming graphics cards
– Supports Mini-ITX and Micro-ATX format motherboards
– Space for powerful SFX power supplies
– Excellent space utilization and consistently well-thought-out concept
Assembling a compact desktop mini-host is not only fun but also presents some challenges. As the case size decreases, conflicts such as compatibility, heat dissipation, and the assembly experience increase.
Compact design with high compatibility

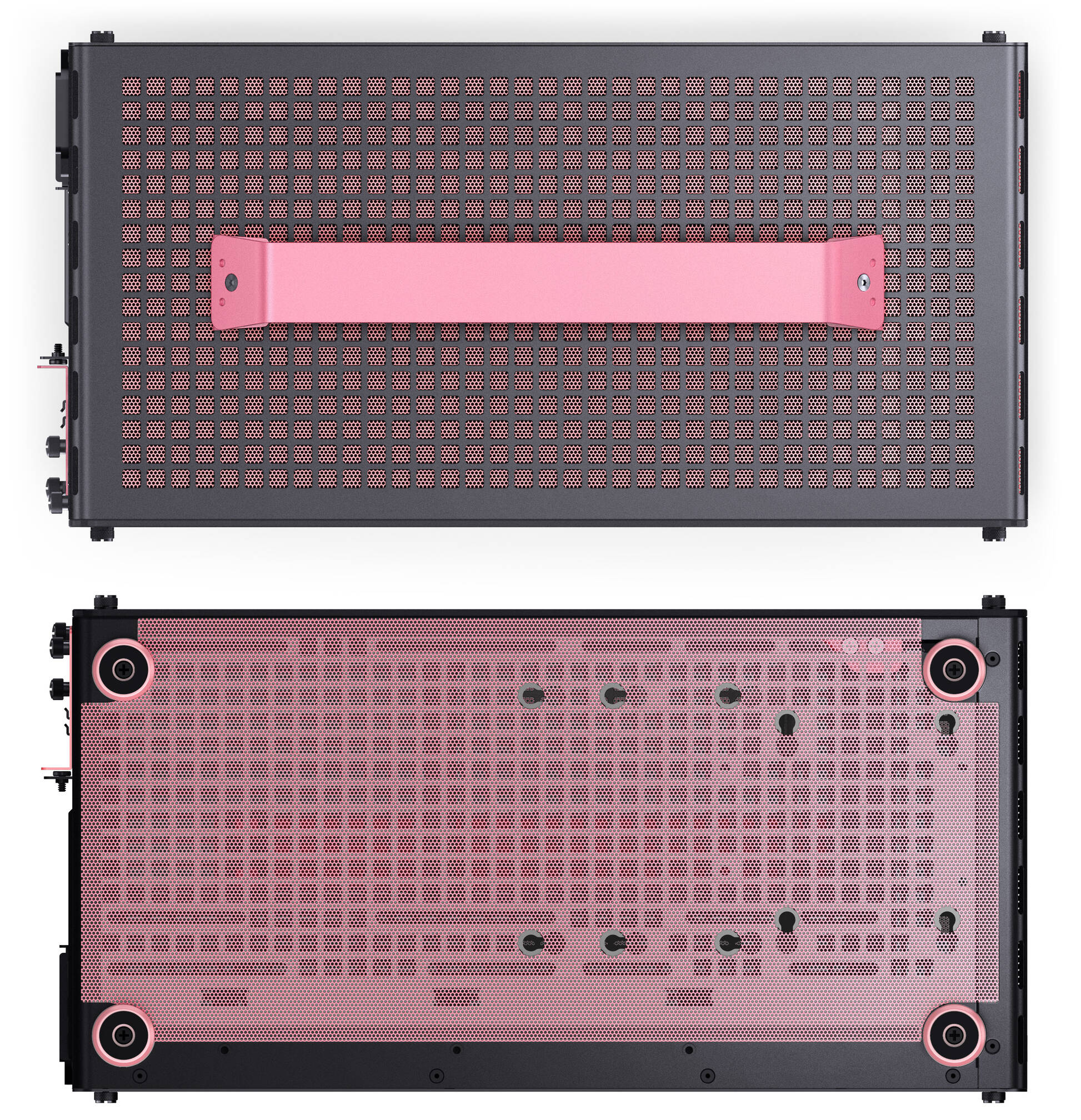

The material of the case is up to 2 mm thick and features a large number of mesh openings to improve heat dissipation while also providing a visual treat.

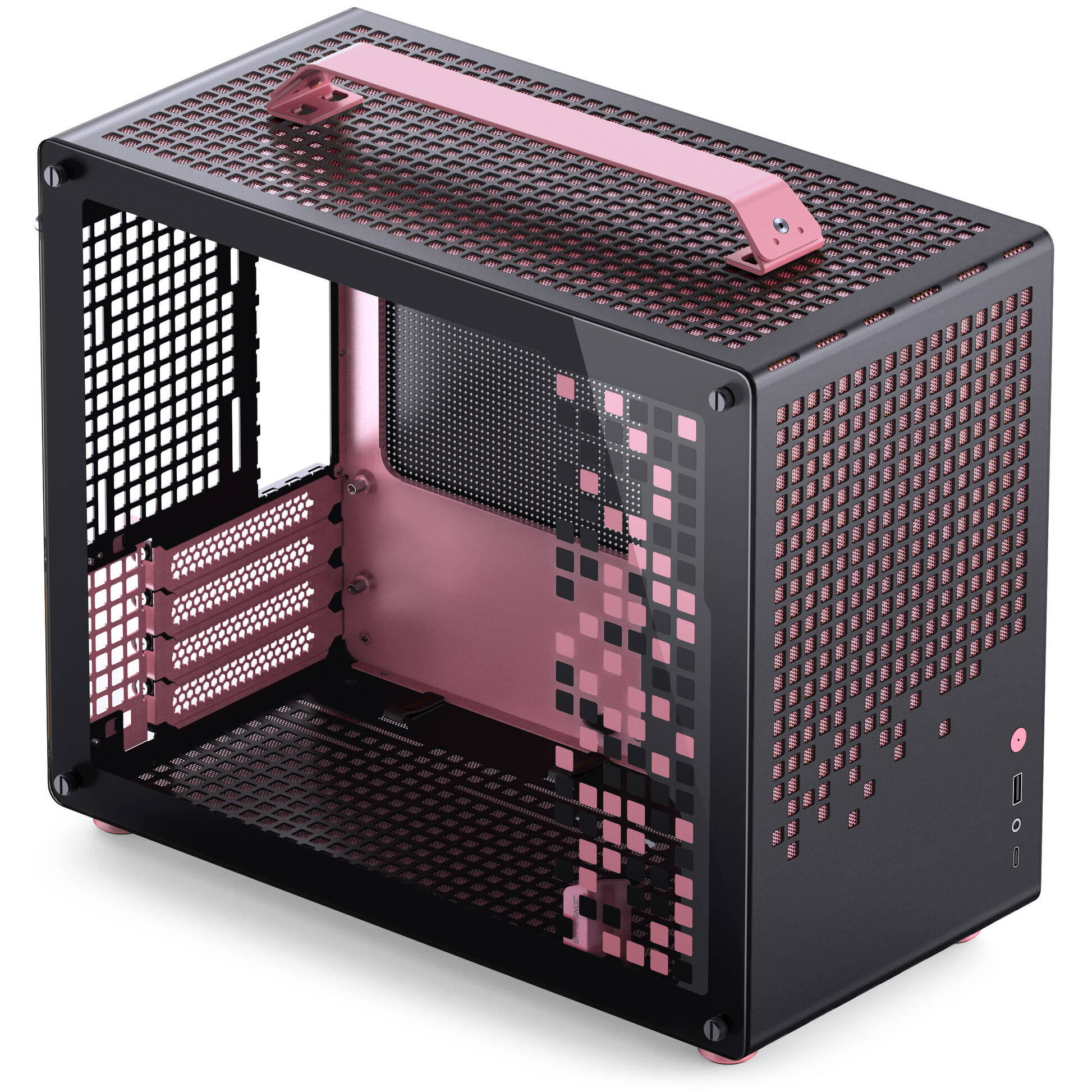

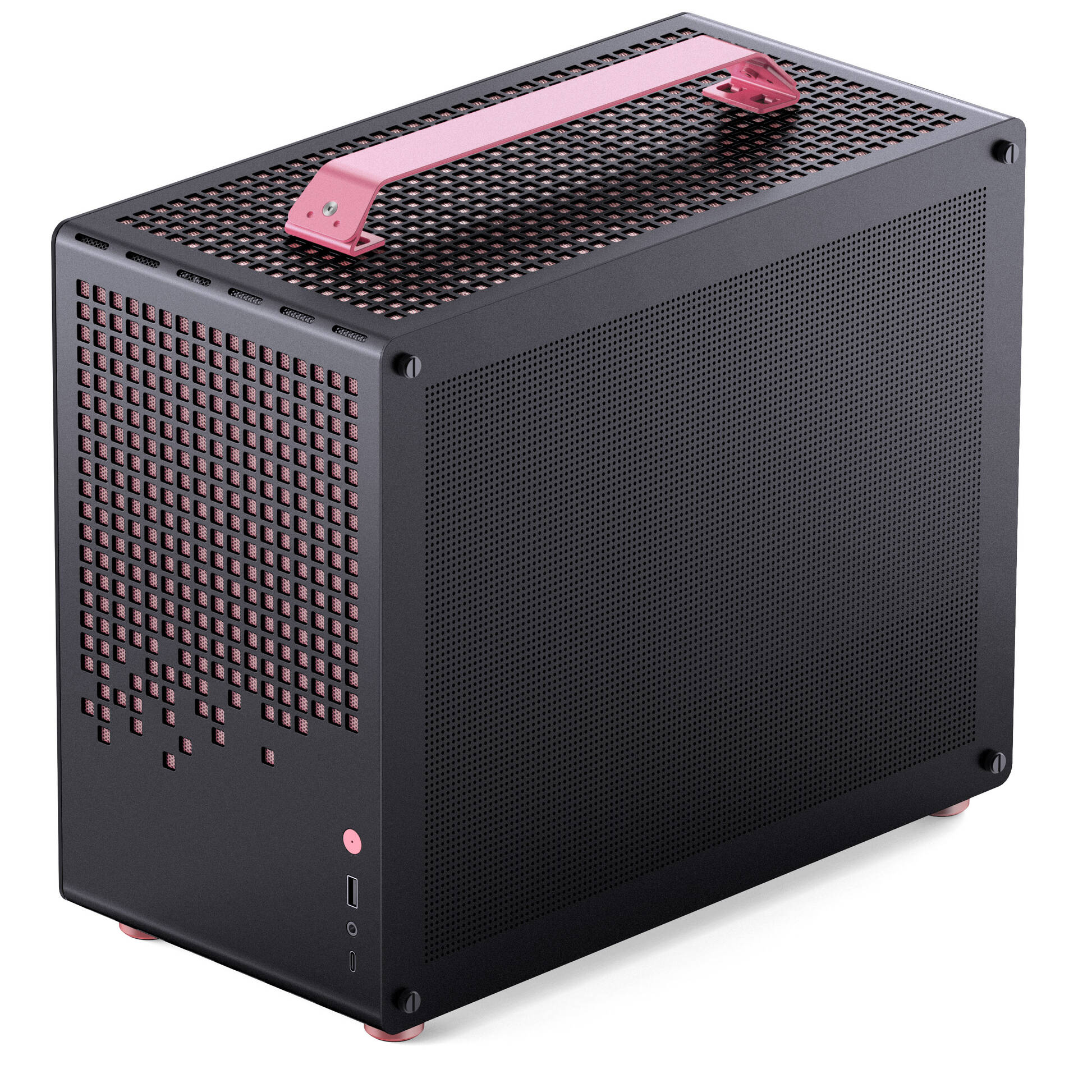

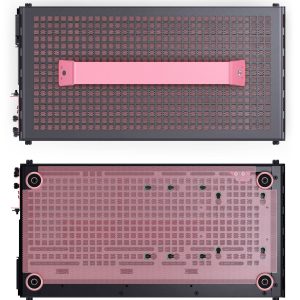

The removable handle, with a thickness of 2 mm, allows for easy mobility and can be effortlessly mounted and dismounted without affecting the internal hardware installation. It is attached to the case with a tool-free hook connection, ensuring that no screw holes mar the appearance after disassembly.
Space saving yet powerful

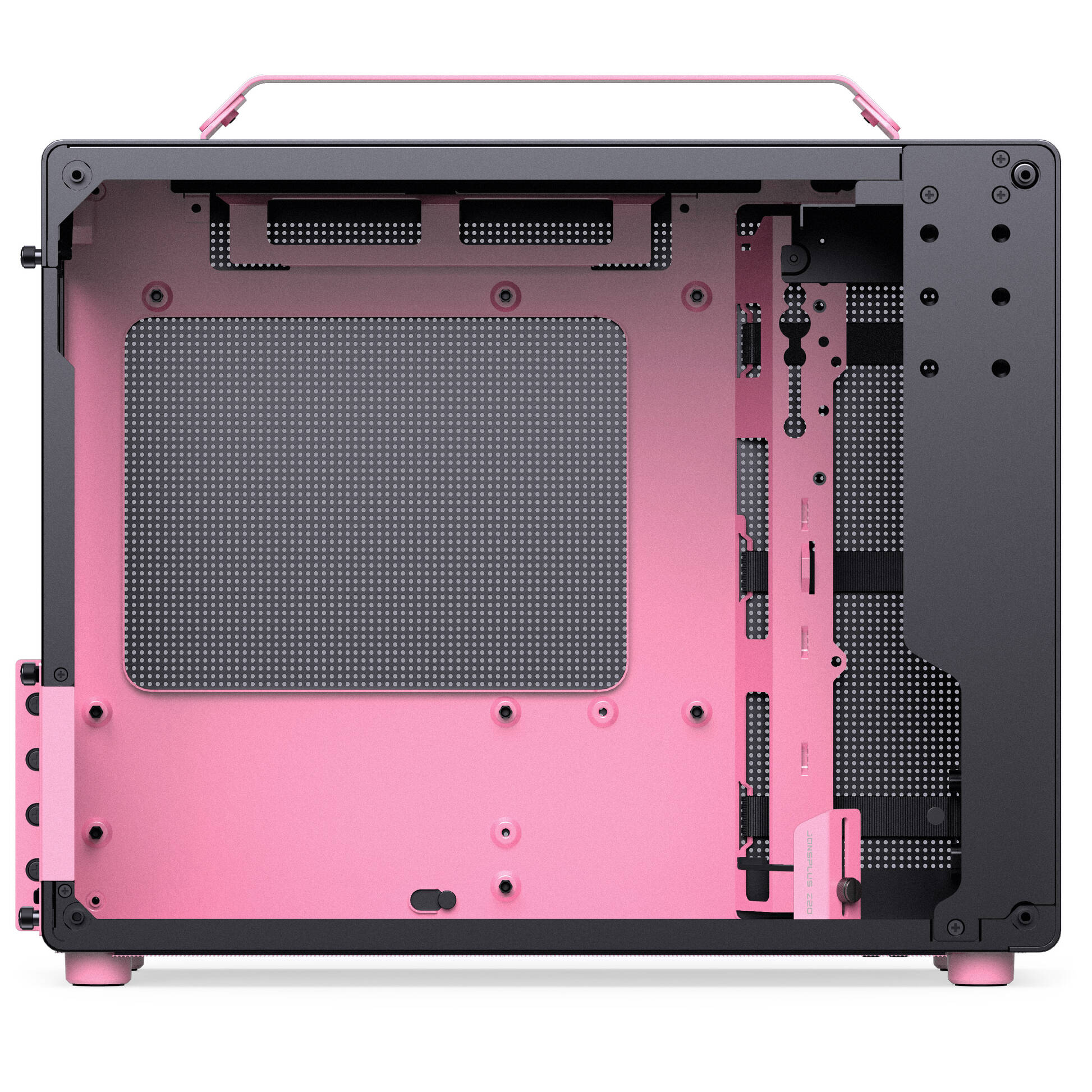

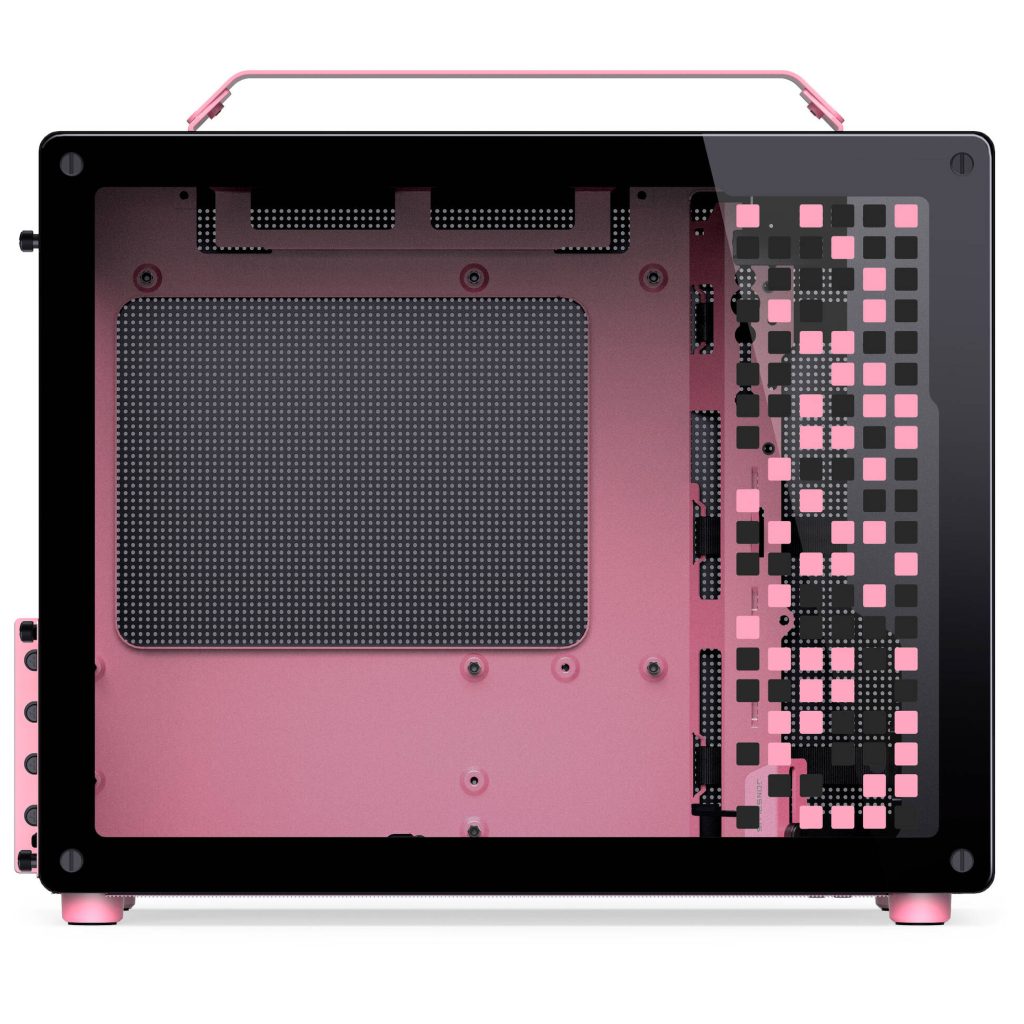

With a volume of only about 20 liters, it fits effortlessly into various desktop environments. The main dimensions are 370 mm * 186 mm * 295 mm (Depth/Width/Height, excluding handles/feet and other protrusions) and allow compatibility with full-size Micro-ATX motherboards and long graphics cards that are nearly the dimensions of an ITX case.
Maximum performance even in limited space
It supports 240mm radiators with a thickness of 30mm. The pull-out holder facilitates installation and effectively reduces the difficulty of hardware installation in tight spaces.
The Z20 case is compatible with CPU coolers up to a height of 164 mm. Combined with top-mounted fans and a rear-mounted fan, CPU heat can be dissipated quickly.
Important: When installing an Intel CPU, the cooler height limit is 164 mm; for AMD CPUs, the cooler height limit is 163 mm.
Note: Due to the compact design, there is limited space for the graphics card power connection. As these should not be bent, special 12VHPWR adapters like the ones from Cablemod are recommended.
| Technical Details | |
|---|---|
| Dimensions | 370 x 186 x 295 mm (W x H x D) |
| Colour | Black, Pink |
| Material | 2 mm steel |
| Weight | 3.7 kg |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Cooling | Max CPU Cooler Height: 164 mm, Max Radiator Size: 240 mm |
| Drive Bays | Up to 3x 2.5″ + 1x 3.5″ |
| Expansion Slots | 4 |
| I/O Panel | 1x USB 3.1 Type-C (10 Gbit/s) 1x USB 3.0 Type-A (5 Gbit/s) |
| Graphics Card Support | Max Length: 363 mm |
| Colour | |
|---|---|
| Primary Colour | Black |
| Secondary Colour | Pink |
| Dimensions | |
| Length / Depth | 295 mm |
| Width | 370 mm |
| Height | 186 mm |
| Weight | 5 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 164 mm |
| Max. GPU Length | 363 mm |
| Max. PSU Length / Depth | 180 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU included | No |
| PSU Format | ATX, SFX, SFX-L |
| Power Supply Position | Front |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Max. Number of Fans | 5 |
| 92 mm fans | 1 |
| 120 mm fans | 5 |
| 140 mm fans | 4 |
| Radiator Support | |
| Max. Radiator Compatibility | 1x Dual (240 mm) |
| Drive Bays | |
| Max. 2.5 Inch Drives | 3 |
| Max. 3.5 Inch Drives | 1 |
| Max. 5.25 Inch Drives | 0 |
| Hot swap drive bays | No |
| External Ports | |
| USB 3.1 (external) Type C | 1 |
| USB 3.0 (external) Type A | 1 |
| Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
| Card reader | No |
| Case Features | |

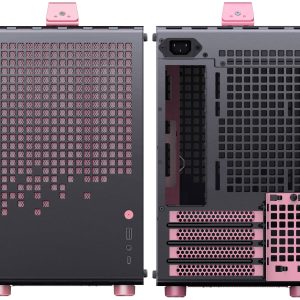

| I/O position | Front |
| Side panel | With window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Filter Position | Bottom, Back |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Transport System | Yes |
| Back Connect | |
| Back Connect | No |
| Expansion Slots | |
| Expansion slots / PCI slots | 4 |
| Features | |
| Housing Feedthrough | No |
| Fan Controller / Fan Hub | No |
| Mounting | |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Materials | SPCC (steel), Tempered Glass |
| Lighting | |
| Lighting / RGB | No |
| Additional Contents | |
| Included fans | None |
£88.99£74.16 Inc VatEx Vat
