White mini tower, motherboard up to Micro-ATX, 3x 2.5- or 3.5-inch drives, CPU cooler up to 145 mm height, GPU up to 260 mm, 2x 120 mm fans installed at the front
Features:
- Stylish mini case with three sides made of tempered glass
- Two 120 mm fans installed at the front, with an additional fan up to 92 mm possible at the rear
- Supports Micro-ATX motherboards and CPU cooler height up to 145 mm
- GPUs up to 260 mm in length
- Up to three 2.5- or 3.5-inch drives
White mini tower, motherboard up to Micro-ATX, 3x 2.5- or 3.5-inch drives, CPU cooler up to 145 mm height, GPU up to 260 mm, 2x 120 mm fans installed at the front
Features:
- Stylish mini case with three sides made of tempered glass
- Two 120 mm fans installed at the front, with an additional fan up to 92 mm possible at the rear
- Supports Micro-ATX motherboards and CPU cooler height up ...
White mini tower, motherboard up to Micro-ATX, 3x 2.5- or 3.5-inch drives, CPU cooler up to 145 mm height, GPU up to 260 mm, 2x 120 mm fans installed at the front
Features:
- Stylish mini case with three sides made of tempered glass
- Two 120 mm fans installed at the front, with an additional fan up to 92 mm possible at the rear
- Supports Micro-ATX motherboards and CPU cooler height up ...
Features:
– Stylish mini case with three sides made of tempered glass
– Two 120 mm fans installed at the front, with an additional fan up to 92 mm possible at the rear
– Supports Micro-ATX motherboards and CPU cooler height up to 145 mm
– GPUs up to 260 mm in length
– Up to three 2.5- or 3.5-inch drives

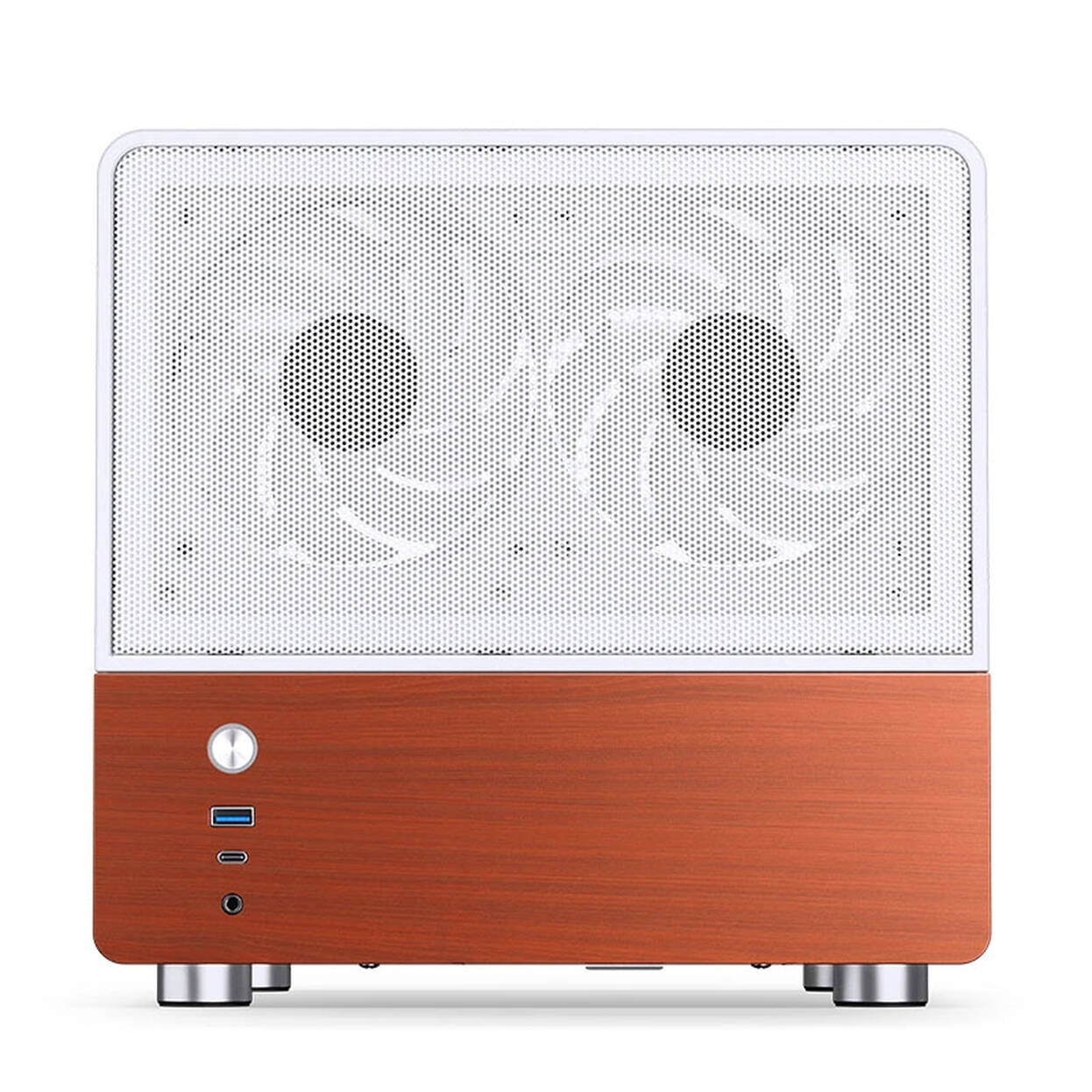

The Jonsbo V12 in detail

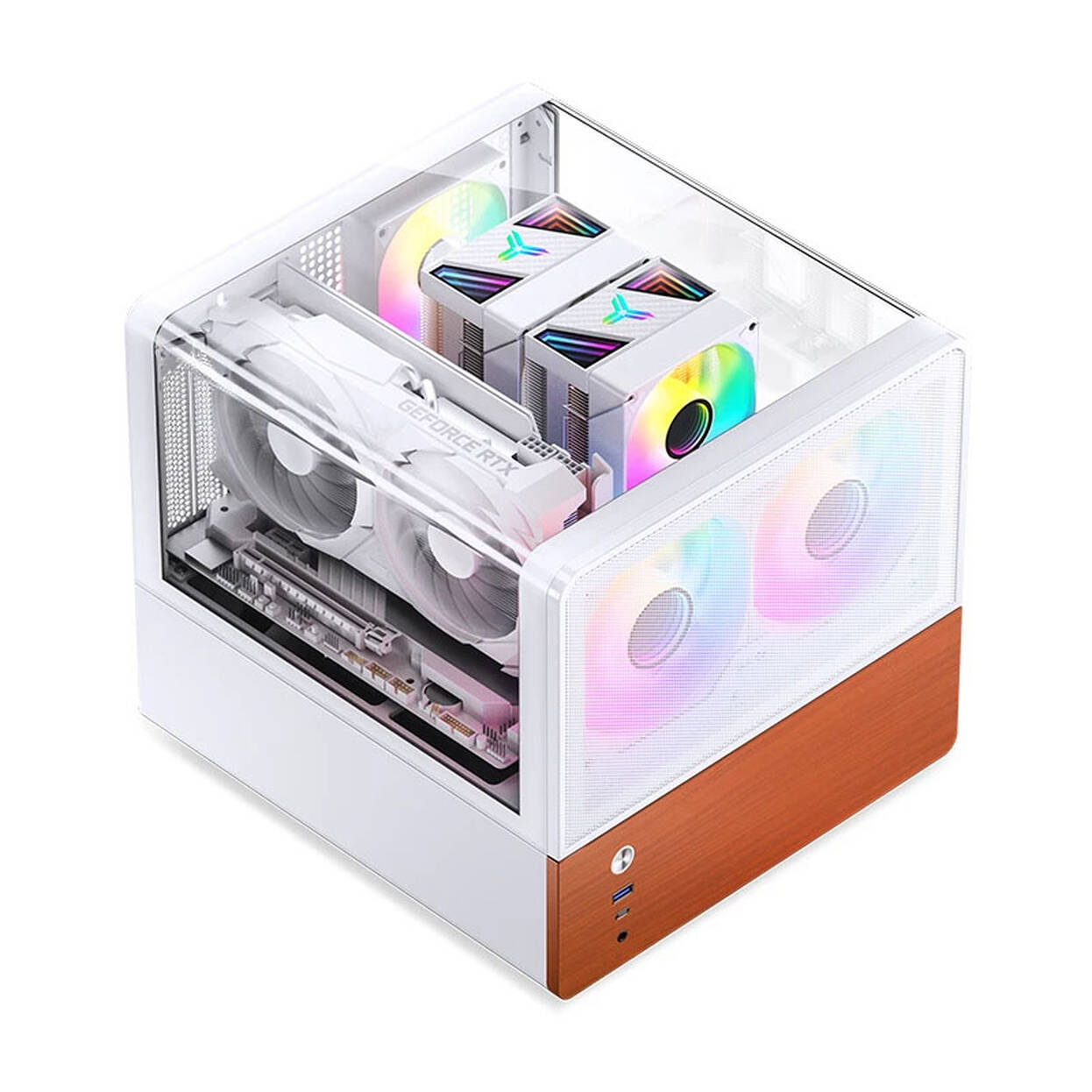

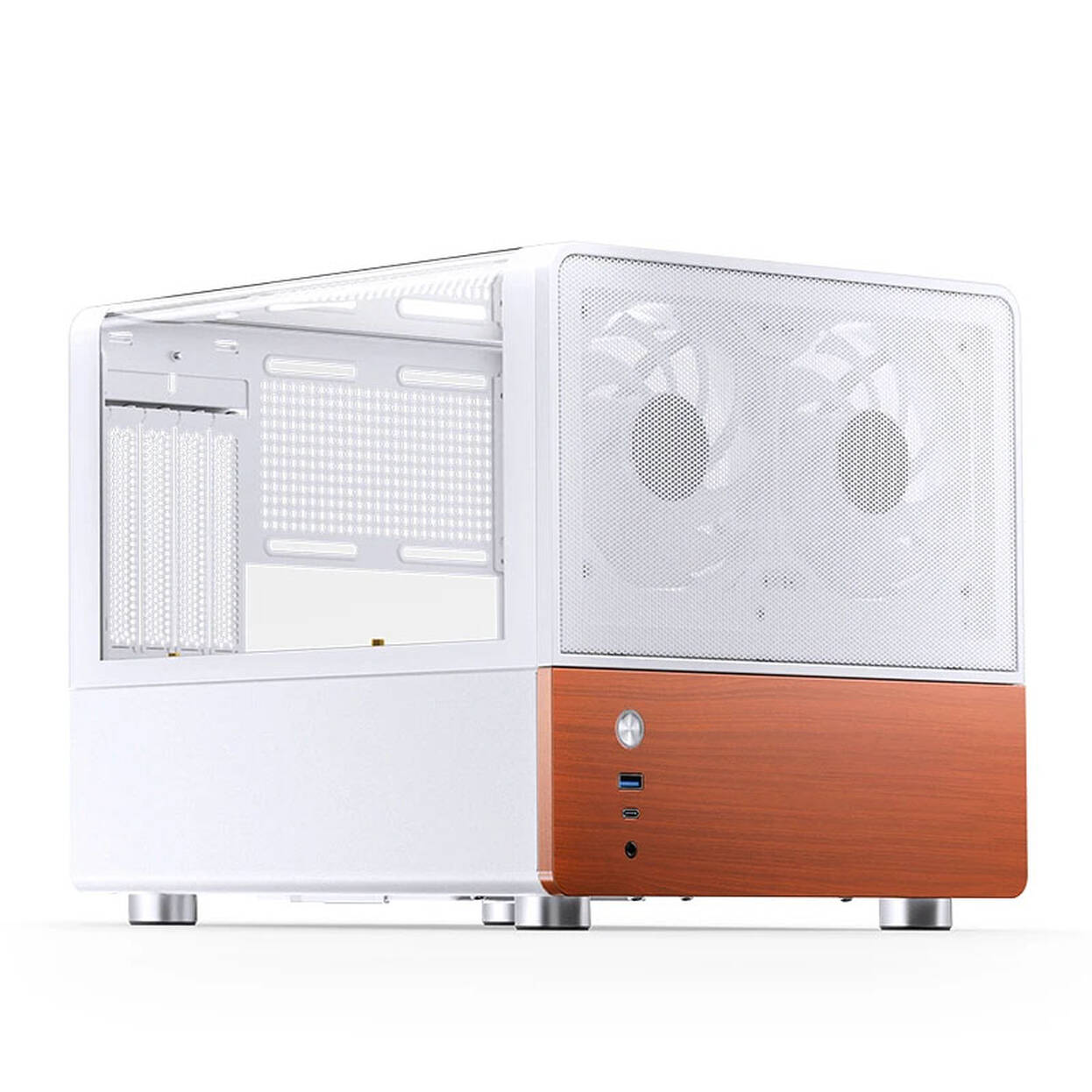

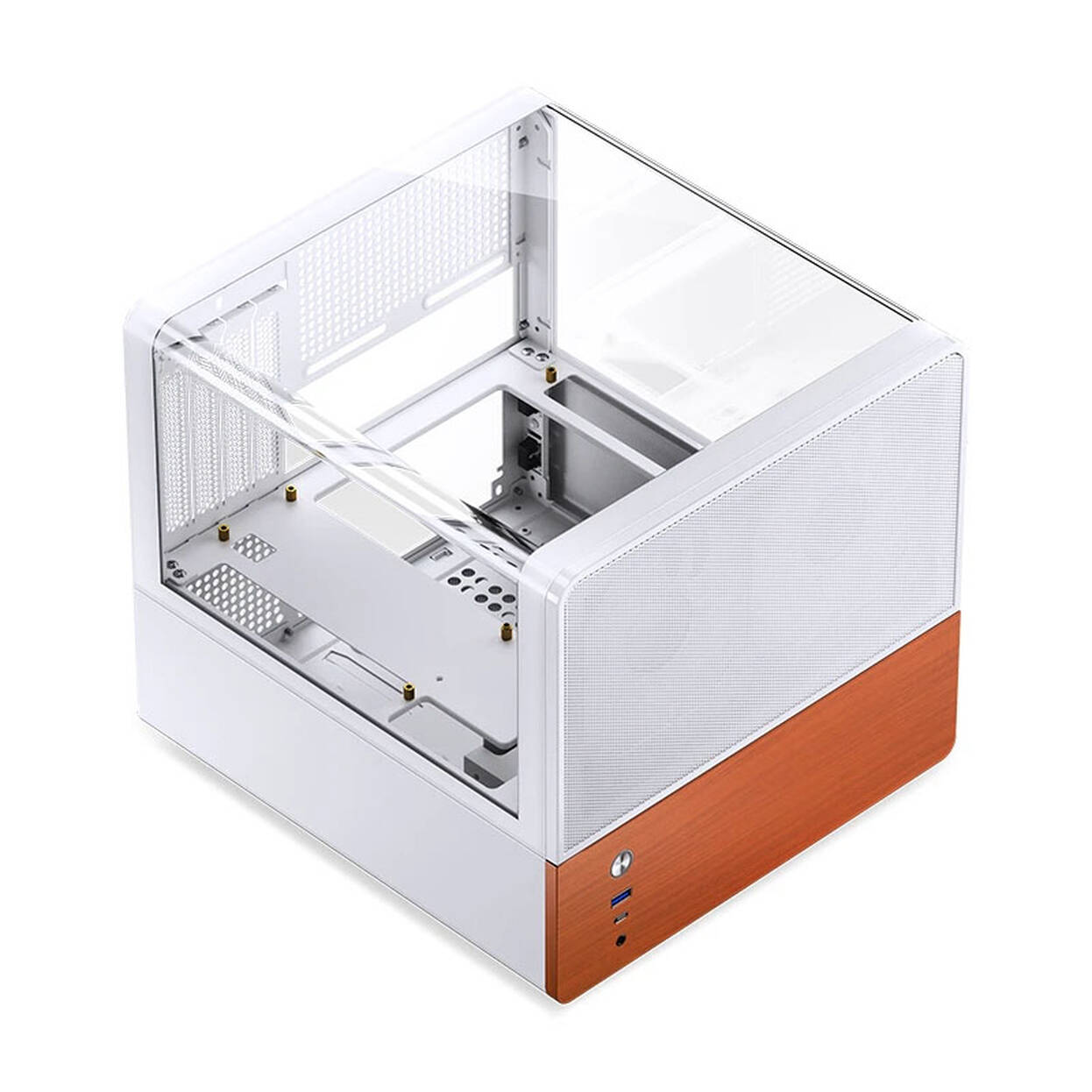

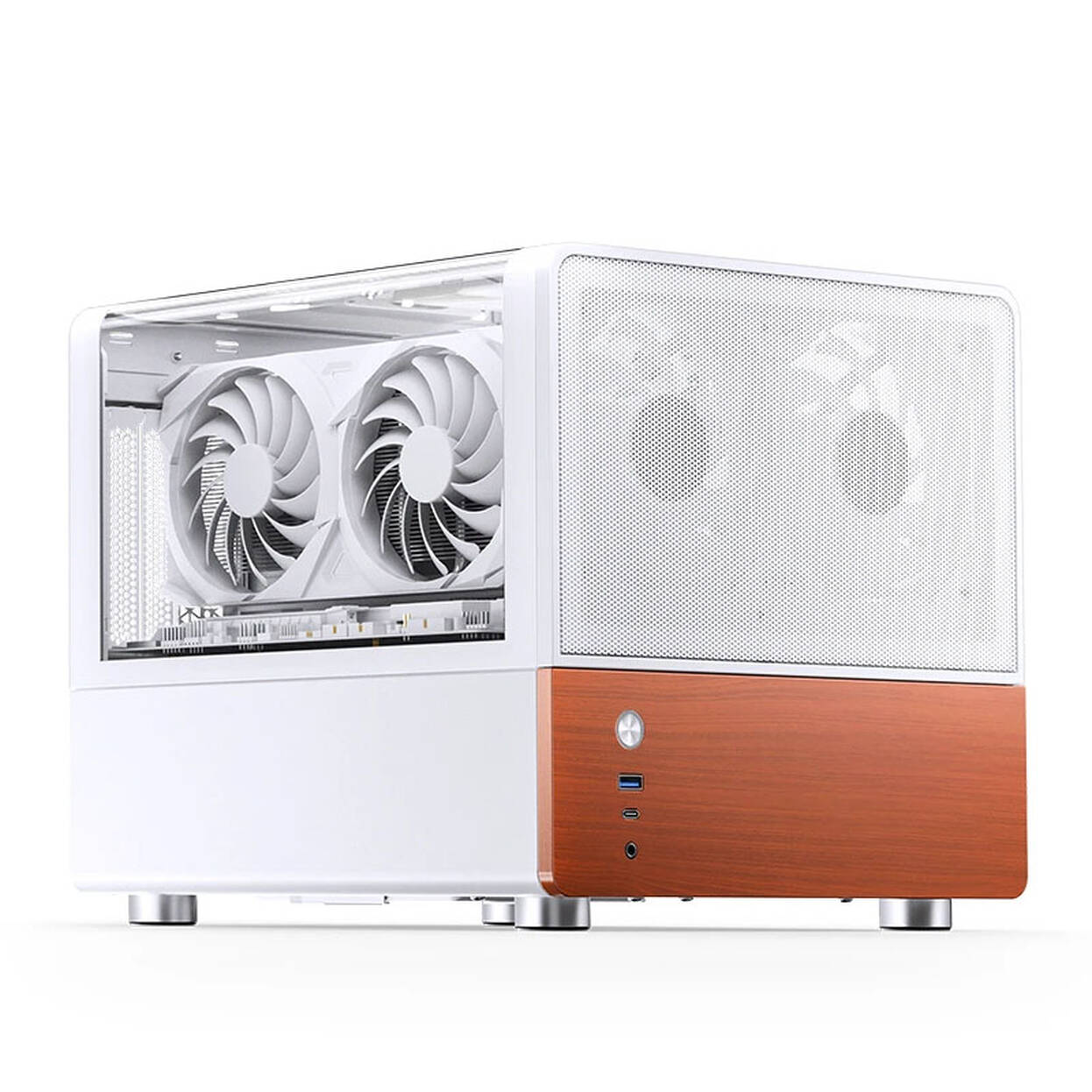

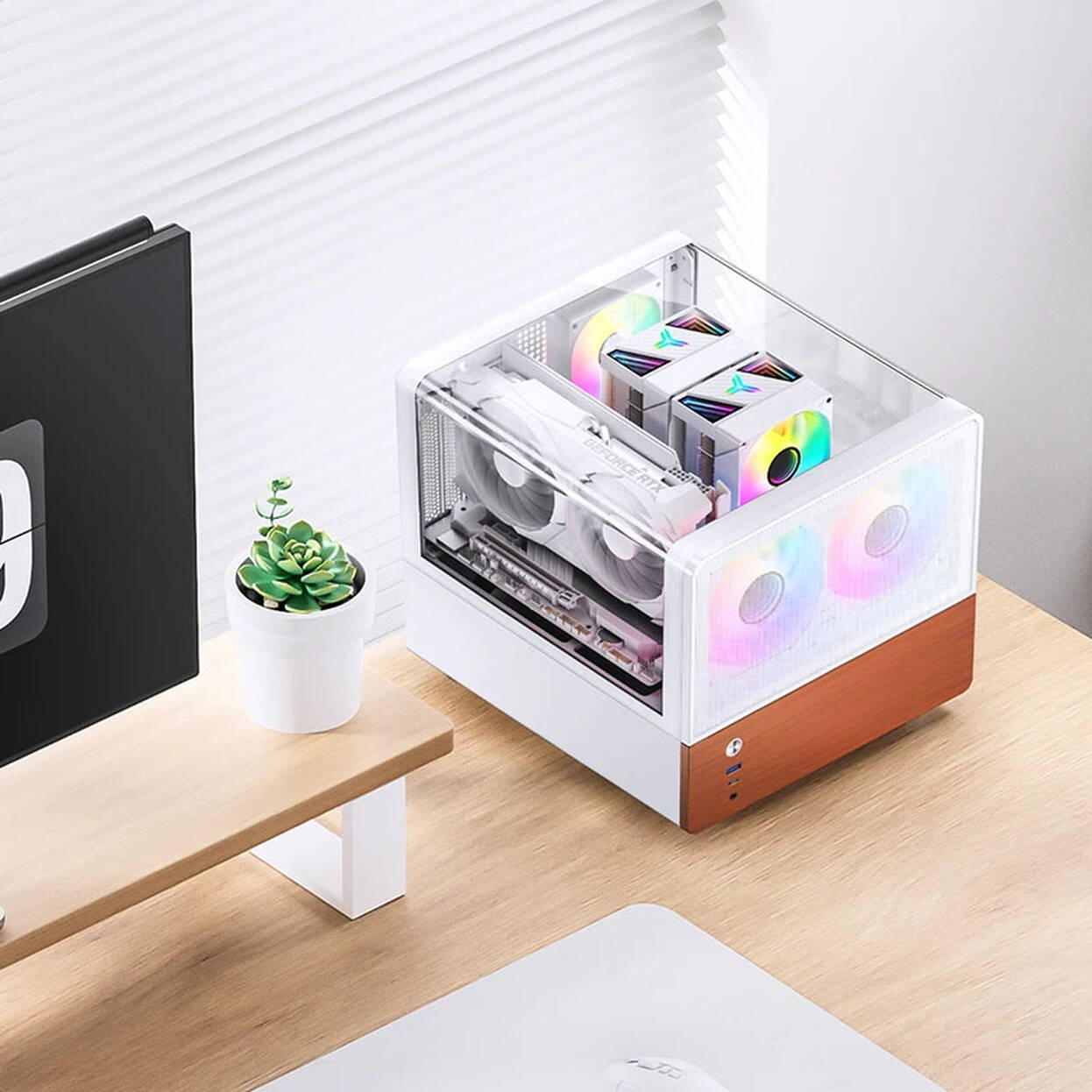

The Jonsbo V12 is a mini case that, despite its compact size, offers enough space for powerful hardware. Tempered glass on three sides allows you a perfect view of your installed components, and a stylish wooden front completes the overall look.
Cooling

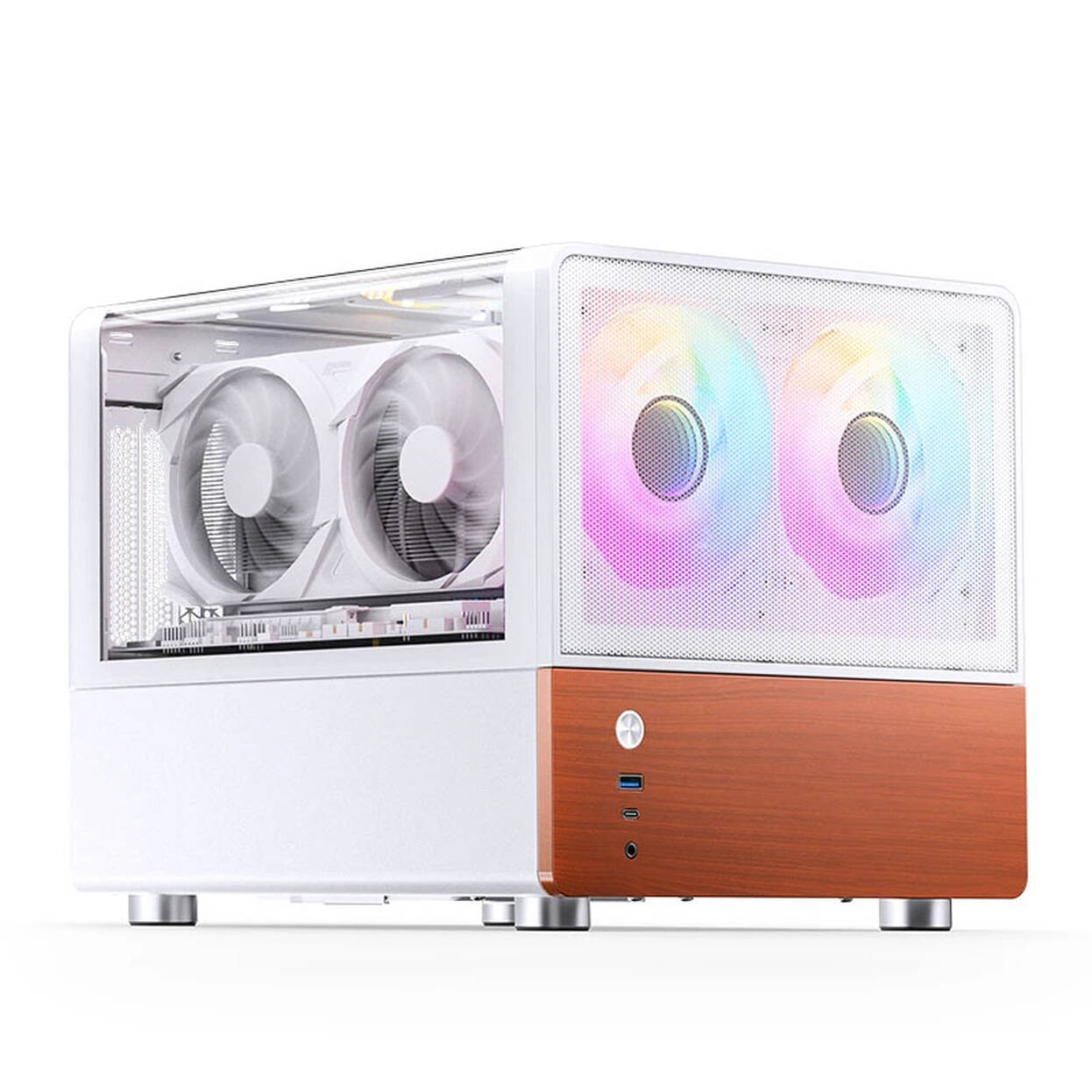

The mini tower already comes with two 120 mm fans installed, providing sufficient cooling. If you need an additional fan, another fan up to 92 mm can be mounted at the rear.
Hardware Options

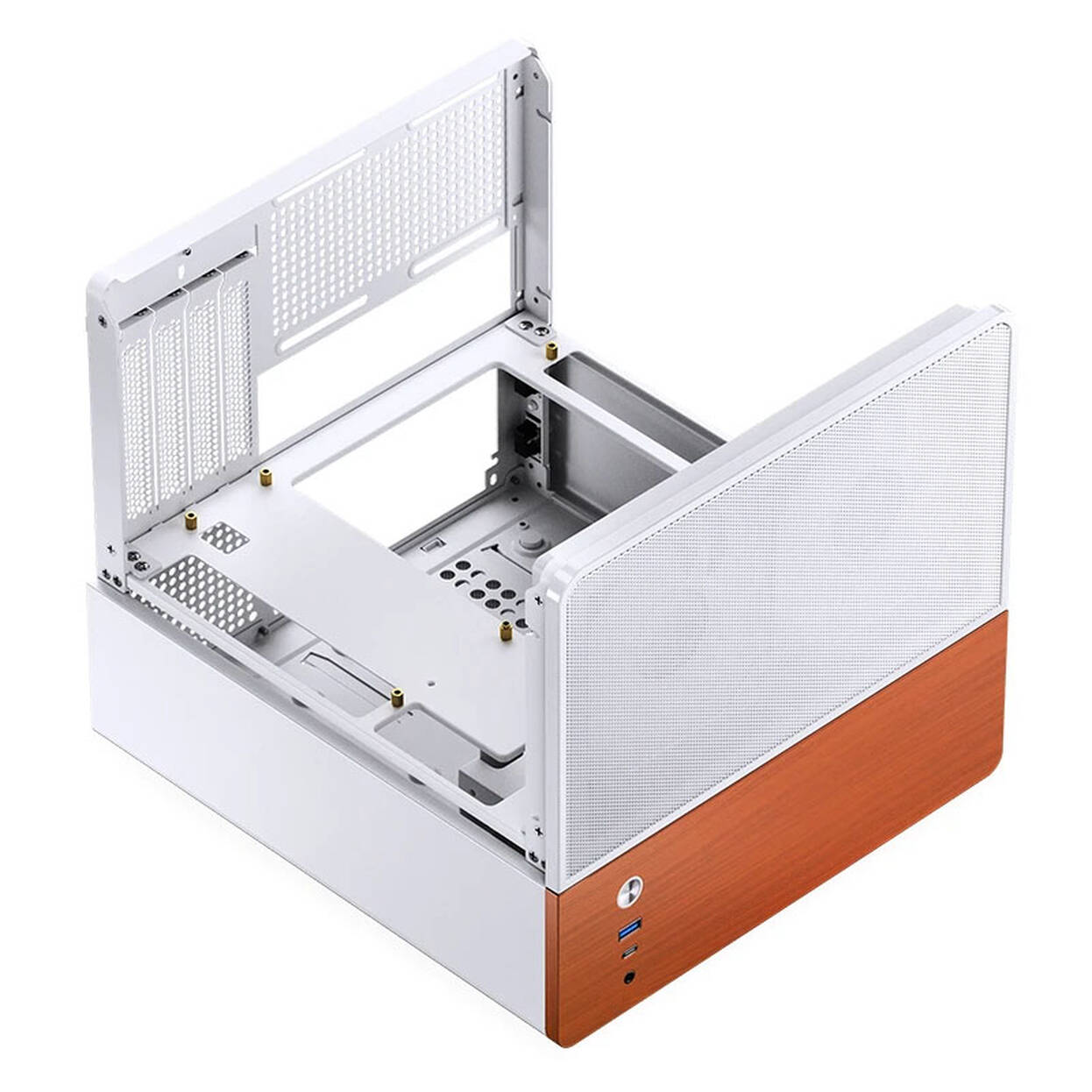

The mini tower supports the installation of Micro-ATX sized motherboards. The CPU cooler should not exceed a height of 145 mm. The graphics card can be up to 260 mm long. To store programs and games, up to three drives can be installed.
Specifications
| Colour | |
|---|---|
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 301 mm |
| Width | 280 mm |
| Height | 275.5 mm |
| Weight | 5.52 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Motherboard Formats | ITX, Micro-ATX |
| Max. Motherboard Format | Micro-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 145 mm |
| Max. GPU Length | 260 mm |
| Max. PSU Length / Depth | 220 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |

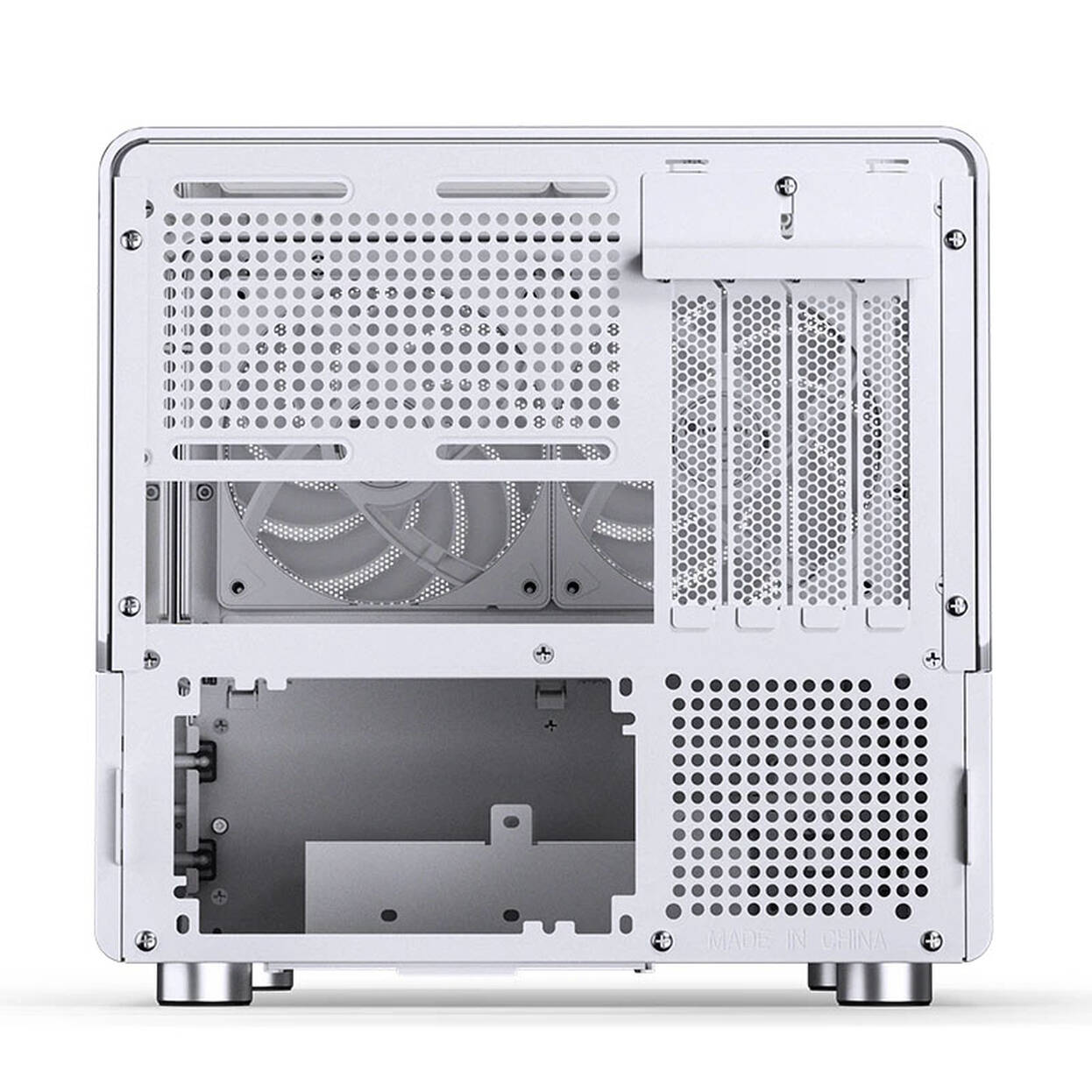

| Power Supply Position | Rear Bottom |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Max. Number of Fans | 4 |
| 80 mm Fans | 1 |
| 92 mm Fans | 1 |
| 120 mm Fans | 2 |
| Radiator Support | |
| Max. Radiator Compatibility | No |
| Drive Bays | |
| Max. 2.5 Inch Drives | 3 |
| Max. 3.5 Inch Drives | 2 |
| Max. 5.25 Inch Drives | 0 |
| 1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined) | 3 |
| Hot Swap Drive Bays | No |
| External Ports | |
| USB 3.1 (External) Type C | 1 |
| USB 3.0 (External) Type A | 1 |
| Audio Outputs & Inputs | 1x Output / Input Comb. (3.5 mm Jack, 4-pin, TRRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | With Window |
| Vertical GPU Mount | No |
| Adjustable Vertical GPU Bracket | No |
| Front Door | No |
| Cable Management | No |
| Filters Included | No |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | No |
| Back Connect | No |
| Expansion Slots | |
| Expansion Slots / PCI Slots | 4 |
| Features | |
| Housing Feedthrough | No |
| Fan Controller / Fan Hub | No |
| Mounting | |
| Case VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Materials | SGCC (Steel), Tempered Glass, Wood |
| Lighting | |
| Lighting / RGB | No |
| Additional Contents | |
| Included Fans | 2x 120 mm |
