Spectacular design case by Jonsbo for design-savvy gamers and eye-catching show systems.
The triangular design with large sides made of tempered glass puts hardware in the limelight. The large midi tower offers space for up to ten 120 mm fans and a 360 radiator.
Spectacular design case by Jonsbo for design-savvy gamers and eye-catching show systems.
The triangular design with large sides made of tempered glass puts hardware in the limelight. The large midi tower offers space for up to ten 120 mm fans and a 360 radiator.
Spectacular design case by Jonsbo for design-savvy gamers and eye-catching show systems.
The triangular design with large sides made of tempered glass puts hardware in the limelight. The large midi tower offers space for up to ten 120 mm fans and a 360 radiator.
The triangular design with large sides made of tempered glass puts hardware in the limelight. The large midi tower offers space for up to ten 120 mm fans and a 360 radiator.
The features of the Jonsbo TR03-A at a glance:
– Stylish showcase made of aluminum
– With aluminum front
– Two large sides made of tempered glass
– For mainboards up to the ATX form factor
– Graphics cards can be mounted horizontally or vertically
– Holder protects cards from bending

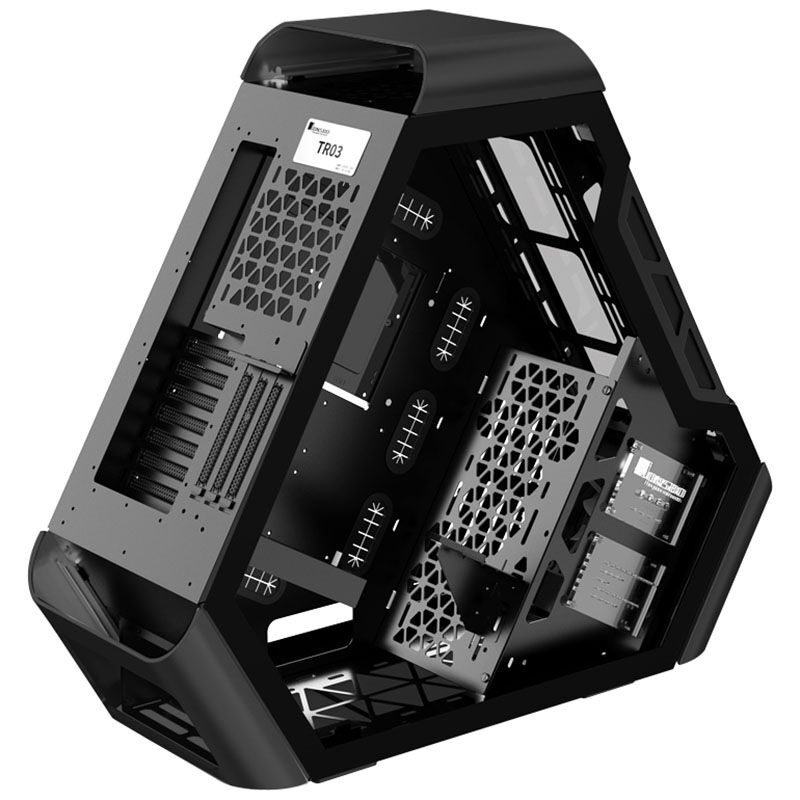

– Modular HDD cage for data carriers and additional fans
– Space for up to 10x 120 mm fans and 1x 360 radiator
TR03-A: Stylish showcase case from Jonsbo

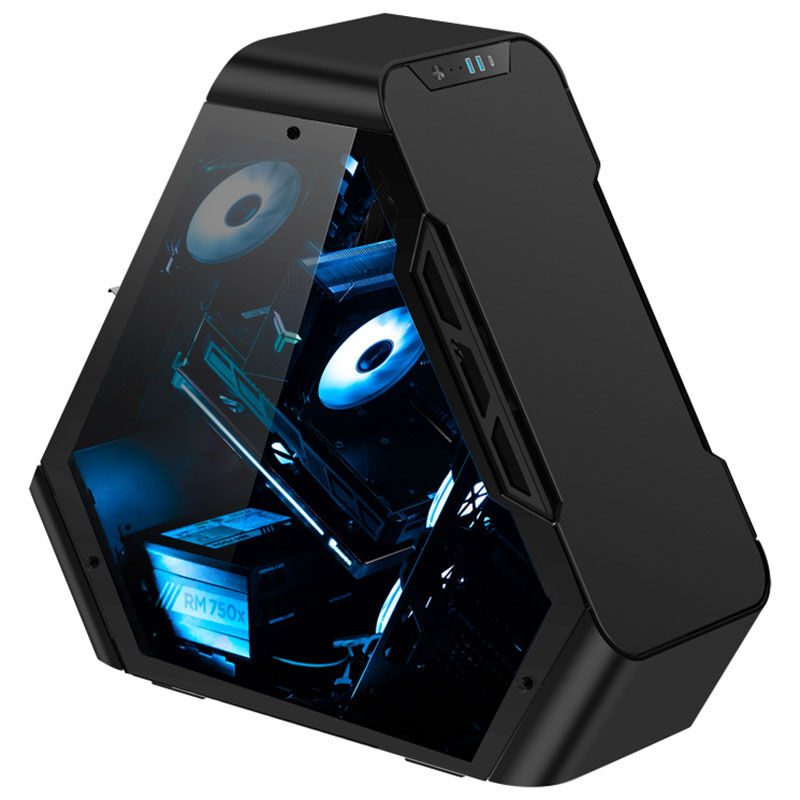

The TR03-A, based on the triangular shape, is the eye-catcher in every setup with its unusual and futuristic design. Thanks to the two large side panels made of tempered glass, powerful gaming hardware can be staged in the best way possible.
A mainboard up to the form factor ATX has space in the aluminum housing. Graphics cards up to a length of 460 millimeters can be installed both horizontally and vertically. The practical bracket effectively prevents large and heavy graphics cards from bending. CPU coolers can be up to 175 millimeters high. With up to five 3.5- or 2.5-inch drives, the showcase can hold enough data carriers. There are mounting spaces on the mainboard tray and in the modular hard drive cage.

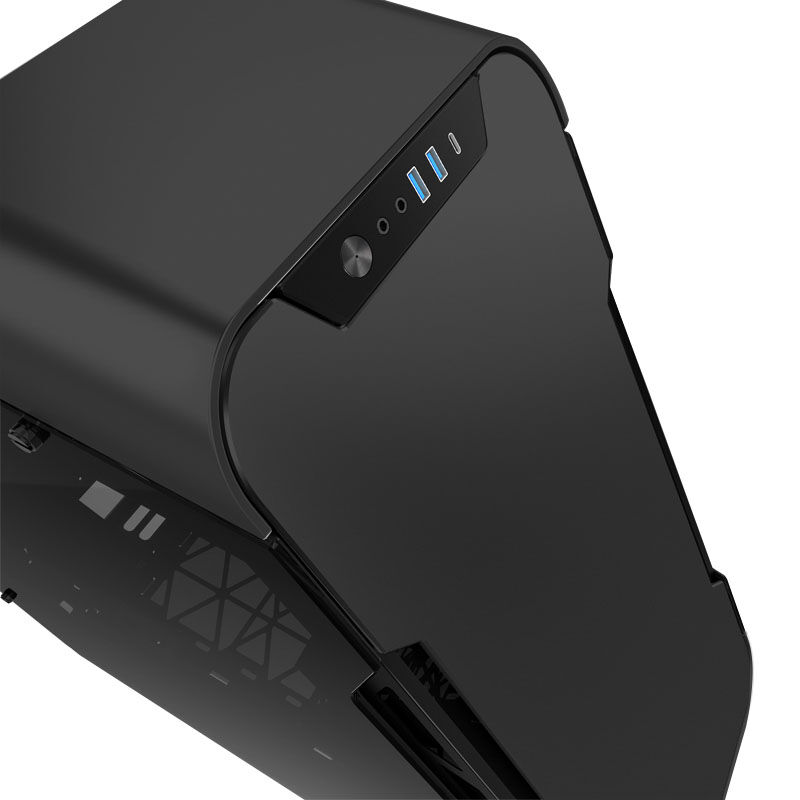

In total, the Jonsbo TR03-A can accommodate up to ten 120 mm fans. Thanks to the numerous mounting options for fans and cleverly placed air inlets, an optimal air supply is guaranteed. Filters in the floor and the front keep the system free of dust. For water-cooled systems, a 360 mm radiator can be placed in the front of the housing. The I / O panel offers a USB 3.0 type C port, two USB 3.0 ports, two 3.5 mm audio jacks and a power button.
| Technical Details | |
|---|---|
| Dimensions (W × H × D) | 238 × 595 × 673 mm |
| Material | Aluminium, Steel, Tempered Glass |
| Weight | 15 kg |
| Colour | Black |
| Motherboard Support | |
| Compatible Formats | ATX, Micro-ATX, Mini-ITX |
| Fan Support | |
| Total Possible Fans | Front: 3 × 120 mm Rear Wall: 1 × 120 mm Bottom: 2 × 120 mm Front-Bottom: 1 × 120 mm Cover: 1 × 120 mm Modular HDD Cage: 2 × 120 mm |
| Radiator Support | |
| Max Compatibility | Front: 1 × 360 mm |
| Drive Bays | |
| 2.5 / 3.5″ Bays | 3 |
| 2.5″ Bays | 2 |
| Power Supply | |
| Type | Standard ATX (optional) |
| Max Length | 185 mm |
| Expansion | |
| PCI Slots | 7 + 3 (horizontal + vertical) |
| I/O Panel | |
| Ports | 1 × USB 3.0 Type C 2 × USB 3.0 Type A 2 × 3.5 mm Audio 1 × Power Button |
| Clearance | |
| Max CPU Cooler Height | 175 mm |
| Max GPU Length | 460 mm |
| Specification | |
|---|---|
| Primary Colour | Black |
| Fan Frame Colour | Black |
| Fan Rotor Colour | White |
| Dimensions | |
| Length / Depth | 673 mm |
| Width | 238 mm |
| Height | 595 mm |
| Weight | 15 kg |
| Case | |
| Case Type | Aluminium Case, Mid Tower |
| Motherboard Support | |
| Compatible Formats | ATX, ITX, Micro-ATX |
| Max. Motherboard Size | ATX |
| Internal Clearance | |
| Max CPU Cooler Height | 175 mm |
| Max GPU Length | 460 mm |
| Max PSU Length | 185 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Rear Bottom |
| Fan Support | |
| 120 mm Fans | 10 |
| Radiator Support | |
| Max Compatibility | 1 × Triple (360 mm) |
| Drive Bays | |
| 2.5″ Internal Bays | 8 |
| 3.5″ Internal Bays | 3 |
| Combined 3.5 / 2.5″ Bays | 3 |
| Hot-Swap Bays | No |
| External Ports | |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 2 |
| Audio I/O | 1 × output + 1 × input (3.5 mm jack, 3-pin TRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front / Lid |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | Yes |
| Filters Included | No |
| Noise Dampening | No |
| Motherboard Tray | No |
| Remote Included | No |
| Transport System | No |
| Housing Feedthrough | No |
| Materials | |
| Construction | Aluminium, Steel, Tempered Glass |
| Lighting | |
| RGB Lighting | No |
| Fan / RGB Control | No |
| Expansion | |
| PCI Slots | 7 + 3 (horizontal + vertical) |
| Included Contents | |
| Included Fans | No |
£154.49£128.74 Inc VatEx Vat
