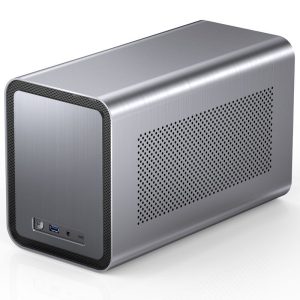

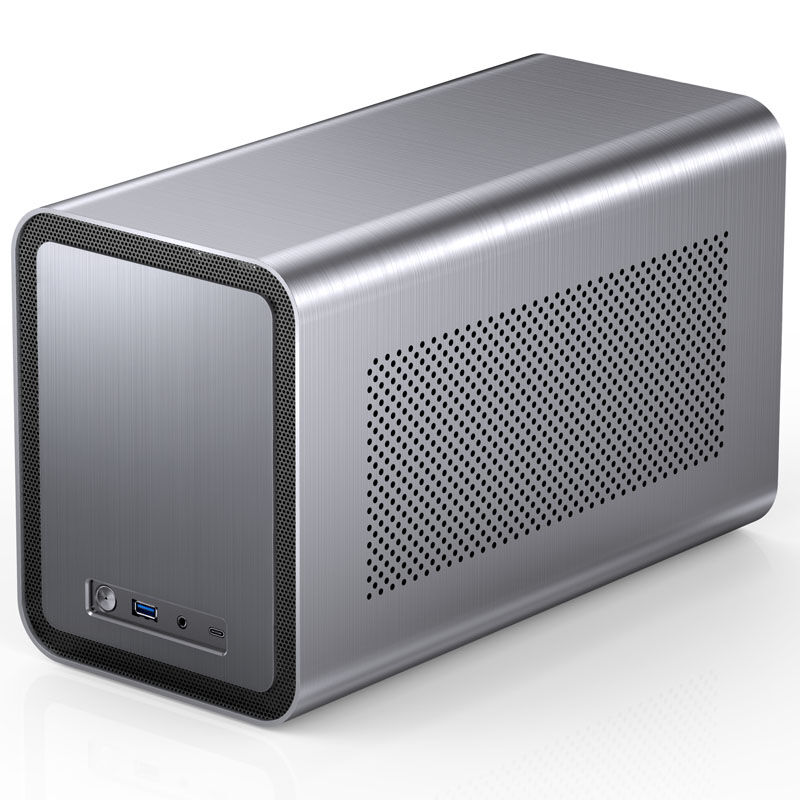

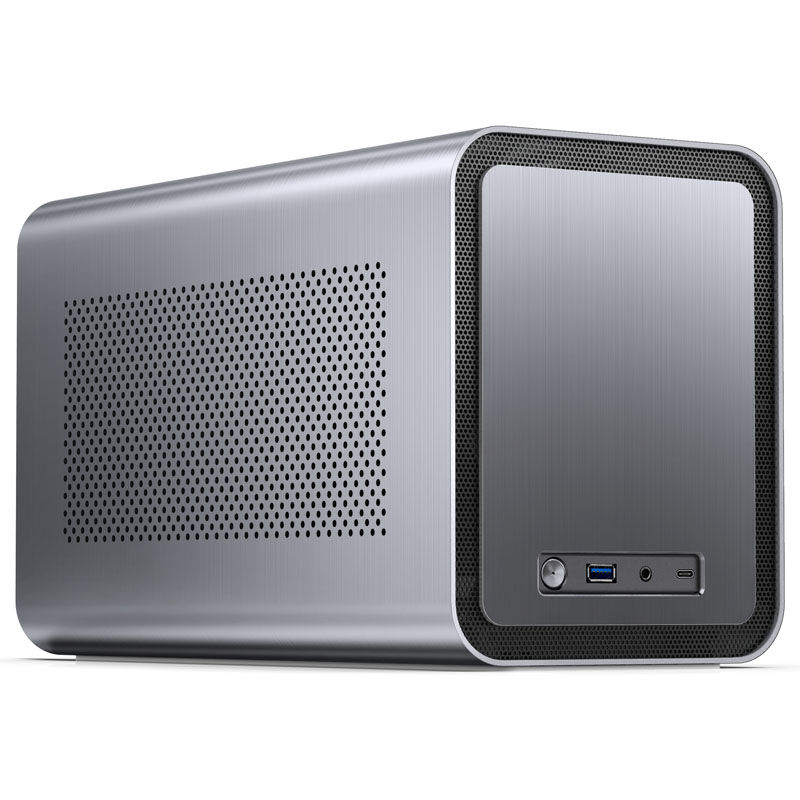

Noble and compact Mini-ITX aluminum housing from Jonsbo
Features:
- Graphics cards up to a maximum length of 185 mm
- Power supply via SFX power supply
- CPU cooler up to 70mm height
- A 140mm fan pre-installed in the front
- Hard drive cage for 1x 2.5 SSD and 5x 3.5 HDDs
- I/O panel: 1x USB-C, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (Audio + Mic)
Noble and compact Mini-ITX aluminum housing from Jonsbo
Features:
- Graphics cards up to a maximum length of 185 mm
- Power supply via SFX power supply
- CPU cooler up to 70mm height
- A 140mm fan pre-installed in the front
- Hard drive cage for 1x 2.5 SSD and 5x 3.5 HDDs
- I/O panel: 1x USB-C, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (Audio + Mic)
Noble and compact Mini-ITX aluminum housing from Jonsbo
Features:
- Graphics cards up to a maximum length of 185 mm
- Power supply via SFX power supply
- CPU cooler up to 70mm height
- A 140mm fan pre-installed in the front
- Hard drive cage for 1x 2.5 SSD and 5x 3.5 HDDs
- I/O panel: 1x USB-C, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (Audio + Mic)
Features:
– Graphics cards up to a maximum length of 185 mm
– Power supply via SFX power supply
– CPU cooler up to 70mm height
– A 140mm fan pre-installed in the front
– Hard drive cage for 1x 2.5 SSD and 5x 3.5 HDDs
– I/O panel: 1x USB-C, 1x USB 3.0 Type A, 1x 3.5 mm jack plug (Audio + Mic)
The Jonsbo N1 Mini-ITX case in detail
A small computer for cloud storage or home office systems. The Jonsbo N1 is the small but fine solution for functional systems. It accommodates a 2.5-inch SSD and five 3.5-inch HDDs. It is changeable and space-saving, because it can be laid down or placed upright.
Organization and Hardware

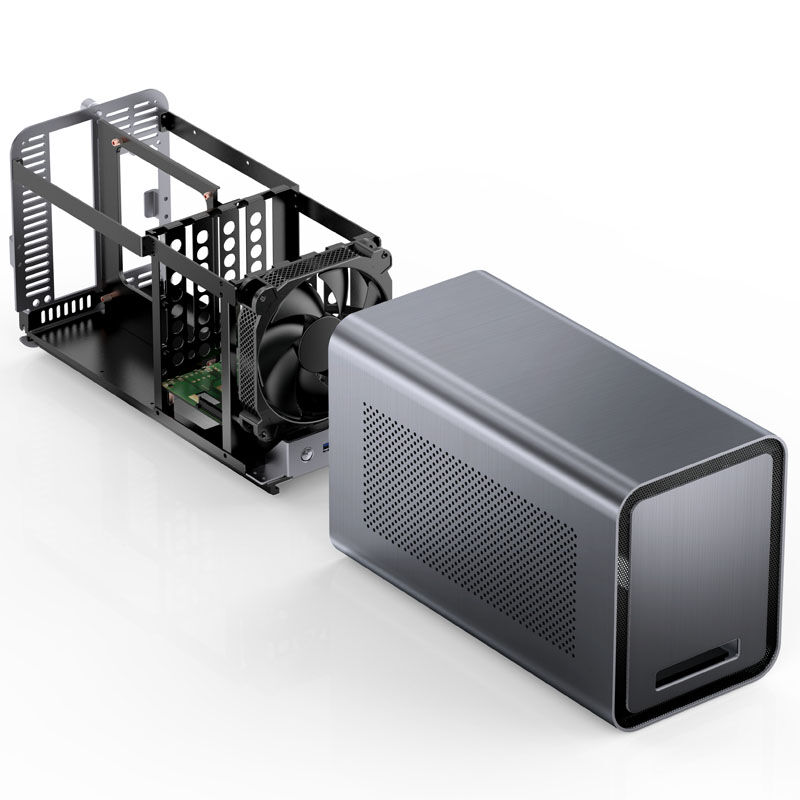

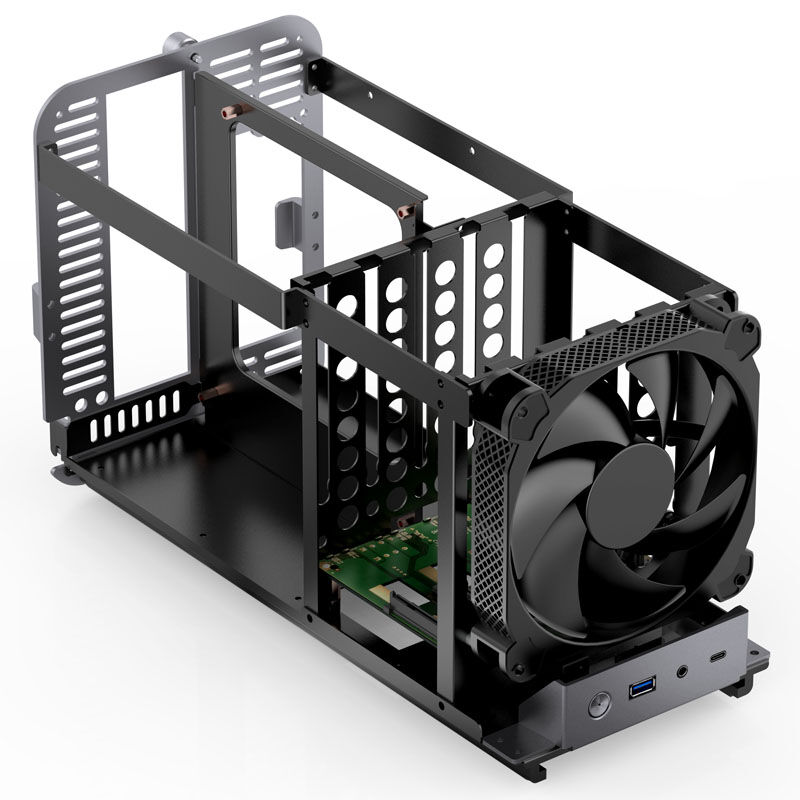

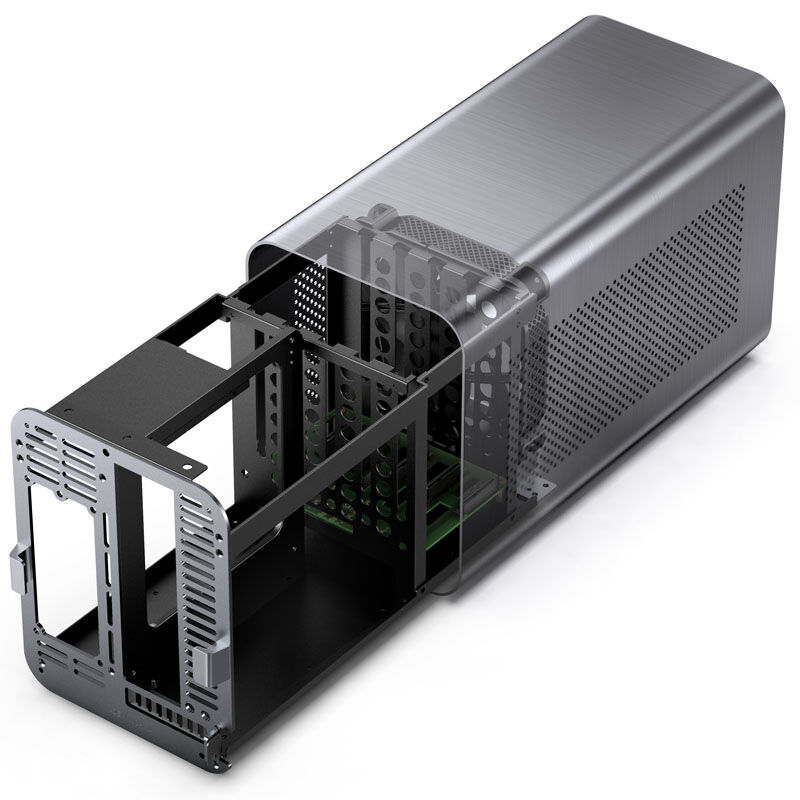

The Jonsbo N1 is a Mini-ITX case and only compatible for these Formactor motherboard sizes. Only small 1-slot graphics cards with a length of 185mm fit inside. The housing can be completely removed to facilitate installation. Important! There is not much space in the interior. Graphics cards only fit in with low-profile brackets. It is advisable to buy a CPU chipset with a graphics unit.
The power supply of the mini system is ensured by a power supply in the compact SFX standard. The CPU cooler, on the other hand, must be a maximum of 70 mm high. For air circulation, a 140mm fan is permanently installed in the front and of course included in the scope of delivery.
Compact design for home use

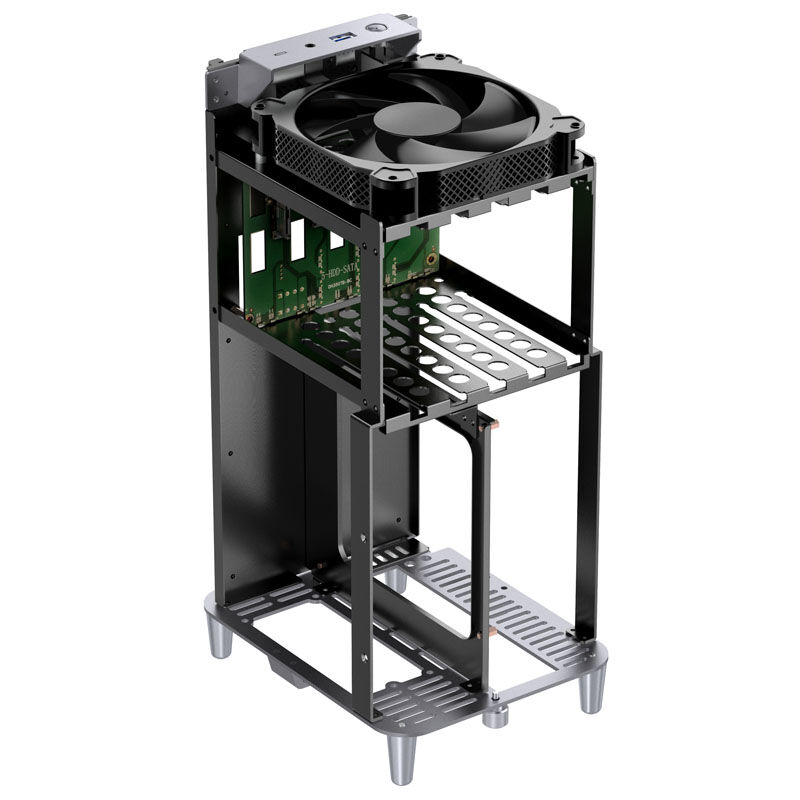

If you are looking for a small computer for small basic tasks such as office programs or want to back up in your own cloud storage on site, the Jonsbo N1 is a practical solution. The design is space-saving, clever and offers capacity five 3.5-inch HDDs in a hard drive cage. A 2.5-inch data carrier can be mounted above the power supply.

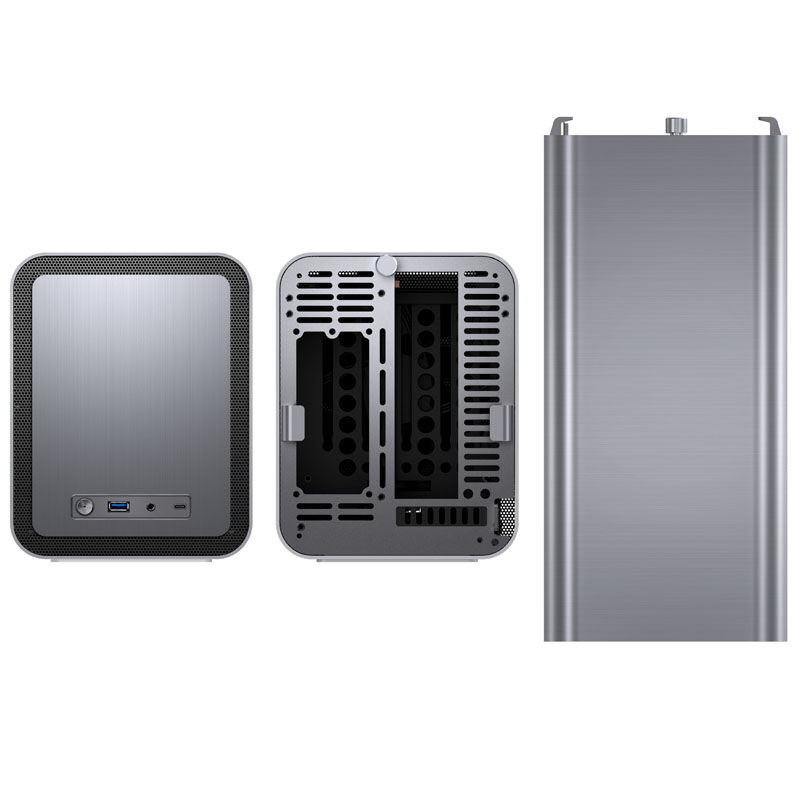

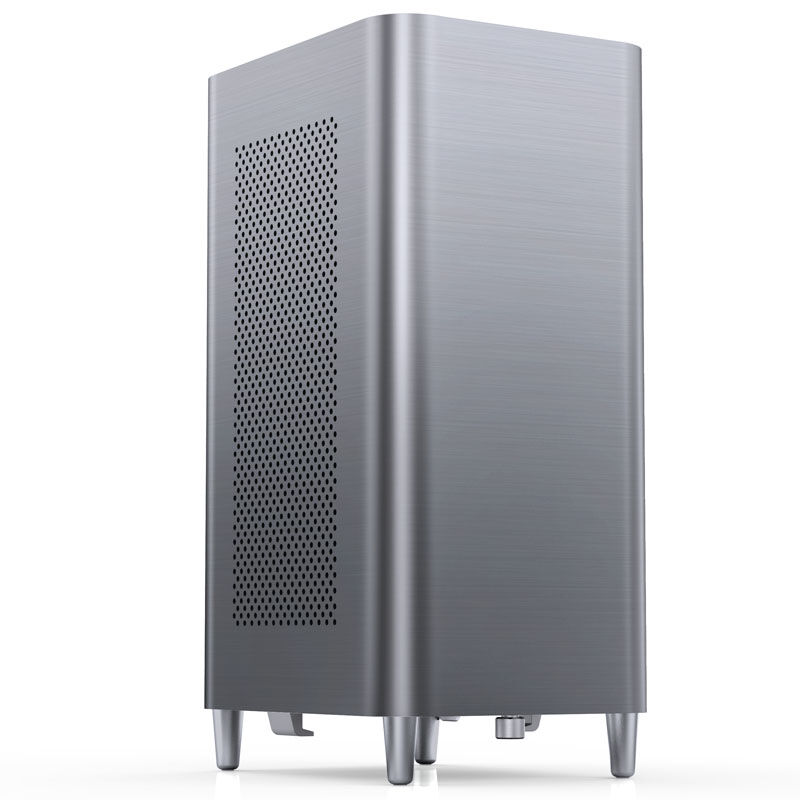

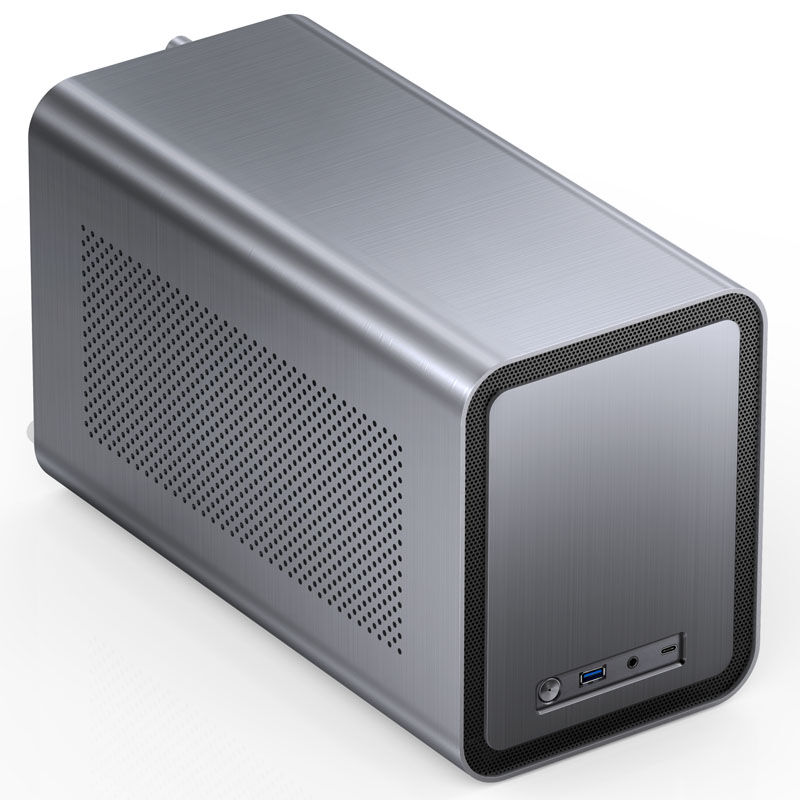

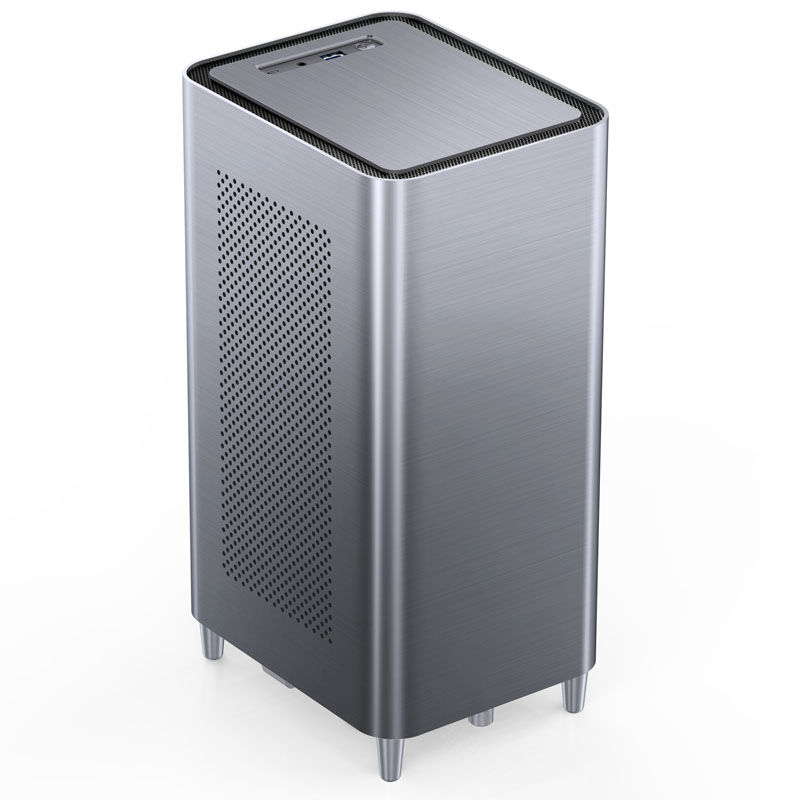

The functionality of the Jonsbo N1 is very important. Its delicate dimensions of 170 mm x 217 mm x 354 mm (W x H x D) fit into any home and blend quietly into any setup or look in their high-quality aluminum housing. If you still cant find a good place where to put it, put it up. No matter how, the I/O panel with a USB-C, USB 3.0 Type A or Audio 3.5 mm jack plug remains freely accessible in any position .
| Specification | |
|---|---|
| Primary Colour | Grey |
| Secondary Colour | Black |
| Fan Colour (Frame) | Black |
| Fan Colour (Rotor) | Black |
| Dimensions | |
| Length / Depth | 354 mm |
| Width | 170 mm |
| Height | 217 mm |
| Weight | 3.8 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Formats | Mini-ITX |
| Max. Motherboard Size | Mini-ITX |
| Internal Clearance | |
| Max CPU Cooler Height | 70 mm |
| Max GPU Length | 185 mm |
| Max PSU Length | 150 mm (SFX) |
| Power Supply | |
| PSU Included | No |
| PSU Format | SFX |
| PSU Position | Rear Side |
| Fan Support | |
| 140 mm Fans | 1 |
| Drive Bays | |
| 2.5″ Bays | 1 |
| 3.5″ Bays | 5 |
| External Ports | |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 1 |
| Audio I/O | 1× combo 3.5 mm TRRS |
| Case Features | |
| I/O Position | Front |
| Side Panel | Mesh |
| Materials | |
| Construction | Aluminium, Steel |
| Lighting | |
| RGB Lighting | No |
| Included Contents | |
| Included Fans | 1 × 140 mm |
