Lightweight, compact aluminum body

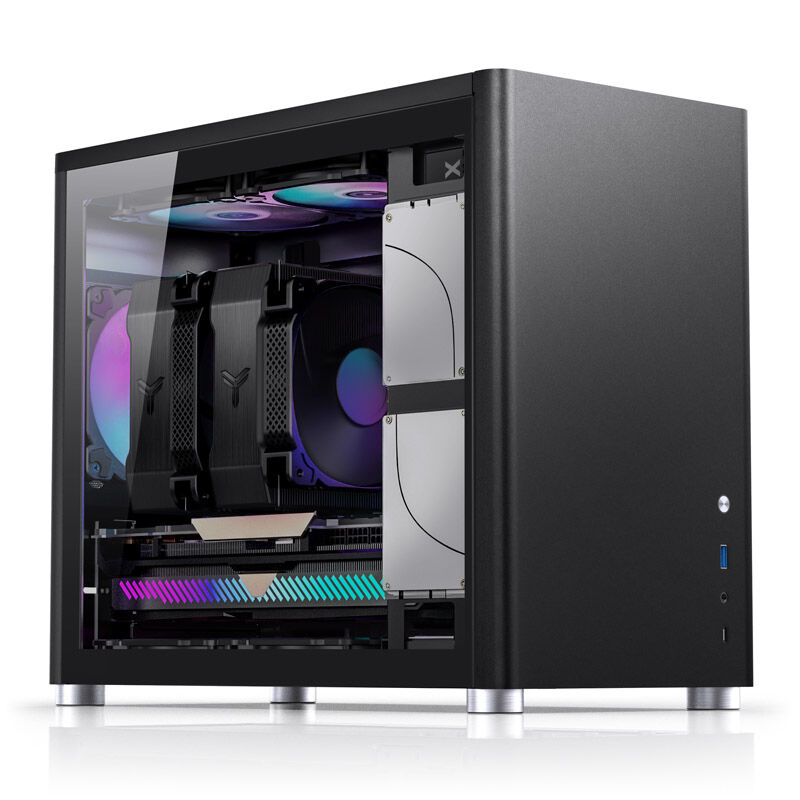

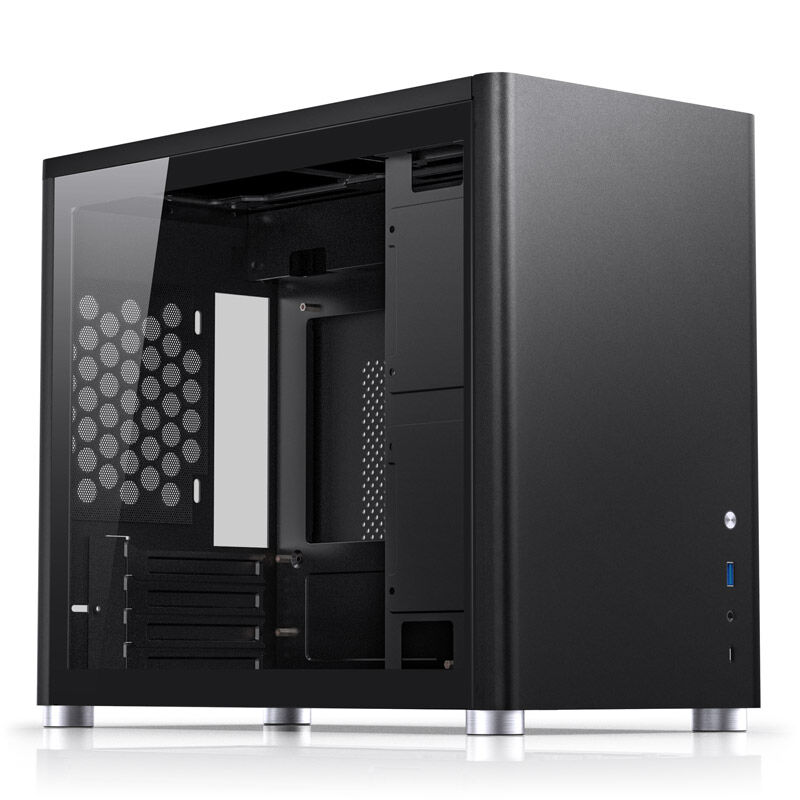

– Tempered glass side panel provides a view of the hardware
– Space for Micro-ATX, DTX and Mini-ITX boards
– Compatible with radiators up to 240 mm
– up to six 120 mm fans possible
– Space for 3x 2.5 and 1x 3.5 or 4x 2.5 drives
– Graphics cards up to 355 mm in length
– I/O panel with 1x USB-C and 1x USB 3.0

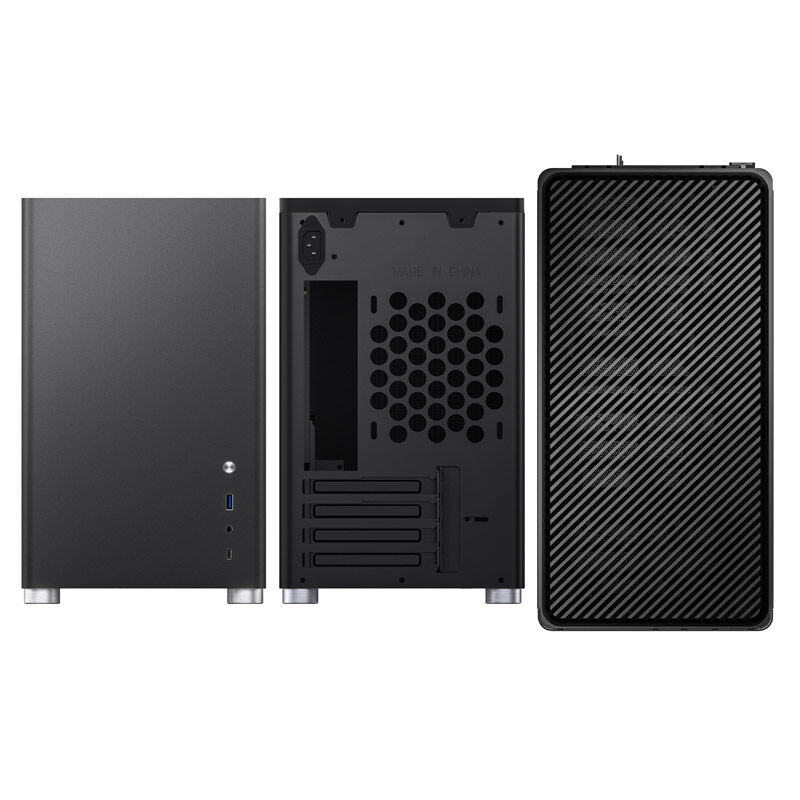

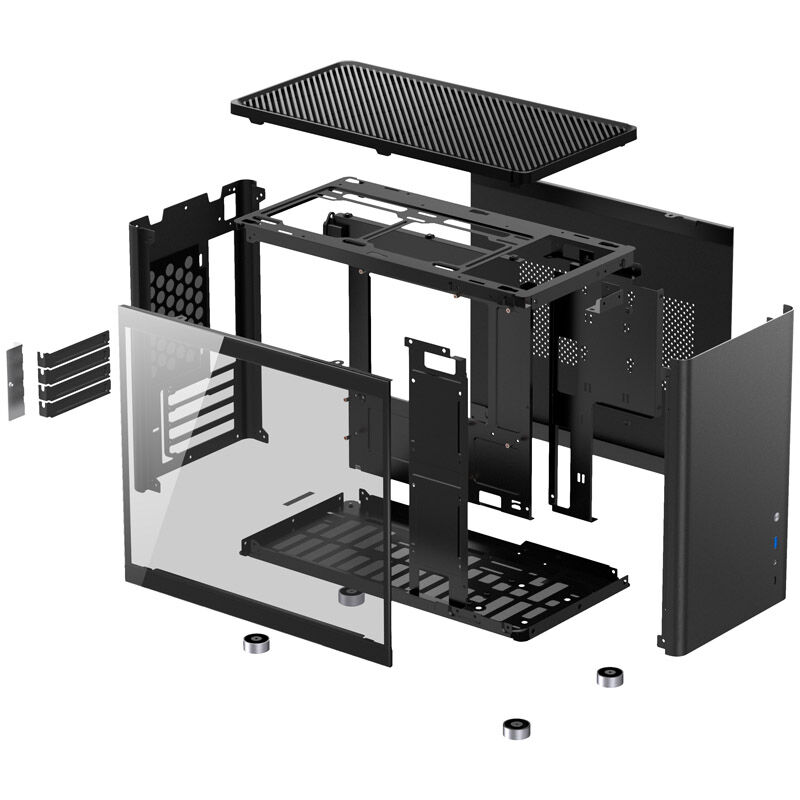

The Jonsbo D30 M-ATX case in detail
The Jonsbo D30 Micro-ATX case not only fascinates with its minimalist, clean design, but also with its generous hardware compatibility. Both fans of air and water cooling get their moneys worth with this gaming case. Integrated dust filters protect your valuable hardware from penetrating dust.
The Micro-ATX case comes up with a lot of cooling options

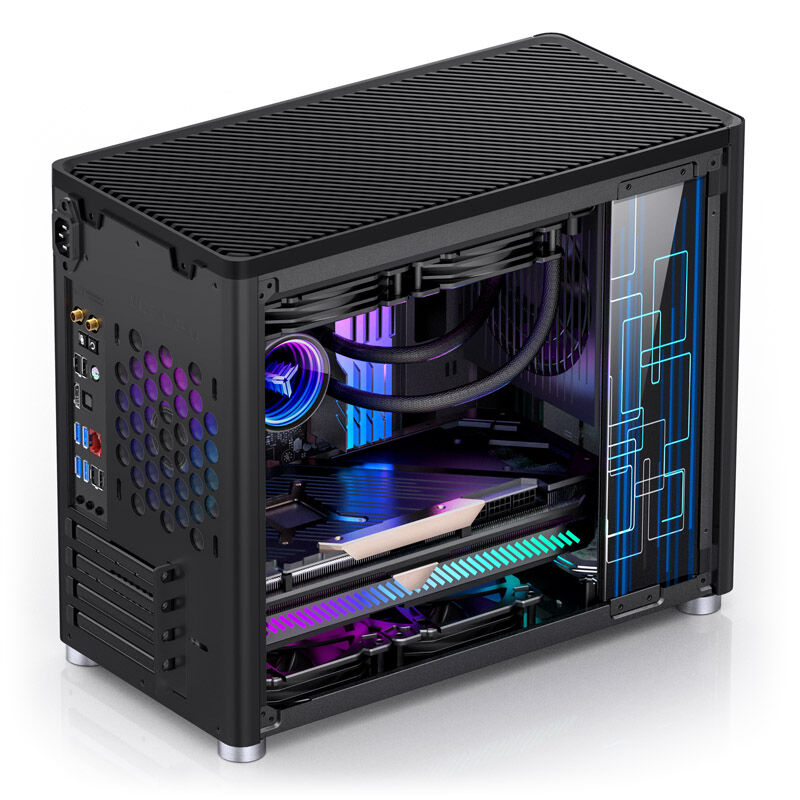

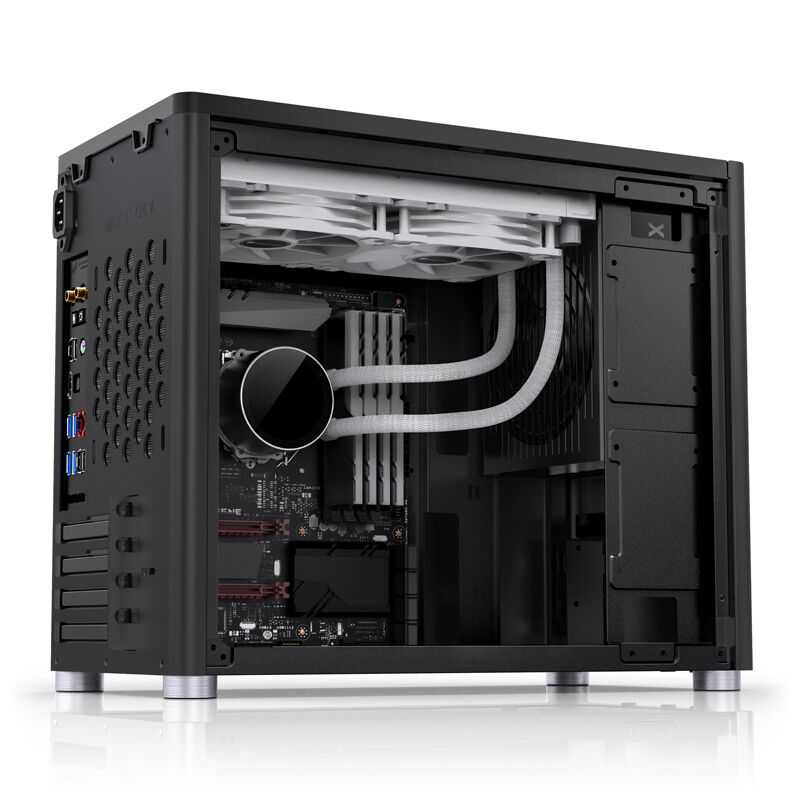

Jonsbo does not save on cooling options with this case. A radiator up to 240 mm in size fits into the lid. You can also install a 240 or 120 radiator on the floor.
You can install a total of six 120 mm fans in the case. Two 140s can be mounted on the lid instead of 120s. You can install up to three 120mm fans or alternatively two 140mm fans in the floor. If you decide on an air cooler, it can be up to 168 mm high. Even the most powerful tower cooler can be used.
Plenty of space for your HDDs and SSDs

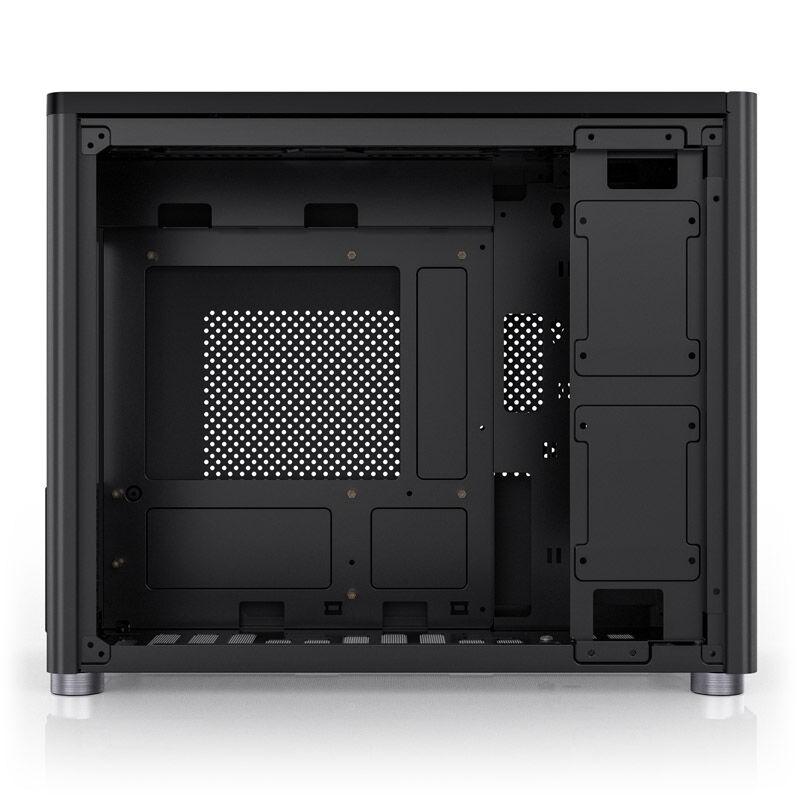

There is space for two 2.5-inch SSDs in the front of the case. Behind it is a power supply, which is installed on the side and can be between 170 and 220 mm long. Directly below is a free space for a 3.5 HDD or another 2.5 drive.

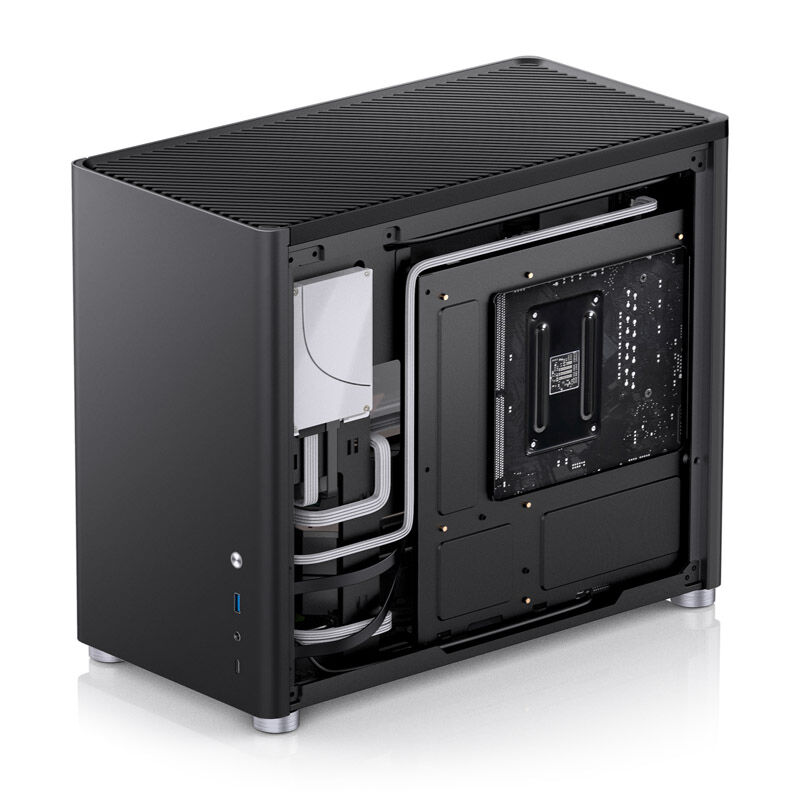

Alternatively, behind the mainboard tray you have space for another 2.5-inch SSD. The I/O panel is not in the lid, but in the lower area of the front panel. There you have a USB 3.0 port of type A and type C available.
| Dimensions | 204 × 325 × 401 mm (W × H × D) |
|---|---|
| Material | Aluminum, Steel, Tempered Glass |
| Weight | 4.96 kg |
| Color | Black |
| Motherboard Form Factor | Micro ATX, DTX, Mini ITX |
| Fans (Possible) | Lid: 2 × 120 mm or 2 × 140 mm Rear: 1 × 120 mm Floor: 2 × 120 mm or 2 × 140 mm |
| Radiator Mounts | Lid: 1 × 240 / 120 mm Floor: 1 × 240 / 120 mm Rear: 1 × 120 mm |
| Dust Filters | Bottom, Back (removable) |
| Drives | 3 × 2.5 inch + 1 × 3.5 inch or 4 × 2.5 inch |
| Expansion Slots | 4 |
| I/O Panel | 1 × USB 3.0 Type-C (USB 3.2 Gen 1, max. 5 Gbit/s) 1 × USB 3.0 Type-A (USB 3.2 Gen 1, max. 5 Gbit/s) 1 × HD Audio & Microphone Combo (3.5 mm jack) 1 × Power Switch |
| Maximum CPU Cooler Height | 168 mm |
| Maximum Graphics Card Length | 355 mm (305 mm if PSU > 170 mm) |
| Maximum PSU Length | 220 mm |
| Package Contents | 1 × Jonsbo D30 Case – Black |
