Compact and stylish case for ATX motherboards
Features:
- Front with mesh for optimal airflow, a side panel made of tempered glass
- Designed for vertical airflow with up to eight possible fans
- Vertically movable power supply for longer graphics cards
- GPUs may be at least 342 mm long and a maximum of 400 mm long
- Space for up to two 360mm radiators at the same time
- Equipped with an 8-inch display, for example to display system information
- Mini HDMI to HDMI cable and USB-C to USB-A cable for the display are included
Compact and stylish case for ATX motherboards
Features:
- Front with mesh for optimal airflow, a side panel made of tempered glass
- Designed for vertical airflow with up to eight possible fans
- Vertically movable power supply for longer graphics cards
- GPUs may be at least 342 mm long and a maximum of 400 mm long
- Space for up to two 360mm radiators at the same time
- Equipped wit...
Compact and stylish case for ATX motherboards
Features:
- Front with mesh for optimal airflow, a side panel made of tempered glass
- Designed for vertical airflow with up to eight possible fans
- Vertically movable power supply for longer graphics cards
- GPUs may be at least 342 mm long and a maximum of 400 mm long
- Space for up to two 360mm radiators at the same time
- Equipped wit...
Features:
– Front with mesh for optimal airflow, a side panel made of tempered glass
– Designed for vertical airflow with up to eight possible fans
– Vertically movable power supply for longer graphics cards
– GPUs may be at least 342 mm long and a maximum of 400 mm long
– Space for up to two 360mm radiators at the same time
– Equipped with an 8-inch display, for example to display system information
– Mini HDMI to HDMI cable and USB-C to USB-A cable for the display are included

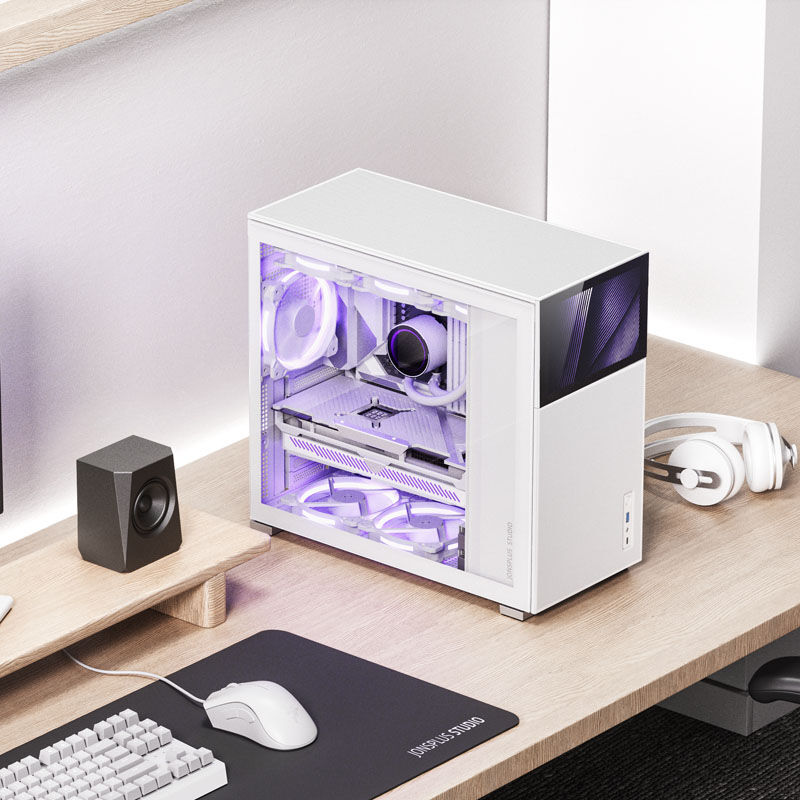

The Jonsbo D41 ATX case
Jonsbo D41: The versatile Micro ATX case
With the D41, Jonsbo presents a Micro-ATX case from its Pine Cones series that is as compact and elegant as it is versatile. You can easily accommodate the latest gaming hardware in it. No matter whether you prefer air or water cooling, the Jonsbo D41 offers plenty of space for both. Depending on how big your GPU is and how many fans you need, you can place the power supply on the front as suits you.
The Jonsbo D41 ATX case
Available in different versions, the choice is yours

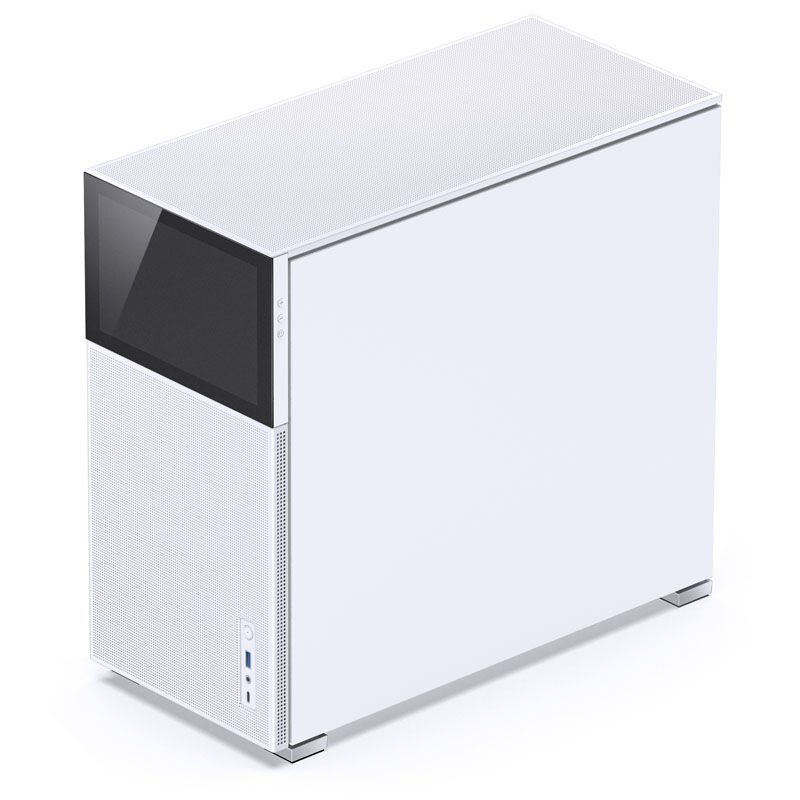

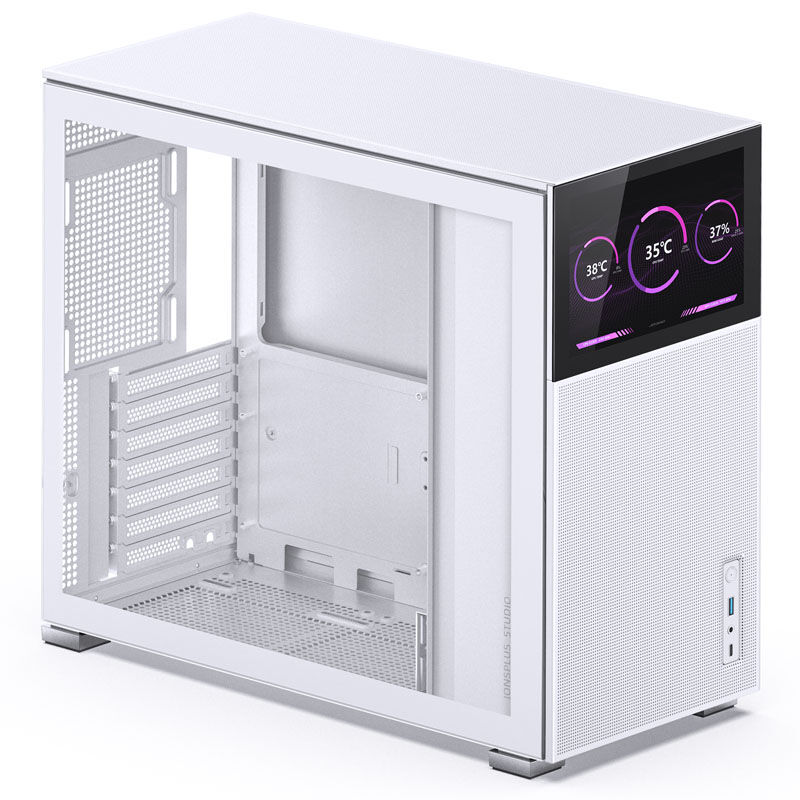

The Jonsbo is available in several versions, one with and one without mesh and even with a large display on the front on which you can display system information or animated screen savers. No matter what you prefer, with the Jonsbo D41 you can create your perfect gaming setup. This version in white has a front with mesh and display, optimized for plenty of airflow.
PERSONALIZE YOUR JONSBO D31

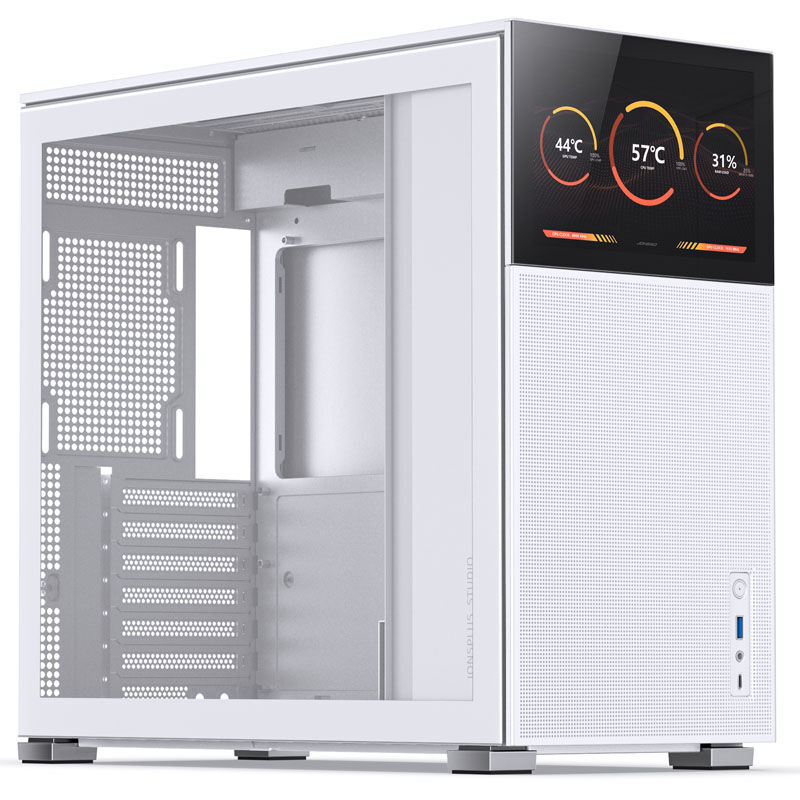

In this version of the Jonsbo D31, a TFT-LC display with a diagonal of 8 inches is installed at the front. For example, you can use the AIDA software to display system information or animated screen savers on 1,280 x 800 pixels. But you have to purchase the application yourself. The display is protected by a pane of tempered glass. You can also replace the screen with the normal bezel that comes with the case and place it separately on your gaming table. It is connected via a mini HDMI port. You can use side switches to turn the screen on and off and control the brightness.
The Jonsbo D41 ATX case
High-end gaming hardware: Well presented

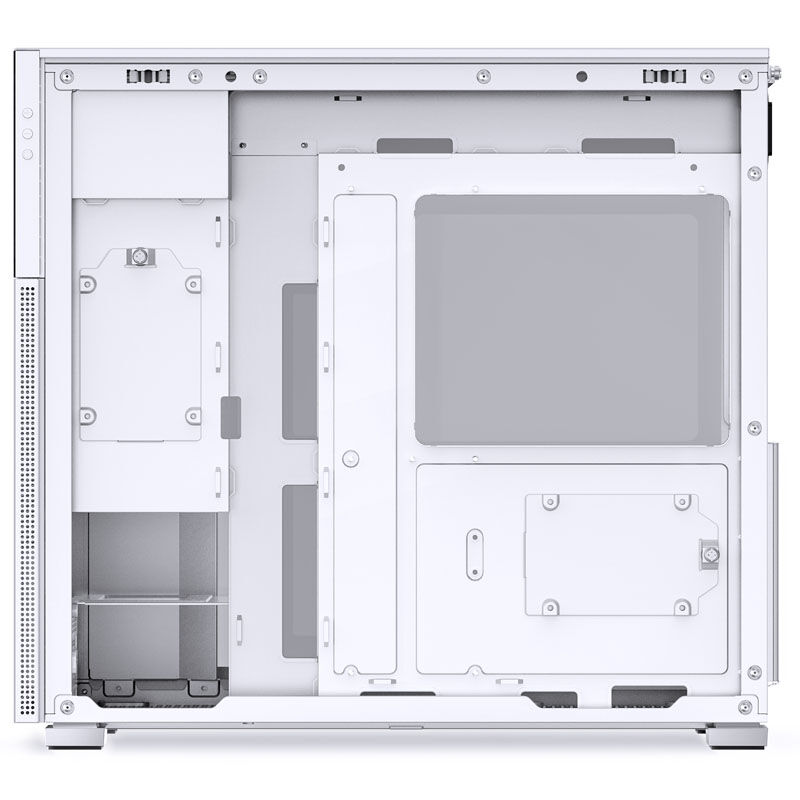

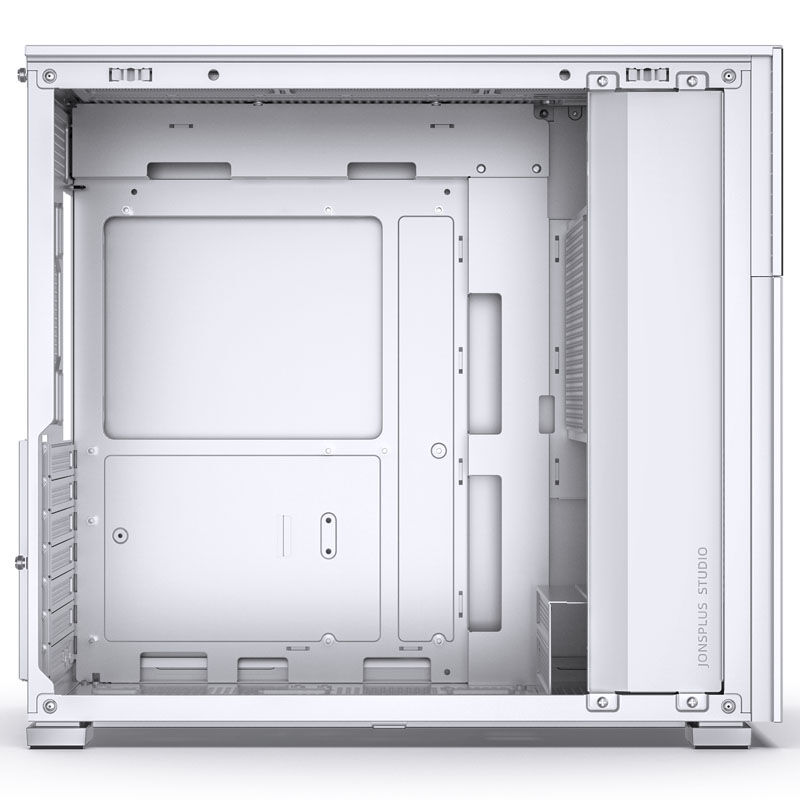

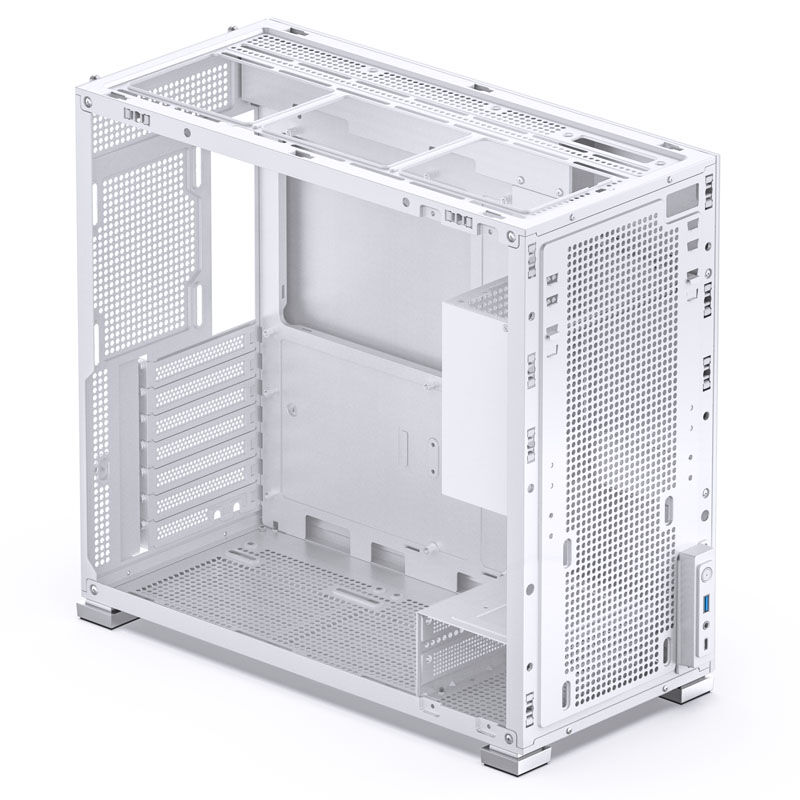

The interior of the Jonsbo D41 is clearly visible through the tempered glass side panel. In addition to the ATX mainboard, it also fits a graphics card with a length of at least 330 mm and a maximum of 400 mm. To do this, you can move the power supply unit vertically by 140 mm behind a panel in four steps. There is space behind the mainboard tray for two SSDs. There is also plenty of space for cable management. An HDD can be placed at the front of the floor without the need for a third fan.
The Jonsbo D41 ATX case
Plenty of space for fans…
The three possible 120 mm fans on the floor above a dust filter are mounted offset so that the sucked in air is directed past the graphics card. Alternatively, you can also use two 140 mm fans here. An additional three 120 mm or two 140 mm fans can be installed at the top to transport the heated air to the outside through a fine mesh grille. There is space for an additional 120 mm fan on the back and front.
The Jonsbo D41 ATX case
… and radiators

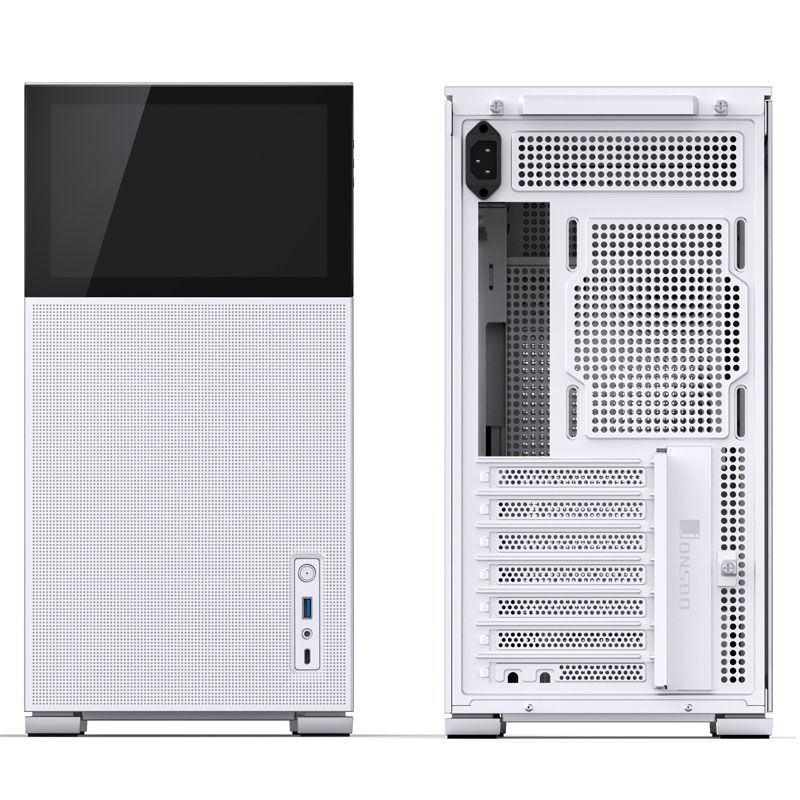

Instead, radiators up to 360 mm in size can be installed on the base and lid. There is also space for a 280mm radiator at the top. If you want to use a CPU cooler, it can be up to 168 mm high. The I/O panel at the bottom right of the front offers a USB 3.1 Type C port, a USB 3.0 Type A port as well as a combined 3.5 mm audio jack and the usual power or reset -Switch.
| Technical Details | |
|---|---|
| Measurements (W × H × D) | 205 × 407 × 452 mm |
| Material | Plastic, Tempered Glass, Steel |
| Weight | 5.9 kg |
| Colour | White |
| Form Factor | ATX, Micro-ATX, DTX, Mini-ITX |
| Fan Support | |
| Front | 1 × 120 mm |
| Top | 3 × 120 mm / 2 × 140 mm |
| Bottom | 3 × 120 mm / 2 × 140 mm |
| Rear | 1 × 120 mm |
| Pre-Installed Fans | |
| Included Fans | None |
| Radiator Support | |
| Top | Up to 280 / 360 mm |
| Bottom | Up to 360 mm |
| Rear | Up to 120 mm |
| Drive Bays | |
| 2.5″ Bays | 3 (motherboard bracket) |
| 3.5″ Bays | 2 (bottom) |
| Expansion | |
| PCI Slots | 7 |
| I/O Panel | |
| USB 3.1 Type-C | 1 (USB 3.2 Gen 2, up to 10 Gbit/s) |
| USB 3.0 Type-A | 1 (USB 3.2 Gen 1, up to 5 Gbit/s) |
| Audio | 1 × 3.5 mm jack (4-pin, TRRS) |
| Buttons | Power / Reset |
| Clearance | |
| Max. GPU Length | 342 – 400 mm (depending on PSU placement) |
| Max. CPU Cooler Height | 168 mm |
| PSU Support | ATX, 100 – 220 mm length |
| Display | |
| Type | TFT-LCD |
| Diagonal | 8″ |
| Display Measurements (W × H × D) | 205.3 × 131.7 × 24.6 mm |
| Resolution | 1280 × 800 |
| Aspect Ratio | 16:10 |
| Colours | 16.7 million |
| Brightness | 300 cd/m² |
| Contrast | 1,000:1 |
| Response Time | 30 ms |
| Refresh Rate | 60 Hz |
| Video Input | 1 × Mini-HDMI |
| Power Input | 1 × USB-C |
| Controls | On/Off, Brightness +/- |
Specifications
| Colour | |
|---|---|
| Primary Colour | White |
| Secondary Colour | Black, Transparent |
| Fan Colour (Frame / Rotor) | White / White |
| Dimensions | |
| Length / Depth | 452 mm |
| Width | 205 mm |
| Height | 407 mm |
| Weight | 6.78 kg |
| Inner Volume | 35.4 l |
| Case | |
| Case Type | Tempered Glass Case |
| Side Panel | Closed |
| Motherboard Support | |
| Compatible Formats | ATX, Micro-ATX |
| Max. Format | ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 168 mm |
| Max. GPU Length | Up to 400 mm |
| Max. PSU Length | 140 mm |
| Display | |
| Display Included | Yes |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Front |
| Fan Support | |
| 120 mm Fans | Up to 8 |
| 140 mm Fans | Up to 4 |
| Radiator Support | |
| Max. Compatibility | 1× 120 mm, 2× 360 mm |
| Drive Bays | |
| 2.5″ Bays | 3 |
| 3.5″ Bays | 2 |
| Hot-Swap | No |
| External Ports | |
| USB 3.2 Type-C | 1 |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 1 |
| Audio (3.5 mm TRRS) | 1× In/Out Combo |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Cable Management | Yes |
| Dust Filters | Included |
| Noise Dampening | No |
| Front Door | No |
| Mainboard Tray | No |
| Remote Included | No |
| Transport System | No |
| Expansion | |
| PCI / Expansion Slots | 7 |
| Materials | |
| Construction | Steel, Tempered Glass |
| Lighting | |
| RGB Lighting | Yes |
| Lighting Colour | RGB |
| Fan / RGB Controller | No |
| Product Series | |
| Series | Mesh |
| Included Contents | |
| Included Fans | None |
£97.03£80.86 Inc VatEx Vat
