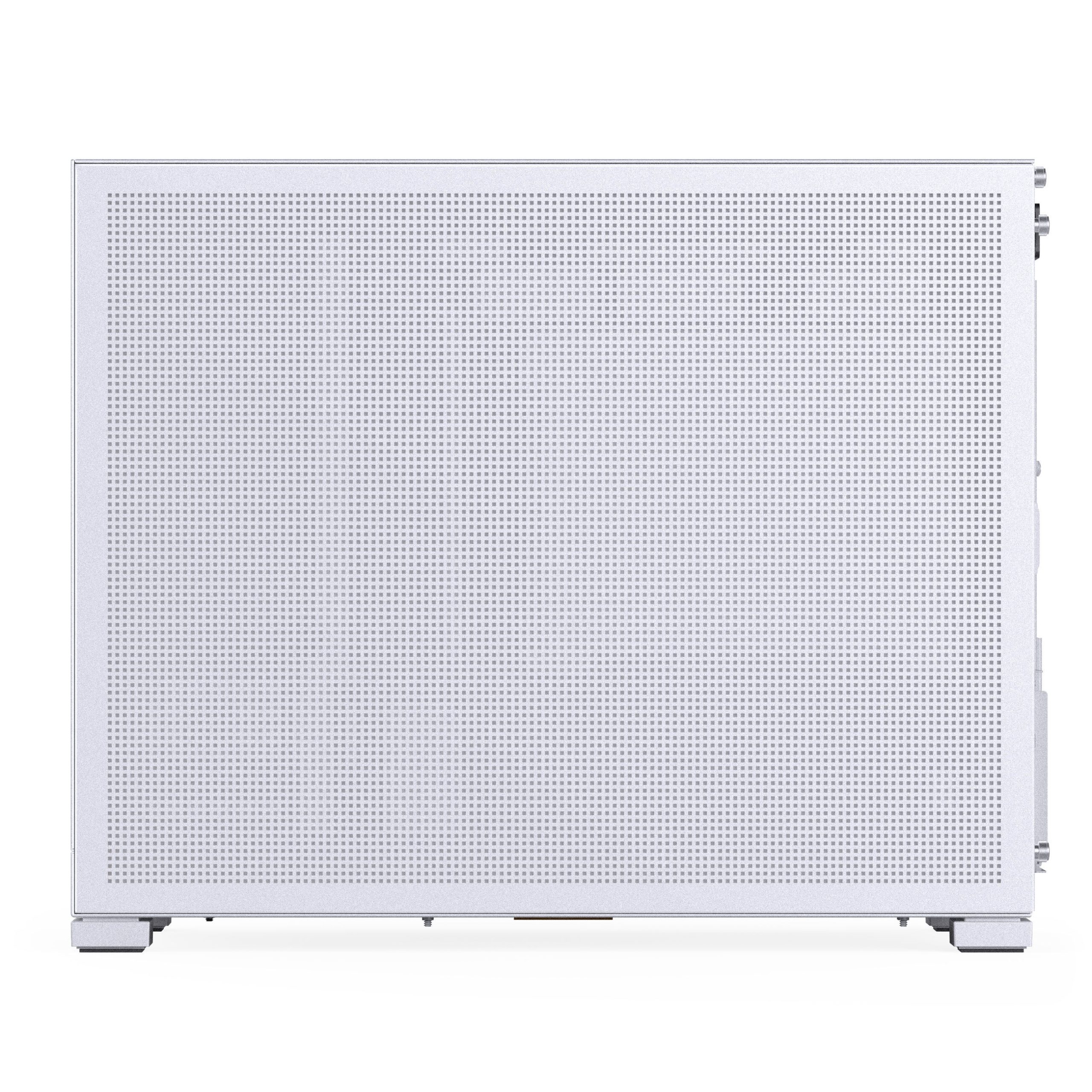

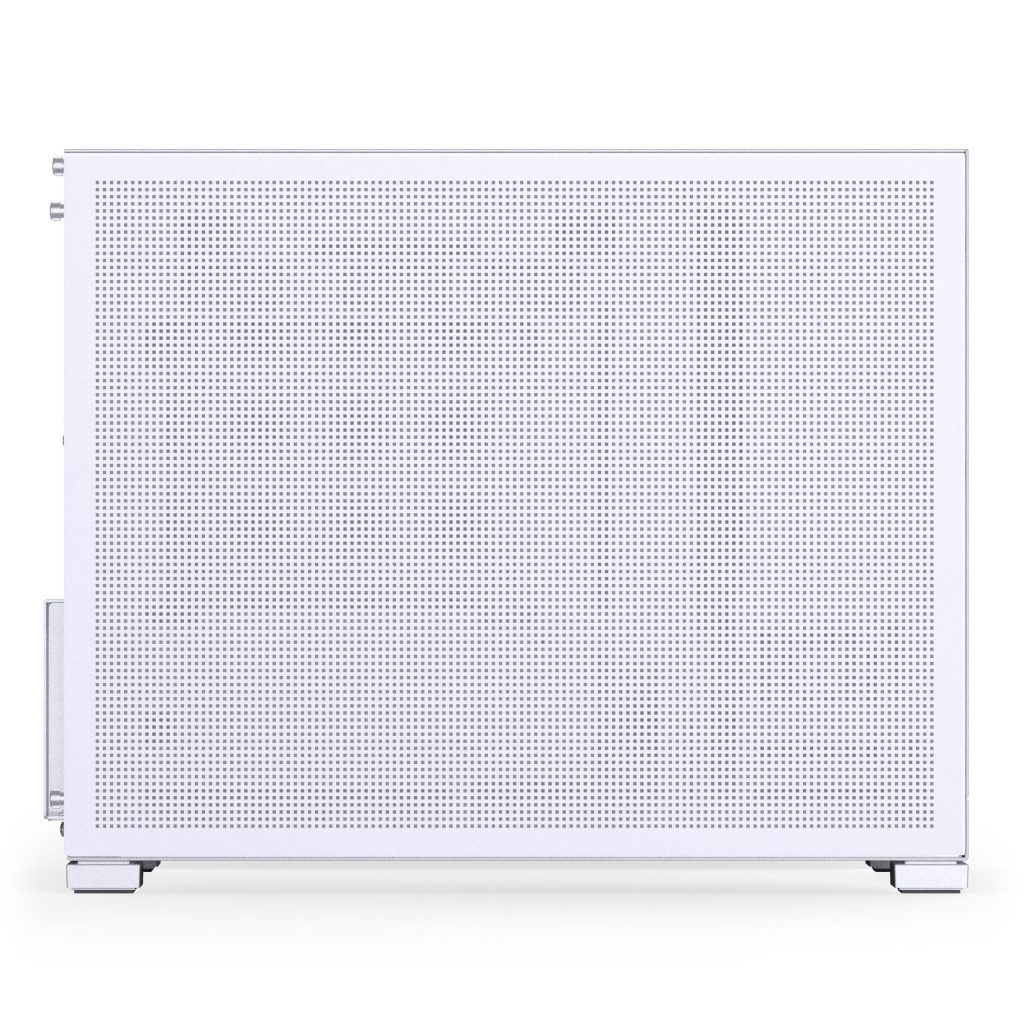

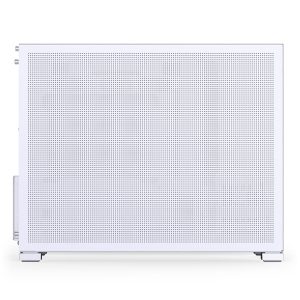

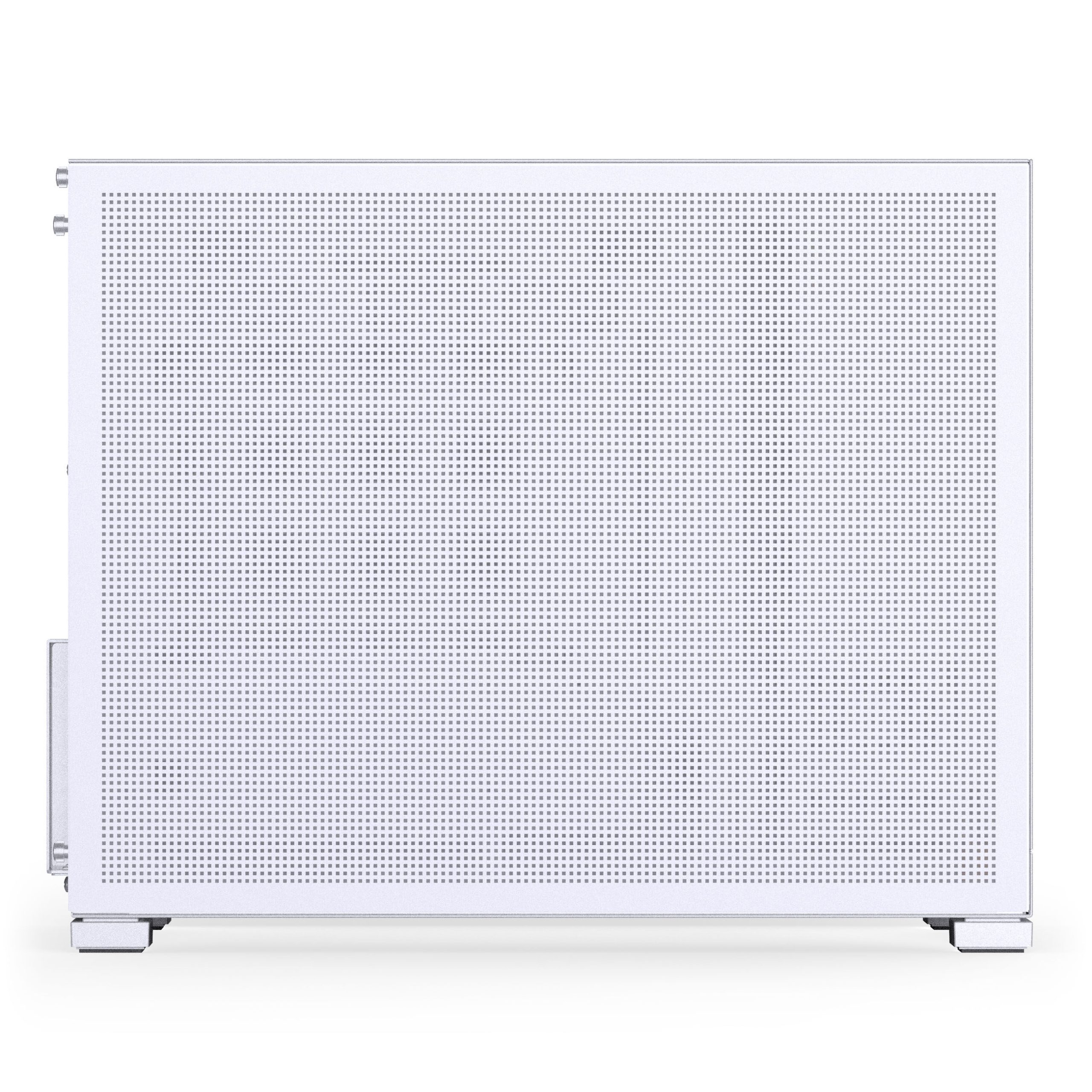

- Mesh side panel ensures a discreet appearance
- Plenty of space for cooling solutions allows for the installation of powerful hardware
- Three dust filters protect your hardware from annoying dust particles
With the D32 series, Jonsbo targets anyone looking to create a space-saving build. Unlike the D32 STD, the D32 PRO PC case is aimed at the high-end segment with special and practical features such as back-connect and improved front I/O.
- Elegant and space-saving design for mATX motherboards
- Seamless cable management with cutouts for back-connect motherboards
- Mesh side panel ensures a dis...
With the D32 series, Jonsbo targets anyone looking to create a space-saving build. Unlike the D32 STD, the D32 PRO PC case is aimed at the high-end segment with special and practical features such as back-connect and improved front I/O.
- Elegant and space-saving design for mATX motherboards
- Seamless cable management with cutouts for back-connect motherboards
- Mesh side panel ensures a dis...
With the D32 series, Jonsbo targets anyone looking to create a space-saving build. Unlike the D32 STD, the D32 PRO PC case is aimed at the high-end segment with special and practical features such as back-connect and improved front I/O.
– Elegant and space-saving design for mATX motherboards
– Seamless cable management with cutouts for back-connect motherboards
– Mesh side panel ensures a discreet appearance
– Plenty of space for cooling solutions allows for the installation of powerful hardware
– Three dust filters protect your hardware from annoying dust particles

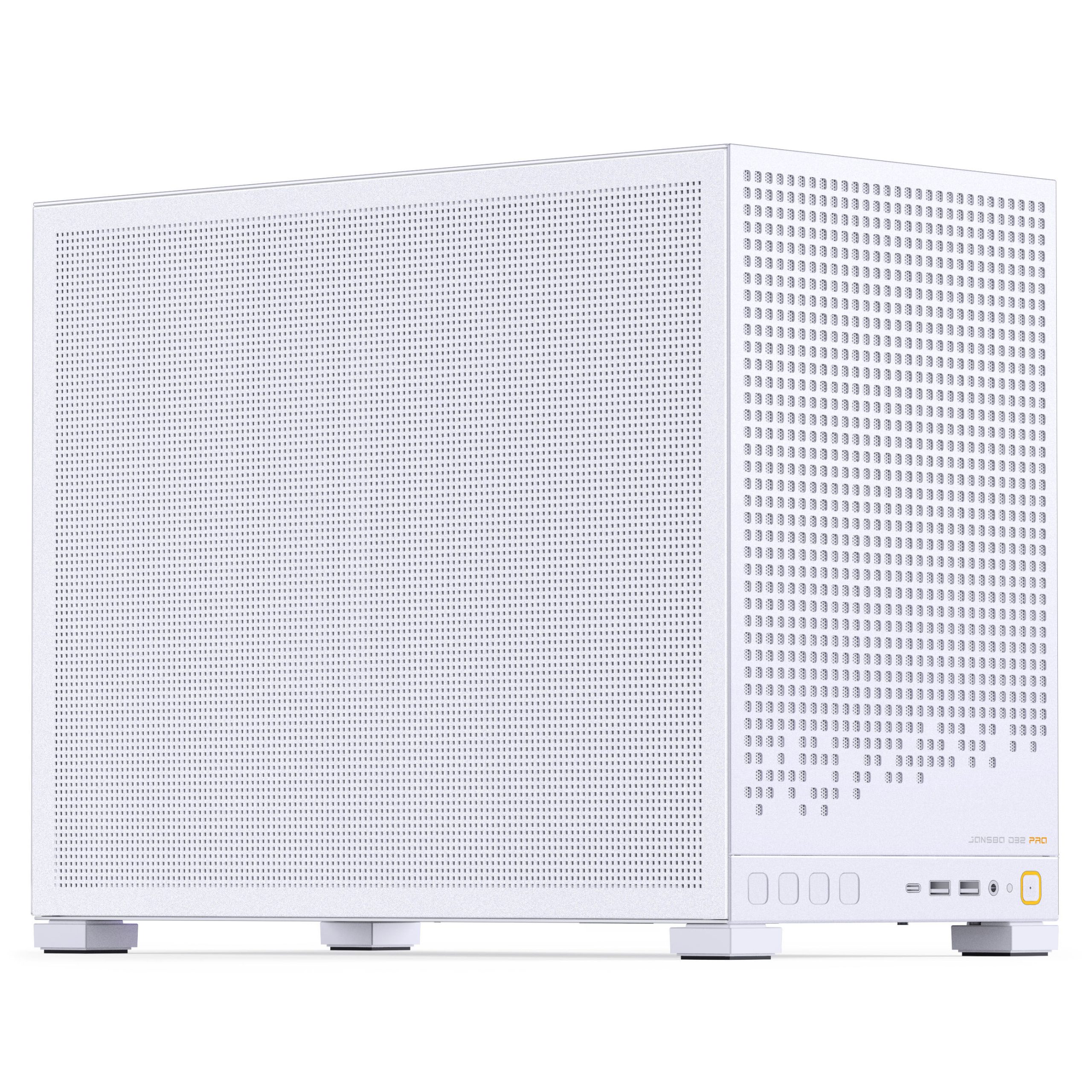

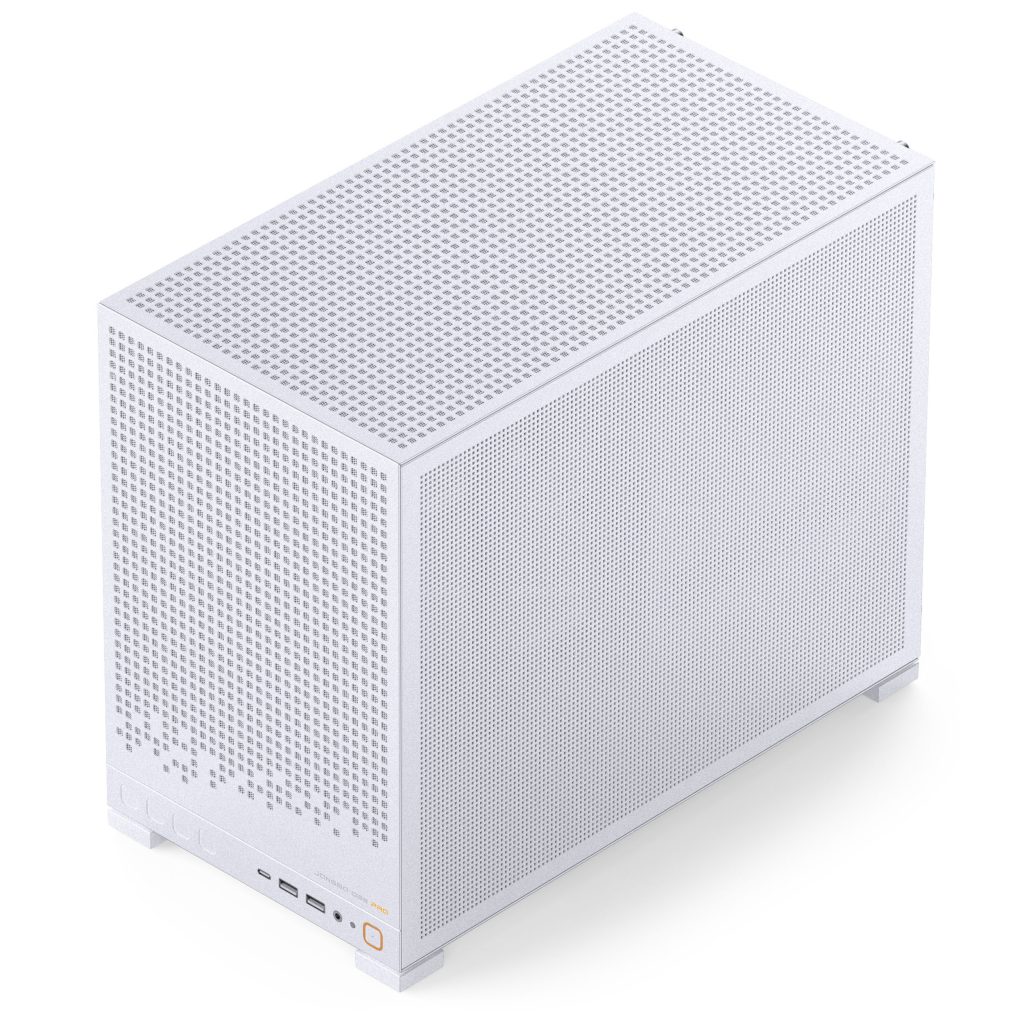

The Jonsbo D32 PRO Mesh: Space-saving and discreet case for high-end hardware
Whether its a midrange HTPC or a high-end PC, the D32 PRO Mesh from Jonsbo comfortably accommodates builds of various types. The minimal case accommodates graphics cards up to 365 mm long and CPU coolers up to 170 mm high. In Back-Connect mode, the maximum height of the CPU cooler is reduced by just under seven millimeters.
This ensures adequate cooling of your hardware, even with the cases compact design. In combination with up to six 120 mm fans or one 120 mm fan and four 140 mm fans, the fans also provide enormous airflow inside the case.

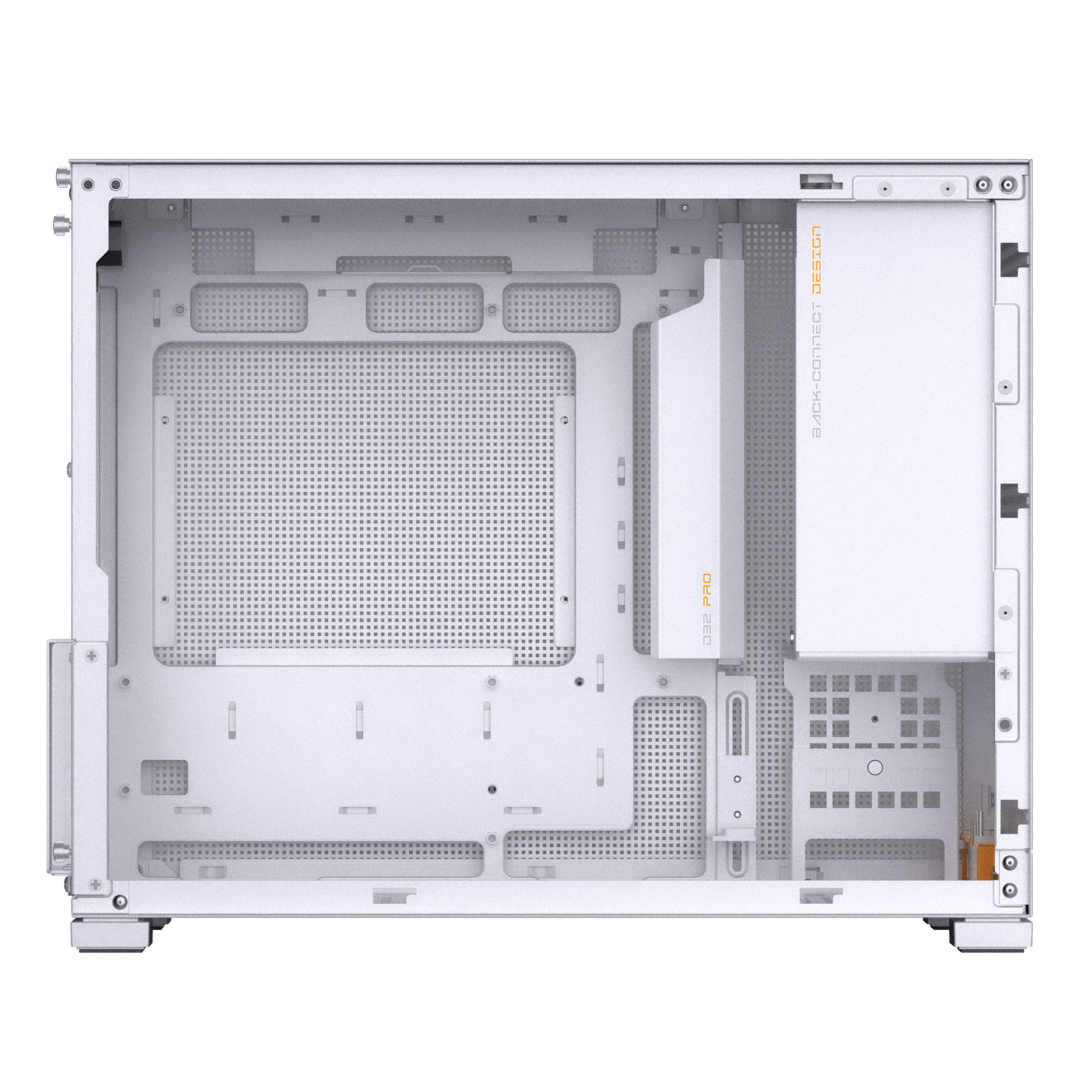

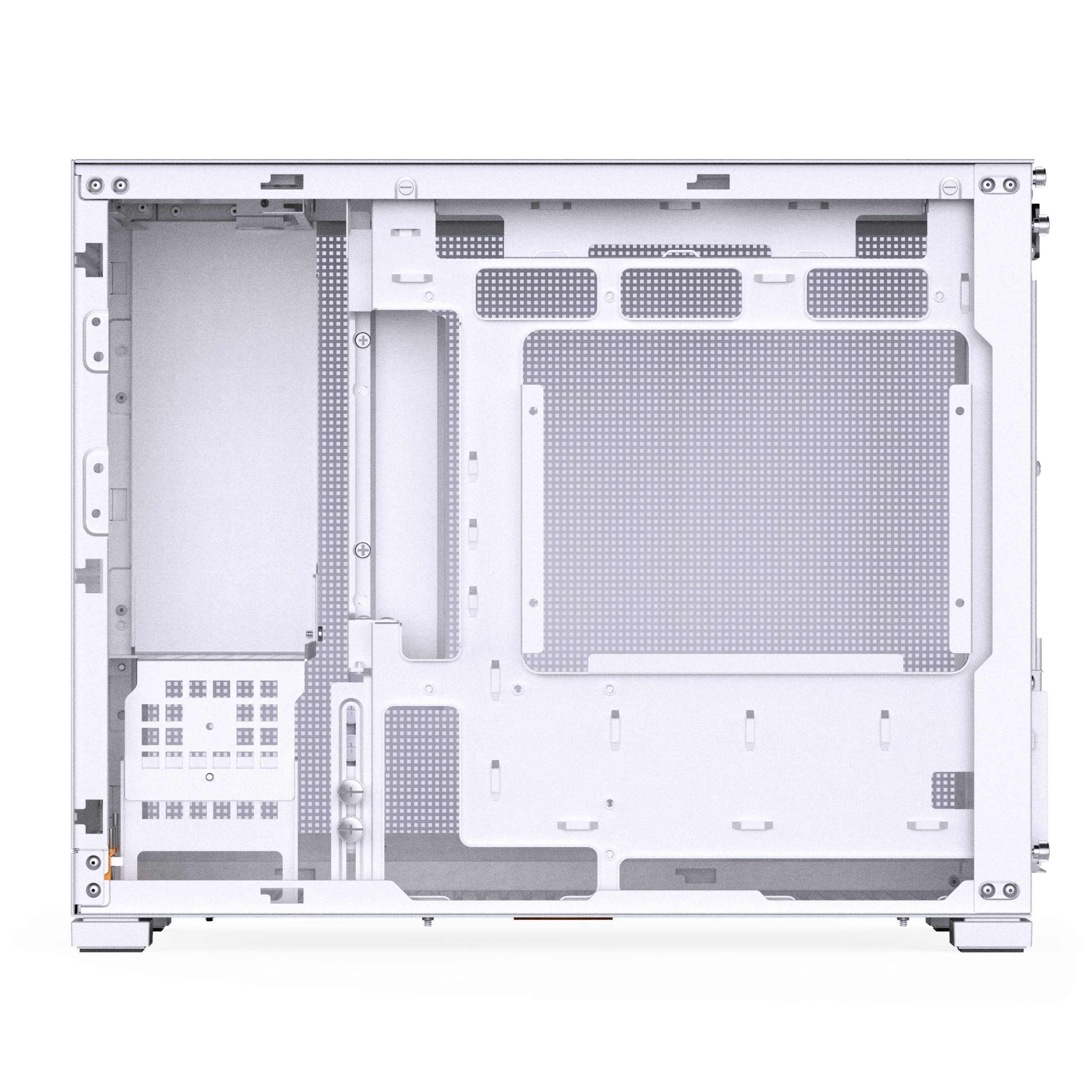

No Cable Clutter with Back-Connect
With Back-Connect motherboards such as those from the ASUS BTF series, the MSI PROJECT ZERO series, or the GIGABYTE Stealth series, the case is virtually free of visible cable clutter in B mode, requiring approximately six to seven millimeters more space.
Since most power and connection cables can be connected to the back of the motherboard, you save on cable management while still maintaining a clean look in your case.
Powerful Cooling in a Small Space

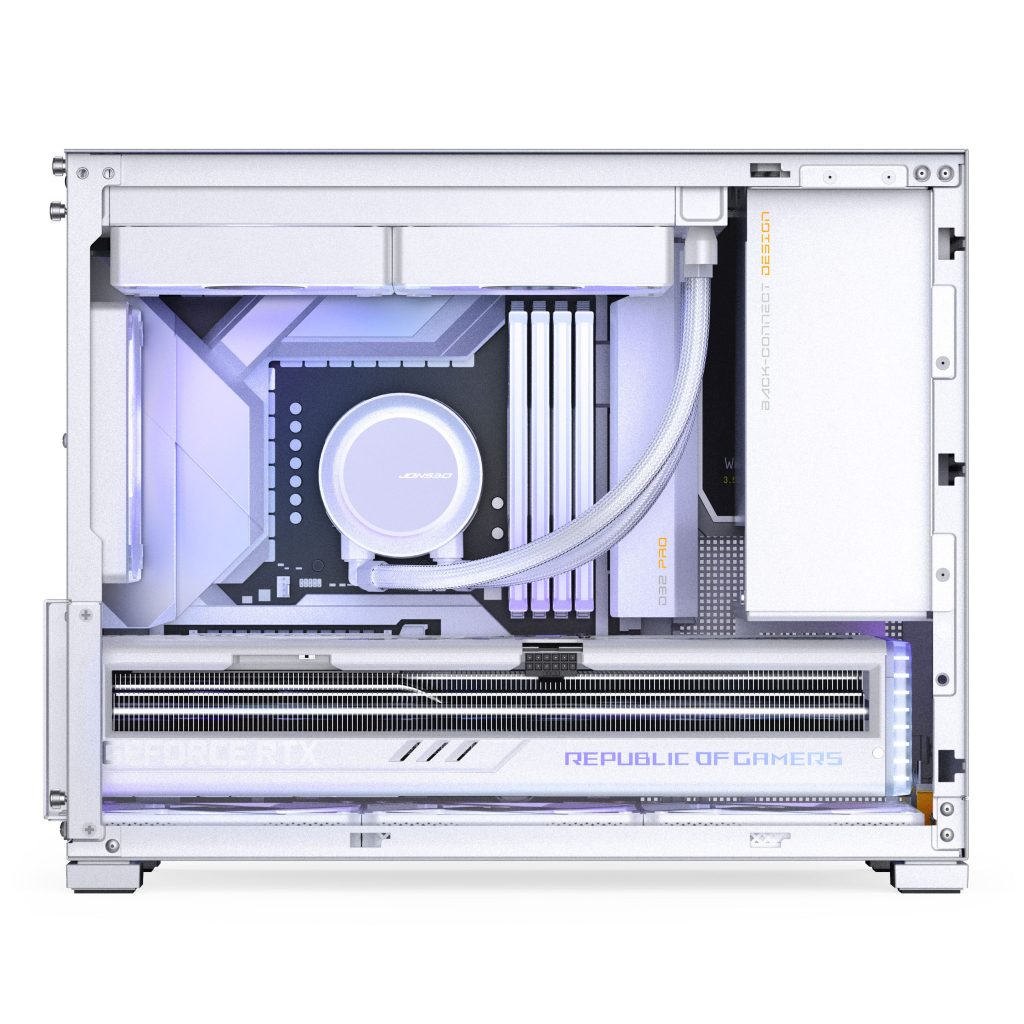

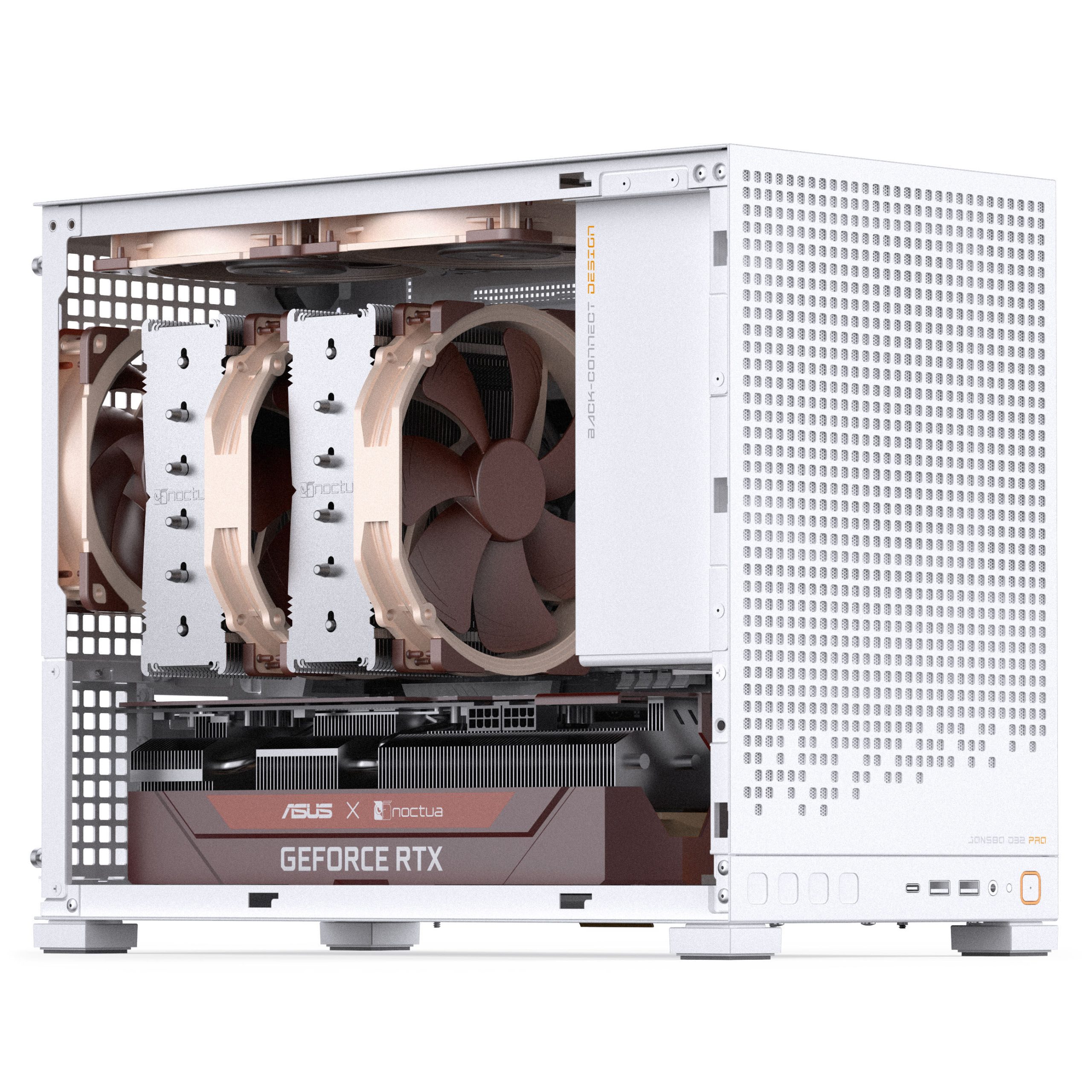

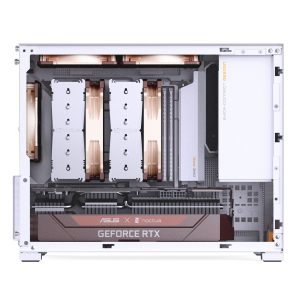

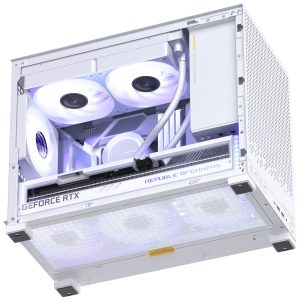

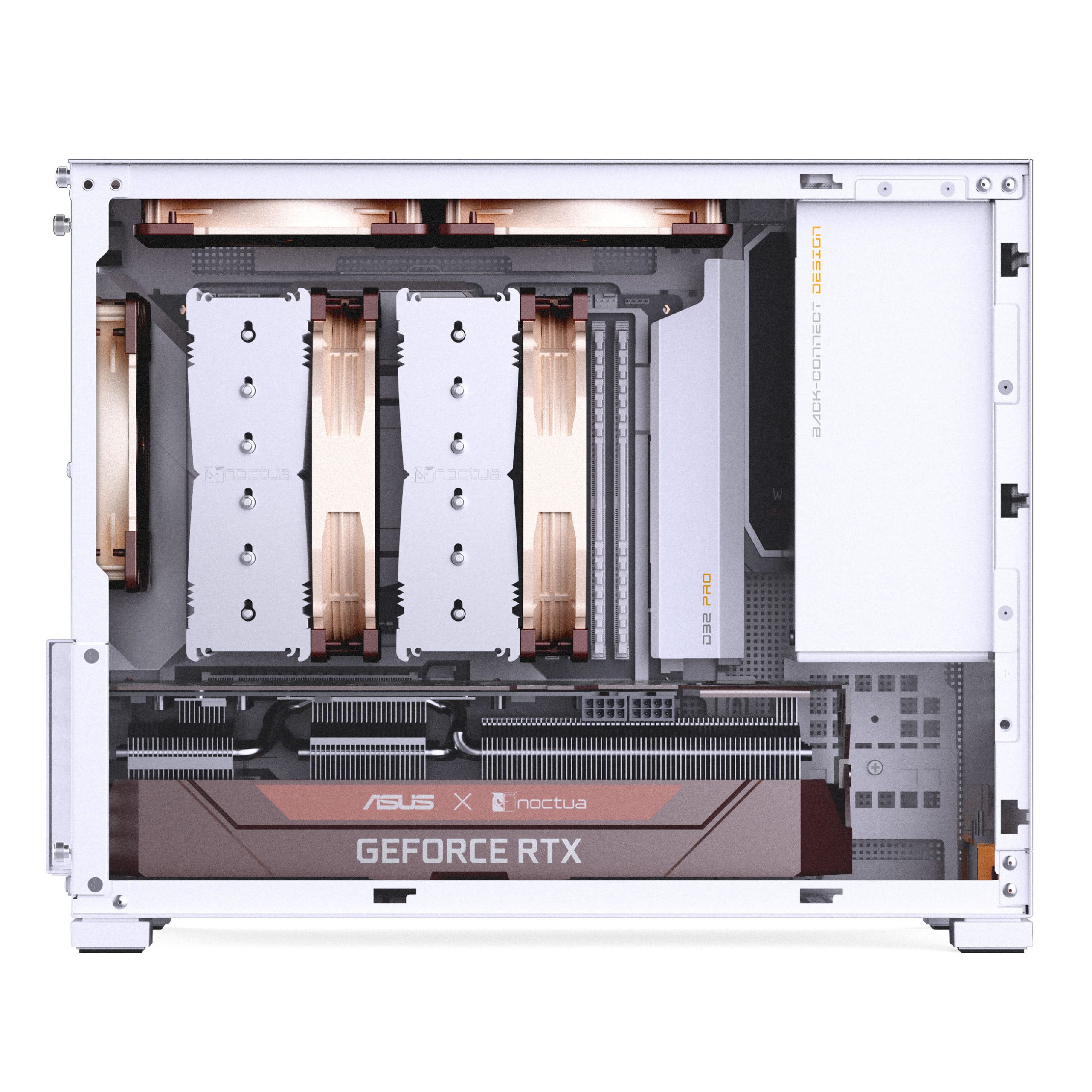

To ensure that your powerful hardware is adequately cooled even in the compact case, Jonsbo has developed an optimal cooling solution for the available space. With six 120 mm fans for sufficient airflow, a large dual-tower CPU cooler, or even an installable 240 mm AiO, your hardware will always stay cool even under load.
Three dust filters on the front, top, and bottom ensure that your hardware stays free of dust and dirt. This keeps your temperatures at an optimal level and, among other things, extends the lifespan of your hardware.
Specification
| Colour | |
|---|---|
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 396 mm |
| Width | 207 mm |
| Height | 314 mm |
| Weight | 4.3 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | Micro-ATX, Mini-ITX (Max: Micro-ATX) |
| Max CPU Cooler Height | 170 mm |
| Max GPU Length | 365 mm |
| Max PSU Length | 200 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX, SFX |
| PSU Position | Front |
| Cable Specifications | |
| Riser Cable Included | No |
| Fan Support | |
| Maximum Fans | 6 |
| 120 mm Fans | 6 |
| 140 mm Fans | 4 |
| Radiator Support | |
| Max Radiator | 1 × 240 mm |
| Drive Bays | |
| 2.5″ Bays | Up to 3 |
| 3.5″ Bays | Up to 2 |
| Combined Bays | 1 × 3.5″ + 1 × 2.5″ |
| Hot Swap | No |

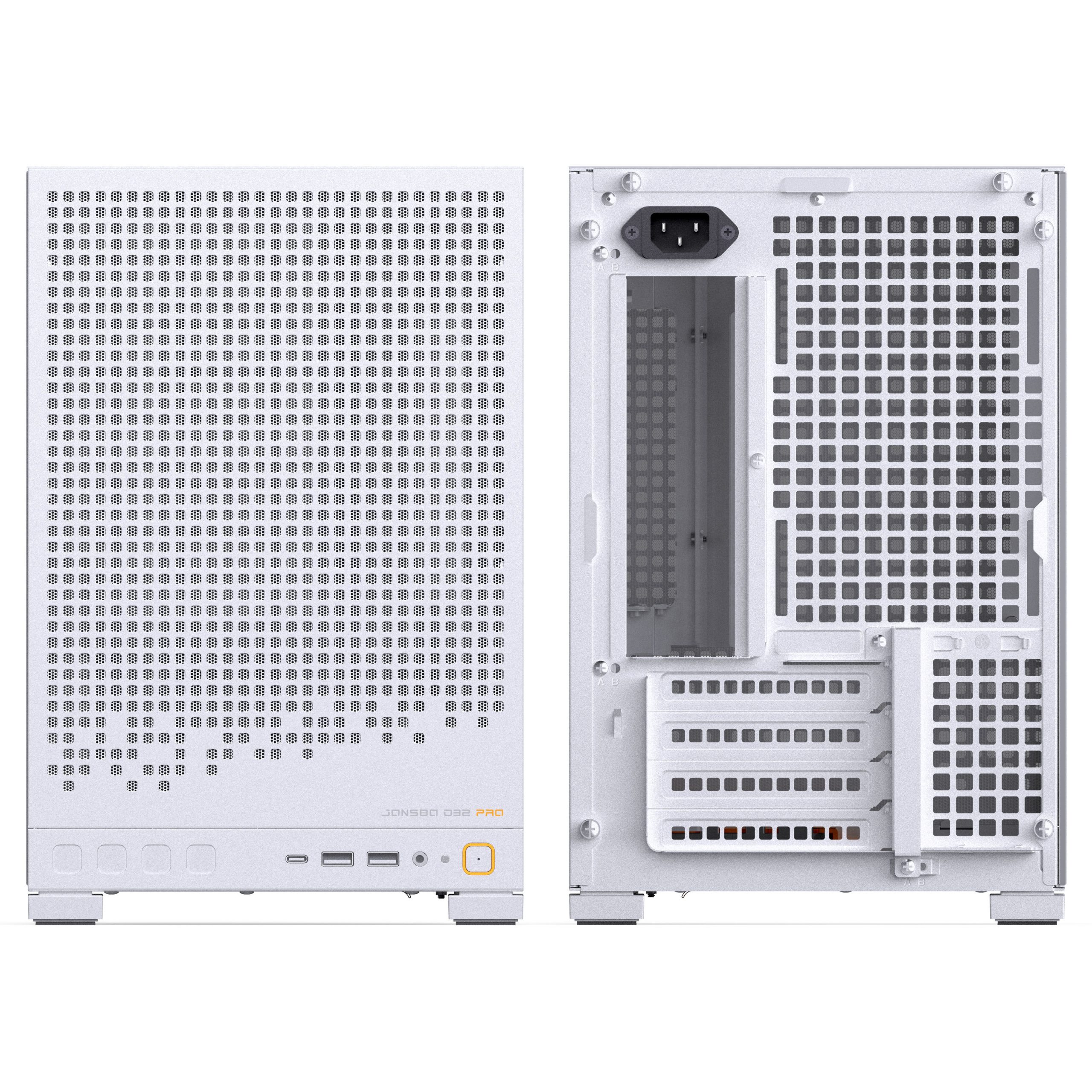

| External Ports | |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 2 |
| Audio | 1× combo jack (3.5 mm) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | Mesh |
| Vertical GPU Mount | No |
| Cable Management | Yes |
| Dust Filters | Bottom, Side, Top |
| Noise Dampening | No |
| Back-Connect Support | |
| Back-Connect Enabled | Yes |
| Compatible Standards | ASUS BTF, Gigabyte Project Stealth, MSI Project Zero |
| Expansion | |
| PCI / Expansion Slots | 4 (2 × 2 layout) |
| Fan / Control | |
| Fan Controller / Hub | No |
| Mounting | |
| VESA Mountable | No |
| Internal Monitor Mount | No |
| Materials | |
| Construction | Aluminium, Plastic, SPCC Steel |
| Lighting | |
| RGB / Lighting | No |
| Included Contents | |
| Included Fans | None |
| Compatibility Note | |
| Refer to the manufacturer’s website for detailed compatibility information. | |
