Compact and stylish case for Micro ATX motherboards
Features:
- Closed front for silent builds, a side panel made of tempered glass
- Designed for vertical airflow with up to eight possible fans
- Vertically movable power supply for longer graphics cards
- GPUs may be at least 330 mm long and a maximum of 400 mm long
- Space for up to two 360mm radiators at the same time
Compact and stylish case for Micro ATX motherboards
Features:
- Closed front for silent builds, a side panel made of tempered glass
- Designed for vertical airflow with up to eight possible fans
- Vertically movable power supply for longer graphics cards
- GPUs may be at least 330 mm long and a maximum of 400 mm long
- Space for up to two 360mm radiators at the same time
Compact and stylish case for Micro ATX motherboards
Features:
- Closed front for silent builds, a side panel made of tempered glass
- Designed for vertical airflow with up to eight possible fans
- Vertically movable power supply for longer graphics cards
- GPUs may be at least 330 mm long and a maximum of 400 mm long
- Space for up to two 360mm radiators at the same time
Features:
– Closed front for silent builds, a side panel made of tempered glass
– Designed for vertical airflow with up to eight possible fans
– Vertically movable power supply for longer graphics cards
– GPUs may be at least 330 mm long and a maximum of 400 mm long
– Space for up to two 360mm radiators at the same time

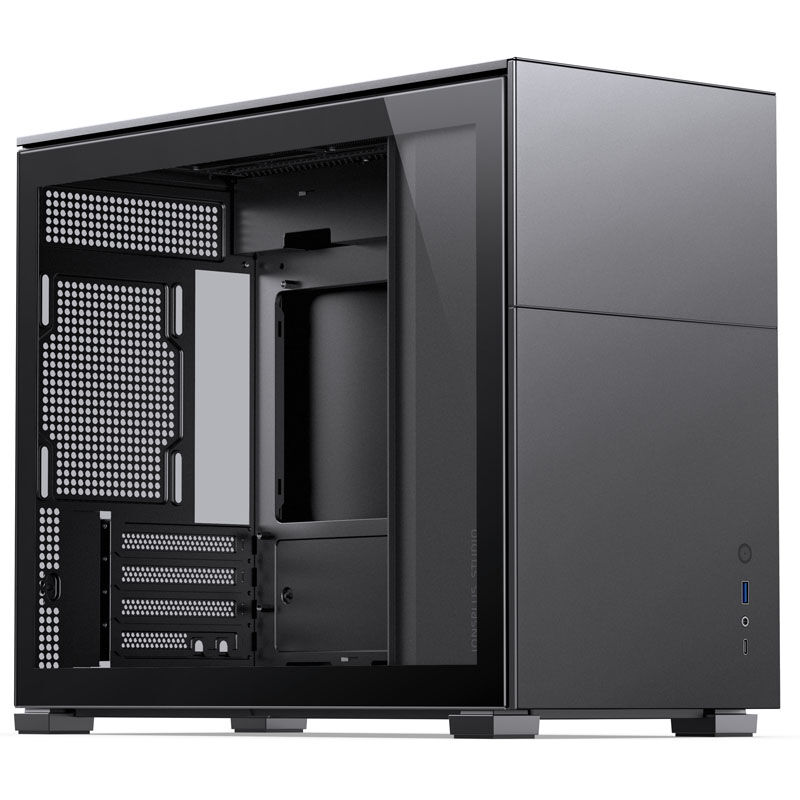

The Jonsbo D31 mATX case
Jonsbo D31: The versatile Micro ATX case
With the D31, Jonsbo presents a Micro-ATX case from its Pine Cones series that is as compact and elegant as it is versatile. You can easily accommodate the latest gaming hardware in it. No matter whether you prefer air or water cooling, the Jonsbo D31 offers plenty of space for both. Depending on how big your GPU is and how many fans you need, you can place the power supply on the front as suits you.
The Jonsbo D31 mATX case
Available in different versions, the choice is yours

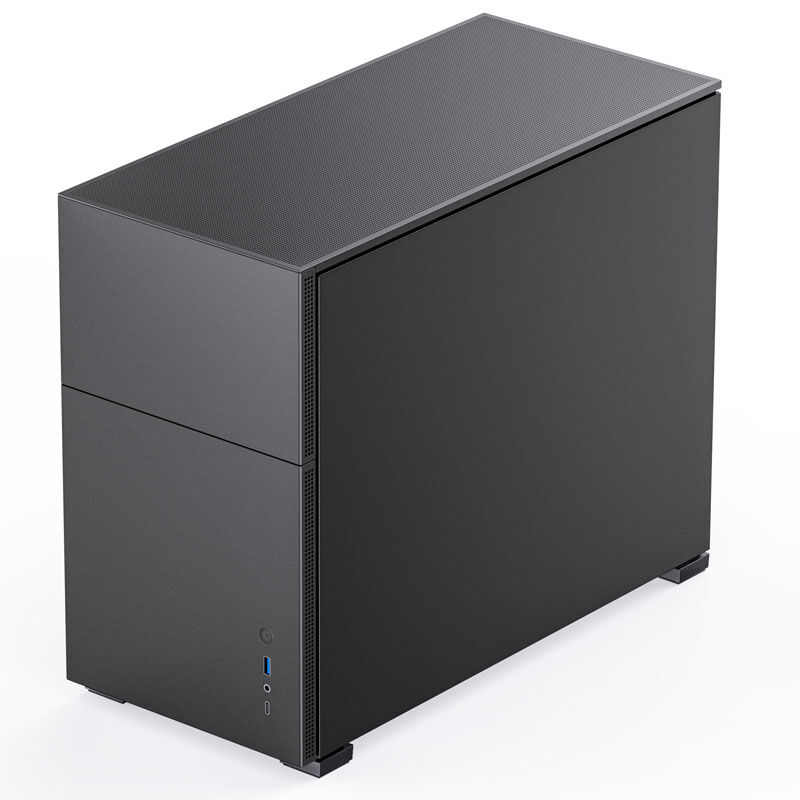

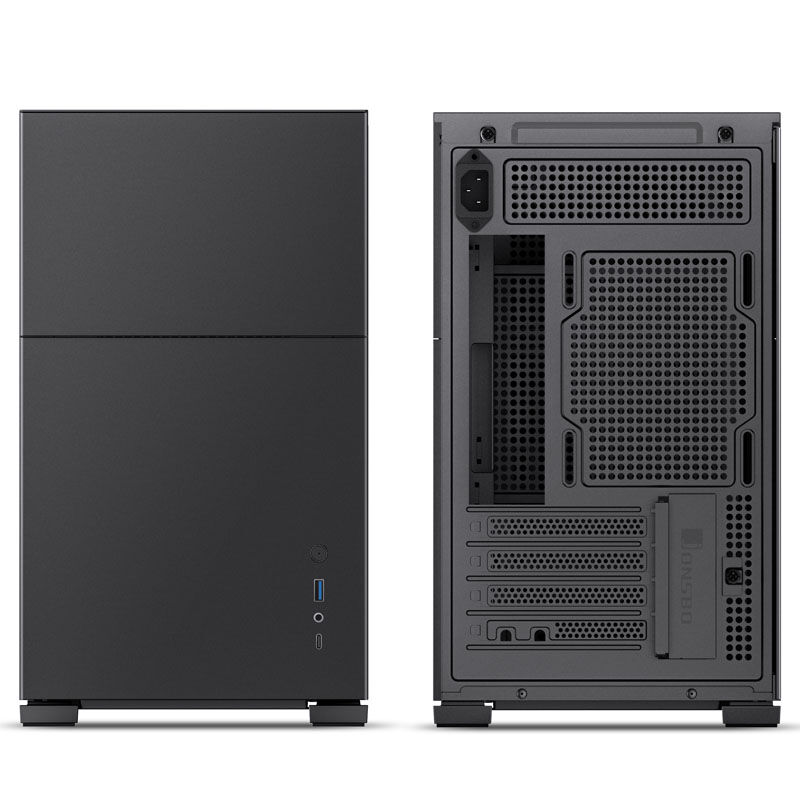

The Jonsbo is available in several versions, one with and one without mesh and even with a large display on the front on which you can display system information or animated screen savers. No matter what you prefer, with the Jonsbo D31 you can create your perfect gaming setup. This STD version in black has a closed front, perfect for a silent build.
The Jonsbo D31 mATX case

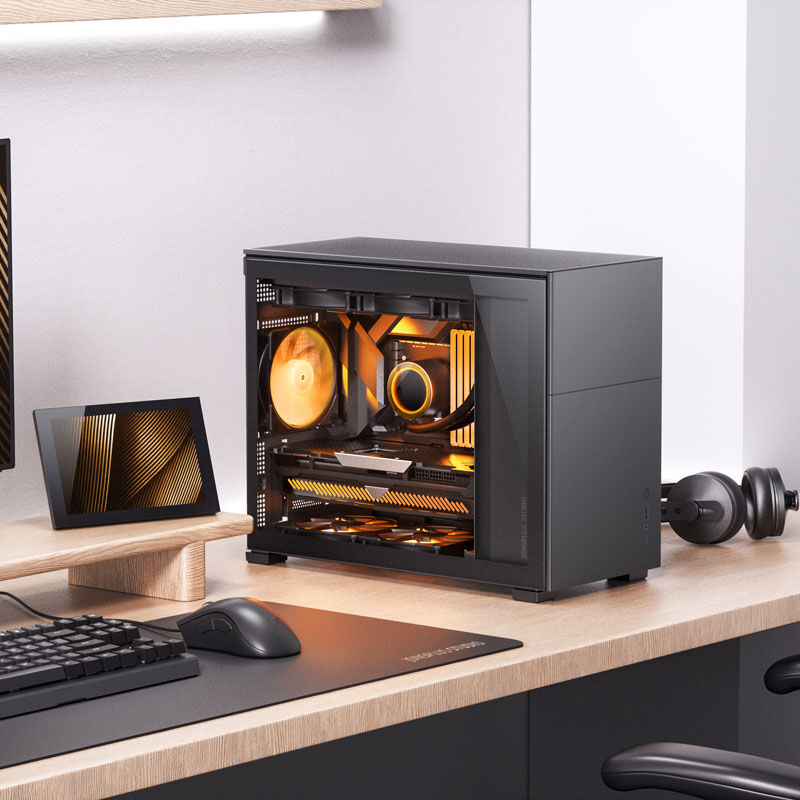

High-end gaming hardware: Well presented

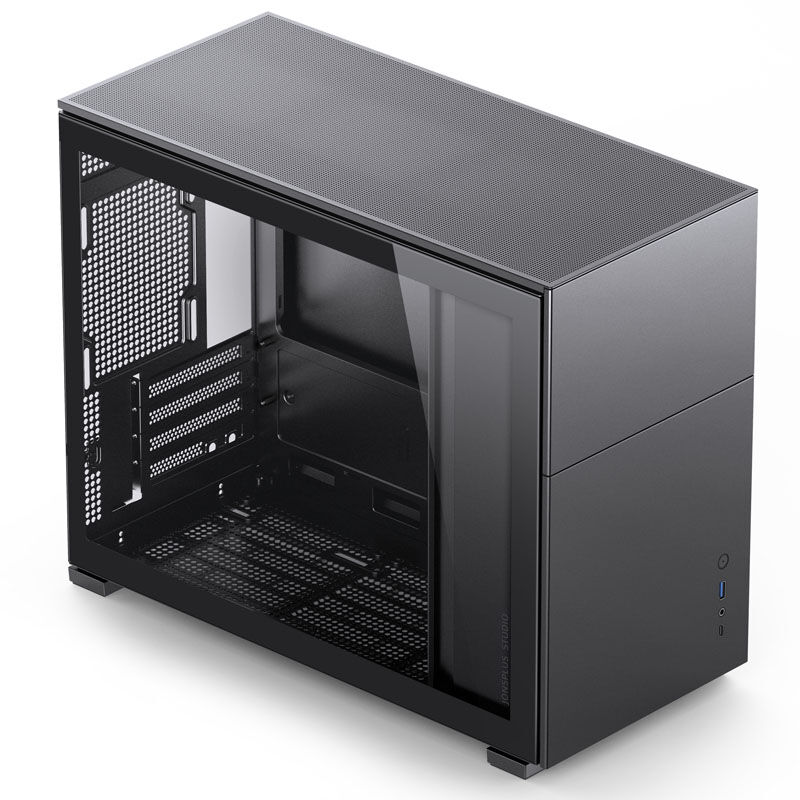

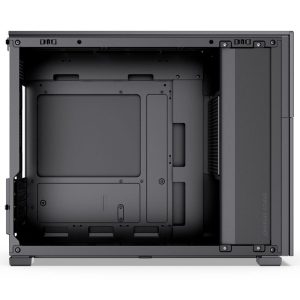

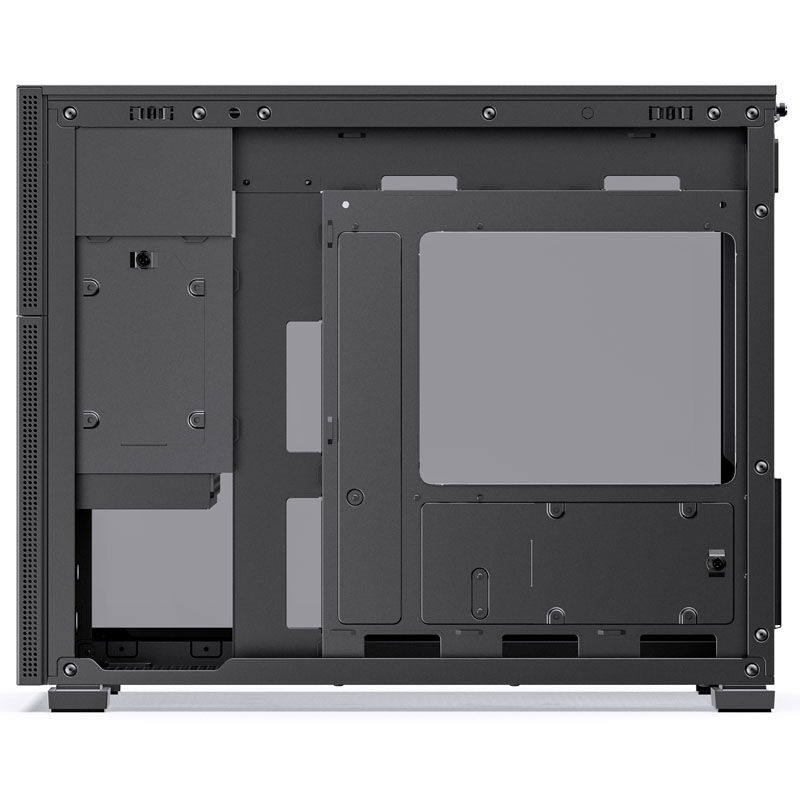

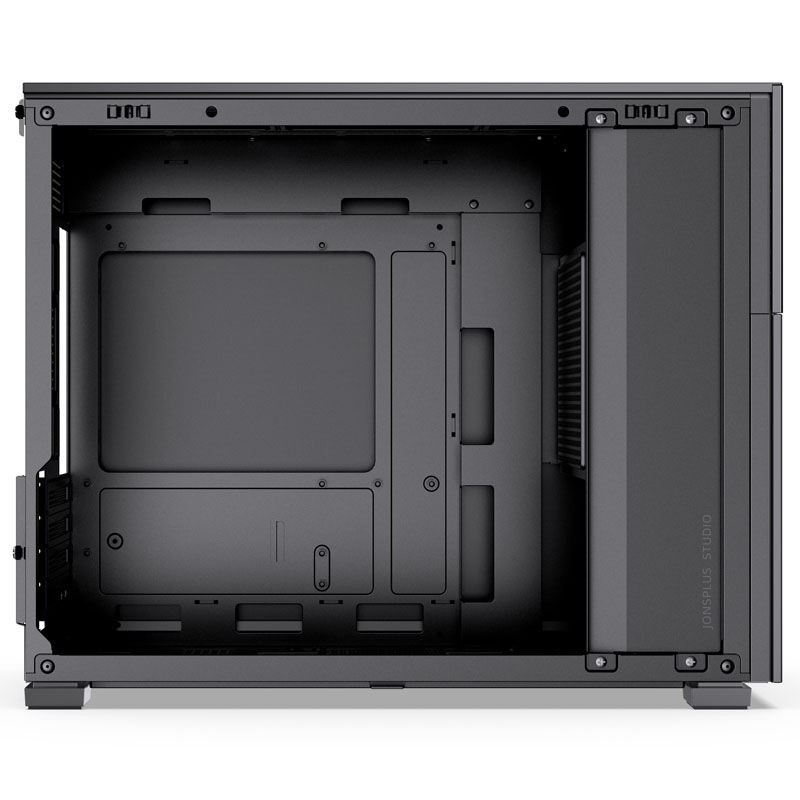

The interior of the Jonsbo D31 is clearly visible through the tempered glass side panel. In addition to the Micro ATX mainboard, it also fits a graphics card with a length of at least 330 mm and a maximum of 400 mm. To do this, you can move the power supply unit vertically by 140 mm behind a panel in four steps. There is space behind the mainboard tray for two SSDs. There is also plenty of space for cable management. An HDD can be placed at the front of the floor without the need for a third fan.
The Jonsbo D31 mATX case
Plenty of space for fans…

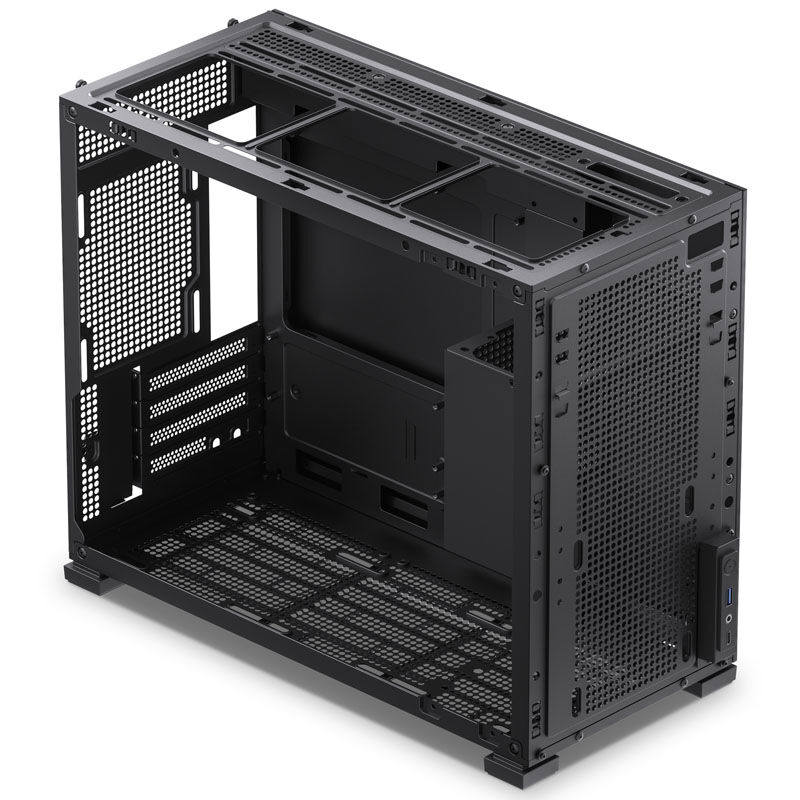

The three possible 120 mm fans on the floor above a dust filter are mounted offset so that the sucked in air is directed past the graphics card. Alternatively, you can also use two 140 mm fans here. An additional three 120 mm or two 140 mm fans can be installed at the top to transport the heated air to the outside through a fine mesh grille. There is space for an additional 120 mm fan on the back and front.
The Jonsbo D31 mATX case
… and radiators
Instead, radiators up to 360 mm in size can be installed on the base and lid. There is also space for a 280mm radiator at the top. If you want to use a CPU cooler, it can be up to 168 mm high. The I/O panel at the bottom right of the front offers a USB 3.1 Type C port, a USB 3.0 Type A port as well as a combined 3.5 mm audio jack and the usual power or reset -Switch.
| Technical Details | |
|---|---|
| Measurements | 205 × 363 × 452 mm (W×H×D) |
| Material | Plastic, Tempered Glass, Steel |
| Weight | 5.9 kg |
| Colour | Black |
| Form Factor | Micro-ATX, DTX, Mini-ITX |
| Cooling Support | |
| Total Fans Supported | Front: 1× 120 mm Roof: 3× 120 mm / 2× 140 mm Floor: 3× 120 mm / 2× 140 mm Rear: 1× 120 mm |
| Pre-installed Fans | None |
| Radiator Mountings | Roof: up to 280 / 360 mm Floor: up to 360 mm Rear: up to 120 mm |
| Storage | |
| Drive Bays | 2× 2.5″ (MB bracket), 1× 3.5″ (floor) |
| Expansion | |
| PCI Slots | 4 |
| I/O Panel | |
| Ports | 1× USB-C (USB 3.2 Gen 2, 10 Gbit/s) 1× USB-A (USB 3.2 Gen 1, 5 Gbit/s) 1× 3.5 mm TRRS Power / Reset |
| Hardware Clearance | |
| Max GPU Length | 330–400 mm (depends on PSU placement) |
| Max CPU Cooler Height | 168 mm |
| PSU Support | ATX, 100–220 mm length |
| Specification | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Secondary Colour | Transparent |
| Fan Frame Colour | Black |
| Fan Rotor Colour | White |
| Dimensions | |
| Length / Depth | 452 mm |
| Width | 205 mm |
| Height | 363 mm |
| Weight | 7 kg |
| Case | |
| Case Type | Tempered Glass Case |
| Motherboard Compatibility | DTX, Micro-ATX, Mini-ITX |
| Max Motherboard Format | Micro-ATX |
| Max CPU Cooler Height | 168 mm |
| Max GPU Length | 400 mm |
| Max PSU Length | 140 mm |
| Inner Volume | 31.3 L |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Front |
| Cooling Support | |
| 120 mm Fans | Up to 8 |
| 140 mm Fans | Up to 4 |
| Radiator Compatibility | 1× 120 mm, 2× 360 mm |
| Drive Bays | |
| 2.5″ Drive Bays | 2 |
| 3.5″ Drive Bays | 1 |
| Hot Swap Support | No |
| External Ports | |
| USB 3.2 Type-C | 1 |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 1 |
| Audio | 1× 3.5 mm TRRS (in/out) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | No |
| Expansion | |
| PCI Slots | 4 |
| Materials | |
| Materials | Steel, Tempered Glass |
| Lighting | |
| Lighting / RGB | Yes |
| Fan / RGB Control | No |
| Lighting Colour | RGB |
| Additional Contents | |
| Included Fans | None |
