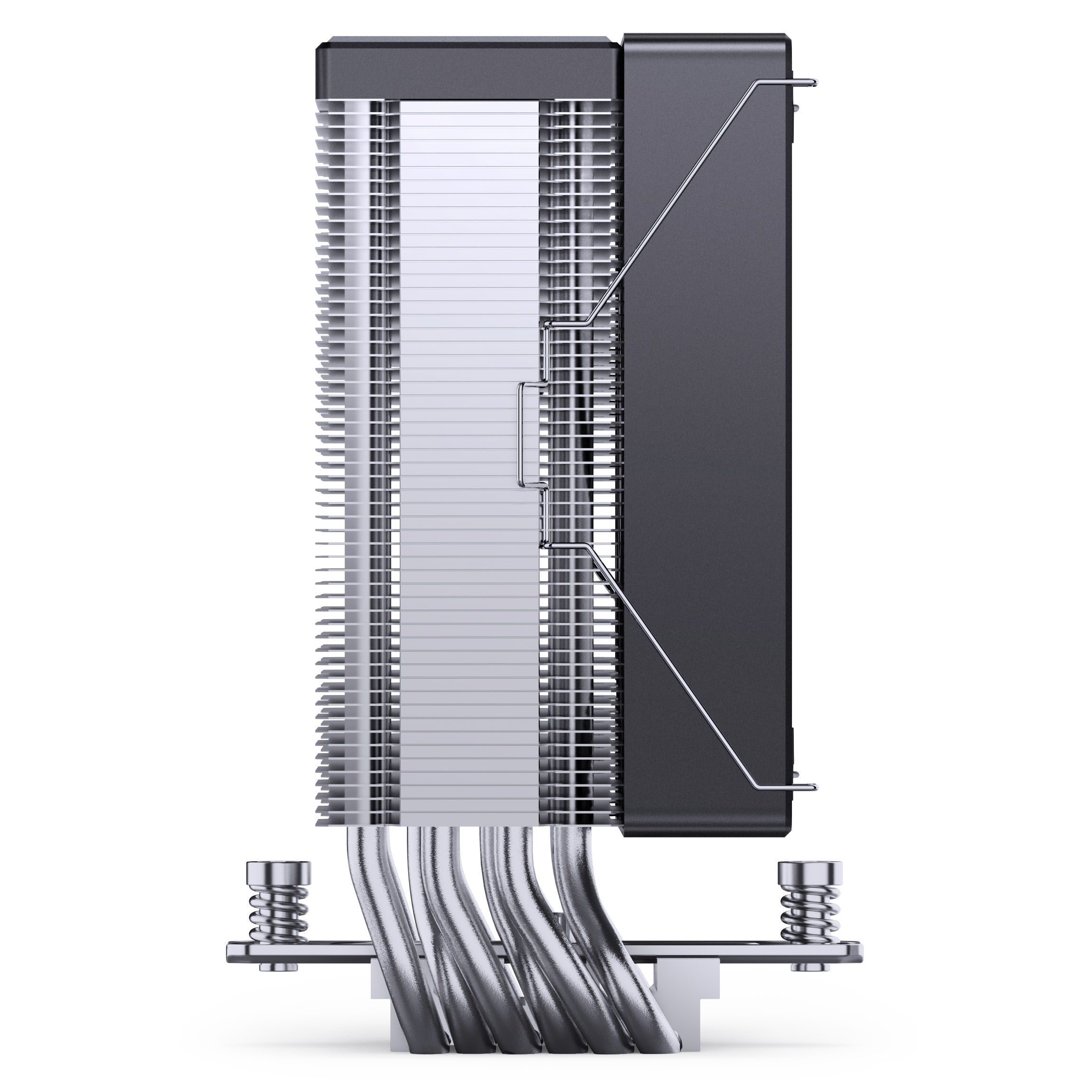

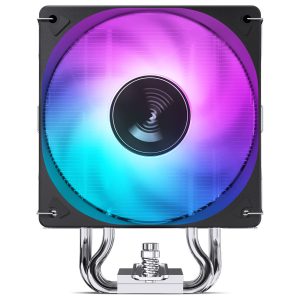

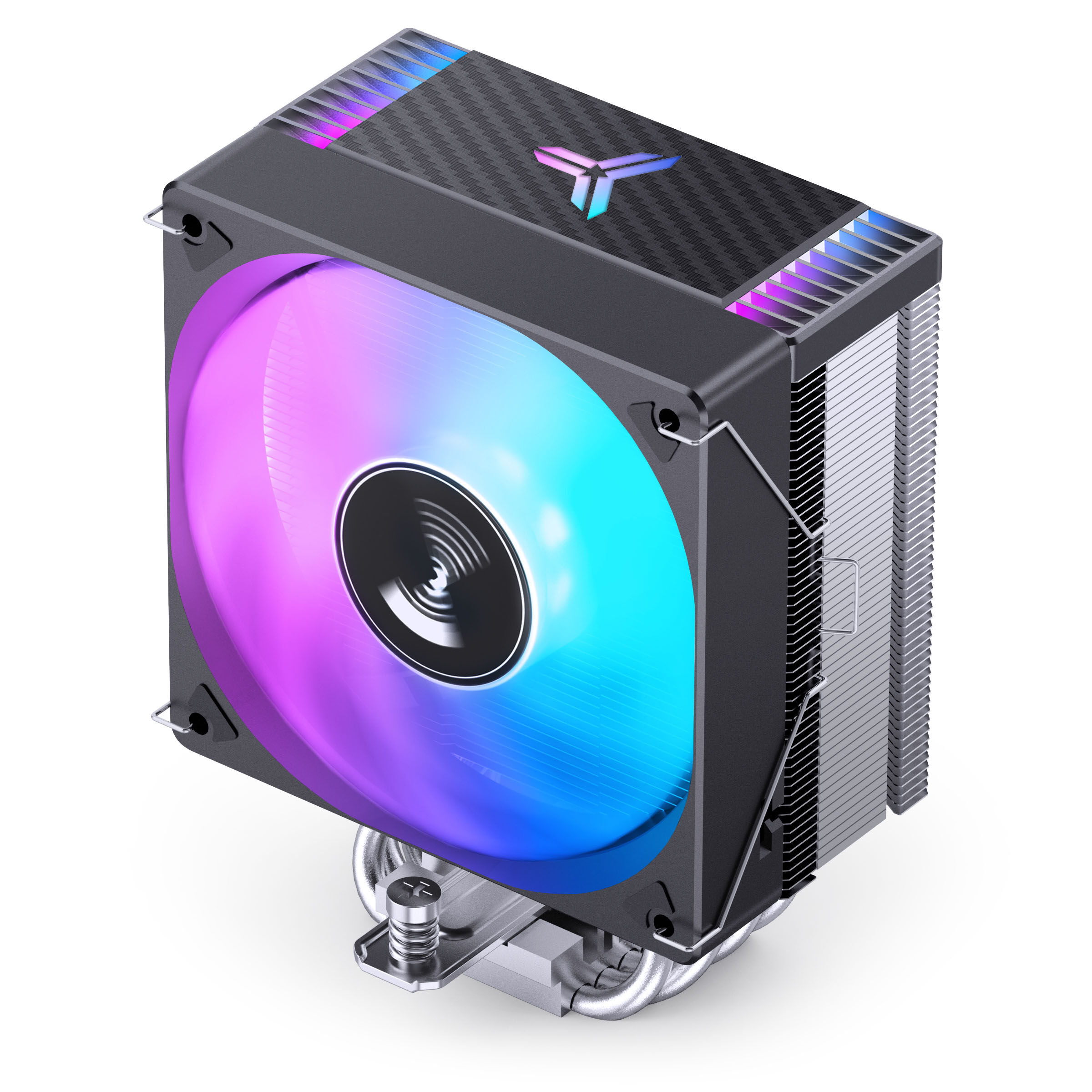

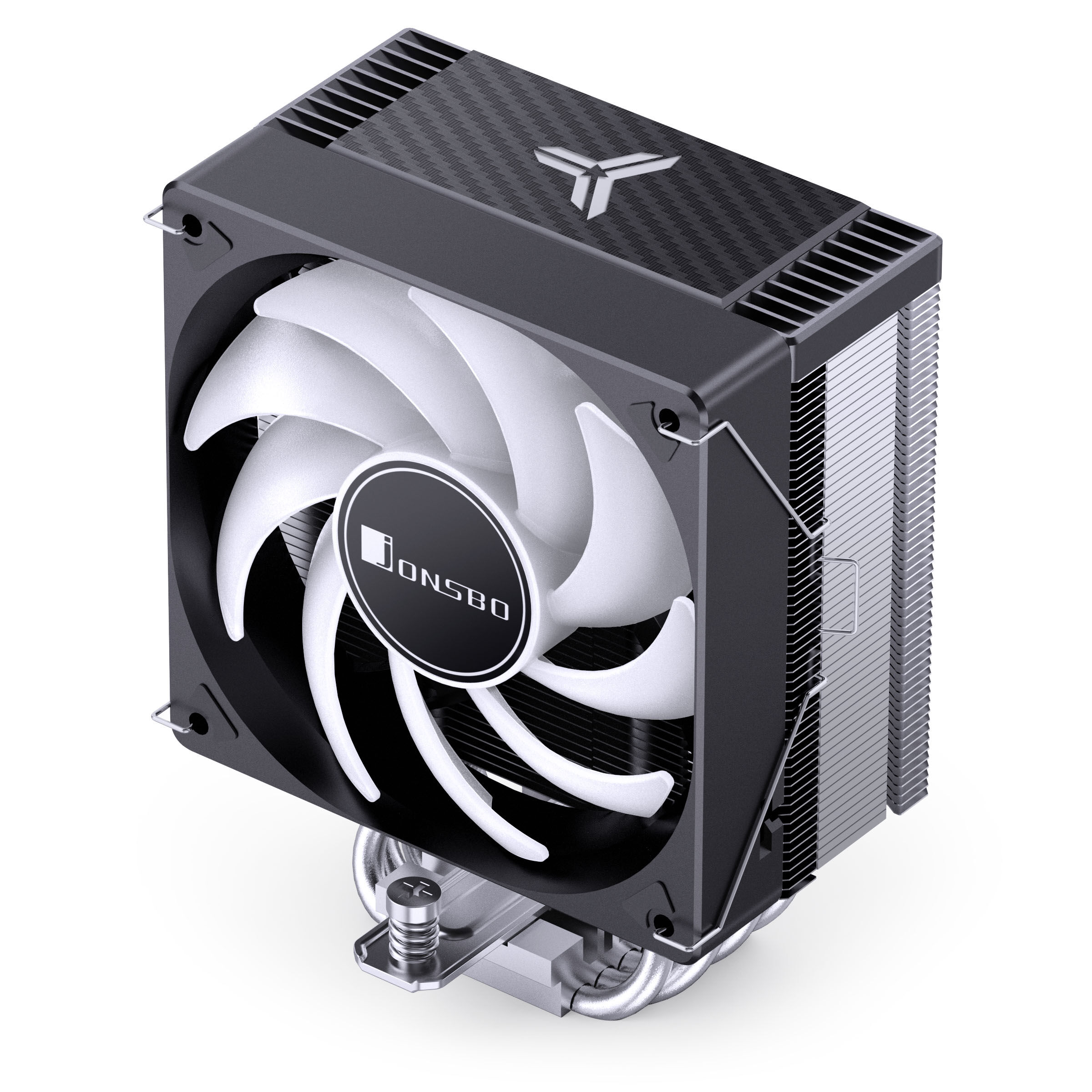

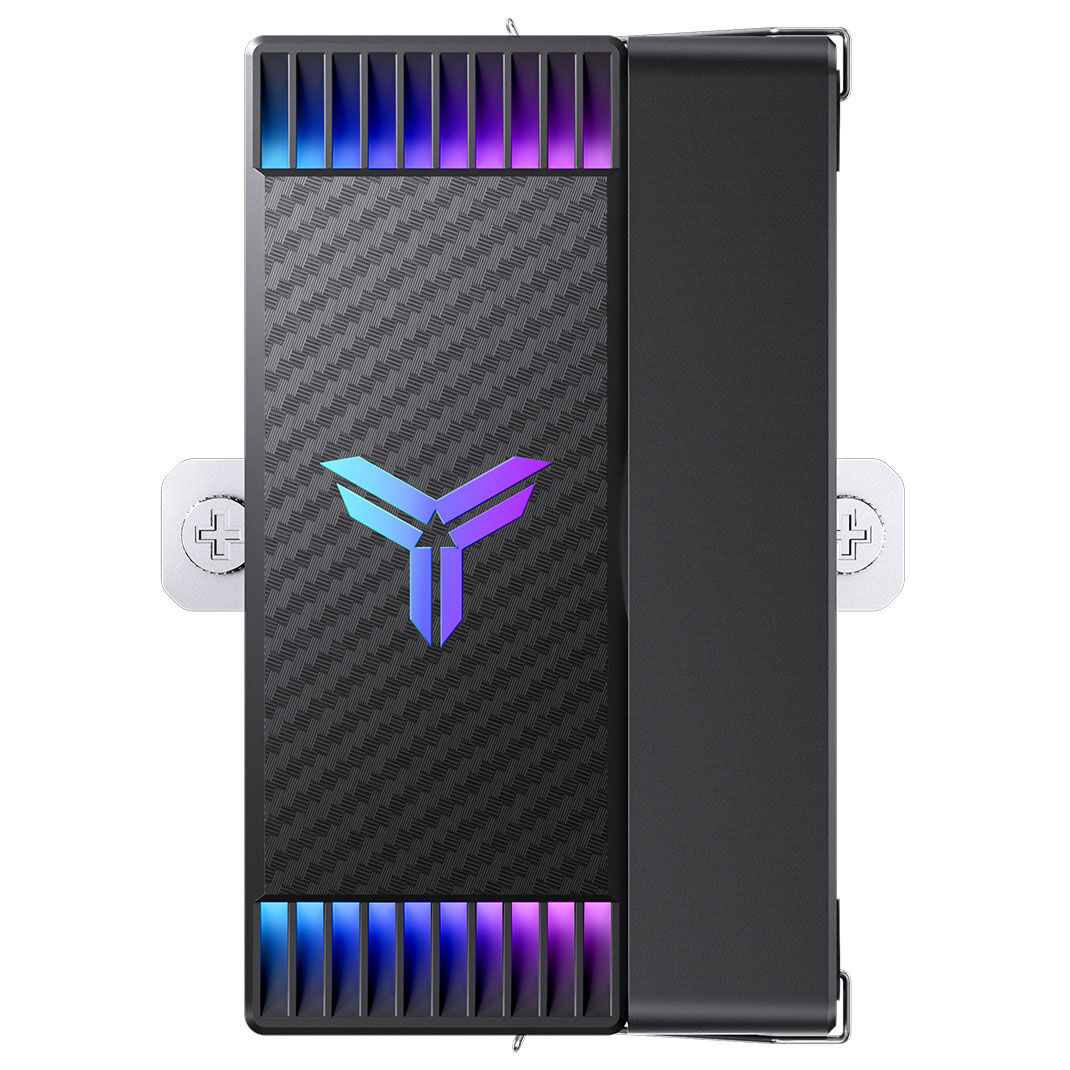

Jonsbo CR-1000MAX CPU cooler, 120mm, RGB - black
- Single-tower cooler with up to 220 W TDP cooling performance
- Six 6 mm heat pipes and optimized cooling fins
- One 120 mm PWM fan with dynamic speed control
- Asymmetrical design for high RAM compatibility
- High-performance thermal paste included
- High compatibility with AMD and Intel processors
- Innovative mounting system for easy installation
- Integrated LED lighting on the fan and...
- Single-tower cooler with up to 220 W TDP cooling performance
- Six 6 mm heat pipes and optimized cooling fins
- One 120 mm PWM fan with dynamic speed control
- Asymmetrical design for high RAM compatibility
- High-performance thermal paste included
- High compatibility with AMD and Intel processors
- Innovative mounting system for easy installation
- Integrated LED lighting on the fan and...
- SKU: CPJB-069
- MPN: CR-1000 MAX COLOR BLACK
- EAN: 6970620554761
- Warranty: 12 Months
– Single-tower cooler with up to 220 W TDP cooling performance
– Six 6 mm heat pipes and optimized cooling fins
– One 120 mm PWM fan with dynamic speed control
– Asymmetrical design for high RAM compatibility
– High-performance thermal paste included
– High compatibility with AMD and Intel processors
– Innovative mounting system for easy installation
– Integrated LED lighting on the fan and cooler

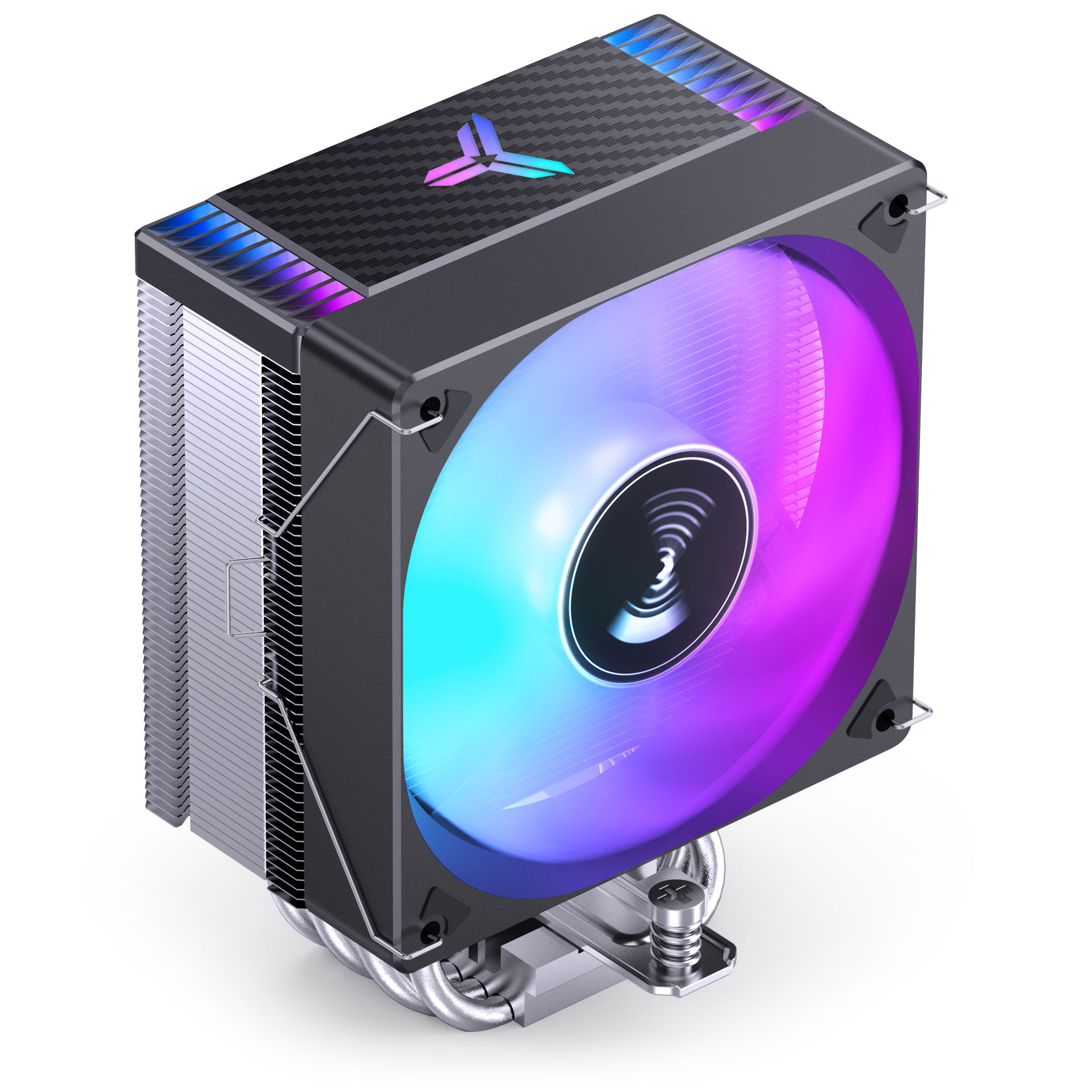

The Jonsbo CR-1000MAX CPU cooler for Intel and AMD
With the CR-1000MAX, youre getting a true cooling powerhouse – ideal for demanding and intense gaming sessions. This single-tower cooler features a large heatsink with aerodynamically optimized fins that effectively dissipate your processors heat. Combined with the six 6 mm heat pipes and the included 120 mm PWM fan, you achieve outstanding cooling performance. Thanks to the innovative mounting system, installation in systems with high RAM modules is childs play.
Jonsbo CR-1000MAX Standard: Ice-cold and whisper-quiet
The optimally tuned cooling towers of the CR-1000MAX Standard are tailored precisely to your needs. The aerodynamically optimized fins ensure particularly quiet operation – perfect if you dont want to sacrifice power even in quiet environments. The 120 mm PWM fan with its hydrodynamic bearing precisely regulates the speed between 600 and 1,500 rpm and ensures a minimal noise level of approximately 22-32 dB(A) even at full load.
Fan and Performance Specifications

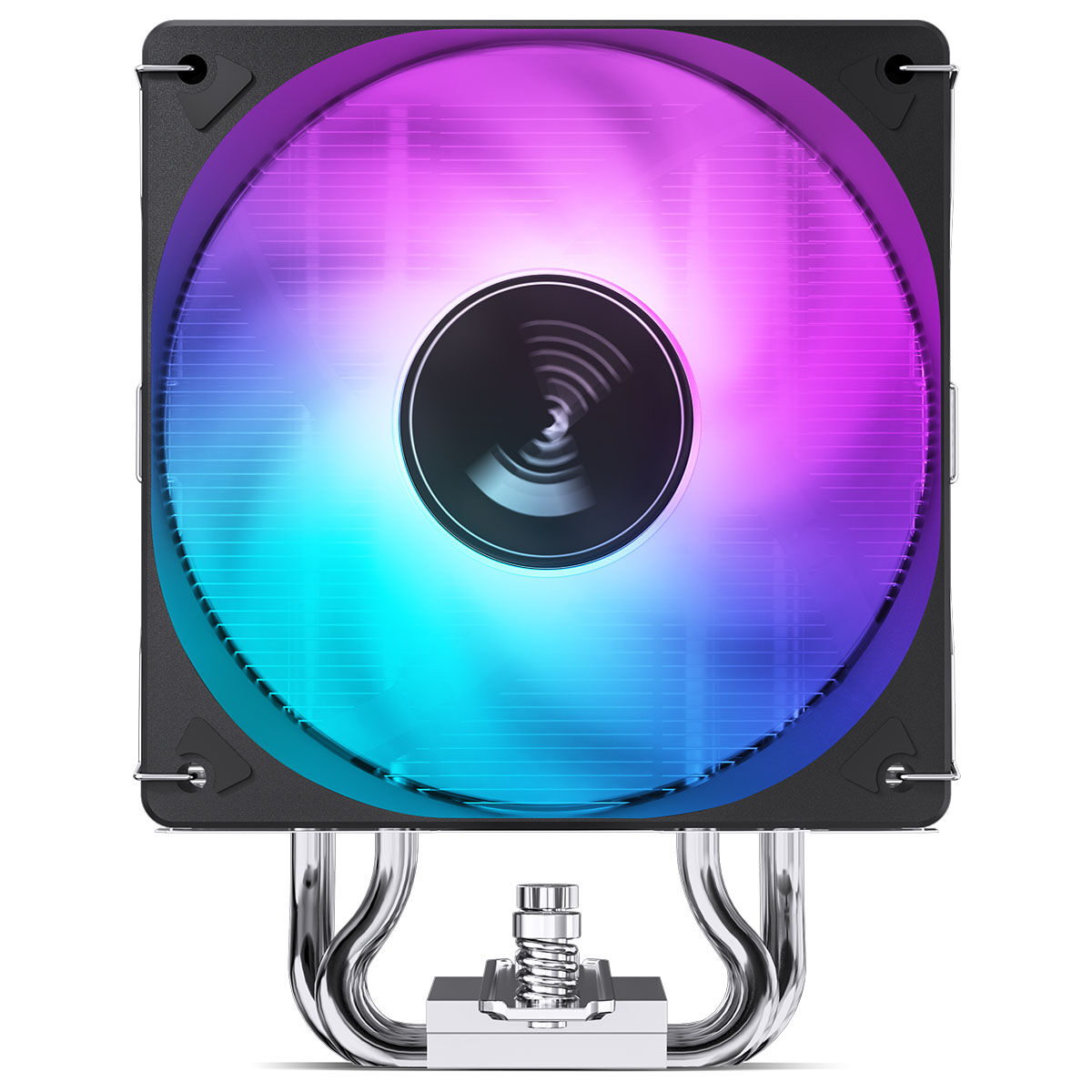

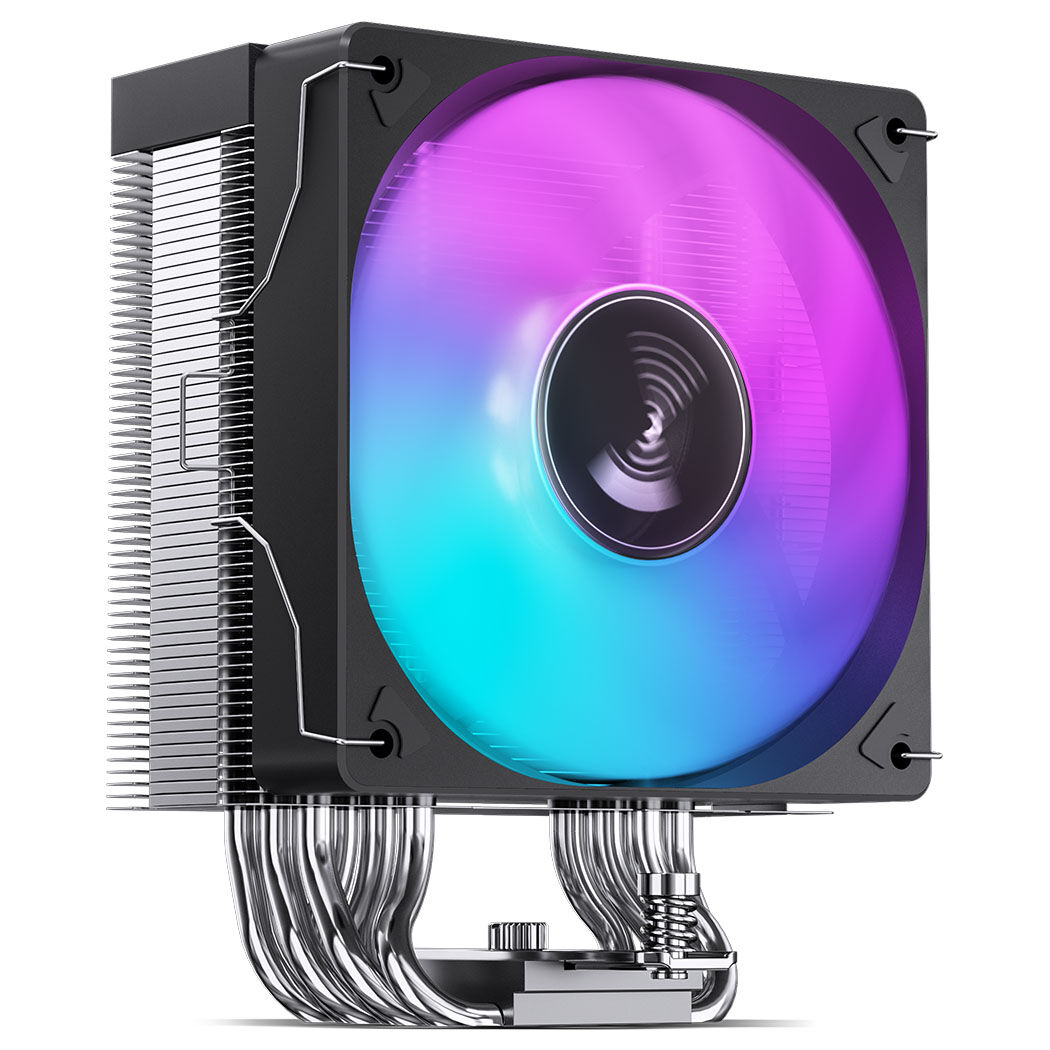

The integrated 120 mm PWM LED fan connects directly to your motherboard via a PWM connector. Thanks to its dynamic speed control, it automatically adjusts to the CPU temperature and delivers a maximum airflow of approximately 94 m³/h. This effectively dissipates heat even under the highest loads – exactly what you expect from a high-end cooler.
Design and Accessories

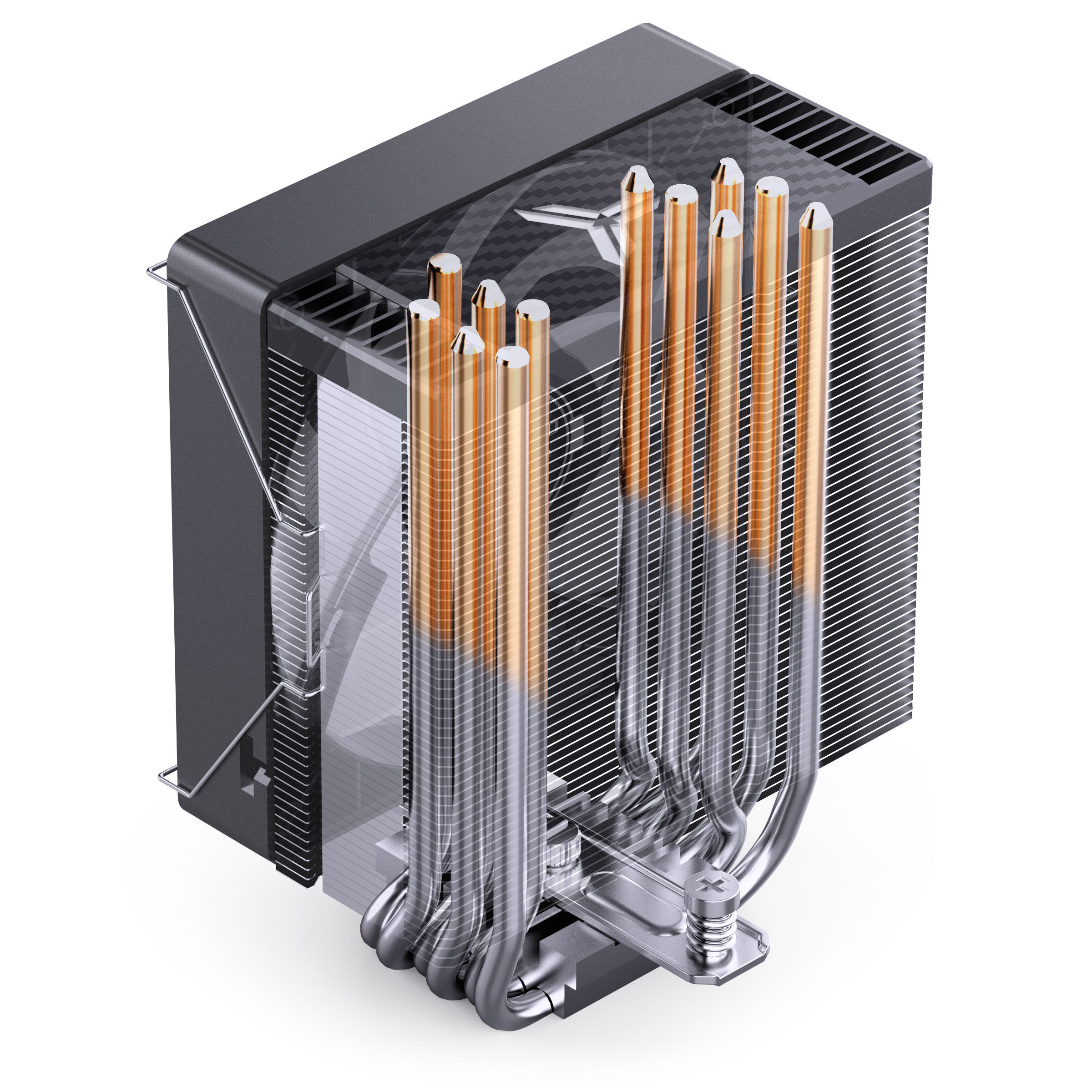

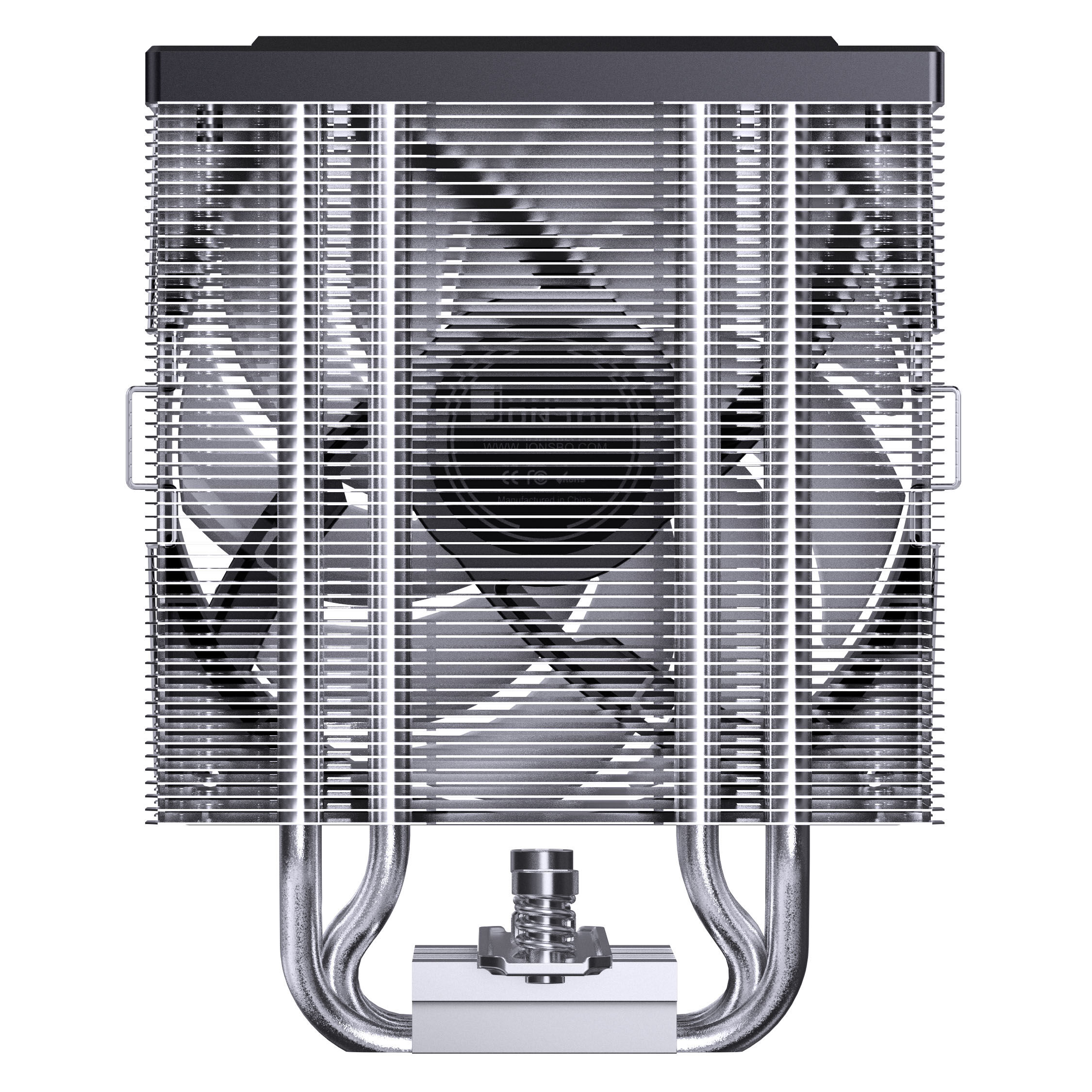

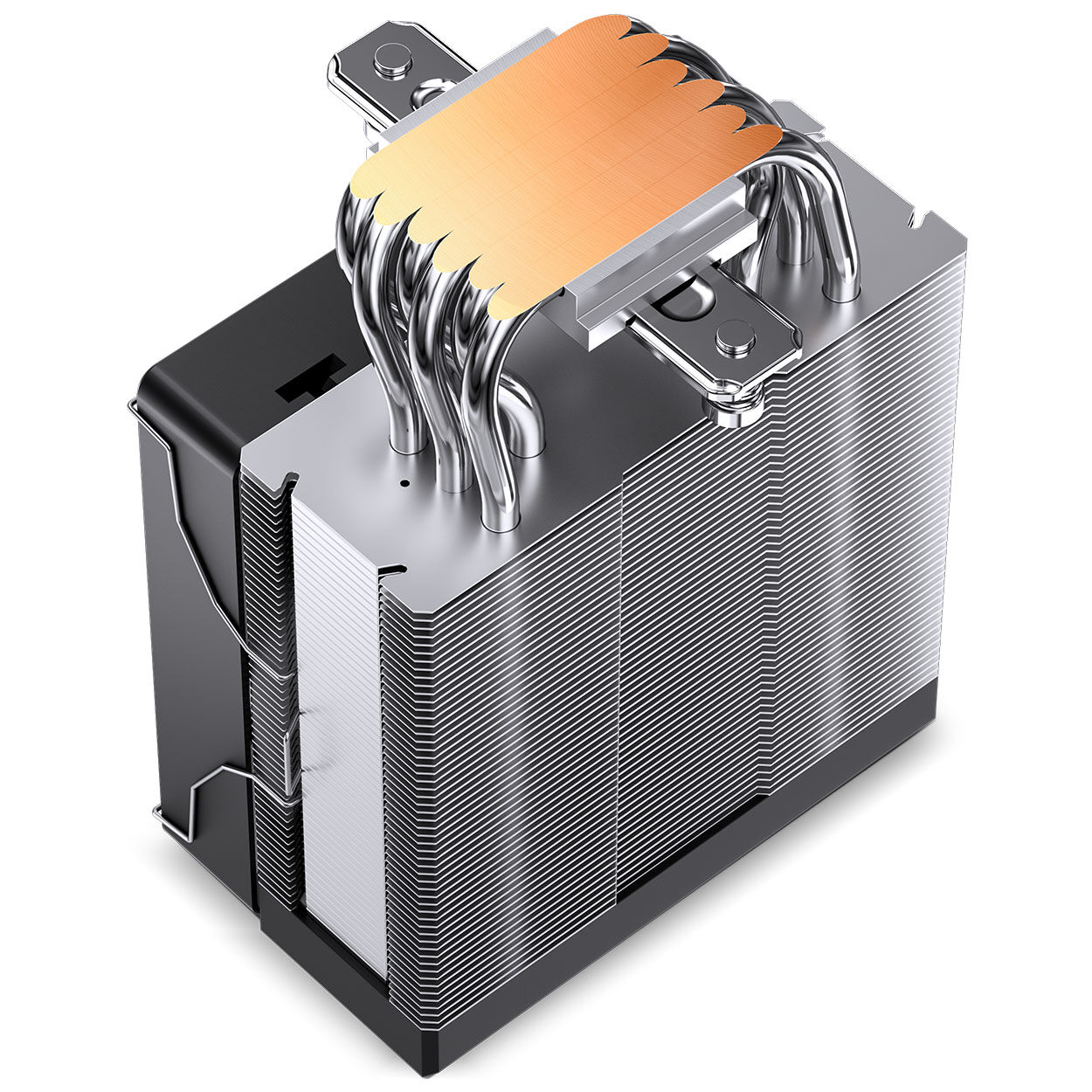

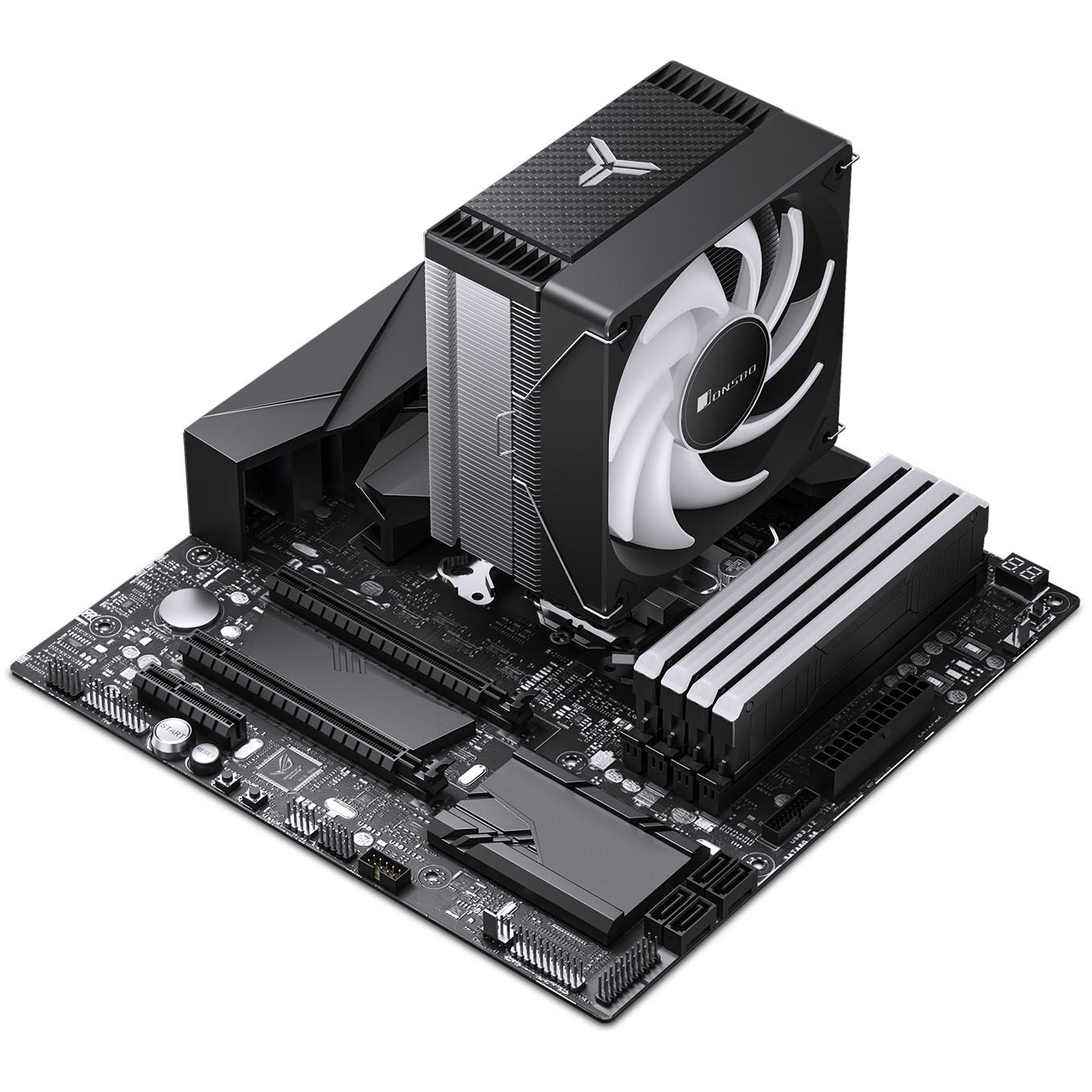

Six heat pipes integrated into the copper base conduct your processors heat quickly and efficiently into the heatsink. The large aluminum heatsink with its aerodynamically optimized fins maximizes the cooling surface and ensures optimal air circulation in your system. The asymmetrical design of the cooling tower also creates sufficient space for densely packed RAM sticks. High-quality thermal paste is also included, ensuring a perfect thermal connection between your CPU and the cooler.
| Technical Details | |
|---|---|
| Main Color | Black |
| Fan Main Color (Frame) | Black |
| Fan Main Color (Rotor) | Transparent |
| Length / Depth | 120 mm |
| Width | 71 mm |
| Height | 154 mm |
| Heat Pipe Diameter | 6 mm |
| Number of Heat Pipes | 6 |
| Ventilation Type | Active |
| Processor Cooler Type | Single Tower |
| CPU Socket | 115X, 1200, 1700, 1851, AM4, AM5 |
| Min. Fan Speed | 600 rpm |
| Max. Fan Speed | 1500 rpm |
| Max. Air Flow (Single Fan) | 94 m³/h |
| Min. Static Pressure | 0.26 mmH2O |
| Max. Static Pressure | 1.81 mmH2O |
| Min. Fan Noise (Single Fan) | 22 dB(A) |
| Max. Fan Noise (Single Fan) | 32 dB(A) |
| Fan Connectors | 4-pin (PWM control) |
| Max. TDP | 220 W |
| Materials | Aluminum, Copper |
| Lighting / RGB | Yes |
| Fan Pre-installed | 1 × 120 mm |
£23.05£19.21 Inc VatEx Vat
