Noctua is one of the known quantities in the area Silent and high-end cooling. In particular, the CPU cooler from the Austrian manufacturer enjoying an excellent reputation. They combine an excellent build quality with a high cooling capacity and minimal noise. To this end, the self-developed fan from Noctua are mainly responsible, which are also available separately, to serve as a CPU or case fans.
Noctua is one of the known quantities in the area Silent and high-end cooling. In particular, the CPU cooler from the Austrian manufacturer enjoying an excellent reputation. They combine an excellent build quality with a high cooling capacity and minimal noise. To this end, the self-developed fan from Noctua are mainly responsible, which are also available separately, to serve as a CPU or case fan...
Noctua is one of the known quantities in the area Silent and high-end cooling. In particular, the CPU cooler from the Austrian manufacturer enjoying an excellent reputation. They combine an excellent build quality with a high cooling capacity and minimal noise. To this end, the self-developed fan from Noctua are mainly responsible, which are also available separately, to serve as a CPU or case fan...

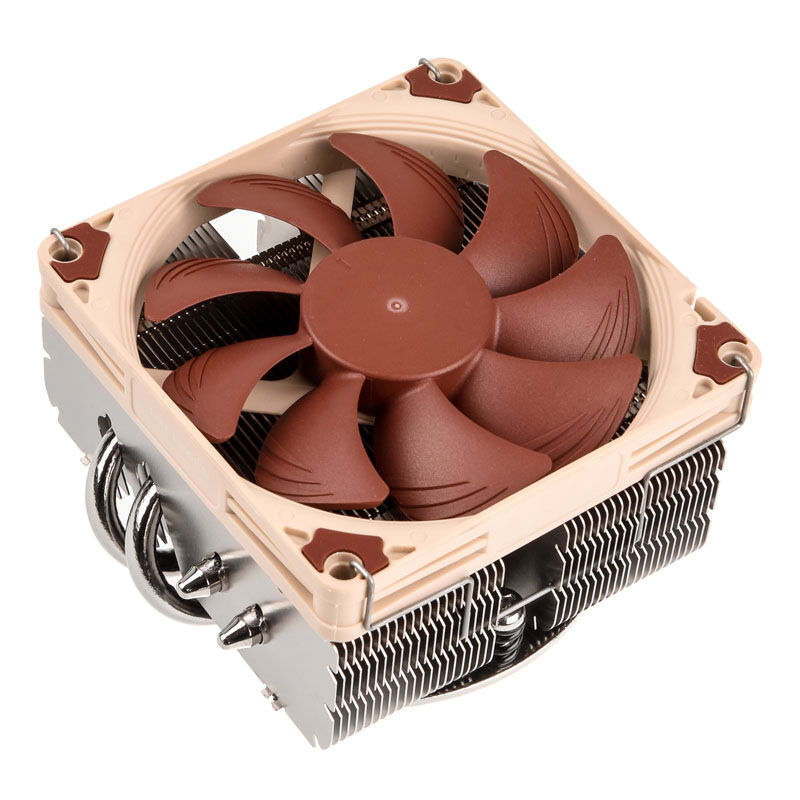

The NH-L9x65 is higher and therefore more powerful version of Noctuas award-winning low profile coolers Series NH-L9. With 65 instead of 37 mm height and four heatpipes instead of two of the NH-L9x65 provides significantly more power reserves than his lower sister models, but retains its footprint of just 95 x 95 mm.
This is Intel-based ITX mainboards, the wholly-owned compatibility guaranteed to RAM and PCI Express expansion cards and the cooler does not block nearby the base connections. Thanks to the perfectly optimized premium fan-type NF-A9x14 with PWM support for automatic speed control with compatible motherboards the Noctua NH-L9x65 remains remarkably quiet in operation.

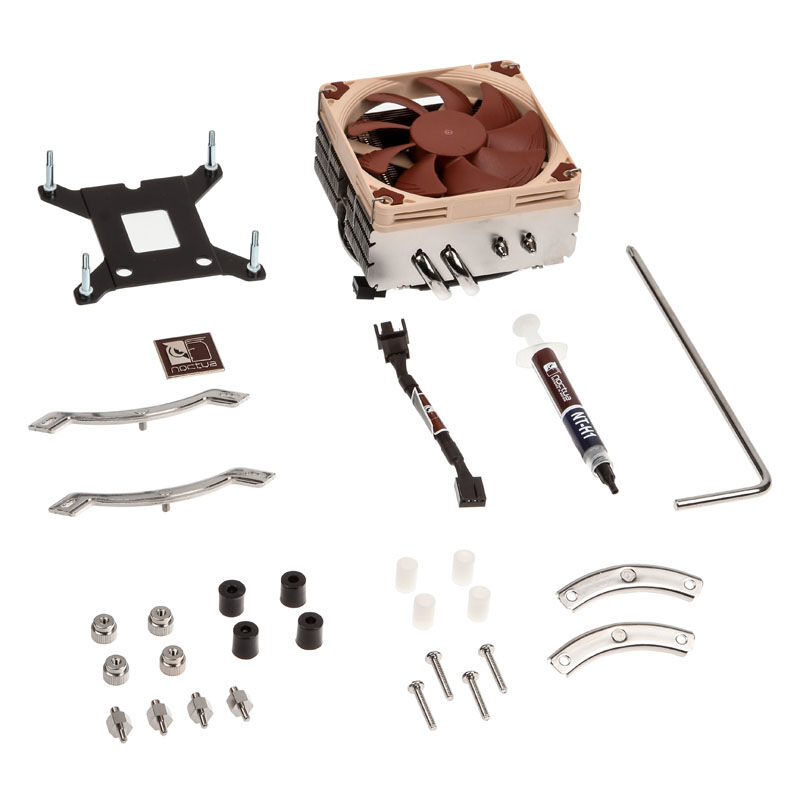

The offer is completed by the professional SecuFirm2 -Multi-socket mounting system, Noctuas renowned thermal grease NT-H1 and full 6 years manufacturers warranty. So the NH L9x65 combines the familiar advantages of larger Noctua cooler in a compact, all-round high-quality complete package for systems with limited space – the top-flow design goodness !.
Note: The NH-L9x65 is a compact, light low-profile condenser, which was developed for use in small enclosures and HTPC environments. The cooler has an excellent in-class cooling performance, but is not suitable for overclocking and should be used on processors with more than 84 Watt TDP with caution.
| Heatsink Specifications | |
|---|---|
| Dimensions (Without Fan) | 95 x 51 x 95 mm (W x H x D) |
| Dimensions (With Fan) | 95 x 65 x 95 mm (W x H x D) |
| Weight (Without / With Fan) | Approx. 340 g / Approx. 413 g |
| Material | Nickel-Plated Copper (Base & Heatpipes), Nickel-Plated Aluminum Fins |
| Heatpipes | 4x Ø 6 mm |
| MTBF | > 150,000 hours |
| Warranty | 6 years |
| Fan Specifications | |
| Fan Model | 1x 92 mm NF-A9x14 PWM |
| Speed (Max) | 2500 RPM |
| Noise Level (Max) | 23.6 dB(A) |
| Airflow (Max) | 57.5 m³/h |
| Speed (With L.N.A.) | 1800 RPM |
| Noise Level (With L.N.A.) | 14.8 dB(A) |
| Airflow (With L.N.A.) | 40.8 m³/h |
| Power Consumption | 2.52 W |
| Operating Voltage | 12 V |
| Socket Compatibility | |
| Intel: LGA 1150, 1155, 1156, 2011, 2011-V3 (Square ILM) AMD: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (Original AMD motherboard backplate required) | |
