So small, can it really be a mainboard? This is probably the first question to be asked at Intels Next Unit of Computing (NUC). And yes is the answer, even with already integrated, powerful CPU.

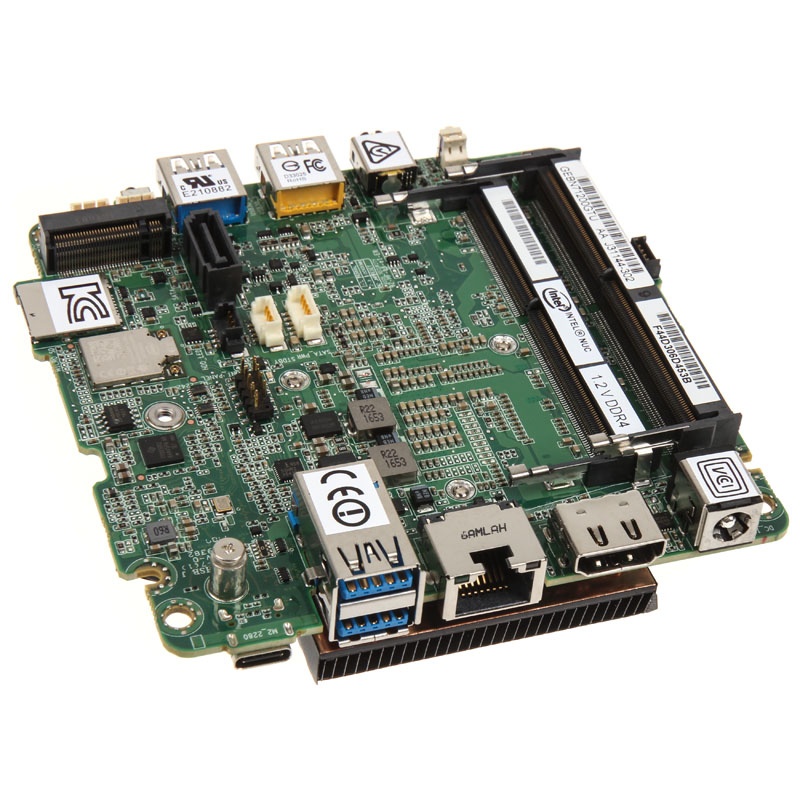

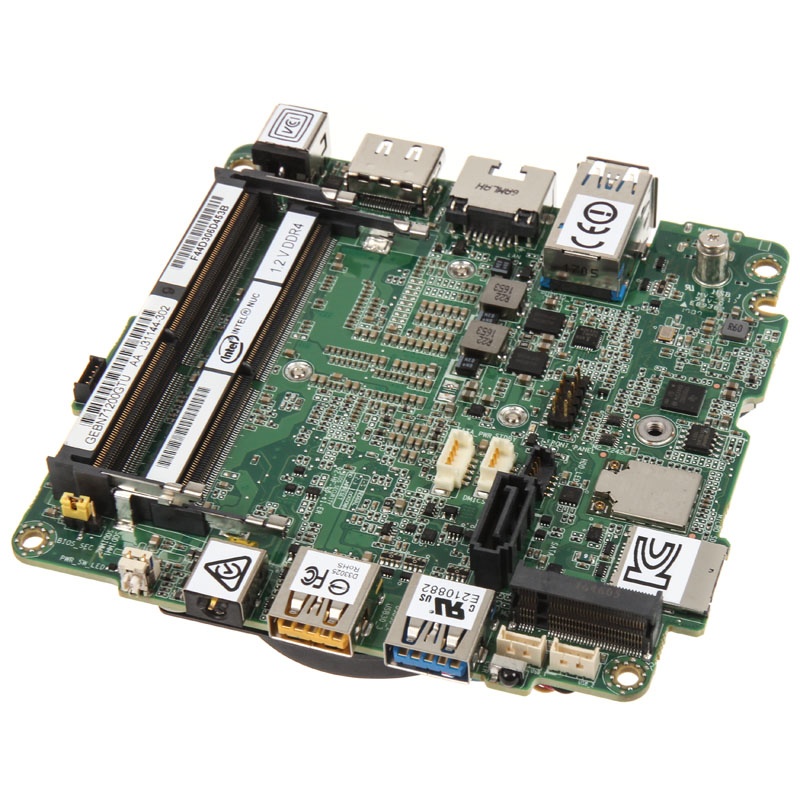

Intel Next Unit of Computing NUC7i5BNB - Core i5-7260U
So small, can it really be a mainboard? This is probably the first question to be asked at Intels Next Unit of Computing (NUC). And yes is the answer, even with already integrated, powerful CPU.
- SKU: BBIT-025
- MPN: BLKNUC7i5BNB
- EAN: 5032037099400
- Warranty: 12 Months
So small, can it really be a mainboard? This is probably the first question to be asked at Intels Next Unit of Computing (NUC). And yes is the answer, even with already integrated, powerful CPU.
Featured products
No products found
Details
Finally, it is a matter of firing its display with high-performance components. On the other hand, it is a completely different one to realize the whole thing on a tiny miniature system and still not to forgo power. The UCFF form factor (UltraCompactFormFactor) of the NUC standard with 10,16 x 10,16 cm is definitely to be described as outstanding.
Surprisingly, the dwarfs expandability does not suffer under the size. Not only does it offer two SO-DIMM slots for up to 32GB DDR4 RAM with up to 2.133 MHz clock rate (1.2V!), A total of four USB 3.0 ports and a USB 2.0 header (for two Connections). In addition, an HDMI port in version 2.0a, fast Gigabit LAN, two SATA-6G ports and a state-of-the-art M.2 slots for expansion with an M.2 SSD (PCIe 3.0 mode). The Intel Core i5-7260U (Kaby Lake) has two cores that run at 2.2 to 3.4 GHz and can handle four threads at the same time thanks to SMT and has outstanding performance and low power consumption (only 15 watts TDP) ,
In the system-on-a-chip (SoC) with the Core i5-7260U processor, Intels integrated Iris Plus Graphics 640 is also used. This provides great performance for full HD encoding and output, and supports HDMI transmission up to standard 1.4a. The power requirement for the external power supply is only 65 watts (at 19 volts). The NUC-NUC7i5BNB is a compact, ultra-small, yet energy-saving system for any day-to-day tasks.
Technical details:
Dimensions: 101.6 x 101.6 mm (W x D)
Format: UCFF
Standard: Intel Next Unit of Computing (NUC)
Chipset: System-on-a-Chip (SoC)
CPU: Intel Core i5-7260U, 2x 2.2 – 3.4 GHz (including Hyper-Threading), 4 MB L3 Cache, 15 W TDP (including Intel Iris Plus Graphics 640)
RAM: 2x DDR4 SO-DIMM (max. 2.133 MHz, 32 GB, 1.2 V)
Internal connections:
2x SATA 6G
1x M.2 M-Key, Type 2242, 2280 (PCIe 3.0 x4 with up to 32 Gbit / s)
2x USB 2.0 (1x header)
External connections:
1x HDMI 2.0a
4x USB 3.0
1x Gigabit LAN
1x jack
1x power supply hollow plug
Power supply: external 19-volt power supply with 65 watts
