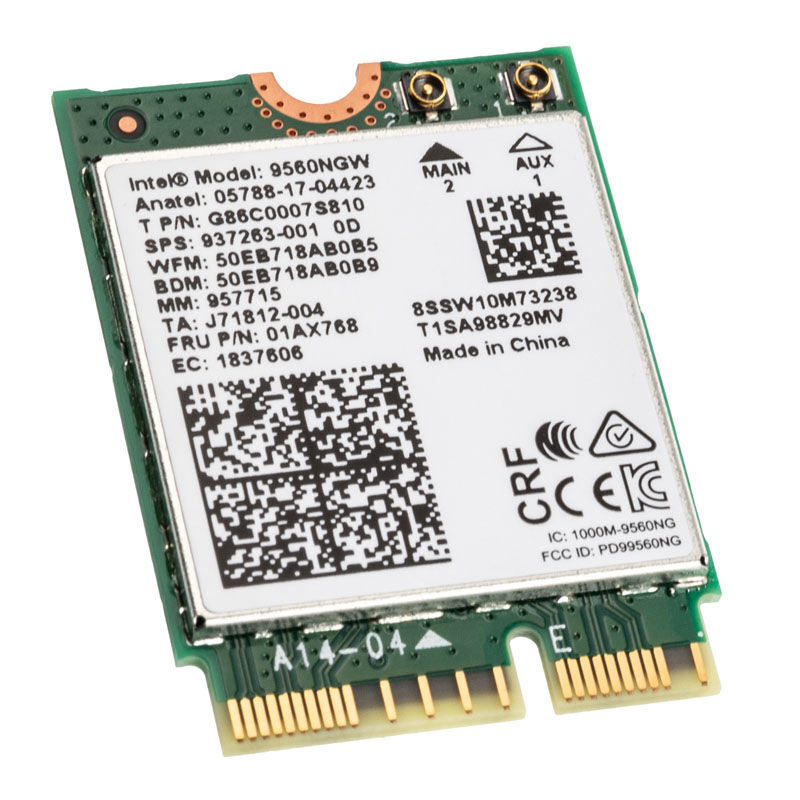

Intel Dual Band Wireless AC 9560, WiFi + Bluetooth 5.0 Adapter - M.2 / E-key, CNVi

The adapter is simply plugged into a free M.2 slot, extending each compatible laptop or PC to fast Wi-Fi and Bluetooth.

The built-in Intel 9560 chipset enables transmission in the 2.4 and 5 GHz range and supports the new 802.11ac standard. It achieves transmission speeds of up to 1733 Gb / s (5 GHz). Supported by the 2×2 Wi-Fi 6 technology, the adapter has been awarded the Wi-Fi Alliance certification by the Wi-Fi Alliance. In addition to MU-MIMO (Multi-User MIMO), the dual-band Wireless AC 9560 module also supports Intel Wireless Display.

The Intel Dual-Band Wireless AC 9560 module is also backwards compatible with many common wireless LAN standards: IEEE 802.11 a / b / g / n. Current encryption techniques such as WEP (64-bit and 128-bit) or WPA / WPA2 ensure high security.

Technical details:
– Type: M.2 2230
– Connection: M.2 / E-Key, Intel CNVi
– Additional connections: 2x MHF / U.FL antenna connection
Wireless Internet Access:
– Standards: IEEE 802.11a / b / g / n / ac
– Frequency bands: 2.4 GHz (2×2), 5 GHz (2×2)
– Transfer rate: 1,733 Gb / s (5GHz), 300 Mb / s (2.4 GHz)
– Security: WEP 64/128 bit, WPA, WPA2, TKIP, 128-bit, AES-CCMP
– Features: TPC / DFS, Intel Wireless Display, MU-MIMO
– Bluetooth: 5.0
