The SATA-6Gb / s standard, along with the AHCI protocol, has long been the bottleneck when it comes to building and deploying fast SSDs. With the latest SSDs in the compact and very fast M.2 standard, which for compatibility reasons includes a SATA-6Gb / s data line, but usually uses the much faster PCI Express lines - four of them This limit. While the gross data rate for SATA is at a maximum of 600 MB / s and net 550 MB / s can be used as actual data throughput, the PCIe 2.0 lanes already have a total of 1,000 MB / s and the latest PCIe 3.0 mainboards Even nearly 2,000 MB / s - more than three times as fast as the fastest SATA standard. In addition, when using an NVMe-SSD, the speed is pushed through the new protocol, which is used only over PCIe and not via SATA.
Akasa M.2 X4 PCI-E adapter card - black PCB
The SATA-6Gb / s standard, along with the AHCI protocol, has long been the bottleneck when it comes to building and deploying fast SSDs. With the latest SSDs in the compact and very fast M.2 standard, which for compatibility reasons includes a SATA-6Gb / s data line, but usually uses the much faster PCI Express lines - four of them This limit. While the gross data rate for SATA is at a maxim...
The SATA-6Gb / s standard, along with the AHCI protocol, has long been the bottleneck when it comes to building and deploying fast SSDs. With the latest SSDs in the compact and very fast M.2 standard, which for compatibility reasons includes a SATA-6Gb / s data line, but usually uses the much faster PCI Express lines - four of them This limit. While the gross data rate for SATA is at a maxim...
Earn 16 Points
We price match UK retailers. Try It Now!
- SKU: ZUUS-334
- MPN: AK-PCCM2P-01
- EAN: 4710614537323
- Warranty: 12 Months
Details

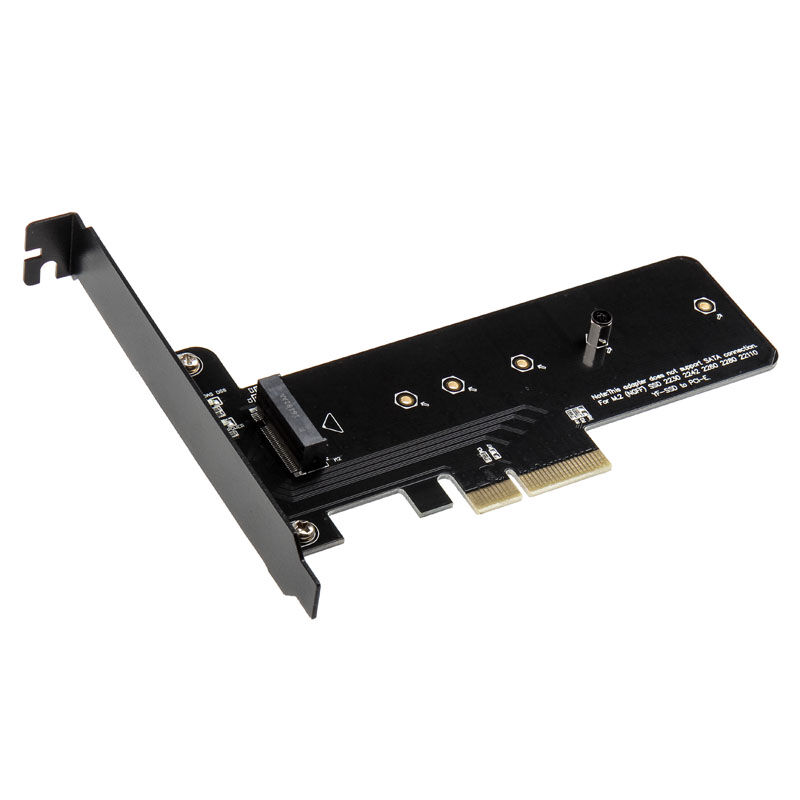

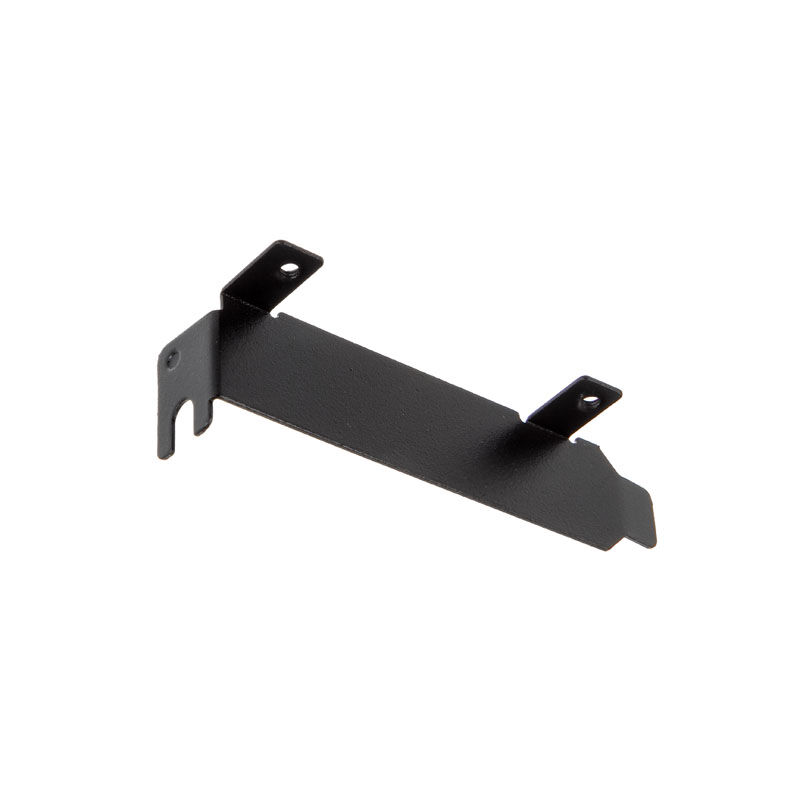

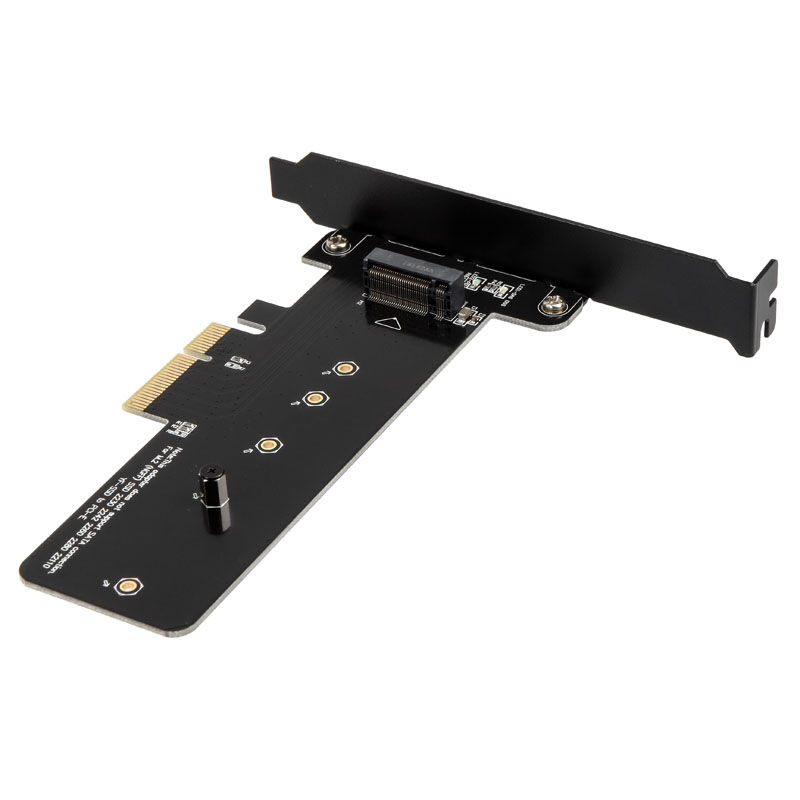

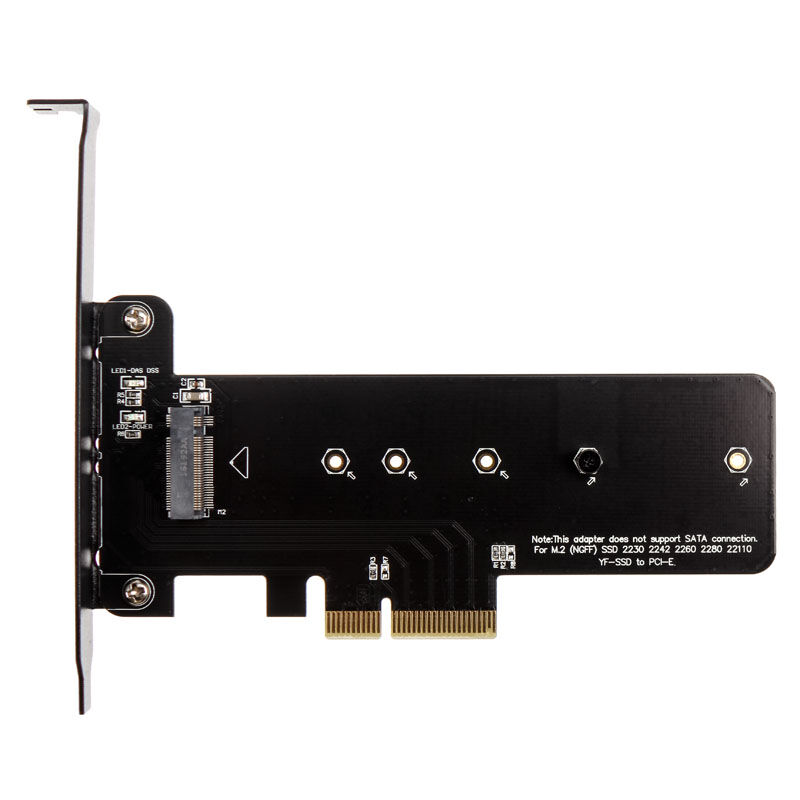

PCI-Express 2.0 is available on almost every motherboard, PCIe 3.0 is increasingly also – but M.2 ports on the board itself are lackware, and it is usually also only a single slot. Very often, this is also connected only with two PCIe lanes, which significantly limits the speed potential. The solution: This adapter! With the adapter offered here, it is possible to commission an M.2 SSD via a PCI Express slot of the mainboard. There are almost no limits to the compatibility: the adapter itself has a low overall height and is supplied with both a standard and a low profile slot screen. A plug-in spacer makes it possible to mount SSDs with the common formats 2280, 2260 and 2242, and the PCIe slot also makes the adapter very flexible with its support of PCIe 1.0 / 1.1, 2.0 and 3.0.
Technical details:
    Dimensions: 148 x 120 x 21.7 mm (L x W x H)
    SSD support: M.2 2280, 2260, 2230, 2242 and 22110
    Slot: PCIe x4 / x8 / x16 (PCIe 3.0)
