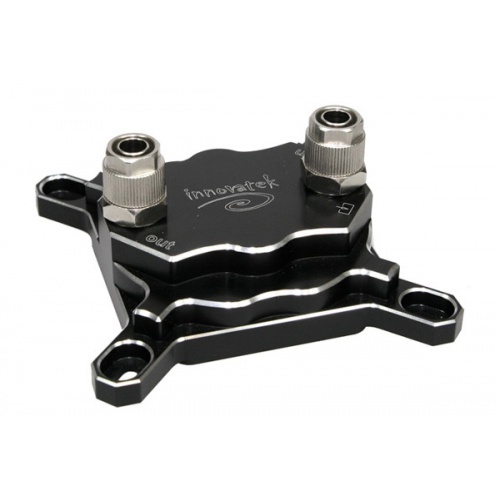

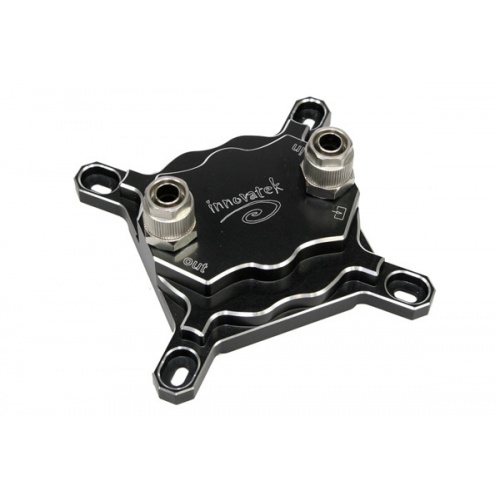

Innovatek Q max CPU cooler is universal for both the LGA 1366 (i7) as well as the LGA 1156 / 1155 (i5) and fits on both bases.
The solid all-metal radiator is by mounting base screwed directly to the motherboard.
Cooling capacity
The Q-max - like all Innovatek Radiator - on the optimal use of the cooling medium (cooling water) to develop. Even at the lowest flow rates, it provides the maximum cooling performance. Furthermore, also the flow resistance of the Q-max minimal. The CPU cooler is therefore no specific requirements for pump or cooling system. The flow remains fully intact in each case, since the radiator can become clogged in normal operation.
Innovatek Q max CPU cooler is universal for both the LGA 1366 (i7) as well as the LGA 1156 / 1155 (i5) and fits on both bases. The solid all-metal radiator is by mounting base screwed directly to the motherboard. Cooling capacity The Q-max - like all Innovatek Radiator - on the optimal use of the cooling medium (cooling water) to develop. Even at the lowest flow rates, it provides the maxi...
Innovatek Q max CPU cooler is universal for both the LGA 1366 (i7) as well as the LGA 1156 / 1155 (i5) and fits on both bases. The solid all-metal radiator is by mounting base screwed directly to the motherboard. Cooling capacity The Q-max - like all Innovatek Radiator - on the optimal use of the cooling medium (cooling water) to develop. Even at the lowest flow rates, it provides the maxi...
No products found

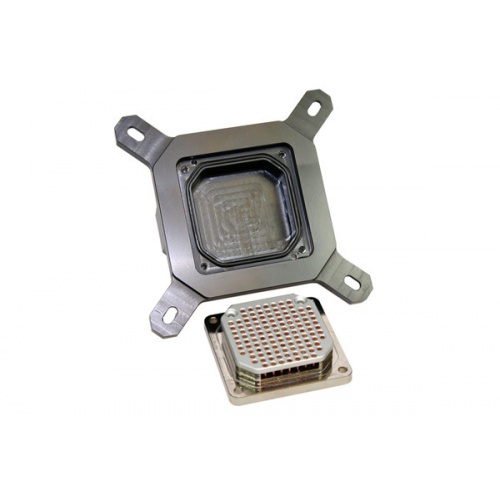

Core Design
The Q-Max goes back to a completely new interior design. The very complex inner life consists of more than 120 individual parts and an optimal distribution of water safely. The water is flushed through a special bottom plate and collected by so-called injectors. This increases the usable surface extremely smooth and has a very cooling.
Quality
As with all Innovatek products leaves nothing to be desired, the excellent workmanship. Also the base of the block – which is resting on the core processes and high-top flat, whereby a good contact is ensured to the CPU!
Features:
Maximum cooling capacity
Full metal version! (Full Metal)
Optimized for modern CPUs for Socket 1366, 1155 and 1156
No cross-sectional narrowing in the cooler
Cooling capacity is maintained long-term fully
Minimal pressure drop through the radiator
Full cooling power at a minimum flow of 0.3 l / min
You do not need a special pump
Easy and safe application
Optimized fit system with secure mounting via screws
Absolutely noble and high-quality optics in a metal-look
Technical data:
Weight: about 700g
Ground material: High purity copper
Holding System: Backplate for screwing
Connections: 2x 1 / 4 inch for 8×1 tubes (replaceable)
Delivery:
Cool completely assembled with base system
Thermal Compound
Assembly Instructions
Two 1 / 4 inch Screw (8×1, straight, with soft seal)
