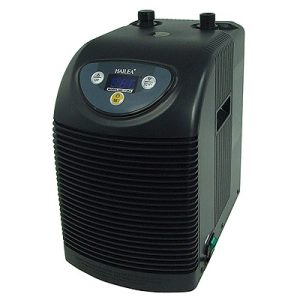

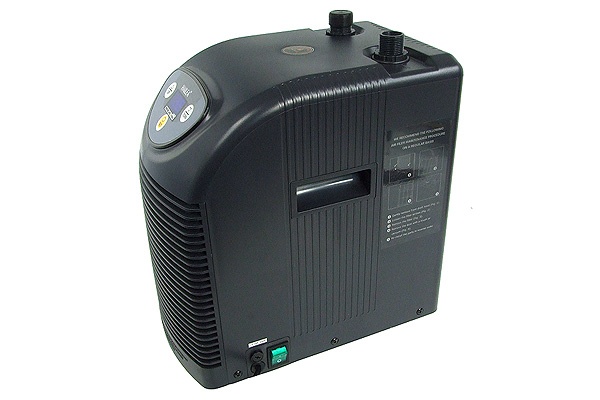

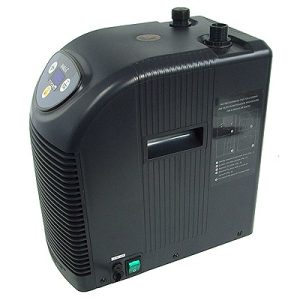

The cooling units from Hailea have been used in trusted waterchillers from other manufacturers for over 15 years. The new heat exchangers of the Ultra series are made from titanium. Therefore the chillers are perfect for watercooling systems.
Another positive aspect about the Hailea units is the low noise emission. The pricing of the new series is also pleasantly affordable.
The cooling units from Hailea have been used in trusted waterchillers from other manufacturers for over 15 years. The new heat exchangers of the Ultra series are made from titanium. Therefore the chillers are perfect for watercooling systems.
Another positive aspect about the Hailea units is the low noise emission. The pricing of the new series is also pleasantly affordable.
The cooling units from Hailea have been used in trusted waterchillers from other manufacturers for over 15 years. The new heat exchangers of the Ultra series are made from titanium. Therefore the chillers are perfect for watercooling systems.
Another positive aspect about the Hailea units is the low noise emission. The pricing of the new series is also pleasantly affordable.
New revision:
New cool design
More robust materials for even longer lifespan
Lowered noise emissions
Suitable for continuous operation
This waterchiller basically replaces the radiator as the coolant is chilled to the desired temperature by this unit. Temperatures down to 4 degreesC are possible, please note that at low temperatures (high temperature difference) condensate may accumulate. Suitable insulation accessories are also available in our shop. Alternatively the coolant temperature can be set to just below room temperature to avoid this problem.
Thanks to the low temperatures incredible overclocking potential is available! The lifespan of the components is extended by multiples. This system is also great for no-noise applications as the chiller can be located in another room.
We recommend integration of the chiller into the cooling loop in combination with a radiator. This allows use of the chiller when required (overclocking, Benchmarks, summer etc..) and use of the radiator during normal operation.
To estimate the required cooling performance here some non-binding estimates. The exact thermal emissions can be requested from the manufacturer of the hardware.
CPU: 80W (standard) to 150W (overclocked)
GPU: 20W (small cards) to 150W (current models such as 8800)
MB: 10 to 20W per component
The added values of your system must not exceed the given cooling capability of the chiller.
Notes regarding shipment: For shipping via parcel delivery (GLS) we have manufactured a specially padded carton. For handling and packaging we must charge 15€ incl. VAT. This charge is not charged when the Chiller is picked up or with pallet shipment if the chiller is shipped without the special packaging.

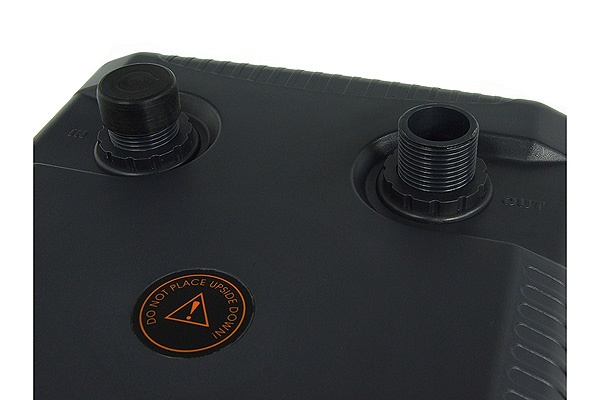

Notes regarding compatibility: The chiller is shipped with fittings for 3/8 tubing (inner diameter approx. 9 to 10mm). It is shipped with two pairs of 45 degrees angled fittings for each size. To use standard fittings the following adaptor is required: (Art. 37026)
Technical specifications:
Power: 1/2 PS
Cooling capacity: 110W
Recommended coolant flow: 200-1000 l/h
Weight: 9,2kg
Cooling agent: R134A
Dimensions: 338x218x325mm (LxWxH)
Heat exchanger material: Titanium
max. compressive load: 0,8bar

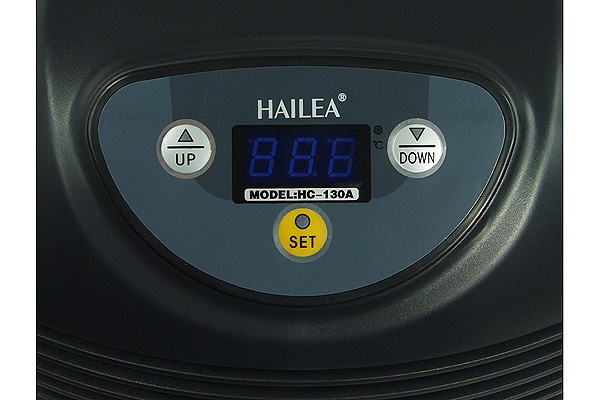

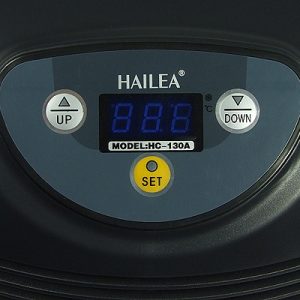

Temperature adjustments: Digital read-out (precision 0,1 degreesC), temperature setting in 1 degreesC steps
current demand: 0.8 A (50 Hz)
current drain: 184 W
Note for first-time users:
If you should have problems with your chiller please contact us before returning the chiller to us. In most cases there is no actual problem with the chiller, but the functionality of the unit is not fully understood by the user yet. Please note the following: The compressor unit automatically switches itself on and off, if the temperature sensor is manipulated your warranty is void, the noise level or an allegedly not sufficient cooling performance are no reason for a reclamation. The chiller can only function properly if the cooling loop is equipped with a sufficiently powerful pump. If these facts are considered most reclamations can be avoided and you will greatly enjoy this product!
Note for aquarium-use:
The cooling performance is affected by the aquarium-lamp the reduced pump power due to filters and the thermal waste of the pump. We therefore recommend to order the ciller at least on power-lever higher that theoretically calculated
