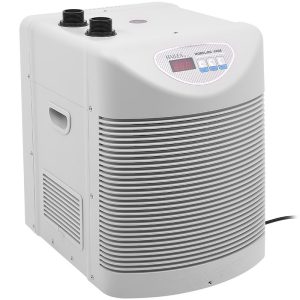

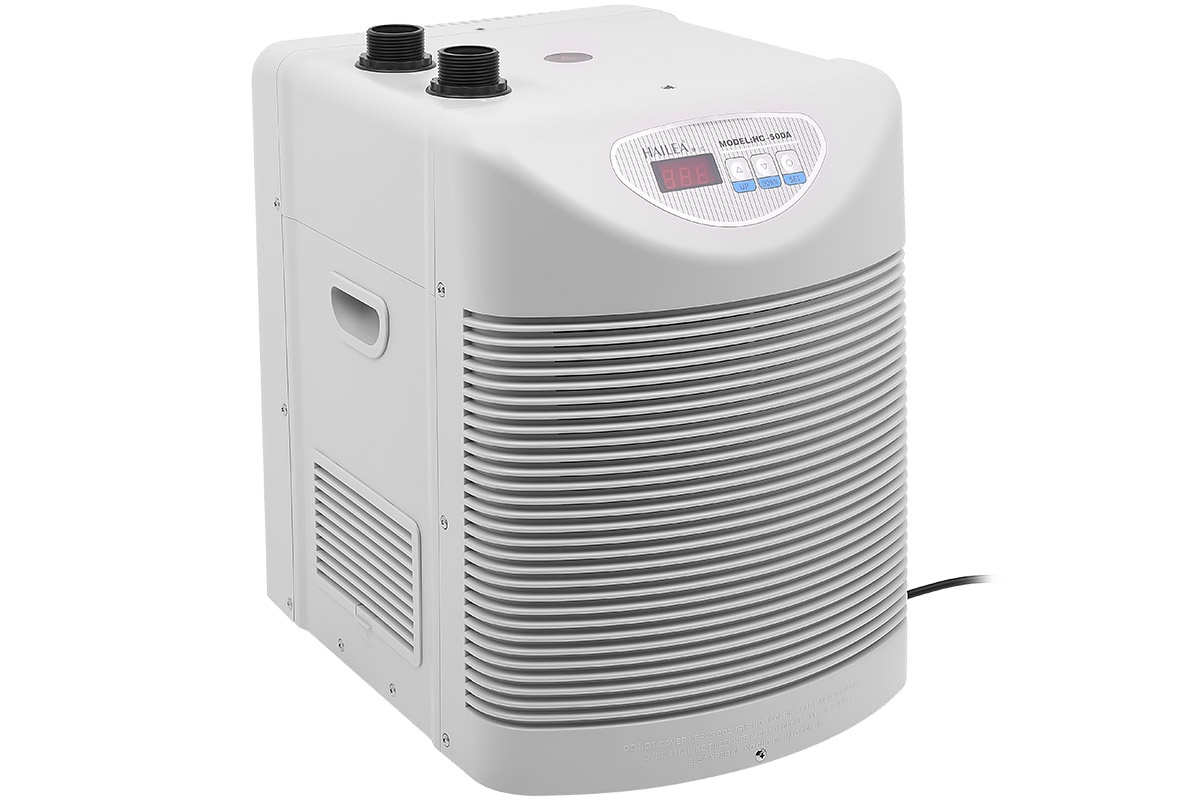

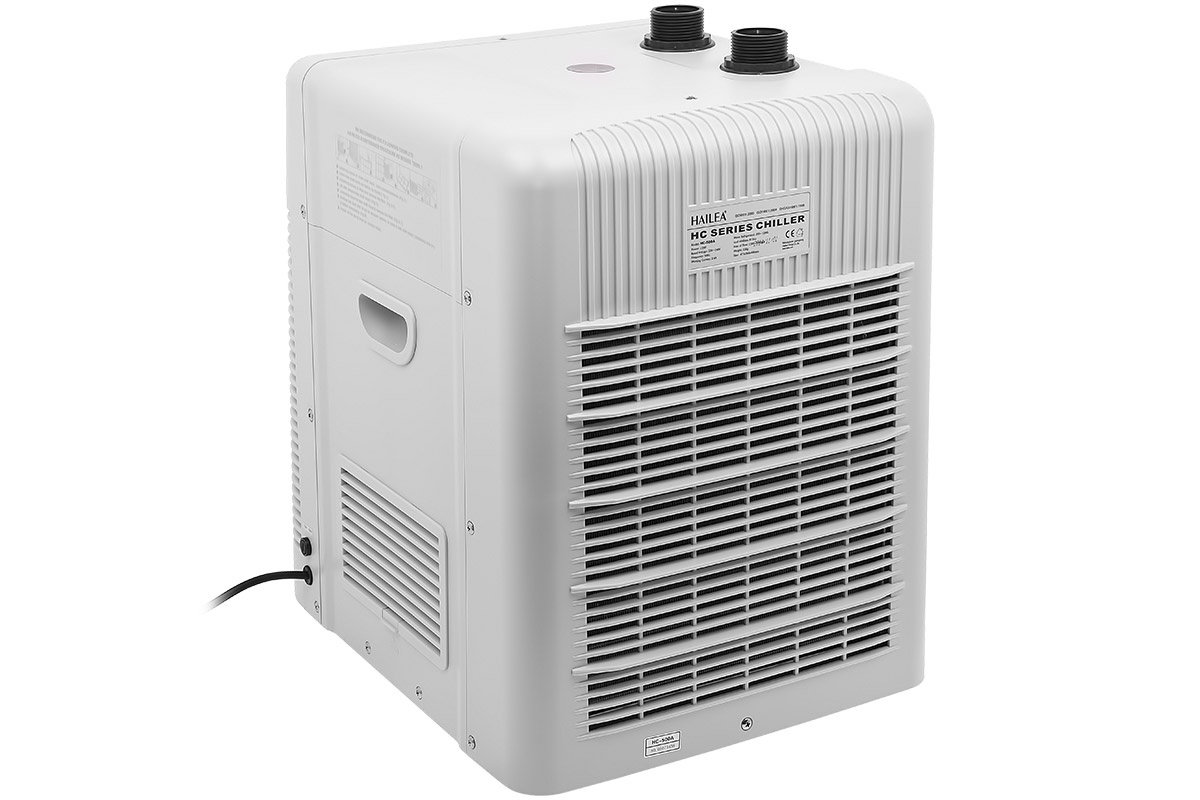

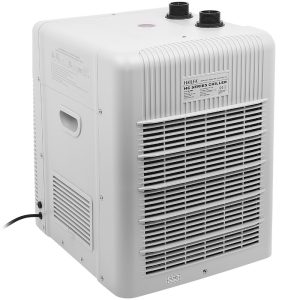

Hailea Ultra Titan 1500 Water Chiller (HC500=790 Watt Cooling Capacity) - White Special Edition

New cool design – white

More robust materials for even longer lifespan
Lowered noise emissions
Suitable for continuous operation
Noise emissions:
The small chillers (like HC150) have a noise emission of 20dB(A) only and can be used near the computer / aquarium without disturbing.
Bigger models (like HC500) should be additionally decoupled to reduce the noise level if necessary
The models HC1000 und HC 2000 should be extra decoupled or maintained in a seperate room.

This waterchiller basically replaces the radiator as the coolant is chilled to the desired temperature by this unit. Temperatures down to 4 degreesC are possible, please note that at low temperatures (high temperature difference) condensate may accumulate. Suitable insulation accessories are also available in our shop. Alternatively the coolant temperature can be set to just below room temperature to avoid this problem.

Thanks to the low temperatures incredible overclocking potential is available! The lifespan of the components is extended by multiples. This system is also great for no-noise applications as the chiller can be located in another room.
We recommend integration of the chiller into the cooling loop in combination with a radiator. This allows use of the chiller when required (overclocking, Benchmarks, summer etc..) and use of the radiator during normal operation.

To estimate the required cooling performance here some non-binding estimates. The exact thermal emissions can be requested from the manufacturer of the hardware.
CPU: 80W (standard) to 150W (overclocked)
GPU: 50W (small cards) to 250W (current models such as GTX 980)
MB: 20 to 40W per component

The added values of your system must not exceed the given cooling capability of the chiller.

What aquarium size can be cooled with my water chiller?
The manufacturer provides the following data:
Model / aquarium size in liters:
HC-130 / 50-100L
HC-150 / 50-200L
HC-250 / 100-300L
HC-300 / 100-400L
HC-500 / 200-800L
HC-1000 / 300-1000L
HC-2000 / 400-1500L

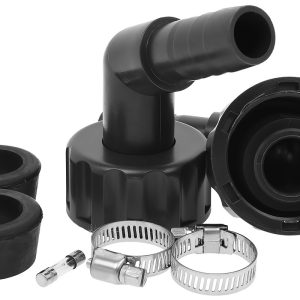

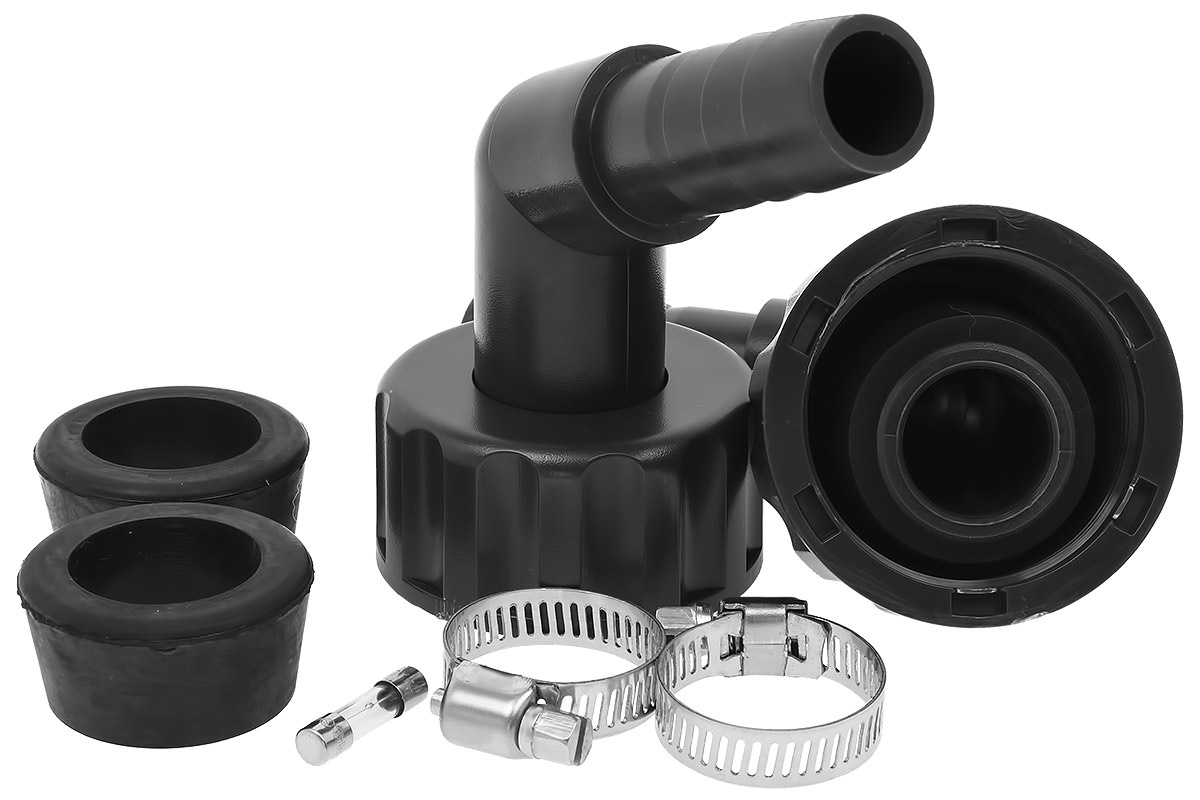

Notes regarding compatibility: The chiller is shipped with fittings for 1 tubing (inner diameter approx. 19 to 20mm). It is shipped with one pair of straight and one pair of 90 degrees angled fittings. To use standard fittings the following adaptor is recommended: Art. 37018 for G1/4.

Technical specifications:

• Power: 1/2 PS
• Power consumption: 375W
• Cooling capacity: 790W (suitable for extreme OC and cooling)
• Recommended coolant flow: 1200-3000 l/h
• Weight: 22kg
• Cooling agent: R134A
• Dimensions: 475 x 360 x 490mm (LxWxH)
• Heat exchanger material: Titanium
• max. compressive load: 0,8bar

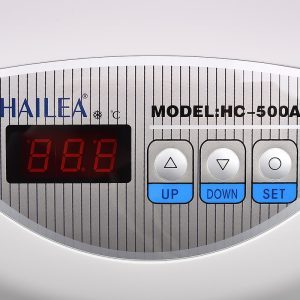

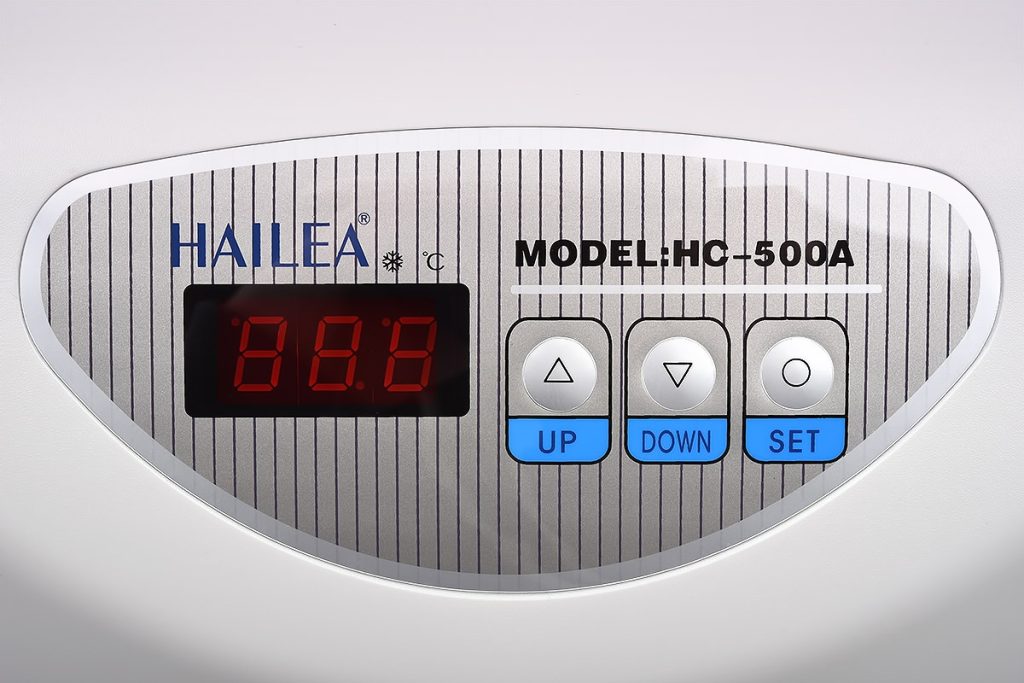

• Temperature adjustments: Digital read-out (precision 0,1 degreesC), temperature setting in 1 degreesC steps
• current demand: 2.4 A (50 Hz)
• current drain: 552 W
