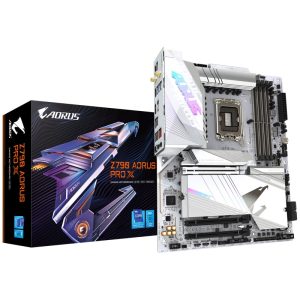

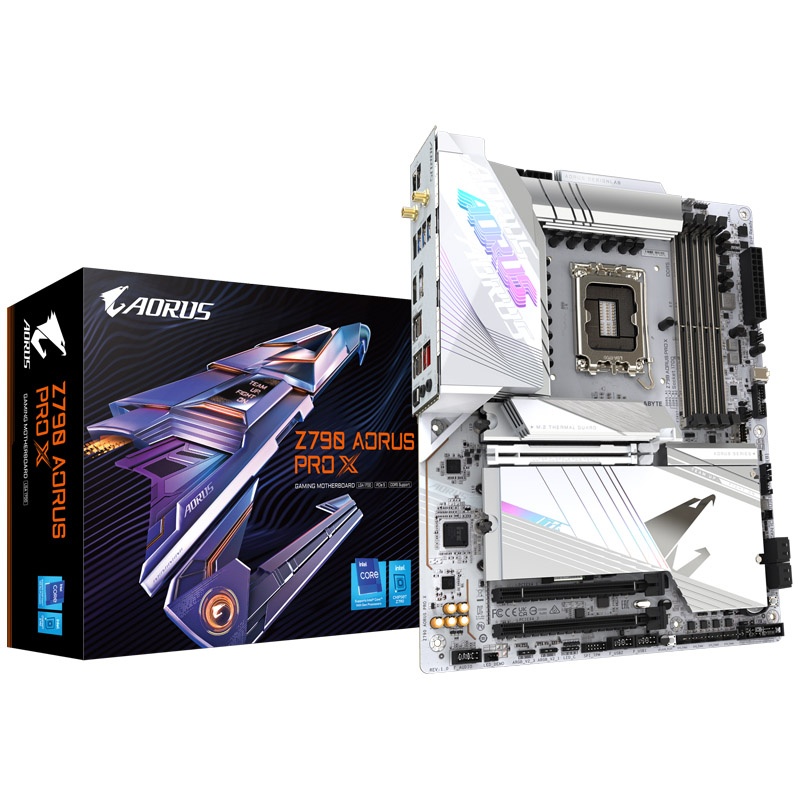

Gigabytes Z790 Aorus Pro X, Intel Z790 motherboard, Socket 1700, DDR5

– DDR5 memory up to 4,800 MHz, using RAM-OC up to 8,266 MHz
– 5x M.2 slots, including 1x PCIe 5.0 and 4x PCIe 4.0
– USB on the I/O panel: 1x USB 3.2 Type C, 1x USB 3.1 Type C, 2x USB 3.1, 1x USB-C 3.0, 4x USB 3.0
– A total of 8 connections for fans and pumps

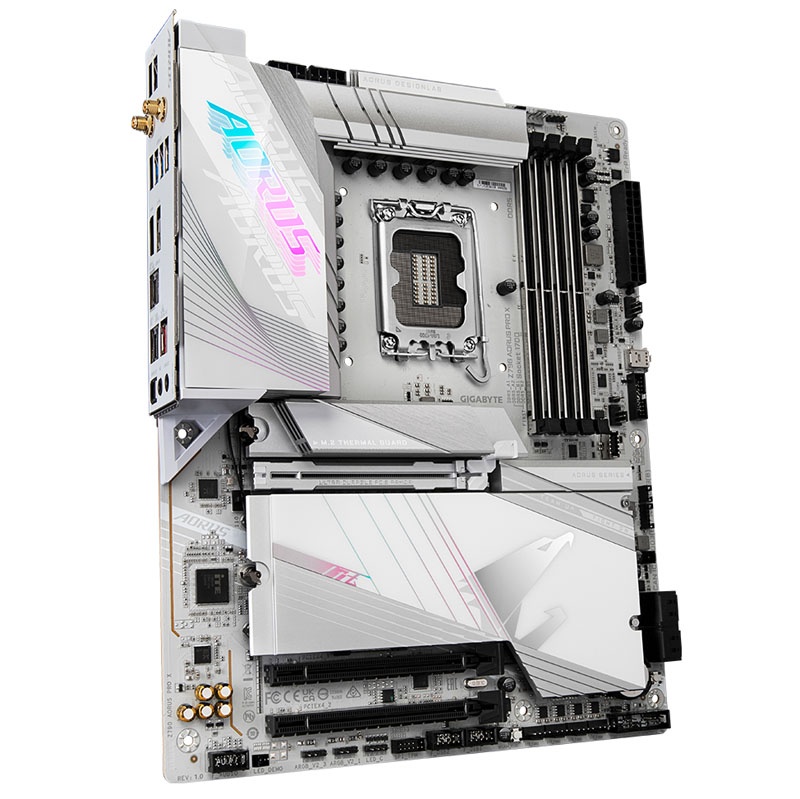

– The ATX motherboard Gigabyte Z790 Aorus Pro X with Intel Z790 chipset in detail

The Gigabyte Z790 Aorus Pro Codename: Alder Lake and Raptor Lake. It supports DDR5 memory with up to 8,266 MHz and is ideal for overclocking thanks to its outstanding power supply.

In addition to a stable power supply for the VRMs, the Gigabyte Z790 Aorus Pro X impresses with other highlights that make overclocking your system much easier. Buttons for BIOS flashback, CMOS reset or a reset ensure security during record-breaking overclocking attempts.

Note: This motherboard supports RAM with the DDR5 standard. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:

Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible performance of the processor, it is recommended to regularly carry out BIOS updates for the mainboard. This is particularly true for motherboards that may have been delivered by the manufacturer with an early BIOS version.

Our King Mod Service will be happy to carry out a BIOS update to the latest version in advance:
Add BIOS update service to cart now
Please note that this may delay shipping preparation by 0 to 2 working days!

More information about Intel Alder Lake and Raptor Lake as well as the 12th and 13th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a glance

Technical details:
Format:
– ATX (305x260mm)
– Chipset:
– Intel Z790
– Base:
– LGA 1700 (for Intel CPUs of the 12th/13th/14th core generation)
– R.A.M:
– 4x DDR5 (4,800 MHz, up to 8,266 MHz via OC)
– Dual channel
– Max 192GB
– Slots (physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 3.0 x16 (electrical x4, chipset)
– Internal connections:
– 4x SATA 6G
– 1x M.2/ M key (PCIe 5.0 x4, 25110/ 2580)
– 2x M.2/ M key (PCIe 4.0 x4, 22110/ 2280)
– 1x M.2/M key (PCIe 4.0 x4, 2280)
– 1x M.2/ M key (PCIe 4.0 x4/ SATA, 2280)
– 1x M.2/E-Key (Intel CNVi, 2230)
– 1x USB-C 3.2 Key-A Header (20Gb/s)
– 1x USB-C 2.0 Key-A header with DisplayPort 1.2 (480Mb/s)
– 1x USB 3.0 header (5Gb/s, 2x USB 3.0)
– 2x USB 2.0 headers (480Mb/s, 4x USB 2.0)
– 1x front panel header
– 1x front panel audio header
– 1x reset button
– 1x reset jumper
– 1x power button
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU fan/WaKü header
– 4x case fans (4-pin)
– 2x water cooling/fan connector (4-pin)
– RGB header:
– 2x addressable RGB headers (3-pin, 5 V)
– 2x RGB headers (4-pin, 12 V)
– External connections:
– 1x HDMI 2.0 (iGPU)
– 1x USB-C 3.1 with DisplayPort 1.2 (10Gb/s, PD, max. 60W, via DisplayPort-In)
– 2x USB-A 3.1 (10Gb/s)
– 4x USB 3.0 (5Gb/s), 2x USB-A 2.0 (480Mb/s)
– 1x 5GBase-T (Realtek)
– 2x jack
– 1x Toslink
– 1x DisplayPort In
– 2x antenna connection RP-SMA
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V
