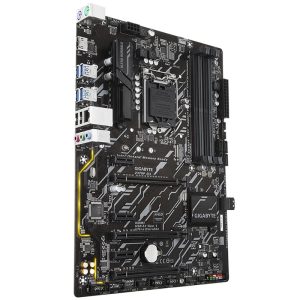

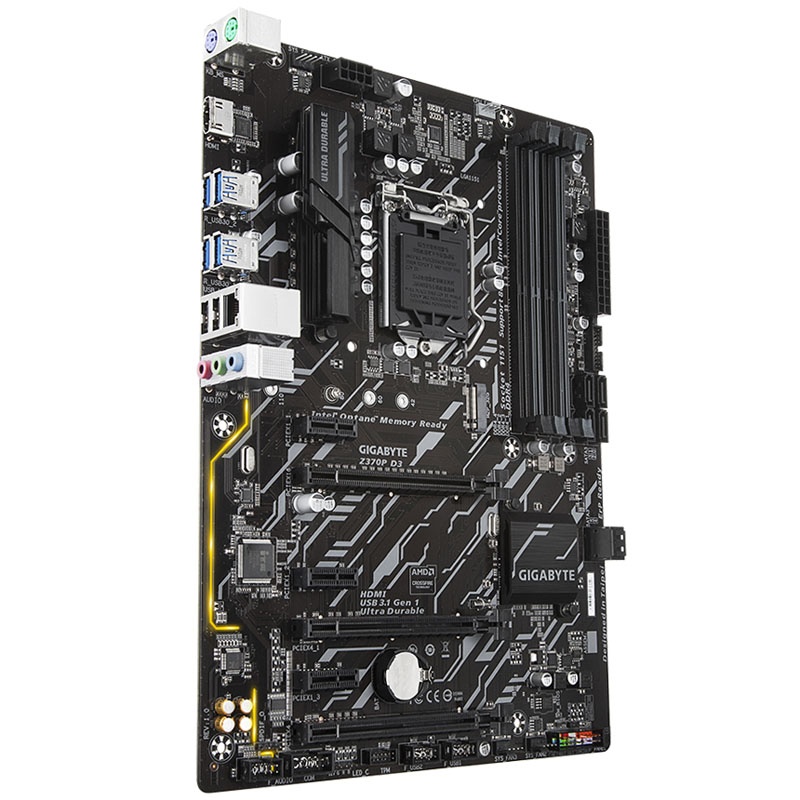

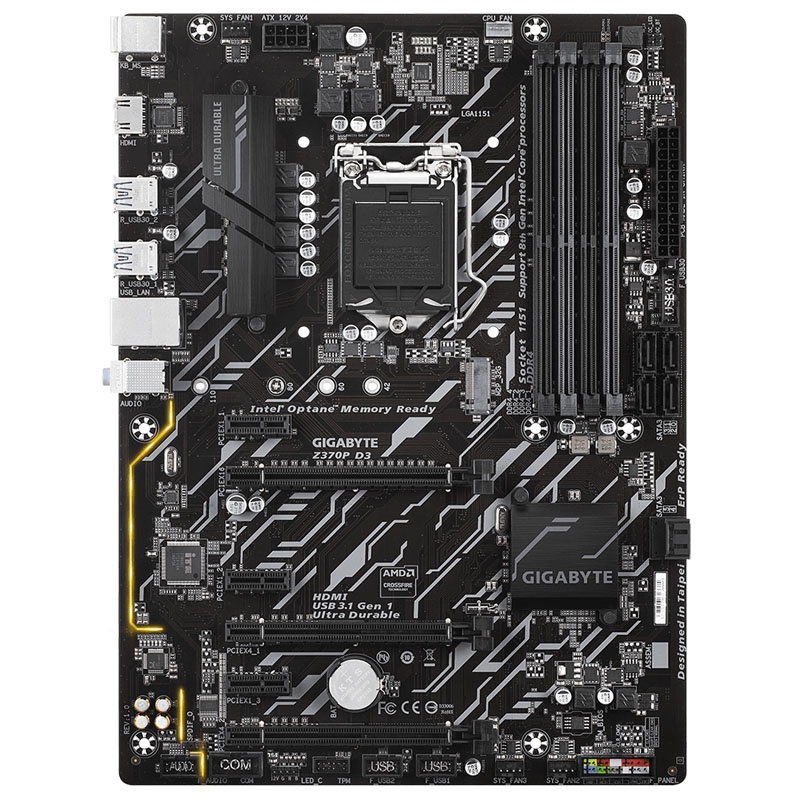

Gigabyte Z370P D3 Intel Z370 motherboard - socket 1151

The Z370 chipset is a refresh of the Kaby Lake chip sets, which also has a maximum of 24 PCI Express 3.0 lanes and sufficient HSIO lanes (High Speed I / O) brings to several internal connections ( such as SATA or PCIe slots) to be able to use simultaneously. As a Z370 motherboard, the Gigabyte Z370P-D3 also enables overclocking of K-series CPUs with a freely selectable multiplier.

The features of the Gigabyte Z370P-D3 at a glance:

    1 x PCIe (3.0) x16 & 2x PCIe (3.0) x4 & 3 x PCIe x1
    6 x USB 3.1 Gen1 / 6 x USB 2.0
    1 x M.2 (PCIe 3.0 x 4, horizontal) / 6 x SATA 6G
    Supports max. 64 GB DDR4 RAM at 2,666 MHz (OC: 4,000 MHz)
    Simple overclocking of the CPU by multiplier

The Gigabyte Z370P-D3 in detail

The Gigabyte Z370P-D3 is an ATX motherboard with good features and a modern Z370 chipset from Intel, which is intended for Intels core processors of the 8000 series. The board has a total of three PCIe x16 slots, one of which is connected to the chipset with a full 16 lanes, while the others are connected with four data lines. As a result, the board supports AMDs CrossFireX technology, providing the ability to build multiple graphics cards. For plug-in and expansion cards, the board also has three more PCIe x1 slots.

Equipped with a total of four DIMM slots for DDR4 memory in fast dual-channel mode, up to 64 GB of RAM can be installed in the four memory banks. The Coffee Lake processors support a memory clock of 2.666 MHz. The board provides M.2 slots for ultra-fast NVMe-M.2 SSDs and six SATA-6G ports for 3.5-inch or 2.5-inch hard drives and SSDs (including RAID support). The M.2 port is connected to the chipset via four PCIe lanes in the 3.0 standard and, in combination with the NVMe protocol, enables a data transfer rate of just under 4 GB / s. This makes M.2 PCIe SSDs up to eight times faster than SATA 6G SSDs!

For input devices and other gaming peripherals, the I / O panel has four USB 3.1 Gen1 and two USB 2.0 ports. In addition to an Intel I219V Gigabit LAN port, this board has six 3.5 mm jack plugs, which ensure proper 7.1 sound thanks to the Realtek ALC1220 codec. There are also two PS / 2 plugs each for mouse and keyboard.

If you do not have a graphics card, you can connect monitors directly to the back of the motherboard thanks to the integrated graphics processor of a Coffee Lake CPU – an HDMI port is available for this purpose. The internal connection diversity also has a considerable equipment and offers various connections for USB, fans, LEDs and more.

Technical details:

    Format:
    ATX (305 x 225 mm)
    chipset:
    Intel Z370
    Base:
    1151 (for Intel CPUs of the 8th core generation (Coffee Lake)
    R.A.M:
    4 x DDR4 (Coffee Lake: DDR4-2,666 / 4,000 OC, 64 GB maximum)
    Dual-Channel
    Slots (physical):
    1 x PCIe 3.0 x16
    2 x PCIe 3.0 x16 (electric x4)
    Compatible multi-VGA configurations: 2-Way AMD CrossFireX
    3 x PCIe x1
    Internal connections:
    6 x SATA 6G
    1 x M.2 (PCIe 3.0 x4 & SATA)
    1 x USB 3.1 Gen1 (a header)
    4 x USB 2.0 (two headers)
    4 x fan headers
    1 x TPM header
    1 x LPT header
    1 x COM port header
    1 x RGB LED header (4-pin)
    External connections:
    2 x PS / 2 keyboard / mouse
    4 x USB 3.1 Gen 1 Type A
    2 x USB 2.0
    1 x HDMI
    1 x Gigabit LAN (Intel I219V)
    6 x audio (Realtek ALC1220 codec)
    Power supply:
    1 x 24 pin
    1 x 8 pin
