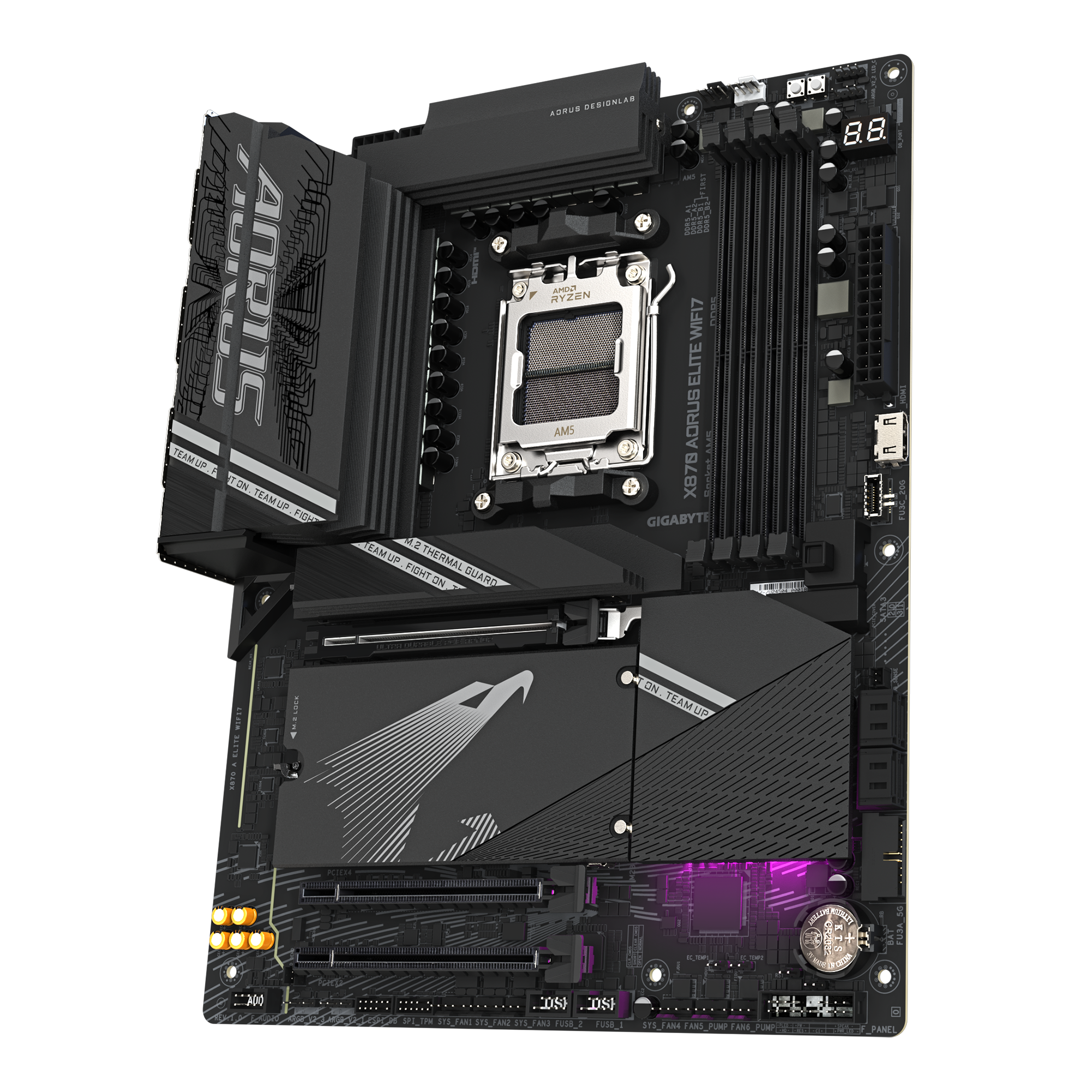

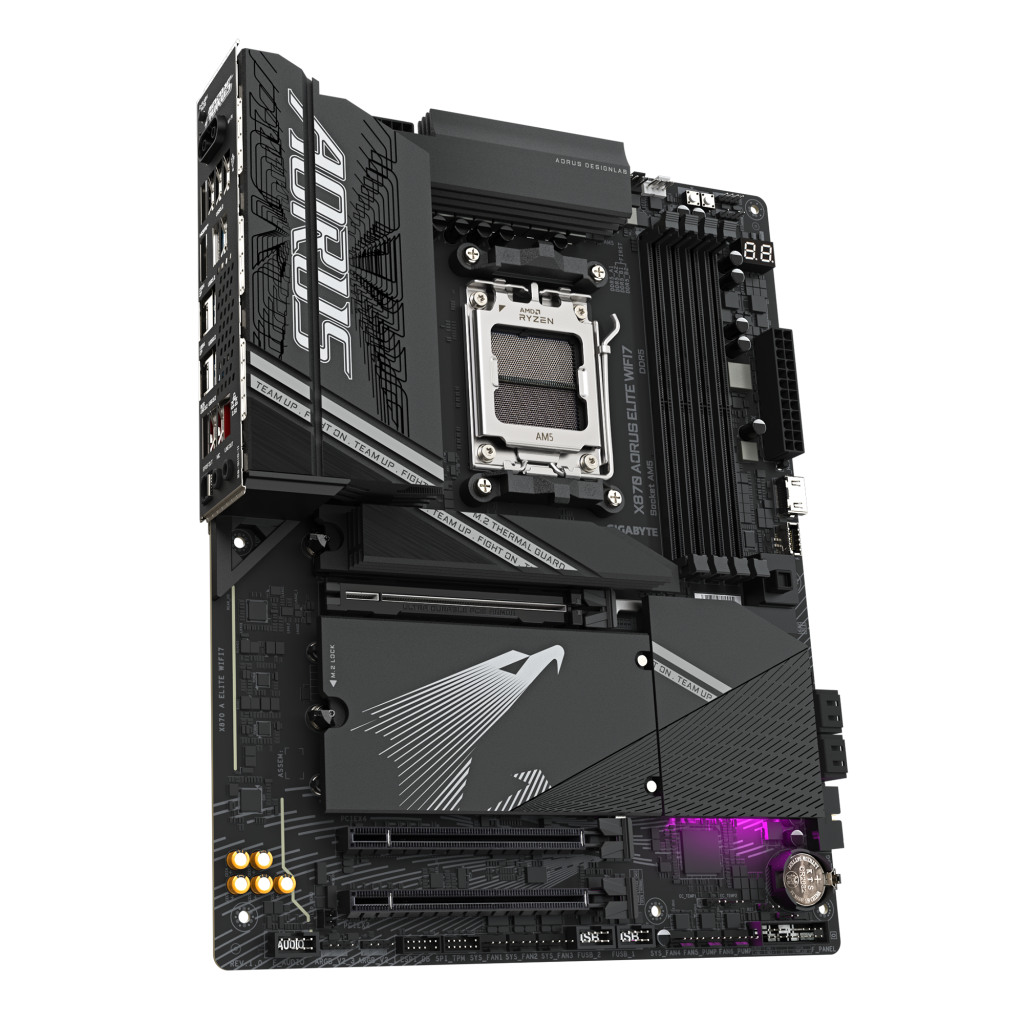

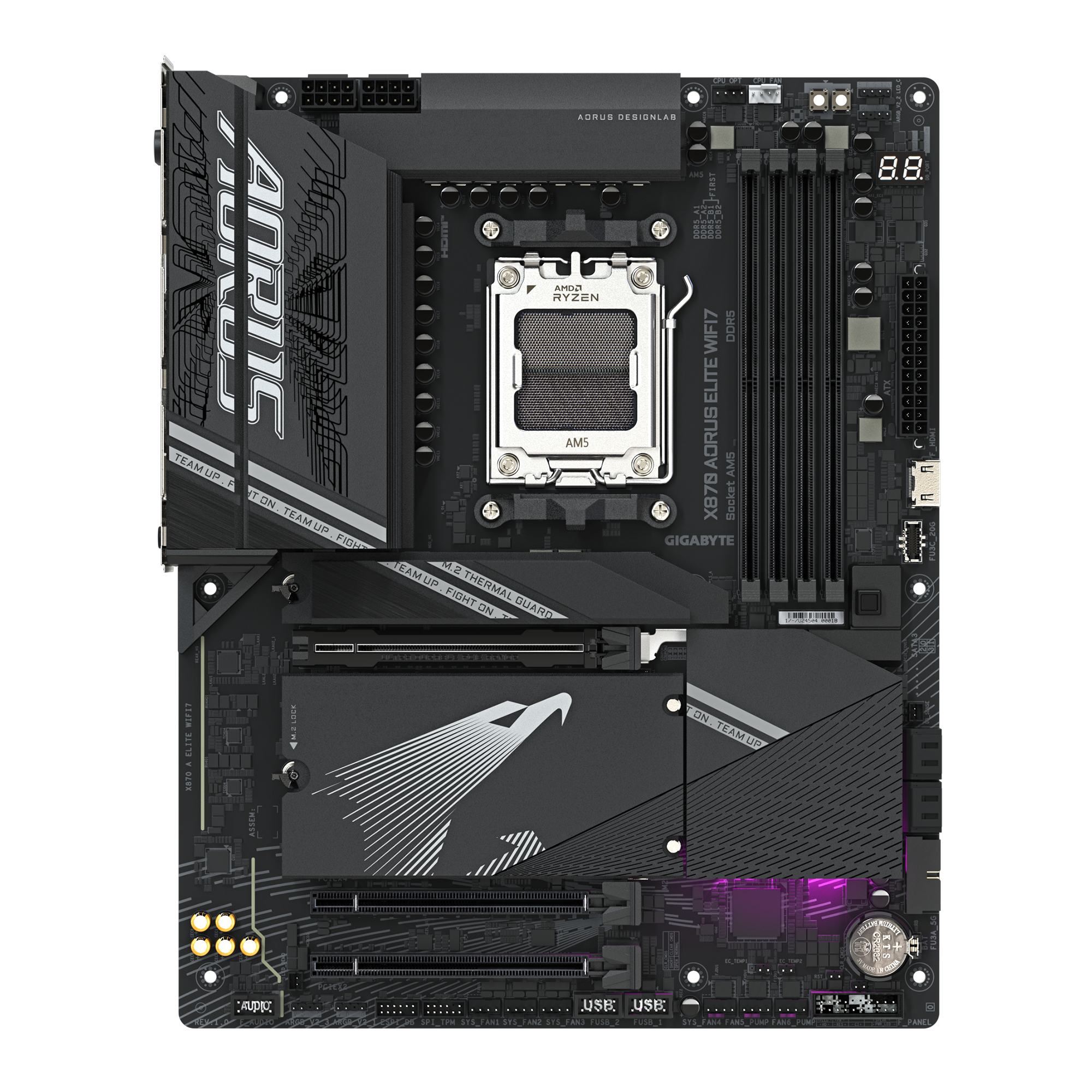

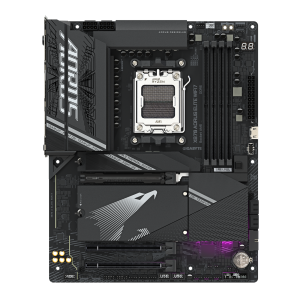

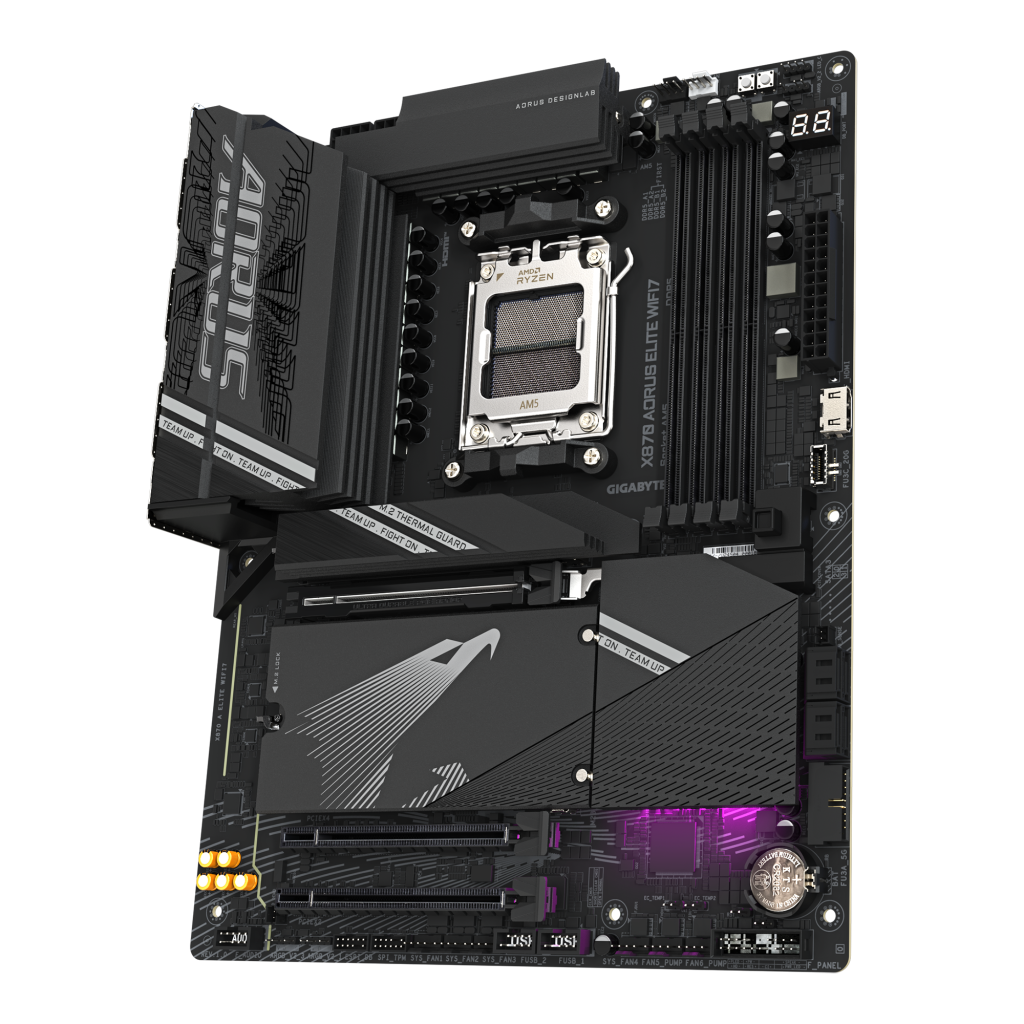

Gigabyte X870 A Elite WiFi7 motherboard, socket AM5, AMD X870, ATX, DDR5

– 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, and 1x PCIe 3.0 x2
– 4x DIMM slots for up to TBA GB of DDR5 RAM up to TBA MHz (OC)
– 4x M.2 (including 3x PCIe 5.0 and 1x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 2x USB 3.2, 4x USB 3.1, and 4x USB 2.0 on the I/O panel
– OC features: 16+2+2 phase VRMs
– A total of 10x 4-pin PWM fans possible

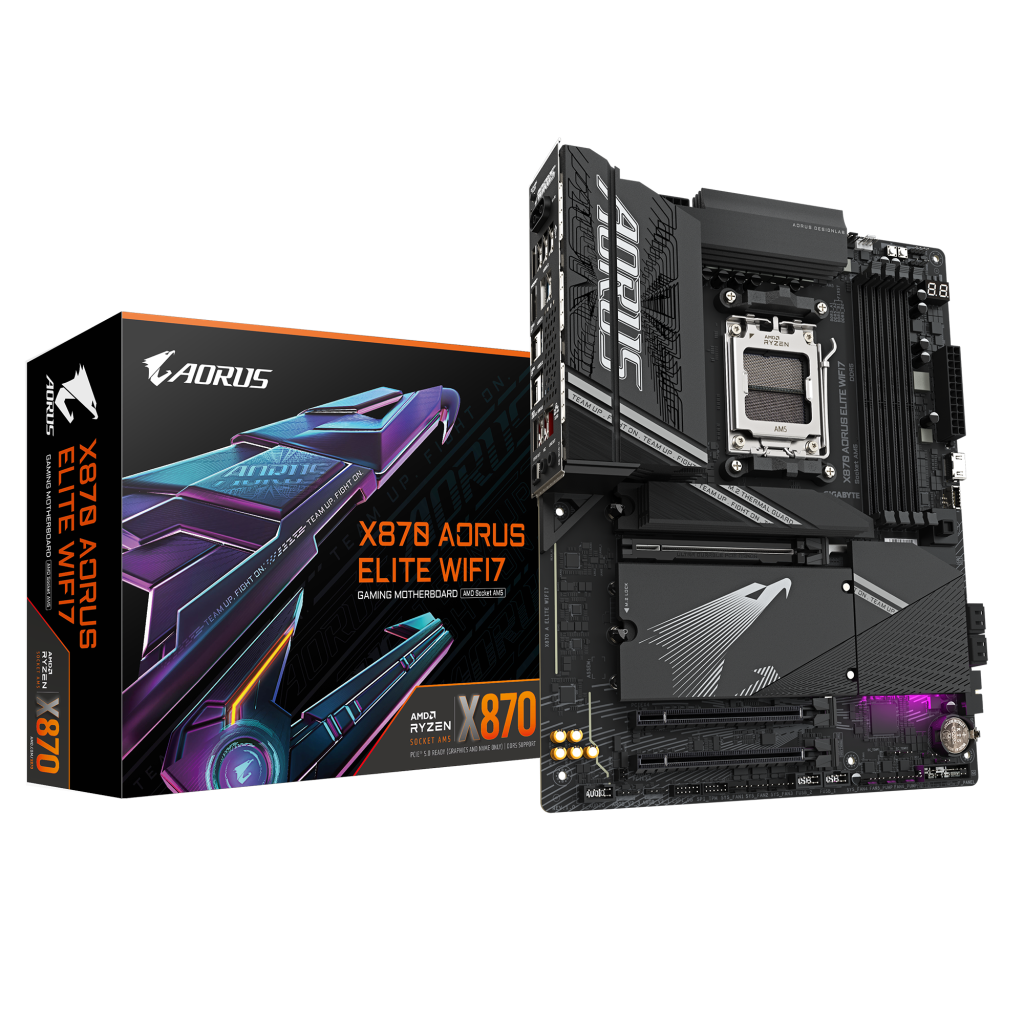

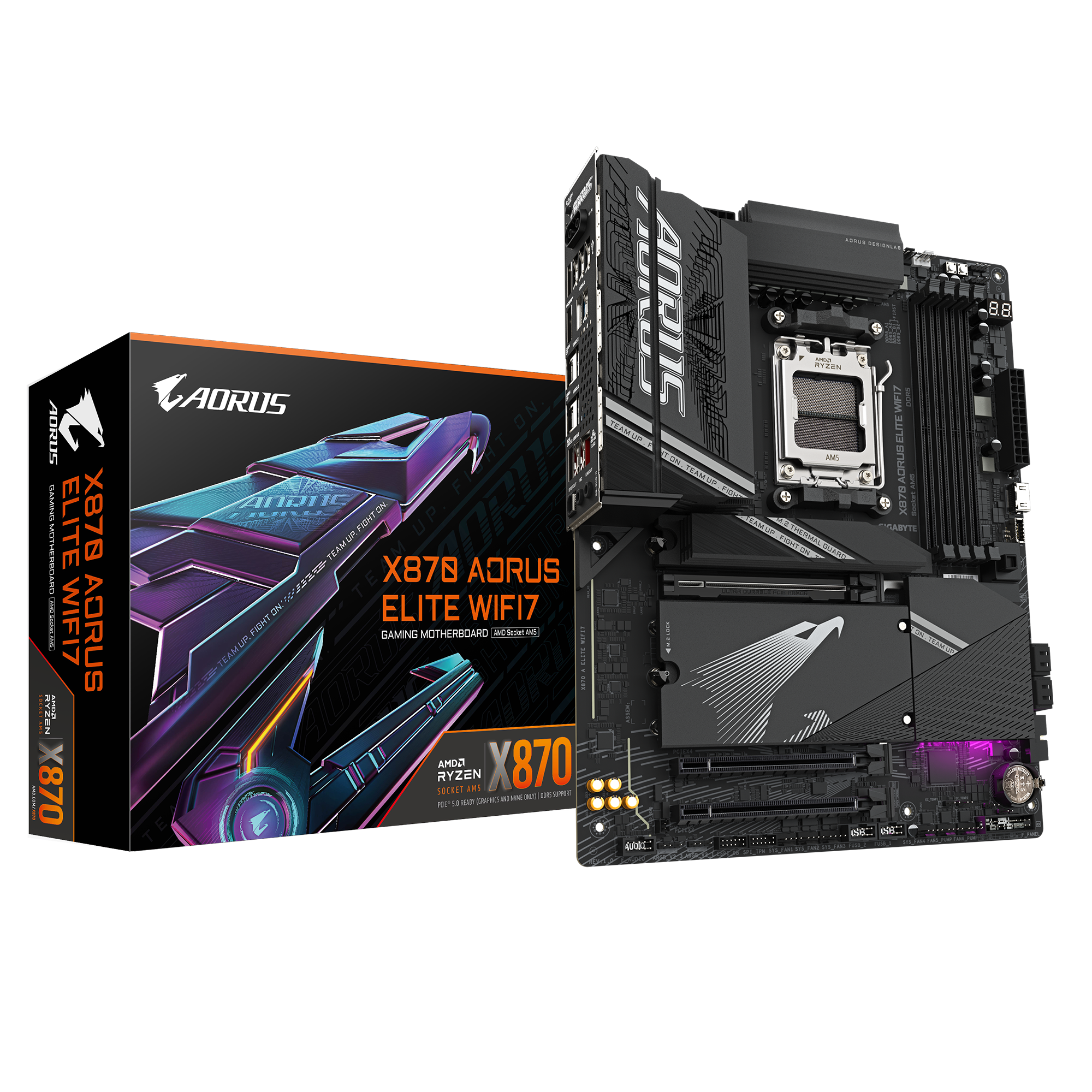

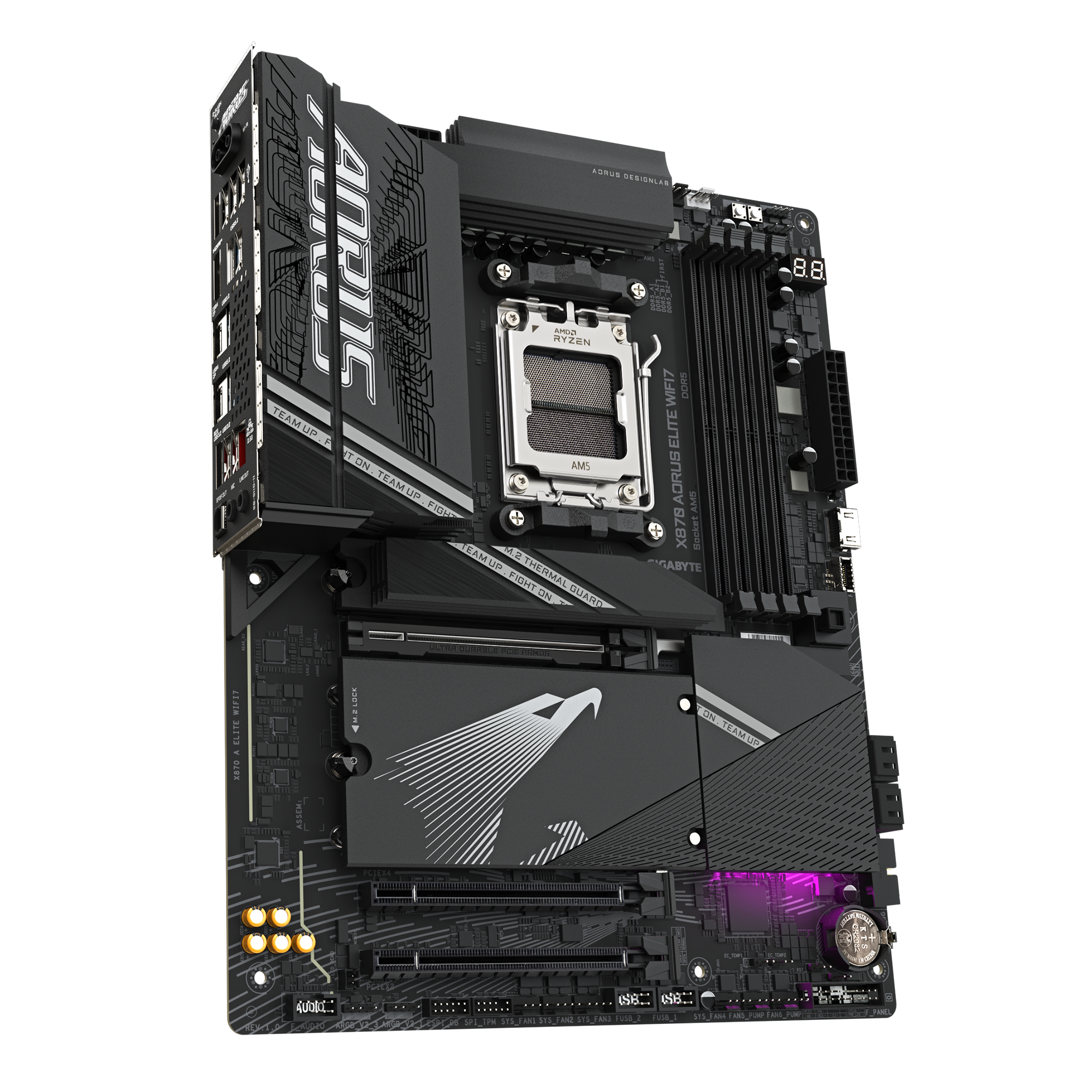

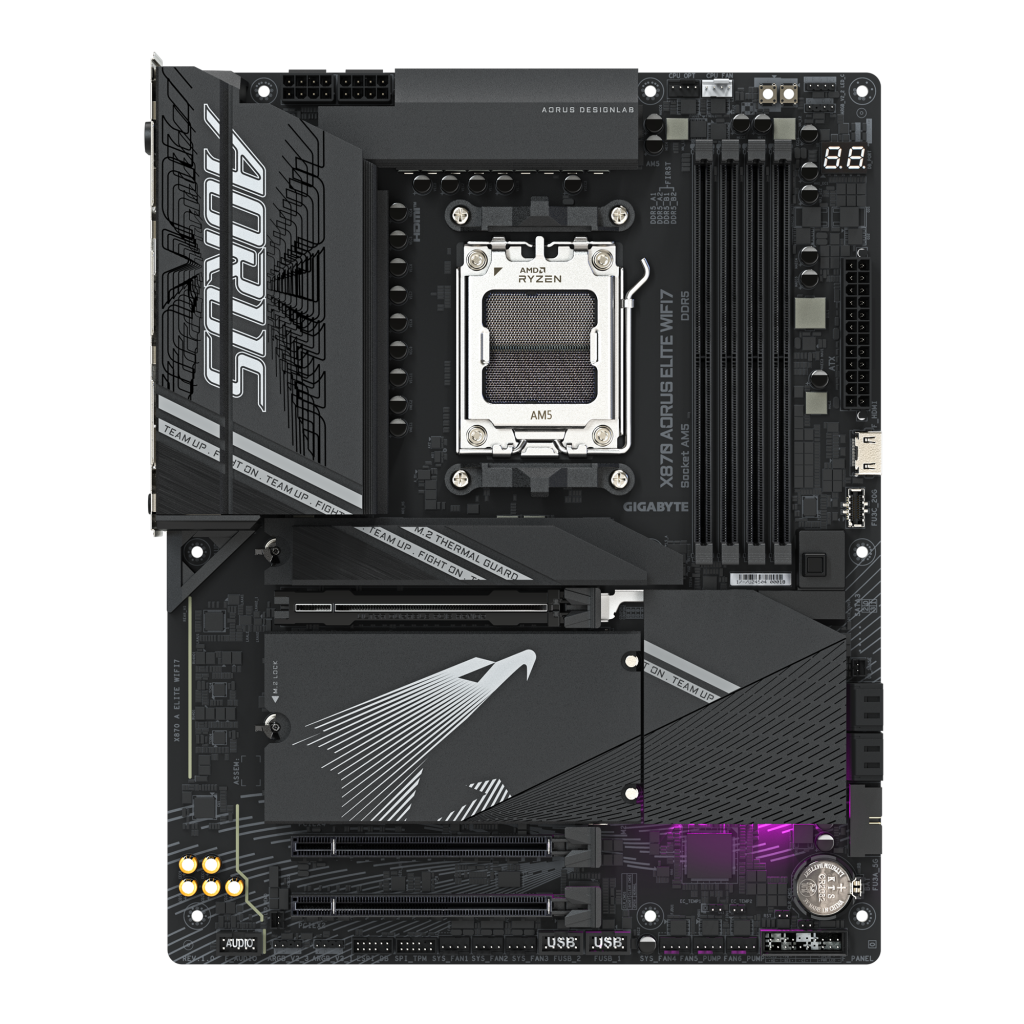

Gigabyte X870 Aorus Elite WiFi7: ATX motherboard with AMD AM5 socket and X870 chipset
The Gigabyte X870 Aorus Elite WiFi7 features the mid-tier X870 chipset for AMD Equipped with Ryzen 9000 series processors, it boasts numerous features for gamers and content creators. The Ryzen 9000 series processors also utilize the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the Gigabyte X870 Aorus Elite WiFi7 supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly Equipped for Gaming
The Gigabyte X870 Aorus Elite WiFi7 is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like HD audio processors that deliver precise sound for your games.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (TBA MHz, validated up to TBA MHz via overclocking)
– Dual-Channel
– Max. TBA GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 CPU)
– 1x PCIe 4.0 x16
– 1x PCIe 3.0 x16
– Internal Connectors:
– – Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 3x M.2 (PCIe 5.0 x4)
– 1x M.2 (PCIe 4.0 x4 & SATA)
– 1x (max.) USB-C (1 header, 3.2 Gen 2×2, max. 20 Gbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 2x CPU fan header (4-pin)
– 6x fan header (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

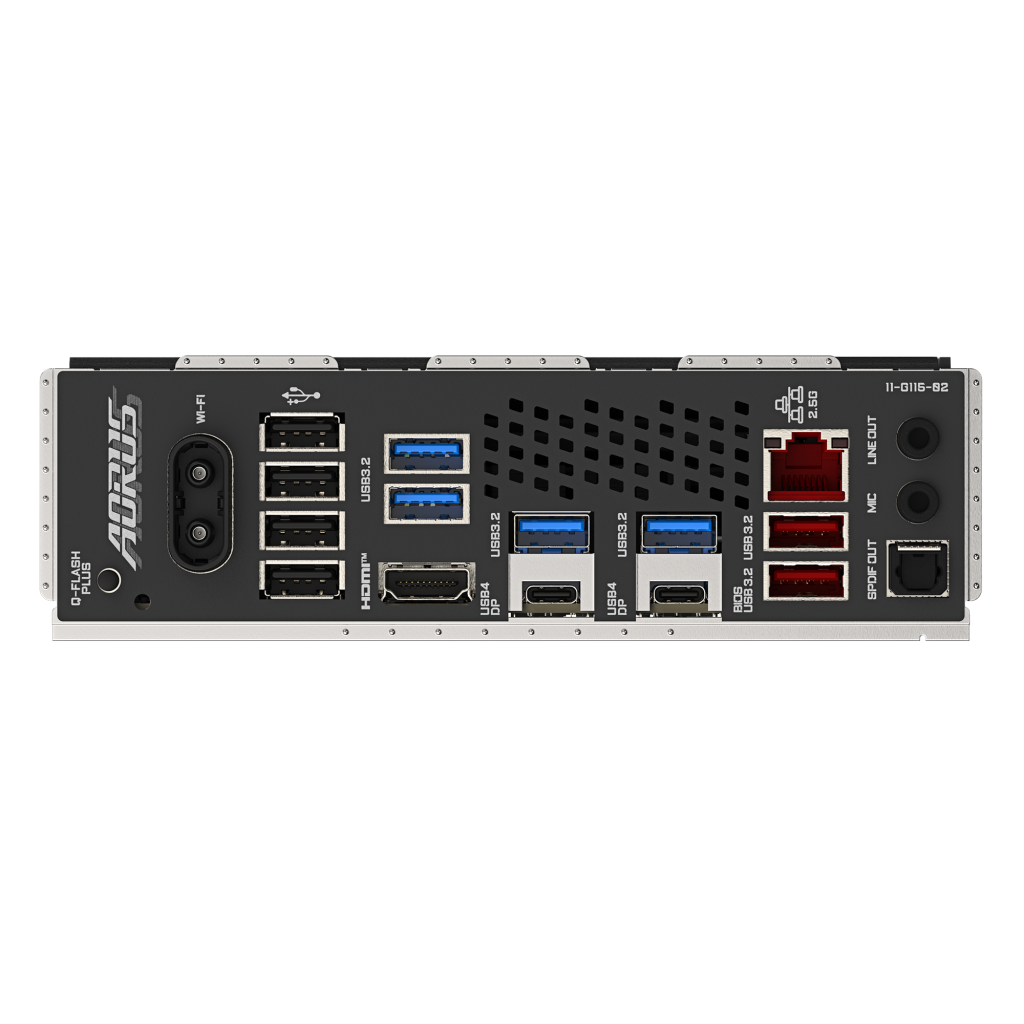

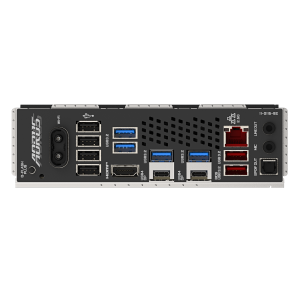

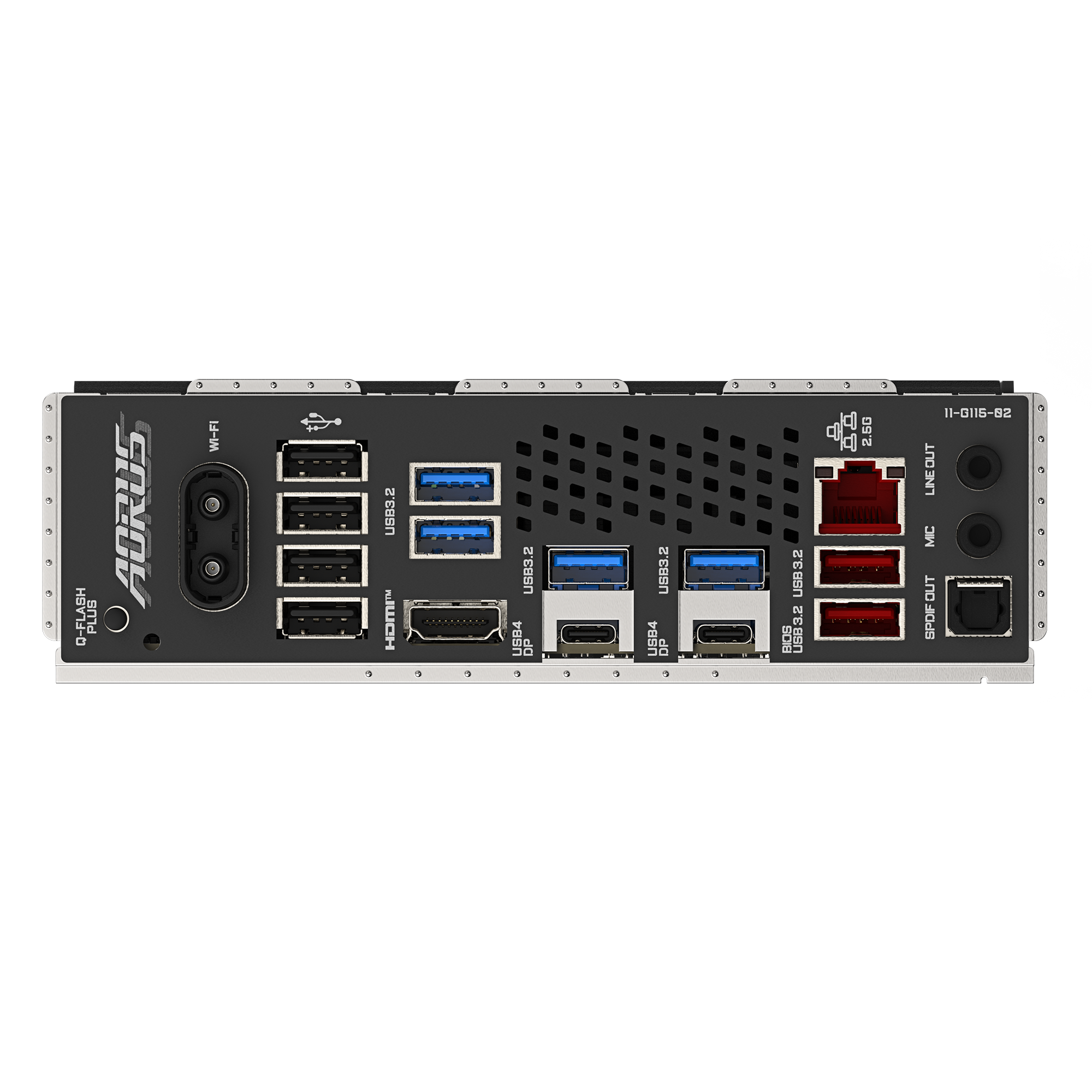

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN
– 1x WiFi 7/Bluetooth module
– 5x 3.5 mm jacks and 1x S/PDIF audio (Realtek ALC1220)
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
