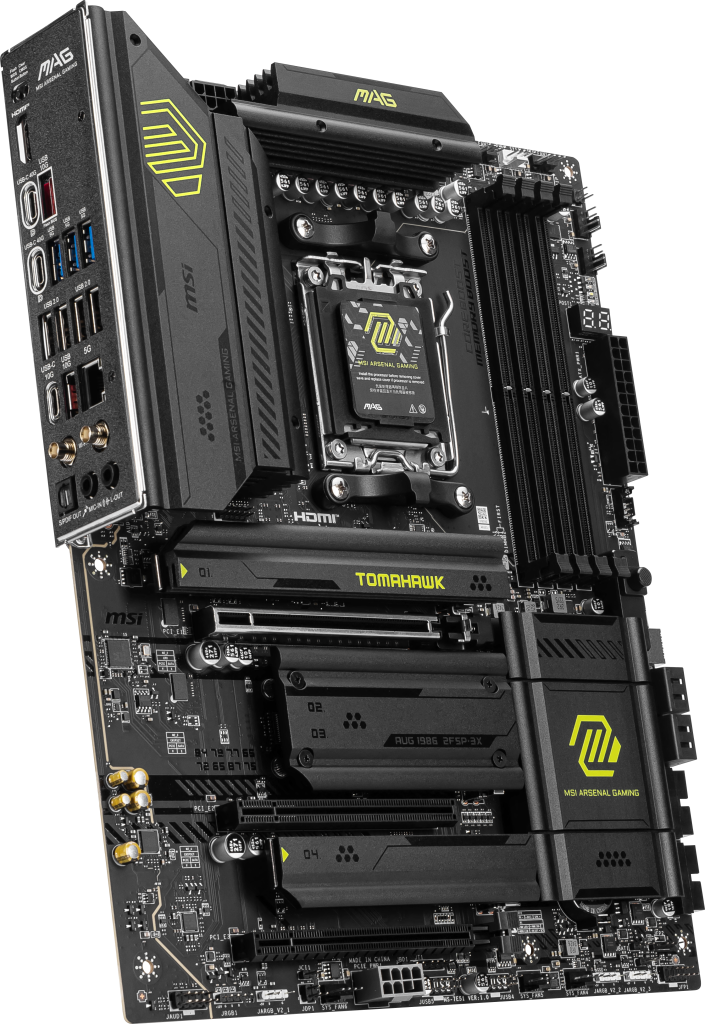

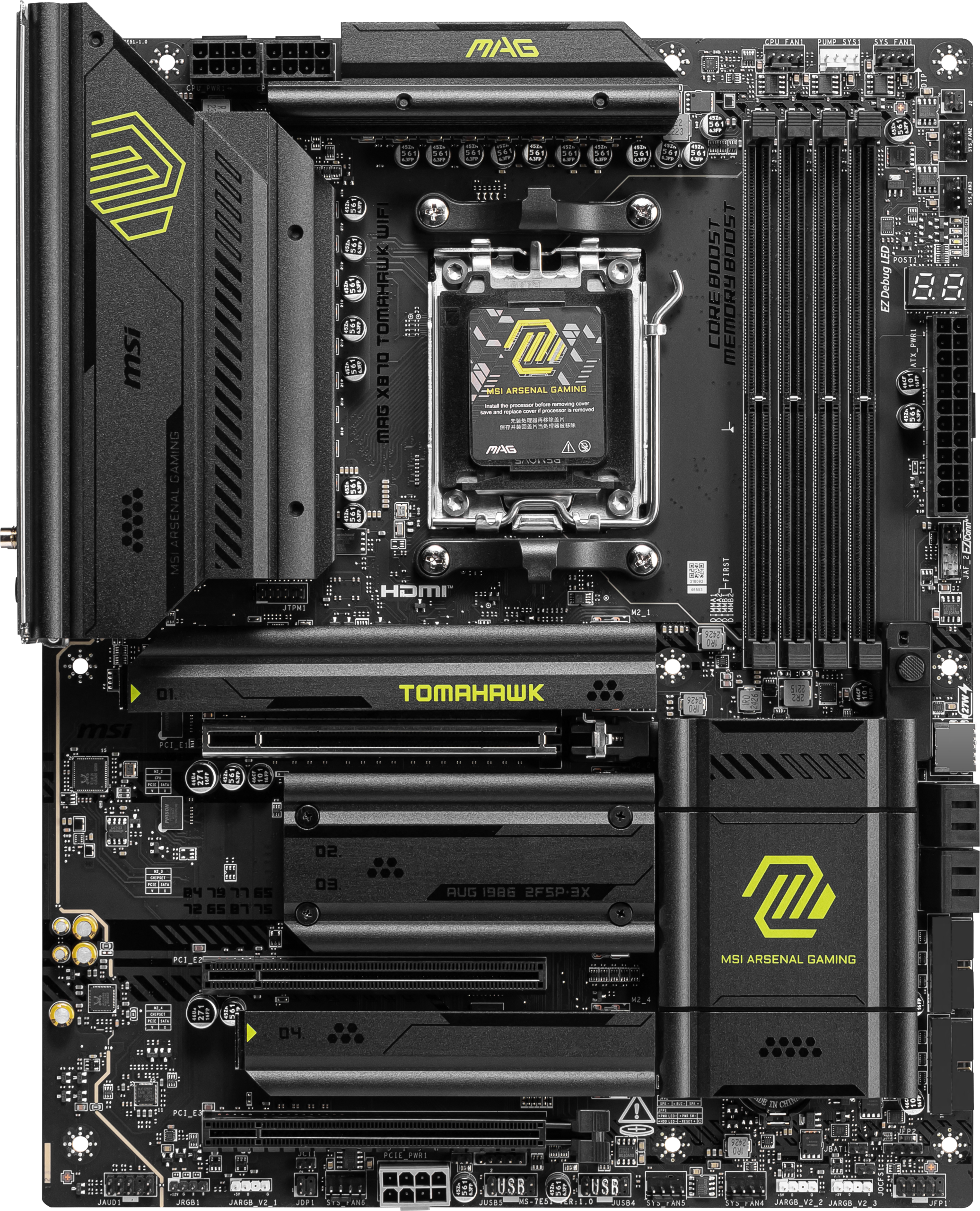

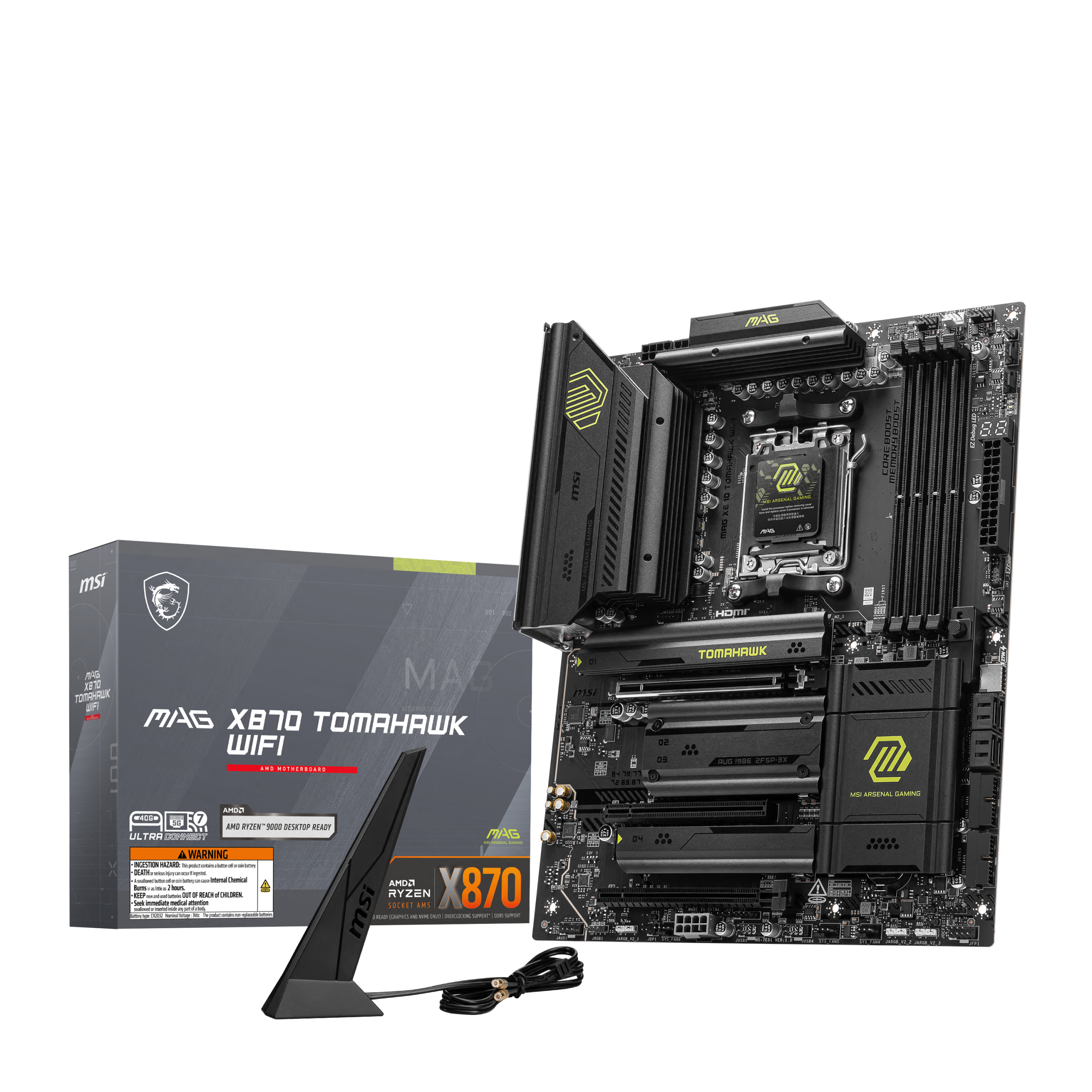

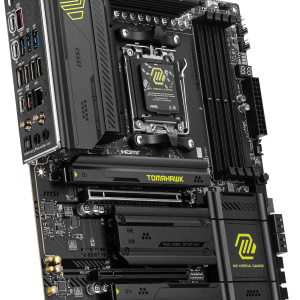

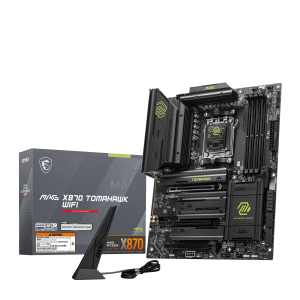

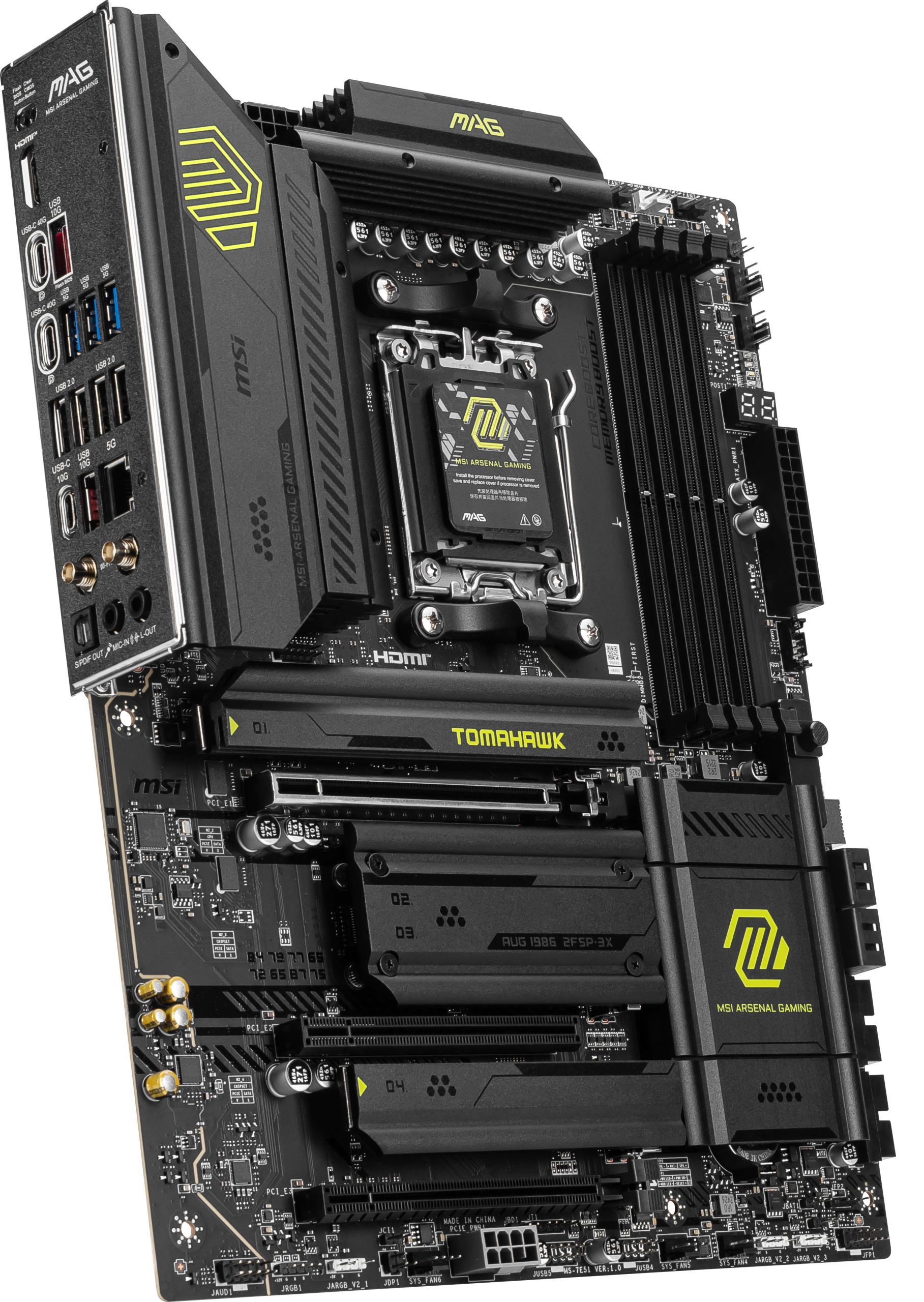

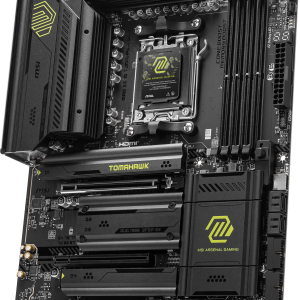

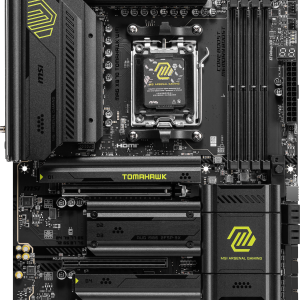

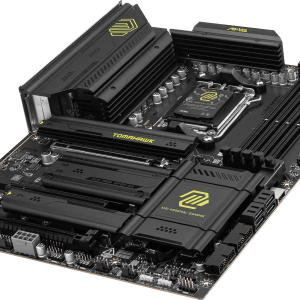

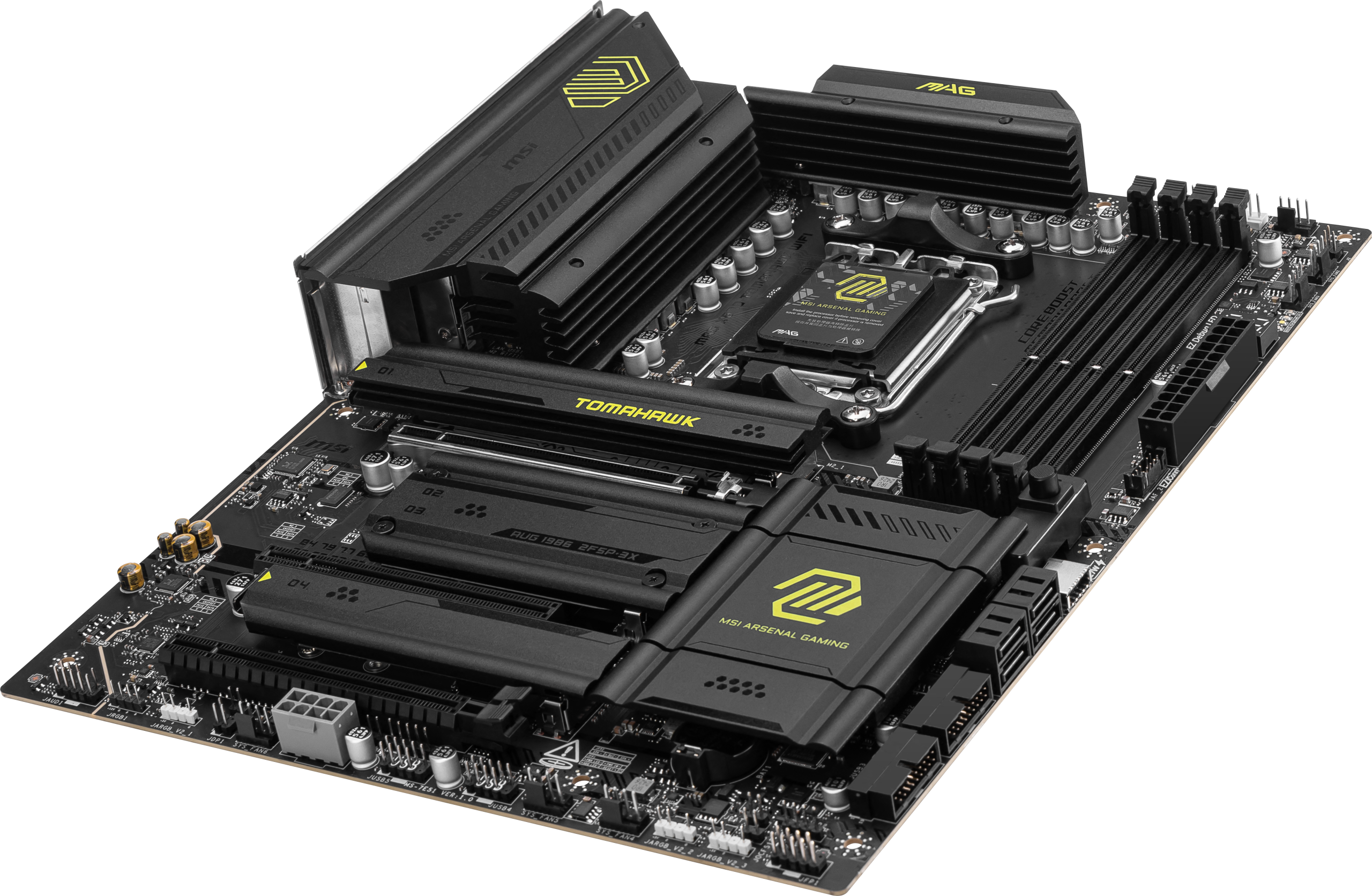

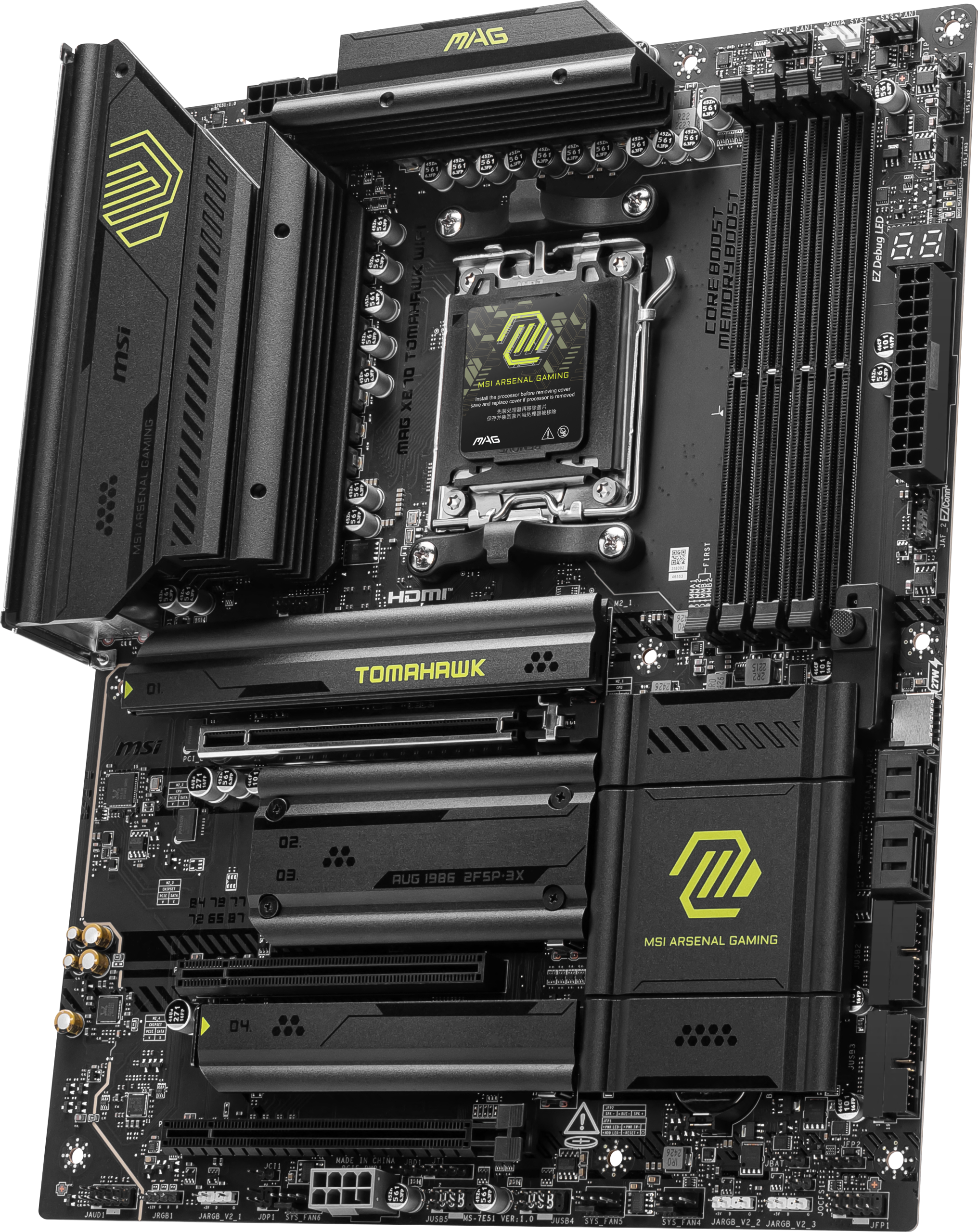

MSI MAG X870 Tomahawk WiFi motherboard, socket AM5, AMD X870, ATX, DDR5

This motherboard is ideal for high-end builds.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8400 MHz (OC)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 1x USB 3.1 Type-C, 2x USB 3.1, 3x USB 3.0, 4x USB 2.0 on the I/O panel
– OC features: 17-phase VRMs, CMOS reset, BIOS flashback
– A total of 8x 4-pin PWM fans supported

MSI MAG X870 TOMAHAWK WIFI: ATX motherboard with AMD AM5 socket and X870 Chipset
The MSI MAG X870 TOMAHAWK WIFI is equipped with the mid-tier X870 chipset for AMDs Ryzen 9000 series processors and boasts numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the MSI MAG X870 TOMAHAWK WIFI supports PCIe 5.0, providing twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly equipped for gaming
The MSI MAG X870 TOMAHAWK WiFi is designed for high-end gaming, so you can enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback and Clear CMOS allow you to use the PC again if something goes wrong. And, as always, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8400 MHz via overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 3.0 x16 (electrical x1, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280 / 22110) CPU)
– 1x M.2 (PCIe 5.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x2; 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x fan/pump (4-pin)
– 6x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

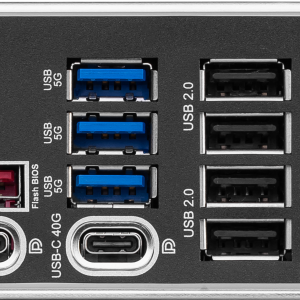

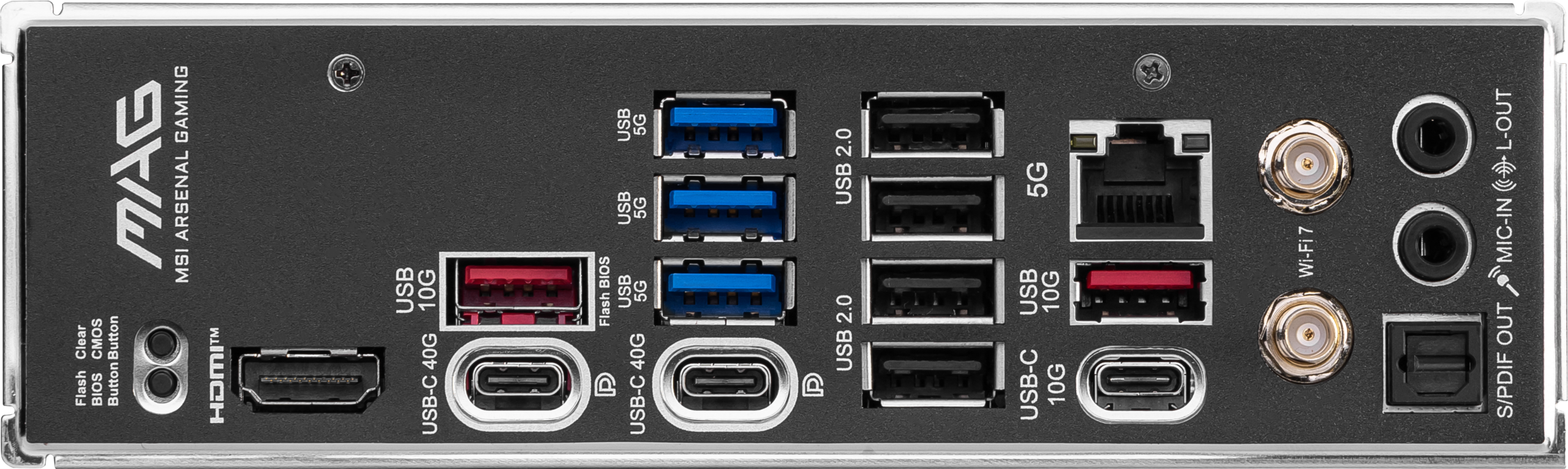

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 5 Gigabit LAN (Realtek RTL8126)
– 1x WiFi/Bluetooth module (Wi-Fi 7, Bluetooth 5.4)
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC 4080)
– 1x Clear CMOS button
– 1x BIOS flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
– 1x 8-pin PCIe
