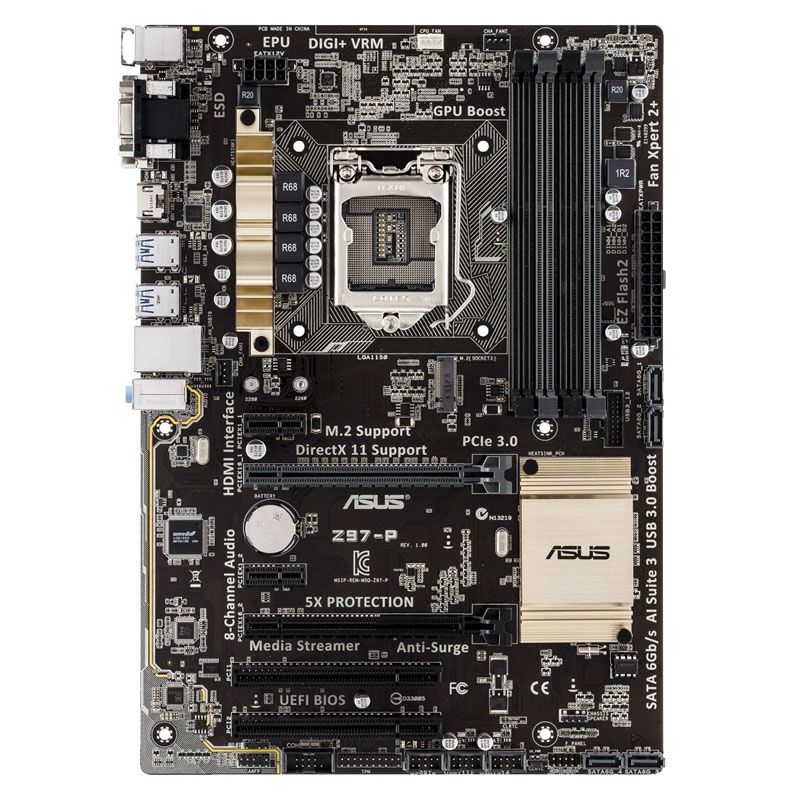

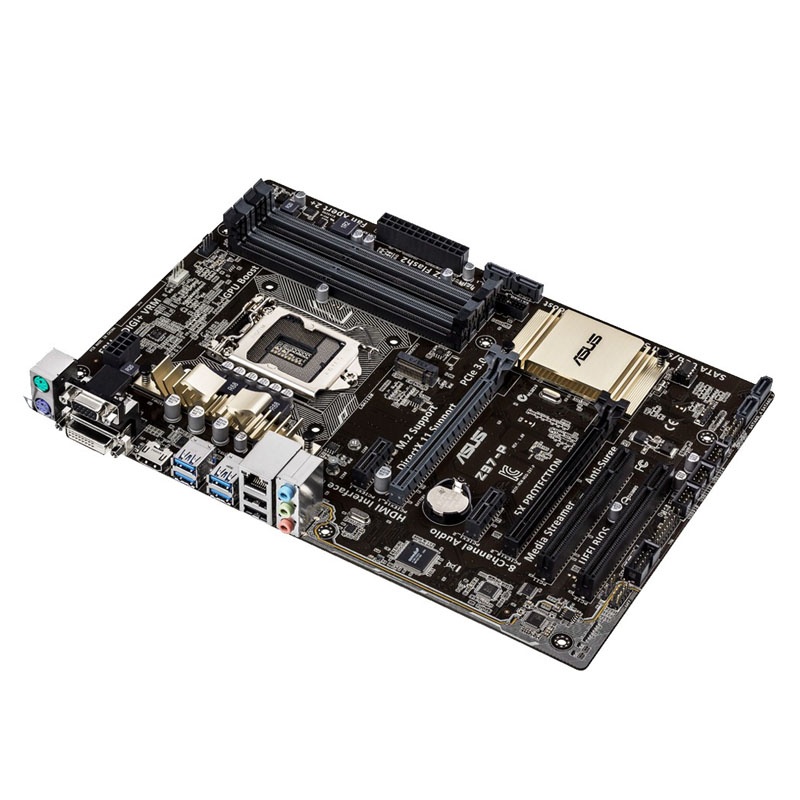

ASUS Z97-P, Intel Z97 Motherboard - Socket 1150
With the recent Haswell CPUs Intel also put on a new chipset family, codenamed Lynx Point and the socket LGA1150. The efficient in 32-nm-Srukturbreite made boards can be divided into a performance sector (Z87, H87) and a value segment (Q85, B85) divided - between also exists a broad mainstream field (H81, Q87).
This offer former most internal and external connectors, leave the overclocki...
- SKU: MBAS-185
- MPN: 90MB0JP0-M0EAY0
- EAN: 4716659797449
- Warranty: 12 Months
With the recent Haswell CPUs Intel also put on a new chipset family, codenamed Lynx Point and the socket LGA1150. The efficient in 32-nm-Srukturbreite made boards can be divided into a performance sector (Z87, H87) and a value segment (Q85, B85) divided - between also exists a broad mainstream field (H81, Q87).
This offer former most internal and external connectors, leave the overclocki...
Featured products
No products found
Details
The new Z97 chipset supports however additionally the new Haswell refresh CPUs clocked 100 MHz higher than their predecessors. In addition, the new and some still future interfaces M.2 and SATA Express are supported by most Z97 motherboards.
When ASUS Z97-P is a very well equipped Z97 motherboard, especially for the fast quad-core processors, the Core i7 or Core i5 series is an ideal base. The brown board comes with four DIMM slots for DDR3 memory in the fast dual-channel mode. As Realtek ALC891 sound chip is on Bo (a) rd, which can output three audio jacks 7.1 sound.
The connectivity falls extensively from the ATX board provides a total (some externally, some internally) six USB 3.0 ports and eight USB 2.0 ports available and manages hard drives and SSDs on four SATA 6G ports (incl. RST 12 and RAID support) and a M.2 port (Type 2260/2280). Expansion cards come with two PCI slots and two PCIe x1 slots and graphics cards, two PCI-Express slots – partly in Standard 3.0 – ready.
If a graphics card is present, can be, thanks to the integrated graphics processor an Haswell processor (Intel HD), connect a monitor via the HDMI output, the VGA port or a DVI-D port on the back of the motherboard. The ASUS motherboard convinced to boot with features like ASUS 5xProtection, and the Gigabit LAN controller from Realtek (8111GR) and several overclocking features.
Technical Details:
Format: ATX
Color: Brown, Gold
Chipset: Intel Z97
Socket: 1150 (for Intel Core i CPUs of the 4th and 5th generation Haswell and Haswell Refresh)
RAM: 4x DDR3
Dual-Channel
Slots (physically):
2x PCIe (3.0) x16
2x PCIe (2.0) x1
2x PCI
Internal connections:
4x SATA 6G
1x M.2 NGFF (type 2260/2280)
2x USB 3.0 (1x header)
6x USB 2.0 (3x header)
1x COM
1x S / PDIF
3x fan
Power / reset / LED / Front Audio
External connections:
2x PS / 2 keyboard / mouse
4x USB 3.0
2x USB 2.0
1x Gigabit LAN (Realtek 8111GR)
1x HDMI
1x DVI-D
1x VGA (D-Sub)
3x audio (7.1, Realtek ALC891)
Power supply:
1x 24-pin EATX
1x 8-pin ATX 12V
Compatibility: Windows Vista, 7, 8, 8.1
