ASUS B150 Pro Gaming D3, Intel B150 Mainboard - Socket 1151

The B150 motherboards are Sunrise Point 100 series chipset from Intel and Core 6000 processors Skylake to the base in 1151 for the Intel equipped. As motherboards for the business segment are the B150 boards represents a successful combination of price and performance that can come up against older motherboards with many improvements. Thus, the Sunrise Point chipset on the B150 mainboards eg eight lanes in the PCI Express 3.0 standard and supports the rapid and economical DDR4 memory.

Skylake CPUs are especially economical in energy consumption as a direct predecessor models and are equipped with an improved integrated graphics processor. A maximum of twelve USB ports, six support the fast 3.0 standard from which to be able to be provided on the B150 motherboards. For hard drives and SSDs are up to six ports in SATA 6G standard prepared from these, up to two ports are used for connection with SATA Express. As a small highlight many B150 boards offer a slot for extremely fast M.2 SSDs.

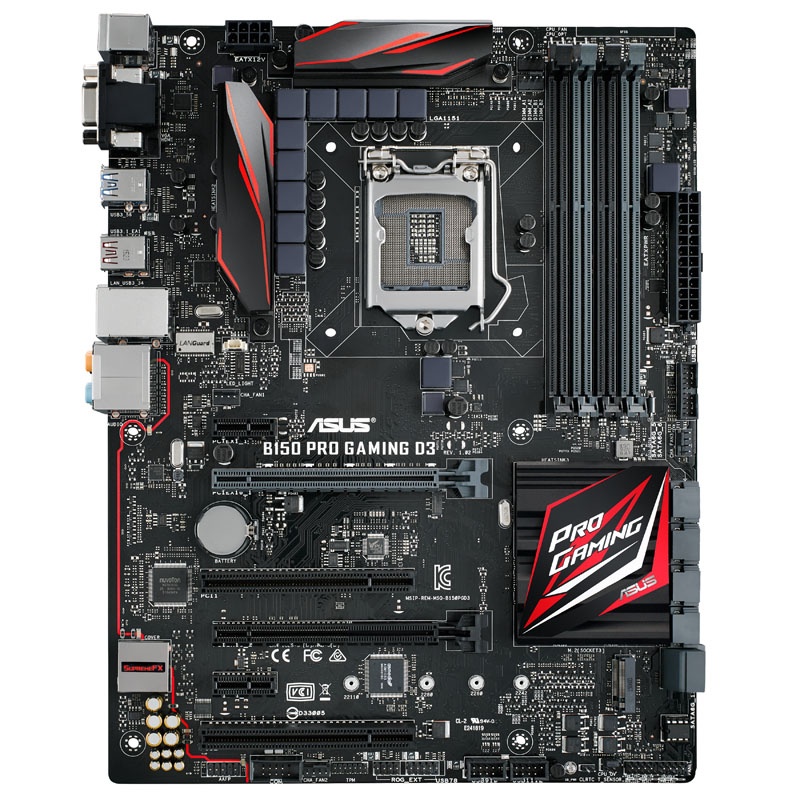

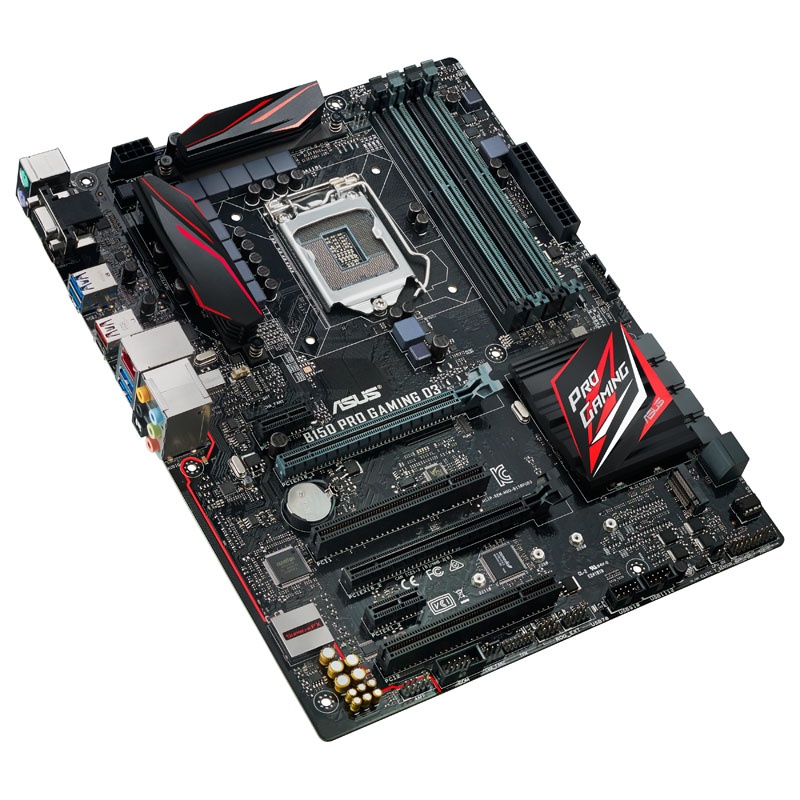

When ASUS B150 Pro Gaming D3 is a well-equipped B150 gaming mainboard in ATX format, which represents an excellent base especially for the fast quad-core processors of the Core i7 or Core i5 series of Intel. The black with red accents motherboard has four DIMM slots for the thrifty DDR4 memory in fast dual-channel mode. Insertion and expansion cards are accommodated in two PCIe x1 and PCI slots, while the board for graphics cards a PCIe 3.0 x16 slot and another slot in x16 format provides, with four lanes in PCIe 3.0 is connected standard.

For the video output of the built-in Skylake CPU GPU are at the back of the motherboard with HDMI and DVI two ports. Among the many features of ASUS motherboards include an integrated Gigabit LAN port with Intel I219-V chipset, excellent 7.1 sound, six SATA 6G ports, six USB 2.0 and USB 3.0 ports, five fan connectors, depending on a COM and TPM header and a chassis intrusion connector.

Technical details:

    Format: ATX
    Color: Black, Red
    Chipset: Intel B150 (Sunrise Point)
    Socket 1151 (for Intel CPUs the 6th generation Core Skylake)
    RAM: 4 x DDR4 (regularly DDR4-2.133)
    Dual-Channel
    Slots (physically):
    1 x PCIe 3.0 x16
    1 x PCIe 3.0 x16 (electrical x4)
    Compatible Multi-VGA configurations: dual-GPU CrossFireX
    2 x PCIe x1
    2 x PCI
    Internal connections:
    6 x SATA 6G
    2 x USB 3.0 (a header)
    6 x USB 2.0 (three headers)
    1 x Serial port (COM header)
    1 x TPM header
    1 x ROG-header
    1 x Chassis Intrusion Connector
    1 x Clear CMOS jumper
    5 x fan (4-pin)
    Power / reset / LED / front-Audio
    External connections:
    2 x PS / 2 keyboard / mouse
    2 x USB 3.1 (1 x Type A and Type C, by ASMedia USB controller)
    4 x USB 3.0
    1 x Gigabit LAN (Intel I219-V)
    1 x HDMI
    1 x VGA
    1 x SPDIF
    5 x Audio (7.1)
    Power supply:
    1 x 24-pin EATX
    1 x 8-pin ATX 12V
