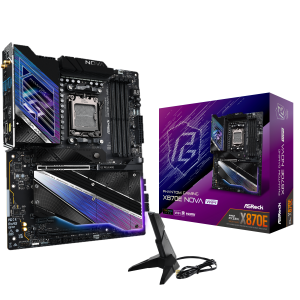

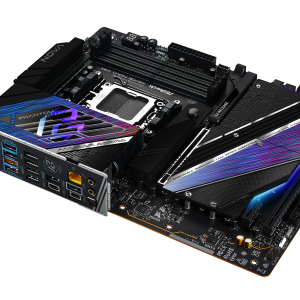

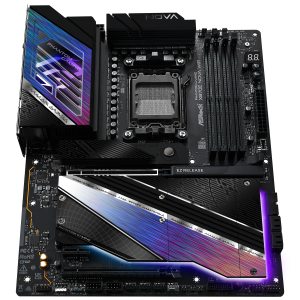

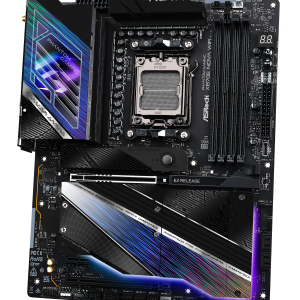

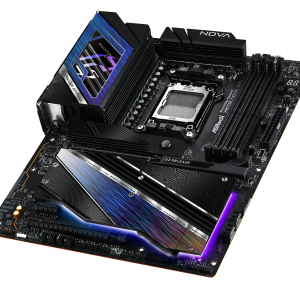

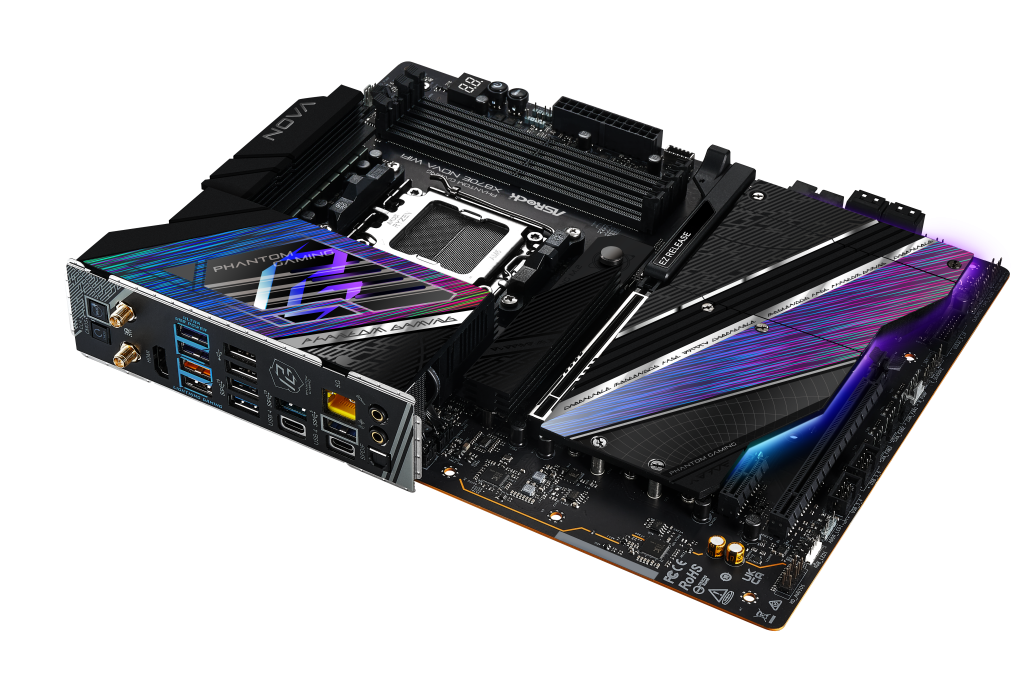

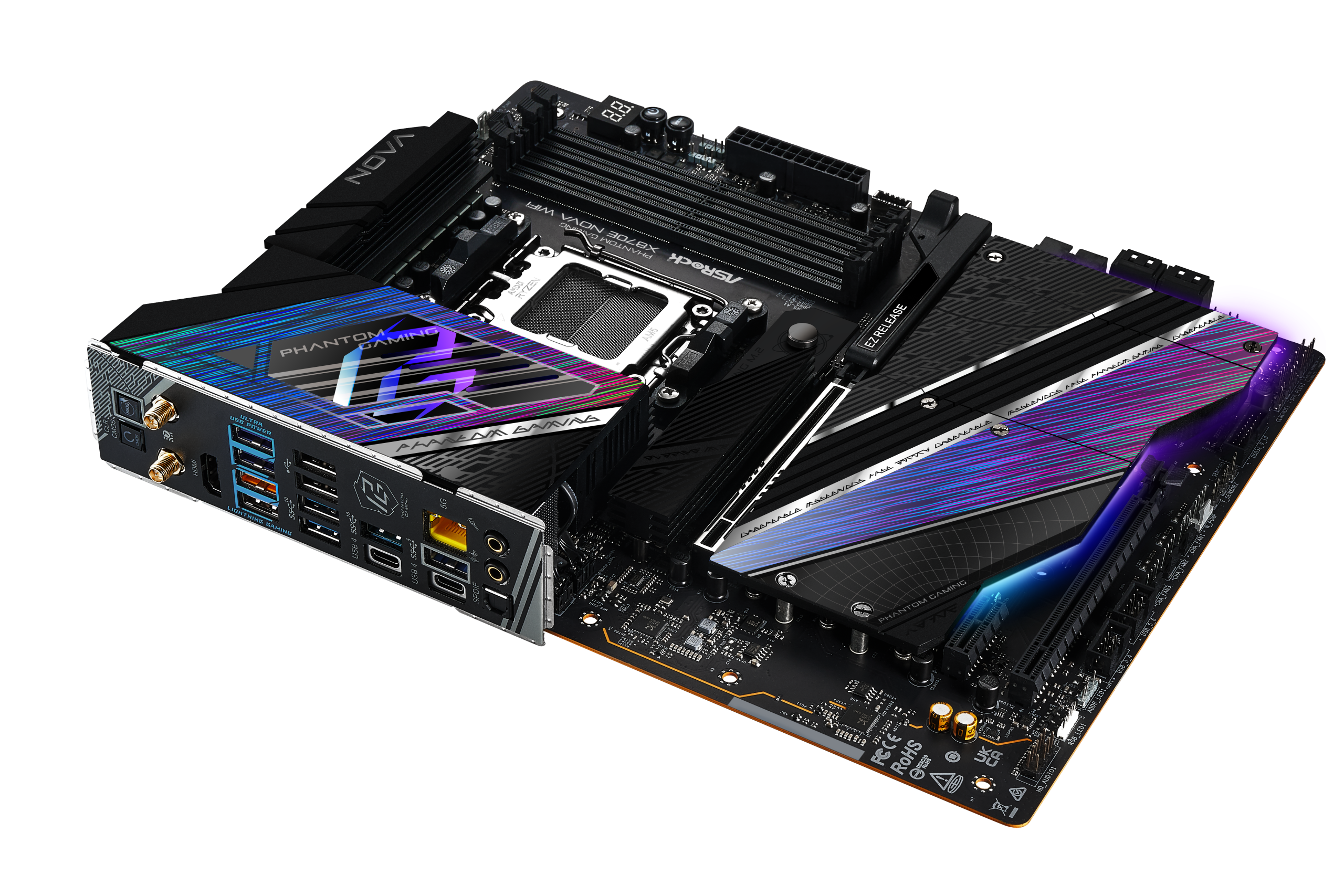

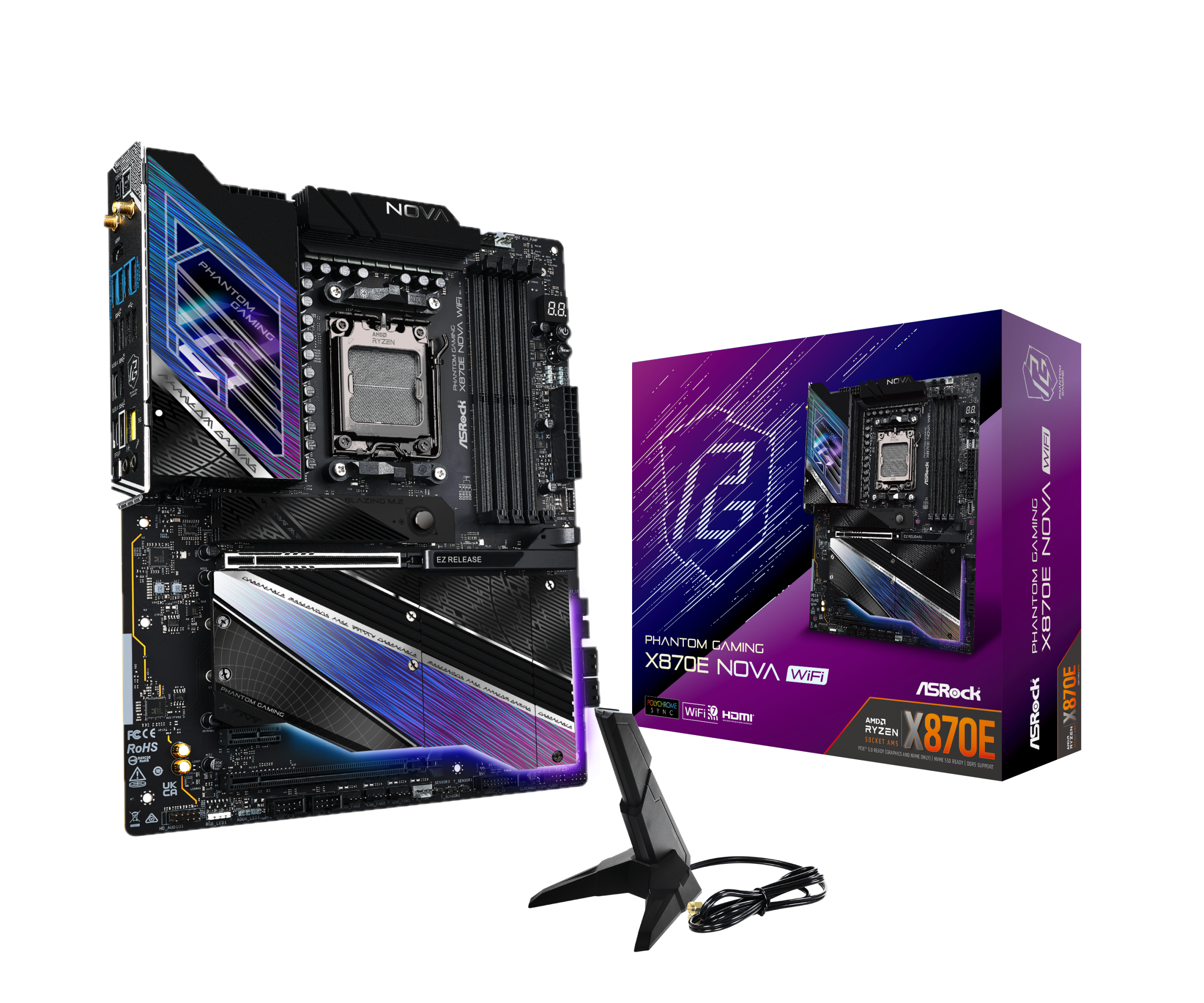

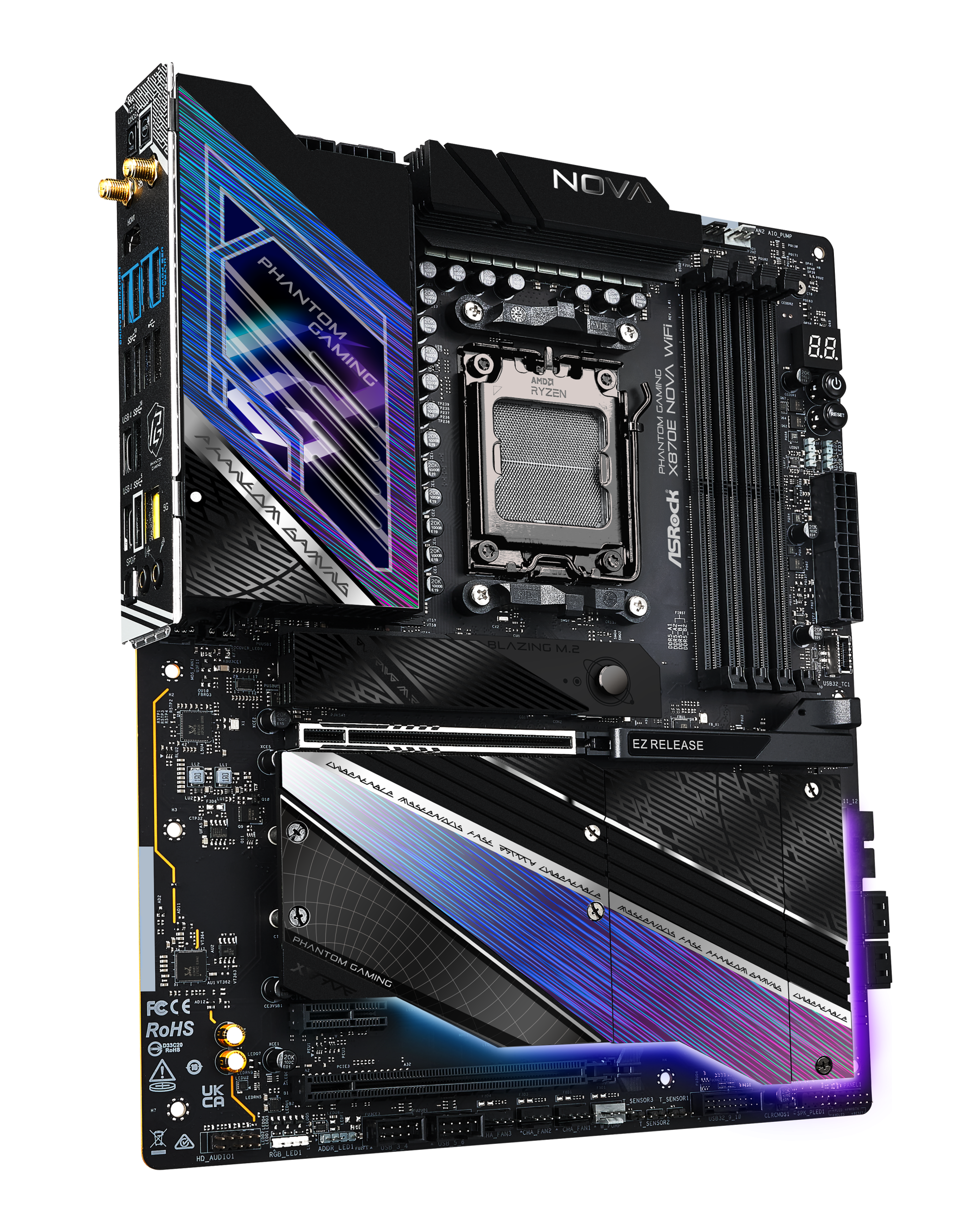

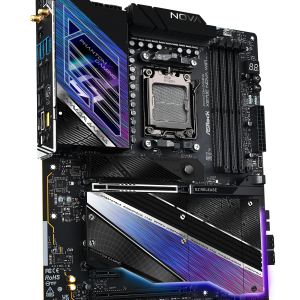

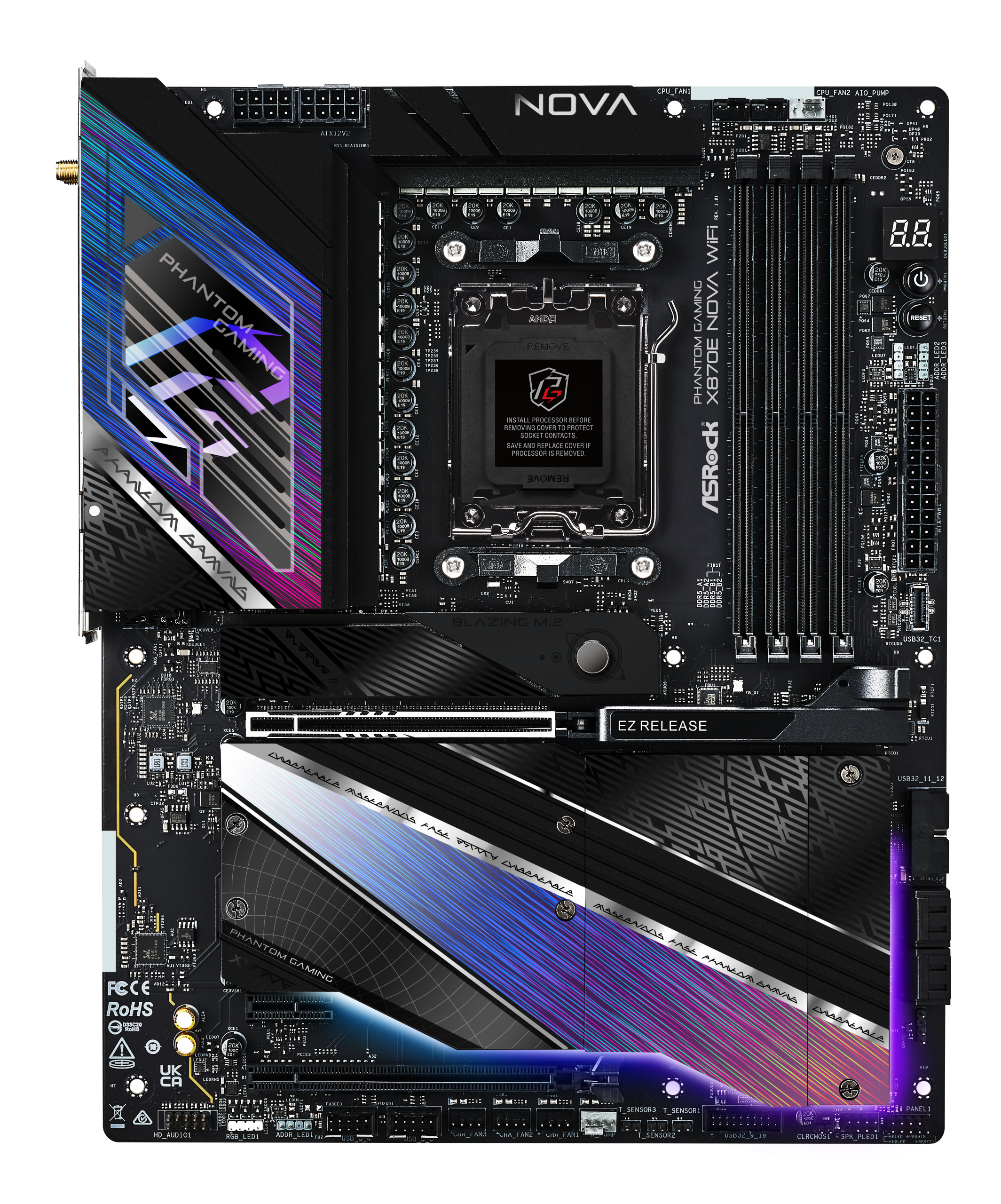

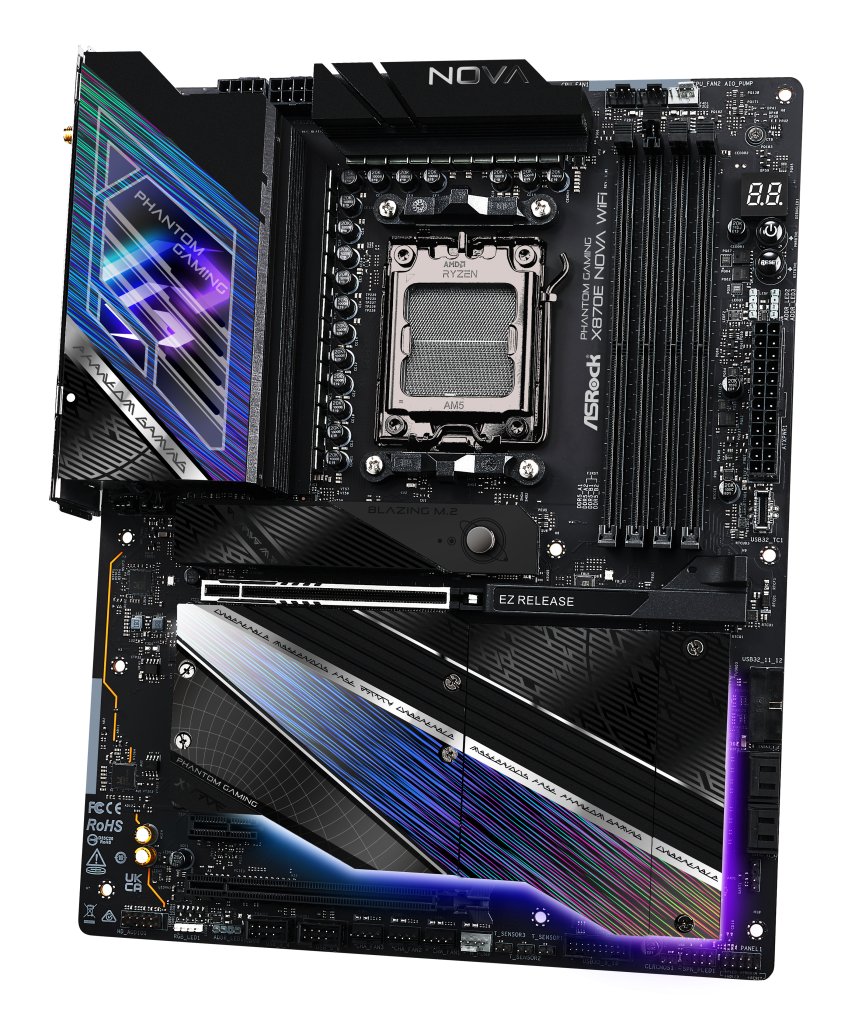

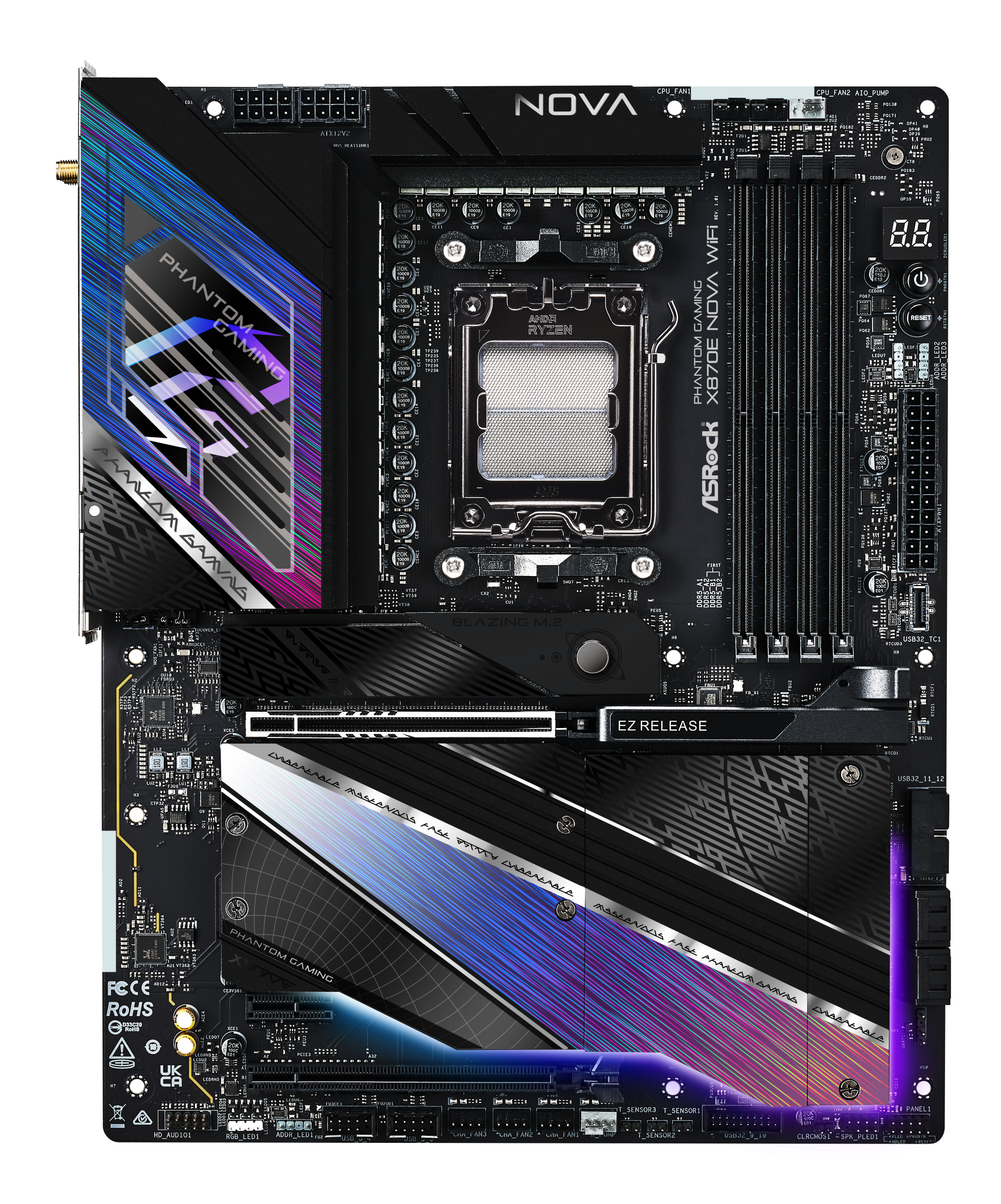

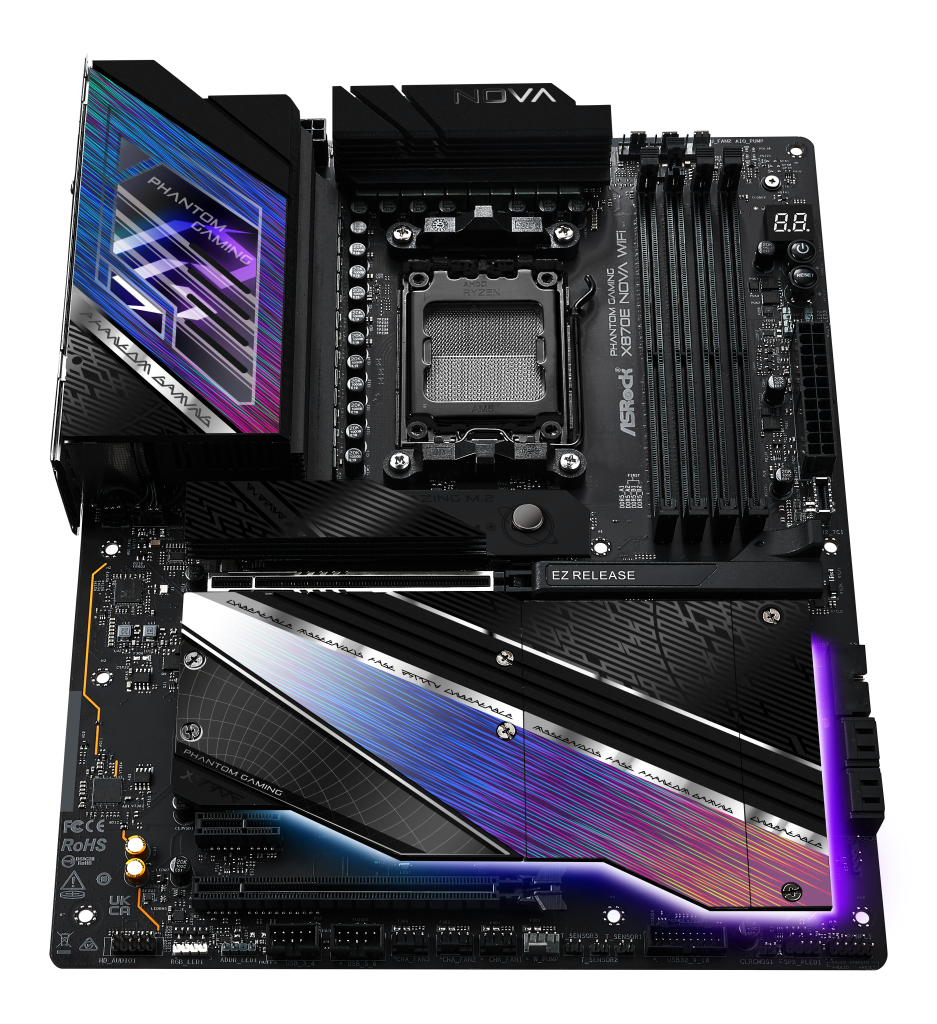

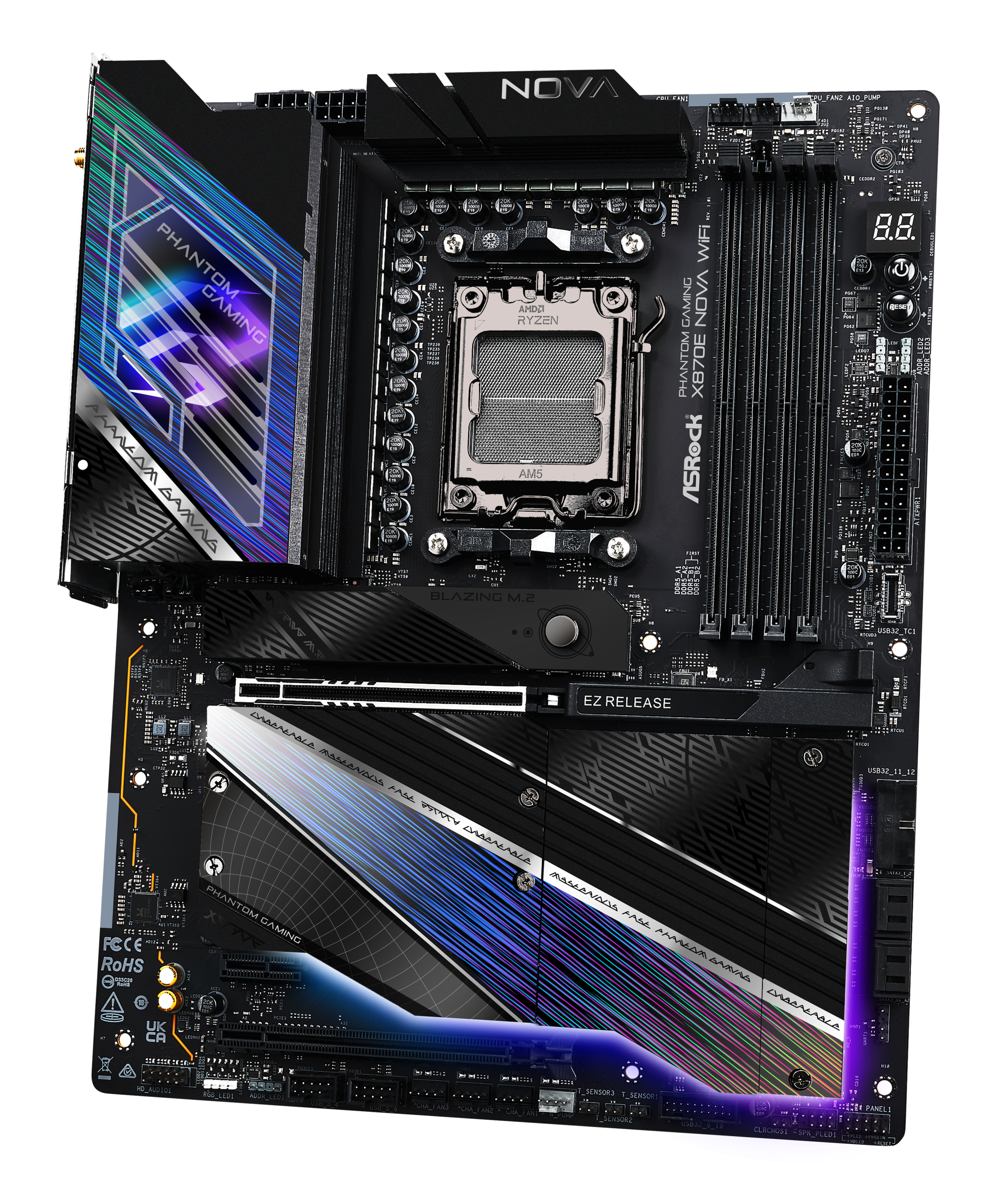

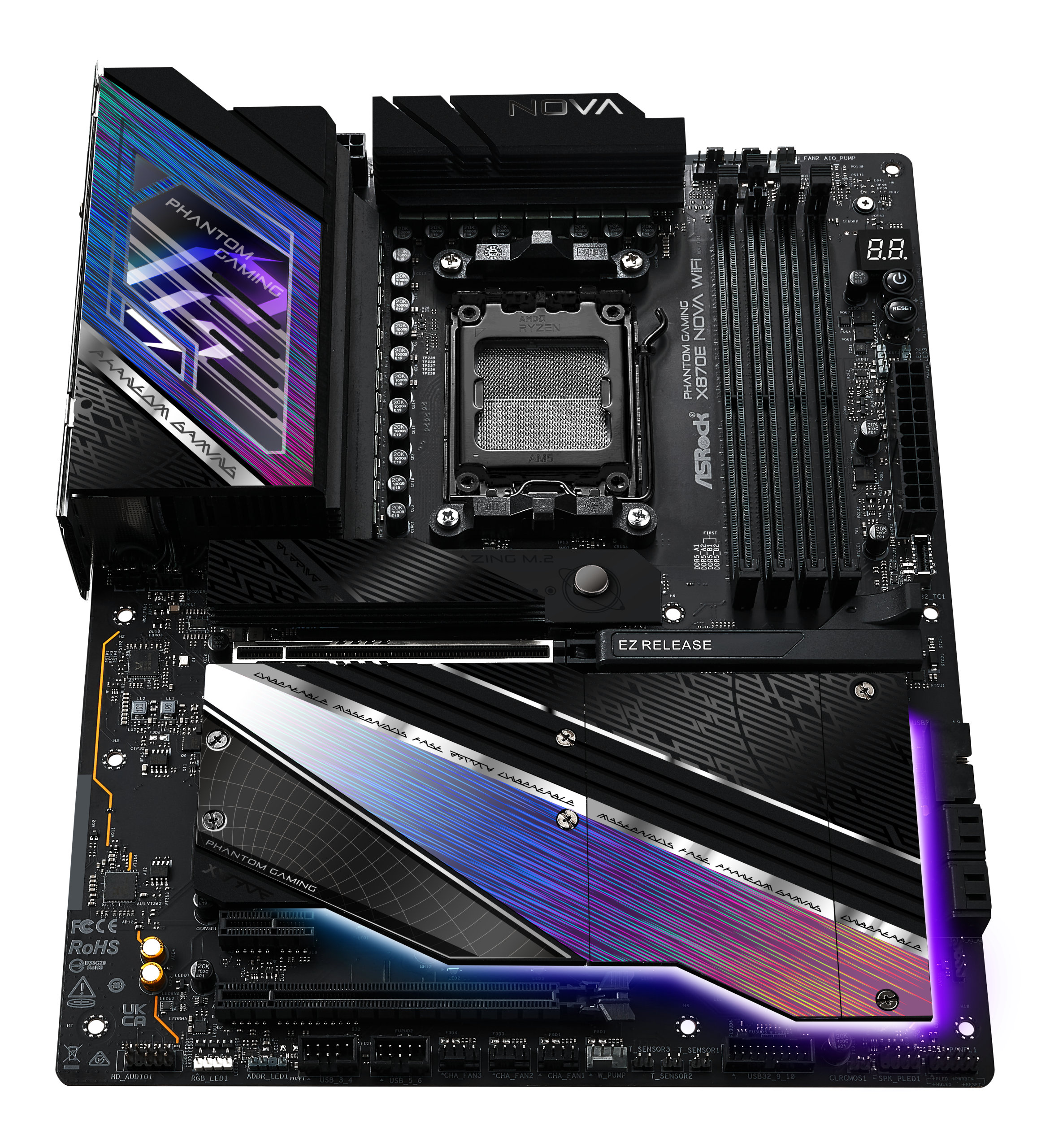

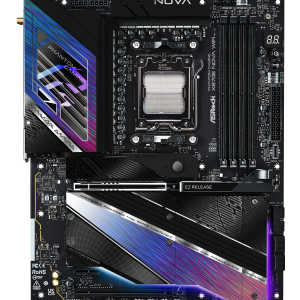

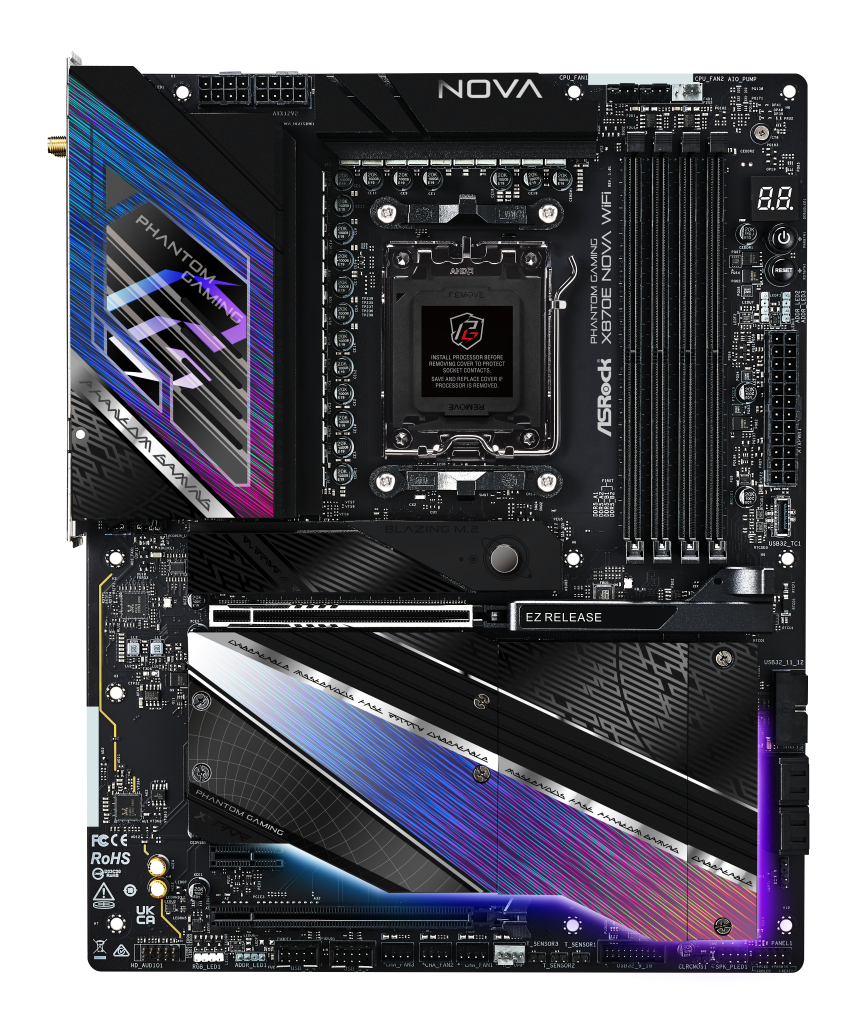

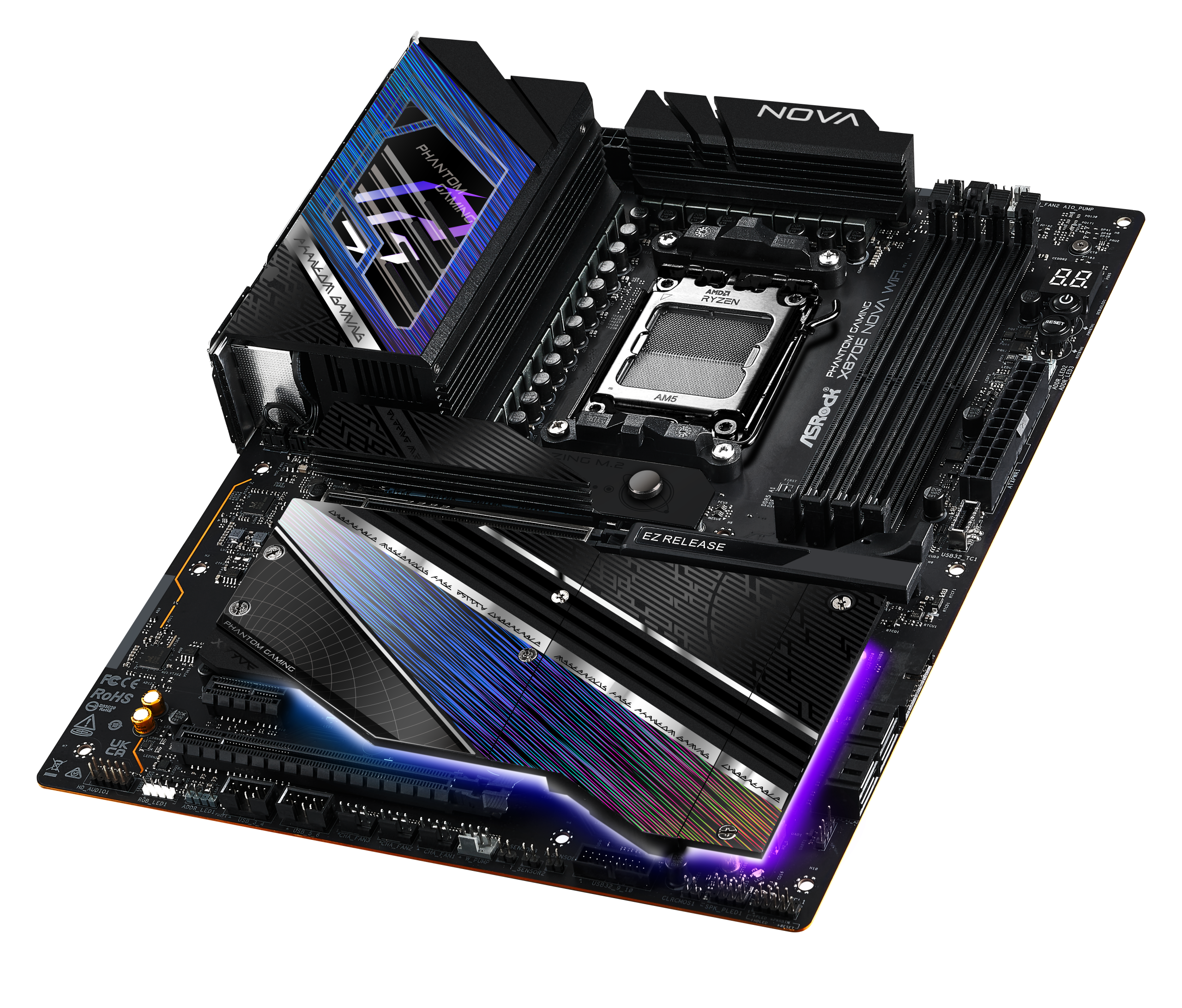

ASRock X870E Nova WiFi motherboard, socket AM5, AMD X870E, ATX, DDR5

– 1x PCIe 5.0 x16 (x16) and 2x PCIe 3.0 x16 / x1 (x2 / x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8200 MHz (OC)
– 5x M.2 (including 1x PCIe 5.0, 3x PCIe 4.0, and 1x PCIe 3.0) / 2x SATA 6G
 -2x USB 4, 5x USB 3.1, 3x USB 3.0, and 2x USB 2.0 on the I/O panel
– OC features: 23-phase VRMs, CMOS reset, BIOS flashback
– A total of 7x 4-pin PWM fans possible

ASROCK X870E NOVA WIFI: ATX motherboard with AMD AM5 socket and X870E chipset
The ASROCK X870E NOVA WIFI is equipped with the high-end X870E chipset for AMDs Ryzen 9000 series processors and offers numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASROCK X870E NOVA WIFI supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Optimized for Gaming
The ASROCK X870E NOVA WIFI is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback and Clear CMOS, so you can get your PC back up and running if something goes wrong. And, as usual, the DDR5 RAM can be pushed to its limits with higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870E (Dual Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8200 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 3.0 x16 (electrical x2, chipset)
– 1x PCIe 3.0 x1 (electrical x1, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 44
– 2x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 3x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x M.2 (PCIe 3.0 x2 & SATA; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 3x thermistor cable headers
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 2x CPU fan header (4-pin)
– 3x fan header (4-pin)
– 1x AiO pump header
– 1x Water Pump Fan Header
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

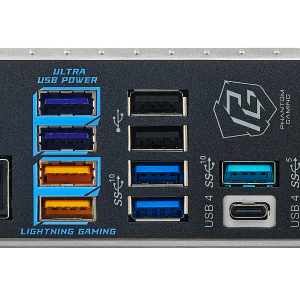

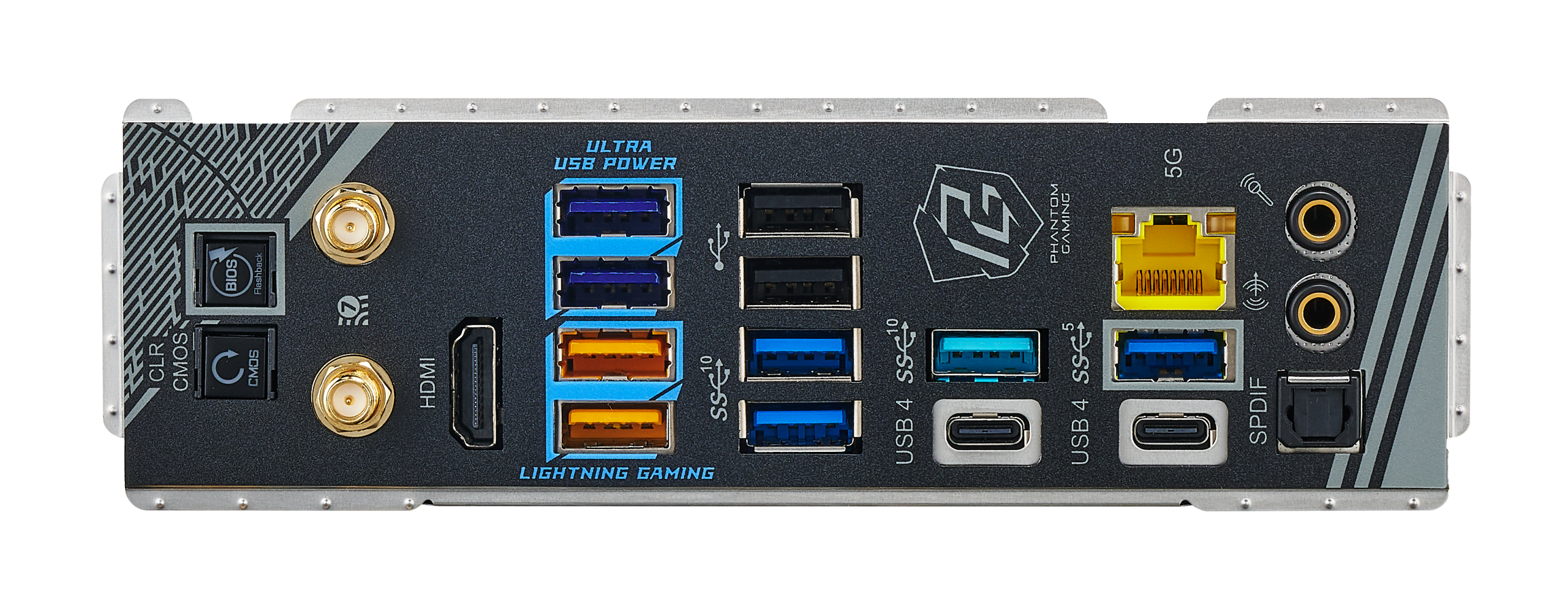

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 5x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 5 Gigabit LAN (RJ-45)
– 2x antenna ports
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC4082)
– 1x WiFI/Bluetooth module
– 1x Clear CMOS button
– 1x BIOS flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V

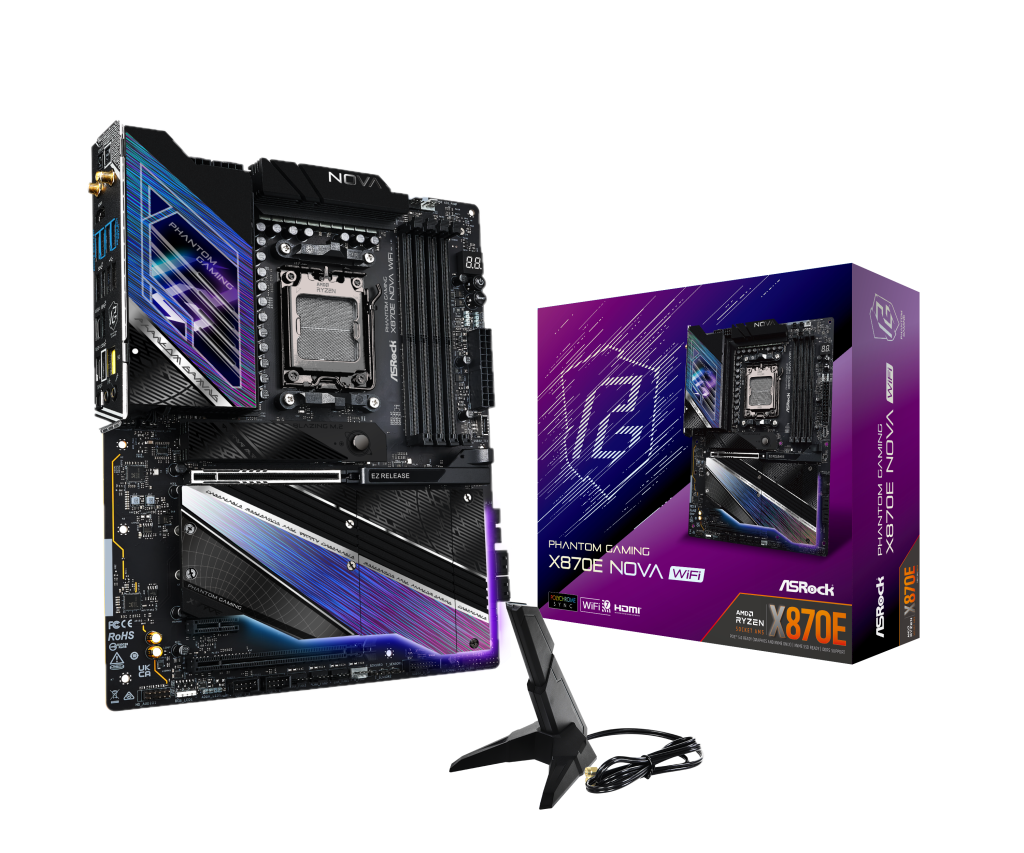

– 4 x SATA data cables
– 1 x ASRock WiFi 2.4/5/6 GHz antenna
– 1 x ARGB splitter cable
– 3 x thermistor cables
