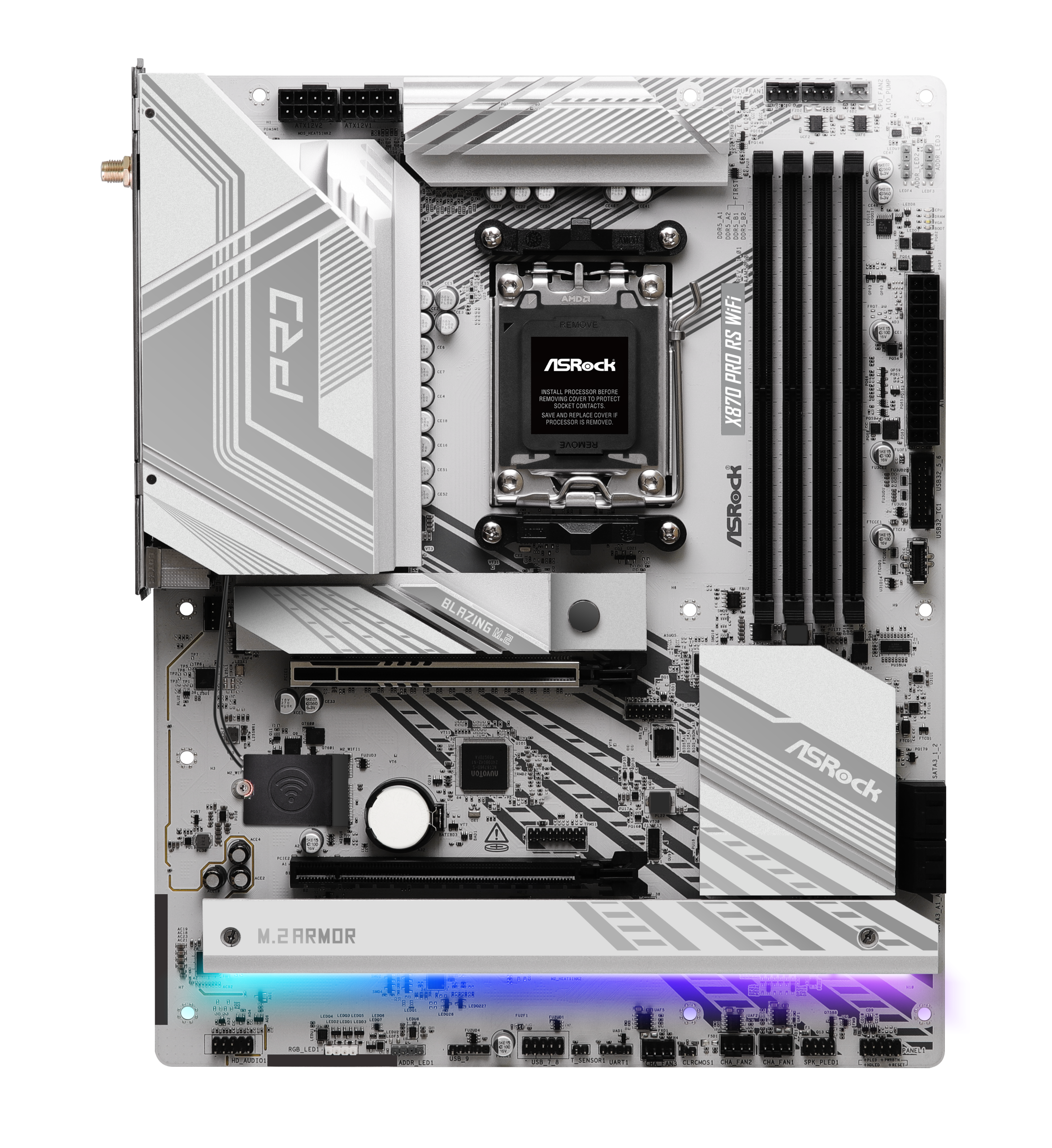

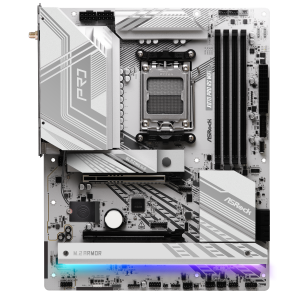

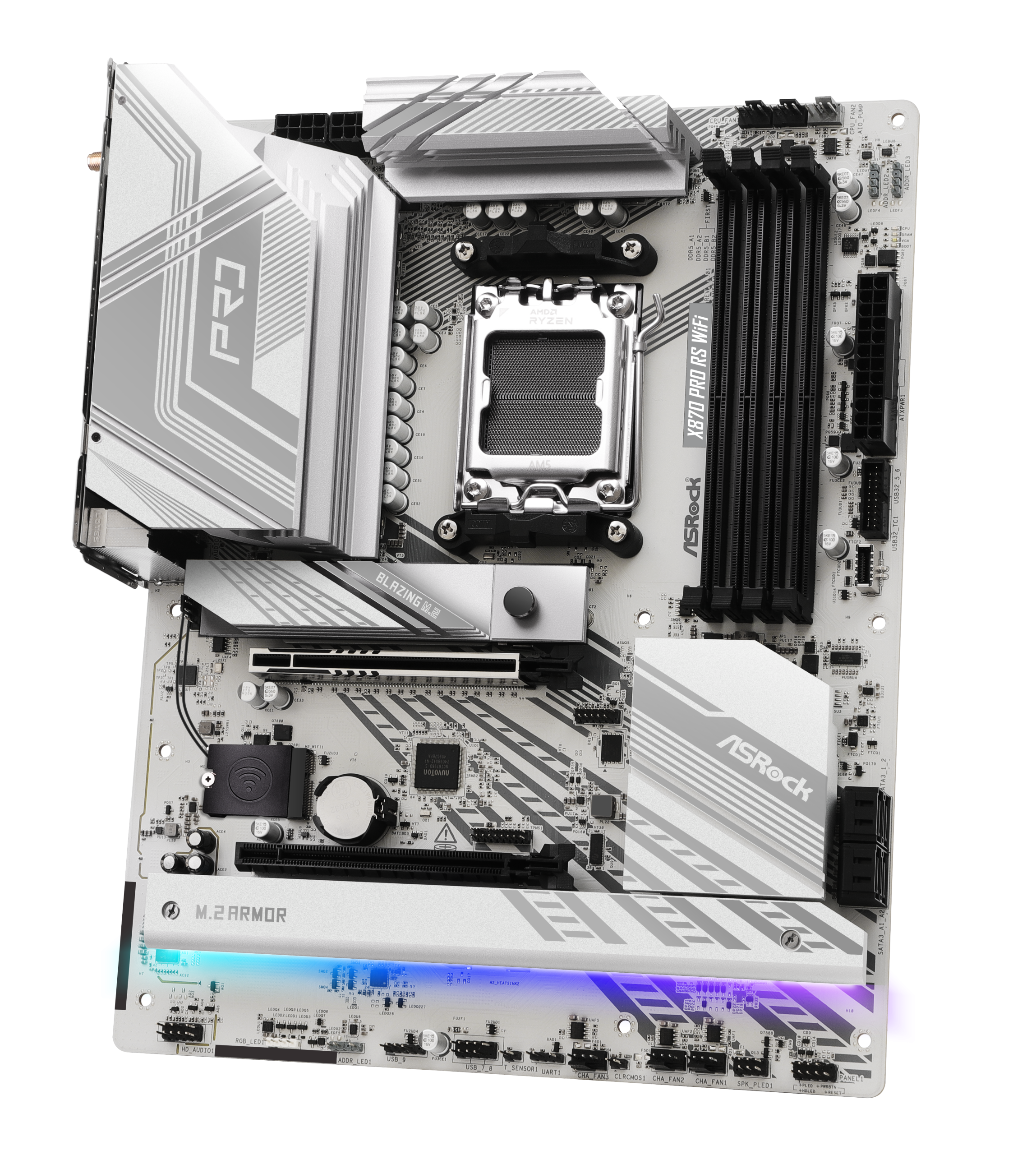

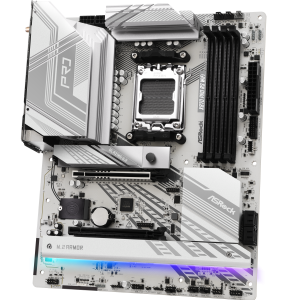

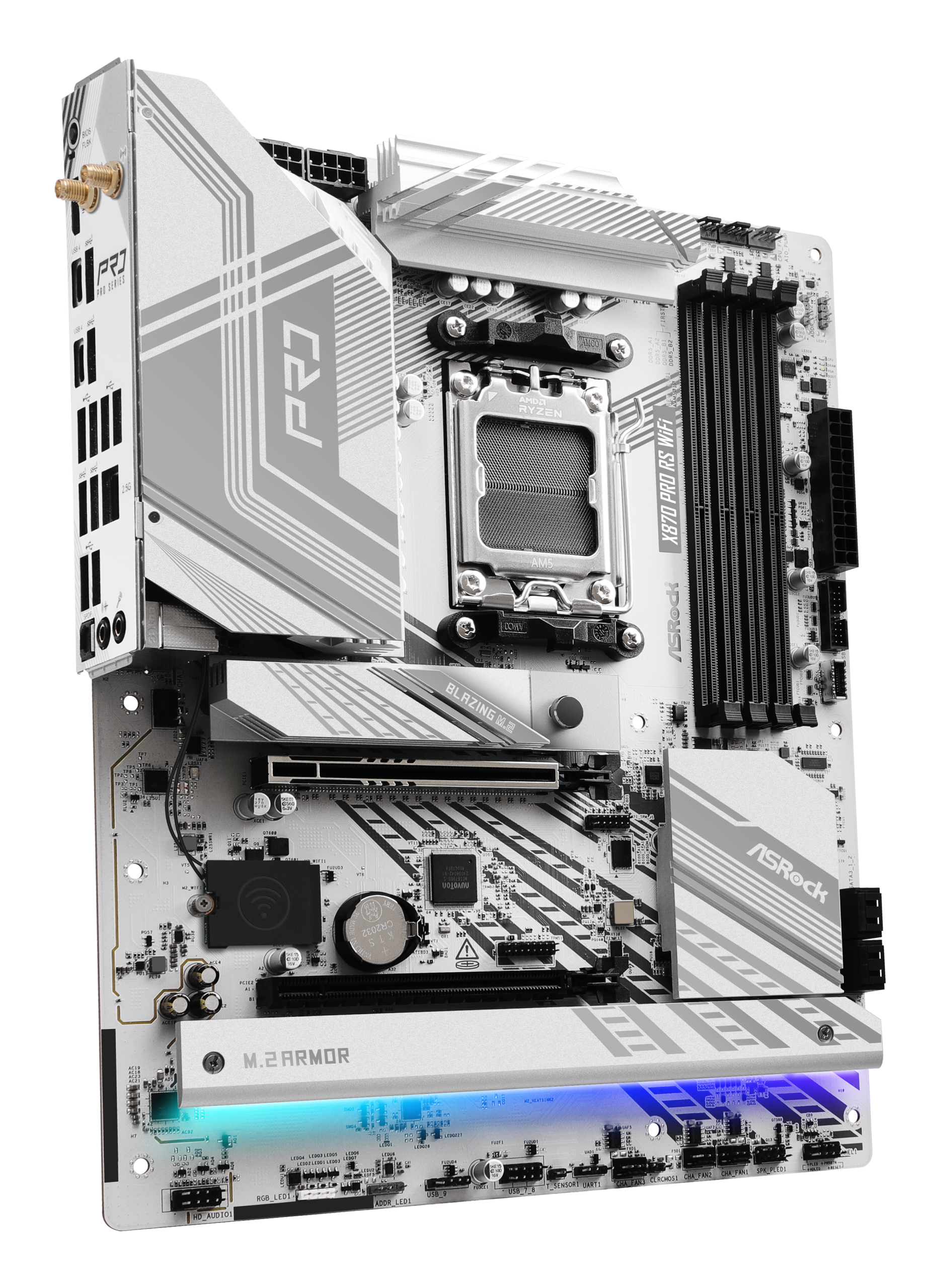

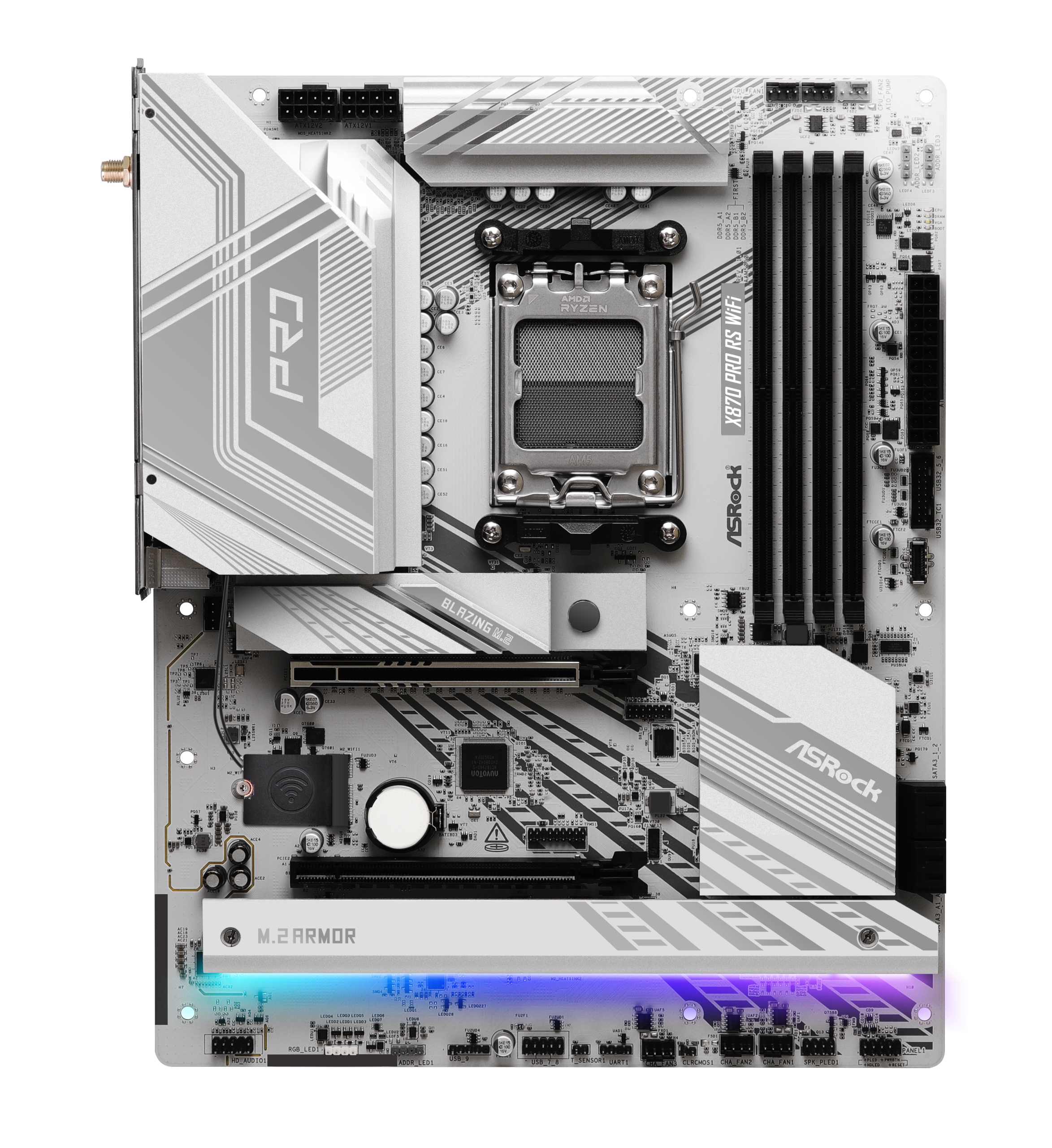

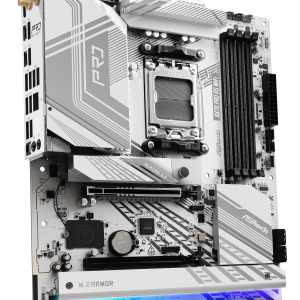

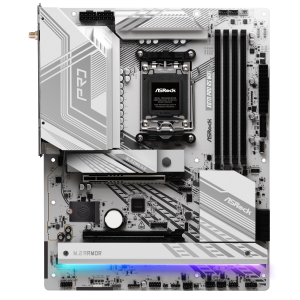

ASRock X870 Pro RS WiFi motherboard, socket AM5, AMD X870, ATX, DDR5

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8000 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0, 1x PCIe 4.0, and 1x PCIe 3.0) / 4x SATA 6G
– 2x USB 4, 4x USB 3.0, and 6x USB 2.0 on the I/O panel
– OC features: 17-phase VRMs, BIOS Flashback
– A total of 7x 4-pin PWM fans possible

ASROCK X870 PRO RS WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASROCK X870 PRO RS WIFI features the mid-tier X870 chipset for AMD Ryzen processors The AMD X870 motherboard is equipped with the latest Ryzen 9000 series processors and boasts numerous features for gamers. The Ryzen 9000 series processors also utilize the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASROCK X870 PRO RS WIFI supports PCIe 5.0, offering twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Made for Gaming
The ASROCK X870 PRO RS WIFI is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback also allow you to use the PC again if something goes wrong. And, as usual, DDR5 RAM can also be pushed to its limits with higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMMs up to 8000 MHz with overclocking
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2230 / 2242 / 2260) / 2280, chipset)
– 1x M.2 (PCIe 3.0 x4 & SATA; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 3x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x WiFi/Bluetooth module
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 2x CPU fan header (4-pin)
– 4x fan header (4-pin)
– 1x AiO pump header
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12 V)

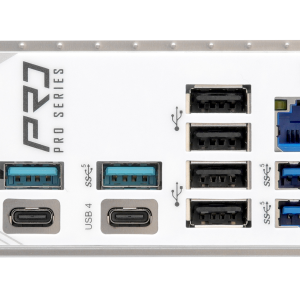

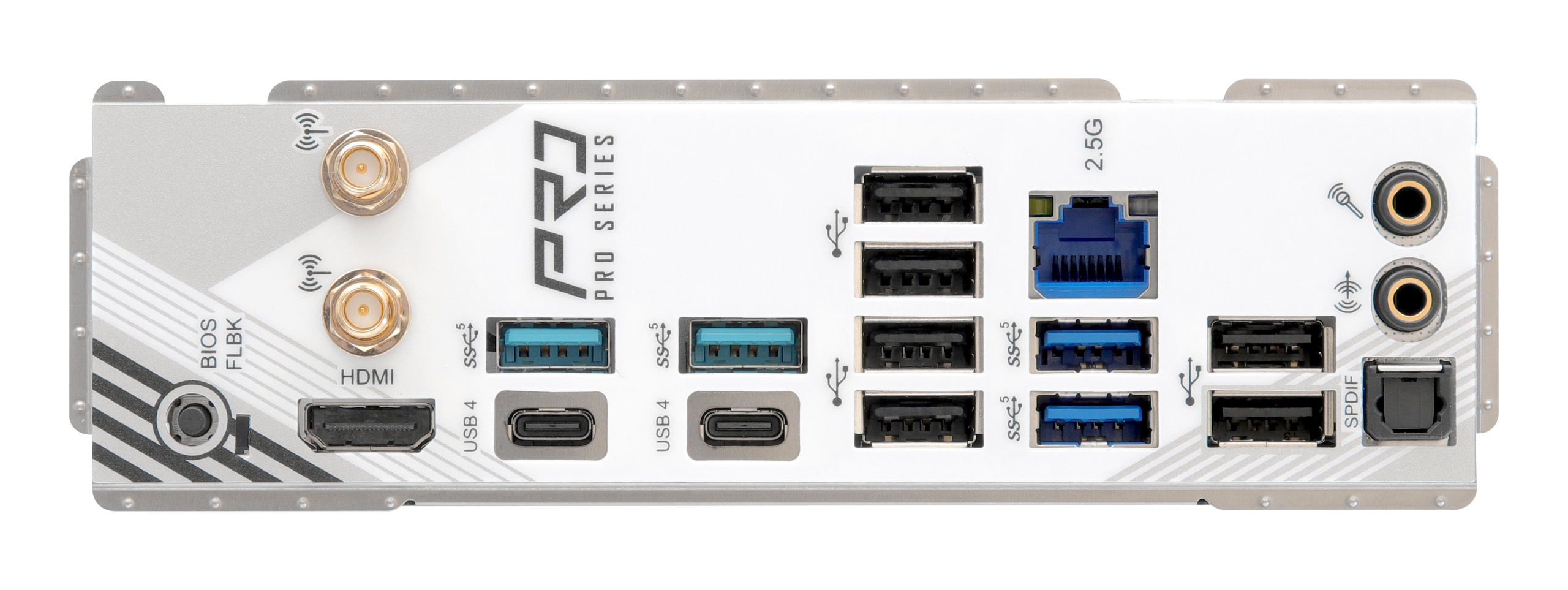

– External Ports:
– 2x USB 4 (Type-C, USB 4 Gen 3×2, max. 40 Gbps with DisplayPort)
– 4x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 6x USB 2.0 (Type-A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Dragon RTL8125BG)
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC 1220)
– 1x BIOS Flashback
 -Power Supply:
– 1x 24-pin ATX
– 2x 8-pin 12V

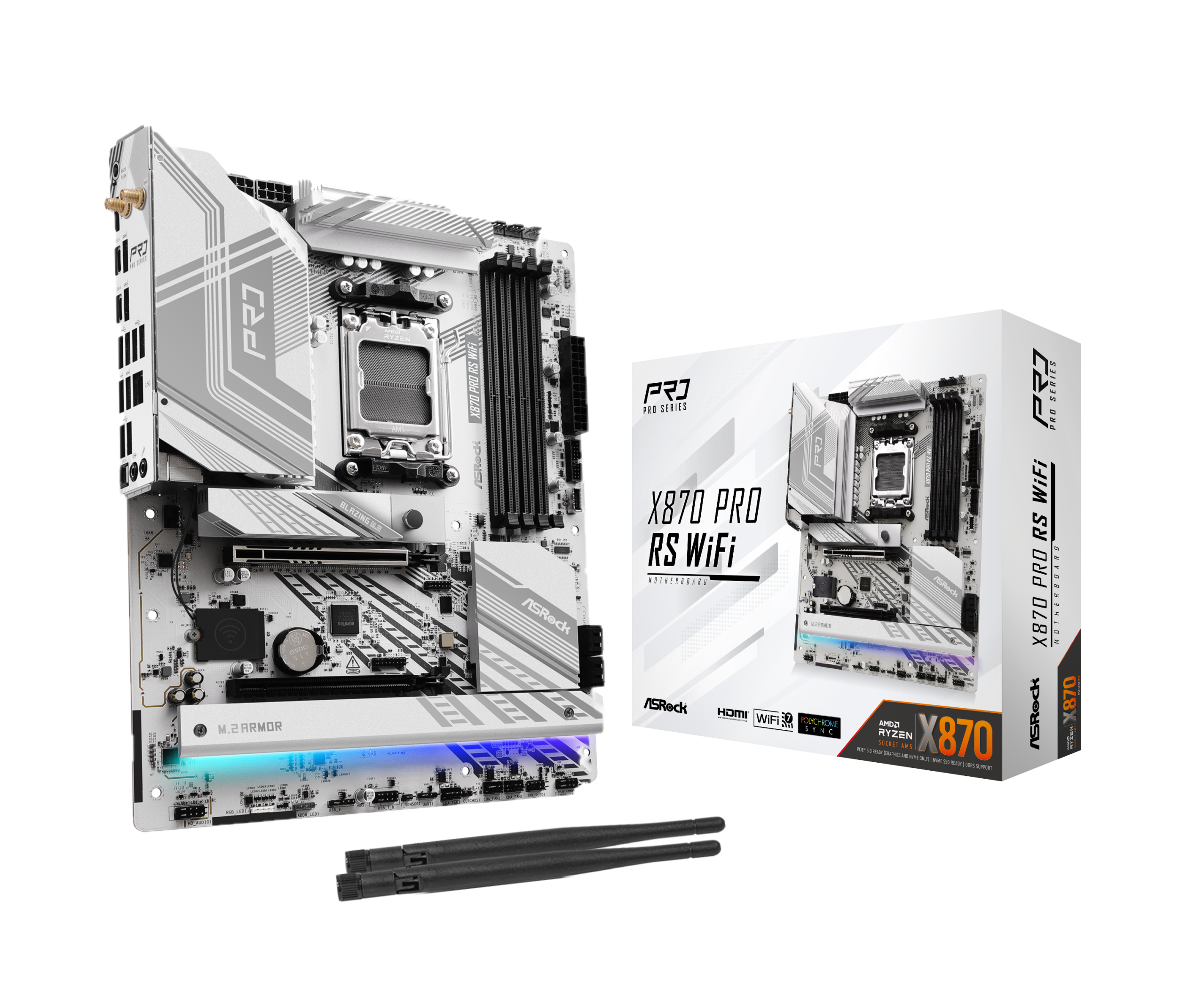

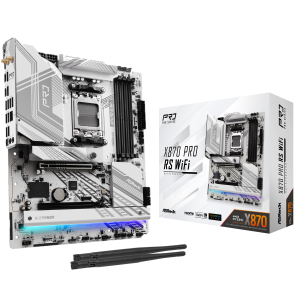

– Accessories:
– 2x SATA data cables
– 2x ASRock WiFi 2.4/5/6 GHz antennas
