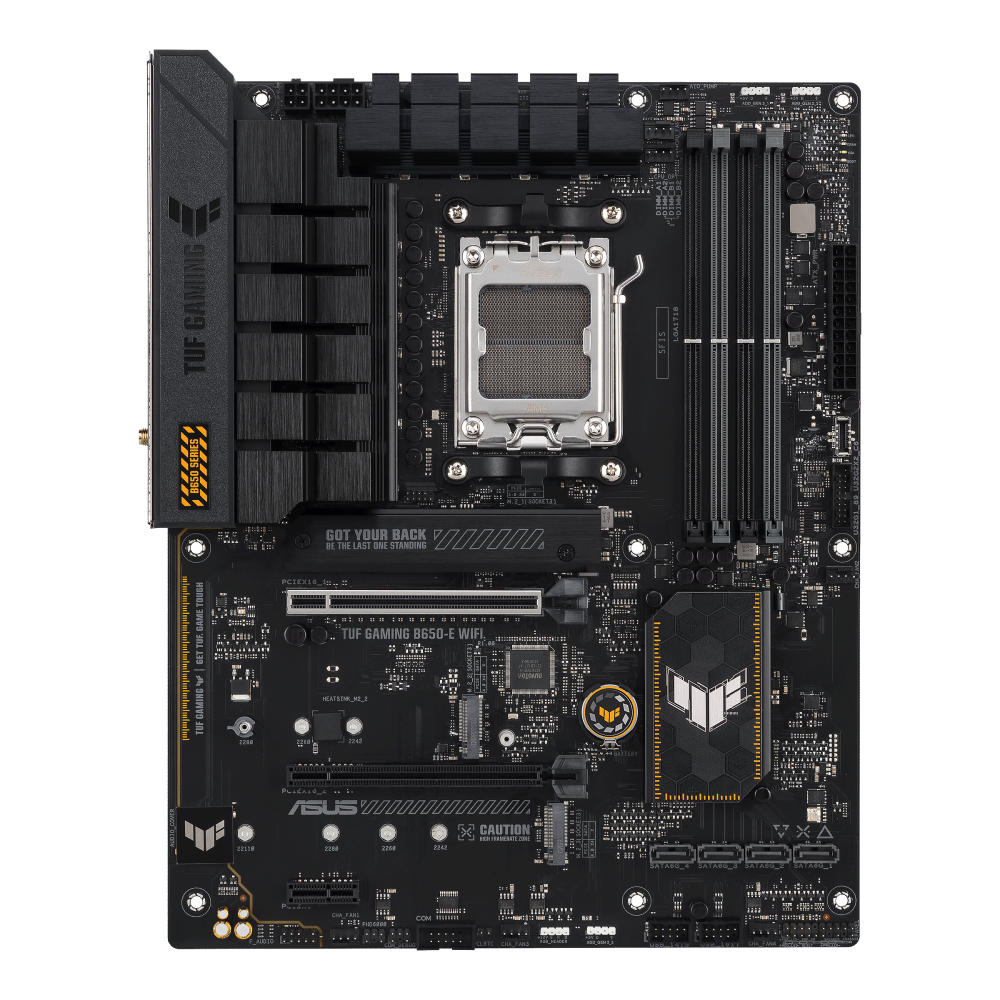

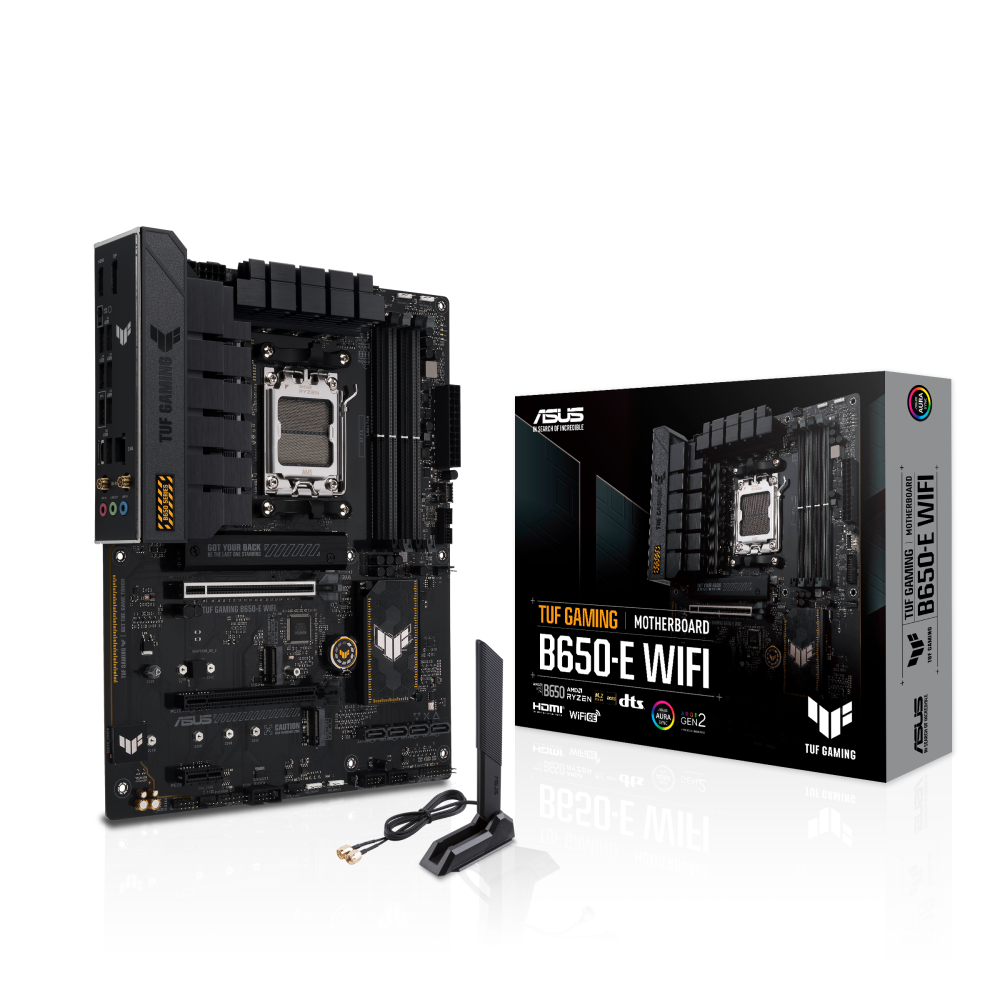

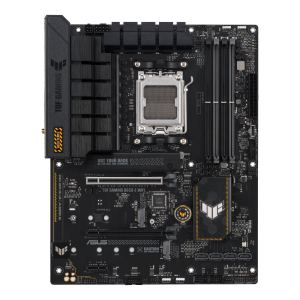

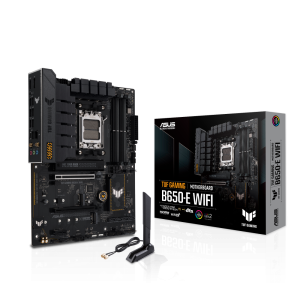

ASUS TUF Gaming B650-E WiFi, AMD B650 motherboard - Socket AM5, DDR5

– 2x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x4 (x4) slots
– DDR5 memory up to 7800 MHz
– 1x M.2 PCIe 5.0, 2x M.2 PCIe 4.0, and 4x SATA
– USB on the I/O panel: 1x USB-C 3.2, 1x USB-A 3.0, 4x USB-A 2.0
– 2.5 Gb LAN and Wi-Fi
– Supports Ryzen 7000/8000 processors

For ATX cases and AMD processors
The TUF Gaming B650-E from ASUS is specifically designed for Ryzen 7000 and 8000 processors. The ATX standard allows you to easily install the motherboard in a mid-tower.

You can expand the DDR5 memory by up to 192 GB using the four RAM slots, ensuring your PC can handle even demanding multitasking tasks with ease. You can also overclock the memory to up to 7,800 MHz.

Plenty of ports and support for M.2 SSDs
The motherboard offers plenty of ports for your peripherals and hardware, including a USB-C port capable of speeds of up to 20 Gbps. The latest PCI Express version 5.0 also allows you to install fast M.2 SSDs on the motherboard, making long loading screens in games a thing of the past.

The motherboard also features a built-in Wi-Fi module, a 2.5 Gigabit LAN port, and supports Bluetooth 5.3.

Comprehensive cooling for your hardware
The extended heatsink in the motherboard ensures better heat dissipation and allows processors to run at full speed. A heatsink on an M.2 slot also prevents SSD throttling. You can also control the fans using the integrated Fan Xpert 4 utility or directly via the ASUS UEFI BIOS. This provides you with extensive configuration options.

For the best possible processor performance, we recommend regularly updating the BIOS for your motherboard. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical details
– Format: ATX (305 x 244 mm)
– Chipset: AMD B650
– Socket: AM5
– R.A.M:
– 4x DDR5 (5,200 MHz, up to 7,800 MHz via OC)
– Dual channel
– max. 192GB
– Slots:
– 2x PCIe 4.0 x16 (electrical x16)
– 1x PCIe 4.0 x1 (electrical x4)
– Internal connections:
– 4x SATA 6G
– 1x M.2 (M-Key, PCIe 5.0 x4, 2242 – 2280, CPU)
– 1x M.2 (M-Key, PCIe 4.0 x4, 2242 – 2280, CPU)
– 1x M.2 (M-Key, PCIe 4.0 x4, 2242 – 2280, chipset)
– 1x USB-C 3.1 (1 header, USB 3.2 Gen 2×2, max. 20 Gbps)
– 1x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Chassis Intrusion Header
– 1x TPM Header
– RGB Header:
– 1x RGB Header (4-pin, 12 V)
– 2x ARGB Header (3-pin, 5 V)
– Fan Header:
– 2x CPU Fan (4-pin)
– 1x Pump (4-pin)
– 4x Chassis Fan (4-pin)

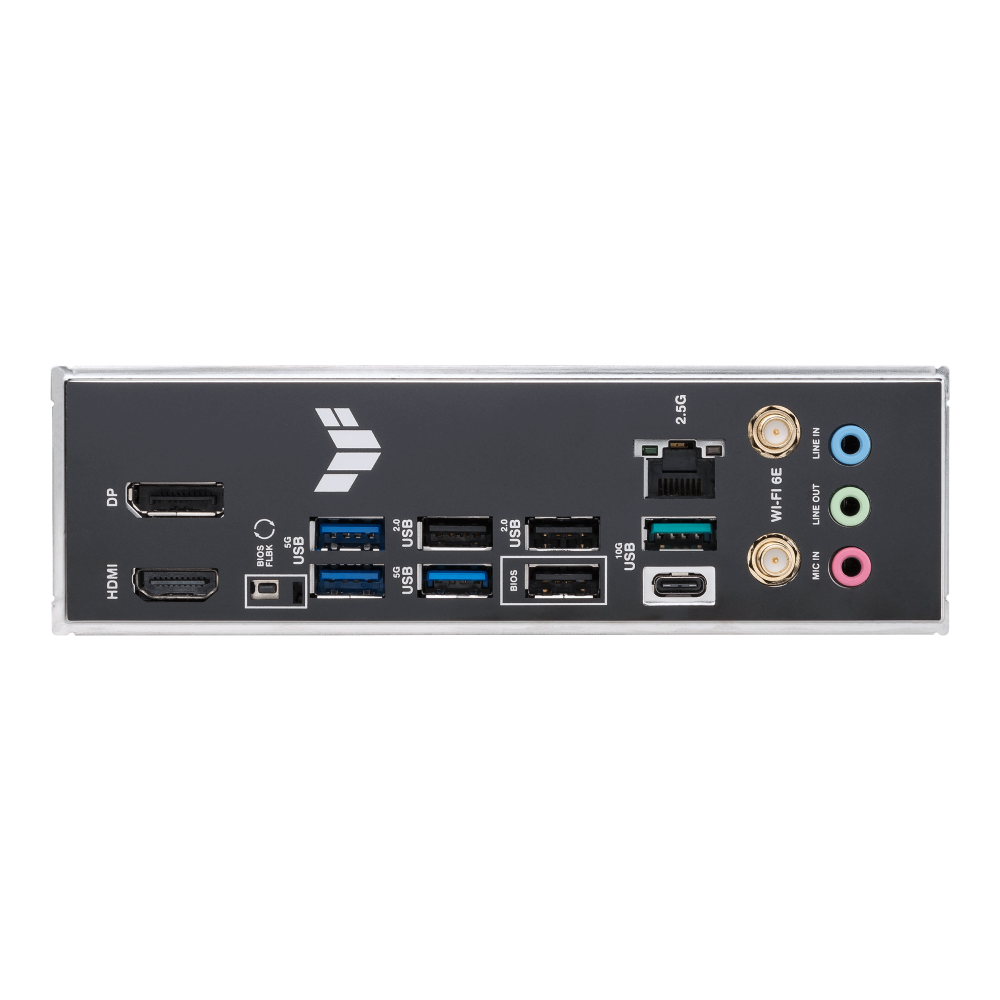

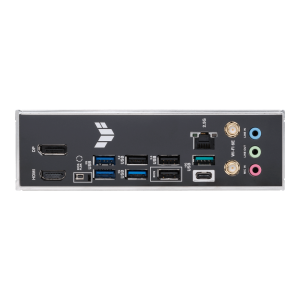

– External Connectors:
– 2x USB (1x Type-A, 1x Type-C, max. 10 Gbps)
– 3x USB-A 3.0 (USB 3.2 Gen 1, max. 5 Gbps)
– 3x USB-A 2.0
– 1x HDMI 2.1
– 1x DisplayPort 1.4
– 1x 2.5 Gigabit LAN
– 1x WLAN antenna connector (WiFi 6E, Bluetooth 5.3)
– 5x 3.5 mm jack
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin
– 1x 4-pin
