ASRock B650 Steel Legend WiFi, AMD B650 motherboard - Socket AM5, DDR5

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 3.0 x16 (x4)
– Supports up to 192 GB DDR5 RAM up to 7,200 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) and 4x SATA 6G
– 1x USB 3.2 Type-C with 20 Gbps, 1x USB 3.1 Type-A, 4x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 14+2 virtual phase VRMs, BIOS Flashback
– A total of 6x 4-pin PWM fans possible

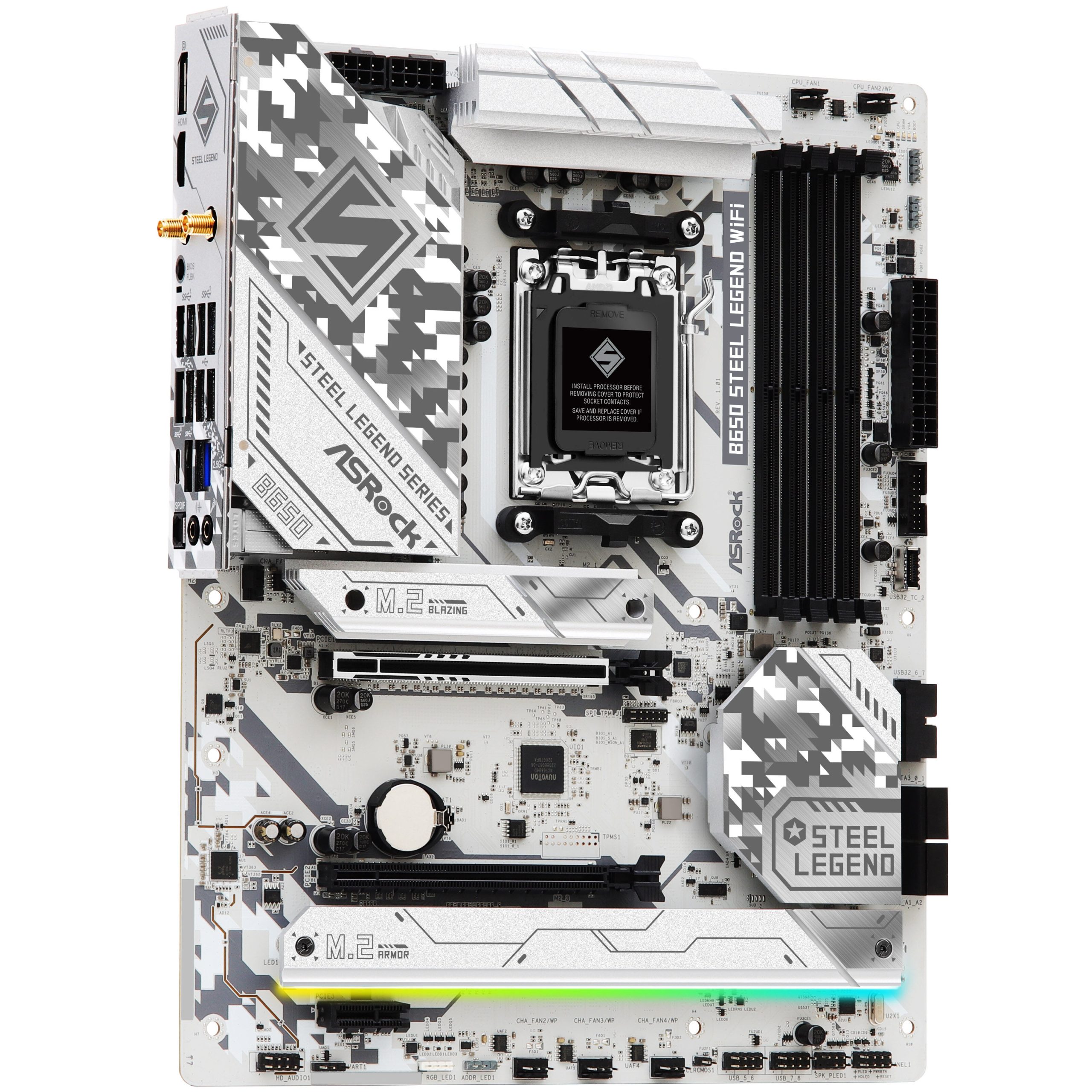

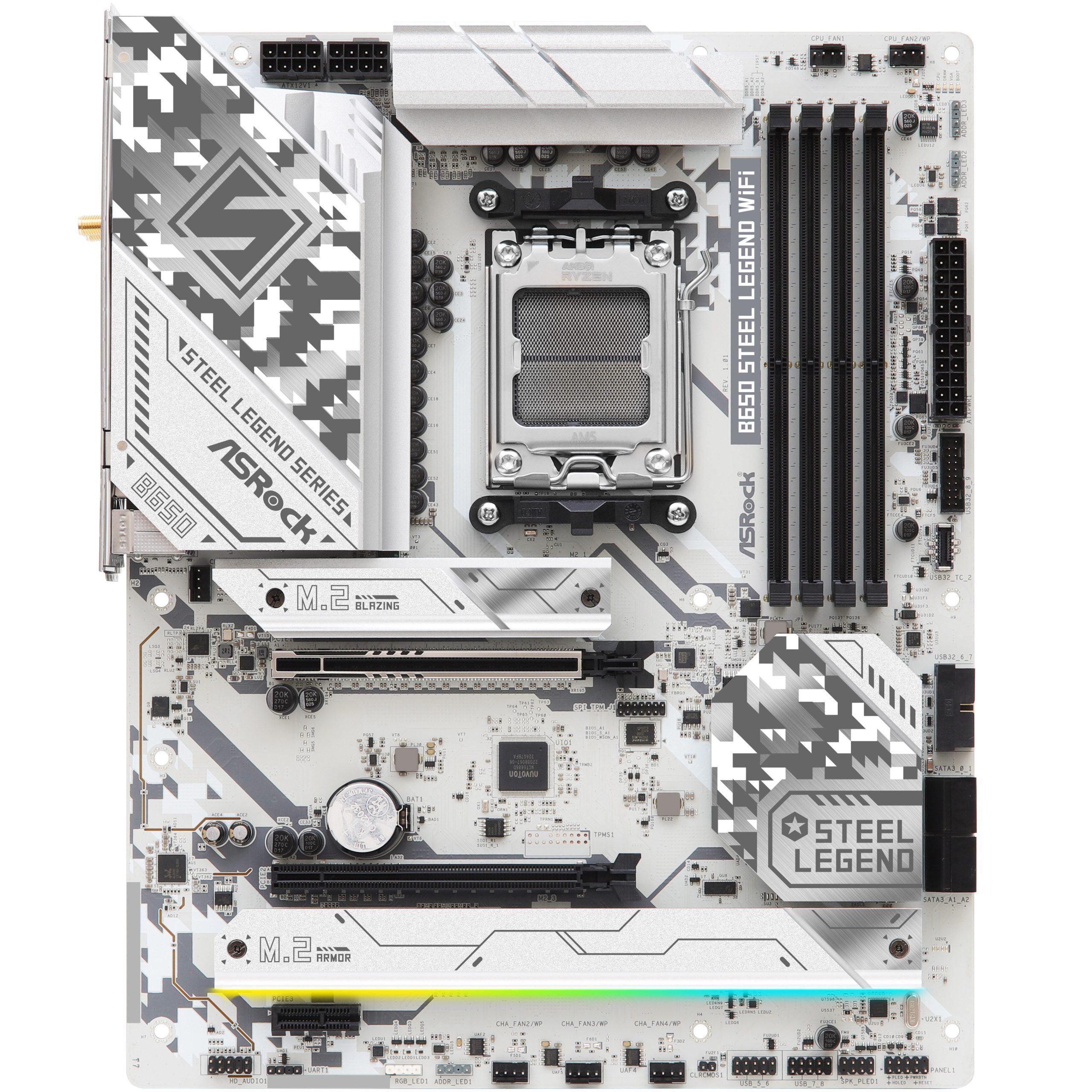

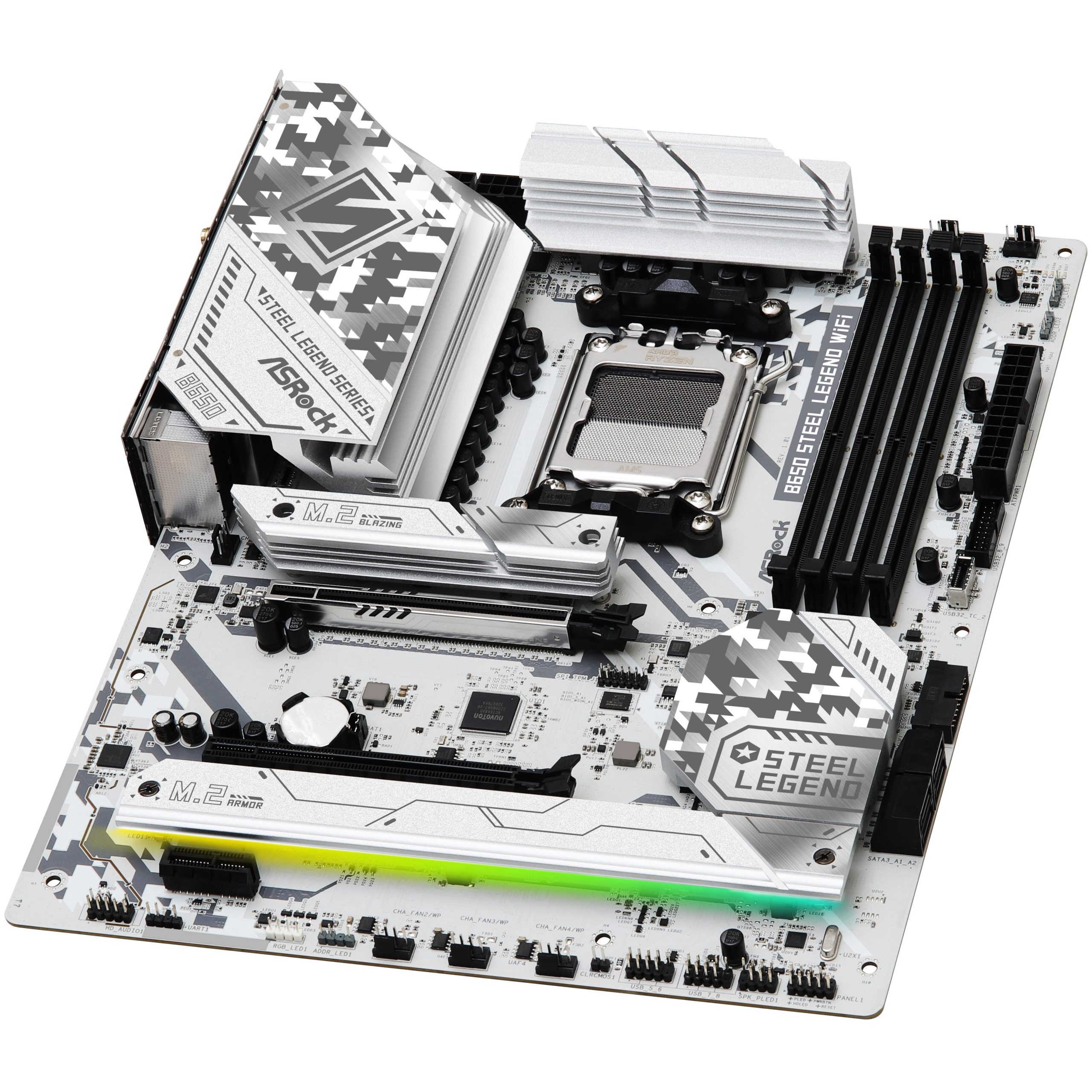

ASRock B650 Steel Legend WIFI: ATX motherboard with AMD B650 chipset for AM5 CPUs
The ASRock B650 Steel Legend WIFI is equipped with the The B650 chipset is equipped for AMDs Ryzen 7000 processors and offers numerous features for enthusiasts and gamers. Since the Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and the expanded power supply, the 600 series motherboards use the AM5 (LGA 1718) socket. The 20 Gbps data transfer rate via the USB 3.2 Type-C port is also extremely useful for fast data transfers between the PC and portable SSDs.

Despite the higher pin count in AM5, the actual size of the socket remains the same as the older generation, allowing most CPU coolers for Socket AM4 to be installed on the motherboard.

The motherboard is designed for overclocking, so you can enjoy even demanding games. The voltage converters with 16 virtual phases provide 80 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback, so you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5,600 MHz, validated up to 7,200 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 3.0 x16 (electrical x4, CPU)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 2230 / 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x fan header (4-pin)
– 4x chassis/water pump headers
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

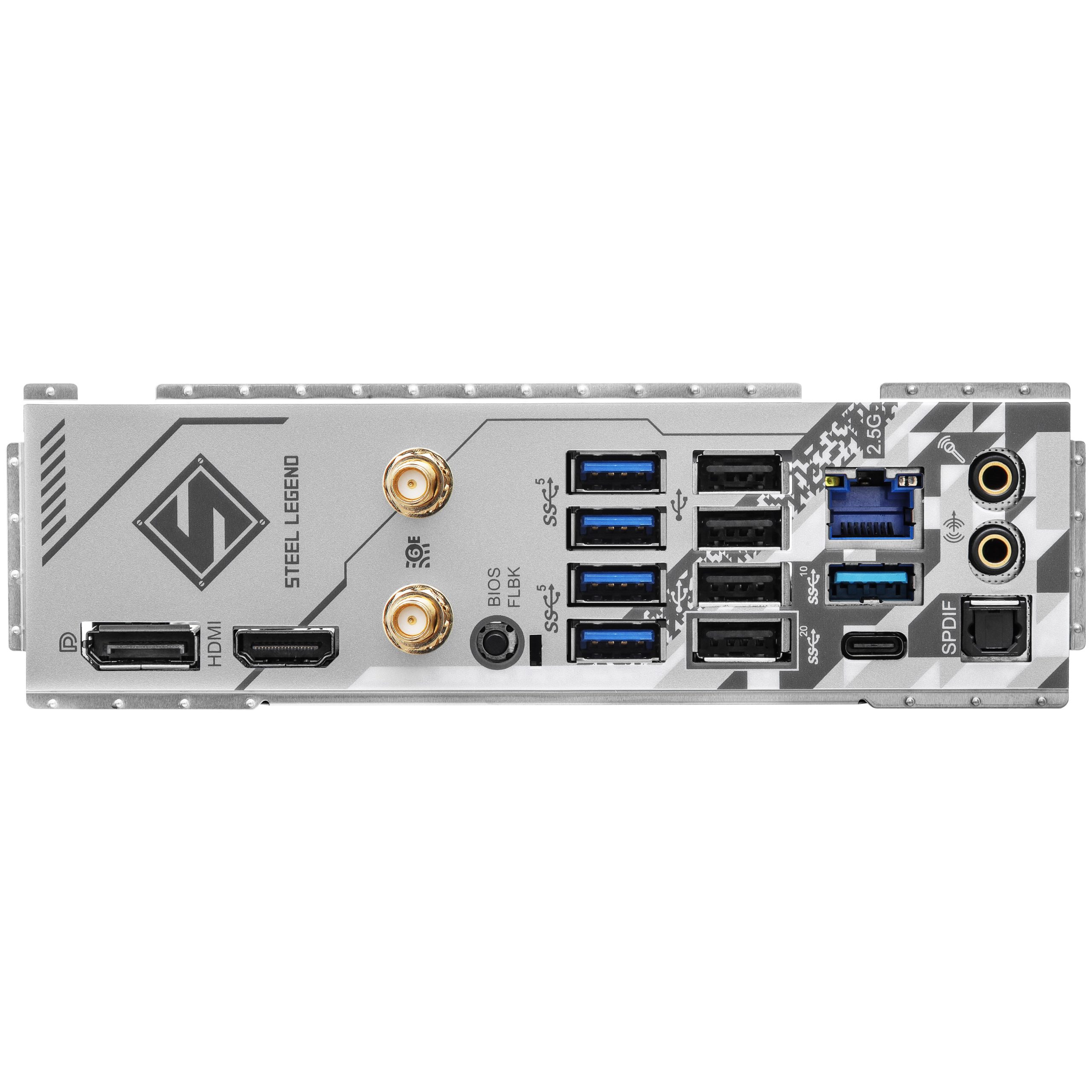

– External connections:
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2×2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek RTL8125BG)
– 1x WiFi/Bluetooth module (Realtek AC9560)
– 1x 3.5 mm jack (Realtek ALC4082)
– 1x S/PDIF audio
– 1x reset
– 1x BIOS flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
– Accesories:
– 1x manual
– 2x SATA cable
– 1x Wi-Fi antennas
– Screw set for M.2
